INSTRUKCJA
MONTA¯U I EKSPLOATACJI
ZACZEPU KULOWEGO DO:
Skoda Superb II
(4/5D)
(Kombi)
(06/2008 - ®)
(12/2009 - ®) Nr kat. S-348
PRZEZNACZENIE
Zaczep kulowy S-348 jest przeznaczony do holowania przyczepy. Zaczep
-348
-348
-348
ten posiada aktualne
Œwiadectwo Homologacji uprawniaj¹ce do oznaczenia wyrobu znakiem homologacji e20.
WARUNKI MONTA¯U
Zaczep kulowy Smo¿e byæ u¿ywany i eksploatowany w samochodzie o w³aœciwym stanie
technicznym elementów nadwozia. Zaczep musi byæ zamontowany i eksploatowany w samochodzie
zgodnie z niniejsz¹ instrukcj¹.
Wszystkie œruby i nakrêtki wystêpuj¹ce w zaczepie kulowym musz¹ byæ dokrêcone odpowiednim
momentem obrotowym (Mo) o wartoœciach podanych w poni¿szej tabeli (dla œrub w klasie 8.8):
WARUNKI EKSPLOATACJI
Zaczep kulowy Sposiada tabliczkê znamionow¹ okreœlaj¹c¹ prawid³owe i bezpieczne obci¹¿enie
zaczepu, tj. :
Podczas eksploatacji poszczególne elementy zaczepu kulowego powinny byæ utrzymane w nale¿ytym
stanie technicznym i zabezpieczone przed dzia³aniem korozji. W czasie holowania przyczepa musi byæ
z³¹czona dodatkowym elastycznym z³¹czem o odpowiedniej wytrzyma³oœci (linka, ³añcuch). W czasie
eksploatacji zaczepu kulowego nale¿y okresowo sprawdzaæ po³¹czenia œrubowe, a w przypadku
poluzowania nakrêtek nale¿y je dokrêciæ.
MONTA¯
Zaczep kulowy Ssk³ada siê z nastêpuj¹cych elementów:
30.10.2015. Nr kat. S-348
M8 - 25 (Nm)
M10 - 50 (Nm)
M12 - 85 (Nm)
M16 - 200 (Nm)
Typ: S-348
A-50X
e20 00-1553
D = 9,9 kN
S = 100 kg
R = 1800 kg
Numer katalogowy zaczepu kulowego
Klasa zaczepu kulowego (urz¹dzenia sprzêgaj¹cego)
Nr. œwiadectwa homologacji zaczepu kulowego
Teoretyczna si³a odniesienia dzia³aj¹ca na zaczep kulowy
Max. dopuszczalne obci¹¿enie pionowe kuli zaczepu
Max. dopuszczalne obci¹¿enie holowanej przyczepy
Nr kat. S-348
W celu zamontowania zaczepu kulowego S-348 nale¿y przestrzegaæ poni¿szego opisu:
ØØ Ø
ØØ
1. Monta¿ zaczepu wymaga demonta¿u i podcinania zderzaka tylnego.
2. Zdemontowaæ zderzak wraz z metalowym wzmocnieniem (wzmocnienie nie bêdzie ponownie
wykorzystane).
3. Poluzowaæ os³onê termiczn¹ w celu lepszego dostêpu do monta¿u zaczepu.
4. Usun¹æ taœmê izolacyjn¹ z otworów monta¿owych od zewnêtrznych stron pod³u¿nic.
5. Wsun¹æ korpus (1) do wewn¹trz pod³u¿nic i skrêciæ w fabrycznych punktach œrubami M10x35 (5)
wraz z podk³adkami 30/ 10,5x3 (4) i podk³adkami sprê¿ystymi 10,2 (8).
6. Wykonaæ podciêcie w dolnej czêœci zderzaka wed³ug szablonu.
7. Dokrêciæ os³onê termiczn¹.
8. Zamontowaæ zderzak do samochodu.
9. Do korpusu (1) zamontowaæ kulê (2) i uchwyt gniazda elektrycznego (3) œrubami M12x65 (6) wraz z
podk³adkami zwyk³ymi 13,0 (7), podk³adkami sprê¿ystymi 12,2 (9) i nakrêtkami M12 (10).
Przestrzeganie niniejszej instrukcji zapewnia prawid³owy monta¿ i eksploatacjê
zaczepu kulowego S-348.
D= gx kN
TxR
T+R
T-technicznie dopuszczalna maksymalna masa, w tonach, pojazdu ci¹gn¹cego
(tak¿e ci¹gników holuj¹cych) ³¹cznie, jeœli wystêpuje, z obci¹¿eniem pionowym
przyczepy z osiê centraln¹.
R-technicznie dopuszczalna maksymalna masa, w tonach, przyczepy samochodowej
z dyszlem ruchomym w p³aszczyŸnie pionowej lub naczepy.
2
g- przyspieszenie ziemskie (przyjmowane jako 9,81 m/s )
Si³ê Dwylicza siê ze wzoru:
1. Korpus
2. Kula
3. Uchwyt do gniazda elektrycznego
4. Podk³adka specjalna Ø30/Ø10,5x3
5. Œruba M10x35 (PN/M-82105)
- 1 szt.
- 1 szt.
- 1 szt.
- 4 szt.
- 4 szt.
- 2 szt.
- 2 szt.
- 4 szt.
- 2 szt.
- 2 szt.
6. Œruba M12x65 (PN/M-82101)
7. Podk³adka zwyk³a Ø13,0
8. Podk³adka sprê¿ysta Ø10,2
9. Podk³adka sprê¿ysta Ø12,2
10. Nakrêtka M12
1
2
6
5
8
4
3
10
9
7
5
8
4
Po zamontowaniu zaczepu kulowego S-348 nale¿y uzyskaæ wpis w dowodzie rejestracyjnym
pojazdu na dowolnej stacji kontroli technicznej pojazdu.
UWAGA:
SCHEMAT MONTA¯U:
Sprawdzaæ po³¹czenia œrubowe po przejechaniu 1000 km. Kulê zawsze utrzymywaæ w
czystoœci i smarowaæ smarem sta³ym. Stosowaæ os³onê kuli. Wszystkie uszkodzenia mechaniczne
zaczepu kulowego S-348 wykluczaj¹ dalsz¹ jego eksploatacjê. Uszkodzony zaczep nie mo¿e byæ
naprawiany. W przypadku nie przestrzegania opisanego sposobu monta¿u lub niew³aœciwego jego
u¿ytkowania producent nie ponosi odpowiedzialnoœci za powsta³e szkody.
UWAGA:
Cena zaczepu kulowego nie obejmuje wi¹zki elektrycznej.
TOW BAR FOR
(06/2008 - ®)
(12/2009 - ®)
Skoda Superb II
(4/5D)
(Estate)
FITTING AND OPERATION MANUAL
DESTINATION
-348
-348
-348
-348
Tow bar Sis designed for towing a trailer. This ball hook has a current certification of approval
authorizing the product with e20 certification sign.
FITTING CONDITIONS
Tow bar S can be used and operated in a car with proper technical conditions of body elements.
Those parts cannot be mechanically damaged . The ball hook has to be installed and operated in a car
according to this instruction . All bolts and nuts in ball hook have to be screwed down with proper torque
(Mo) . Torque values are given below :
OPERATION CONDITIONS
The tow bar S has a rating plate describing correct and safe loads of the hook :
D - force is calculated using the following formula:
During operating individual elements of ball hook should be kept in a proper technical condition and
protected from corrosion . The trailer must be linked with an elastic joint with proper durability ( cord ,
chain ) while towing .It is necessary to check periodically bolt joints during operating the ball hook. If
screws are eased , it is necessary to screw them down .
FITTING:
The tow bar S is made up of the following elements :
Cat. No.S-348
30.10.2015. Cat. No. S-348 Cat. No. S-348
M8 - 25 (Nm)
M10 - 50 (Nm)
M12 - 85 (Nm)
M16 - 200 (Nm)
Tow bar catalogue number.
Tow bar class ( compressing device )
Tow bar certification of approval number
Teoretical related force working on a ball hook
Max permissible vertical load of the hook ball
Max permissible load of towing trailer
NOTE :
Bunch of wires is not included (in total price).
D= gx kN
TxR
T+R
T-technically permissible maximum mass in tonnes of the towing vehicale (also
towning tractors) including, if neccessary, the vertical load of a centrale axle trailer.
R-technically permissible maximum mass in tonnes of the full trailer with drawgal free
to move in the vertical plane or of the semi-trailer.
2
g-acceleration due to gravity(assumed as 9,81 m/s )
Follow the general directions in order to fit Stowbar properly:
1. Rear bumper cutting and removing is required.
2. Remove the rear bumper with it metal reinforcement (reinforcement will not be reused).
3. Loosen the thermal shield in order to the better access to the tow bar assembly.
4. Remove the duct tape from the mounting holes from the external parts of stringers.
5. Insert the corps (1) to the inside of stringers and screw on at factory points using bolts M10x35 (5)
with washers 30/ 10,5x3 (4) and spring washers 10,2 (8).
6. Perform undercut in the bottom of rear bumper according to the cutting pattern.
7. Tighten the thermal shield.
8. Install the rear bumper to the car.
9. Attach the tow ball (2) and electrical plate (3) to the corps (1) using bolts M12x65 (6) with flat washers
13,0 (7), spring washers 12,2 (9) and nuts M12 (10).
-348
ØØ Ø
ØØ
Obeying this instruction assures correct montage and the S-348 tow bar
operating.
1. Towbar mainframe
2. Tow ball
3. Electrical socket plate
4. Special washer Ø30/Ø10,5x3
5. Bolt M10x35
- 1 piece
- 1 piece
- 1 piece
- 4 pieces
- 4 pieces
- 2 pieces
- 2 pieces
- 4 pieces
- 2 pieces
- 2 pieces
6. Bolt M12x65
7. Flat washer Ø13,0
8. Spring washer Ø10,2
9. Spring washer Ø12,2
10. Nut M12
Typ: S-348
A-50X
e20 00-1553
D = 9,9 kN
S = 100 kg
R = 1800 kg
1
2
6
5
8
4
3
10
9
7
5
8
4
After assembling of the tow bar Syou have to get entry in cars registration book in a quality
control station .
CAUTION :
All mechanical damages of tow bar excludes its further exploitation . Damaged ball hook cannot be
repaired. In case of braking the rules of montage or unproper usage manufacturer do not take
responsibility for arised damages .
MONTAGE DIAGRAM :
-348
Check if all bolts and nuts are correctly tightened after 1000km. Keep tow ball clean, grease and cased.
1
2
6
5
8
4
3
10
9
7
5
8
4
Typ: S-348
A-50X
e20 00-1553
D = 9,9 kN
S = 100 kg
R = 1800 kg
Verwendungsbereich
Die Anhängerkupplung S-348 ist für das Ziehen eines Anhängers bestimmt. Die Anhängerkupplung
besitzt das Prüfzeichen e20.
Vorbedingungen für die Montage der Anhängerkupplung
Die Anhängerkupplung S-348 darf nur an Fahrzeugen montiert und genutzt werden, deren Karosserie in
einem einwandfreien technischen Zustand ist. Die Anhängerkupplung darf nur entsprechend der
folgenden Anleitungen montiert und genutzt werden.
Alle Schrauben und Muttern entsprechend dem in der folgenden Tabelle angegebenen Drehmoment
(Mo) anziehen (das Drehmoment bezieht sich jeweils auf Schrauben der Festigkeitsklasse 8.8):
Nutzungsbedingungen
Die Anhängerkupplung S-348 besitzt ein Typenschild, das die Parameter für eine ordnungsgemäße
und sichere Belastung der Kupplung angibt:
Der D-Wert wird nach folgender Formel berechnet:
Während der Nutzung sind die einzelnen Kupplungsteile in einem einwandfreien technischen Zustand zu
halten und vor Korrosion zu schützen. Während des Schleppvorgangs ist der Anhänger zusätzlich mit
einem Seil oder einer Kette von entsprechender Stärke mit dem Zugfahrzeug zu verbinden. Während der
Nutzung der Anhängerkupplung sind von Zeit zu Zeit die Verschraubungen zu überprüfen und
gegebenenfalls nachzuziehen.
Montageanleitung:
Die Anhängerkupplung S-348 besteht aus :
S-348Um die Anhängerkupplung richtig zu montieren ist folgende Beschreibung einzuhalten:
1. Die Montage der Anhängerkupplung erfordert die Demontage und einen Anschnitt der hinteren Stoßstange.
2. Die hintere Stoßstange zusammen mit der Metallstoßstangeverstärkung demontieren (die Stoßstangeverstärkung
wird nicht mehr benutzt).
3. Zu einer leichteren Montage der Anhängerkupplung den Hitzeschild lockern.
4. Das Isolierband von den Montagelöchern von der Außenseite der Längsträger entfernen.
5. Das Gestell (1) in die Innenseite der Längsträger einschieben und in den ab Werk vorhandenen Punkten
M8 - 25 (Nm)
M10 - 50 (Nm)
M12 - 85 (Nm)
M16 - 200 (Nm)
Katalognummer S-348
Katalognummer von der Anhängerkupplung
Kupplungsklasse
Die Homologationsnummer der Anhängerkupplung
D-Wert
Stützlast
Max. Anhängerlast
Montage und Gebrauchsanleitung
für die Anhängerkupplung:
(06/2008 - ®)
(12/2009 - ®)
Skoda Superb II
(4/5D)
(Kombi)
T-zulässiges Gesamtgewicht des Zugfahrzeugs (oder auch eines Schleppzuges) in
Tonnen; einschließlich, falls gegeben, der senkrechten Achslast des Anhängers auf die
Zentralachse
R- zulässiges Gesamtgewicht eines PKW-Anhängers mit einer in der Senkrechten
beweglichen Deichsel oder eines Aufliegers (in Tonnen)
g- Erdbeschleunigung (9,81 m/s2).
D= gx kN
TxR
T+R
Die Einhaltung vorliegender Gebrauchsanleitung versichert richtige Montage
Und Nutzung der Anhängerkupplung S-348.
1. Gestell
2. Kupplungskugel
3. Steckdosenhalterung
4. Spezielle U Ø Ø
5. Schraube M10x35
nterlegscheibe 30/ 10,5x3
-1
- 1
- 1
- 4
- 4
Stück
Stück
Stück
Stück
Stück
- 2
- 2
- 4
- 2
- 2
Stück
Stück
Stück
Stück
Stück
6. Schraube M12x65
7. Einfache U Ø13,0
8. Federring Ø10,2
9. Federring Ø12,2
10. Mutter M12
nterlegscheibe
Achtung: Im Preis der Anhängerkupplung ist kein Elektrosatz enthalten.
Die Anhängerkupplung muss nicht beim TÜV vorgeführt werden, da diese mit dem Zeichen e20
ausgezeichnet ist, es sei denn, dass aktuelle Vorschriften es anders bestimmen. Diese
Montageanleitung dient als ABE und muss mit den Fahrzeugpapieren mitgeführt werden.
Mit den Schrauben M10x35 (5) zusammen mit den speziellen Unterlegscheiben 30/ 10,5x3 (4) Und mit den
Federringen 10,2 (8) festschrauben.
6. Den Anschnitt des Unterteiles der Stoßstange nach Schablone durchführen.
7. Den Hitzeschild wieder festschrauben.
8. Die Stoßstange wieder montieren.
9. An das Gestell (1) die Kupplungskugel (2) und die Steckdosenhalterung (3) mit den Schrauben M12x65 (6)
zusammen den nterlegscheiben 13,0 12,2
anschrauben.
Montage der Anhängerkupplung S-348 soll ins Fahrzeugschein eingetragen werden.
Achtung: Nach 1000 km sind die Schraubverbindungen nachzuprüfen. Die Kugel ist sauber
einzuhalten und mit Schmierfett einzuschmieren. Eine Kugelschutz ist zu verwenden.
Alle mechanischen Beschädigungen der Anhängerkupplung S-348 schließen weitere Nutzung aus.
Die beschädigte Anhängerkupplung ist nicht reparierbar. Sollte die Art der Montage nicht eingehalten
oder falsch genutzt werden, übernimmt der Hersteller keine Verantwortung
für entstandenen Schaden.
ØØ
Ø
mit einfachen U Ø (7), mit den Federringen Ø (9) und mit den Muttern M12
(10)

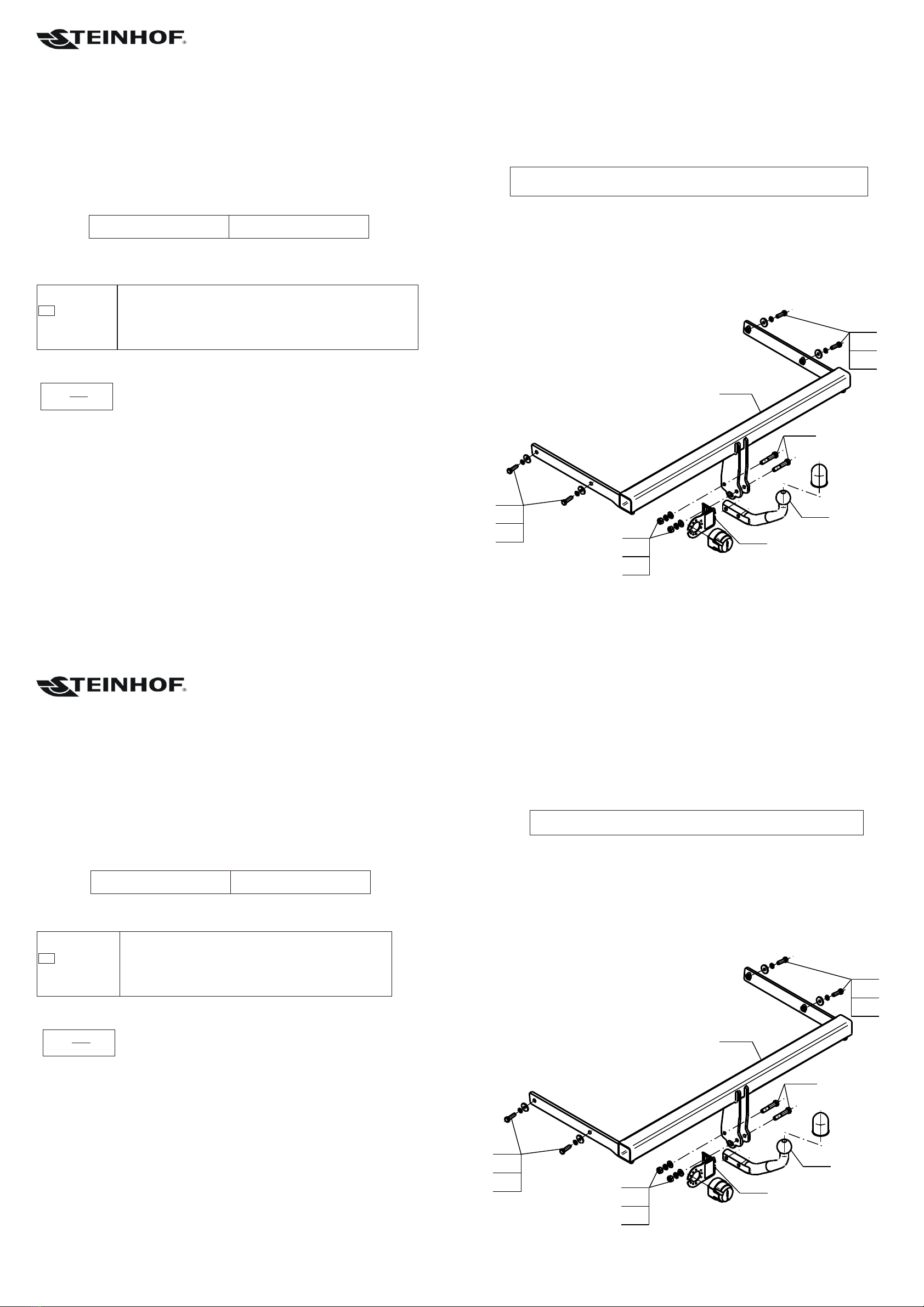

Montageschema:

Other Steinhof Automobile Accessories manuals

Steinhof O-110 Parts list manual

Steinhof

Steinhof O-110 Parts list manual

Steinhof T-120 Parts list manual

Steinhof

Steinhof T-120 Parts list manual

Steinhof N-096 Parts list manual

Steinhof

Steinhof N-096 Parts list manual

Steinhof C-052 Parts list manual

Steinhof

Steinhof C-052 Parts list manual

Steinhof B-073 Parts list manual

Steinhof

Steinhof B-073 Parts list manual

Steinhof S-397 Parts list manual

Steinhof

Steinhof S-397 Parts list manual

Steinhof S-279 User manual

Steinhof

Steinhof S-279 User manual

Steinhof S-155 Parts list manual

Steinhof

Steinhof S-155 Parts list manual

Steinhof H-041 Parts list manual

Steinhof

Steinhof H-041 Parts list manual

Steinhof R-020 Parts list manual

Steinhof

Steinhof R-020 Parts list manual

Steinhof H-246 Parts list manual

Steinhof

Steinhof H-246 Parts list manual

Steinhof O-116 Parts list manual

Steinhof

Steinhof O-116 Parts list manual

Steinhof S-463 Parts list manual

Steinhof

Steinhof S-463 Parts list manual

Steinhof B-054 Parts list manual

Steinhof

Steinhof B-054 Parts list manual

Steinhof B-041 Parts list manual

Steinhof

Steinhof B-041 Parts list manual

Steinhof F-246 Parts list manual

Steinhof

Steinhof F-246 Parts list manual

Steinhof S-349 Parts list manual

Steinhof

Steinhof S-349 Parts list manual

Steinhof V-117 Parts list manual

Steinhof

Steinhof V-117 Parts list manual

Steinhof V-072 Parts list manual

Steinhof

Steinhof V-072 Parts list manual

Steinhof P-055 Parts list manual

Steinhof

Steinhof P-055 Parts list manual

Steinhof R-115 Parts list manual

Steinhof

Steinhof R-115 Parts list manual

Steinhof K-034 Parts list manual

Steinhof

Steinhof K-034 Parts list manual

Steinhof S-375 Parts list manual

Steinhof

Steinhof S-375 Parts list manual

Steinhof R-083 Parts list manual

Steinhof

Steinhof R-083 Parts list manual

Popular Automobile Accessories manuals by other brands

Empi 15-2011-0 Installation instruction

Empi

Empi 15-2011-0 Installation instruction

Thule 1206 instructions

Thule

Thule 1206 instructions

Wagan TravelCharge Companion GO-Plus2 user manual

Wagan

Wagan TravelCharge Companion GO-Plus2 user manual

Car Solutions SUNE10 PRO installation guide

Car Solutions

Car Solutions SUNE10 PRO installation guide

Safe Fleet Prime Design PBC-6001 Assembly instructions

Safe Fleet

Safe Fleet Prime Design PBC-6001 Assembly instructions

Speedway 350-400 instructions

Speedway

Speedway 350-400 instructions

Free2Move eSolutions eProWallbox installation manual

Free2Move eSolutions

Free2Move eSolutions eProWallbox installation manual

Kuryakyn Wolo Bad Boy 7743 Installation

Kuryakyn

Kuryakyn Wolo Bad Boy 7743 Installation

Saris Freedom-2 Bike Assembly instructions

Saris

Saris Freedom-2 Bike Assembly instructions

Kommander KMN-PORT-FME21A installation manual

Kommander

Kommander KMN-PORT-FME21A installation manual

Fiamma HYMER ADAPTER KIT 02 Installation and usage instructions

Fiamma

Fiamma HYMER ADAPTER KIT 02 Installation and usage instructions

Pro-Lift Z-Creeper C-2040B Operating instructions & parts manual

Pro-Lift

Pro-Lift Z-Creeper C-2040B Operating instructions & parts manual

Thermo King V Series Operator's manual

Thermo King

Thermo King V Series Operator's manual

SportRack A26395 instruction sheet

SportRack

SportRack A26395 instruction sheet

GReddy e-manage ultimate installation manual

GReddy

GReddy e-manage ultimate installation manual

Whispbar K585W Fitting instructions

Whispbar

Whispbar K585W Fitting instructions

Prorack K566 Fitting instructions

Prorack

Prorack K566 Fitting instructions

Front Runner RRAC202 manual

Front Runner

Front Runner RRAC202 manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
