Stewart Filmscreen AB Electriscree User manual

TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.
AB-0401
AB Electriscreen
To the Owner
Installation Instructions
Operating the Screen
Maintenance
OWNER S MANUAL

Printed in U.S.A.
©2001 Stewart Filmscreen Corporation.

Contents
To The Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Preparing The Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Step 1. Hanging The Case . . . . . . . . . . . . . . . . . . . . . . . . . .5
Step 2. Electrical Hook-up . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Operating The Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Adjusting The Screen Extension . . . . . . . . . . . . . . . . . . . . .12
Screen Care And Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
AB Electriscreen: Owner s Manual 1
AB Electriscreen
OWNER S MANUAL

Congratulations on your purchase of the finest optical viewing screen
available anywhere in the world!
Please take a moment to review this manual, it will help ensure you many
years of trouble-free service from your new Stewart Filmscreen product.
About your AB Series Electriscreen
our AB Electriscreen offers the most technologically advanced roller
screen in the world.
The maximum overall dimensions of the Model AB screen image are 14
high by 183 wide.
2Stewart Filmscreen Corporation
TOTHE OWNER

reparation
Specifications regarding the individual screen dimensions, weight, mounting
type, and controls are provided by the factory when the unit is ordered.
Before beginning the installation:
KCheck the specifications for the type of mounting and switch
control to be used.
KEnsure that the mounting area and electrical connection are
prepared.
KCheck the size and weight of the screen to be installed so that
you can plan for the number of people required for the mounting
procedure. You need at least two people to mount the smaller
screens; more are needed for larger, heavier screens.
You will need:
KEnough ladders for the personnel supporting the screen during
the mounting process
KA level
KFasteners appropriate for the surface on which the screen is
being mounted (See instructions for the type of mount for
recommendations.)
AB Electriscreen: Owner s Manual 3
PREPARING THE INSTALLATION
KBefore proceeding with the installation of this screen,
be sure to read and understand all the installation and
operating instructions thoroughly.
KAll electrical wiring installations must conform to local
and national codes and should be performed by
qualified service personnel.
KThere are no user-serviceable parts contained within
the unit.
Caution
During installation, do not place the unit on an unstable
cart, stand, table, or ladder. The unit may fall, causing injury
to a child or adult and damage to the unit.

Unpacking
1. Do not remove the wrapping paper rolled with the screen. You
should remove it only after the unit is hung and all electrical
connections have been made.

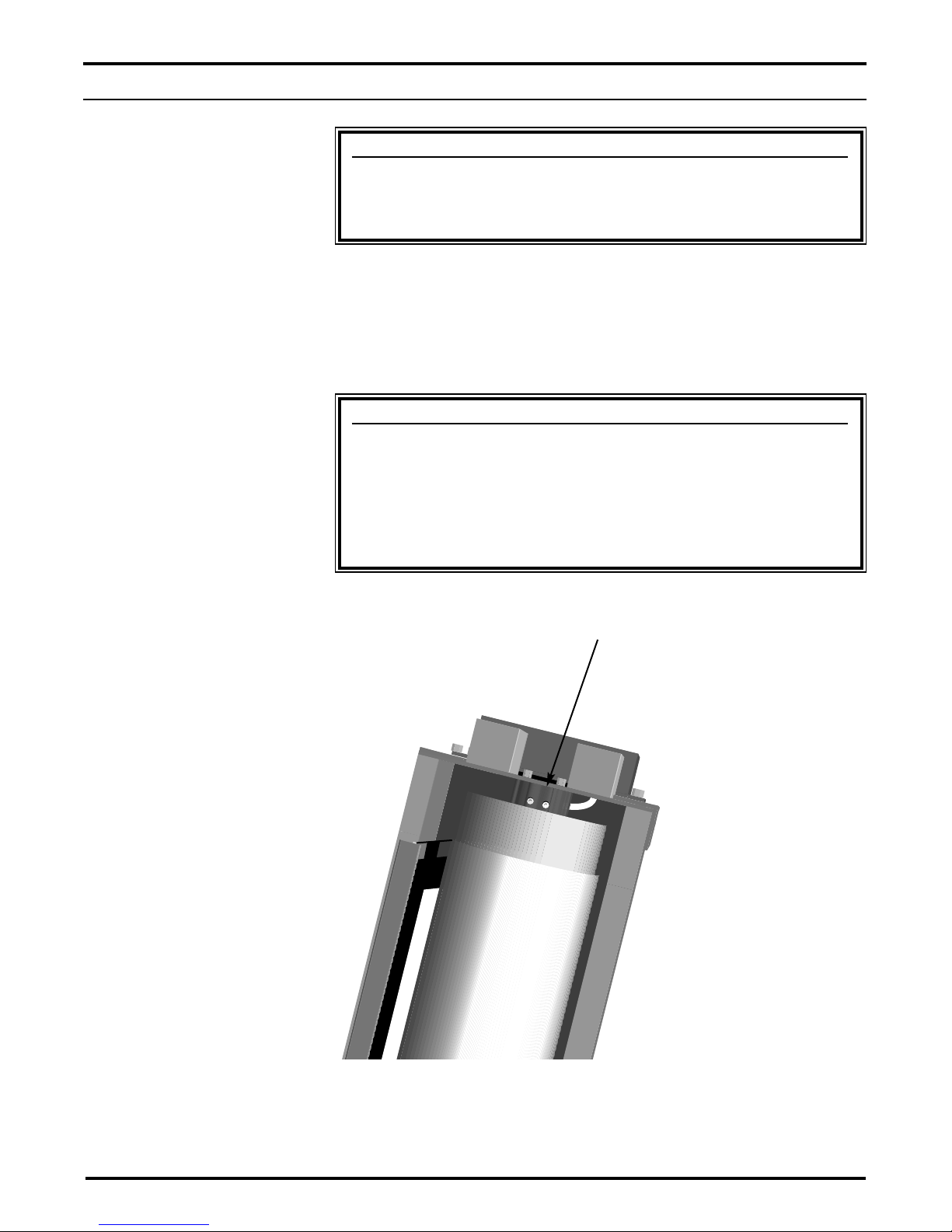

2. Remove the batten lock-down screws located on the back side of
the case
.
4tewart Filmscreen Corporation
Warning!
Failure to remove the batten lock-down screws can result in
permanent damage to the screen.
Factory Advisory
The factory advises against installing a concealed or
recessed electrical pro ection screen permanently. You
must be able to access the external end plates should
future service to the internal roller tube/screen assembly
system be necessary.
Suggested solutions for removing the unit include:
KA removable ceiling cover plate under the mounting
location.
KAccess to the unit through an attic or overhead space.

rofessional mounting techniques should be adhered to. Stewart
Filmscreen Corporation cannot be liable for substandard or faulty
installations.
Make sure that you mount the screen so that the electrical box is on the left
side (audience left).
Installing the unit
The AB Electriscreen is ready to install into the ceiling or soffit. A false
ceiling is not intended to support the weight of an AB Electriscreen.
The screen can be bolted directly to the support structure or suspended. If
the unit is to be mounted to plaster, drywall, masonry, or other type of
surface, use an appropriate fastener. (These might include toggle or molly
bolts or similar fasteners.)
1. Install the unit onto the support structure making sure that the
bottom of the case is flush with the finished ceiling, if any. Refer
to Figure 1.
2. Make sure the unit is level.
AB Electriscreen: Owner s Manual 5
STEP 1. HANGING THE CASE
Figure 1: AB Electriscreen
Support Structure
Main AC ower
J-box
Switch Input
J-box
Screen

The motor requires standard 120V 60 Hz input (unless an alternate voltage
has been specified). All connections are made to the electrical box on the
side of the unit (audience left).
There are several kinds of switch controls available. Follow the installation
procedure for the type of switch control you will install.
General suggestions for wiring:
KSoldering is recommended.
KThe use of wire nuts is acceptable.
6Stewart Filmscreen Corporation
STEP 2. ELECTRICAL HOOK-UP
Caution
rofessional techniques need to be adhered to when
making any electrical connection. A qualified electrician
should perform these procedures.
Be sure to follow all standard safety procedures for
installing electrical devices.
Do not disassemble or alter the configuration of the motor
or the unit's electrical connections. This may cause injury to
you or damage to the product.
The electrical connection should be made only to the type
of power source indicated on the marking label.

Installing the low-voltage 3-button switch (standard)
The Stewart Filmscreen low-voltage control allows the use of low-voltage
wire to connect to the supplied 3-position 24V momentary wall switch.
reparing the connection
Before making the electrical connections, you need:
KAn available 120V AC constant power source
KA 4-conductor switch hook-up cable (4-conductor bell wire or
category 5 cable is typically used for long runs)
Making the connection
Figure 2 illustrates the connections.
1. Connect the 4-conductor hookup cable to the connection harness
coming from the J-box used for switch input.
2. Connect the hookup cable to the 3-button switch.
3. Connect the main 120V AC power source to the AC J-box.
4. A parallel connection to an outboard audio-visual switching
network can be made at this time. (optional)
Figure 2: Low voltage 3-button switch wiring 3-button Momentary
Switch
AB Electriscreen: Owner s Manual 7
4 Conductor Hook-up Cable - 20ga Minimum
Category 5 recommended (NOT Supplied)
Connection
Harness
J-box for
Switch Input
STO -Yellow
COMMON-White
U -Red
DOWN-Black
COMMON-White
GREEN-Ground
HOT-Black

8Stewart Filmscreen Corporation
Installing the infrared remote control option
The optional Stewart Filmscreen infrared remote control allows control of
the screens from anywhere in the room.
Note: The distance between the hand-held remote control and the receiver
can be up to 50 feet. It is necessary to have uninterrupted line-of-sight
between the remote and the receiver.
reparing the connection
Before making the electrical connections, you need:
KAn available 120V AC constant power source
KA 4-conductor switch hook-up cable (4-conductor bell wire or
category 5 cable is typically used for long runs)
Making the connection
Figure 3 illustrates the connections.
1. Mount the infrared (IR) eye sensor near the screen.
2. Connect the 4-conductor hookup cable to the connection harness
coming from the J-box used for switch input.
3. Connect the hookup cable to the 3-button switch.
4. Connect the main 120V AC power source to the AC J-box.
5. A parallel connection to an outboard audio-visual switching
network can be made at this time. (optional)
Figure 3: Infrared remote control wiring
3-Button
Momentary Switch
Infrared Sensor
Infrared Remote Control
4 Conductor Hook-up Cable - 20ga Minimum
Category 5 recommended (NOT Supplied)
STO -Yellow
COMMON-White
U -Red
DOWN-Black
J-box for
Switch Input
COMMON-White
GREEN-Ground
HOT-Black

Connecting the screen trigger interface option
The optional 12V screen trigger interface enables up and down operation of
the screen in conjunction with a projector, tuner, VCR, cable box, or
switched AC outlet.
Once the AC power outlet is installed near the screen, an electrician is not
needed to connect the screen trigger interface to the power source.
Note: An optional 12V DC transformer is used if there is no 12V power
source from the projector or AV control center.
reparing the connection
Before making the electrical connections, you need:
KAn available 120V AC constant power source installed near the
screen
Making the connection
Figure 4 illustrates the connections.
1. Attach the 12V trigger wire to the jack on the j-box.
2. Connect the main 120V AC power source to the AC J-box.
AB Electriscreen: Owner s Manual 9
Figure 4: Screen trigger interface connection
To rojector
or
120V AC 60 Hz
ower Source
Optional 12V DC
Transformer With Switch
COMMON-White
GREEN-Ground
HOT-Black

10 Stewart Filmscreen Corporation
Installing the wireless remote control option
The optional Stewart Filmscreen wireless remote control allows control of
the screen from anywhere in the room.
Once the AC power outlet is installed near the screen, an electrician is not
needed to connect the wireless remote receiver module to the power
source.
Note: The distance between the hand-held remote control and the receiver
can be up to 50 feet. It is not necessary to have uninterrupted line-of-sight
between the remote and the receiver, but there should be no metal objects
between them. The override switch on the bottom of the receiver can be
used instead of the remote control.
reparing the connection
Before making the electrical connections, you need:
KAn available 120V AC power source installed near the screen
KA 4-conductor switch hook-up cable (4-conductor bell wire or
category 5 cable is typically used for long runs)
Making the connection
Figure 5 illustrates the connections.
1. Mount the wireless remote receiver module near the screen.
2. Connect the 4-conductor hookup cable to the connection harness
coming from the J-box used for switch input.
3. Connect the hookup cable to the 3-button switch.
4. Connect the main 120V AC power source to the AC J-box.
5. A parallel connection to an outboard audio-visual switching
network can be made at this time. (optional)
Figure 5: Wireless remote control connection
Wireless Remote Receiver
Wireless Remote Control
4 Conductor Hook-up Cable - 20ga Minimum
Category 5 recommended (NOT Supplied)
3-Button
Momentary Switch
J-box for
Switch Input
STO -Yellow
COMMON-White
U -Red
DOWN-Black
COMMON-White
GREEN-Ground
HOT-Black

The method you use to raise and lower the screen depends on the type of
switch control device you have selected.
When you lower or retract the screen, it will stop at its preset limit. If an
obstacle (such as a person or furniture) gets in the path of the screen as it
is lowered, you should use the switch control to stop the screen's motion; it
will not automatically stop if it hits an obstacle.
In general, when the screen is not in use, you should store it in the fully
retracted position.
AB Electriscreen: Owner s Manual 11
OPERATING THE SCREEN
Caution
Do not operate the motor when any of the following occurs:
KThe unit emits any smoke, heat, abnormal noise or
unusual odor.
KThe unit is damaged in some way, such as damage
from a water leak.
If any of these situations occur, call a qualified service
person.

12 Stewart Filmscreen Corporation
The extension and retraction limit switches have been preset at the factory.
In general, we advise yo to avoid readj sting these switches.
In some cases, to enable proper alignment of the displayed image on the
screen, yo may need to adj st the extension of the screen. If adj stment to
the extension is necessary, caref lly follow these instr ctions.
Caution
Improper adjustment of the limit switches can cause
irreparable damage to the screen itself, resulting in voiding
the factory warranty.
Warning!
The screen is fully retracted when the batten is flush with
the bottom of the case. Do not attempt adjustments with
the yellow retraction UP) limit switch that will further retract
the screen. Incorrect adjustment of the switch will cause
severe screen damage. Please consult the factory if you
have any questions.
ADJUSTING THE SCREEN EXTENSION
Figure 6: Underside view
Limit Switches

AB Electriscreen: Owner s Manual 13
Modifying the extension of the screen
You can increase the extension of the screen up to 3" past the factory
preset stop, or you can decrease the extension by approximately 4-6" from
the factory preset stop. Do not attempt to modify the screen extension
beyond these recommended amounts.
The limit switches are located on the left side of the screen roller tube inside
the case, as shown in Figure 6.
To increase the screen's fully extended (screen down) stop position:
1. Lower the screen to its current stop position.
2. Locate the white extension (down) limit switch located on the left
side of the screen tube. Use a screwdriver to turn the switch in a
counterclockwise direction. If the power is on, the screen will
drop incrementally as the switch is turned.
Note: One complete turn of the switch will make approximately a
3/4" change in the screen's stop position.
To decrease the screen extension:
1. Lower the screen until it is extended about halfway down.
2. Locate the white extension (down) limit switch located on the left
side of the screen tube. Use a screwdriver to turn the switch in a
clockwise direction.
Note: One complete turn of the switch will make approximately a
3/4" change in the screen's stop position.
3. Activate the screen in the down direction until it reaches the
newly reduced stop position. Repeat this procedure until the
desired stop position is reached.
Once you have made the adjustment, whenever you lower the screen, it will
automatically stop at the new position.
Note: It is recommended that you make a note of any changes made to the
factory preset.

14 Stewart Filmscreen Corporation
With reasonable care, you may expect many years of trouble-free use of
your Stewart projection screen.
We encourage you to keep your screen clean. To protect your screen when
it is not in use, store it in the fully retracted position.
Avoid getting any foreign material on the screen, as cleaning may prove
very difficult. It may not be possible to remove scratches, paint, ink, etc.
General maintenance
The screen surface on your AB Electriscreen is delicate. Special attention to
these instructions should be followed when cleaning.
KA draftsman-style brush may be used to lightly whisk away any
loose dirt or dust particles. (This type of brush is usually available
at office supply stores.)
KFor tougher spots, use a mild solution detergent, water, and a
sponge. Rub lightly. Blot with a damp sponge to absorb excess
water.
Do not use any other cleaning materials on the screen.
Replacement parts and service
No user-serviceable parts are contained within the unit. Contact your dealer
or the factory if you require part replacement or service.
SCREEN CARE AND CLEANING

Refer to the following guidelines if you encounter a difficulty in the operation
of your Stewart Filmscreen. Problems related to electrical or motor function
may require a qualified service person or electrician.
Should you have a problem that is not addressed here, call the Stewart
Filmscreen Corporation.
AB Electriscreen: Owner s Manual 15
TROUBLESHOOTING
roblem description robable cause Action to take
Screen won't operate. No 120V power available.
Outboard switching problem.
Check to see if the circuit breaker has
switched off. Reset if needed.
Check outboard switching apparatus.
Check voltage availability. Contact an
electrician.
Screen won't roll up or down
(even though power is
available).
Bad connection at switch.
Polarity of STI line may be bad.
Have an electrician or qualified service
person check the connection as
follows:
· If you have a low voltage control
unit, check switch-line connections.
· If you have a screen trigger
interface, check line connections,
or the mini-plugs at the screen
input or projector output. Check
12V DC line for correct polarity.
Contacts may be stickingtap
relay to free contacts.
Screen roller chatters when
power is activated.
Can be caused by voltage drop,
bad connections, or a defective
switch.
Have an electrician or qualified service
person check all hook-ups including all
outboard wiring.
Unit hums in up mode.
(Screen has already
retracted.)
The screen batten is retracting too
far into the case. Failure to
correct can damage motor and
screen. Do not use the unit until
this problem is resolved.
Have a qualified service person adjust
the yellow UP limit switch. Turn the
adjusting screw clockwise.
Screen drops when up
direction is activated
(grinding noise occurs).
Drop in voltage. Screen motor requires full voltage.
Have an electrician or qualified service
person check available voltage.
Screen continues past
bottom stop position.
White limit switch is out of
adjustment.
Readjust the white DOWN limit switch.
See pp. 12-13 of this manual.
Batten retracts too far into
case.
Yellow limit switch out of
adjustment. Failure to correct
can damage motor and screen.
Do not use the unit until this
problem is resolved.
Have a qualified service person
readjust the yellow UP limit switch. See
pp. 12-13 of this manual.
Dirt, finger prints, marks, etc.
on screen surface.
Improper handling of screen. Brush off or use a mild detergent
solution with clean rag or cotton swab.
Indentations appear on
screen surface.
Debris or particles adhering to
screen due to static cling.
Check back of screen; gently brush
debris away by hand.

MAINTENANCE NOTES

MAINTENANCE NOTES

www.stewartfilm.com
1-800-762-4999 KFax [phone]
