Cine-W
Owner’s Manual
CW-0814
TO THEINSTALLER : BE SURE TO LEAVE THISMANUALWITH THE OWNER.
•TO THE OWNER
•INSTALLATION INSTRUCTIONS
•OPERATING THE SCREEN
•MAINTENANCE
Wall mount
Stage y (hanging) mount
T-stand

Printed in U.S.A.
©2008–2014 Stewart Filmscreen Corporation
Stewart Filmscreen reserves the right to make changes to the product specied in this document.
From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at:
www.stewartlmscreen.com

Contents
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Wall Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Stage Fly (Hanging) Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
T-stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Attaching the Screen to the Frame . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Screen Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cine-W: Owner’s Manual 1
Cine-W
Owner’s Manual

Congratulations on your purchase of one of the finest optical viewing
screens available anywhere in the world!
Please take a moment to review this manual, it will help ensure you many
years of trouble-free service from your new Stewart Filmscreen product.
About the Cine-W
Your Cine-W fixed frame supports superwide formats such as
Cinemascope. The frame acts as a projection overscan border. The VeLux
finish is designed to absorb any overscanning.
The screen fabric attaches to the frame using hooks and grommets.
The standard mount is a wall mount; other options include T-stand self-
supporting and stage fly (hanging) mounts.
Using this manual for installation
If you are using this manual to inst all the Cine-W, you should be aware that
it describes procedures for several types of mounts. You must refer to the
section for the type of screen mount. In addition, there are instructions for
attaching the screen to the frame that are provided in a separate section.
This procedure is to be performed at a specific step in the overall sequence.
For the frame and mount type, refer to the appropriate section:
Wall mount
Stage fly (hanging mount)
T-stand
At the designated point in the inst allation, you will need to refer to the
general instructions for attaching the screen to the frame.
2Stewart Filmscreen Corporation
TO THE OWNER

Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
This section describes assembly of a wall mount screen.
Assembling the frame
1. Connect the frame members by matching the colored, numbered
dots on the ends of the frame pieces. Refer to Figure 1.
2. Secure frame members with the supplied 5/8” hex head bolts.
Cine-W: Owner’s Manual 3
WALL MOUNT
Figure 1: Assembling the frame

3. During shipping, the frame brackets are attached to the wall
mount brackets. Detach the frame brackets from the wall mount
bracket and attach them to the frame using two 1/4-20 Allen head
machine screws per bracket. See Figure 2.
4. Bolt wall brackets to the frame using the supplied 5/8” hex head
bolts.
Notes:
Depending on the size of the screen, the number of wall brackets
may vary.
This is a temporary attachment of the wall brackets to the frame
for the purpose of positioning the frame and bracket s on the wall.
4Stewart Filmscreen Corporation
Figure 2: Attaching wall mount brackets
Wall mount bracket
Screws for mounting frame bracket
Frame bracket
Frame bracket
Wall mount bracket
attached to frame bracket

Positioning the frame and wall brackets
To accurately position the frame, you must temporarily attach the wall
brackets to the frame, and then position the frame on the wall.
1. Without the screen fabric attached, position the frame and
brackets on the wall. Refer to Figure 3.
2. Make sure the unit is level and plumb. (Y ou may need to use
shims between the brackets and the wall to achieve vertical
plumb).
3. Mark the position of the bracket holes on the wall.
4. Drill holes in the wall as needed.
5. Remove the brackets from the frame and att ach them to the wall
using the appropriate fasteners (hex lag screws, wall anchors,
molly bolts, wood carriage screws, etc.). Refer to Figure 3.
Note: Later, when the screen fabric is att ached to the frame, you
will re-attach the frame to the bracket s on the wall.
Hanging the frame and screen on the wall
1. Go to the section “Attaching the Screen to the Frame” and attach
the screen.
2. Attach the frame, with the screen att ached, to the previously
mounted wall brackets using the 5/8” hex head bolts.
Cine-W: Owner’s Manual 5

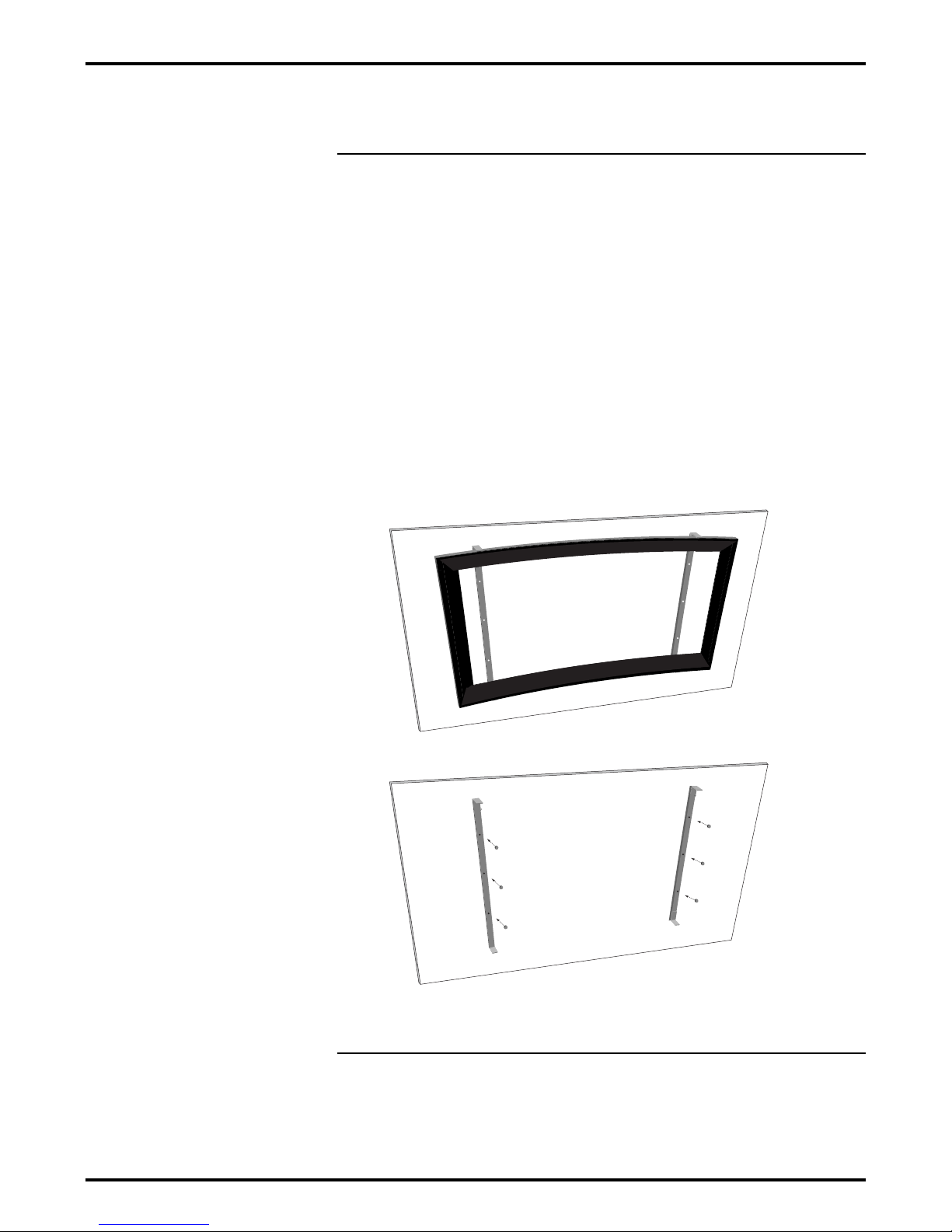

Figure 3: Attaching wall brackets to the wall

Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
As an alternative to the wall mount, you can use the stage fly mount to
suspend the screen.
1. Assemble the frame. Refer to the section “Assembling the
Frame” and Figure 1.
2. Go to the section “Attaching the Screen to the Frame” and attach
the screen.
3. Hang the frame from the eyebolts as shown in Figure 4.
6Stewart Filmscreen Corporation
STAGE FLY (HANGING) MOUNT
Eyebolts
Figure 4: Completed stage fly mount installation

This section describes assembly of a self-supporting Cine-W .
Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
Assembling the frame and attaching T-stands
This sections describes how to mount the Cine-W on T-stands.
1. Connect the frame members by matching the colored, numbered
dots on the ends of the frame pieces. Refer to Figure 1.
2. Secure with the supplied bolts.
3. Use the T-stand knobs provided to attach the finished screen to
the T-stands. Refer to Figure 5.
4. Hand-tighten the knobs.
5. Go to the section “Attaching the Screen to the Frame” and att ach
the screen.
Cine-W: Owner’s Manual 7
T-STAND
Figure 5: T-Stand

This section provides the instructions for att aching the screen to the frame.
DO NOT perform this step UNTIL instructed to do so in the section for the
specific type of mount you are using.
Unpacking and unrolling the screen
The viewing side of the projection screen is rolled to the inside to protect
the optical coating. The screen is rolled lengthwise.
1. Remove the screen from the cardboard shipping tube.
2. On a clean flat surface, unroll screen viewing side up.
Attaching the screen to the frame
You will attach the screen to the top left corner of the frame first, then along
the top, then the sides, then the bottom. Read the tips and follow the
procedure sequence.
Tips for attaching the screen to the frame
Read all instructions prior to beginning.
During packing and transit, the screen may shrink. The Stewart
screen material has some elasticity, and will stretch and spring
back. The grommeted edge binding will not stretch past the
manufactured outer dimensions. After the screen is attached to
the frame, some tension will be apparent at each grommet.
Handle the screen carefully. Avoid contact of the screen fabric
with fingernails. Grasp the screen edge binding only .
As you finish attaching each section, take a moment to pause and
inspect the screen to ensure that it is not pulling or stretching in
such a way that it may tear .
8Stewart Filmscreen Corporation
ATTACHING THE SCREEN TO THE FRAME
Caution
Be careful not to touch or scratch the image surface
with fingernails.
Do not use any tools to fasten the screen to the frame.
Do not fold or crease the screen.

Procedure
1. Provide a secure support for the frame as you att ach the screen.
For example, lean the frame against the wall, or attach the frame
to the T-stand.
2. Starting at the top left corner, attach S-hooks to the grommets to
make a proper corner fit. S tarting at the top left corner, attach two
to four hooks down the side and across the top. Do not allow the
weight of the screen to rest on any one hook during this time.
3. Attach the center top S-hook, and the top right S-hook so that the
screen is supported. The screen center line is marked with a red
grommet at the frame center.
4. Along the top, attach alternate S-hooks to grommets along the
top from the top left to the center top.
As you work, inspect the screen to ensure that it is properly
attached and not overstretched.
When the middle S-hook is attached to the center top grommet,
the grommet should be within 1 to 2” (2.5 to 5 cm) of the center
of the screen. If the center hook is short of the center grommet,
continue attaching the hooks along the top until you reach the
end. You will need to adjust the screen on the frame before
attaching the sides. Shift the S-hooks one grommet at a time to
move the screen sideways on the frame. When the screen is
centered on the frame, you can proceed with the sides.
Skip S-hooks if you need to develop enough slack in the shock
cord to hook the grommet without creating too much tension. If
you feel that you are pulling on the screen or the shock cord too
much, attach only the hooks that allow for minimal tension to give
the material enough time to stretch before att aching the skipped
hooks.
Cine-W: Owner’s Manual 9
Figure 6: Attaching the screen

5. Attach the screen to the sides of the frame, att aching every other
S-hook from the top to the center. If the screen edge is more
than 1 to 2” (2.5 to 5 cm) from the frame on the right side, allow a
few minutes for the screen to stretch before continuing. Tension
should be even; the top of screen and frame should be parallel.
Attach the S-hooks on the lef t side, from top to bottom.
Attach the S-hooks on the right side, from top to bottom.
6. Inspect the screen to ensure that it is properly attached and not
overstretched. Check for even tension.
7. Attach the screen to the bottom of the frame, using the
techniques described below.
Begin attaching the bottom in the corners, being careful not to put
too much tension on any grommets.
Work from the left corner toward the center, attach every other S-
hook.
If there is too much tension, wait to allow the screen time to
stretch as needed.
Starting at the right corner, attach the every other S-hook along
the bottom, working toward the center.
8. When screen fabric is sufficiently stretched, attach all remaining
S-hooks along the top, sides, and the bottom.
9. Make a final inspection of the screen to verify that it is attached
properly and the corners are free from uneven tension.
Excessive stress (improper screen alignment) will cause tears to
eventually develop.
10 Stewart Filmscreen Corporation

With reasonable care, you may expect many years of trouble-free use of
your Stewart projection screen.
Refer to the following guidelines if you encounter a di culty in the operation
of your Stewart Filmscreen. Problems related to electrical or motor function
may require a qualied service person or electrician.
Should you have a problem that is not addressed here, call the Stewart
Filmscreen Corporation.
Cine-W: Owner’s Manual 11
TROUBLESHOOTING
Problem description Probable cause Action to take
Dirt, ngerprints, marks, etc. on
screen surface
Improper handling of screen Brush oor use a mild detergent
solution with clean rag or cotton swab.
Perimeter or corner wrinkling Screen not properly centered
onto frame
Readjust screen mounting as required.
Check all center attachment points.

With reasonable care, you may expect many years of trouble-free use of
your Stewart projection screen.
General maintenance
The surface of your screen is delicate. Special attention to these
instructions should be followed when cleaning.
A draftsman-style brush may be used to lightly whisk away any
loose dirt or dust particles. (This type of brush is usually
available at office supply stores.) Stewart Filmscreen has an
optional screen cleaning kit that contains the proper type of
brush. Contact your dealer if you would like to obt ain this
cleaning kit.
For tougher spots, use a solution of mild detergent and water .
Rub lightly using a sponge. Blot with a damp sponge to absorb
excess water. Residual water marks will evaporate within a few
minutes.
Do not use any other cleaning materials on the screen. Contact the factory
if you have questions about removing difficult spots.
VeLux covering
Use a lint roller to remove p articles from the VeLux material.
A brush can be used to comb (lif t) the nap of the VeLux material
to help eliminate depression marks.
Replacement parts and service
No user-serviceable parts are contained within the unit. Contact your dealer
or the factory if you require part replacement or service.
12 Stewart Filmscreen Corporation
SCREEN CARE AND CLEANING
Caution
Do not use chemicals or liquid to clean the fabric.

LIMITED ONE (1) YEAR WARRANTY ON STEWART FILMSCREEN
CORP PROJECTION SCREENS SYSTEM
STEWART FILMSCREEN CORPORATION (Stewart) warrants its screens to
the original purchaser only, to be free from defect s in materials and
workmanship for a period of one (1) year from the date of purchase by the
original purchaser or eighteen (18) months from date of manufacture, as
defined in the serial number, provided they are properly operated and
maintained according to Stewart instructions and are not damaged due to
improper handling or treatment after shipment from the factory.
This warranty does not apply to equipment showing evidence of misuse,
abuse, or accidental damage, including neglect caused by improper
installation (i.e. proximity to hot light s, exposure to extreme heat or cold,
exposure to excessive humidity, etc.) as well as product that have been
tampered with or repaired by any person or third party installation, other
than authorized Stewart personnel.
Stewart's sole obligation under this warranty shall be to repair or to replace
(at Stewart's sole discretion) the defective p art of the merchandise. This
warranty expressly does not cover any cost s of removal, installation,
framing, or other costs incident to replacing the screen or returning it to
Stewart. Returns for service should be made to your Stewart dealer. If it is
necessary for the dealer to return the screen or part to Stewart,
transportation (freight) expenses to and from Stewart are payable by the
purchaser and Stewart is not responsible for damage in shipment. To
protect yourself against damage or loss in transit, insure the product and
prepay all transportation expenses.
This warranty is in lieu of all other warranties, expressed or implied,
including warranties as to fitness for use and merchant ability. Any implied
warranties of fitness for use, or merchant ability, that may be mandated by
statue or rule of law are limited to the one (1) year warranty period. This
warranty gives you specific legal rights, and you may also have other rights
which vary from state-to-state. In no event will Stewart be liable for sums in
excess of the purchase price of the product. No liability is assumed by
Stewart for expenses or damages resulting from interruption in operation of
equipment, or for incidental, direct, or consequential damages of any
nature.
In the event that there is a defect in materials or workmanship of a Stewart
Screen, you may contact our Customer Service Department at
1161 W Sepulveda Blvd, Torrance, California 90502-2797
(310-784-5300) Toll free (800-762-4999).
IMPORTANT: This warranty shall not be valid and Stewart shall not be
bound by this warranty if the product is not operated and maintained in
accordance with Stewart's written instructions.
Stewart Filmscreen Corporation shall not be liable for any and all
consequential damage(s) occasioned by the breach of any written or
implied warranty pertaining to the sale in excess of the purchase price
of the product sold.
Printed in USA. Rev. 12/14/10
Cine-W: Owner’s Manual 13
PRODUCT WARRANTY

800.762.4999 •310.784.5300 •Fax: [phone]
www.stewartfilmscreen.com
January 2014
Printed in U.S.A.
©2008–2014 Stewart Filmscreen Corporation
