Stewart Filmscreen Luxus User manual

1 Stewart Filmscreen
Luxus
Retractable, Below Ceiling Screen System

Stewart Filmscreen – Luxus 2
Printed in U.S.A. ©2021 Stewart Filmscreen Corporation
Stewart Filmscreen reserves the right to make changes to the product specified in this document.
Sizes and specifications subject to change without notice at the manufacturer’s discretion. From time to time, this
document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at:
www.StewartFilmscreen.com

Stewart Filmscreen – Luxus 3
Luxus
O W N E R’ S M A N U A L
Contents
To the Owner...............................................................................................................................................................................................................4
About Luxus..................................................................................................................................................................................................................5
Preparing the Installation .......................................................................................................................................................................................6
Wall Mount....................................................................................................................................................................................................................9
Ceiling Mount.............................................................................................................................................................................................................10
Electrical ........................................................................................................................................................................................................................11
IMC with IR Receiver and Remote (Standard).......................................................................................................................................... 12
12 Volt Projector Trigger (Standard)...............................................................................................................................................................14
RTS Motor Operation (If Equipped) ..............................................................................................................................................................15
IR Wall Switch and Remote (If Equipped)...................................................................................................................................................16
Decora Paddle Wall Switch (If Equipped).................................................................................................................................................. 17
IBT-100 for Serial (RS-232C) Connectivity (If Equipped)....................................................................................................................18
Operating the Screen ............................................................................................................................................................................................19
Intelligent Motor Control (IMC) Wiring.......................................................................................................................................................20
IMC RJ45 Pinouts Found on Back of Case................................................................................................................................................ 22
IMC Specifications ........................................................................................................................................................ 23
Adjusting Screen Deployment........................................................................................................................................................................24
Bonnet Removal.......................................................................................................................................................................................................26
Caring for and Cleaning the Screen.............................................................................................................................................................. 27
Troubleshooting......................................................................................................................................................................................................28
One (1) Year Limited Warranty ........................................................................................................................................................................30

Stewart Filmscreen – Luxus 4
TO THE OWNER
Congratulations on purchasing the finest optical viewing screen in the world.
Your handcrafted Luxus projection screen has been carefully inspected to ensure your optimal
viewing experience will last for many years. Please take a moment to review this manual. It will guide
you through the installation and the operation of your screen and will also provide you with detailed
instructions on how to care for your screen’s viewing surface.
From all of us at Stewart Filmscreen, we would like to thank you for choosing Luxus. Should you have
any questions, please don’t hesitate to contact our customer service department at 1 [phone],
or toll free at 1 [phone]. We’re here to help.
Mary Stewart Jose Garcia
CEO and Owner Small Electric Screen Craftsman

Stewart Filmscreen – Luxus 5
ABOUT LUXUS
The next generation of Stewart Filmscreen’s Luxus offers a premium below ceiling viewing experience.
The newly redesigned case allows the screen to deploy close to the wall or safely in front of your wall
décor. With the combination of your choice of control and mounting options and with Stewart’s world-
renowned premium screen materials, this screen is one of our most popular selling screens.
IMPORTANT SAFETY INFORMATION
Carefully read the instructions.
This screen must be installed by a qualified electrician.
For supply connections, use wires rated for at least 75 C.
Use copper or aluminum conductors.
For indoor use only.
Do not connect low voltage to line voltage power.
Earth ground terminal connection must be made as shown in wiring diagrams.
Proper short circuit and overload protection must be provided at the circuit breaker distribution
panel. You may use up to a 20 amp maximum circuit breaker with adequate short circuit breaking
capacity for your installation.
USING THIS MANUAL FOR INSTALLATION
If you are using this manual to install the Luxus screen, you should be aware that it describes procedures
for two types of mounting options. You must refer to the section for the type of mounting system you are
utilizing.
For the instructions related to your specific mount type, refer to the appropriate page:
Wall Mount (Page 9)
Ceiling Mount (Page 10)
For the instructions related to your specific controls, refer to the appropriate page:
IR remote and receiver (Page 12)
12 volt projector trigger (Page 14)

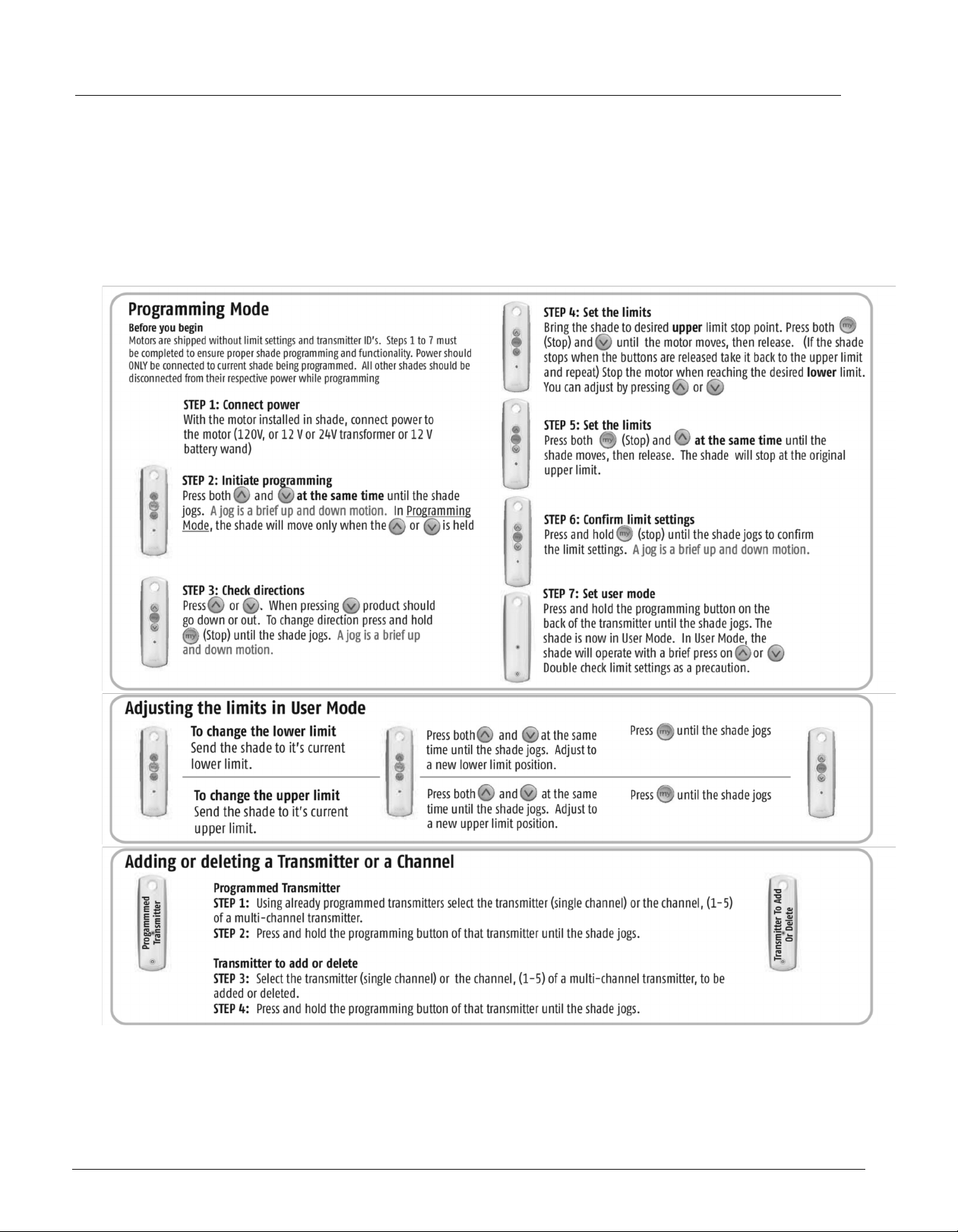

RTS with remote (Page 15)
IR wall switch and receiver (Page 16)
Decora paddle wall switch (Page 17)
IBT-100 for RS-232C interface (Page 18)
⚠
NOTE
This owner’s manual may describe options and features not equipped to the specific screen
you have purchased.

Stewart Filmscreen – Luxus 6
PREPARING THE INSTALLATION
Before proceeding with the installation of this screen, take time to thoroughly read and understand these
installation instructions.Failure to comply with the instructions contained in this manual may result
in voiding your warranty.
SPECIFICATIONS
Specifications regarding the individual screen dimensions, weight, etc., are provided by the
factory when the unit is ordered.
Before beginning the installation
Check the size and weight of the screen to be installed so that you can plan for the number of
people required for installation.
You will need at least two people to mount the smaller screens. More are needed for larger,
heavier screens.
What’s inside the box?
Inside your Luxus unit box, you will find everything needed to get started enjoying your Stewart
screen:
Luxus unit preassembled and prewired
Two ceiling or wall mounts to be used in whichever configuration is preferred
Packing material

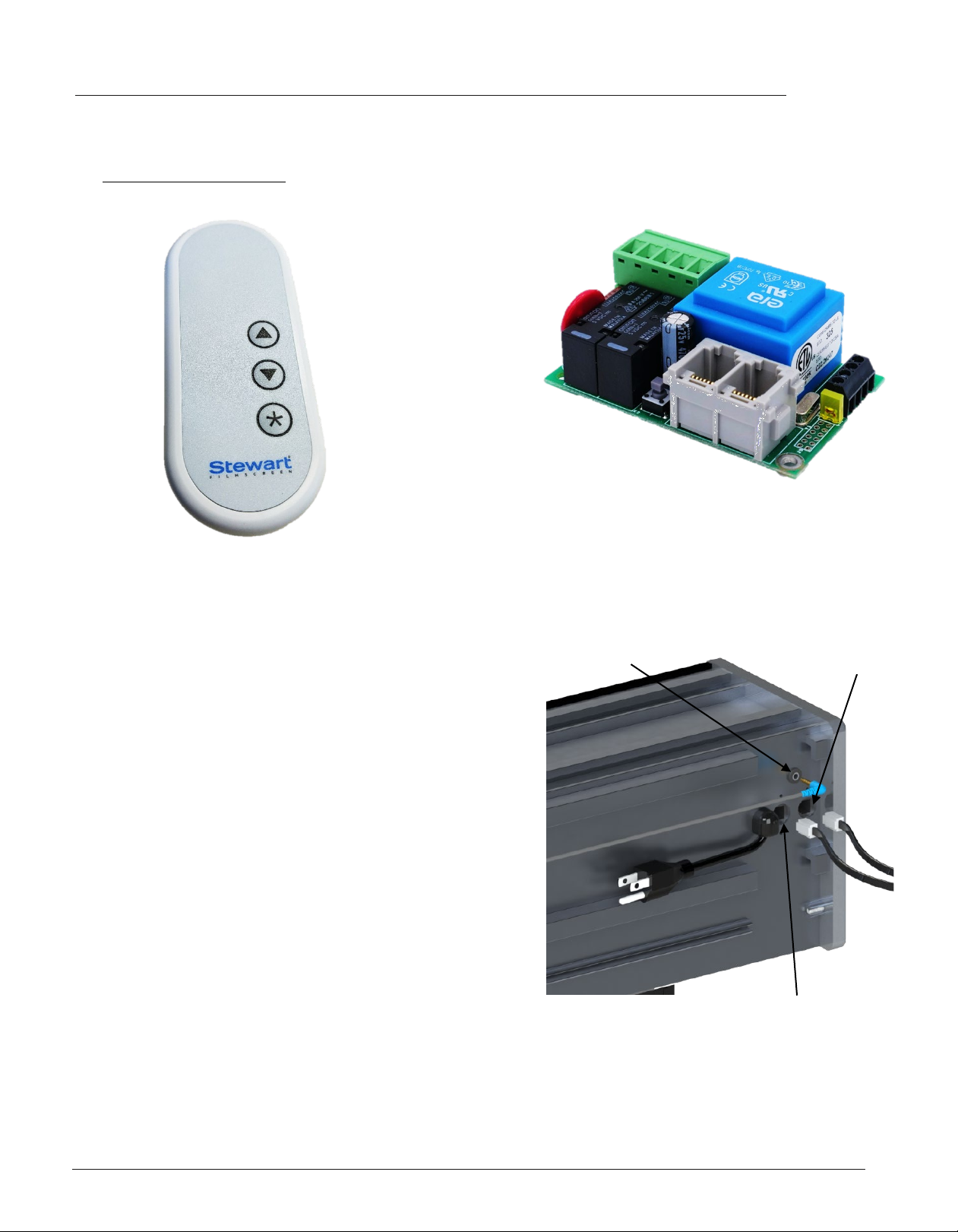

IR remote and IR receiver (standard control)

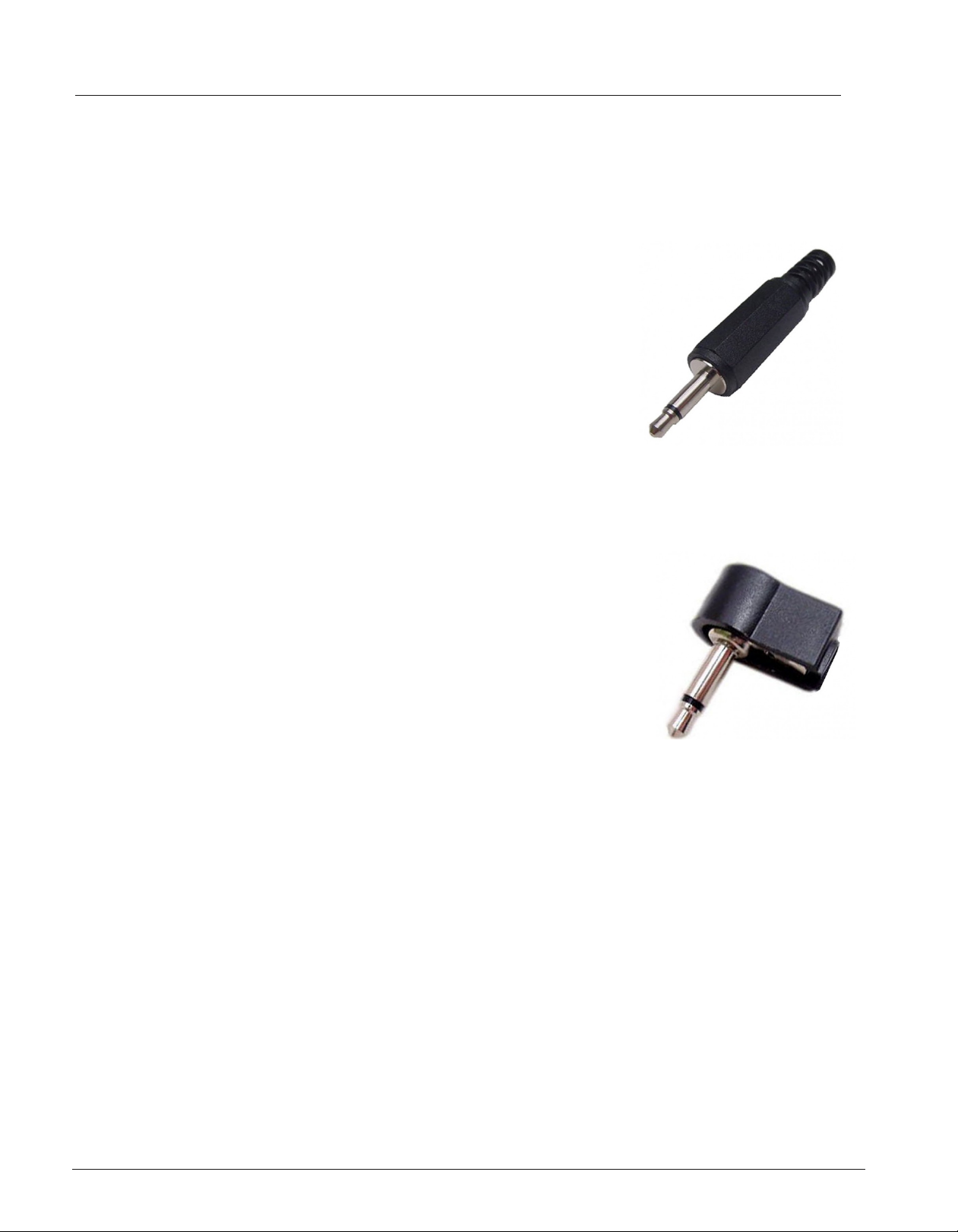

Two RJ45 male connectors and two 3.5 mm male connectors
Luxus Quick Start Guide
You will need
A level
A drill
A drop cloth
Tools for tightening fasteners
Ladders for the personnel supporting the screen during the mounting process
Fasteners appropriate for the surface on which the screen is being mounted
We suggest a self-leveling laser due to the dual mounting of the wall or ceiling mounts. Both mounts
will need to be accurately leveled to each other.

Stewart Filmscreen – Luxus 7
PREPARING THE INSTALLATION (CONTINUED)
Note:Bolts and other fasteners for the screen are standard gauges and sizes used in the U.S., regardless
of the installation country. For this reason, sizes are expressed in inches rather than metric
measurements.
Unpacking
Be sure to unpack carefully in a clean area. Use special
care when handling the screen so that it does not become
soiled or damaged. If you plan to repack your screen and
hardware for transportation to another location, you may
want to photograph or make a note of how it was packed.
Retain the packing material for future use, if desired.
The Luxus screen may have special retainers for the
batten and roller tube. These items may be left in place
until after the screen has been mounted (see Figure 1).
IMPORTANT: Remove all batten retainers prior
to activating the unit. Failure to do so will cause
damage to the screen material. There will be one
batten retainer on each end of the unit. Larger
units come with an additional batten retainer on
the middle of the unit. A single screw holds each
batten retainer in place (see Figure 2).
Batten retainer
Figure 1. Luxus bottom view
with batten retainer installed
Figure 2. Luxus rear view with
batten retainer removed
One
screw on
bottom of
batten
retainer
⚠
CAUTION
Do not stand on the screen case or store it on its end. This will cause screen damage. If you
are not going to install the screen immediately, make sure it remains horizontal during
storage. Note: Failure to comply with the instructions and guidance contained in this
manual may result in voiding your warranty.

Stewart Filmscreen – Luxus 8
PREPARING THE INSTALLATION (CONTINUED)
When installing your Luxus to the wall or ceiling using the sliding mount bracket, there are a couple things to
consider to make the installation a smooth and easy operation.
Mounts
Inside each Luxus box there are two 18 inch mounts to be used
in whichever configuration that is required. Each mount has a
total of six holes precut to ensure that at least two studs are
utilized for mounting (see Figure 3). The spacing between the
two edge holes is 16 inches.
Fasteners
The type of fasteners used for mounting
is critical. If incorrect fasteners are used,
the channels of the Luxus may not latch
onto the mount clips. Additionally, if
weak fasteners are used, the Luxus unit
may fall. Be sure to use a total of four
No. 10, 3 ½ inch deck screws on each

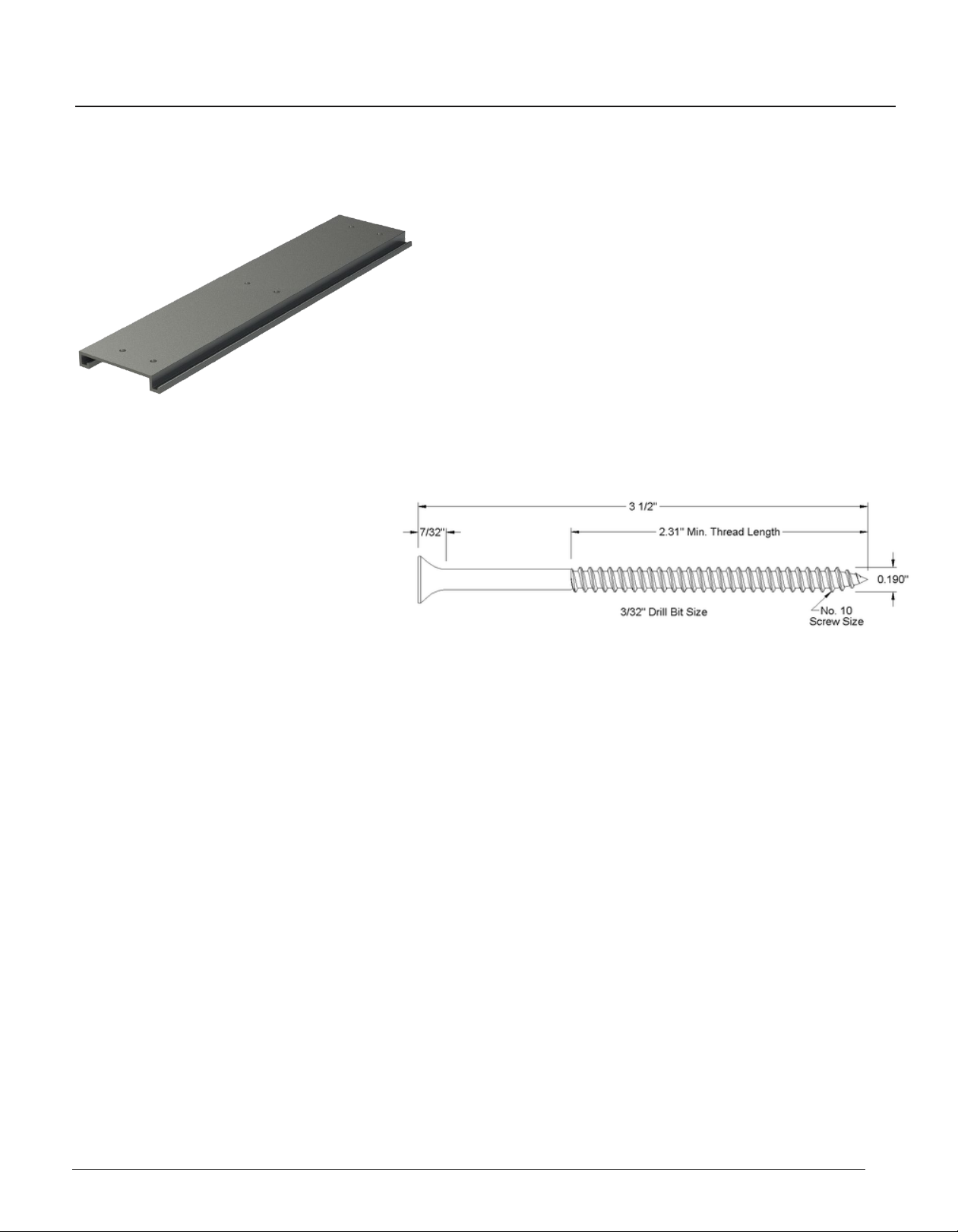

mount (see Figure 4).
Figure 3.Top of Luxus mount
Figure 4.No. 10, 3 ½ inch
screw

Stewart Filmscreen – Luxus 9
WALL MOUNT
Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard
or faulty installations. Failure to comply with the instructions and guidance contained in this manual
may result in voiding your warranty.
1. Identify the location of wall studs where you can
secure the wall mounts.
2. Use a level to accurately position the wall mounts
on the wall (see Figure 5), and make certain that
both wall mounts are within 24 inches from either
edge of the case. This will prevent the case from
tilting to either side.
3. Drill holes through the wall mounts into the studs.
4. Use 3 ½” screws to secure the wall mounts to the
wall studs.
Note:These are heavy units. Wall mounts must be
mounted to as many studs as possible (see Figure 5).
Check to make sure the wall mount is level.
5. Carefully lift and hook the channels on the back of the
housing onto the wall mounts (see Figure 6).
6. Ensure the housing channels are securely placed onto the
hanging bar (see Figure 7).
Figure 6.Luxus case
extrusion with wall mount
Figure 7.Back part of case
hanging off wall mount
Figure 5.Wall mounts leveled and
attached to one or more wall studs
⚠
CAUTION
Be careful not to touch or scratch the viewing surface.
Ensure wall surface is level and free of undulations. Use shimming if necessary.

Stewart Filmscreen – Luxus 10
CEILING MOUNT
Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard
or faulty installations. Failure to comply with the instructions and guidance contained in this manual
may result in voiding the warranty.
1. Use a magnetic stud finder, or similar appropriate
means, to identify the location of solid ceiling joists. If
the joists or rafters are parallel to the screen case,
blocking is required between structural elements.
2. Use a level or other straight edge to properly align both
ceiling mounts as straight as possible.
3. Screws must be mounted into solid wood. If no joists
are available then the ceiling must be blocked.
4. Screw the ceiling brackets into the joists (see Figure 8).
Ensure the screws are mounted to solid wood and that
both ceiling brackets are properly aligned to each other.
5. Lift the case up to the ceiling and into the mounting
brackets. Gently slide case backwards about 1/2" to
engage and lock into brackets (see Figure 9).
6. Since both mounts do not need to be equidistant to the
sides of the case, you can float the case left and right to
find the perfect position even after the screen is
mounted.
⚠
CAUTION
During installation, do not place the unit on an unstable cart, stand, table or ladder. The
unit may fall, causing injury to you or others as well as cause possible damage to the unit.
Do not mount to drywall only. There must be wood joists behind the drywall to secure
the screen.
Figure 8.Ceiling bracket
screwed onto ceiling joists
Figure 9.Luxus case extrusion with
ceiling mount extrusion

Stewart Filmscreen – Luxus 11
ELECTRICAL
The Luxus screen system can be controlled through several remote control devices (IR and RF), keypads,
dry contact outputs, internet protocol (IP), and low-voltage trigger outputs.
Note: This manual refers to AC (electrical alternating current) to represent electrical power. Your
location may use 120 V, 220 V, or other electrical power. Screen systems are manufactured using the
electrical power type specified for the location. Use appropriate power sources for your location.
MOTOR WIRING
The Luxus’ screen system’s motor is prewired at the factory. No additional motor wiring is required.
The following pages will outline standard and optional control types for Luxus.
Connections
The following Stewart Filmscreen accessories that plug into the smart port have RJ25 male
connections. These accessories are able to plug into the RJ45 female smart port with no issues.
IR receiver
IR wall switch
IBT-100
⚠
CAUTION
Luxus is to be installed and used within the scope of the appropriate electrical codes and
regulations. Failure to do so may cause malfunctioning or damage to the screen.
⚠
CAUTION
Luxus has two female RJ45 inputs on rear of case. Neither port is to be used with POE
(power over Ethernet). Improper use of ports will cause irreversible damage to IMC
control board and may void your warranty.

Stewart Filmscreen – Luxus 12
IMC WITH IR RECEIVER AND REMOTE (STANDARD)
A 3-button IR (infrared) remote control (see Figure 10) is supplied for the IMC (see Figure 11). The IMC
control board comes ready to be operated via IR and projector trigger right out of the box. You may visit
StewartFilmscreen.com for a full list of IR Hex codes if you want to program the IR to another remote.
GETTING STARTED
Making the Connections
1. Connect the IR eye with RJ25 end to the back of
Luxus on the smart port with RJ45 as shown (see
Figure 12).
2. Place the IR eye anywhere in the room, making sure
that there are no obstructions between the eye
and the screen.
Note: Luxus comes with two RJ45 female inputs. The
maximum length of the RJ45/RJ25 cable plugged into
the unit shall not exceed 50’. Dry closure modules
from any home automation system can be interfaced,
utilizing up/down/common type terminations only on
the dry contact port.
Figure 10. IR remote
Trigger Port
Figure 12. Rear, audience left of case with
power wire, two RJ45 inputs and a 3.5 mm
trigger port
Smart Port
Dry Contact
Figure 11. IMC control system

Stewart Filmscreen – Luxus 13
IMC WITH IR RECEIVER AND REMOTE (CONTINUED)
OPERATION
After the screen has been properly mounted, check that the batten retainers have all been
removed. Using the IR remote, press the “down” button and the Luxus screen will automatically extend
fully to its preset limit and will power itself off. Press the “up” button once and the Luxus screen will
automatically retract back into the case and power itself off. If a custom position is desired, simply press
the “stop” button at any time during the screen’s deployment or retraction.
Note: See the section, “Adjusting Screen Deployment” (see Page 24), for information regarding the
default limits to which the screen can be adjusted up or down from the factory preset.

Stewart Filmscreen – Luxus 14
12 VOLT PROJECTOR TRIGGER (STANDARD)
Two male, mono, 3.5mm auxiliary plugs are supplied so they can be used with the standard 12 volt
projector trigger feature of the IMC. Since Stewart Filmscreen cannot be certain how long of a cable will
be needed for every single application, the trigger cable will have to be assembled by the installer.
GETTING STARTED
Making the Connections
PROJECTOR TRIGGER
1. Connect the straight, male, 3.5 mm (see Figure 13)
projector trigger cable to the projector. Two male
pieces, straight, and 90 degrees will be supplied for the
installer to make a cable.
2. Connect the 90 degree, male, 3.5 mm (see Figure 14)
trigger cable to the Luxus unit’s female 3.5 mm aux port
(see Figure 12).
3. Make sure to properly set up your projector to send a
trigger signal. The screen should automatically roll down
and roll up when the projector is powered on and
powered off.
HOW IT WORKS
When a trigger-signal equipped projector is turned on or
off, voltage is either supplied or withdrawn via a class II
two-conductor wire (3.5mm aux cable) connected to the
screen. The projector delivers between 5 and 12 volts
when it is powered. The screen control (IMC) interprets
this voltage as a prompt to deploy the screen. If there is a
sudden change in voltage, the motor is paused for ½ of a second before reversing direction. This is to
prevent strain on the motor mechanism and to prevent damage to any material controlled by the motor.
When the projector and screen are energized, the control system relay is also energized. In the retracted
position, relays are automatically de-energized after 120 seconds of operation to reduce power
consumption.
Figure 13.Straight 3.5mm mono plug
Figure 14.90 degree 3.5mm mono plug

Stewart Filmscreen – Luxus 15
RTS MOTOR OPERATION (IF EQUIPPED)
RTS MOTOR
The Somfy RTS motor is an advanced option that integrates well with most home automation systems
through myLink. With a network connection, Amazon Alexa, Google Home, IFTTT – or by using the
myLink app with your smart device — will allow control over your Stewart electric screen’s RTS motor.
Optionally, you can also purchase the RF remote to control your RTS motor.

Stewart Filmscreen – Luxus 16
IR WALL SWITCH AND REMOTE (IF EQUIPPED)
A 3-button IR (infrared) remote control (see Figure 10) is supplied in conjunction with the 3 button IR
(infrared) wall switch (see Figure 15) for the IMC (see Figure 11). The IMC control board comes ready to be
operated via IR and projector trigger right out of the box. You may visit StewartFilmscreen.com for a full
list of IR Hex codes if you want to program the IR to another remote. Instead of receiving an IR receiver
eye, you will get a wall switch with the eye built in.
GETTING STARTED
Making the Connections
1. Connect the RJ25 cable to the back of the IR wall switch (see
Figure 16).
2. Connect the IR wall switch cable with RJ25 end to the back of
Luxus on the smart port with RJ45 as shown (see Figure 12).
3. Install the IR wall switch anywhere in the room, making sure that
there are no obstructions between the eye and the screen.
4. Keep note that you may want to hide the cable inside your wall
to ensure a clean install.
Note: Luxus comes with two RJ45 female inputs. The maximum
length of the RJ45/RJ25 cable plugged into the unit shall not
exceed 50’. Dry closure modules from any home automation
system can be interfaced, utilizing up/down/common type
terminations only on the dry contact port.
OPERATION
After the screen has been properly mounted, check that the
batten retainers have all been removed. Using the IR remote,
press the “down” button and the Luxus screen will automatically
extend fully to its preset limit and will power itself off. Press the
“up” button once and the Luxus screen will automatically retract
back into the case and power itself off. If a custom position is
desired, simply press the “stop” button at any time during the screen’s deployment or retraction.
Note: See the section, “Adjusting Screen Deployment” (see Page 24), for information regarding the default
limits to which the screen can be adjusted up or down from the factory preset.
Figure 15.Front of IR wall switch
Figure 16.Rear of IR wall switch with
RJ25 input

Stewart Filmscreen – Luxus 17
DECORA PADDLE WALL SWITCH (IF EQUIPPED)
A three position momentary wall switch (see Figure 17) can be equipped with the standard IMC control.
The IMC control board comes ready to be operated via the Decora paddle wall switch right out of the
box.
GETTING STARTED
Making the Connections
1. Connect the RJ45/RJ25 cable to the back of the Luxus case
on the dry contact RJ45 port (see Figure 12).
2. Cut the other end of the wire and expose the four
conductors.
3. Connect your wires to the Decora wall switch (see Figure
18).
4. For RJ45 pinouts (see Figure 23).
Figure 18.Rear of Decora Wall Switch
Down
Up
Common
Ground
⚠
CAUTION
Decora wall switch is to be wired through the dry contact port
only.
The dry contact port
is low voltage. Do not wire the wall switch through a high voltage line.
Figure 17.Front of Decora Wall Switch

Stewart Filmscreen – Luxus 18
IBT-100 for Serial (RS-232C) CONNECTIVITY (IF EQUIPPED)_______
An IBT-100 can be equipped to plug in through the smart port on the back of the Luxus case. This unique
piece of hardware combined with its integrated firmware and optional ancillary software can be used to
interface CS-Bus controllers with external RS-232C networks to enable seamless bi-directional control and
feedback.
GETTING STARTED
Making the Connections
1. Connect the RJ25 cable to the back of the Luxus
case on the smart port with RJ45 (see Figure 12).
2. Connect the other side of the RJ25 cable to the
RJ25 female port on the IBT-100 (see Figure 19).
3. Connect your third party RS-232C connection to
the female RS-232C port on the IBT-100.
RJ25 port
Figure 19.IBT-100, showing RJ25 port

Stewart Filmscreen – Luxus 19
OPERATING THE SCREEN
The method you use to raise and lower the screen depends on the type of control system and motor
you have installed.
Note:When you lower or retract the screen, it will stop at its preset limit. If an obstacle, such as a
person or any furniture, is in the path of the screen as it is lowered, use the switch control to stop
the screen’s motion.The screen will not automatically stop if it hits an obstacle.
The motor is designed to be used for short operations such as lowering the screen in preparation for
viewing. The motor is not designed for continuous duty. If the motor operates continually for more than a
few minutes, it may automatically shut off to prevent damage from overheating. If the motor occasionally
needs to be run more than normal, i.e., during initial setup and positioning, allow time for the motor to
cool down.
In general, when the screen is not in use, you should store it in the fully retracted position to protect the
screen’s surface. It is best practice however, to deploy the screen for extended periods. Periodic
deployment on a regular basis will maximize the flatness and uniformity of the screen’s surface.
The screen benefits from frequent and extended periods of deployment.
⚠
CAUTION
Be careful not to touch or scratch the screen’s viewing surface.
⚠
CAUTION
If the unit emits any smoke, heat, abnormal noise or unusual odor, the unit is most likely
damaged in some way — such as damage from a water leak or power surge. Do not
operate the motor if any of these situations occur. Call a qualified service person for
assistance.

Stewart Filmscreen – Luxus 20
INTELLIGENT MOTOR CONTROL (IMC) WIRING
The IMC is a low voltage screen control that allows for switching conductors to be run in Class II (small
wire, exposed, no conduit) and will interface with outboard video switching systems.
The IMC has the capability of being operated through a wall switch, infrared remote, radio frequency
remote, internet protocol (IP) control system, and a screen trigger through a projector. The IMC is the
most robust controller offered for Luxus. For a detailed look at what the IMC has on board, please see
below (see Figure 20).
The IMC comes prewired from the factory
to the motor and to the power cable. For
your reference, in the case of servicing, we
broke down the pin layout for the high
voltage side of the connections (see Figure
21). Always have a qualified electrician
handle high voltage connections.
AC load
side
IMC
100 Motor Power Connectors
BLACK Pin 1 AC Line +
WHITE Pin 2 AC Neutral
NC Pin 3 Motor RED Line
NC Pin 4 Motor BLACK Line
NC Pin 5 Motor Neutral
GREEN NC
Connect Ground to
“Grounding” lug on IMC
housing. Also connect ground
wire from motor housing to
same lug
AC and Motor Fuse
Pins 1-2 AC In
Pin 1
Pins 3-5 Motor
Connection
LV Contacts
Pin 1
LED
Discovery Button
CS-Bus Downlink
RJ25
CS-Bus Uplink
RJ25
Up
Line
Down
Motor
Common
AC
Pin 1
Neutral
Figure 20.IMC control board schematic Figure 21.High voltage pin schematic
