Owner’s Manual
Model A Electriscreen

Congratulations on your purchase of the finest optical viewing screen
available anywhere in the world!
Please take a moment to review this manual, it will help ensure you many
years of trouble-free service from your new S tewart Filmscreen product.
About your Model A Electriscreen
This is one of Stewart’s most popular electric roll up unit s because it can
accommodate screen sizes up to 9’ x 12’ / 180” diagonal (2.7 m x 3.6 m /
4.5m diagonal). Typically, the screen housing is hidden above the ceiling,
and the screen descends through a slot in the ceiling.
Note: This manual refers to “AC” to represent electrical power . Your
location may use 120V, 220V or other electrical power. Screen systems are
manufactured using the electrical power type specified for the location. Use
appropriate power sources for your location.
Preparation
Specifications regarding the individual screen dimensions, weight, mounting
type, and controls are provided by the factory when the unit is ordered.
Before beginning the installation:
Check the specifications for the type of mounting and switch
control to be used.
Ensure that the mounting area and electrical connection are
prepared.
Check the size and weight of the screen to be inst alled so that
you can plan for the number of people required for the mounting
procedure. You need at least two people to mount the smaller
screens; more are needed for larger, heavier screens.
2Stewart Filmscreen Corporation
TO THE OWNER
PREPARING THE INSTALLATION
Before proceeding with the installation of this screen,
be sure to thoroughly read and underst and all the
installation and operating instructions.
All electrical wiring installations must conform to local
and national codes and should be performed by
qualified service personnel.
There are no user-serviceable parts contained within the
unit.

You will need:
Enough ladders for the personnel supporting the screen during
the mounting process
A level
Fasteners appropriate for the surface on which the screen is
being mounted
Unpacking
1. Remove the outer plastic covering and white wrapping paper
surrounding the screen case.
2. Do not remove the wrapping paper surrounding the screen roller.
You should remove it only af ter the unit is hung and all electrical
connections have been made.
3. Remove the batten lock-down screws located on the back side of
the case.
Model A Electriscreen: Owner’s Manual 3
Warning!
Failure to remove the batten lock-down screws can result in
permanent damage to the screen.
Factory Advisory
The factory advises against installing a concealed or recessed
electrical projection screen permanently. You must be able to
access and remove the unit should future service be
necessary.
Suggested solutions for removing the unit include:
A removable ceiling cover plate under the mounting
location
Access to the unit through an attic or overhead space
Caution
During installation, do not place the unit on an unst able cart,
stand, table, or ladder. The unit may fall, causing injury to a
child or adult and damage to the unit.

Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
Make sure that you mount the screen so that the electrical box is on the left
side (audience left).
Wall installation
1. Mount screen through the holes in the wall mount brackets.
Refer to Figure 1.
– If mounting onto a wood substructure, #12 screws may be used.
– If the unit is to be mounted to plaster , drywall, masonry, or other-
type of surface, use an appropriate fastener . (These might include
toggle or molly bolts or similar fasteners.)
2. Make sure the unit is level.
Ceiling or top mount installation
The Model A Electriscreen can be installed into the ceiling or sof fit. A false
ceiling is not intended to support the weight of a Model A Electriscreen.
Make sure that you mount the screen so that the electrical box is on the left
side (audience left). Refer to Figure 2.
If the unit is to be mounted to plaster, drywall, masonry, or other type of
surface, use an appropriate fastener. (These might include toggle or molly
bolts or similar fasteners.)
There are two types of ceiling or top mount: suspended or flush to ceiling.
Follow the procedure for the specified type of mounting.
4Stewart Filmscreen Corporation
Figure 2: Ceiling or top mount
STEP 1. HANGING THE CASE
Figure 1: Wall mount using
optional brackets
Electrical
Knockout
Electrical
Box Access
Plate
Screen

Suspended installation
1. Suspend the unit from the holes on the plate using chains,
cables, Unistrut, threaded rod, or turnbuckles. Refer to Figure 3.
2. Make sure the unit is level.
Flush to ceiling mount (optional)
You can install the screen so that the top of the unit is flush with the ceiling.
Note: When the flush to ceiling mount option is ordered, mounting brackets
(also called doctor brackets) are pre-mounted on the ends of the screen
case.
1. Mount screen through the holes in the brackets.
Refer to Figure 4.
2. Make sure the unit is level.
Model A Electriscreen: Owner’s Manual 5
Figure 4: Flush to ceiling
mount
Figure 3: Suspended
installation
Ceiling Mount Brackets
Support Structure

The motor requires standard AC input (unless an alternate voltage has been
specified). All connections are made to the electrical box on the side of the
unit (audience left).
In addition to the standard high-voltage 3-position switch, there are optional
switch controls available. Follow the inst allation procedure for the type of
switch control you will install.
General suggestions for wiring:
Soldering is recommended.
The use of wire nuts is acceptable.
On models not provided with armored whip, a romex connector
should be installed in the appropriate electrical KO (Knock Out).
Refer to Figure 5 for an illustration of the electrical connection box on the
side of the screen unit.
6Stewart Filmscreen Corporation
STEP 2. ELECTRICAL HOOK-UP
Caution
Professional techniques should be used when making any
electrical connection. A qualified electrician should perform
these procedures.
Be sure to follow all standard safety procedures for installing
electrical devices.
Do not disassemble or alter the configuration of the motor or
the unit's electrical connections. This may cause injury to you
or damage to the product.
The electrical connection should be made only to the type of
power source indicated on the marking label.
Figure 5: Electrical connection
box
Electrical
Connection
Box
Electrical
Knockout
Electrical
Access
Plate
Screen

Model A Electriscreen: Owner’s Manual 7
Installing the high voltage switch control (standard)
A standard 3-position wall switch is supplied. The high voltage control is
connected to the electrical source. It alternates directions of screen motion
by means of the hot lead, using the 3-position switch.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source
A 4-conductor romex or motor connector cable
Making the connections
The diagram in Figure 6 illustrates the connections.
1. Connect the wall switch to the AC constant power source.
2. Connect the wall switch to the screen unit’ s electrical box.
Figure 6: High voltage control wiring diagram
Screen Switch
AC Power
Source
DOWN-Black
UP-Red
Line (Hot)
COMMON-White (Neutral)
GROUND-Green
Warning!
Do not connect multiple high voltage control switches to one
screen motor. For custom switching applications, cont act the
factory.

Connecting the screen trigger interface option
The optional 12V screen trigger interface enables up and down operation of
the screen in conjunction with a projector , tuner, VCR, cable box, or
switched AC outlet.
Once the AC power outlet is installed near the screen, an electrician is not
needed to connect the screen trigger interface to the power source.
Note: An optional 12VDC transformer is used if there is no 12V power
source from the projector or AV control center.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source installed near the screen
Making the connection
The electrical diagram in Figure 7 illustrates the connection.
1. Plug the AC power cord into the AC outlet.
2. Attach the 12V trigger wire to the jack in the plate.
8Stewart Filmscreen Corporation

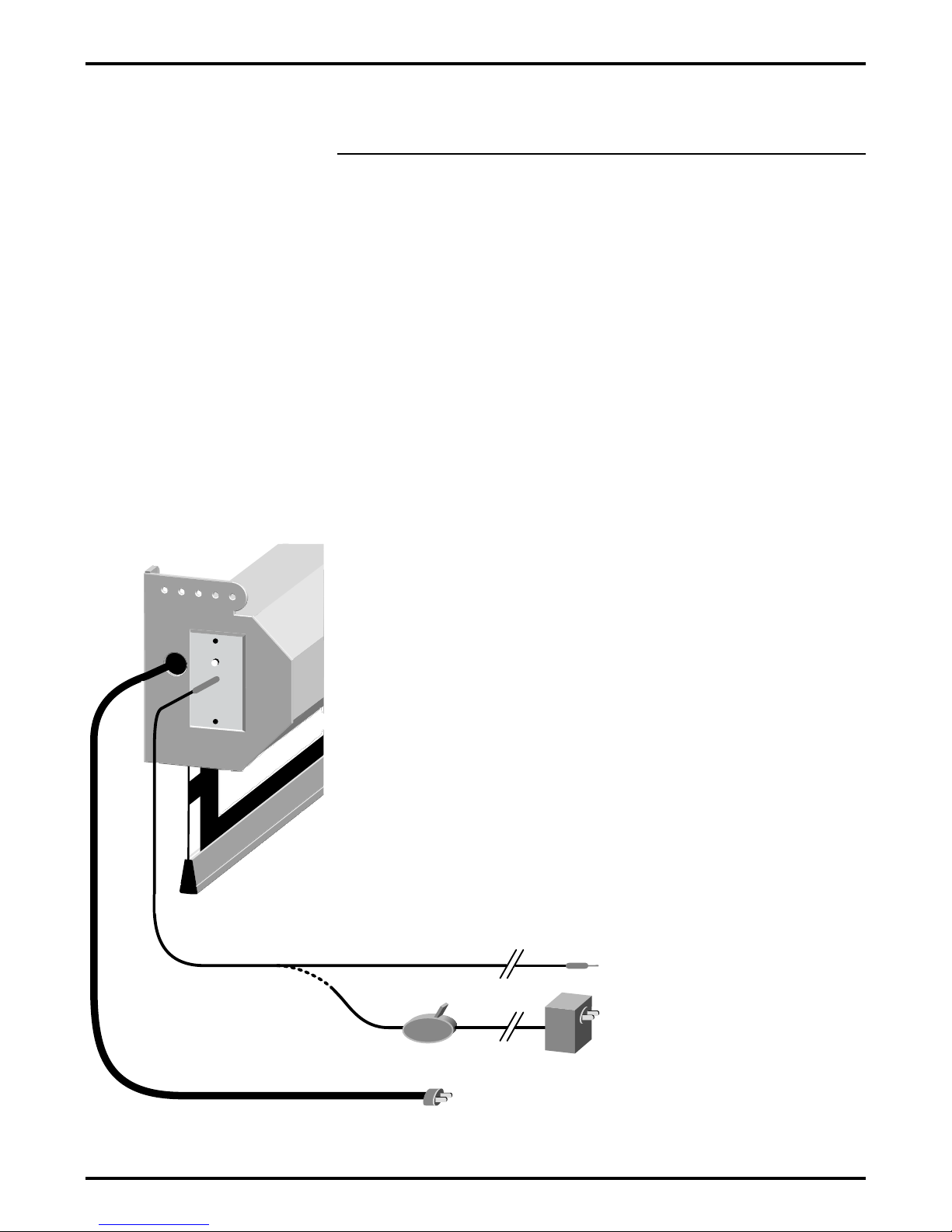

Figure 7: Screen trigger interface connection
To Projector
or
AC Power Source
AC Power Source
Optional 12 VDC
Transformer
With Switch

Model A Electriscreen: Owner’s Manual 9

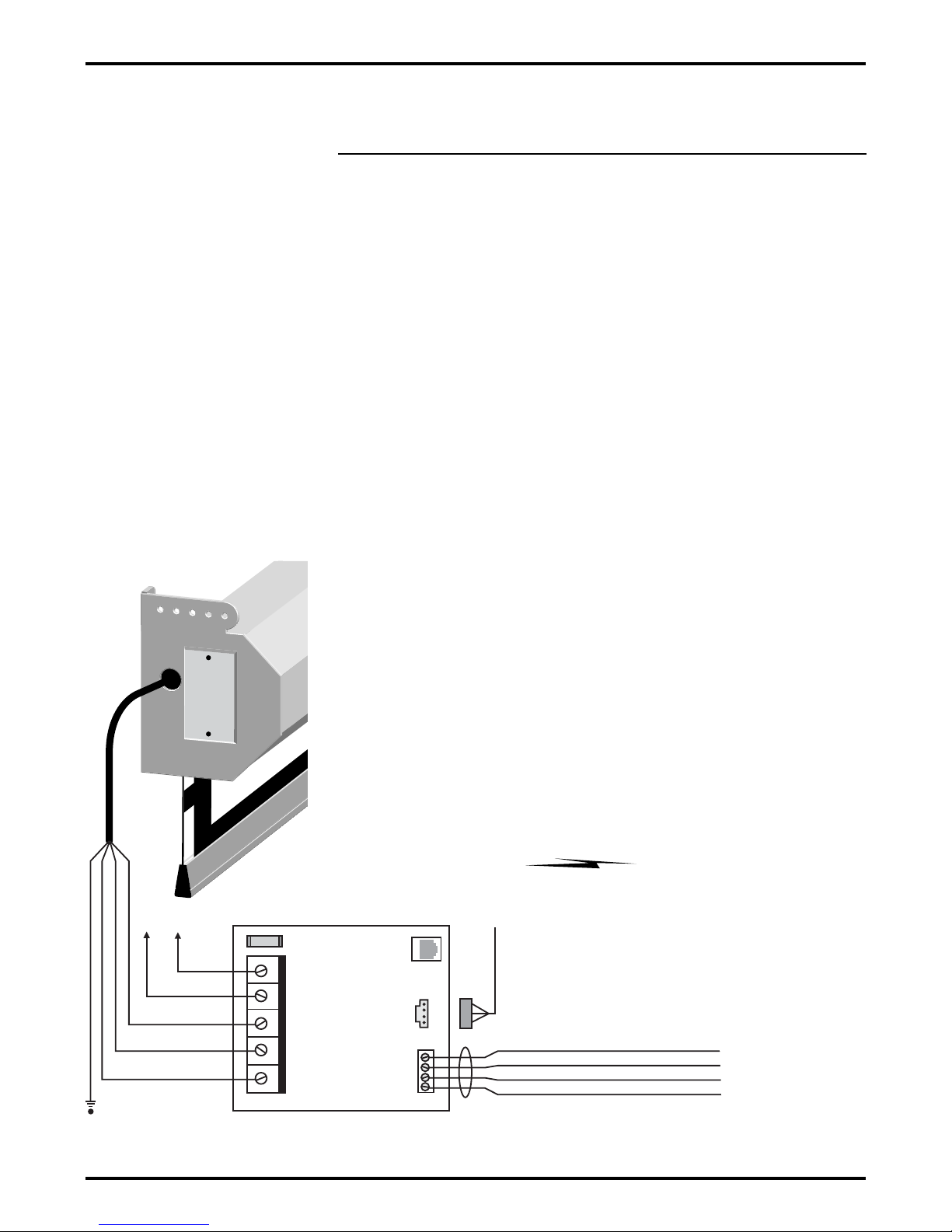

Figure 8: Low voltage 3-button switch wiring
3-button
Momentary Switch
120 VAC
Line
R/F Input
InfraRed Input
Low Voltage
Switching
Neutral
COMMON-White
UP-Red
DOWN-Black
STOP-Yellow
COMMON-White
UP-Red
DOWN-Black
4 Conductor Hook-up Cable—20-24ga Recommended
Category 5 Typically Used (NOT Supplied)
Low Voltage Control Box
Ground
Installing the low voltage 3-button switch option
The optional Stewart Filmscreen low voltage control allows the use of low
voltage wire to connect to the supplied 3-position 24V moment ary wall
switch.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source
A 4-conductor switch hook-up cable (4-conductor bell wire or
category 5 cable is typically used for long runs.)
Cat 5, multi-conductor unshielded, or similar type electronic cable
can be used to connect the 3-button switch to the LVC. The
recommended wire gauge is 20 to 24 AWG. Use plenum-rated
cable when required.
Making the connection
Refer to the diagram that is located on the white label inside the steel
housing, and in Figure 8.
1. Mount the low voltage control box near the screen.
2. Connect the low voltage control box to the screen by connecting
the screen motor power leads to the power strip terminal block
located on the circuit board of the control box.
3. Connect the low voltage control box to the AC power source by
connecting the AC line voltage to the power strip terminal block
located on the circuit board of the control box.
4. Connect the green grounding wire to the grounding lug.
5. Connect the switch to the low volt age control box.
6. A parallel connection to an outboard audio-visual switching
network can be made at this time. (optional)

10 Stewart Filmscreen Corporation
Figure 9: Infrared remote control wiring
Low Voltage Control Box 3-Button
Momentary Switch
Infrared Sensor
Infrared Remote Control
120 VAC
Line
R/F Input
InfraRed Input
Low Voltage
Switching
Neutral
COMMON-White
UP-Red
DOWN-Black
STOP-Yellow
COMMON-White
UP-Red
DOWN-Black
4 Conductor Hook-up Cable—20-24ga Recommended
Category 5 Typically Used (NOT Supplied)
Ground
Installing the infrared remote control option
The optional Stewart Filmscreen infrared remote control allows control of
the screens from anywhere in the room.
Note: The distance between the hand-held remote control and the receiver
can be up to 50 feet (15.24 m). It is necessary to have uninterrupted line-
of-sight between the remote and the receiver .
Preparing the connection
Before making the electrical connections, you need:
Refer to previous section “Installing the low-voltage 3-button
switch option.”
Making the connection
Refer to the diagram that is located on the white label inside the steel
housing, and to Figure 9.
1. Mount the low voltage control box near the screen.
2. Mount the infrared (IR) eye sensor near the screen.
3. Connect the low voltage control box to the screen by connecting
the screen motor power leads to the power strip terminal block
located on the circuit board of the control box.
4. Connect the IR eye sensor to the small black plug-in module
located next to the switch input on the circuit board.
5. Connect the green grounding wire to the grounding lug.
6. Connect the low voltage control box to the AC power source by
connecting the AC line voltage to the power strip terminal block
located on the circuit board of the control box.
7. Connect the switch to the low voltage control box.

Model A Electriscreen: Owner’s Manual 11
Installing the wireless remote control option
The optional Stewart Filmscreen wireless remote control allows control of
the screen from anywhere in the room.
Note: The distance between the hand-held remote control and the receiver
can be up to 50 feet (15.24 m). It is not necessary to have uninterrupted
line-of-sight between the remote and the receiver , but there should be no
metal objects between them. The override switch on the bottom of the
receiver can be used instead of the remote control.
Preparing the connection
Before making the electrical connections, you need:
An available AC power source installed near the screen
Making the connection
The diagram in Figure 10 illustrates the connections.
1. Connect the 4-conductor cable to the receiver module.
2. Open the wireless remote receiver module and connect motor
wires according to the labels inside.
3. Plug the receiver module into the constant AC power source.
Figure 10: Wireless remote control connection
Wireless Remote
Control
AC
Connect to motor
Wireless Remote
Receiver Module

The method you use to raise and lower the screen depends on the type of
switch control device you have selected.
When you lower or retract the screen, it will stop at it s preset limit. If an
obstacle (such as a person or furniture) gets in the path of the screen as it
is lowered, you should use the switch control to stop the screen's motion; it
will not automatically stop if it hit s an obstacle.
The motor is designed to be used for short operations such as lowering the
screen in preparation for viewing. The motor is not designed for continuous
duty. If the motor operates continually for more than a few minutes, it may
automatically shut off to prevent damage from overheating. If the motor
occasionally needs to be run more than normal, for example during initial
setup and positioning, allow time for the motor to cool down.
In general, when the screen is not in use, you should store it in the fully
retracted position.
The extension and retraction limit switches have been preset at the factory.
In general, we advise you to avoid readjusting these switches.
In some cases, to enable proper alignment of the displayed image on the
screen, you may need to adjust the extension of the screen. If adjustment
to the extension is necessary, carefully follow these instructions.
12 Stewart Filmscreen Corporation
OPERATING THE SCREEN
Caution
Do not operate the motor when any of the following occurs:
The unit emits any smoke, heat, abnormal noise or
unusual odor.
The unit is damaged in some way, such as damage from
a water leak.
If any of these situations occur, call a qualified service person.
Caution
Improper adjustment of the limit switches can cause
irreparable damage to the screen itself, resulting in voiding the
factory warranty.
ADJUSTING THE SCREEN EXTENSION

Model A Electriscreen: Owner’s Manual 13
Modifying the extension of the screen
You can increase the extension of the screen up to 3" (7.6 cm) p ast the
factory preset stop, or you can decrease the extension by approximately
4-6" (10-15 cm) from the factory preset stop. Do not attempt to modify the
screen extension beyond these recommended amount s.
The limit switches are located on the lef t side of the screen roller tube inside
the case, as shown in Figure 11.
To increase the screen's fully extended (screen down) stop position:
1. Lower the screen to its current stop position.
2. Locate the white extension (down) limit switch located on the left
side of the screen tube. Use a screwdriver to turn the switch in a
counterclockwise direction. If the power is still on, the screen will
drop incrementally as the switch is turned.
Note: One complete turn of the switch will make approximately a
3/4" (2 cm) change in the screen's stop position.
To decrease the screen extension:
1. Lower the screen until it is extended about halfway down.
2. Locate the white extension (down) limit switch located on the left
side of the screen tube. Use a screwdriver to turn the switch in a
clockwise direction.
Note: One complete turn of the switch will make approximately a
3/4" (2 cm) change in the screen's stop position.
3. Activate the screen in the down direction until it reaches the
newly reduced stop position. Repeat this procedure until the
desired stop position is reached.
Once you have made the adjustment, whenever you lower the screen, it will
automatically stop at the new position.
Note: It is recommended that you make a note of any changes made to the
factory preset.
Figure 11: Underside view
Screen
Down Limit Switch Access
Up
Limit
Switch
Warning!
The screen is fully retracted when the batten is flush with the
bottom of the case. Some of the larger unit s require the
batten to stop at approximately 1 1/2” (3.8 cm) from the bottom
of the case. Do not attempt adjustment s with the yellow
retraction (UP) limit switch that will further retract the screen.
Incorrect adjustment of the switch will cause severe screen
damage. Please consult the factory if you have any questions.

With reasonable care, you can expect many years of trouble-free use of
your Stewart projection screen.
We encourage you to keep your screen clean. To protect your screen when
it is not in use, store it in the fully retracted position.
Avoid getting any foreign material on the screen, as cleaning may prove
very difficult. It may not be possible to remove scratches, paint, ink, etc.
General maintenance
The screen surface on your screen is delicate. Special attention to these
instructions should be followed when cleaning.
A draftsman-style brush may be used to lightly whisk away any
loose dirt or dust particles. (This type of brush is usually
available at office supply stores.) Stewart Filmscreen has an
optional screen cleaning kit that cont ains the proper type of
brush. Contact your dealer if you would like to obtain this
cleaning kit.
Particles left on the screen when it is retracted into the case may
form an impression on the screen surface. Periodically wipe the
back of the screen with a clean damp cloth.
For tougher spots, use a solution of mild detergent and water .
Rub lightly using a sponge. Blot with a damp sponge to absorb
excess water. Residual water marks will evaporate within a few
minutes. Let the screen air dry completely before retracting.
Do not use any other cleaning materials on the screen. Contact the factory
if you have questions about removing dif ficult spots.
Replacement parts and service
No user-serviceable parts are contained within the unit. Cont act your dealer
or the factory if you require p art replacement or service.
14 Stewart Filmscreen Corporation
SCREEN CARE AND CLEANING

Refer to the following guidelines if you encounter a difficulty in the operation
of your Stewart Filmscreen. Problems related to electrical or motor function
may require a qualified service person or electrician.
Should you have a problem that is not addressed here, call the Stewart
Filmscreen Corporation.
Model A Electriscreen: Owner’s Manual 15
TROUBLESHOOTING
Problem description
Probable cause
Action to take
Screen won't operate.
No AC power available.
Outboard switching problem.
Check to see if the circuit breaker
has switched off. Reset if needed.
Check outboard switching
apparatus.
Check voltage availability. Contact
an electrician.
Screen won't roll up or down
(even though power is available).
Bad connection at switch.
Polarity of STI line may be bad.
Have an electrician or qualified
service person check the
connection as follows:
• If you have a high voltage control
switch, check switch-line
connections.
• If you have a low voltage control
unit, check switch-line
connections.
• If you have a screen trigger
interface, check line connections,
or the mini-plugs at the screen
input or projector output. Check
12V DC line for correct polarity.
Contacts may be sticking —tap
relay to free contacts.
Screen roller chatters when
power is activated.
Can be caused by voltage drop,
bad connections, or a defective
switch.
Have an electrician or qualified
service person ch eck all hook-ups
including all outboard wiring.
Unit hums in up mode. (Screen
has already retracted.)
The screen batten is retracting
too far into the case. Failure to
correct can damage motor and
screen. Do not use the unit
until this problem is resolved.
Have a qualified service person
adjust the yellow UP limit switch.
Turn the adjusting screw
clockwise.
Screen drops when up direction
is activated (grinding noise
occurs).
Drop in voltage.
Screen motor requires full voltage.
Have an electrician or qualified
service person check available
voltage.

16 Stewart Filmscreen Corporation
Problem description
Probable cause
Action to take
Screen continues past bottom
stop position.
White limit switch is out of
adjustment.
Readjust the white DOWN limit
switch. See pages 12-13 of this
manual.
Batten retracts too far into case.
Yellow limit switch out of
adjustment. Failure to correct
can damage motor and screen.
Do not use the unit until this
problem is resolved.
Have a qualified service person
readjust the yellow UP limit
switch. See pages 12-13 of this
manual.
Motor shuts off. Motor has been
in use for more than 2 minutes.
Motor is designed for short
operations (lowering and
retracting), not continuous duty.
Longer operation, such as during
setup and positioning, causes the
motor to overheat and shut off.
Allow the motor to cool down .
Complete cooling can take an
hour or more. Heat gain is
cumulative and takes time to
dissipate. If motor use is initiated
before it has cooled completely,
the motor will shut down again
when it reaches maximum
temperature.
Any controller (e.g., STI, LVC,
etc.) fails to operate motor.
Dirt, finger prints, marks, etc. on
screen surface.
Improper handling of screen.
Brush off or use a mild detergent
solution with clean rag or cotton
swab.
Indentations appear on screen
surface.
Debris or particles adhering to
screen due to static cling.
Check back of screen; gently
brush debris away by hand.

LIMITED ONE (1) YEAR WARRANTY ON STEWART FILMSCREEN
CORP PROJECTION SCREENS SYSTEM
STEWART FILMSCREEN CORPORATION (Stewart) warrants its screens to
the original purchaser only, to be free from defects in materials and
workmanship for a period of one (1) year from the date of purchase by the
original purchaser or eighteen (18) months from date of manufacture, as
defined in the serial number, provided they are properly operated and
maintained according to Stewart instructions and are not damaged due to
improper handling or treatment after shipment from the factory.
This warranty does not apply to equipment showing evidence of misuse,
abuse, or accidental damage, including neglect caused by improper
installation (i.e. proximity to hot lights, exposure to extreme heat or cold,
exposure to excessive humidity, etc.) as well as product that have been
tampered with or repaired by any person or third p arty installation, other
than authorized Stewart personnel.
Stewart's sole obligation under this warranty shall be to repair or to replace
(at Stewart's sole discretion) the defective p art of the merchandise. This
warranty expressly does not cover any cost s of removal, installation,
framing, or other costs incident to replacing the screen or returning it to
Stewart. Returns for service should be made to your Stewart dealer. If it is
necessary for the dealer to return the screen or part to Stewart,
transportation (freight) expenses to and from Stewart are payable by the
purchaser and Stewart is not responsible for damage in shipment. To
protect yourself against damage or loss in transit, insure the product and
prepay all transportation expenses.
This warranty is in lieu of all other warranties, expressed or implied,
including warranties as to fitness for use and merchant ability. Any implied
warranties of fitness for use, or merchant ability, that may be mandated by
statue or rule of law are limited to the one (1) year warranty period. This
warranty gives you specific legal right s, and you may also have other right s
which vary from state-to-state. In no event will Stewart be liable for sums in
excess of the purchase price of the product. No liability is assumed by
Stewart for expenses or damages resulting from interruption in operation of
equipment, or for incidental, direct, or consequential damages of any
nature.
In the event that there is a defect in materials or workmanship of a Stewart
Screen, you may contact our Customer Service Department at
1161 W Sepulveda Blvd, Torrance, California 90502-2797
(310-784-5300) Toll free (800-762-4999).
IMPORTANT: This warranty shall not be valid and Stewart shall not be
bound by this warranty if the product is not operated and maintained in
accordance with Stewart's written instructions.
Stewart Filmscreen Corporation shall not be liable for any and all
consequential damage(s) occasioned by the breach of any written or
implied warranty pertaining to the sale in excess of the purchase price
of the product sold.
Printed in USA. Rev. 12/14/10
Model A Electriscreen: Owner’s Manual 17
PRODUCT WARRANTY

800.762.4999 •310.784.5300 •Fax: [phone]
www.stewartfilmscreen.com
January 2011
Printed in U.S.A.
©2000–2011 Stewart Filmscreen Corporation
