Stewart Filmscreen – WallScreen 2.5
WallScreen 2.5
Fixed Frame, Snap Screens
OWNER’S MANUAL

2
Stewart Filmscreen – WallScreen 2.5
Printed in the USA. ©2021 Stewart Filmscreen Corporation
Stewart Filmscreen reserves the right to make changes to the product specified in this document.
Sizes and specifications are subject to change without notice at Stewart’s discretion. From time to time, this
document is updated. Current versions of this documentation are posted on the Stewart Filmscreen website at:
www.StewartFilmscreen.com
Revision 1.0
Date: 6/28/2021

3
Stewart Filmscreen – WallScreen 2.5
WallScreen 2.5
O W N E R ’ S M A N U A L
Contents
To the Owner 4
About WallScreen 2.5 5
Preparing the Installation 6
Frame Assembly Instructions 8
Hanging Bar Mount 9
Wall Board Mount 11
Eye Bolt Mount (Hanging) 13
Aperture Mount 14
Attaching the Screen to the Frame 15
Caring for and Cleaning the Screen 17
One (1) Year Limited Warranty 18

4
Stewart Filmscreen – WallScreen 2.5
TO THE OWNER
Congratulations on purchasing one of the finest optical viewing screens in the world.
Your handcrafted, WallScreen 2.5 projection screen has been carefully inspected to ensure you will
have an optimal viewing experience that will last many years. Please take a moment to review this
manual. It will guide you through the installation and the operation of your screen and will also
provide you with detailed instructions on how to care for your screen’s viewing surface.
From all of us at Stewart Filmscreen, we would like to thank you for choosing WallScreen 2.5. Should
you have any questions, please don’t hesitate to contact our customer service department at 1 (310)
784-5300, or toll free at 1 [phone]. We’re here to help.
Mary Stewart Frank Gomez
CEO and Owner Fixed Frame Masking Specialist

5
Stewart Filmscreen – WallScreen 2.5
ABOUT WALLSCREEN 2.5
Your WallScreen 2.5 fixed frame supports virtually all projection applications. The Velux finish is
designed to absorb any projector overscan. The WallScreen 2.5 features angled corners and a
beveled edge that brings the image area closer to the front of the frame.
The WallScreen 2.5 features snaps and brackets that move on the frame to allow for
adjustments. Rear projection is available as an option. The hanging bar is the standard mount.
Other options include the Wall Board Mount, the Eye Bolt Mount (Hanging), and Aperture Mount.
USING THIS MANUAL FOR INSTALLATION
The WallScreen 2.5 screen is designed for easy installation. There are no user-serviceable parts
contained within the unit.
VOIDING YOUR WARRANTY
NOTE: Failure to comply with the instructions and guidance contained in this manual may
result in voiding your warranty.
For the instructions related to your specific mount type, refer to the appropriate page:
‣Hanging Bar Mount (page 9)
‣Wall Board Mount (page 11)
‣Eye Bolt Mount (Hanging) (page 13)
‣Aperture Mount (page 14)
At the designated point in the installation, you will need to refer to the general instructions for:
Attaching the Screen to the Frame (page 15-16).

6
Stewart Filmscreen – WallScreen 2.5
PREPARING THE INSTALLATION
Before proceeding with the installation, take the time to thoroughly read and understand these
installation instructions. Failure to comply with the instructions and guidance contained in this
manual may result in voiding your warranty.
SPECIFICATIONS
Specifications regarding the individual screen dimensions, weight, etc., are provided by the factory
when the unit is ordered.
Before beginning the installation
‣Make sure there is a clean surface to unroll the screen and assemble the frame.
‣Check the size and weight of the screen to be installed so that you can plan for the number of
people required for installation. You need at least two people to mount the smaller screens. More
people are needed for larger, heavier screens.
What’s inside the box?
Inside your WallScreen 2.5 unit box, you will find everything you need to get started on enjoying
your Stewart screen:
‣Screen image rolled up in a tube
‣Disassembled frame with all the hardware needed to reassemble
‣Packing material
‣Quick Start Guide
You will need:
‣A drill
‣A level
‣A drop cloth
‣Tools for tightening fasteners
‣Lint-free, clean cloth gloves for handling the screen
‣Fasteners appropriate for the surface on which the screen is being mounted
‣Ladders for the personnel supporting the screen during the mounting process

7
Stewart Filmscreen – WallScreen 2.5
PREPARING THE INSTALLATION (CONTINUED)
Note:Bolts and other fasteners for the screen are standard gauge and standard sizes used in the
U.S., regardless of the installation country. For this reason, sizes are in inches rather than metric
measurements.
UNPACKING
Be sure to unpack carefully in a clean area. Use special care when handling the screen so that it
does not become soiled or damaged. If you plan to repack your screen and hardware for
transportation to another location, you may wish to photograph or make a note of how it was
packed. Retain the packing material for future use, if desired.
⚠
CAUTION
Do not stand on the screen tube or store it on its end. This will cause screen damage. If you are
not planning to install the screen immediately, make sure it remains horizontal during storage.

8
Stewart Filmscreen – WallScreen 2.5
FRAME ASSEMBLY INSTRUCTIONS
1. Connect the frame members by matching the numbered dots on the ends of the members.
2. Secure the frame members with the supplied 5/16-18 x 1/2” hex head bolts (see Figure 1).

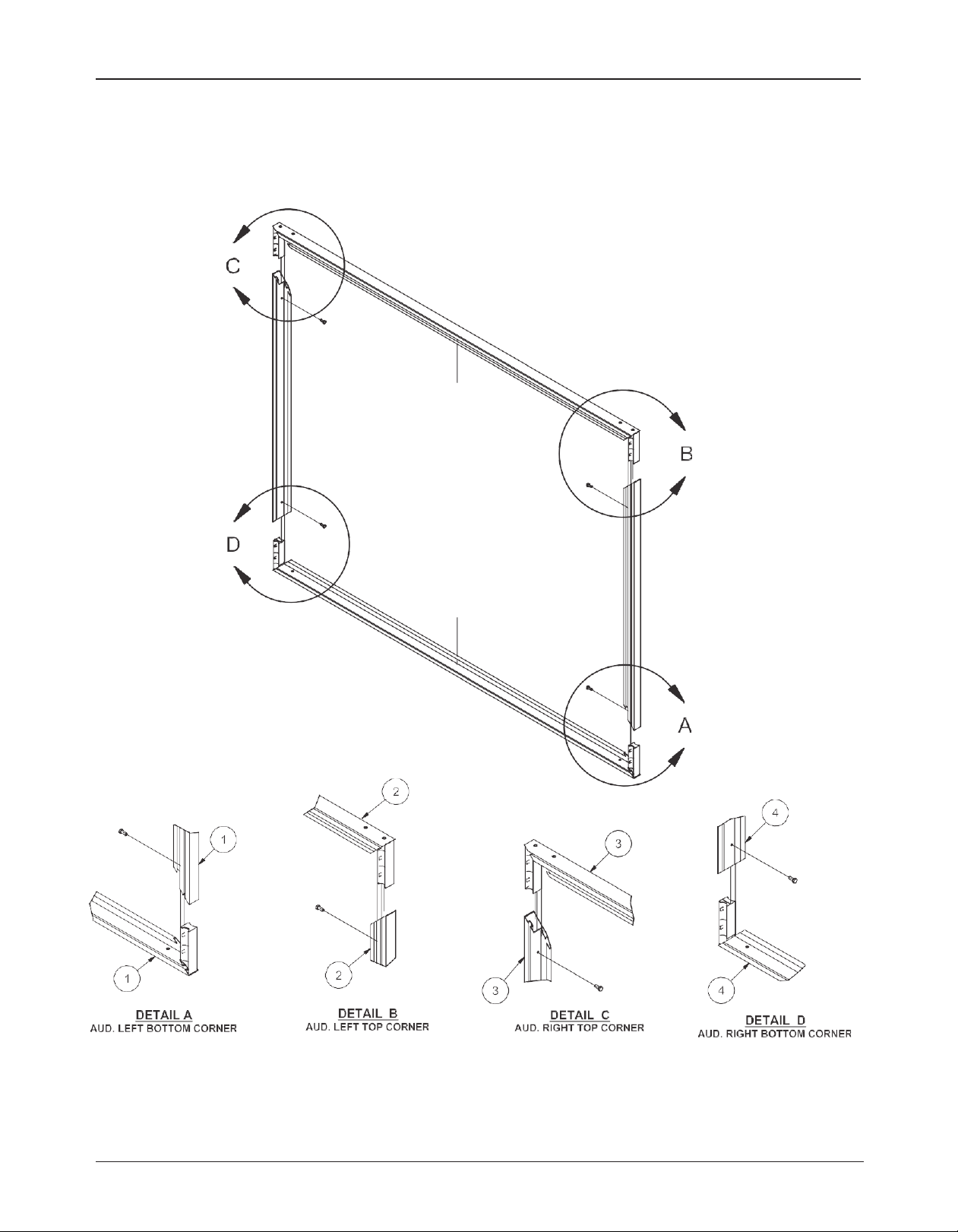

Figure 1: Frame Assembly

9
Stewart Filmscreen – WallScreen 2.5
HANGING BAR MOUNT
NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be
liable for substandard or faulty installations. Failure to comply with the instructions and
guidance contained in this manual may result in voiding your warranty.
To accurately position the frame, mount the hanging bar and temporarily hang the frame before
attaching the screen material. On the bottom of the frame, there are magnets you can slide to line
up the steel pucks with wall studs. If the wall is not perfectly flat, the force of the magnet may cause
the frame to bend. For this reason, shims can be placed between the wall and steel pucks so that
the frame remains straight. The screen should not be attached to the frame at this point (see Figures
3-6).
1. Identify the location of wall studs where you
can securely mount the hanging bar.
2. Use a level to accurately position the hanging
bar on the wall (see Figure 2).
3. Drill holes through the bar into the studs.
4. Use the provided screws or other appropriate
fasteners to secure the hanging bar to the wall
studs.
Note: A minimum of three (3) screws are
recommended to safely secure the frame.
More screws are needed for heavier screens.
5. Recheck to make sure the bar is level.
6. Hang the assembled frame, without the screen attached, on the hanging bar to ensure that it is
correctly mounted.
7. Mark the wall where you will mount the steel pucks to studs that will align with the magnets
fastened on the frame.
Note: Find studs that allow the pucks and magnets to be positioned approximately 12” to 24”
from the edge of the frame on each side.
8. Remove the frame. Drill into the studs and mount the steel pucks with the provided 2-3/8”
screws or other appropriate fasteners. Use shims as needed.
⚠
CAUTION
‣Be careful not to touch or scratch the viewing surface.
Figure 2: Hanging bar Level and on Wall Studs

10
Stewart Filmscreen – WallScreen 2.5
HANGING BAR MOUNT (CONTINUED)
9. Reposition the frame and the slide, and then secure the magnets so they align with the steel
pucks mounted on the wall.
10. Remove the frame. Follow the steps for attaching the screen to the frame (pages 15-16).
11. Your WallScreen is now ready to hang in its final position (see Figures 3-6).

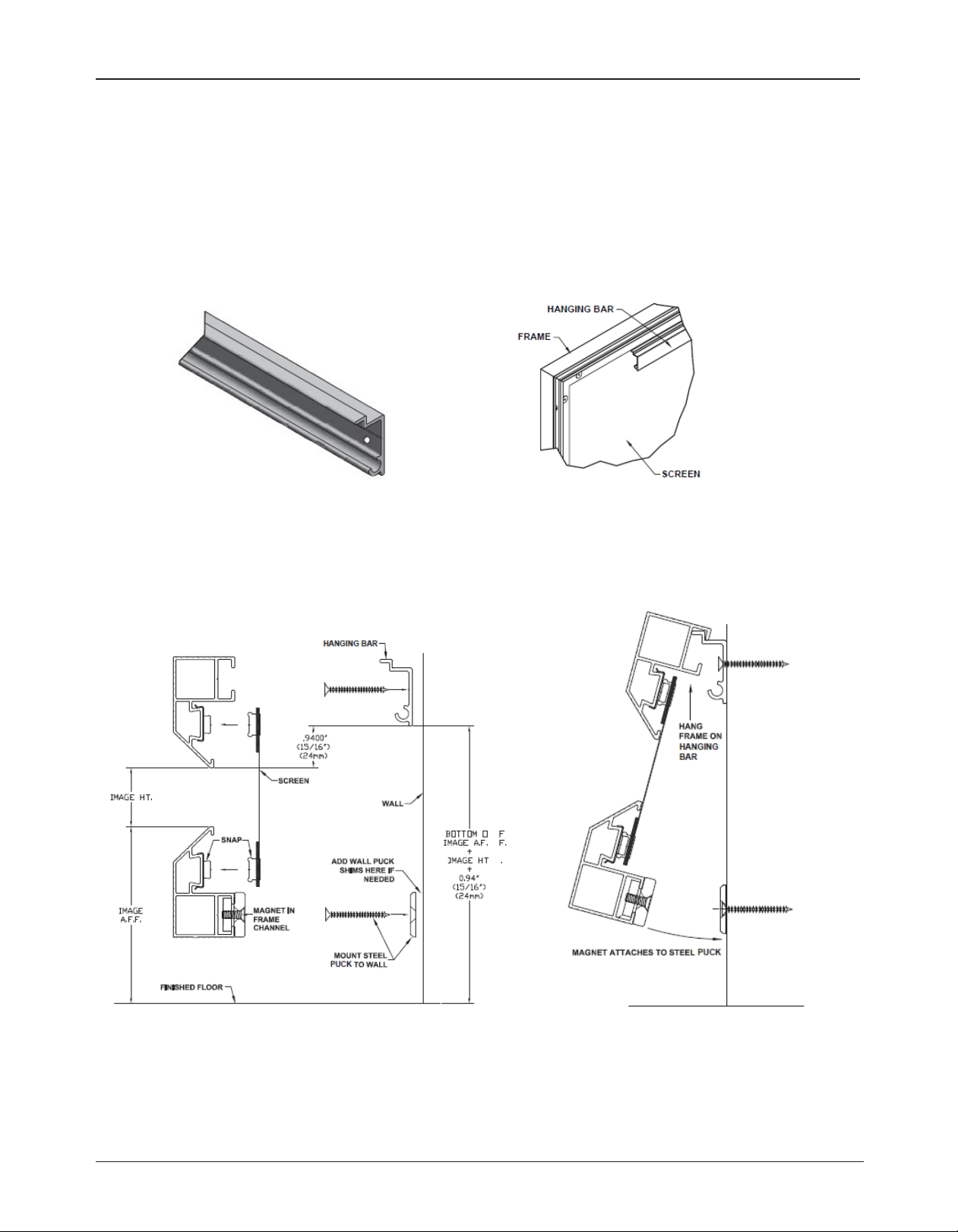

Figure 5: Components for Wall Mounting – Side view
Figure 3: Hanging Bar Front View Figure 4: Screen Rear View
Figure 6: Hanging the Screen – Side View

11
Stewart Filmscreen – WallScreen 2.5
WALL BOARD MOUNT
NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be
liable for substandard or faulty installations. Failure to comply with the instructions and
guidance contained in this manual may result in voiding your warranty.
1. Lay assembled frame face down
on a clean surface.
2. Fit wall boards to the outside of
the brackets already attached to
the frame.
3. Bolt wall boards to brackets using
the supplied 3/4” hex head bolts
(see Figure 7).
Note: Depending on the size of
the screen, the number of wall
boards may vary. Temporary
attachment of the wall boards to
the frame for the purpose of
positioning the frame and
brackets on the wall.
4. Without the screen material
attached, position the frame and
wall boards on the wall (see
Figure 8).
5. Make sure the unit is level and
plumb. You may need to use
shims between the boards and
the wall to achieve vertical
plumb.
6. Align the wall board holes with
wall studs, mark and drill holes in
the wall that align with the wall
board holes.
Figure 7: Temporarily Attaching
Wall boards to the Frame
Figure 8: Positioning the Frame and Wall
Boards to the Wall

12
Stewart Filmscreen – WallScreen 2.5
WALL BOARD MOUNT (CONTINUED)
7. Remove the boards from
the frame and attach them
to the wall using the
provided hardware or other
appropriate fasteners such
as lag bolts, wall anchors,
molly bolts, wood carriage
screws, etc. (see Figure 9).
8. Attach the screen to the
frame (see pages 15-16).
9. Attach the frame/screen
assembly to the previously
mounted wall boards on the
wall using the 3/4” hex head
bolts (see Figure 10).
Note: On some custom sized
frames, the use of additional
“back support braces” is
required. These vertical support
braces assure parallel top and
bottom frame member
alignment once the screen has
been attached to the frame. Do
not install the screen/frame
without required back braces.

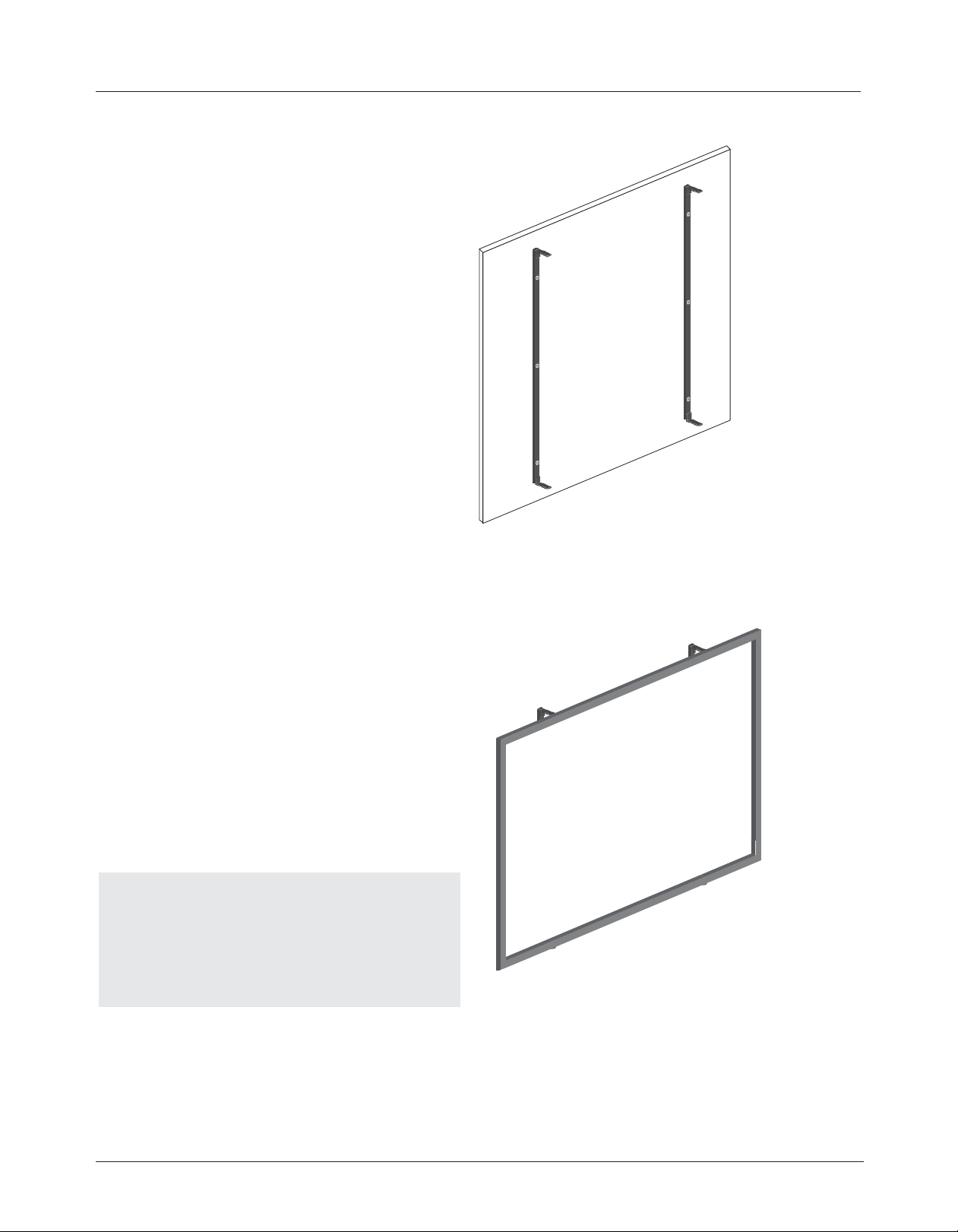

Figure 9: Attaching the
Wall Boards to the Wall
Figure 10: Finished Screen
Attached to Wall Boards
⚠
CAUTION
Be careful not to touch or scratch the
viewing surface.

13
Stewart Filmscreen – WallScreen 2.5
EYE BOLT MOUNT (HANGING)
NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be
liable for substandard or faulty installations. Failure to comply with the instructions and
guidance contained in this manual may result in voiding your warranty.
1. Attach the screen to the frame (see pages 15-16).
2. Use the Eye Bolt Mount to suspend the screen. Eye bolts are already secured to the frame
making your WallScreen ready for installation to an appropriate surface (see Figure 11).
Note: On some custom sized frames the use of additional “back support braces” is required. These
vertical support braces assure parallel top and bottom frame member alignment once the screen has
been attached to the frame. If back braces are included, do not install the screen/frame without
required back braces.
⚠
CAUTION
‣Be careful not to touch or scratch the viewing surface.
‣A false ceiling is
not
intended to support the weight of a WallScreen. Contact a Stewart
representative for more information.

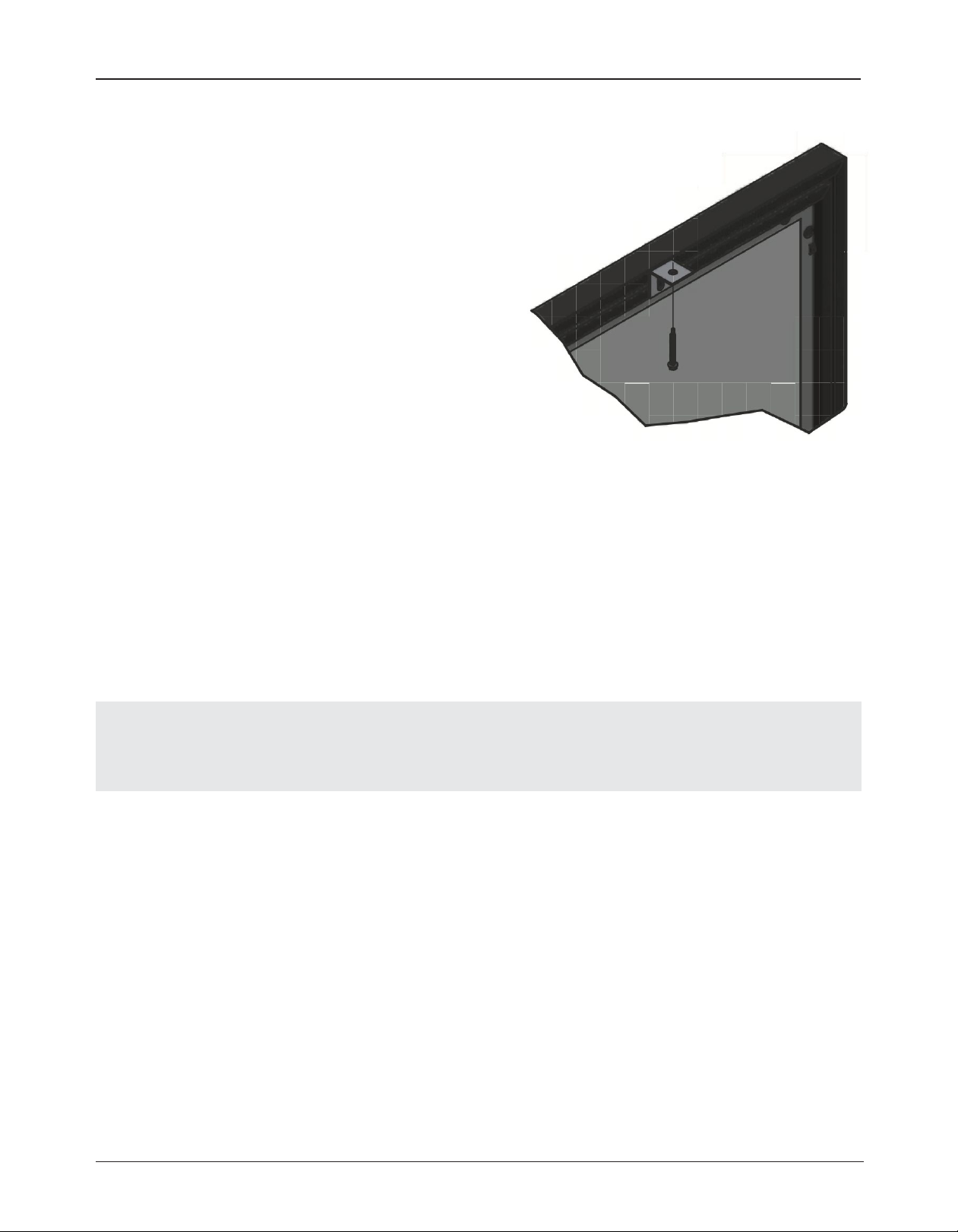

Figure 11: Eye Bolts Mounted Securely to the Frame

14
Stewart Filmscreen – WallScreen 2.5
APERTURE MOUNT
NOTE: Professional mounting techniques should
be used. Stewart Filmscreen cannot be liable for
substandard or faulty installations. Failure to
comply with the instructions and guidance
contained in this manual may result in voiding
your warranty.
The aperture mount allows you to install the screen
into an opening in a wall or wall unit. Access to the
back of the screen is required to install the
attachment hardware.
1. Prepare the aperture.
2. Attach the screen to the frame (see pages 15-16).
3. Carefully insert the frame (with the screen
already attached) into the aperture. Take care so
that you do not damage the screen.
4. Install the frame/screen assembly into the
aperture using the attached mounting brackets
and appropriate fasteners (see Figure 12).
⚠
CAUTION
Be careful not to touch or scratch the viewing surface.
Figure 12: Installing Frame/Screen Assembly –
Rear View, Close-up

15
Stewart Filmscreen – WallScreen 2.5
ATTACHING THE SCREEN TO THE FRAME
DO NOT perform this step UNTIL instructed to do so in the mounting section.
UNPACKING AND UNROLLING THE SCREEN

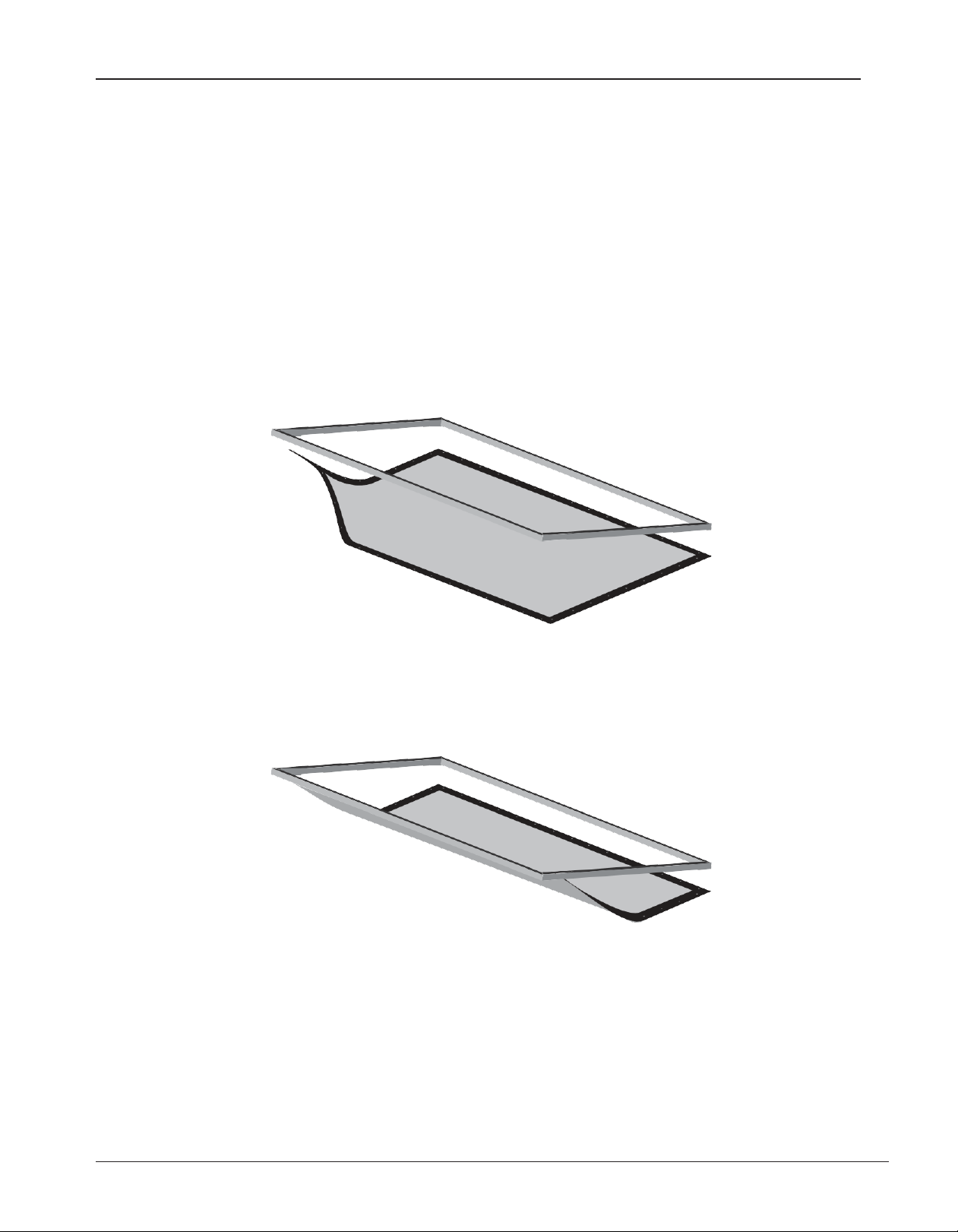

The viewing side of the projection screen is rolled to the inside to protect optical quality. The screen
is rolled lengthwise.
1. Remove the screen from the cardboard shipping tube.
2. On a clean surface, unroll the screen viewing side up (see Figure 13).
3. Remove the protective packing material from the screen material.
⚠
CAUTION
‣Be careful not to touch or scratch the viewing surface.
‣Do not use any tools to fasten the screen to the frame.
‣Do not fold or crease the screen.
Figure 13:Unrolling the Screen

16
Stewart Filmscreen – WallScreen 2.5
ATTACHING THE SCREEN TO THE FRAME (CONTINUED)
4. Place the frame over the screen, snap side down (see Figure 14).
5. Starting with the snaps on the top corners and then horizontally along the top while lifting the frame
with one hand, snap the screen into the frame. Gently allow the screen to stretch onto the snaps.
Do not jerk, wrinkle, or crease the screen material, as it can be damaged (see Figure 14).
6. Lift the frame to a vertical position to finish attaching the sides and bottom row of the snaps (see
Figure 15).
Note: If there are any wrinkles or puckers on the screen, the snaps on the frame can be adjusted
side to side. Lay the frame viewing side down on a clean surface. A movement of 1/16” to 1/8”
(1.6mm to 3.2mm) is usually sufficient to eliminate puckers.
Figure 14: Attaching Top Corner Snaps
Figure 15: Attaching Remaining Snaps

17
Stewart Filmscreen – WallScreen 2.5
CARING FOR AND CLEANING THE SCREEN
GENERAL MAINTENANCE
With reasonable care, you may expect many years of dependable use of your Stewart projection
screen.
FOR VINYL SCREEN MATERIALS ONLY
The surface of your screen is delicate, so we encourage you to keep your screen clean. Special
attention to these instructions should be followed when cleaning.
‣Avoid getting any foreign objects on the screen, as cleaning may prove very difficult. It may not be
possible to remove scratches, paint, ink, etc.
‣A draftsman-style brush may be used to lightly whisk away any loose dirt or dust particles. ( This type
of brush is usually available at office supply stores.)
‣For tougher spots, you can make a cleaning solution using a water-based detergent and warm water.
To make the solution, mix one-part Simple Green, 409, or another water-based industrial cleaner
with three parts warm water. Moisten a clean cotton cloth, or cotton swab with this solution, moisten
the stained area, and gently lift off the stain. Never use an aggressive scrubbing action as you could
damage the screen surface by removing the optical coating. Re-moisten the area with clean water
and dab dry with a clean sponge or cotton cloth. Any residual watermarks will evaporate on their
own in a few minutes.
‣Contact tech support at Stewart Filmscreen if you have questions about removing difficult spots.
VELUX™ COVERING
‣Use a lint roller to remove particles from the Velux, which is the material covering the frame.
‣A brush may be used to comb (lift) the nap of the Velux material to eliminate depression marks.
FOR NON-VINYL SCREEN MATERIAL
If you have concerns with one of our non-vinyl Stewart Filmscreen screen materials, contact tech
support at Stewart Filmscreen.
⚠
CAUTION
‣Do not use any other cleaning materials on the screen.
‣Do not use chemicals, solvents, or alcohol-based cleaners to clean the screen. Use only
commercially available, water-based degreaser or liquid dish soap.
‣Do not use chemicals, solvents, or liquid cleaners to clean the Velux covering.
‣Do not fold or crease the screen.

18
Stewart Filmscreen – WallScreen 2.5
ONE (1) YEAR LIMITED WARRANTY
STEWART FILMSCREEN CORPORATION (Stewart) warrants all products to the original purchaser
only. Stewart products are guaranteed to be free from defects in materials and workmanship for a
period of one (1) year from the date of purchase by the original purchaser or eighteen (18) months
from date of manufacture, as defined in the serial number. Additionally, all products must be
properly operated and maintained according to Stewart instructions and cannot be damaged due
to improper handling or treatment after shipment from the factory. This warranty does not apply to
equipment showing evidence of misuse, abuse, or accidental damage, including neglect caused by
improper installation (i.e. proximity to hot lights, exposure to extreme heat or cold, exposure to
excessive humidity, etc.).
Stewart on-site warranty repair services are not available for this product. Stewart’s sole obligation
under this warranty shall be to repair or to replace (at Stewart’s sole discretion) the defective part
of the merchandise. This warranty expressly does not cover any costs of removal, installation,
framing, or other costs incidental to replacing the screen or returning it to Stewart. Returns for
service should be made to your Stewart dealer. If it is necessary for the dealer to return the screen
or part to Stewart, transportation (freight) expenses to and from Stewart are payable by the
purchaser. Stewart is not responsible for damage in shipment. To protect against damage or loss in
transit, insure the product and prepay all transportation expenses.
This warranty is in lieu of all other warranties, expressed or implied, including warranties as to
fitness for use or merchantability. Any implied warranties of fitness for use, or merchantability, that
may be mandated by statute or rule of law are limited to the one (1) year warranty period. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. In no event will Stewart be liable for sums in excess of the purchase price of the product. No
liability is assumed by Stewart for expenses or damages resulting from interruption in operation of
equipment, or for incidental, direct, or consequential damages of any nature. In the event that there
is a defect in materials or workmanship of a Stewart Filmscreen product, you may contact our
Customer Service Department at 1161 W Sepulveda Blvd, Torrance, CA 90502- 2797, or call us at 1
[phone], or toll free at 1 [phone].
IMPORTANT: This warranty shall not be valid and Stewart shall not be bound by this warranty if the
product is not operated and maintained in accordance with Stewart’s written instructions. Stewart
Filmscreen Corporation shall not be liable for any and all consequential damage(s) occasioned by
the breach of any written or implied warranty pertaining to the sale of a Stewart Filmscreen product
in excess of the purchase price of the product sold.

19
Stewart Filmscreen – WallScreen 2.5
www.StewartFilmscreen.com
1161 W. Sepulveda Blvd., Torrance CA 90502 USA l 1 [phone] l Tel: [phone] l Fax: [phone]
Email: [e-mail]
©2021 Stewart Filmscreen. Specifications are subject to change without notice.
