Stewart Filmscreen Stealth Trapdoor Electriscreen User manual

Stealth Trapdoor
Electriscreen
OWNER’S MANUAL
To the Owner
Installation Instructions
Operating the Screen
Maintenance
SELII–1005
TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.

Printed in U.S.A.
©2000 - 2005 Stewart Filmscreen Corporation
Stewart Filmscreen reserves the right to make changes to the product specified in this document.
From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at
www.stewartfilm.com.

Stealth Trapdoor Electriscreen: Owner’s Manual 1
Contents
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Preparing the Installation . . . . . . . . . . . . . . . . . . . . . . . . 2
Step 1. Hanging the Case . . . . . . . . . . . . . . . . . . . . . . . . 3
Step 2. Electrical Hook-up . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adjusting the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Screen Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . .13
General Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Stealth Trapdoor
Electriscreen
OWNER’S MANUAL

2Stewart Filmscreen Corporation
Congratulations on your purchase of the finest optical viewing screen available
anywhere in the world!
Please take a moment to review this manual, it will help ensure you many years
of trouble-free service from your new Stewart Electriscreen product.
About your Stealth Trapdoor Electriscreen
Your Stealth Trapdoor Electriscreen offers the most technologically advanced
trapdoor roller screen in the world. The hingeless door is powered by its own
motor. Sound dampers ensure quiet operation.
Preparing the installation
Specifications regarding the individual screen dimensions, weight, mounting
type, and controls are provided by the factory when the unit is ordered. Before
beginning the installation:
Check the specifications for the type of mounting and switch control
to be used.
Ensure that the mounting area and electrical connection are
prepared.
Check the size and weight of the screen to be installed so that you
can plan for the number of people required for the mounting
procedure. You need at least two people to mount the smaller
screens; more are needed for larger, heavier screens.
You will need:
Enough ladders for the personnel supporting the screen during the
mounting process
A level
Fasteners appropriate for the surface on which the screen is being
mounted (See instructions for the type of mount for
recommendations.)
TO THE OWNER
INSTALLATION INSTRUCTIONS
Before proceeding with the installation of this screen, be sure
to read and understand all the installation and operating
instructions thoroughly.
All electrical wiring installations must conform to local and
national codes and should be performed by qualified service
personnel.
There are no user-serviceable parts contained within the unit.
Caution
During installation, do not place the unit on an unstable cart,
stand, table, or ladder. The unit may fall, causing injury to a
child or adult and damage to the unit.

Stealth Trapdoor Electriscreen: Owner’s Manual 3
Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
Make sure that you mount the screen so that the electrical box is on the left side
(audience left).
In the standard configuration, the unit is installed on the ceiling. As an option, it
can also be installed on a wall.
Ceiling or top mount installation
The Stealth Trapdoor Electriscreen is ready to install into the ceiling or soffit. A
false ceiling is not intended to support the weight of a Stealth Trapdoor
Electriscreen.
Make sure that you mount the screen so that the electrical box is on the left side
(audience left). Refer to Figure 1.
If the unit is to be mounted to plaster, drywall, masonry, or other type of surface,
use an appropriate fastener. (These might include toggle or molly bolts or
similar fasteners.)
There are two types of ceiling or top mount: recessed or suspended. Follow the
procedure for the specified type of mounting.
Recessed or concealed mount (standard)
You can install the screen so that the motor is recessed and the bottom is flush
with dry wall or a suspended ceiling.
1. Install the unit onto the support structure making sure that the bottom
of the case is flush with the finished ceiling.
2. Make sure the unit is level.
3. Drywall or other ceiling material may be screwed directly to the
ceiling flanges (plaster "ears") on the case. Refer to Figure 2.
STEP 1. HANGING THE CASE
Mounting Hardware
Trap Door
Electrical
Access Plate
Screen
Support
Structure
Threaded
Rods
Flanges
Figure 2: Recessed or
concealed mount
Figure 1: Position of electrical
access on Electriscreen
Drywall or
suspended ceiling

4Stewart Filmscreen Corporation
Suspended installation
1. Suspend the unit from the holes in the end plates on the unit using
"S" hooks, chains, cables, Unistrut, threaded rod, or turnbuckles.
Refer to Figure 3.
2. Make sure the unit is level.
Figure 3: Suspended installation
Figure 4: Wall mount using
optional brackets
Wall installation (optional)
Note: When the wall installation option is ordered, wall mount brackets are
provided with the screen unit.
1. Mount screen through the holes in the wall mount brackets. Refer to
Figure 4.
– If mounting onto a wood substructure, #12 screws may be used.
– If the unit is to be mounted to plaster, drywall, masonry, or other-type of
surface, use an appropriate fastener. (These might include toggle or
molly bolts or similar fasteners.)
2. Make sure the unit is level.

Stealth Trapdoor Electriscreen: Owner’s Manual 5
Professional techniques need to be used when making any electrical
connection. A qualified electrician should perform these procedures.
The motor requires standard AC input (unless an alternate voltage has been
specified). All connections are made to the electrical box on the side of the
Stealth Trapdoor unit (audience left).
In addition to the standard high-voltage 3-position switch, there are optional
switch controls available for the Stealth Trapdoor Electriscreen. Follow the
installation procedure for the type of switch control you will install.
General suggestions for wiring:
Soldering is recommended.
The use of wire nuts is acceptable.
On models not provided with armored whip, a romex connector
should be installed in the appropriate electrical KO (Knock Out).
Refer to Figure 5 for an illustration of the electrical connection box on the side
of the screen.
STEP 2. ELECTRICAL HOOK-UP
Electrical
Access
Plate
Electrical
Connection
Box
Electrical
Knockout
Figure 5: Electrical connection box
Caution
Be sure to follow all standard safety procedures for installing electrical
devices.
Do not disassemble or alter the configuration of the motor or the unit's
electrical connections. This may cause injury to you or damage to the
product.
The electrical connection should be made only to the type of power
source indicated on the marking label.

6Stewart Filmscreen Corporation
Installing the high voltage switch control (standard)
A standard 3-position wall switch is supplied. The high-voltage control is
connected to the electrical source. It alternates directions of screen motion by
means of the hot lead, using the 3-position switch.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source
A 4-conductor romex or motor connector cable
Making the connections
The diagram in Figure 6 illustrates the connections.
1. Connect the wall switch to the AC constant power source.
2. Connect the wall switch to the screen’s electrical box.
125v AC Power Source
COMMON-White (Neutral)
UP-Red
DOWN-Black
GROUND - Green
Line (Hot)

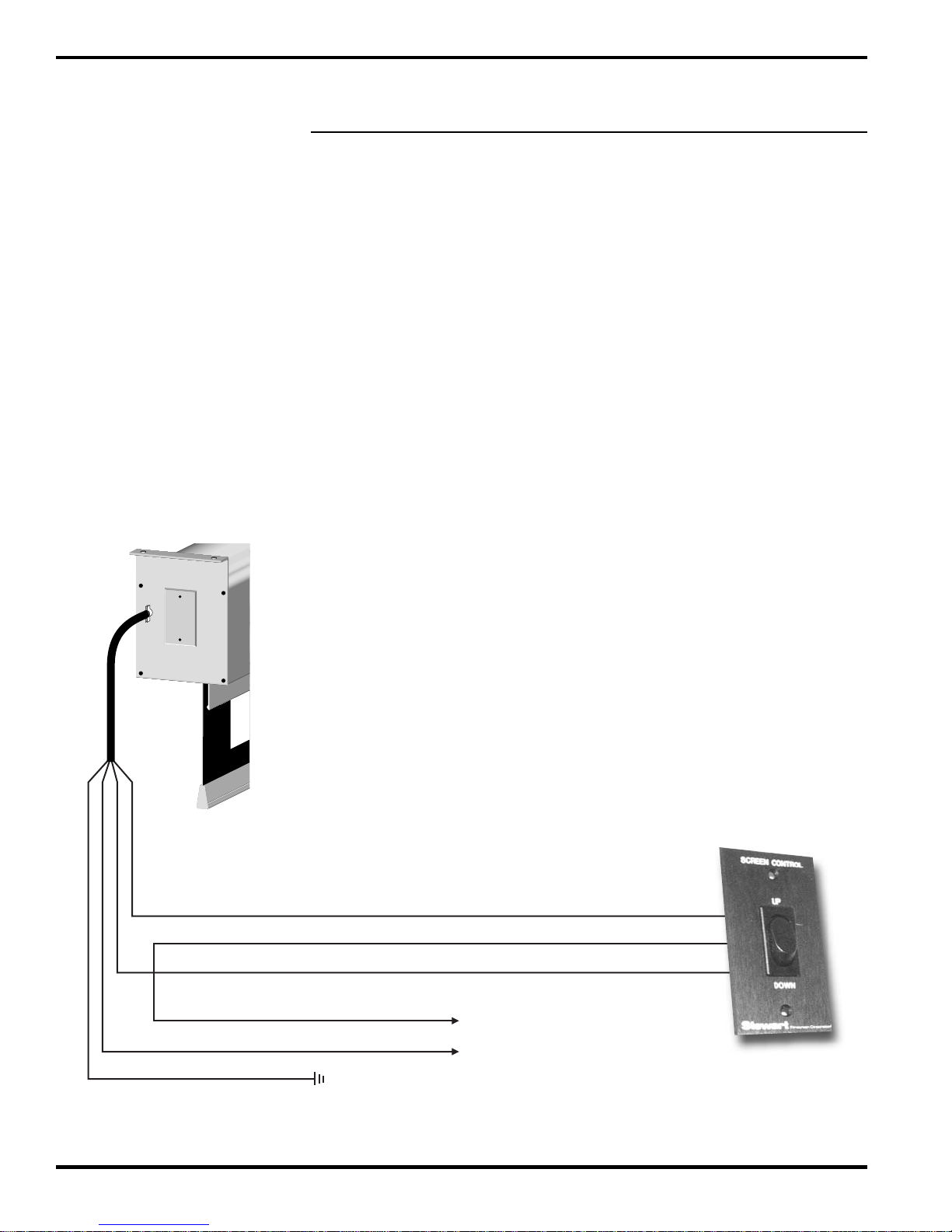

Figure 6: High voltage control wiring diagram
AC Power Source
Yellow

Stealth Trapdoor Electriscreen: Owner’s Manual 7
To Projector
or
120V AC 50/60 Hz
Power Source
120V AC Power Source
Optional 12V DC
Transformer
with Switch
Installing the screen trigger interface option
The optional 12V screen trigger interface enables up and down operation of the
screen in conjunction with a projector, tuner, VCR, cable box, or switched AC
outlet.
Once the AC power outlet is installed near the screen, an electrician is not
needed to connect the screen trigger interface to the power source.
Note: An optional 12V DC transformer is supplied. It is used if there is no 12V
power source from the projector or AV control center.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source installed near the screen
Making the connection
The electrical diagram in Figure 7 illustrates the connection.
1. Plug the AC power cord into the AC outlet.
2. Attach the 12V trigger wire to the jack in the plate.
Figure 7: Screen trigger interface connection
To Projector
or
AC
Power Source

8Stewart Filmscreen Corporation
4 Conductor Hook-up Cable - 18ga Minimum
Category 5 recommended (NOT Supplied)
Fuse
R/F Input
InfraRed Input
Low Voltage
Switching
Common-White
UP-Red
DOWN-Black
STOP-Yellow
120V AC
Line
Common-White
UP-Red
DOWN-Black
Neutral
Installing the low-voltage 3-button switch option
The optional Stewart Filmscreen low-voltage control allows the use of low-
voltage wire to connect to the supplied 3-position 24V momentary wall switch.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source
A 4-conductor switch hook-up cable (4-conductor bell wire or category
5 cable is typically used for long runs)
Cat 5, multi-conductor unshielded, or similar type electronic cable can
be used to connect the 3-button switch to the LVC. The
recommended wire gauge is 20 to 24 AWG. Use plenum-rated cable
when required.
Making the connection
Refer to the diagram that is located on the white label inside the steel housing,
and in Figure 8.
1. Mount the low-voltage control box near the screen.
2. Connect the low-voltage control box to the screen by connecting the
screen motor power leads to the power strip terminal block located on
the circuit board of the control box.
3. Connect the low voltage control box to the AC power source by
connecting the AC line voltage to the power strip terminal block
located on the circuit board of the control box.
4. Connect the switch to the low-voltage control box.

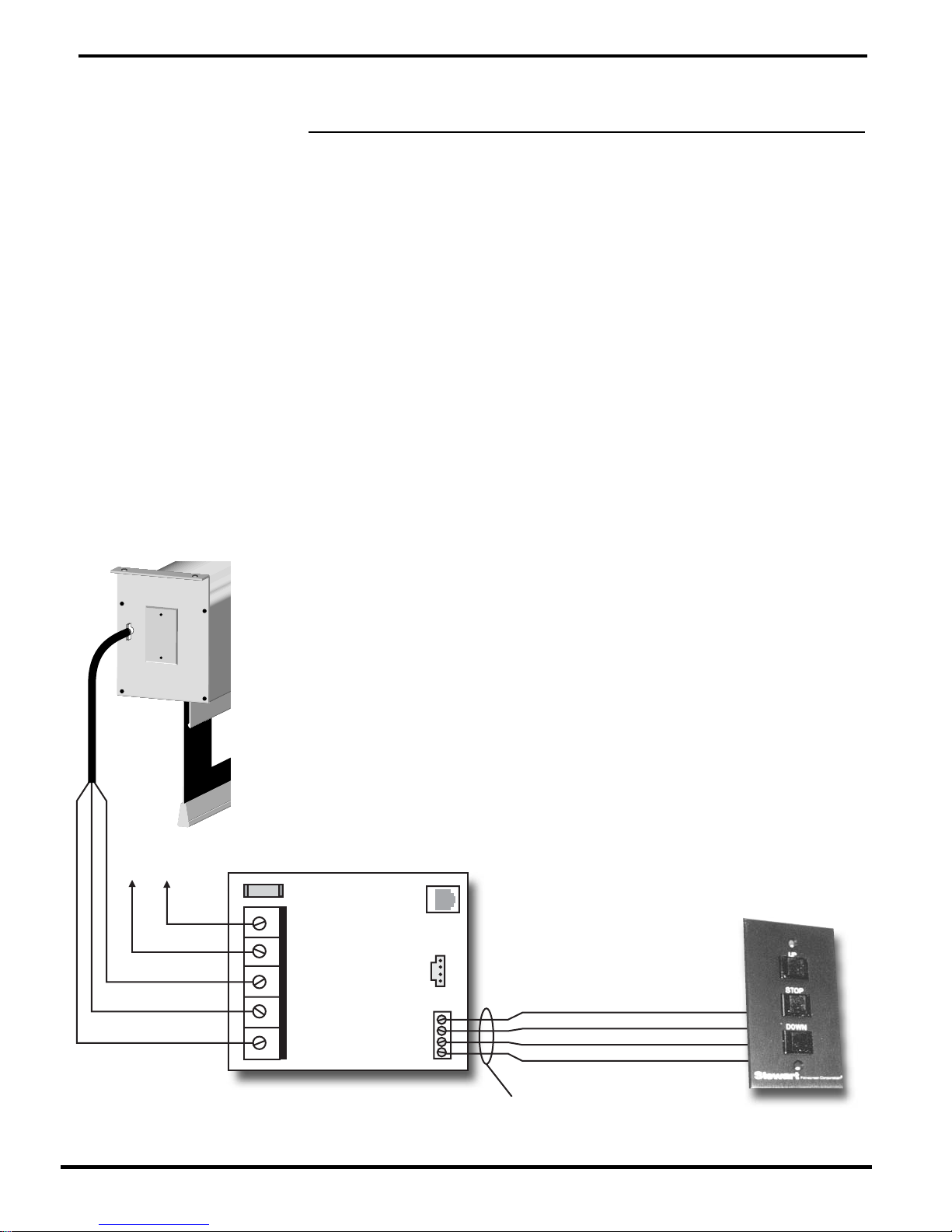

Figure 8: Low voltage 3-button switch wiring
Low Voltage Control Box
3-Button
Momentary Switch
4 Conductor Hook-up Cable—20-24ga Recommended
Category 5 Typically Used (NOT Supplied)

Stealth Trapdoor Electriscreen: Owner’s Manual 9
4 Conductor Hook-up Cable - 18ga Minimum
Category 5 recommended (NOT Supplied)
Fuse
R/F Input
InfraRed Input
Low Voltage
Switching
Common-White
UP-Red
DOWN-Black
STOP-Yellow
120V AC
Line
Common-White
UP-Red
DOWN-Black
Neutral
Figure 10: Infrared remote control wiring
Installing the infrared remote control option
The optional Stewart Filmscreen infrared remote control allows control of the
screen from anywhere in the room.
Note: The distance between the hand-held remote control and the receiver can
be up to 50 feet / 15 m. It is necessary to have uninterrupted line-of-sight
between the remote and the receiver.
Preparing the connection
Refer to the previous section “Installing the low-voltage 3-button switch option.”
Making the connection
Refer to the diagram that is located on the white label inside the steel housing,
and in Figure 10.
1. Mount the low-voltage control box near the screen.
2. Mount the infrared (IR) eye sensor near the screen.
3. Connect the low-voltage control box to the screen by connecting the
screen motor power leads to the power strip terminal block located on
the circuit board of the control box.
4. Connect the IR eye sensor to the small black plug in module located
next to the switch input on the circuit board.
5. Connect the low voltage control box to the AC power source by
connecting the AC line voltage to the power strip terminal block
located on the circuit board of the control box.
6. Connect the switch to the low-voltage control box.
The method you use to raise and lower the screen depends on the type of
switch control device you have selected.
Low Voltage Control Box
Infrared
Sensor
Infrared Remote
Control
3-Button
Momentary Switch
4 Conductor Hook-up Cable—20-24ga Recommended
Category 5 Typically Used (NOT Supplied)

10 Stewart Filmscreen Corporation
4 pin Connector
Installing the wireless remote control option
The optional Stewart Filmscreen wireless remote control allows control of the
screen from anywhere in the room.
Once the AC power outlet is installed near the screen, an electrician is not
needed to connect the wireless remote receiver module to the power source.
Note: The distance between the hand-held remote control and the receiver can
be up to 50 feet / 15 m. It is not necessary to have uninterrupted line-of-sight
between the remote and the receiver, but there should be no metal objects
between them. The override switch on the bottom of the receiver can be used
instead of the remote control.
Preparing the connection
Before making the electrical connections, you need:
An available AC power source installed near the screen
Making the connection
The electrical diagram in Figure 11 illustrates the connection.
1. Connect the 4-pin connector to the receiver module.
2. Plug the receiver module into the constant AC power source.
Figure 11: Wireless remote control connection
Override SwitchOverride Switch
AC Plug
Wireless Remote
Receiver Module
Wireless Remote
Control

Stealth Trapdoor Electriscreen: Owner’s Manual 11
When you lower or retract the screen, it will stop at its preset limits. If an
obstacle (such as a person or furniture) gets in the path of the screen as it is
lowered, you should use the switch control to stop the screen's motion; it will not
automatically stop if it hits an obstacle.
The motor is designed to be used for short operations such as lowering the
screen in preparation for viewing. The motor is not designed for continuous
duty. If the motor operates continually for more than a few minutes, it may
automatically shut off to prevent damage from overheating. If the motor
occasionally needs to be run more than normal, for example during initial setup
and positioning, allow time for the motor to cool down.
In general, when the screen is not in use, you should store the screen in the
fully retracted position.
OPERATING THE SCREEN
Caution
Do not operate the motor when any of the following occurs:
The unit emits any smoke, heat, abnormal noise or unusual
odor.
The unit is damaged in some way, such as damage from a
water leak.
If any of these situations occur, call a qualified service person.

12 Stewart Filmscreen Corporation
ADJUSTING THE SCREEN EXTENSION
Caution
Improper adjustment of the limit switches can cause
irreparable damage to the screen itself, resulting in voiding
the factory warranty.
Figure 12: Underside view of
Electriscreen
Access to
Limit Switches
Screen
Trap Door
Internal Electrical Box
Electrical Access Plate
The extension and retraction limit switches have been preset at the factory.
In general, we advise you to avoid readjusting these switches.
In some cases, to enable proper alignment of the displayed image on the
screen, you may need to adjust the extension of the screen. If adjustment to
the extension is necessary, carefully follow these instructions.
Modifying the extension of the screen
You can increase the extension of the screen up to 3" / 7.6 cm past the factory
preset stop, or you can decrease the extension by approximately 4-6" / 10-15
cm from the factory preset stop. Do not attempt to modify the screen extension
beyond these recommended amounts.
The limit switches are located on the left side of the screen roller tube inside
the case, as shown in Figure 12.
To adjust the screen's fully extended (screen down) stop position:
1.Lower the screen to its current fully extended position.
2.Locate the white extension (DOWN) limit switch located on the left
side of the screen tube. Use a screw driver to turn the switch in the
appropriate direction:
– To decrease the screen extension, turn the switch clockwise.
– To increase the extension, turn the switch counterclockwise.
Note: One complete turn of the switch will make approximately a 1/2" /
1.3 cm change in the screen height.
3.Raise the screen, and then lower it again. It should stop at the new
position.
Once you have made the adjustment, whenever you lower the screen, it will
automatically stop at the new position.
Note: It is recommended that you make a note of any changes made to the
factory preset.
Warning!
The screen is fully retracted when the trapdoor closes. Do not
attempt adjustments with the yellow retraction (UP) limit
switch that will further retract the screen into the case.
Incorrect adjustment of the switch will cause severe screen
damage. Please consult the factory if you have any questions.

Stealth Trapdoor Electriscreen: Owner’s Manual 13
With reasonable care, you may expect many years of trouble-free use of your
Stewart projection screen.
We encourage you to keep your screen clean. To protect your screen when it is
not in use, store it in the fully retracted position.
Avoid getting any foreign material on the screen, as cleaning may prove very
difficult. It may not be possible to remove scratches, paint, ink, etc.
General maintenance
The screen surface on your screen is delicate. Special attention to these
instructions should be followed when cleaning.
A draftsman-style brush may be used to lightly whisk away any loose
dirt or dust particles. (This type of brush is usually available at office
supply stores.) Stewart Filmscreen has an optional screen cleaning
kit that contains the proper type of brush. Contact your dealer if you
would like to obtain this cleaning kit.
Particles left on the screen when it is retracted into the case may
form an impression on the screen surface. Periodically wipe the back
of the screen with a clean damp cloth.
For tougher spots, use a solution of mild detergent and water. Rub
lightly using a sponge. Blot with a damp sponge to absorb excess
water. Residual water marks will evaporate within a few minutes. Let
the screen air dry completely before retracting.
Do not use any other cleaning materials on the screen. Contact the factory if
you have questions about removing difficult spots.
Replacement parts and service
No user-serviceable parts are contained within the unit. Contact your dealer or
the factory if you require part replacement or service.
SCREEN CARE AND CLEANING

14 Stewart Filmscreen Corporation
Refer to the following guidelines if you encounter a difficulty in the operation of
your Stewart Electriscreen. Problems related to electrical or motor function may
require a qualified service person or electrician.
Should you have a problem that is not addressed here, call the Stewart
Filmscreen Corporation.
TROUBLESHOOTING
Problem description
Probable cause
Action to take
Screen won’t operate.
No AC power available.
Check to see if the circuit breaker
has switched off. Reset if
needed.
Check voltage availability.
Contact an electrician.
Screen won’t roll up or down
(even though power is available ).
Bad connection at switch.
Have an electrician or qualified
service person check the
connection as follows:
·If you have a high voltage
control switch, check switch -line
connections.
·If you have a low voltage control
unit, check switch-line
connections.
·If you have a screen trigger
interface, contacts may be
sticking. Tap relay to free
contacts.
Screen roller chatters when
power is activated.
Can be caused by voltage drop,
bad connections, or a defective
switch.
Have an electrician or qualified
service person check all the
hook-ups including all outboard
wiring.
Unit hums in up mode. (Screen
has already retracted.)
The screen batten is retracting
too far into the case. Failure to
correct can damage motor and
screen. Do not use the unit
until this problem is resolved.
Have a qualified service person
adjust the yellow UP limit switch.
Turn the adjusting screw
clockwise.
Screen drops when up direction
is activated (grinding noise
occurs).
Drop in voltage.
Screen motor requires full
voltage. Have an electrician or
qualified service person check
available voltage.
Screen continues past bottom
stop position.
White limit switch is out of
adjustment.
Readjust the white DOWN limit
switch. Turn the adjusting screw
clockwise.

Stealth Trapdoor Electriscreen: Owner’s Manual 15
TROUBLESHOOTING
Problem description
Probable cause
Action to take
Batten retracts too far into case.
Yellow limit switch out of
adjustment. Failure to correct
can damage motor and screen.
Do not use the unit until this
problem is resolved.
Have a qualified service pers on
readjust the yellow UP limit
switch. Turn the adjusting screw
clockwise.
Motor shuts off. Motor has been
in use for more than 2 minutes.
Any controller (e.g., STI, LVC,
etc.) fails to operate motor.
Motor is designed for short
operations (lowering and
retracting), not continuous duty.
Longer operation, s uch as during
setup and positioning, causes the
motor to overheat and shut off.
Allow the motor to cool down.
Complete cooling can take an
hour or more. Heat gain is
cumulative and takes time to
dissipate, If motor use is initiated
before it has cooled completely,
the motor will shut down again
when it reaches maximum
temperature.
Dirt, finger prints, marks, etc. on
screen surface.
Improper handling of screen.
Brush off or use a mild deter gent
solution with clean rag or cotton
swab.
Indentations appear on screen
surface.
Debris or particles adhering to
screen due to static cling.
Check back of screen; gently
brush debris away by hand.

16 Stewart Filmscreen Corporation
PRODUCT WARRANTY
This warranty covers defects in materials and workmanship for a period of one
(1) year from the date of installation, not to exceed fifteen (15) months from the
date of shipment, provided this product is installed in a normal environment and
maintained according to written instructions in the product Owner’s Manual.
Stewart Filmscreen warrants against loss of usefulness, discoloration or
deterioration of optical quality within the warranty period as a result of
manufacturing or material defects.
A factory authorized returned screen arriving prepaid to our facility for inspection
and proved defective due to an inherent manufacturing fault will be repaired or
replaced by Stewart Filmscreen Corp. This warranty expressly does not cover
any costs of removal, installation, framing, or other incidental costs to replacing
the screen or returning it to the manufacturer.
Should you encounter a perceived product fault or problem, contact your dealer
regarding application of this warranty.

MAINTENANCE NOTES

www.stewartfilm.com
1-800-762-4999 Fax [phone]
