Stewart Filmscreen Vertical ES EM User manual

Electrimask Electriscreen
Owner’s Manual
EM-0111
TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.
•TO THE OWNER
•INSTALLATION INSTRUCTIONS
•OPERATING THE SCREEN
•MAINTENANCE

Printed in U.S.A.
©2000–2011 Stewart Filmscreen Corporation
Stewart Filmscreen reserves the right to make changes to the product specified in this document.
From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at:
www.stewartfilmscreen.com

Contents
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Preparing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Step 1. Hanging the Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Step 2. Electrical Hook-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adjusting the Screen Extension . . . . . . . . . . . . . . . . . . . . . . . 13
Screen Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ElectriMask Electriscreen: Owner’s Manual 1
Owner’s Manual
Electrimask Electriscreen

Congratulations on your purchase of the finest optical viewing screen available
anywhere in the world!
Please take a moment to review this manual, it will help ensure you many years
of trouble-free service from your new Stewart Filmscreen product.
About your ElectriMask Electriscreen
Stewart’s ElectriMask system is designed to integrate with the latest multi-format
video projectors, which are capable of variable sizes and aspect ratios for
viewing standard broadcast television and the wide format seen in commercial
theaters. The term aspect ratio refers to the format (width to height) in which
your home cinema sources are produced.
Your screen is equipped with a masking system to achieve different aspect
ratios, for example:
2.35:1 screen with vertical masking
1.78:1 screen with horizontal masking
Figure 1: Vertical and horizontal masking systems
The installation, operation, and care of the ElectriMask Electriscreen is the
same regardless of the masking system used.
Note: This manual refers to “AC” to represent electrical power. Your location
may use 120 V, 220 V or other electrical power. Screen systems are
manufactured using the electrical power type specified for the location. Use
appropriate power sources for your location.
2Stewart Filmscreen Corporation
TO THE OWNER
2.35:1
Cinemascope
2.35:1
Cinemascope
16:9
High
Definition
1.78:1
High
Definition
Horizontal Masking System
Vertical Masking System
Converts to
Converts to

Preparation
Specifications regarding the individual screen dimensions, weight, mounting
type, and controls are provided by the factory when the unit is ordered. Before
beginning the installation:
Check the specifications for the type of mounting and switch control
to be used.
Ensure that the mounting area and electrical connection are
prepared.
Check the size and weight of the screen to be installed so that you
can plan for the number of people required for the mounting
procedure. You need at least two people to mount the smaller
screens; more are needed for larger, heavier screens.
On the screen housing, note the removable Image Centerline sticker.
Use the sticker to help you accurately position the screen. Be sure to
remove this sticker after installation.
You will need:
Enough ladders for the personnel supporting the screen during the
mounting process
A level
Fasteners appropriate for the surface on which the screen is being
mounted
Unpacking
1. Remove the outer plastic covering and white wrapping paper
surrounding the screen case.
2. Do not remove the wrapping paper surrounding the screen roller.
You should remove it only after the unit is hung and all electrical
connections have been made.
3. Remove the batten lock-down screws located on the back side of the
case
ElectriMask Electriscreen: Owner’s Manual 3
PREPARING THE INSTALLATION
Warning!
Failure to remove the
batten lock-down
screws can result in
permanent damage to
the screen.
Before proceeding with the installation of this screen, be
sure to thoroughly read and understand all the installation
and operating instructions.
All electrical wiring installations must conform to local and
national codes and should be performed by qualified
service personnel.
There are no user-serviceable parts contained in the unit.
Caution
During installation, do not place the unit on an unstable cart,
stand, table, or ladder. The unit may fall, causing injury to a child
or adult and damage to the unit.

Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
Make sure that you mount the screen so that the electrical box is on the left side
(audience left). Refer to Figure 2.
In the standard configuration, the unit is installed on the ceiling. As an option, it
can also be installed on a wall.
Ceiling or top mount installation
The ElectriMask Electriscreen is ready to install into the ceiling or soffit. A false
ceiling is not intended to support the weight of an ElectriMask Electriscreen.
If the unit is to be mounted to plaster, drywall, masonry, or other type of surface,
use an appropriate fastener. (These might include toggle or molly bolts or
similar fasteners.)
There are two types of ceiling or top mount: recessed or suspended. Follow the
procedure for the specified type of mounting.
Recessed or concealed mount (standard)
You can install the screen so that the motor is recessed and the bottom is flush
with dry wall or a suspended ceiling.
1. Install the unit onto the support structure making sure that the bottom
of the case is flush with the finished ceiling.
2. Make sure the unit is level.
3. Drywall or other ceiling material may be screwed directly to the
ceiling flanges (plaster "ears") on the case. Refer to Figure 3.
4Stewart Filmscreen Corporation
STEP 1. HANGING THE CASE
Figure 2: Position of
electrical access
on Electriscreen
Mounting Hardware
Mask
Screen
Electrical
Access Plate
Figure 3: Recessed or
concealed mount
Support
Structure
Threaded
Rods
Flanges
Drywall or
suspended
ceiling

Suspended installation
1. Suspend the unit from the holes in the end plates on the unit using
"S" hooks, chains, cables, Unistrut, threaded rod, or turnbuckles.
Refer to Figure 4.
2. Make sure the unit is level.
Wall installation (optional)
Note: When the wall installation option is ordered, wall mount brackets are
provided with the screen unit.
1. Mount screen through the holes in the wall mount brackets. Refer to
Figure 5.
– If mounting onto a wood substructure, #12 screws may be used.
– If the unit is to be mounted to plaster, drywall, masonry, or other type of
surface, use an appropriate fastener. (These might include toggle or
molly bolts or similar fasteners.)
2. Make sure the unit is level.
ElectriMask Electriscreen: Owner’s Manual 5
Figure 4: Suspended
installation
Figure 5: Wall mount using
optional brackets

The ElectriMask Electriscreen has two roller tubes within the screen unit; one
for the main screen and one for the mask. Each roller has its own motor and
functions independently.
The roller motor requires standard AC input. All connections are made to the
electrical box on the side of the ElectriMask unit (audience left).
In addition to the standard high-voltage 3-position switch, there are optional
switch controls available for the ElectriMask Electriscreen. Follow the installation
procedure for the type of switch control you will install.
General suggestions for wiring:
Soldering is recommended.
The use of wire nuts is acceptable.
On models not provided with armored whip, a romex connector
should be installed in the appropriate electrical KO (Knock Out).
Refer to Figure 6 for an illustration of the electrical connection box on the side
of the screen unit.
6Stewart Filmscreen Corporation
STEP 2. ELECTRICAL HOOK-UP
Caution
Professional techniques need to be used when making any
electrical connection. A qualified electrician should perform these
procedures.
Be sure to follow all standard safety procedures for installing
electrical devices.
Do not disassemble or alter the configuration of the motor or the
unit's electrical connections. This may cause injury to you or
damage to the product.
The electrical connection should be made only to the type of
power source indicated on the marking label.

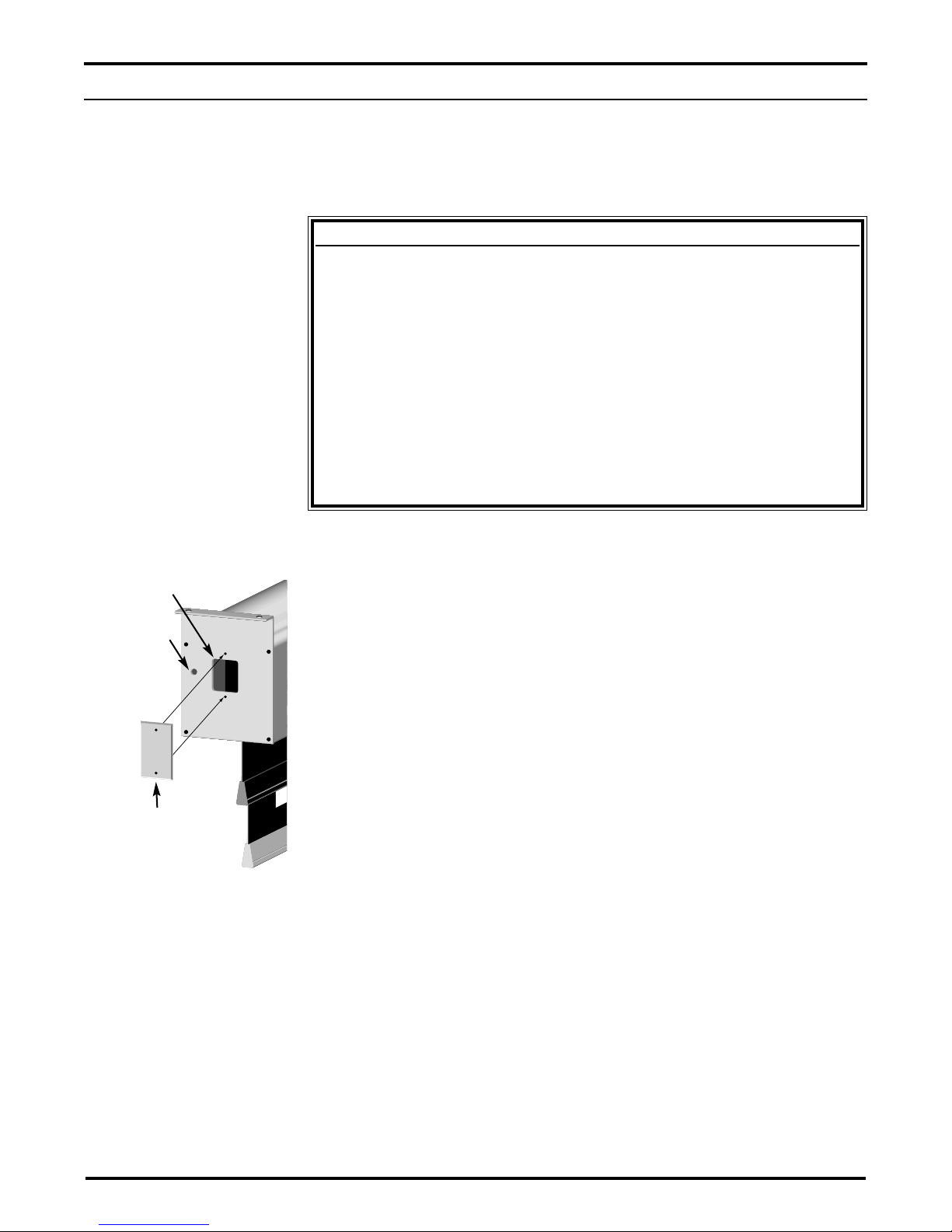

Figure 6: Electrical
Connection box
Electrical
Connection
Box
Electrical
Knockout
Electrical
Access
Plate

Installing the high voltage switch control (standard)
A standard 3-position wall switch is supplied. The high-voltage control is
connected to the electrical source. It alternates directions of screen motion by
means of the hot lead, using the 3-position switch.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source
One 4-conductor romex per connection or motor connector cable or
one 8-conductor romex for two connections
Making the connections
The diagram in Figure 7 illustrates the connections.
1. Connect the wall switch to the AC constant power source.
2. Connect the wall switch to the screen unit’s electrical box.
ElectriMask Electriscreen: Owner’s Manual 7
AC Power
Source Screen Switch Mask Switch
DOWN-Black
UP-Red
Line (Hot)
COMMON-White (Neutral)
GROUND-Green
Note: You need to make the connections for each switch.
Figure 7: High voltage control wiring diagram

Installing the dual screen trigger interface option (vertical
masking)
Note: The dual screen trigger interface option is not available for the horizontal
masking system.
The optional 12V dual screen trigger interface enables up and down operation
of the screen and mask in conjunction with a projector, tuner, VCR, cable box,
or switched AC outlet.
Once the AC power outlet is installed near the screen, an electrician is not
needed to connect the screen trigger interface to the power source.
Note: An optional 12V DC transformer is used if there is no 12V power source
from the projector or AV control center.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source installed near the screen
Making the connection
The electrical diagram in Figure 8 illustrates the connection.
1. Plug the AC power cord into the AC outlet.
2. Attach the 12V trigger wires to the jack in the plate.
8Stewart Filmscreen Corporation
AC Power
To Projector
or
MASKING
Optional 12V DC
Transformer
with Switch
AC Power
To Projector
or
SCREEN
Optional 12V DC
Transformer
with Switch
Figure 8: Screen trigger interface connection

Installing the low-voltage 3-button switch option
The optional Stewart Filmscreen low-voltage control allows the use of low-
voltage wire to connect to the supplied 3-position 24V momentary wall switch.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source.
One 4-conductor switch hook-up cable per connection (4-conductor
bell wire or category 5 cable is typically used for long runs) or one 8-
conductor romex for two connections.
Cat 5, multi-conductor unshielded, or similar type electronic cable can
be used to connect the 3-button switch to the LVC. The
recommended wire gauge is 20 to 24 AWG. Use plenum-rated cable
when required.
Making the connection
Refer to the diagram that is located on the white label inside the steel housing,
and in Figure 9.
1. Mount the low-voltage control box near the screen.
2. Connect the low-voltage control box to the screen by connecting the
screen motor power leads to the power strip terminal block located on
the circuit board of the control box.
3. Connect the low voltage control box to the AC power source by
connecting the AC line voltage to the power strip terminal block
located on the circuit board of the control box.
4. Connect the switch to the low-voltage control box.
ElectriMask Electriscreen: Owner’s Manual 9
Figure 9: Low voltage 3-button switch wiring
3-Button
Momentary
Switch
Note: A low voltage control box
and switch are required for each
roller tube.
AC
Line
R/F Input
InfraRed Input
Low Voltage
Switching
Neutral
COMMON-White
UP-Red
DOWN-Black
STOP-Yellow
COMMON-White
UP-Red
DOWN-Black
4 Conductor Hook-up Cable - 20-2 ga Recommended
Category 5 Typically Used (NOT Supplied)
Low Voltage Control Box

Installing the wireless remote control option
The optional Stewart Filmscreen wireless remote control allows control of the
screens from anywhere in the room.
Note: The distance between the hand-held remote control and the receiver can
be up to 50 feet / 15 m. It is not necessary to have uninterrupted line-of-sight
between the remote and the receiver, but there should be no metal objects
between them. The override switch on the bottom of the receiver can be used
instead of the remote control.
Preparing the connection
Before making the electrical connections, you need:
An available AC power source installed near the screen
Making the connection
The electrical diagram in Figure 10 illustrates the connections.
1. Connect the 4-conductor cable to the receiver module.
2. Open the wireless remote receiver module and connect motor wires
according to the labels inside.
3. Plug the receiver module into the constant AC power source.
10 Stewart Filmscreen Corporation

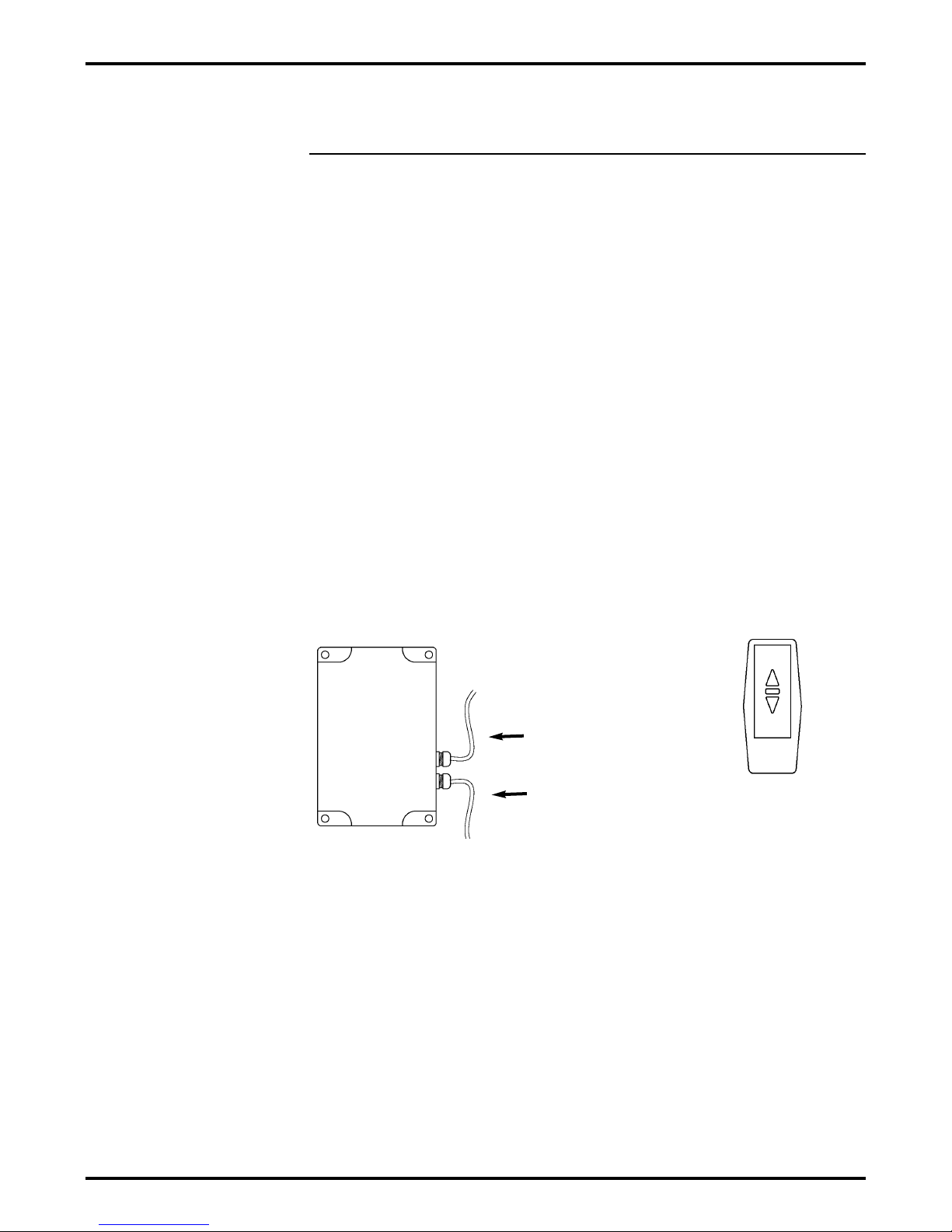

Figure 10: Wireless remote control connection
Wireless Remote
Control
AC
Connect to motor
Wireless Remote
Receiver Module

Installing the infrared remote control option
The optional Stewart Filmscreen infrared remote control allows control of the
screens from anywhere in the room.
Note: The distance between the hand-held remote control and the receiver can
be up to 50 feet / 15m. It is necessary to have uninterrupted line-of-sight
between the remote and the receiver.
Preparing the connection
Before making the electrical connections, you need:
An available AC constant power source
A 4-conductor switch hook-up cable (4-conductor bell wire or category
5 cable is typically used for long runs)
Wire nuts
Making the connection
Refer to Figure 11.
Note: The IR Channel Selection Switches must be set at different channels.
The factory sets them at 1 and 2.
1. Mount each Multi-Channel Infrared Control box near the screen.
2. Mount each infrared (IR) eye sensor near the screen.
3.Use wire nuts to connect the screen motor power leads to the MCIR
unit leads.
4.Connect each IR eye sensor to the plug-in module located on the
board.
5.Connect the MCIR boards to the AC power source by connecting the
AC line voltage to the black and white wires on the board.
ElectriMask Electriscreen: Owner’s Manual 11
Figure 11: Infrared remote control wiring
MCIR Control Boards
8-Button
Infrared Remote Control
Infrared
Sensors
Optional
RF Input
IR Channel
Selector
Switch
IR Sensor
Connector
Optional
3-button
Switch Input
Optional
RF Input
IR Channel
Selector
Switch
IR Sensor
Connector
Optional
3-button
Switch Input
AC
Black
Common White
UP-Red
DOWN-Brown
DOWN-Black
Neutral
AC
Black
Common White
UP-Red
DOWN-Brown
DOWN-Black
Neutral

The method you use to raise and lower the screen and mask depends on the
type of switch control devices you have selected.
Use the masking screen as needed to establish the appropriate viewing format.
When you lower or retract the main screen or the mask, they will stop at their
preset limits. If an obstacle (such as a person or furniture) gets in the path of the
screen as it is lowered, you should use the switch control to stop the screen's
motion; it will not automatically stop if it hits an obstacle.
The motor is designed to be used for short operations such as lowering the
screen (or mask) in preparation for viewing. The motor is not designed for
continuous duty. If the motor operates continually for more than a few minutes,
it may automatically shut off to prevent damage from overheating. If the motor
occasionally needs to be run more than normal, for example during initial setup
and positioning, allow time for the motor to cool down.
In general, when the screen is not in use, you should store it in the fully
retracted position.
12 Stewart Filmscreen Corporation
OPERATING THE SCREEN
Caution
Do not operate the motors when any of the following occurs:
The unit emits any smoke, heat, abnormal noise or unusual
odor.
The unit is damaged in some way, such as damage from a
water leak.
If any of these situations occur, call a qualified service person.

Each roller tube has a set of limit switches. The extension and retraction limit
switches have been preset at the factory. In general, we advise you to avoid
readjusting these switches.
In some cases, to enable proper alignment of the displayed image on the
screen, you may need to adjust the extension of the screen or mask. If
adjustment to the extension is necessary, carefully follow these instructions.
Modifying the extension of the screen and the mask
You can increase the extension of the screen and mask up to 3" / 7.6 cm past
the factory preset stop, or you can decrease the extension by approximately
4-6" (10-15 cm) from the factory preset stop. Do not attempt to modify the
extension beyond these recommended amounts.
The limit switches for each are located on the left side of the roller tube inside
the case, as shown in Figure 12.
To increase the fully extended (screen down) stop position:
1. Lower the screen or mask to its current stop position.
2. Locate the white extension (down) limit switch on the left side of the
roller tube. Use a screwdriver to turn the switch in a
counterclockwise direction. If the power is still on, the screen or
mask will drop incrementally as the switch is turned.
Note: One complete turn of the switch will make approximately a 3/4"
(2 cm) change in the screen or mask stop position.
To decrease the extension:
1. Lower the screen or mask until it is extended about halfway down.
2. Locate the white extension (down) limit switch on the left side of the
roller tube. Use a screwdriver to turn the switch in a clockwise
direction.
Note: One complete turn of the switch will make approximately a 3/4"
(2 cm) change in the screen or mask stop position.
ElectriMask Electriscreen: Owner’s Manual 13
ADJUSTING THE SCREEN EXTENSION
Caution
Improper adjustment of the limit switches can cause irreparable
damage to the screen itself, resulting in voiding the factory
warranty.
Warning!
The screen and mask are fully retracted when the battens are
flush with the bottom of the case. Do not attempt adjustments
with the yellow retraction (UP) limit switch that will further retract
the screen. Incorrect adjustment of the switch will cause severe
screen damage. Please consult the factory if you have any
questions.
Figure 12: Underside view
of Electriscreen
Electrical Access Plate
Internal Electrical Box
Screen
Limit
Switches
Mask Limit
Switches
Mask
Screen

3. Activate the screen in the down direction until it reaches the newly
reduced stop position. Repeat this procedure until the desired stop
position is reached.
Once you have made the adjustment, whenever you lower the screen or mask,
it will automatically stop at the new position.
Note: It is recommended that you make a note of any changes made to the
factory preset.
With reasonable care, you can expect many years of trouble-free use of your
Stewart projection screen.
We encourage you to keep your screen clean. To protect your screen when it is
not in use, store it in the fully retracted position.
Avoid getting any foreign material on the screen, as cleaning may prove very
difficult. It may not be possible to remove scratches, paint, ink, etc.
General maintenance
The screen surface on your screen is delicate. Special attention to these
instructions should be followed when cleaning.
A draftsman-style brush may be used to lightly whisk away any loose
dirt or dust particles. (This type of brush is usually available at office
supply stores.) Stewart Filmscreen has an optional screen cleaning
kit that contains the proper type of brush. Contact your dealer if you
would like to obtain this cleaning kit.
Particles left on the screen when it is retracted into the case may form
an impression on the screen surface. Periodically wipe the back of
the screen with a clean damp cloth.
For tougher spots, use a solution of mild detergent and water. Rub
lightly using a sponge. Blot with a damp sponge to absorb excess
water. Residual water marks will evaporate within a few minutes. Let
the screen air dry completely before retracting.
Do not use any other cleaning materials on the screen. Contact the factory if
you have questions about removing difficult spots.
Replacement parts and service
No user-serviceable parts are contained within the unit. Contact your dealer or
the factory if you require part replacement or service.
14 Stewart Filmscreen Corporation
SCREEN CARE AND CLEANING

Refer to the following guidelines if you encounter a difficulty in the operation of
your Stewart Filmscreen. Problems related to electrical or motor function may
require a qualified service person or electrician.
Should you have a problem that is not addressed here, call the Stewart
Filmscreen Corporation.
ElectriMask Electriscreen: Owner’s Manual 15
TROUBLESHOOTING
Problem description Probable cause Action to take
Screen won't operate. No AC power available. Check to see if the circuit breaker
has switched off. Reset if needed.
Check voltage availability. Contact
an electrician.
Screen won't roll up or down
(even though power is
available).
Bad connection at switch. Have an electrician or qualified
service person check the
connection as follows:
NIf you have a high voltage control
switch, check switch-line
connections.
NIf you have a low voltage control
unit, check switch-line
connections.
NIf you have a screen trigger
interface, check line connections,
or the mini-plugs at the screen
input or projector output. Contacts
may be sticking—tap relay to free
contacts.
Screen roller chatters when
power is activated. Can be caused by voltage drop, bad connections, or a
defective switch.
Have an electrician or qualified
service person check all hook-ups
including all outboard wiring.
Unit hums in up mode. (Screen
has already retracted.) The screen batten is retracting
too far into the case. Failure
to correct can damage
motor and screen. Do not
use the unit until this
problem is resolved.
Have a qualified service person
adjust the yellow UP limit switch.
Turn the adjusting screw clockwise.
Screen drops when up direction
is activated (grinding noise
occurs).
Drop in voltage. Screen motor requires full voltage.
Have an electrician or qualified
service person check available
voltage.

16 Stewart Filmscreen Corporation
Problem description Probable cause Action to take
Screen continues past bottom
stop position. White limit switch is out of adjustment. Readjust the white DOWN limit switch. Turn the adjusting screw
clockwise.
Batten retracts too far into case. Yellow limit switch out of
adjustment. Failure to
correct can damage motor
and screen. Do not use the
unit until this problem is
resolved.
Have a qualified service person
readjust the yellow UP limit switch.
Turn the adjusting screw clockwise.
Motor shuts off. Motor has
been in use for more than
2 minutes.
Motor is designed for short
operations (lowering and
retracting), not continuous
duty. Longer operation, such
as during setup and
positioning, causes the motor
to overheat and shut off.
Allow the motor to cool down.
Complete cooling can take an hour
or more. Heat gain is cumulative
and takes time to dissipate. If motor
use is initiated before it has cooled
completely, the motor will shut
down again when it reaches
maximum temperature.
Any controller (e.g., STI, LVC,
etc.) fails to operate motor.
Dirt, finger prints, marks, etc. on
screen surface. Improper handling of screen. Brush off or use a mild detergent solution with clean rag or cotton
swab.
Indentations appear on screen
surface. Debris or particles adhering to screen due to static cling. Check back of screen; gently brush debris away by hand.

LIMITED ONE (1) YEAR WARRANTY ON STEWART FILMSCREEN CORP
PROJECTION SCREENS SYSTEM
STEWART FILMSCREEN CORPORATION (Stewart) warrants its screens to the
original purchaser only, to be free from defects in materials and workmanship
for a period of one (1) year from the date of purchase by the original purchaser
or eighteen (18) months from date of manufacture, as defined in the serial
number, provided they are properly operated and maintained according to
Stewart instructions and are not damaged due to improper handling or treatment
after shipment from the factory.
This warranty does not apply to equipment showing evidence of misuse, abuse,
or accidental damage, including neglect caused by improper installation (i.e.
proximity to hot lights, exposure to extreme heat or cold, exposure to excessive
humidity, etc.) as well as product that have been tampered with or repaired by
any person or third party installation, other than authorized Stewart personnel.
Stewart's sole obligation under this warranty shall be to repair or to replace (at
Stewart's sole discretion) the defective part of the merchandise. This warranty
expressly does not cover any costs of removal, installation, framing, or other
costs incident to replacing the screen or returning it to Stewart. Returns for
service should be made to your Stewart dealer. If it is necessary for the dealer
to return the screen or part to Stewart, transportation (freight) expenses to and
from Stewart are payable by the purchaser and Stewart is not responsible for
damage in shipment. To protect yourself against damage or loss in transit,
insure the product and prepay all transportation expenses.
This warranty is in lieu of all other warranties, expressed or implied, including
warranties as to fitness for use and merchantability. Any implied warranties of
fitness for use, or merchantability, that may be mandated by statue or rule of
law are limited to the one (1) year warranty period. This warranty gives you
specific legal rights, and you may also have other rights which vary from state-
to-state. In no event will Stewart be liable for sums in excess of the purchase
price of the product. No liability is assumed by Stewart for expenses or
damages resulting from interruption in operation of equipment, or for incidental,
direct, or consequential damages of any nature.
In the event that there is a defect in materials or workmanship of a Stewart
Screen, you may contact our Customer Service Department at
1161 W Sepulveda Blvd, Torrance, California 90502-2797
(310-784-5300) Toll free (800-762-4999).
IMPORTANT: This warranty shall not be valid and Stewart shall not be bound
by this warranty if the product is not operated and maintained in accordance
with Stewart's written instructions.
Stewart Filmscreen Corporation shall not be liable for any and all
consequential damage(s) occasioned by the breach of any written or
implied warranty pertaining to the sale in excess of the purchase price of
the product sold.
Printed in USA. Rev. 12/14/10
ElectriMask Electriscreen: Owner’s Manual 17
PRODUCT WARRANTY

800.762.4999 •310.784.5300 •Fax: [phone]
www.stewartfilmscreen.com
January 2011
Printed in U.S.A.
©2000–2011 Stewart Filmscreen Corporation
