Stewart Filmscreen Luxus ScreenWall Series User manual

TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.
Luxus ScreenWall
Series
To the Owner
Installation Instructions
Screen Care
Maintenance
OWNER’S MANUAL
SWS-
Wall mount / standard
Wall mount / wraparound
Stage fly (hanging) mount
Quick Snap wall mount
T-stand self-supporting
Aperture mount
Tilt frame
Electric Tilt
0209

Printed in U.S.A.
©2003 -2005 Stewart Filmscreen Corporation
Stewart Filmscreen reserves the right to make changes to the product specified in this document.
From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at
www.stewartfilm .com.screen

Contents
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General Notes for Preparing the Installation . . . . . . . . . . . . . . 3
Wall Mount—Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wall Mount—Wraparound . . . . . . . . . . . . . . . . . . . . . . . . . . . ..8
Stage Fly (hanging) Mount . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Quick Snap Wall Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
T-stand Self-supporting ScreenWall . . . . . . . . . . . . . . . . . . . 14
Aperture Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Tilt Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electric Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
General Instructions for Attaching Screen to Frame . . . . . . . 24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Screen Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Luxus ScreenWall Series: Owner’s Manual 1
Luxus ScreenWall
Series
OWNER’S MANUAL

Congratulations on your purchase of one of the finest optical viewing
screens available anywhere in the world!
Please take a moment to review this manual, it will help ensure you many
years of trouble-free service from your new Stewart Filmscreen product.
About the ScreenWall Series
Your Luxus ScreenWall or Deluxe ScreenWall fixed frame supports virtually
all projection applications. The frame acts as a projection overscan border.
The optional Ve ux finish is designed to absorb any overscanning.
The screen fabric attaches to the back of the frame with snap fasteners.
The ScreenWall Series also offers a wraparound option.
The Deluxe ScreenWall features angled corners and a beveled edge that
bring the image area closer to the frame.
The Quick Snap features snaps and brackets that move on the frame to
allow for adjustments.
Rear projection is available as an option.
The standard mount is a wall mount; other options include T-stand self-
supporting, stage fly (hanging), tilt, and aperture mounts.
Using this manual for installation
If you are using this manual to install the ScreenWall, you should be aware
that it describes procedures for several types of frames and mounts. You
must refer to the section for the type of ScreenWall you are installing. In
addition, there are general instructions for attaching the screen to the frame
that are provided in a separate section. This procedure is to be performed
at a specific step in the overall sequence.
For the frame and mount type, refer to the appropriate page:
Wall mount (standard screen attachment)
Wall mount (wraparound screen attachment)
Stage fly (hanging mount)
Quick Snap wall mount
T-stand self-supporting
Aperture mount
Tilt frame
Electric tilt
At the designated point in the installation, you will need to refer to the
general instructions for attaching the screen to the frame.
2Stewart Filmscreen Corporation
TOTHEOWNER
l

Preparation
Specifications regarding the individual screen dimensions, weight, mounting
type, and controls are provided by the factory when the unit is ordered.
Before beginning the installation:
Check the specifications for the type of frame and mounting to be
used.
For screens with a motor, prepare for electrical access.
Make sure there is a clean surface on which to unroll the screen.
Check the size and weight of the screen to be installed so that
you can plan for the number of people required for the mounting
procedure. You need at least two people to mount the smaller
screens; more are needed for larger, heavier screens.
You will need:
Gloves, for handling the screen.
Ladders for the personnel supporting the screen during the
mounting process, as needed.
A level.
Fasteners appropriate for the surface on which the screen is
being mounted (See instructions for the type of mount for
recommendations.)
Drills for making holes to attach brackets to the mounting surface,
as needed.
Tools for tightening fasteners
Note: Bolts and other fasteners for the screen are standard gauge and
sizes used in the U.S., regardless of where they will be installed. For this
reason, the sizes are expressed in inches rather than metric measurements.
Unpacking
Be sure to unpack carefully in a clean area. Use special care when
handling the screen so that it does not become soiled or damaged.
If you plan to repack your screen and hardware for transportation to another
location, you may wish to photograph or make a note of how it was packed.
Keep the packing material.
Luxus ScreenWall Series: Owner’s Manual 3
GENERAL NOTES FOR PREPARING THE INSTALLATION
Before proceeding with the installation of this screen,
take time to thoroughly read and understand these
installation and operation instructions.
All electrical wiring installations must conform to local
and national codes and should be performed by
qualified service personnel.
There are no user-serviceable parts contained within
the unit.
.

4Stewart Filmscreen Corporation
Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
This section describes assembly of a wall mount ScreenWall that uses the
standard method of attaching the screen to the frame (rather than a
wraparound attachment).
Assembling the frame
WALL MOUNT—STANDARD

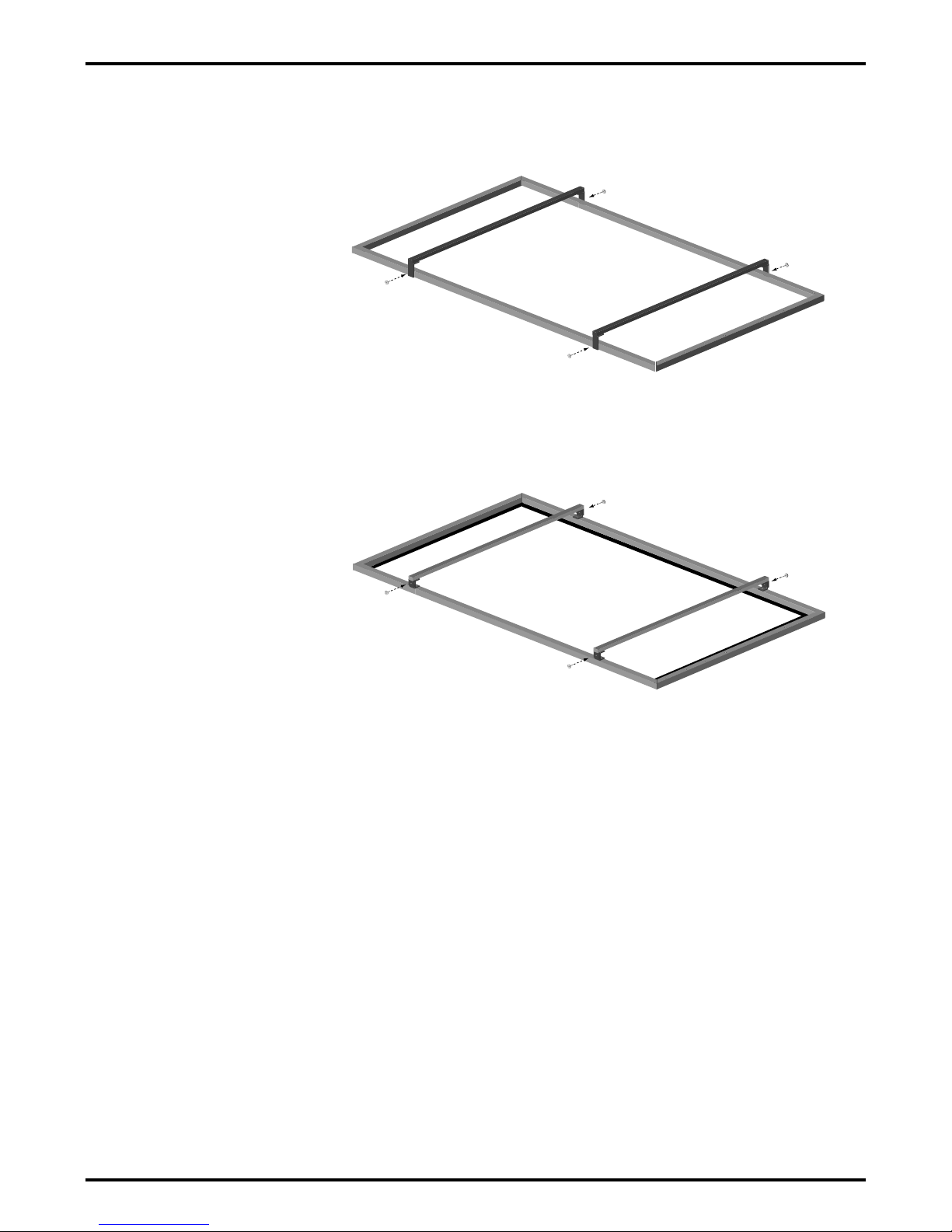

Figure 1: Attaching the wall brackets: AT 1.5 ScreenWall
Figure 2: Attaching the wall brackets: Deluxe ScreenWall
Wall Brackets
1. Connect the four
pieces by matching
the colored, numbered
dots on the ends of
the frame pieces. See
Figure 1 for the AT 1.5
ScreenWall and
Figure 2 for the
Deluxe ScreenWall.
2. Secure frame sections
with the supplied 5/8”
hex head bolts.

Figure 3: Attaching wall brackets to frame—AT 1.5 ScreenWall
Luxus ScreenWall Series: Owner’s Manual 5
3. Bolt wall brackets to
the frame using the
supplied 5/8” hex
head bolts. See
Figure 3 for the AT
1.5 ScreenWall and
Figure 4 for the
Deluxe ScreenWall.
Notes:
Depending on the
size of the screen,
the number of wall
brackets may vary.
This is a temporary
attachment of the
wall brackets to the
frame for the
purpose of
positioning the frame
and brackets on the
wall.
Figure 4: Attaching wall brackets to frame—Deluxe ScreenWall

6Stewart Filmscreen Corporation
Figure 5: Attaching wall brackets to the wall
Positioning the frame and wall brackets
To accurately position the frame, you must temporarily attach the wall
brackets to the frame, and then position the frame on the wall.
1. Without the screen
fabric attached,
position the frame and
brackets on the wall.
2. Make sure the unit is
level and plumb. (You
may need to use
shims between the
brackets and the wall
to achieve vertical
plumb).
3. Mark the position of
the bracket holes on
the wall. Refer to
Figure 5.
4. Drill holes in the wall
as needed.
5. Remove the brackets
from the frame and
attach them to the
wall using the
appropriate fasteners
(hex lag screws, wall
anchors, molly bolts,
wood carriage screws,
etc.). Refer to
Figure 6.
Note:
Later, when the
screen fabric is
attached to the frame,
you will re-attach the
frame to the brackets
on the wall.
Figure 6: Wall brackets only on the wall

Hanging the frame and screen on the wall
Luxus ScreenWall Series: Owner’s Manual 7
Figure 7: Finished screen attached to wall brackets
1. Go to the section on
attaching a standard
screen to the frame
(page 24).
2. Attach the ScreenWall
to the previously
mounted wall brackets
using the 5/8” hex
head bolts.
Figure 7 displays the
ScreenWall mounted
on the wall brackets.

Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
This section describes assembly of a wall mount ScreenWall that uses the
wraparound method of attaching the screen to the frame (rather than a
standard attachment).
Assembling the frame
Assemble the frame using the same procedure as for the standard wall
mount. Refer to Figures 1 and 3 in the section starting on page 4.
Attaching brackets to the wall
8Stewart Filmscreen Corporation
WALL MOUNT—WRAPAROUND
1. Position the frame on
the wall.
2. Place marks on the
wall to indicate where
you will make holes
for the top brackets.
3. Drill holes in the wall
as needed.
4. Attach top brackets to
the wall.
5. Hang frame on top
brackets. Refer to
Figure 9.
6. Place marks for holes
where you will place
the bottom brackets.
7. Remove the frame
and drill holes in the
wall as needed.
8. Attach bottom
brackets to the wall.

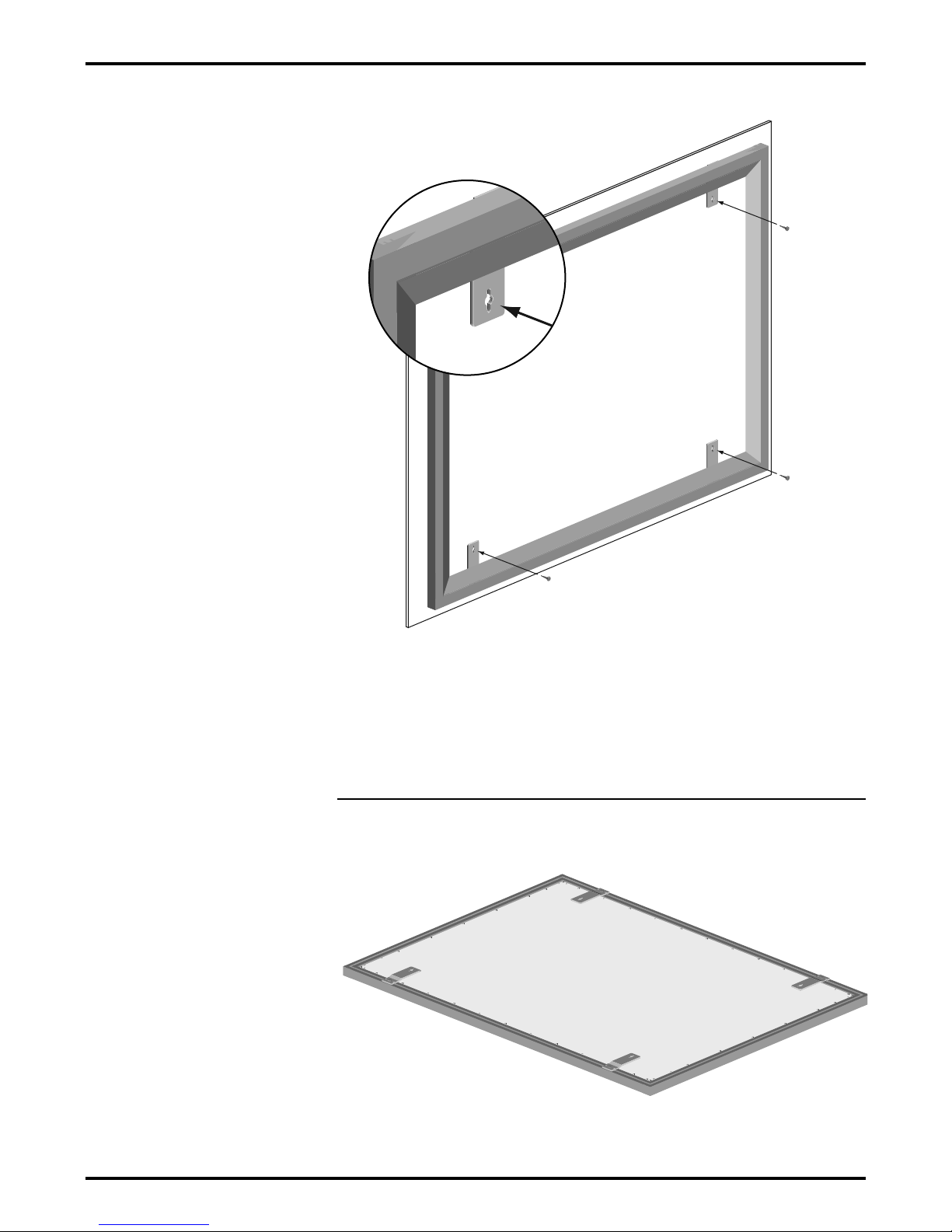

Figure 8: Frame displayed with brackets (screen not on)

Hanging the frame on the wall brackets
Luxus ScreenWall Series: Owner’s Manual 9
1. Go to the instructions
for attaching the
screen to the frame
using the wraparound
method (page 26).
Then return to this
section.
2. Once the screen is
attached to the frame,
hang the frame on the
wall brackets. First,
place the top of the
frame on the top
mounting pins.
3. Gently stretch the
bottom frame member
over the bottom
mounting pins. The
frame member will
bend slightly (about
1/2” / 1.27 cm).

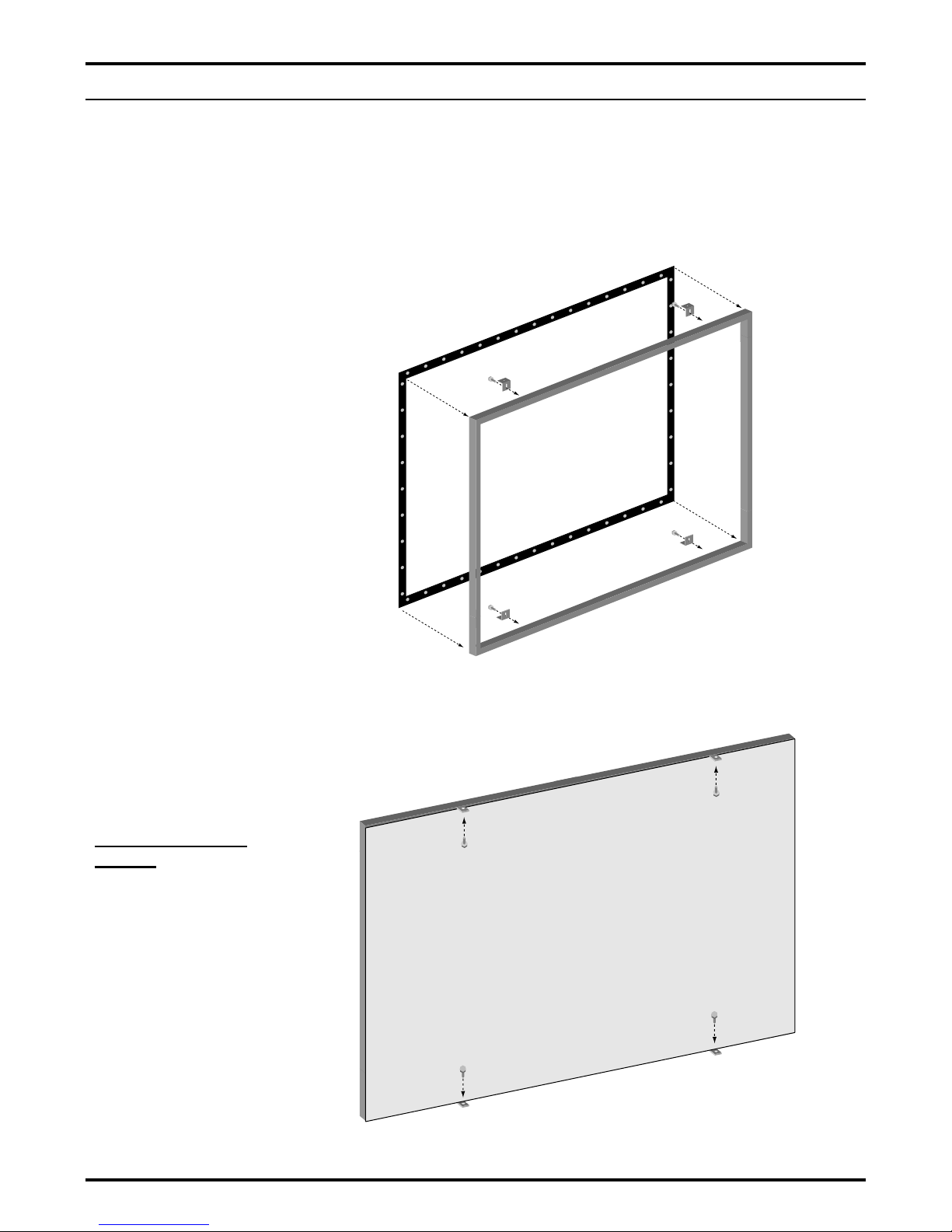

Refer to Figures 8 and 9. Figure
10 shows the completed
installation.
Figure 9: Hanging the frame on the wall brackets (left); completed (right)
Figure 10: Completed installation of wall-mounted wraparound screen
Top
Bottom

Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
As an alternative to the wall mount, you can use the stage fly mount to
suspend the screen.

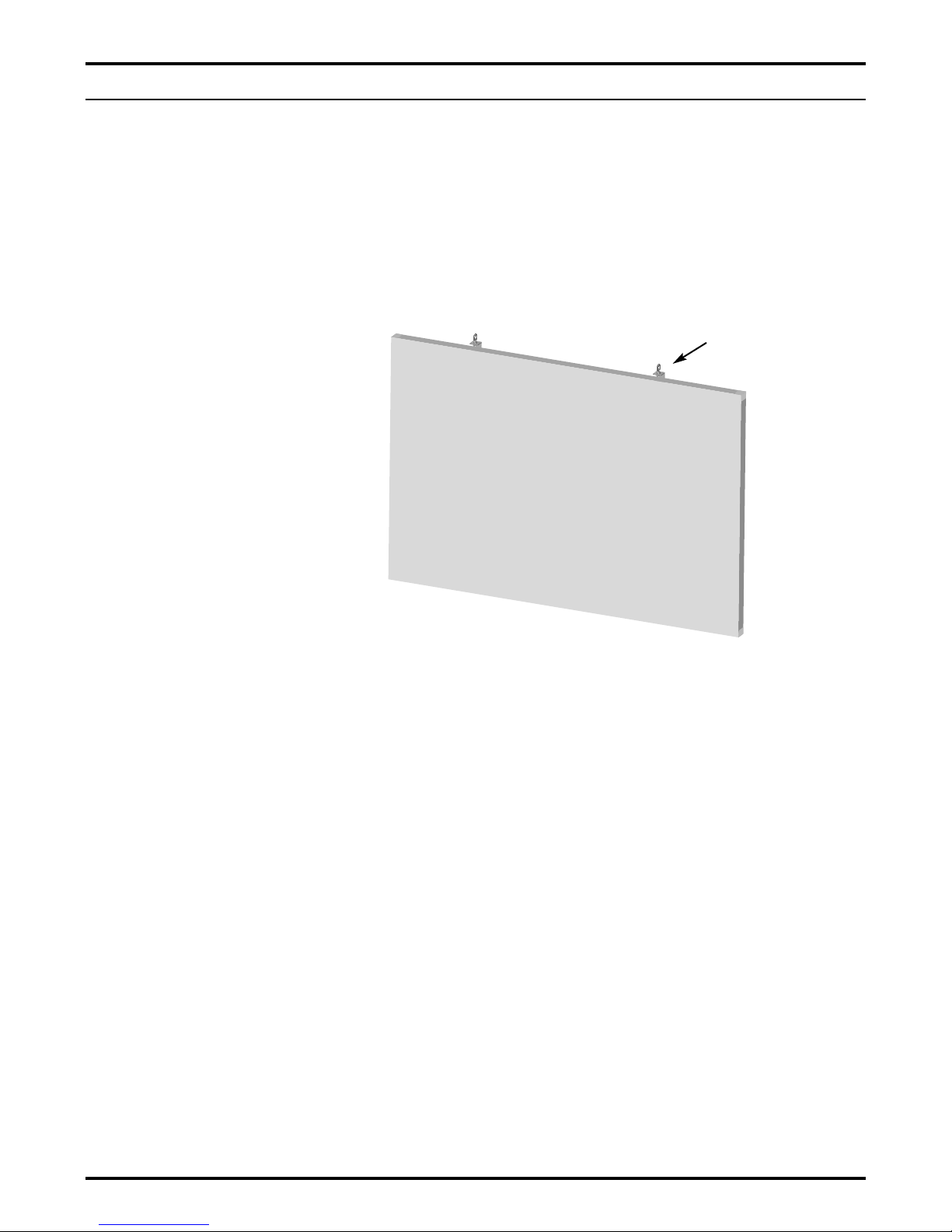

Figure 11: Completed stage fly mount installation (wraparound screen)
10 Stewart Filmscreen Corporation
STAGE FLY (HANGING) MOUNT
1. Assemble the frame.
(Refer to the section
starting on page 4.)
2. Attach the screen to
the frame. (Refer to
the section starting on
page 24.)
3. Hang the frame from
the eyebolts as shown
in Figure 11.
Eyebolt

Luxus ScreenWall Series: Owner’s Manual 11
QUICK SNAP WALL MOUNT
Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
This section describes assembly of the Quick Snap wall mount ScreenWall.
Assembling the frame

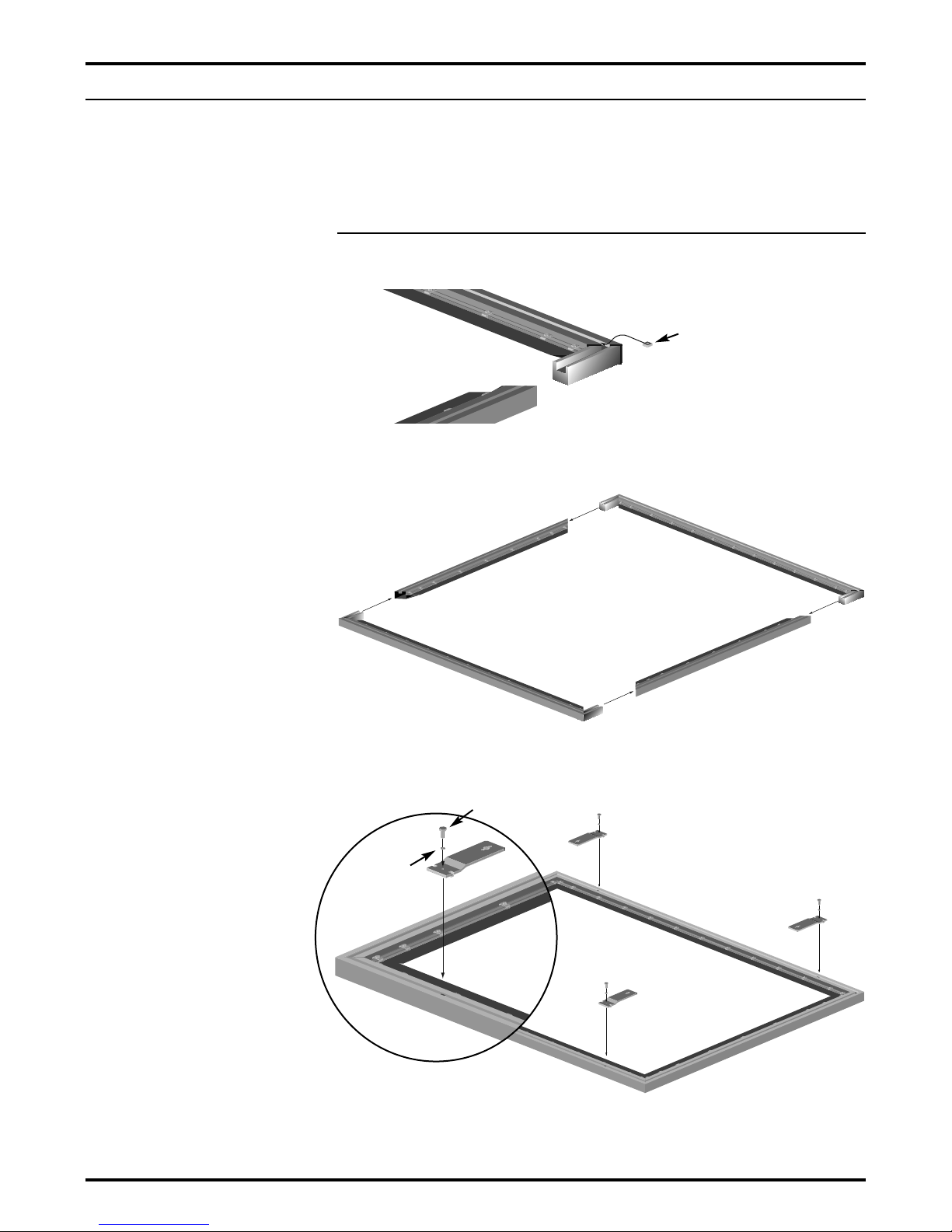

Figure 13: Frame assembly
1. Locate the wall studs
and determine the
mounting location.
2. Insert the sliding nuts
that will hold the wall
bracket into the
channel in the frame.
Repeat for each
bracket. Refer to
Figure 12.
Note: Brackets can
slide horizontally so
you can position them
precisely, to stud
locations.
3. Connect the frame
members by matching
the colored, numbered
dots on the ends of
the members. Refer to
Figure 13.
4. Secure the frame
members with the
supplied 5/16-18 x
3/4” hex head bolts.
5. Attach the wall
brackets to the frame.
Secure the brackets
with the supplied 1/4-
20 x 3/8” button head
screw to previously
inserted sliding nuts.
Be sure the lock
washer is inserted
between the button
head screw and the
bracket. Refer to
Figure 14.
Figure 14: Attaching wall brackets to frame; detail (inset)
Figure 12: Placement of bracket bolt in frame channel
Sliding Nut
Button Head Screw
Lock
Washer

Attaching the screen to the frame
12 Stewart Filmscreen Corporation
6. Position the frame
against the wall to
measure placement of
wall mount screws.
Keep in mind that the
brackets slide
horizontally so you
can position them
precisely. Refer to
Figure 15.
7. Drill holes as needed
and install the wall
mount hardware. You
can use the supplied
#12 x 1 1/2” Phillips
pan head screws or
other appropriate
fasteners. (For
example, wood
screws, carriage bolts,
and hex head
screws.) The keyhole
opening is 5/8" with a
1/4" slot.
8. Temporarily hang the
frame on the wall
mount hardware to
ensure that the frame
is level and properly
aligned with the
mounting hardware.
Remove the frame
from the wall, tighten
hardware, then back
off 1/8 turn.
Figure 15: Aligning frame and brackets on wall; detail of bracket (inset)
Figure 16: Assembled frame with screen attached
1. Attach the screen to
the frame. Refer to
the section starting on
page 24. Work very
carefully around the
brackets.
2. Figure 16 shows the
completed assembly.
Place the frame on
the pre-mounted wall
screws.
,
ed

Luxus ScreenWall Series: Owner’s Manual 13

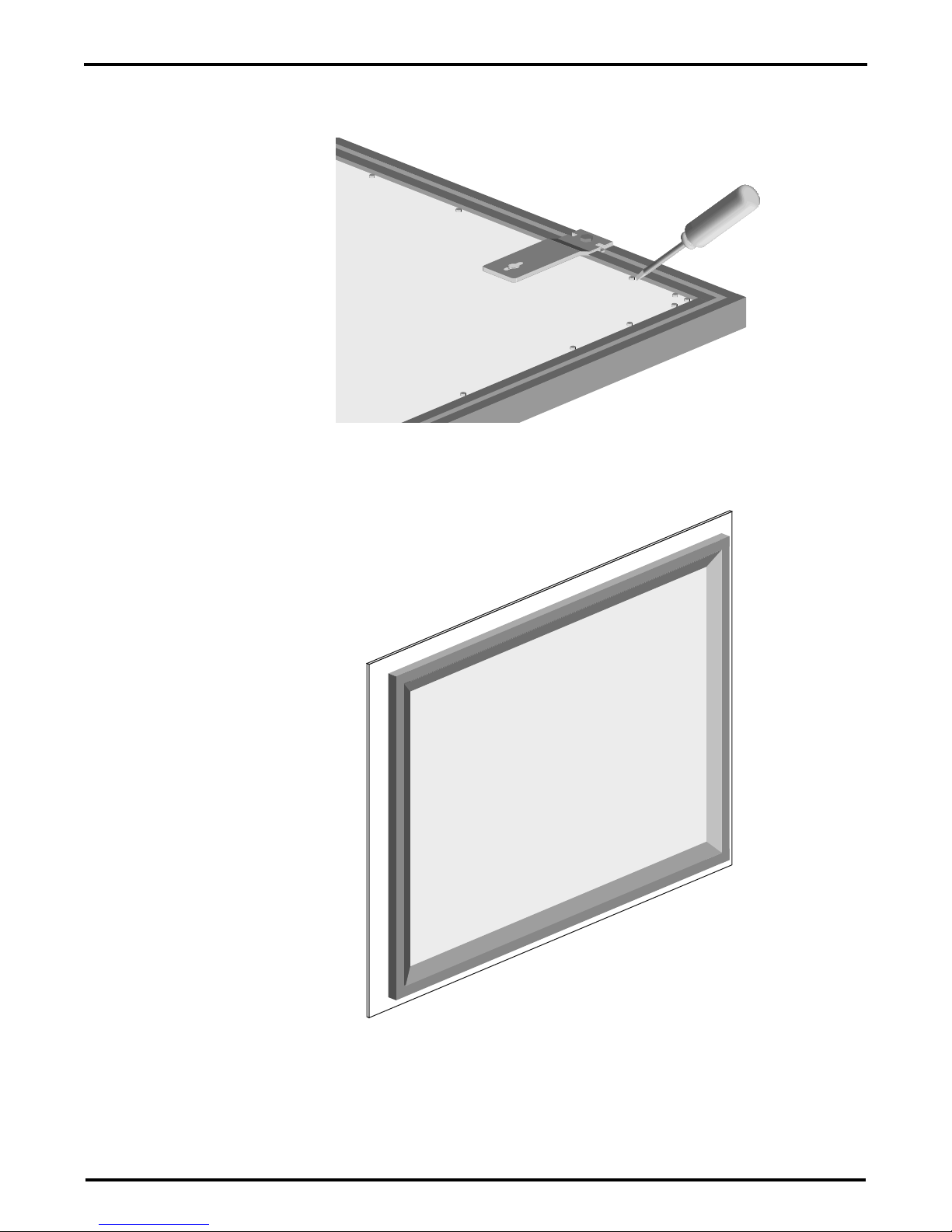

Figure 17: Tapping snaps to reduce screen puckers
Figure 18: Completed Quick Snap screen mounted on wall
3. If there are puckers
in the screen, you
can use a
screwdriver to tap the
snaps so that the
puckers are
removed.
to 1/8” (1.6 mm to
3.2 mm) is usually
sufficient to eliminate
puckers. Refer to
Figure 17.
4. Place the frame on
the pre-mounted wall
screws.
A movement of 1/16”

This section describes assembly of a self-supporting ScreenWall. It may
use an optional tilt bar and optional casters.
Assembling the frame
Each side of the frame may be in one piece, with the sides joined at the
corners, or, for larger frames, the longer sides of the frame may have
segments that must also be joined.
14 Stewart Filmscreen Corporation
T-STAND SELF-SUPPORTING SCREENWALL
1. Connect the four
pieces by matching
the colored, numbered
dots on the ends of
the frame pieces. See
Figures 21 and 22.
2. Secure with the
supplied bolts.
3. Go to the section on
mounting the screen
to the frame (page
24), then return to this
section to continue.
Figure 19: T-Stand Figure 20: T-Stand with optional
tilt bar and casters
Figure 21: Standard frame assembly
Figure 22: Frame assembly for jointed frames
Professional mounting
techniques should be used.
Stewart Filmscreen Corporation
cannot be liable for
substandard or faulty
installations.

Attaching the back support to the frame (where required)
Large screens require a back support. Once the screen is attached to the
frame, you can attach the back support. Be sure to protect the surface of
the screen from dirt, scratches, and tears.
Very large screens require cable support in addition to the back brace.
Luxus ScreenWall Series: Owner’s Manual 15
1. Working in a clean
area, set the frame
face down.
2. Affix back brace as
shown in Figure 23.
3. If applicable, use the
baby eye snaps to
attach the cables to
the corner anchors.
Refer to Figure 24. Figure 23: Attaching back brace for large screens
Figure 24: Attaching cable used for larger screens

Attaching T-stands
This sections describes how to mount the ScreenWall on T-stands.
Standard screen attachment
Follow these instructions when the screen uses the standard attachment to
the frame. If the screen uses the wraparound attachment, go to the next
section.
Wraparound screen attachment
Follow these instructions when the screen uses the wraparound attachment
to the frame. If the screen uses the standard attachment, refer to the
previous section.
16 Stewart Filmscreen Corporation
1. Use the T-stand knobs
provided to attach the
finished screen to the
T-stands. Refer to
Figure 25.
2. Hand-tighten the
knobs.

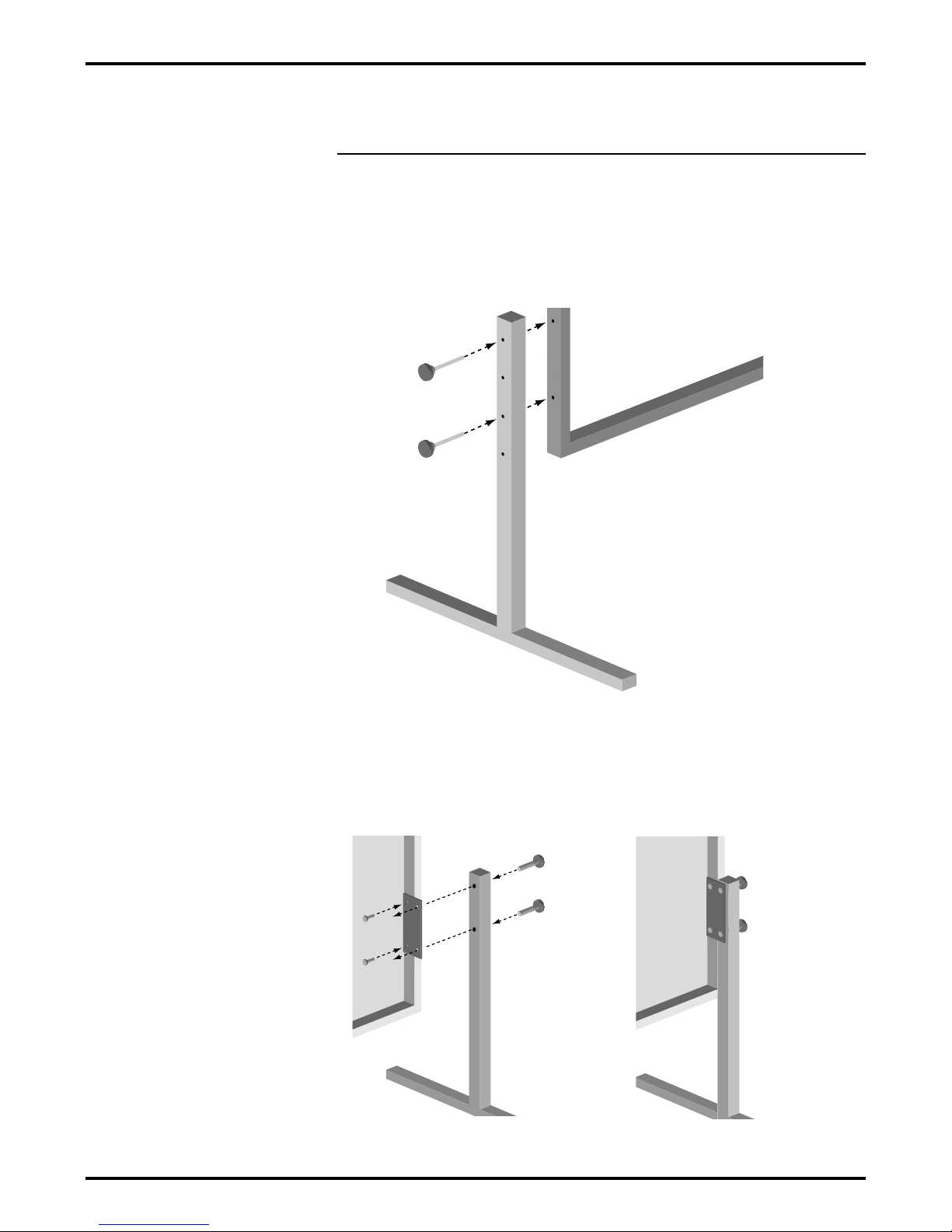

Figure 25: Attaching T-stand knobs, standard screen attachment
Figure 26: Attaching T-stand bracket and knobs, wraparound screen
attachment
1. Attach the bracket to
the frame using the
provided screws.
Refer to Figure 26.
2. Use the T-stand knobs
provided to attach the
brackets on the
finished screen to the
T-stands.
3. Hand-tighten the
knobs.

Professional mounting techniques should be used. Stewart Filmscreen
Corporation cannot be liable for substandard or faulty installations.
The aperture mount allows you to install the screen into an opening in a
wall or wall unit.
Figure 27: Front view: frame, mounting brackets, and screen
Luxus ScreenWall Series: Owner’s Manual 17
APERTURE MOUNT
1. Prepare the aperture.
2. Assemble the frame
as shown in the
section starting on
page 4.
3. Attach optional
aperture mounting
brackets, if used.
Refer to Figure 27.
4. Attach the screen.
attaching screens to
the frame on page 24,
then return to this
section.
5. Carefully insert the
frame (with the screen
already attached) into
the aperture. Take
care so that you do
not damage the
screen.
6. Attach the mounting
brackets to the wall
with the appropriate
fastener. Refer to
Figure 28.
Optional mounting
method
If you cannot access the area
behind the screen, and you want
to fasten the screen to the
aperture framework, you can
drill through the frame and use
drywall screws.
Figure 28: Rear view: frame, mounting brackets, and screen
Go to the section on

The tilt frame allows you to view the screen flat against the wall or with a tilt
from the top.
18 Stewart Filmscreen Corporation
TILT FRAME

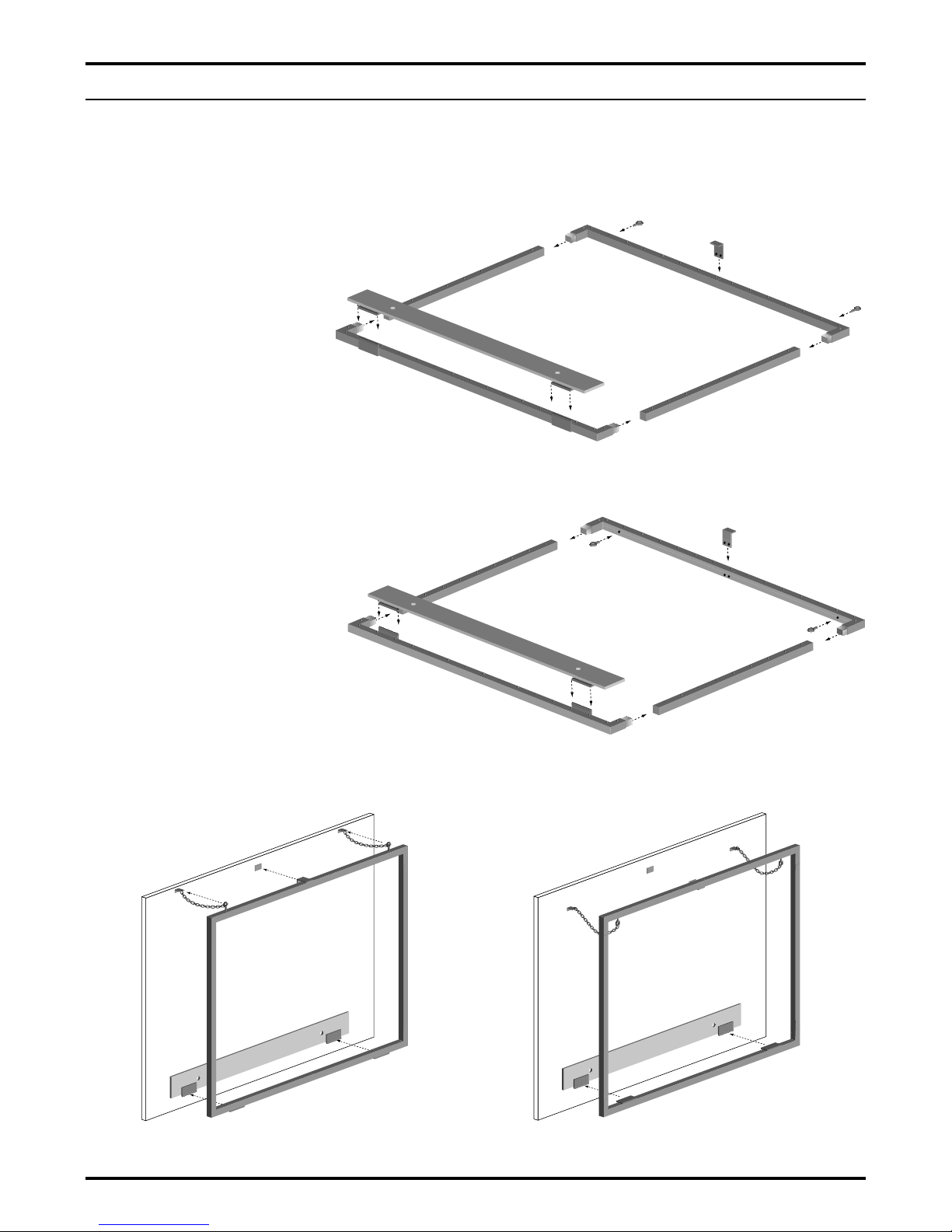

Figure 29: Frame assembly: Standard screen attachment
Figure 30: Frame assembly: Wraparound screen attachment
Professional mounting
techniques should be used.
Stewart Filmscreen Corporation
cannot be liable for
substandard or faulty
installations.
1. Assemble the frame
as shown in Figures
29 and 30.
Note that the
assembly is
somewhat different for
the standard and
wraparound screen
attachments.
2. Hold the assembled
frame to the wall and
mark the positions for
the mounting
hardware, as shown
in Figures 31 and 32.
3. Drill holes in the wall
as needed.
4. Go to the section on
attaching the screen
to the frame—
standard or
wraparound (page
24), then return to this
section.
Figure 31: Mounting hardware position—Standard Figure 32: Mounting hardware position—Wraparound
:
