Stewart Filmscreen Luxus Deluxe ScreenWall User manual

Luxus Deluxe ScreenWall
Owner’s Manual
• EZ Mount Bracket System
• Wall Mount Boards
• Stage Fly (Hanging) Mount
• T-Stand (Self-Supporting)
• Aperture Mount
INCLUDES: MESSAGE TO THE OWNER, ASSEMBLY, INSTALLATION/MOUNTING, & MAINTENANCE INSTRUCTIONS
SWS-0716
TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.

Printed in U.S.A.
© 2015 Stewart Filmscreen Corporation
Stewart Filmscreen reserves the right to make changes to the product specified in this document.
Sizes and specifications subject to change without notice at Manufacturer’s discretion. From time to time, this
document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at:
www.stewartfilmscreen.com

Luxus Deluxe Screenwall
Owner’s Manual
Contents
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preparing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembling the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mounting the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13
EZ Mount Bracket System . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Stage Fly (Hanging) Mount . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Wall Mount Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
T-Stand (Self-Supporting) . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Aperture Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Attaching the Screen to the Frame. . . . . . . . . . . . . . . . . . . . . . 14-15
Caring for & Cleaning the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19

TO THE OWNER
Please take a moment to review this manual, it will help ensure you many years of trouble-free service from your
new Stewart Filmscreen product.
About the Luxus Deluxe ScreenWall
The Luxus Deluxe ScreenWall features angled corners and a beveled edge that bring the image area closer to the
frame.
The Quick Snap features snaps and brackets that move on the frame to allow for adjustments.
Rear projection is available as an option.
The standard mount is a wall mount with the EZ Mount Bracket System; other options include Wall Mount Boards,
Stage Fly (Hanging) Mount, T-Stand (Self-Supporting), and Aperture Mount.
Using this Manual for Installation
If you are using this manual to install the Luxus Deluxe ScreenWall, you should be aware that it describes
procedures for several types of mounts. You must refer to the section for the type of mounting system you are
utilizing. In addition, there are general instructions for attaching the screen to the frame that are provided in a
EZ Mount Bracket System

T-Stand (Self-Supporting)
Wall Mount Boards
Stage Fly (Hanging) Mount
Aperture Mount
At the designated point in the installation, you will need to refer to the general instructions for attaching the
screen to the frame.
4

PREPARING THE INSTALLATION
5
Be sure to unpack carefully in a clean area. Use special care when handling the screen so that it does not become soiled or damaged.
If you plan to repack your screen and hardware for transportation to another location, you may wish to photograph or make a
note of how it was packed. Keep the packing material.
Unpacking
Preparation
Note: Bolts and other fasteners for the screen are standard gauge and sizes used in the U.S., regardless of where they
will be installed. For this reason, the sizes are expressed in inches rather than metric measurements.
Caution: Do not stand on the screen tube or store it on its end. This will cause screen damage. If you are not going to install the
screen immediately, make sure it remains horizontal during storage.
♦Lint-free, clean cloth gloves for handling the screen
♦Ladders for the personnel supporting the screen during the mounting process
♦A level
♦Fasteners appropriate for the surface on which the screen is being mounted
♦A drill
♦Tools for tightening fasteners
You will need:
♦Make sure there is a clean surface on which to unroll the screen and assemble the frame.
♦Check the size and weight of the screen to be installed so that you can plan for the number of people required for installation.
You need at least two people to mount the smaller screens; more are needed for larger, heavier screens.
Before beginning the installation:
Specications regarding the individual screen dimensions, weight, etc. are provided by the factory when the unit is
ordered.
Before proceeding with the installation of this screen, take time to thoroughly read and understand these
installation instructions.

FRAME ASSEMBLY INSTRUCTIONS
1. Connect the frame members by matching the colored, numbered dots on the ends of the members.
2. Secure the frame members with the supplied 5/16-18 x 1/2” hex head bolts.
6

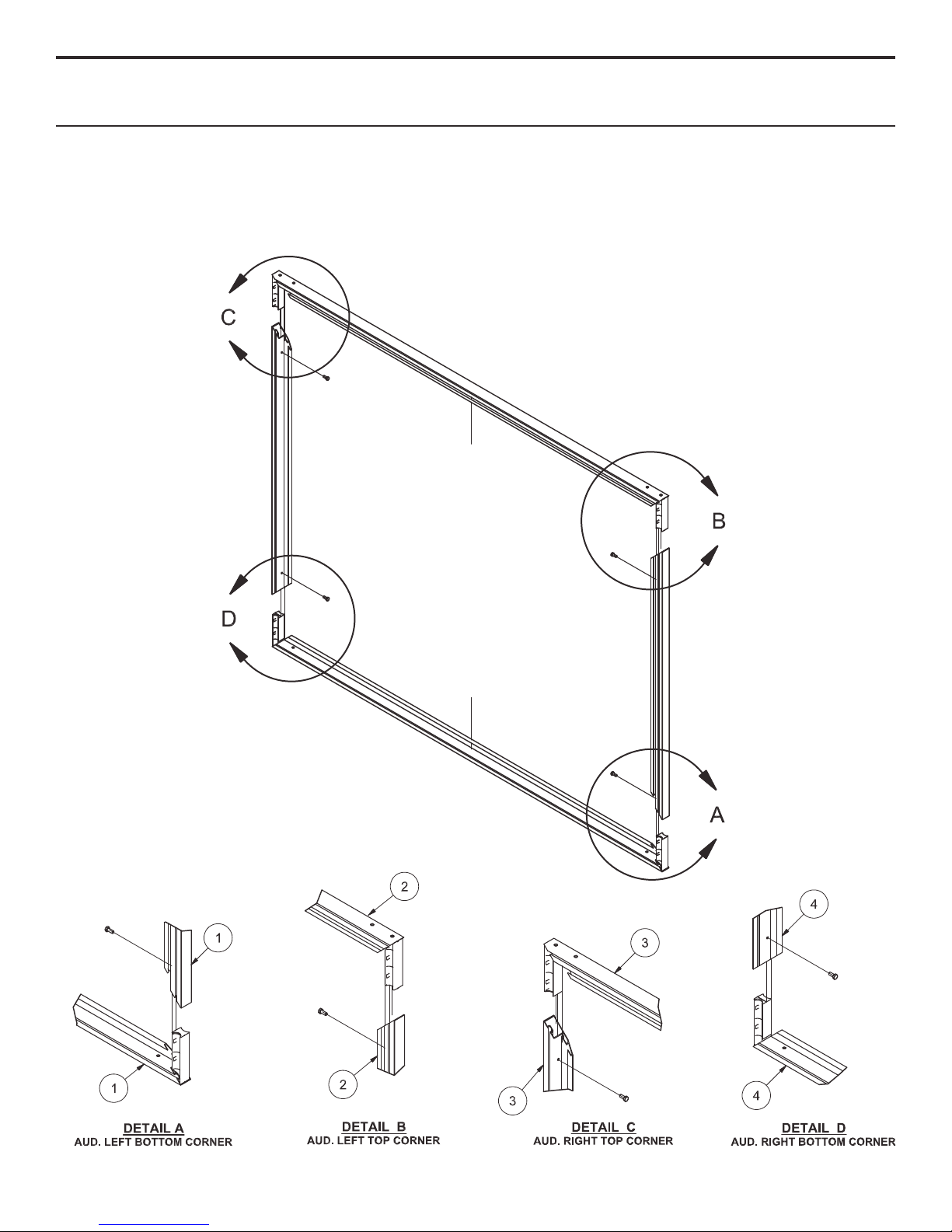

Figure 1: Frame Assembly

1. Identify the location of wall studs where you can securely mount the EZ Mount hanging bar.
2. Use a level to accurately position the EZ Mount hanging bar on the wall.
3. Drill holes through the bar into the studs.
4. Use the provided 2” screws or other appropriate fasteners to secure the EZ Mount hanging bar to the wall studs.
Note: A minimum of three (3) screws are recommended to safely secure the frame.
5. Check to make sure the bar is level.
6. Assemble frame (see page 6).
7. Hang the assembled frame, without the screen attached, on the EZ Mount hanging bar to ensure that it is correctly
mounted.
8. Mark on the wall where you will mount the steel pucks to studs that will align with the magnets fastened on the frame.
Note: Find studs that allow the pucks and magnets to be positioned approximately 12” to 24” from
the edge of the frame on each side.
9. Remove the frame. Drill into the studs and mount the steel pucks with the provided 2-3/8” screws or other
appropriate fasteners. Use shims as needed.
10. Reposition the frame, slide and secure the magnets so that they align with the steel pucks mounted on the wall.
11. Remove the frame and follow the steps for attaching the screen to the frame (see pages 14-15).
12. Your ScreenWall is now ready to hang in its final position. See figures 2-4 on page 8.
To accurately position the frame, you will mount the EZ Mount hanging bar and temporarily hang the frame prior
to attaching the screen material. On the bottom of the frame, there are magnets you can slide to line up with
steel disks you will align with wall studs. If the wall is not perfectly flat, the force of the magnet may cause the
frame to bend. For this reason, shims can be used to place between the wall and the steel pucks so that the
frame lays completely flat. The screen should not be attached to the frame at this point. Refer to figures 2-4 on
page 8.
Professional mounting techniques should be used. Stewart Filmscreen can not be liable for substan-
dard or faulty installations.
EZ MOUNT BRACKET SYSTEM
7
Caution:
Be careful not to touch or scratch the viewing surface

8
Figure 4: Wall Mounting - Side/Bottom View
MAGNET
SUPPORT STRUCTURE
(I.E. WOOD /
ALUMINUM STUD
#2 8-18, 2-3/8”
DRYWALL SCREW
Figure 3: Wall Mounting - Side/Top View
EZ MOUNT BRACKET
SUPPORT STRUCTURE
(I.E. WOOD /
ALUMINUM STUD
EZ MOUNT HANGING
BAR (49.5”)
#12 X 2”
SELF-DRILLING SCREW
(INCLUDED)
FRAME
ASSEMBLY
Figure 2: ScreenWall with Fitted EZ Mount Hanging Bar - Rear View
CENTERLINE
EZ Mount Bracket
16 in PRESET POSITION -
ADJUSTABLE UP TO 8 in
FARTHER LEFT
EZ Mount Bracket
16 in PRESET POSITION -
ADJUSTABLE UP TO 8 in
FARTHER RIGHT
Magnet
12 in PRESET POSITION -
ADJUSTABLE UP TO 24 in
FROM EDGE OF FRAME
Magnet
12 in PRESET POSITION -
ADJUSTABLE UP TO 24 in
FROM EDGE OF FRAME
EZ MOUNT BRACKET SYSTEM (CONTINUED)

Professional mounting techniques should be used. Stewart Filmscreen can not be liable for substandard
or faulty installations.

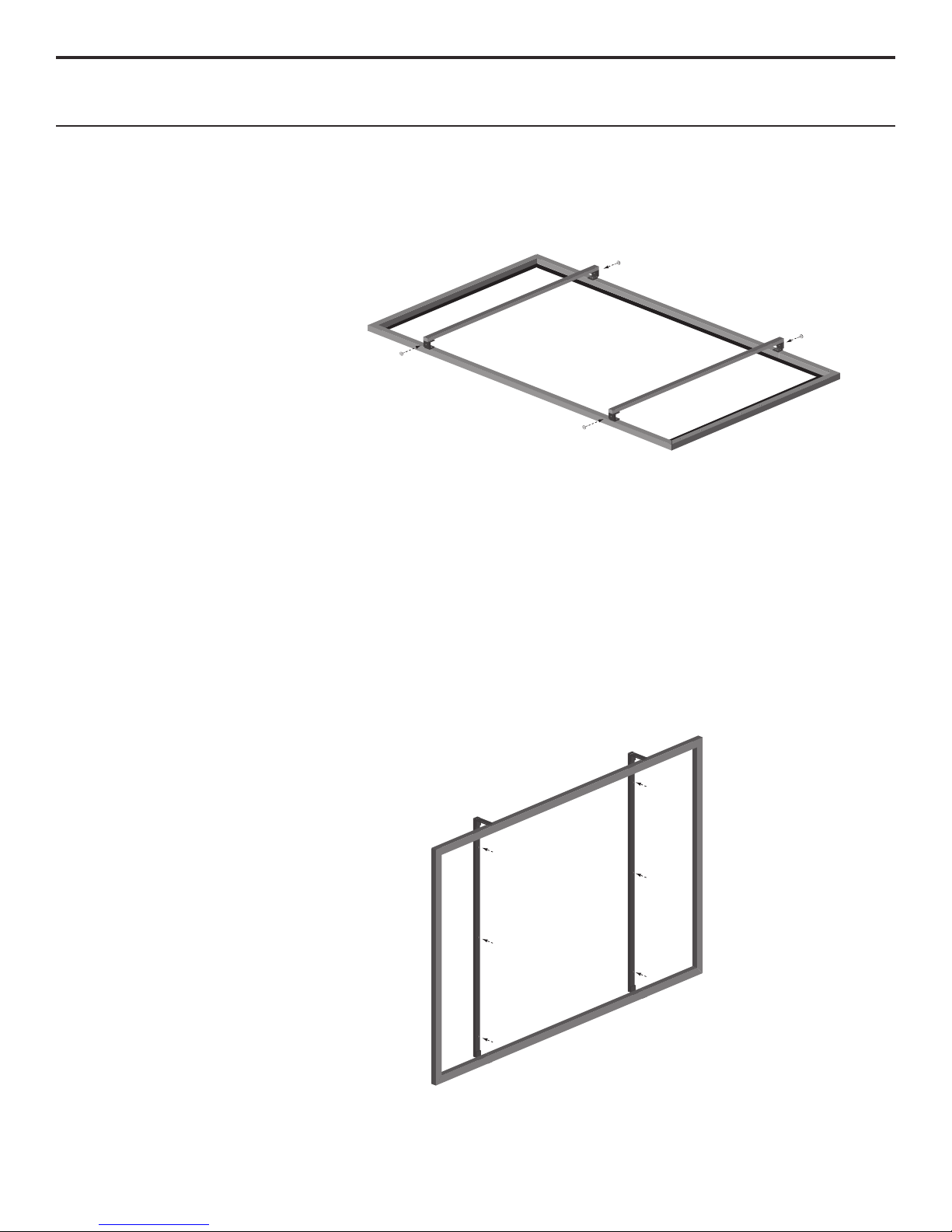

Figure 5: Temporarily Attaching Wall Boards to the Frame
Notes:
Depending on the size of the screen, the number of wall boards may vary.
This is a temporary attachment of the wall boards to the frame for the purpose of
positioning the frame and brackets on the wall.
1. Assemble frame
(see page 6).
2. Lay assembled
frame face down
on a clean
surface.
3. Fit wall boards
to the outside of
the brackets
already attached
to the frame.
4. Bolt wall boards
to brackets
using the
supplied 3/4”
hex head bolts.
(see figure 5).
5. Without the screen
material attached,
position the frame and
boards on the wall.
6. Make sure the unit is
level and plumb. (You
may need to use
shims between the
boards and the wall to
achieve vertical
plumb.)
7. Align the board holes
with wall studs.
8. Mark and drill holes in
the wall that align with
the board holes.
WALL MOUNT BOARDS
9
Figure 6: Positioning the Frame and Wall Boards to the Wall

Figure 7: Attaching the Wall Boards to the Wall
9. Remove the boards
from the frame and
attach them to the
wall using the
provided hardware
where applicable or
other such appropriate
fasteners (lag bolts,
wall anchors, molly
bolts, wood carriage
screws, etc.). Refer to
Figure 7.
WALL MOUNT BOARDS (CONTINUED)
10
Figure 8: Finished Screen Attached to Wall Boards
10. Attach the screen to
the frame.
(see pages 14-15)
11. Attach the frame/screen
assembly to the previously
mounted wall boards
on the wall using the
3/4” hex head bolts.
Caution:
Be careful not to touch or scratch the viewing surface

11
Be careful not to touch or scratch the viewing surface
Caution:

Eyebolt
Detail A: Eyebolt Location
A
Figure 9: Eyebolts Mounted Securely to Frame
Note: In most cases, a false ceiling is not intended to support the weight of a ScreenWall. Contact a
Stewart representative for more information.
Professional mounting techniques should be used. Stewart Filmscreen can not be liable for substan-
dard or faulty installations.
STAGE FLY (HANGING) MOUNT
1. Assemble frame (see page 6).
2. Attach the screen to the frame (see pages 14-15).
3. Use the stage fly mount to suspend the screen. Eyebolts are already secured to the frame making your ScreenWall
ready for installation to an appropriate surface.

T-STAND (SELF-SUPPORTING)
Figure 10: Attaching T-Stand Knobs Detail A: Close-Up of T-Stand Base
A
12
Caution:
Be careful not to touch or scratch the viewing surface
Professional mounting techniques should be used. Stewart Filmscreen can not be liable for substan-
dard or faulty installations.
1. Assemble frame (see page 6).
2. Attach the screen to the frame (see pages 14-15).
3. Use the T-Stand knobs provided to rst attach the vertical members to each base, then to attach the nished
screen (frame/screen assembly) to the T-Stands. The through holes on each vertical member should run parallel
to the base.
4. Hand-tighten the knobs.

13
Caution:
Be careful not to touch or scratch the viewing surface
Figure 11: Installing Frame/Screen Assembly - Rear View, Close Up
The aperture mount allows you to install the screen into an opening in a wall or wall unit.
Professional mounting techniques should be used. Stewart Filmscreen can not be liable for substan-
dard or faulty installations.
APERTURE MOUNT
1. Prepare the aperture.
2. Assemble the frame (see page 6).
3. Attach the screen to the frame (see pages 14-15).
4. Carefully insert the frame (with the screen already attached) into the aperture. Take care so that you do not damage
the screen.
5. Install the frame/screen assembly in the aperture using the attached mounting brackets and appropriate fasteners
(refer to Figure 11).

ATTACHING THE SCREEN TO THE FRAME
Caution
Be careful not to touch or scratch the viewing surface
Do not use any tools to fasten the screen to the frame
Do not fold or crease the screen
14
Figure 12: Unrolling the Screen
1. Remove the screen from the cardboard shipping tube.
2. On a clean surface, unroll the screen viewing side up.
3. Remove the protective foam from the screen material.
The viewing side of the projection screen is rolled to the inside to protect the optical coating. The screen is rolled
lengthwise.
Unpacking and Unrolling the Screen
DO NOT perform this step UNTIL instructed to do so in the mounting section.

ATTACHING THE SCREEN TO THE FRAME
15
If there are any wrinkles or puckers in the screen, the snaps on the frame can be
adjusted side to side. Lay the frame viewing side down on a clean surface. A
movement of 1/16” to 1/8” (1.6mm to 3.2mm) is usually sufficient to eliminate
puckers.
Note:

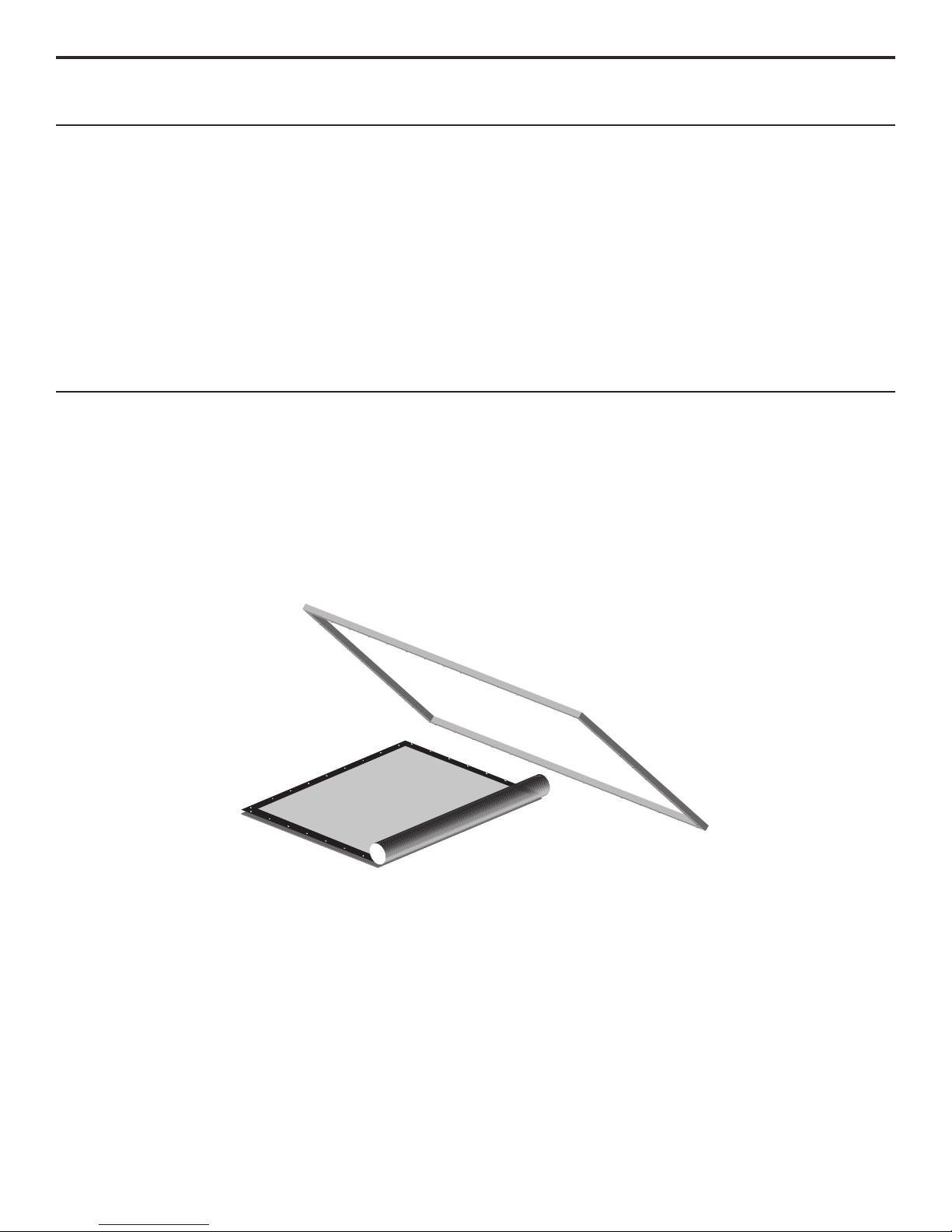

Figure 14: Attaching Remaining Snaps
Figure 13: Attaching Top Corner Snaps
4. Place the frame over the screen (snap side down).
5. Starting with the snaps on the top corners and then horizontally along the top, while lifting the frame with one hand, snap
the screen into the frame. Gently allow the screen to stretch onto the snaps. Do not jerk, wrinkle or crease the screen
material, as it can be damaged. Refer to Figure 13.
6. Lift the frame to a vertical position to finish attaching the sides and bottom row of the snaps. Refer to Figure 14.
Attaching the Screen to the Frame

16
No user-serviceable parts are contained within the unit. Contact your dealer or the factory if you require part
replacement or service.
Replacement Parts & Service
♦Use a lint roller to remove particles from the VeLux, which is the velvet material covering the frame.
♦A brush may be used to comb (lift) the nap of the VeLux material to help eliminate depression marks.
VeLux™ Covering
♦Do not use any other cleaning materials on the screen.
♦Do not use chemicals or solvents to clean the screen. Use only commercially available, water-based de-greaser.
♦Do not use chemicals, solvents, or liquid cleaners to clean the VeLux covering.
♦Do not fold or crease the screen.
Caution
♦Avoid getting any foreign objects on the screen, as cleaning may prove very difficult. It may not be possible to remove
scratches, paint, ink, etc.
♦Adraftsman-style brush may be used to lightly whisk away any loose dirt or dust particles. (This type of brush is usually
available at office supply stores.) Stewart Filmscreen has an optional screen cleaning kit that contains the proper type
of brush. Contact your dealer if you would like to obtain this cleaning kit.
♦For tougher spots, you can make a cleaning solution using a water-based detergent and warm water. To make the
solution, mix one part Simple Green, 409, or other water based industrial cleaner with three parts warm water. Moisten
a clean cotton cloth or Q-Tip with this solution, moisten the stained area, and gently lift off the stain. Never use an
aggressive scrubbing action as you could damage the screen surface by removing the optical coating. Remoisten the
area with clean water and dab dry with a clean sponge or cotton cloth. Any residual watermarks will evaporate on their
own in a few minutes.
♦Contact the factory if you have questions about removing difficult spots.
The surface of your screen is delicate, so we encourage you to keep your screen clean. Special attention to
these instructions should be followed when cleaning.
General Maintenance
With reasonable care, you may expect many years of dependable use of your Stewart projection screen.
CARING FOR AND CLEANING THE SCREEN

17
STEWART FILMSCREEN CORPORATION (Stewart) warrants its Stewart Filmscreen products to the original
purchaser only, to be free from defects in materials and workmanship for a period of one (1) year from the date
of purchase by the original purchaser or eighteen (18) months from date of manufacture, as defined in the serial
number, provided they are properly operated and maintained according to Stewart instructions and are not
damaged due to improper handling or treatment after shipment from the factory. This warranty does not apply to
equipment showing evidence of misuse, abuse, or accidental damage, including neglect caused by improper
installation (i.e. proximity to hot lights, exposure to extreme heat or cold, exposure to excessive humidity, etc.).
Stewart on-site warranty repair services are not available for this product.
Stewart’s sole obligation under this warranty shall be to repair or to replace (at Stewart’s sole discretion) the
defective part of the merchandise. This warranty expressly does not cover any costs of removal, installation,
framing, or other costs incident to replacing the screen or returning it to Stewart. Returns for service should be
made to your Stewart dealer. If it is necessary for the dealer to return the screen or part to Stewart, transportation
(freight) expenses to and from Stewart are payable by the purchaser. Stewart is not responsible for damage in
shipment. To protect yourself against damage or loss in transit, insure the product and prepay all transportation
expenses.
This warranty is in lieu of all other warranties, expressed or implied, including warranties as to fitness for use and
merchantability. Any implied warranties of fitness for use, or merchantability, that may be mandated by statute or
rule of law are limited to the one (1) year warranty period. This warranty gives you specific legal rights, and you
may also have other rights which vary from state-to-state. In no event will Stewart be liable for sums in excess of
the purchase price of the product. No liability is assumed by Stewart for expenses or damages resulting from
interruption in operation of equipment, or for incidental, direct, or consequential damages of any nature.
In the event that there is a defect in materials or workmanship of a Stewart Filmscreen product, you may contact
our Customer Service Department at 1161 W Sepulveda Blvd, Torrance, California 90502- 2797 (310-784-5300)
Toll free (800-762-4999).
IMPORTANT: This warranty shall not be valid and Stewart shall not be bound by this warranty if the product
is not operated and maintained in accordance with Stewart’s written instructions. Stewart Filmscreen Corporation
shall not be liable for any and all consequential damage(s) occasioned by the breach of any written or implied
warranty pertaining to the sale of a Stewart Filmscreen product in excess of the purchase price of the product
sold.
Printed in USA. Rev. 7/25/16
LIMITED ONE YEAR WARRANTY

MAINTENANCE NOTES
18

19

800.762.4999 • 310.784.5300 • Fax: [phone]
w
August 2015
Printed in U.S.A.
©2015 Stewart Filmscreen Corporation
