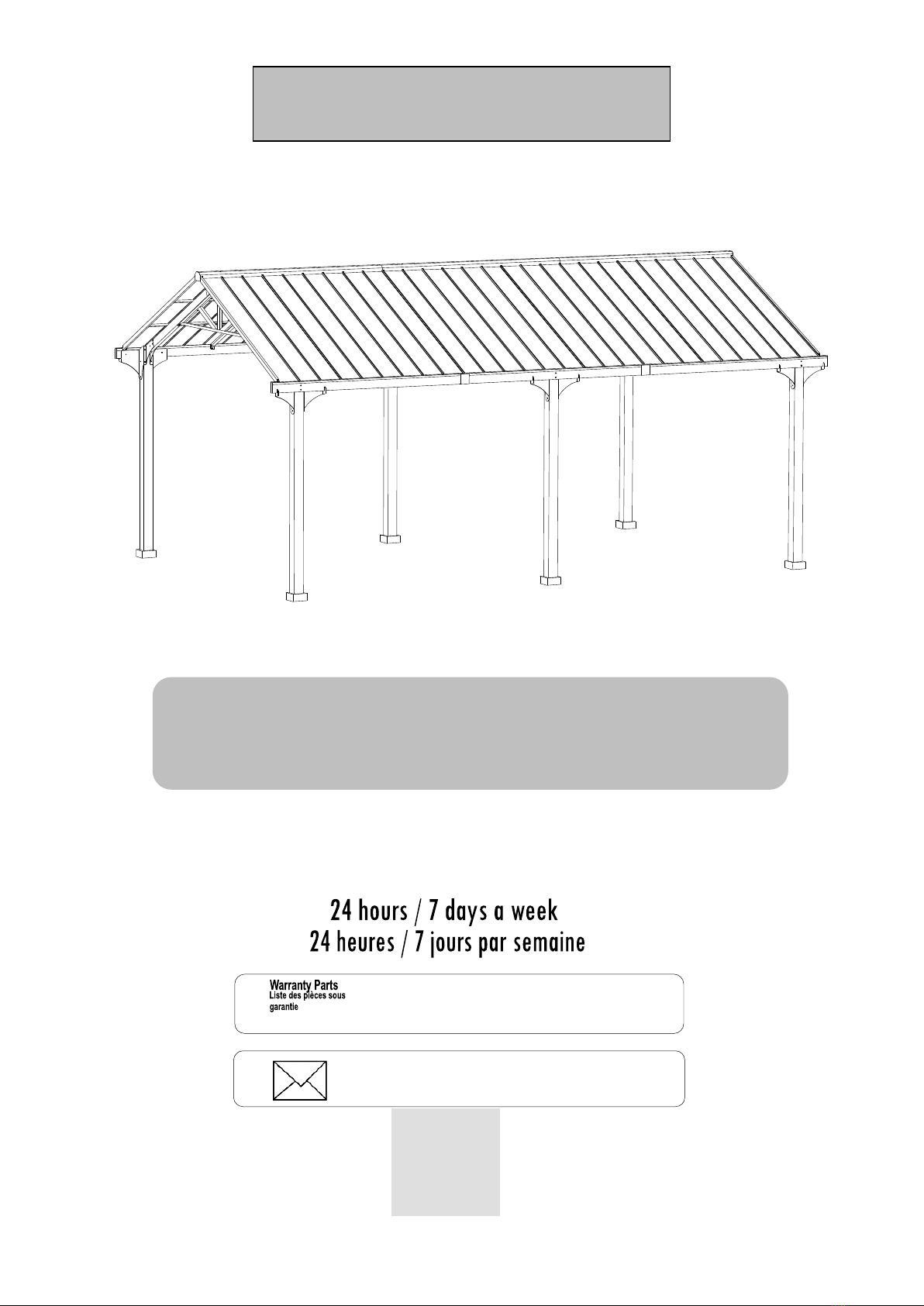

Sunjoy AUTOCOVE A110000400 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
A
SSEMBLY IN
S
TRUCTION
I
tem
/Article #
：
A110000400
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laiss
ez nous vous aider!
Questions? Issues? / Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2 / 40
Country of Origin: China
Pais d’origine: Chine


















This product is intended for domestic outdoor use only.
The product should be placed on flat, horizontal ground.
Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden deck/
ground has a strong foundation. It is advisable to use appropriate floor plugs (not provided)
to anchor the gazebo onto the wooden/concrete ground.
Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
During installation, follow all safety warnings provided with your tools, and use safety
glasses. In case you set up more than one gazebo, keep a minimum distance of 10' (3 m)
between the gazebos.
Any assembly or maintenance of the product must be carried out by adults only.
Arrange necessary manpower when assembling or moving the product.
Some parts may contain sharp edges. Wear protective gloves if necessary.
Keep children and pets away while setting up the gazebo.
Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
Repairing and replacing parts should be done by a qualified technician.
Do not light any fires inside or near the product！
Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
firemen allow you to do so.
Do not hang heavy weights on the roof frame.
Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
Retain the original packaging to store the gazebo.
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution! Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

3/ 40
Country of Origin: China
Pais d’origine: Chine
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



•
•
•



• 
 
 
 
 

•

•

• 

•
•
•
•
•

•
•
•

•
•

•

4 / 40
Country of Origin: China
Pais d’origine: Chine
• Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position them on the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Read each step carefully before beginning any assembly and make sure you understand each
step. If you are missing a part, please email [e-mail].
•Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill Hammer Screwdriver Ladder 5 people

5/ 40
Country of Origin: China
Pais d’origine: Chine
IMPORTANT:
•

•
•

•

•





Utilisez un niveau


Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




   5 personnes

6 / 40
Country of Origin: China
Pais d’origine: Chine
EXPLODED DRAWING/ DESSIN ÉCLATÉ

7 / 40
Country of Origin: China
Pais d’origine: Chine

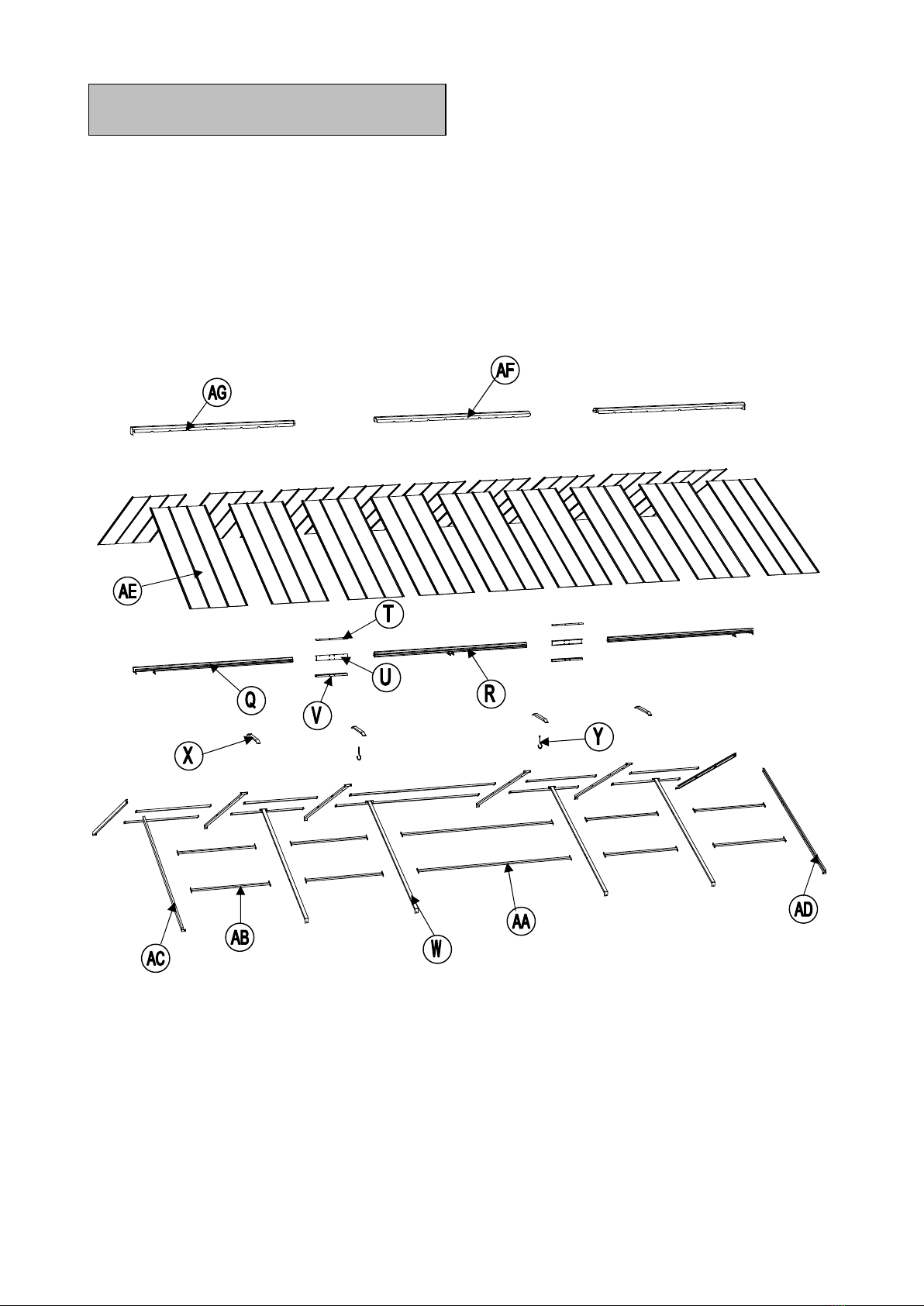

EXPLODED DRAWING/ DESSIN ÉCLATÉ

8 / 40
Country of Origin: China
Pais d’origine: Chine

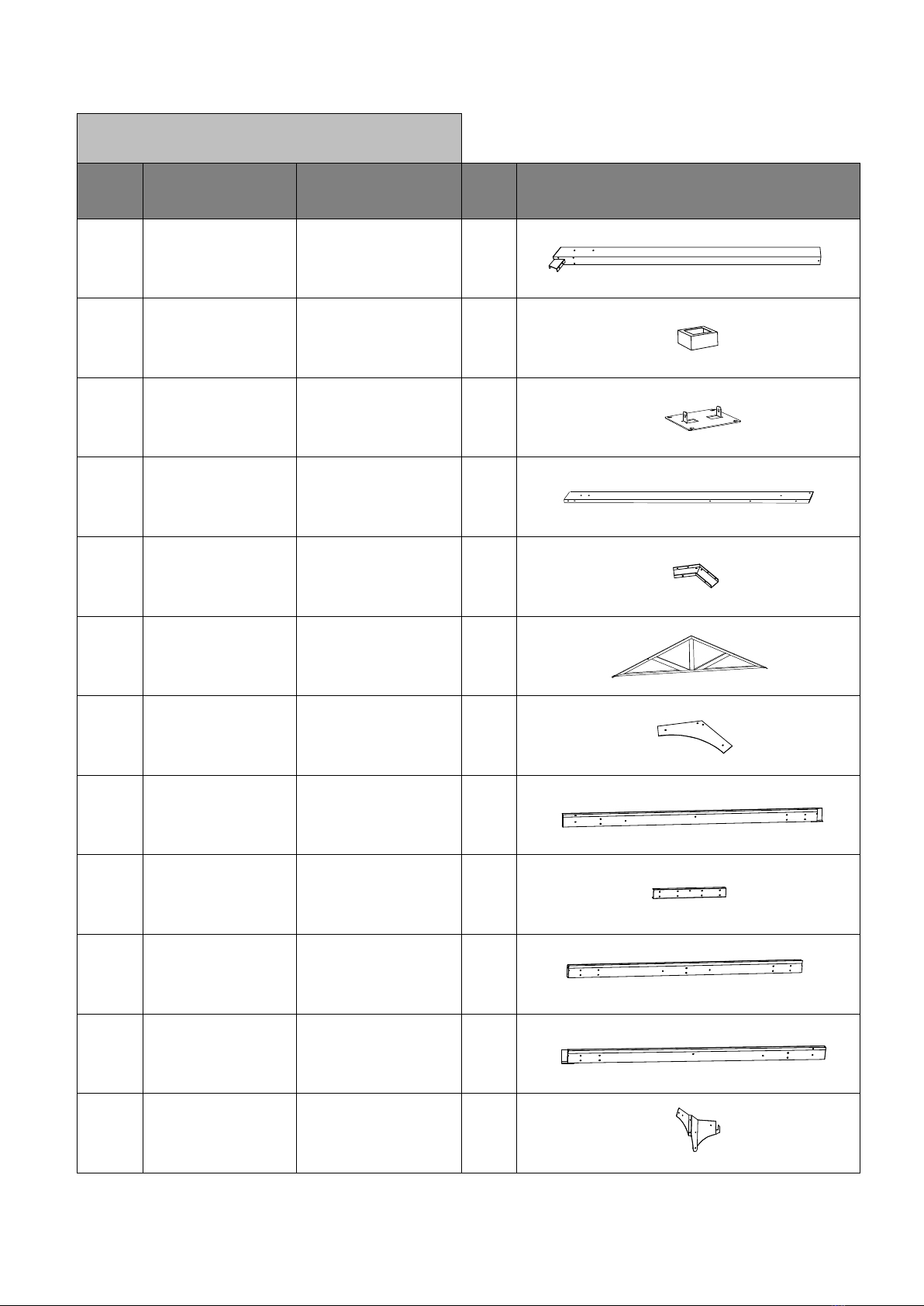

Parts List
Label Part Number Description Qty Part Image
A P00020070301 Post 6
B P00610023601 Base Cover 6
C P00010047001 Post Base 6
D P00060221901 Top Beam 6
E P00050170501 Top Beam
Connector 3
F P00500065401 Support Frame 3
G P00560048201 Decoration Panel 6
J P00040133101 Right Cross Beam 2
K P00050170101 Cross Beam
Connector 4
L P00040132901 Middle Cross Beam 2
M P00040133001 Left Cross Beam 2
N P00500065201 Brace 1 6

9 / 40
Country of Origin: China
Pais d’origine: Chine
Liste de Pièces
Étiquette Numéro de la Pièce Description Quantité Numéro de la Pièce Diagramme
A P00020070301 Poteau 6
B P00610023601 Barde de la base 6
C P00010047001 Base du Poteau 6
D P00060221901 Poutre Courte 6
E P00050170501 Connexion de la
Poutre Supérieure 3
F P00500065401 Structure de support 3
G P00560048201 Panneau de
décoration 6
J P00040133101 Traverse Courte 2
K P00050170101 Connexion de la
Traverse 4
L P00040132901 Traverse Centrale 2
M P00040133001 Gauche Traverse 2
N P00500065201 Barre de Renfort 1 6

10 / 40
Country of Origin: China
Pais d’origine: Chine

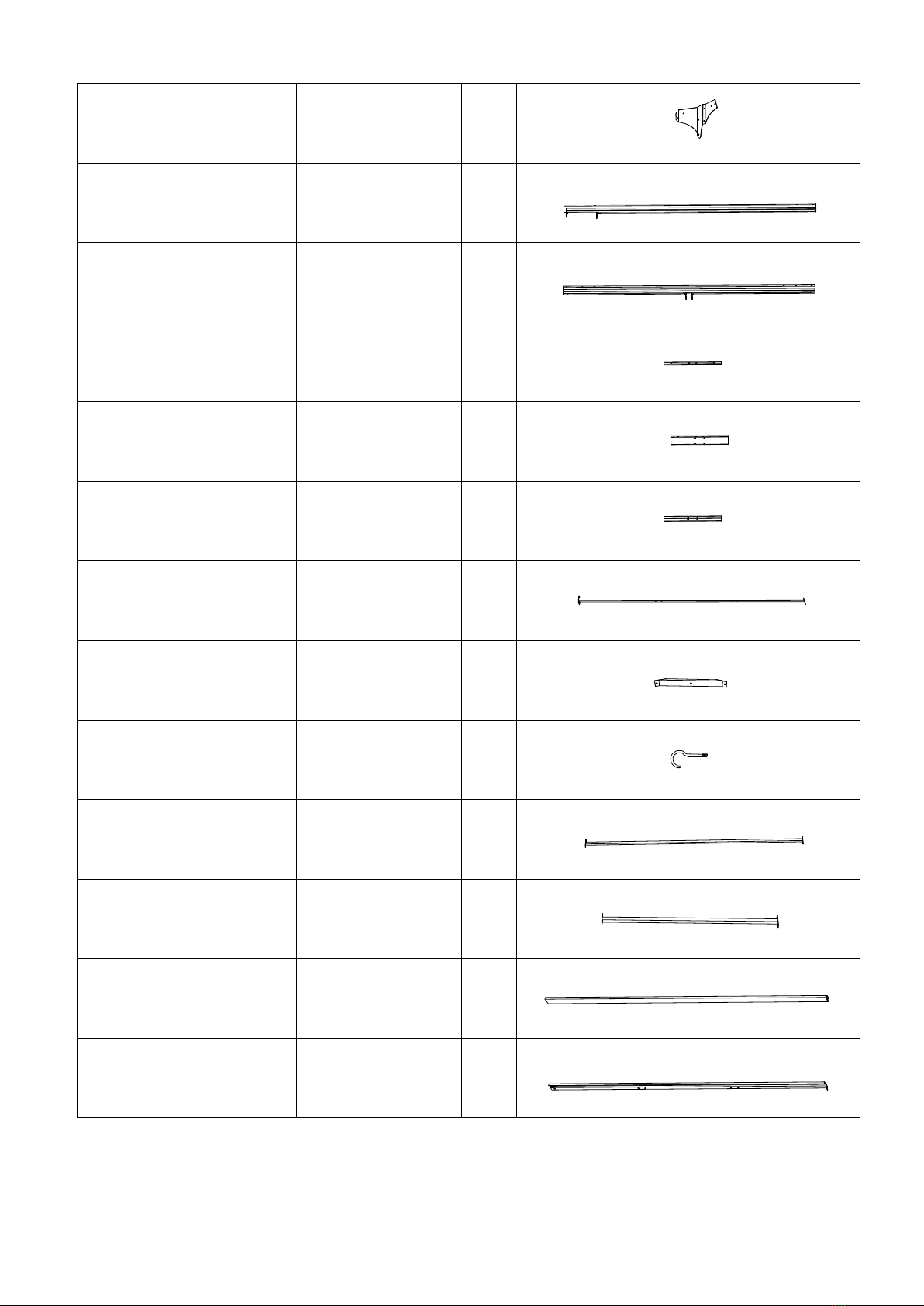

P P00500065301 Brace 2 6
Q P00060222001 Side Top Beam 1 2
R P00060222201 Middle Top Beam 1
T P00050170301 Top Beam Upper
Connector 2
U P00050170201 Top Beam Inner
Connector 2
V P00050170401 Top Beam Lower
Connector 2
W P00060222301 Middle Beam 8
X P00500065501 Support Tube 4
Y P005800001 Hook 2
AA P00060222401 Long Beam 4
AB P00060222501 Short Beam 16
AC P00060222601 Side Panel Flashing
1 2
AD P00060222701 Side Panel Flashing
2 2

11/ 40
Country of Origin: China
Pais d’origine: Chine
P P00500065301 Barre de Renfort 2 6
Q P00060222001 Poutre supérieure
latérale 1 2
R P00060222201 poutre supérieure
moyenne 1
T P00050170301
Connecteur
supérieur de
poutre supérieure
2
U P00050170201
Connecteur
intérieur de poutre
supérieure
2
V P00050170401
Connecteur
inférieur de poutre
supérieure
2
W P00060222301 Poutre centrale 8
X P00500065501 Tuyau de Support 4
Y P005800001 Crochet 2
AA P00060222401 Poutre Longue 4
AB P00060222501 Poutre Courte 16
AC P00060222601 Solin du Panneau
Latéral 1 2
AD P00060222701 Solin du Panneau
Latéral 2 2

12 / 40
Country of Origin: China
Pais d’origine: Chine

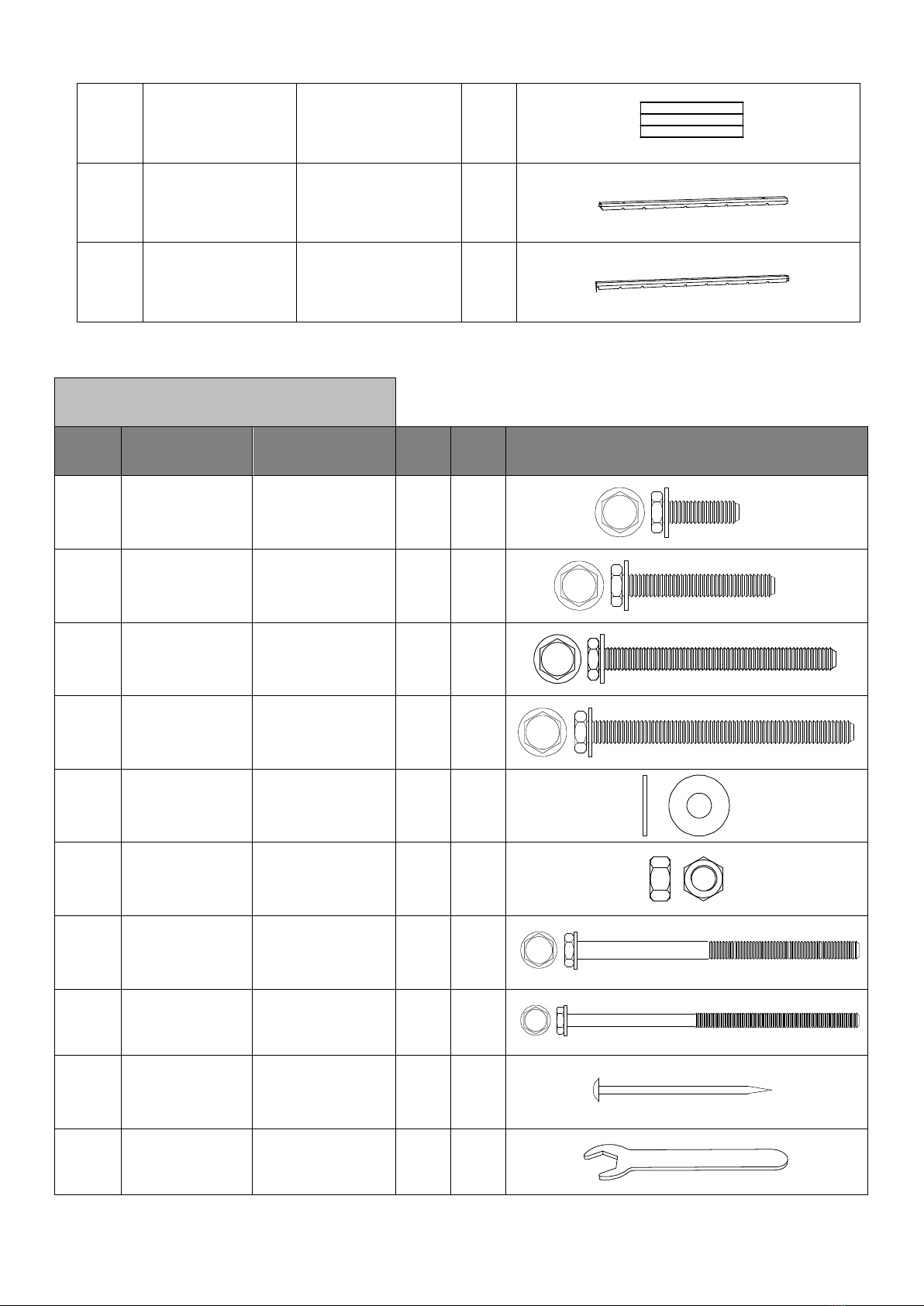

AE P00070108101 Top Roof Panel 18
AF P00080037701 Middle Roof Cap 1
AG P00080037601 Side Roof Cap 2
Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010047 Bolt M6*20 294 15
H2 H100010051 Bolt M6*55 6 1
H3 H100010142 Bolt M6*65 18 1
H4 H100010074 Bolt M6*75 8 1
H5 H050030001 Flat washer M6 26 2
H6 H040010004 Nut M6 26 2
H7 H100010151 Bolt M6*95 6 1
H8 H100010163 Bolt M6*120 6 1
HS H070010003 Stake Φ8*180 12 0
HW H090010017 Wrench M6 2 0

13 / 40
Country of Origin: China
Pais d’origine: Chine
AE P00070108101 Panneau de
toit supérieur 18
AF P00080037701 chapeau de toit
moyen
1
AG P00080037601 Capuchon de toit
latéral 2
Pack Quincaillerie
Étiquette Numéro de la Pièce Description Quantité Add Numéro de la Pièce Diagramme
H1 H100010047 Boulon M6*20 294 15
H2 H100010051 Boulon M6*55 6 1
H3 H100010142 Boulon M6*65 18 1
H4 H100010074 Boulon M6*75 8 1
H5 H050030001 Rondelle
plate M6
H6 H040010004 Écrou
Hexagonal M6
26 2
H7 H100010151 Boulon M6*95 6 1
H8 H100010163 Boulon M6*120 6 1
HS H070010003 Piquet Φ8*180 12 0
HW H090010017 Clé M6 2 0
26 2

14 / 40
Country of Origin: China
Pais d’origine: Chine
1

15/ 40
Country of Origin: China
Pais d’origine: Chine
2

16 / 40
Country of Origin: China
Pais d’origine: Chine

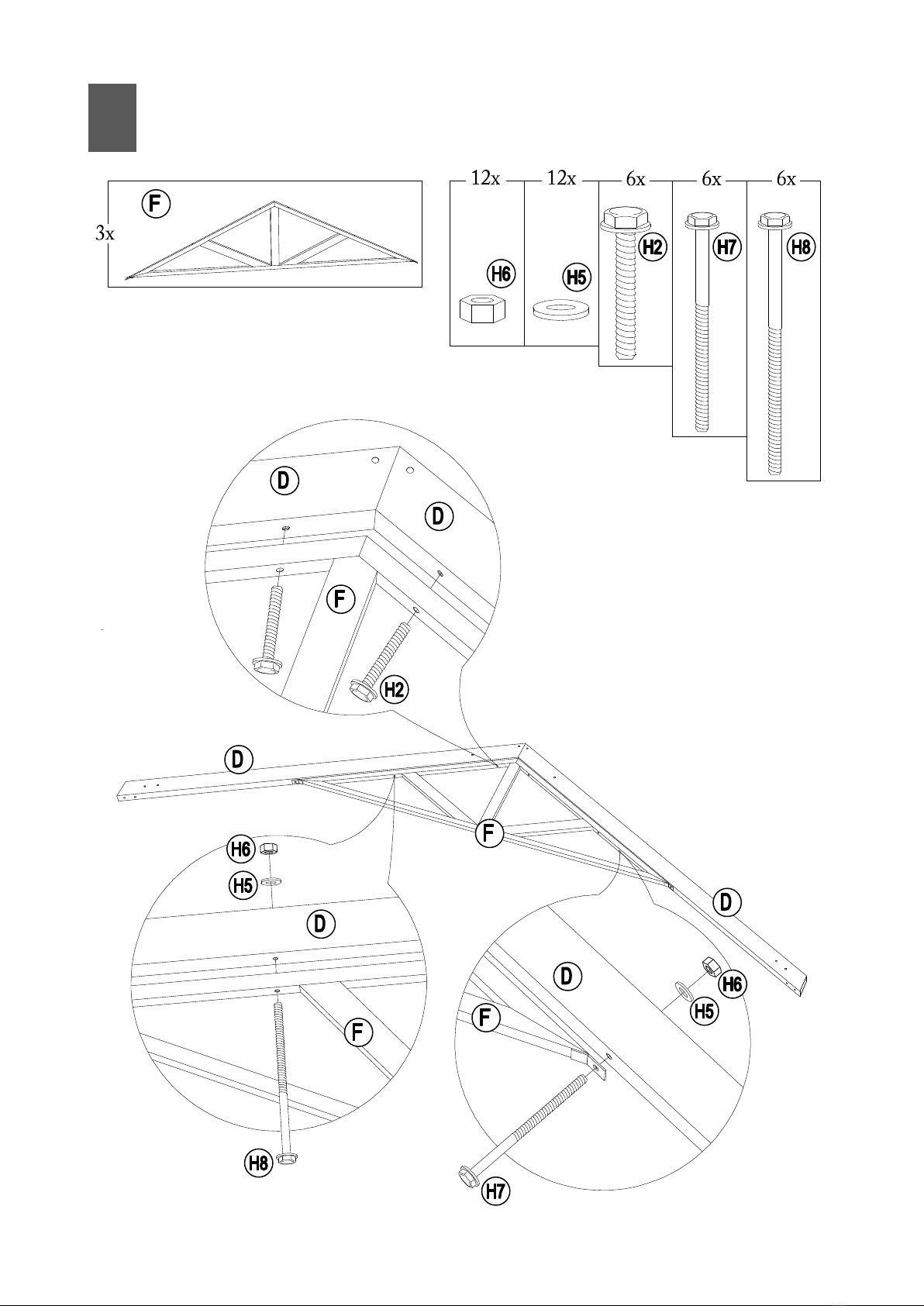

3

17 / 40
Country of Origin: China
Pais d’origine: Chine

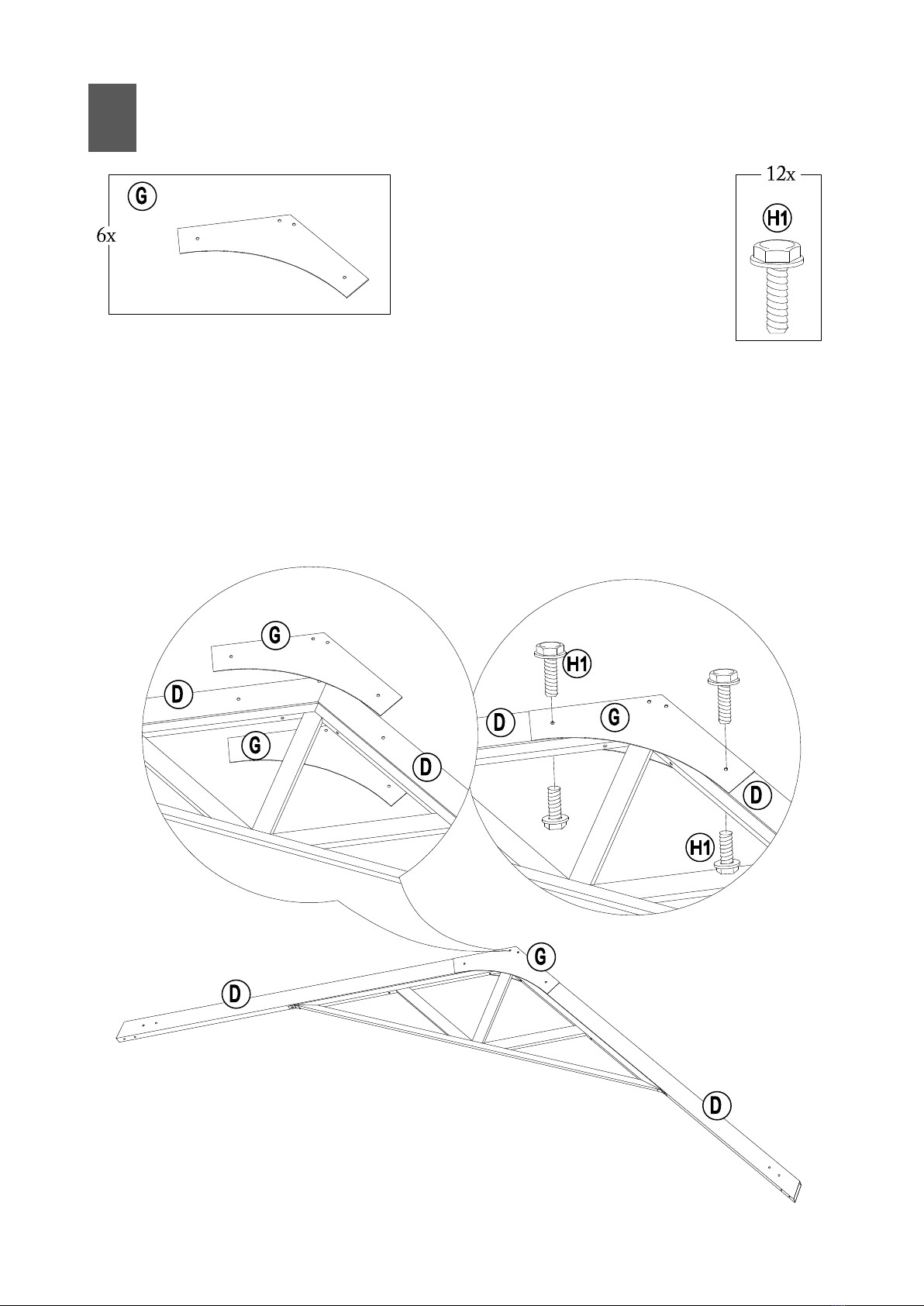

4

18 / 40
Country of Origin: China
Pais d’origine: Chine
5

19 / 40
Country of Origin: China
Pais d’origine: Chine

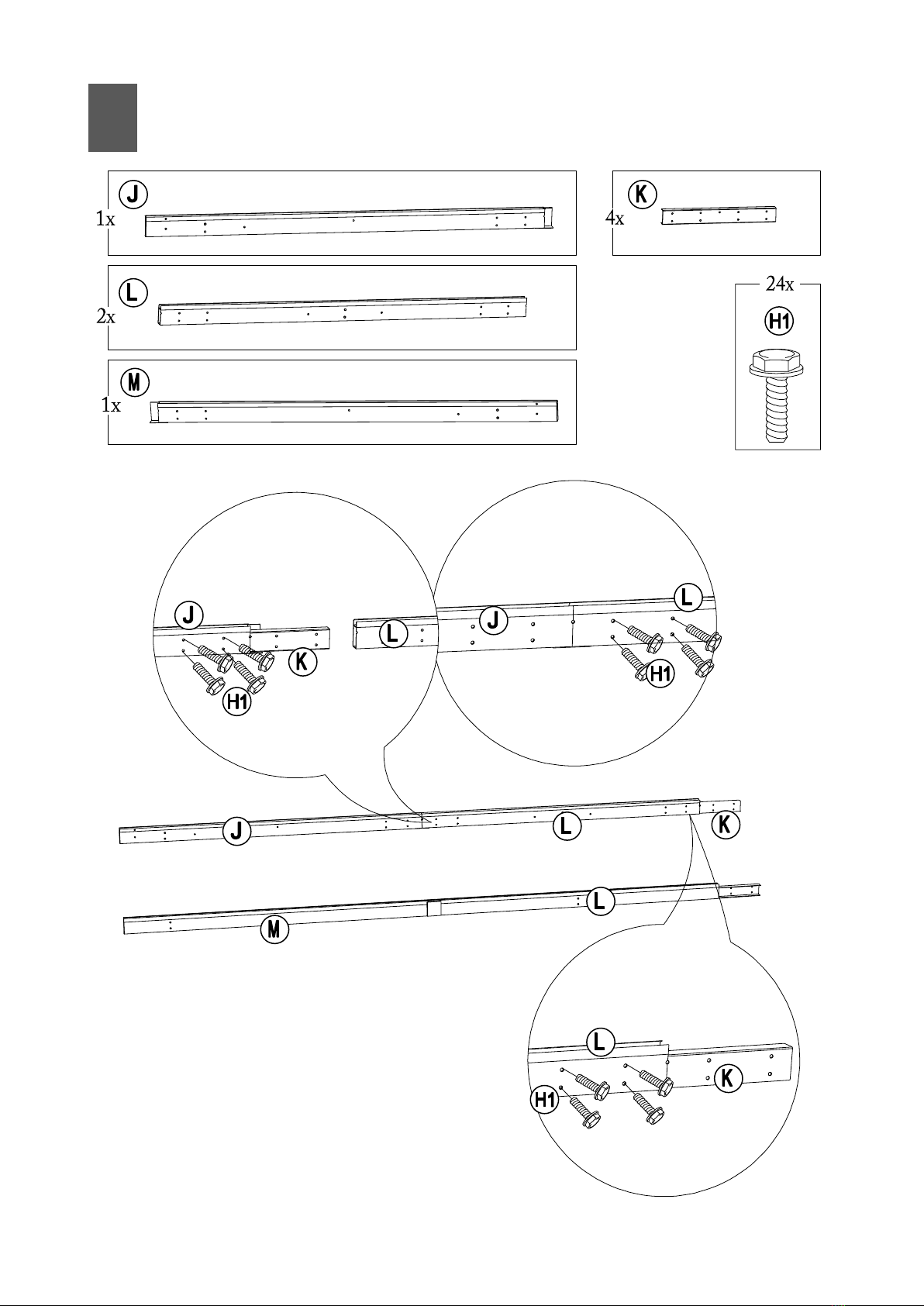

6

20 / 40
Country of Origin: China
Pais d’origine: Chine

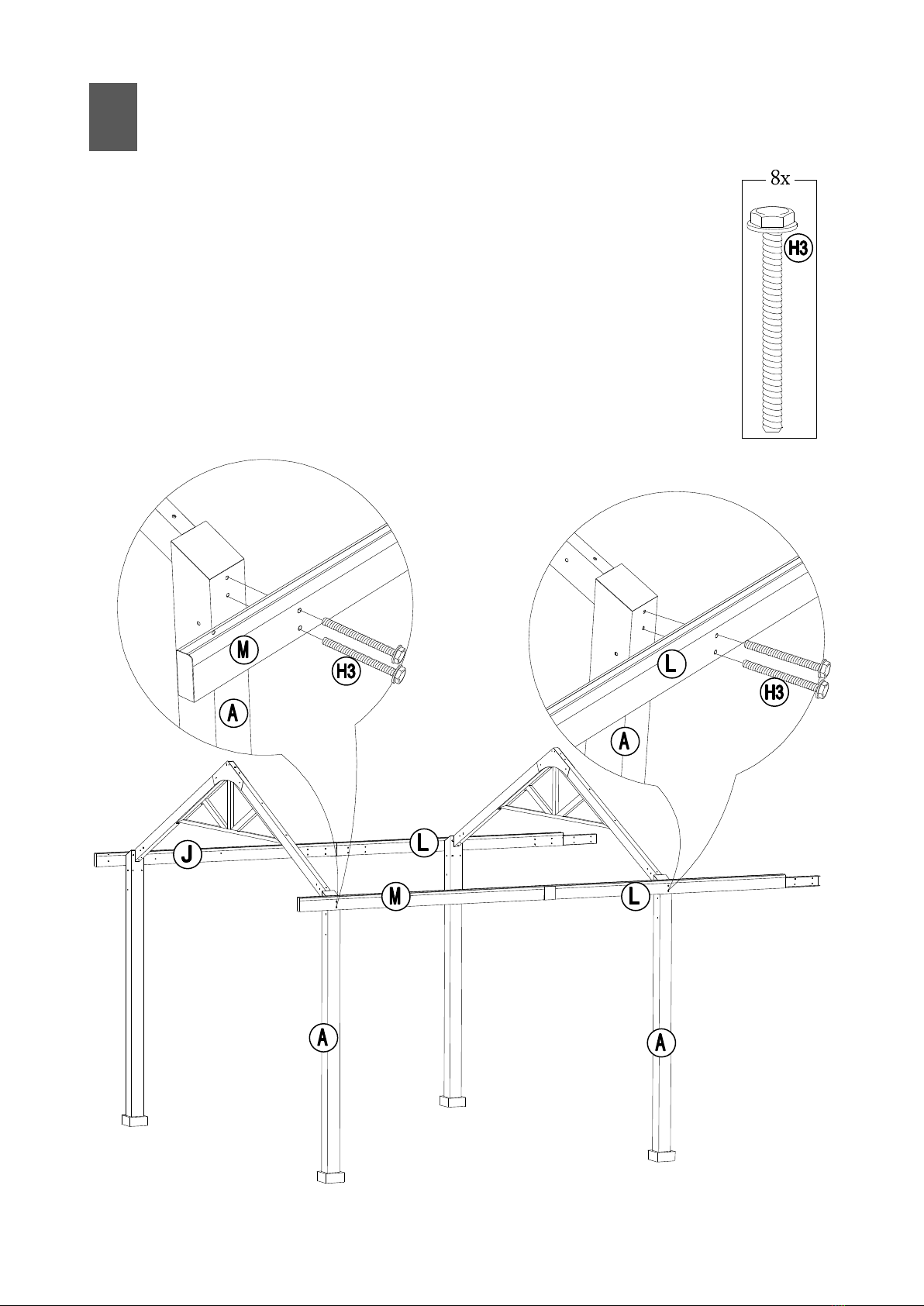

7
