EASYSHADE®
Solar Powered Motorized EasyShade®
Motor Replacement Instrucons
* Helper Needed *
Tools Needed:
Parts Supplied: Replacement motor
5. Coil the Vinyl Coated cable and secure with a piece
of masking tape.
See Figure 3.
Note: Step 6 requires access to the Mounng
Brackets for removal of the Housing. If the Fabric
Panel can not be retracted, have a helper assist
you in rolling the Fabric Panel around the boom
Leading Bar unl the rolled up Fabric and Leading
Bar meet the Housing, then secure safely in place.
6. While your helper supports the EasyShade, loosen

aid of your helper remove the EasyShade from the
brackets and place it carefully in your work area.
7. On the end of the Housing opposite the motor,
remove the two Phillips head screws that secure the
end plate to the housing. Remove the end plate and
the white nylon insert from the roller bar and place
aside for use in reassembly.
Figure 2
Figure 3
1. Close your EasyShade completely, if possible.
2. Disconnect the Power Cord from the Solar Panel.

the Vinyl Coated cable on each side of the EasyShade

See Figure 1.
4. Pull the Vinyl Coated Cable out of the guide holes
in each end of the EasyShade drop down panel.
See Figure 2.
Figure 1
Cable Guide Stop
Cable Guide

Guide Hole
Vinyl Coated
Cable
Masking
Tape
Vinyl Coated
Cable
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY!
PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE PERFORMING THIS PROCEDURE.

Housing
Fabric Panel

2
8. On the motor end of the housing remove the two
Phillips head screws that secure the end plate to the
housing. Pull the end plate/motor and the roller bar
about 6 inches out of the Housing. While holding the
roller bar, pull the end plate/motor out of the roller
bar. See Figure 4.
Note: Before preforming Step 9, take a moment
to observe the orientaon of the motor on the
housing end plate.
9. Using a 3mm Allen wrench, remove the two screws
that secure the Housing end plate to the motor.
See Figure 5.
10. Install the end plate removed in Step 9 on the
replacement motor.
11. Slide the motor into the end of the roller bar, with
the motor aligned with the notch cut in the end of the
roller bar. See Figure 6.

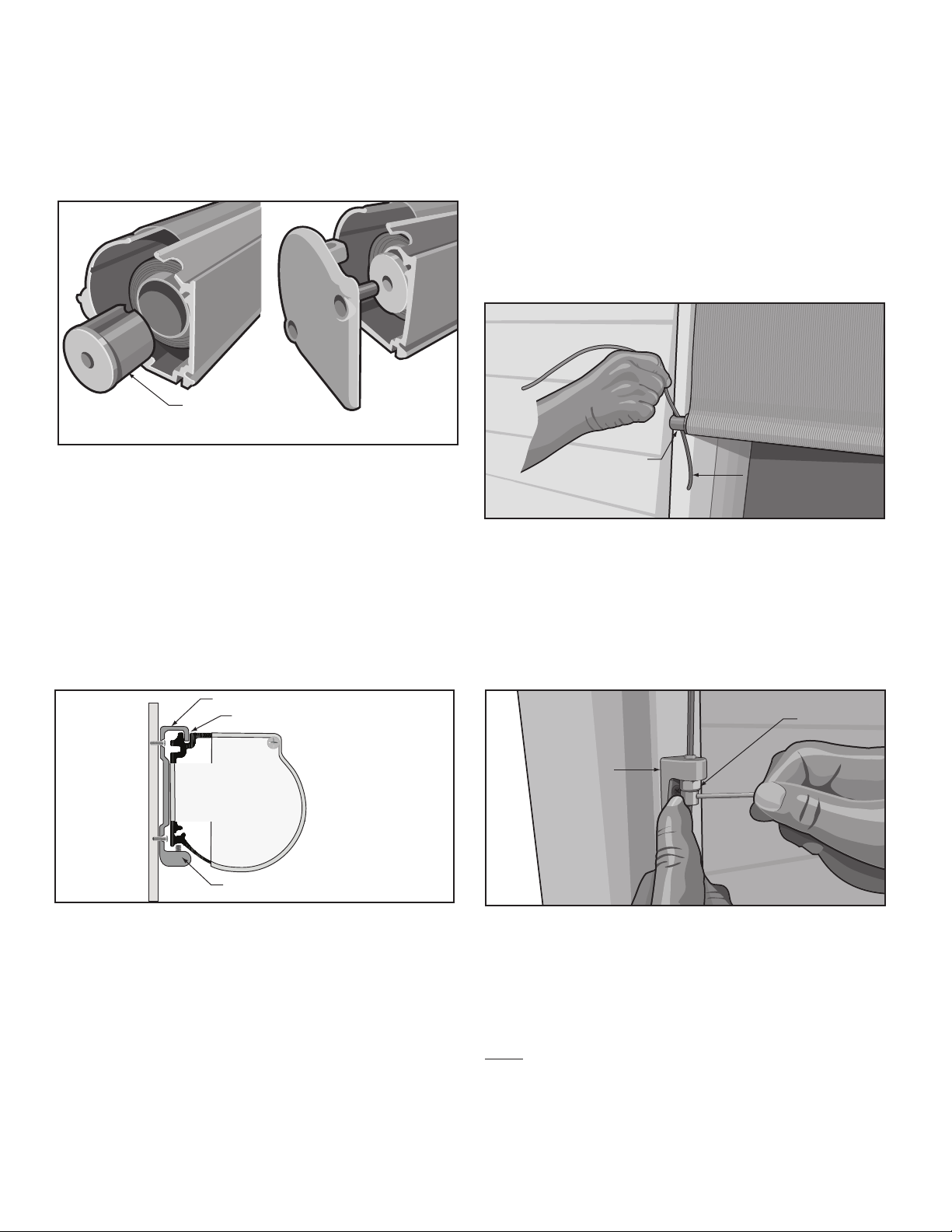

Figure 4
Figure 5
Figure 6
Notch Locking
Tabs
12. Rotate the motor to align the motor locking collar
with the notch on the roller bar (see Figure 7) and
while holding the roller bar push the motor into the

Note: The motor cord has a small white plasc cord
protector just below the motor head.
See Figure 8.
13. Align the cord protector so that the open side
will be facing the end of the housing and push the
cord and the cord protector into the notch on the
end of the housing.
See Figure 8.
14. On the motor end, make sure that the vinyl coated
Figure 8a)
Align the end plate with the housing and install the
two Phillips head screws to secure it in place.
15. Locate the end plate and the nylon roller bar
insert for the other end of the easyshade.
Figure 7
Notch
Locking Tabs
Figure 8aFigure 8
Open
End
Cord
Protector
Cord
Protector
Notch
Vinyl
Coated
Cable
Vinyl
Coated
Cable
Cord not
shown here.

3
16. Slide the nylon roller bar insert into place.
Slide the end cap into the insert and make sure that

Align the end plate with the housing and install the
two Phillips head screws to secure it in place.
See Figure 9.


groove of the shade assembly onto the protruding

upward pressure to keep the top groove of the shade


be sure that the set screw is aligned in the recessed

See Figure 10.


19. Connect the Motor Power Cord to the Solar Panel.

communicate with the new replacement Motor

Appendix AStep 21.
- - - - - - - - - - - - -
- - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - -
- - - - - - - - - - -
Figure 9
Nylon Roller
Bar Insert
Figure 10

on your remote control. With the EasyShade open,
disconnect the Power Cord from the Solar Panel.
22. At each end of the EasyShade Housing Assembly
uncoil the Vinyl Coated Cable. Allow the coiled cable

23. Insert the Vinyl Coated Cable located at each end
of the Housing Assembly through the guide holes at
each end of the EasyShade Drop Down Fabric Panel.
See Figure 11.
24. Place the lower end of one of the Vinyl Coated


Stops onto the Vinyl Coated Cable and secure in place

of the EasyShade.
See Figure 12.



nut, by turning the nut counter clockwise you can

Note: DO NOT OVER TIGHTEN THE CABLE.
26. Connect the Motor Power Cord to the Solar Panel.

Figure 11
Guide
Hole Vinyl Coated
Cable
Figure 12
Cable Guide

Cable Guide
Stop

Top Groove
Set Screw
EasyShade
Drop Down
Fabric Panel

SunSeer Products, a Massachuses Limited Partnership, 184 Charles Street, Malden, MA 02148
Rev. 04/22/2014 ES_Solar_Motor_Repl_Instr
Appendix A



Tools needed: A pen or similar poinng device is needed to press and hold the Programming Buon
on the Remote Transmier.
WARNING: THIS PROCEDURE MUST BE FOLLOWED THOROUGHLY AND COMPLETELY.
SET PROPER DIRECTION OF THE MOTOR ROTATION
1. Press and Hold the UP and DOWN
short movement of the Motor, usually a brief Up and Down movement.

a. Press the UP
b. Press the DOWN
c. my

SET THE UP AND DOWN POSITIONS
3. Use the UPUp

4. Press and Hold the my and DOWN
EasyShade begins to move Down.
5. Press the myStop the EasyShade at (or close to) the desired Down

Housing.
6. Use the UP and DOWNDown
7. Press and Hold the my and UP
EasyShade begins to move. Let the EasyShade stop at the Up
8. Press and Hold the my
9. Press and Hold the Programming
10. Process is complete. Test the EasyShade for correct Up and Down
Front View
Rear View
UP
my
DOWN
Programming
TO CHANGE AN EXISTING UP OR DOWN STOP POSITION
1. Press the UP or DOWN
EasyShade stop on its own.
2. Press and hold the UP and DOWN

3. UP and DOWN
4. Press and hold the my
