SunSetter 900XT Installation guide
HOMEOWNER'S
OPERATION
AND
MAINTENANCE
MANUAL
FOR
MODEL 900XT & 1000XT
AWNINGS
Rev 10/13/03
©SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden MA 02148
For Technical support visit us at www.sunsetter.com/ownerscorner
or call Toll Free 800-670-7071 • Fax 877-224-4944
WARNING:
Failure to follow
these instructions
could result in
PERSONAL INJURY!
2 19
The following manual shows you how to properly operate your
SunSetter awning. It is important that you follow the steps listed for the
specific way that you plan to use your awning.
NOTE: Left and right references are as you are Facing the house.
Table of Contents
Using the awning with both arms angled............................................page 3
Using the awning with right arm vertical- left arm angled.................page 5
Using the awning with left arm vertical- right arm angled.................page 9
Using the awning with both arms vertical...........................................page 13
Care and Maintenance.........................................................................page 17
CAUTION: THE SUNSETTER AWNING MUST BE USED WITH THE FABRIC FULLY
EXTENDED AND BOTH RAFTERS LOCKED IN THE 'UP' POSITION.
18 3
PROTECTING THE SUNSETTER FABRIC
FROM MILDEW
If it is necessary to roll the awning up
wet, be sure to roll it out to dry when
the weather is better. While the vinyl
awning fabric itself won't mildew,
mildew can form on the dust and dirt
allowed to accumulate on the fabric. If
the fabric is rolled up and stored when
wet, the moisture will promote the
formation of mildew. Do not use caustic
cleaners.
CLEANING THE FABRIC
Cleaning the awning regularly will
extend the life of the fabric and prevent
the formation of mildew. Call 1-800-876-
2340 to order a SunSetter cleaning and
maintenance kit.
FOR EASE OF OPERATION
If it becomes difficult to raise and lower
the awning height, apply some of the
supplied wax to the small tracks on the
inside of the outer arms.
CAUTION: NEVER USE A BARBEQUE
GRILL (Figure 11), ANY TYPE OF PATIO
HEATER (Figure 12) OR FIREPLACE
(Figure 13) UNDER YOUR SUNSETTER
AWNING.
ENJOY YOUR AWNING!!!!
Figure 11
Figure 12
Figure 13
FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 4
Adjust the roller bar position until the
arrow on the Roller Bar aligns with
the OPEN arrow on the side of the
Drive Unit.
FIGURE 5
Push both rafters 'UP' until they lock.
FIGURE 6
Extend both arms to the desired
height.
Both arms angled
(Recommended for stronger wind support)
OPEN:
FIGURE 3
Using the hand crank, unroll the
awning until the fabric is fully
extended.
OPEN Arrow
Roller Bar
Arrow
Drive Unit
4 17
The awning fabric and the structure
are not designed to support the load
of water pooling on the fabric or
excessive windy conditions.
WARNING: YOU MUST PREVENT RAIN
WATER FROM ACCUMULATING OR
POOLING ON THE FABRIC! FAILURE
TO DO SO MAY RESULT IN THE
COLLAPSE OF THE STRUCTURE,
WHICH COULD CAUSE PERSONAL
INJURY!
Damage to the awning fabric, arms
and mechanism caused by water
pooling or windy conditions, is not
covered by the manufacturer product
warranty.
NOTE: Optional Rain-Away-Arches help
prevent water from accumulating on
the fabric. To purchase Rain-Away-
Arches call our sales department at
1-800-876-2340.
TO PREVENT RAIN WATER FROM
ACCUMULATING ON THE FABRIC,
you must lower or raise an arm on
one side of the awning to allow the
rain water to run off (creating enough
drop, front to back or left to right) –
see figures 9 and 10.
CAUTION: If lowering or raising one
arm is not enough and water still
accumulates on the fabric, you must
fully retract your awning against the
house.
WARNING: FAILURE TO TILT THE
AWNING ENOUGH FOR APPROPRIATE
DRAINAGE MAY RESULT IN THE
COLLAPSE OF THE STRUCTURE, WHICH
COULD CAUSE PERSONAL INJURY.
WHEN LEAVING THE AWNING
UNATTENDED:
To prevent water from accumulating and
pooling on the fabric, you must set the
awning with at least one arm angled
back to the wall bracket, and lower that
arm to create enough drop (front to
back) and allow rain water to run off.
WARNING: WHEN THE WEATHER
FORECAST IS UNCLEAR, AND COULD
POSSIBLY BE STORMY, THE AWNING
MUST BE RETRACTED COMPLETELY
AGAINST THE HOUSE WHEN
UNATTENDED.
Angled Position-Figure 9
Tilt awning for use in the rain
CARE AND MAINTENANCE OF YOUR SUNSETTER AWNING
Vertical Position-Figure 10
Tilt awning for use in the rain

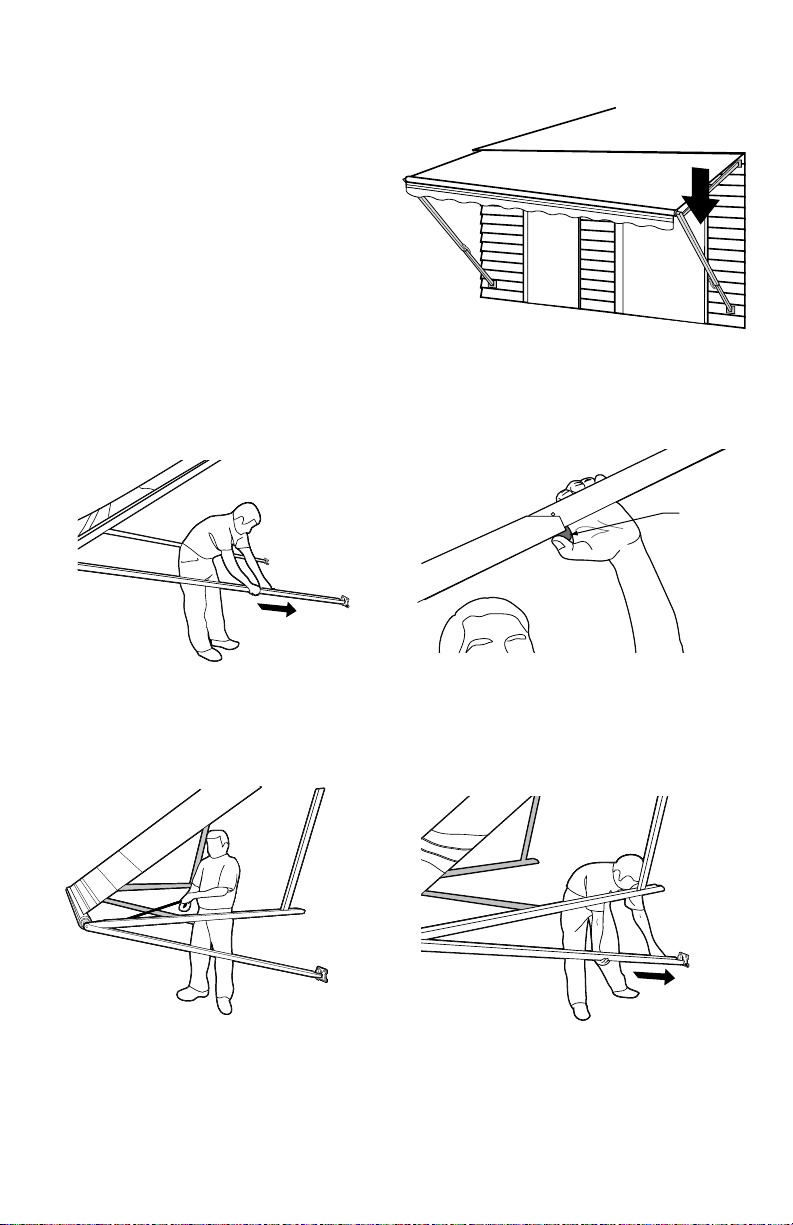

FIGURE 1
Lower both arms until the front roller
reaches waist height.
FIGURE 2
Unlock both rafters by pressing the
rafter lock latch.
CLOSE:
FIGURE 3
CAUTION: Be sure that both Rafters
are unlocked.
Using the hand crank, roll up the
awning until the front roller reaches
head height.
FIGURE 4
Lower both arms all the way down.
WARNING: DO NOT LEAVE THE
AWNING UNATTENDED IN THIS
POSITION. YOU MUST LOWER
ONE ARM OR BOTH TO CREATE
ENOUGH DROP (FRONT TO BACK) AND
PREVENT RAIN FROM
ACCUMULATING ON THE FABRIC.
FAILURE TO DO SO MAY RESULT IN THE
COLLAPSE OF
THE STRUCTURE, WHICH COULD
CAUSE PERSONAL INJURY.
Rafter lock
Latch
16 5
FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 5
Using the hand crank wand, roll up the
awning until it is completely against the
house.
CAUTION: Once the awning is closed
against the house, do not continue
cranking.
We recommend that the hand crank
wand be removed from the crank loop
when it is not in use to prevent damage
to your house.
FIGURE 8
Using the hand crank,
roll up the awning until
it is completely against
the house.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 3
Using the hand crank, unroll the
awning until the fabric is fully
extended.
Right arm vertical, left arm angled
OPEN:
FIGURE 3
Using a helper swing both arms, at the
same time, back to the wall brackets.
FIGURE 7
Lower both arms all the way down.
CAUTION: Once the awning is closed
against the house, do not continue
cranking.
We recommend that the hand crank
wand be removed from the crank loop
when it is not in use to prevent damage
to your house.
FIGURE 4
Lower both arms until the front roller
reaches waist height.
FIGURE 5
Unlock both rafters by pressing the
rafter lock latch.
FIGURE 6
CAUTION: Be sure that both Rafters are
unlocked.
Using the hand crank, roll up the awning
until the front roller reaches head height.
Rafter lock
Latch
FIGURE 4
Adjust the roller bar position until the
arrow on the Roller Bar aligns with
the OPEN arrow on the side of the
Drive Unit.
OPEN Arrow
Roller Bar
Arrow
Drive Unit
15
6
FIGURE 5
Push both rafters 'UP' until they lock.
FIGURE 6
Extend the LEFT arm until the front
roller reaches head height.
FIGURE 7
Unlatch the RIGHT arm from the wall
bracket. Swing the arm away from the
house, half way out, set it on the floor
and secure with your foot. Lower
that arm all the way down.
FIGURE 8
Swing the arm to the fully vertical
position.
FIGURE 9
Place the bottom of the arm over the
deck plate that you installed. Secure
the arm to the deck plate by lifting the
ground bracket handle and rotating
it clock-wise approximately 1/4 turn
until it locks.
FIGURE 10
Release the handle and make sure it is
locked in the 'down' position. Test
to be sure that the arm is secured to
the deck plate.
Deck Plate
Rotate
Lift
Deck Plate
LOCK
Deck Plate
LOCK
FIGURE 1
Extend both arms until the lift handles
reach waist height.
FIGURE 10
Extend both arms to the desired
height.
FIGURE 2
Release both arms from the deck
plates by lifting the ground bracket
handle and rotating approximately
1/4 turn counter-clockwise to unlock.
CLOSE:
WARNING: DO NOT LEAVE THE AWNING
UNATTENDED WITH BOTH ARMS VERTICAL.
YOU MUST AT LEAST BRING ONE ARM BACK
TO THE WALL BRACKET, AND LOWER THE
ANGLED ARM TO CREATE ENOUGH DROP
(FRONT TO BACK) AND PREVENT RAIN
FROM ACCUMULATING ON THE
FABRIC. FAILURE TO DO SO MAY RESULT IN
THE COLLAPSE OF THE STRUCTURE, WHICH
COULD CAUSE PERSONAL INJURY.
Deck Plate
UNLOCK
FIGURE 9
Release the handle and make sure it is
locked in the 'down' position. Test
to be sure that the arms are secured to
the deck plates.
14 7
WARNING: DO NOT LEAVE THE AWNING
UNATTENDED IN THIS POSITION. YOU
MUST LOWER ONE ARM OR BOTH TO
CREATE ENOUGH DROP (FRONT TO BACK)
AND PREVENT RAIN FROM
ACCUMULATING ON THE FABRIC. FAILURE
TO DO SO MAY RESULT IN THE COLLAPSE
OF THE STRUCTURE, WHICH COULD
CAUSE PERSONAL INJURY.
FIGURE 11
Extend both arms to the desired
height.
FIGURE 5
Push both rafters 'UP' until they lock.
FIGURE 7
Swing both arms to the fully vertical
position.
FIGURE 8
Place the bottom of both arms over the
deck plates that you installed.
Secure both arms to the deck plate by
lifting the ground bracket handle and
rotating it clock-wise approximately
1/4 turn until it locks.
FIGURE 6
Using a helper, unlatch both arms
from the wall brackets. Swing both
arms, at the same time, away from the
house, half way out, set them on the
floor and secure with your foot. Lower
both arms all the way down.
FIGURE 3
Using the hand crank, unroll the
awning until the fabric is fully
extended.
Deck Plate
Rotate
Lift
FIGURE 4
Adjust the roller bar position until the
arrow on the Roller Bar aligns with
the OPEN arrow on the side of the
Drive Unit.
OPEN Arrow
Roller Bar
Arrow
Drive Unit
813
FIGURE 7
CAUTION: Be sure that both Rafters
are unlocked.
Using the hand crank, roll up the
awning until the front roller reaches
head height.
FIGURE 8
Lower both arms all the way down.
Both arms vertical, (a helper is needed for this position)
OPEN:
FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 5
Lower both arms until the front roller
reaches waist height.
FIGURE 1
Lower the LEFT arm until the front
roller reaches head height.
FIGURE 2
Release the RIGHT arm from the deck
plate by lifting the ground bracket
handle and rotating approximately
1/4 turn counter-clockwise to unlock.
FIGURE 3
Extend this arm until the height of the
lift handle reaches waist height.
FIGURE 4
Swing the RIGHT arm back towards the
house and secure it to the wall bracket.
CLOSE:
FIGURE 6
Unlock both rafters by pressing the
rafter lock latch.
Deck Plate
UNLOCK
Rafter lock
Latch
FIGURE 9
Using the hand crank, roll up the awning
until it is completely against the house.
CAUTION: Once the awning is closed against
the house, do not continue cranking.
We recommend that the hand crank wand
be removed from the crank loop when it is
not in use to prevent damage to your house.
9
12
FIGURE 7
CAUTION: Be sure that both Rafters are
unlocked.
Using the hand crank, roll up the awning
until the front roller reaches head height.
FIGURE 8
Lower both arms all the way down.
Left arm vertical, right arm angled
OPEN:
FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 2
Release the LEFT arm from the deck
plate by lifting the ground bracket
handle and rotating approximately
1/4 turn counter-clockwise to unlock.
FIGURE 3
Extend this arm until the height of the
lift handle reaches waist height.
FIGURE 4
Swing the LEFT arm back towards the
house and secure it in the wall bracket.
CLOSE:
FIGURE 1
Lower the RIGHT arm until the front
roller reaches head height.
FIGURE 5
Lower both arms until the front roller
reaches waist height.
FIGURE 6
Unlock both rafters by pressing the
rafter lock latch.
Rafter lock
Latch
Deck Plate
UNLOCK
FIGURE 9
Using the hand crank, roll up the awning
until it is completely against the house.
CAUTION: Once the awning is closed
against the house, do not continue
cranking.
We recommend that the hand crank wand
be removed from the crank loop when it
is not in use to prevent damage to your
house.
10 11
FIGURE 9
Place the bottom of the arm over the
deck plate that you installed. Secure
the arm to the deck plate by lifting the
ground bracket handle and rotating
it clock-wise approximately 1/4 turn
until it locks.
FIGURE 11
Extend both arms to the desired
height.
WARNING: DO NOT LEAVE THE
AWNING UNATTENDED IN THIS
POSITION. YOU MUST LOWER
ONE ARM OR BOTH TO CREATE
ENOUGH DROP (FRONT TO BACK) AND
PREVENT RAIN FROM
ACCUMULATING ON THE FABRIC.
FAILURE TO DO SO MAY RESULT IN
THE COLLAPSE OF
THE STRUCTURE, WHICH COULD
CAUSE PERSONAL INJURY.
FIGURE 10
Release the handle and make sure it is
locked in the 'down' position. Test
to be sure that the arm is secured to
the deck plate.
Deck Plate
FIGURE 6
Extend the RIGHT arm until the front
roller reaches head height.
FIGURE 5
Push both rafters 'UP' until they lock.
FIGURE 7
Unlatch the LEFT arm from the wall
bracket. Swing the arm away from the
house, half way out, set it on the floor
and secure with your foot. Lower
that arm all the way down.
FIGURE 8
Swing the arm to the fully vertical
position.
FIGURE 3
Using the hand crank, unroll the
awning until the fabric is fully
extended.
Deck Plate
LOCK
Rotate
Lift
FIGURE 4
Adjust the roller bar position until the
arrow on the Roller Bar aligns with
the OPEN arrow on the side of the
Drive Unit.
OPEN Arrow
Roller Bar
Arrow
Drive Unit
10 11
FIGURE 9
Place the bottom of the arm over the
deck plate that you installed. Secure
the arm to the deck plate by lifting the
ground bracket handle and rotating
it clock-wise approximately 1/4 turn
until it locks.
FIGURE 11
Extend both arms to the desired
height.
WARNING: DO NOT LEAVE THE
AWNING UNATTENDED IN THIS
POSITION. YOU MUST LOWER
ONE ARM OR BOTH TO CREATE
ENOUGH DROP (FRONT TO BACK) AND
PREVENT RAIN FROM
ACCUMULATING ON THE FABRIC.
FAILURE TO DO SO MAY RESULT IN
THE COLLAPSE OF
THE STRUCTURE, WHICH COULD
CAUSE PERSONAL INJURY.
FIGURE 10
Release the handle and make sure it is
locked in the 'down' position. Test
to be sure that the arm is secured to
the deck plate.
Deck Plate
FIGURE 6
Extend the RIGHT arm until the front
roller reaches head height.
FIGURE 5
Push both rafters 'UP' until they lock.
FIGURE 7
Unlatch the LEFT arm from the wall
bracket. Swing the arm away from the
house, half way out, set it on the floor
and secure with your foot. Lower
that arm all the way down.
FIGURE 8
Swing the arm to the fully vertical
position.
FIGURE 3
Using the hand crank, unroll the
awning until the fabric is fully
extended.
Deck Plate
LOCK
Rotate
Lift
FIGURE 4
Adjust the roller bar position until the
arrow on the Roller Bar aligns with
the OPEN arrow on the side of the
Drive Unit.
OPEN Arrow
Roller Bar
Arrow
Drive Unit
9
12
FIGURE 7
CAUTION: Be sure that both Rafters are
unlocked.
Using the hand crank, roll up the awning
until the front roller reaches head height.
FIGURE 8
Lower both arms all the way down.
Left arm vertical, right arm angled
OPEN:
FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 2
Release the LEFT arm from the deck
plate by lifting the ground bracket
handle and rotating approximately
1/4 turn counter-clockwise to unlock.
FIGURE 3
Extend this arm until the height of the
lift handle reaches waist height.
FIGURE 4
Swing the LEFT arm back towards the
house and secure it in the wall bracket.
CLOSE:
FIGURE 1
Lower the RIGHT arm until the front
roller reaches head height.
FIGURE 5
Lower both arms until the front roller
reaches waist height.
FIGURE 6
Unlock both rafters by pressing the
rafter lock latch.
Rafter lock
Latch
Deck Plate
UNLOCK
FIGURE 9
Using the hand crank, roll up the awning
until it is completely against the house.
CAUTION: Once the awning is closed
against the house, do not continue
cranking.
We recommend that the hand crank wand
be removed from the crank loop when it
is not in use to prevent damage to your
house.
813
FIGURE 7
CAUTION: Be sure that both Rafters
are unlocked.
Using the hand crank, roll up the
awning until the front roller reaches
head height.
FIGURE 8
Lower both arms all the way down.
Both arms vertical, (a helper is needed for this position)
OPEN:
FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 5
Lower both arms until the front roller
reaches waist height.
FIGURE 1
Lower the LEFT arm until the front
roller reaches head height.
FIGURE 2
Release the RIGHT arm from the deck
plate by lifting the ground bracket
handle and rotating approximately
1/4 turn counter-clockwise to unlock.
FIGURE 3
Extend this arm until the height of the
lift handle reaches waist height.
FIGURE 4
Swing the RIGHT arm back towards the
house and secure it to the wall bracket.
CLOSE:
FIGURE 6
Unlock both rafters by pressing the
rafter lock latch.
Deck Plate
UNLOCK
Rafter lock
Latch
FIGURE 9
Using the hand crank, roll up the awning
until it is completely against the house.
CAUTION: Once the awning is closed against
the house, do not continue cranking.
We recommend that the hand crank wand
be removed from the crank loop when it is
not in use to prevent damage to your house.
14 7
WARNING: DO NOT LEAVE THE AWNING
UNATTENDED IN THIS POSITION. YOU
MUST LOWER ONE ARM OR BOTH TO
CREATE ENOUGH DROP (FRONT TO BACK)
AND PREVENT RAIN FROM
ACCUMULATING ON THE FABRIC. FAILURE
TO DO SO MAY RESULT IN THE COLLAPSE
OF THE STRUCTURE, WHICH COULD
CAUSE PERSONAL INJURY.
FIGURE 11
Extend both arms to the desired
height.
FIGURE 5
Push both rafters 'UP' until they lock.
FIGURE 7
Swing both arms to the fully vertical
position.
FIGURE 8
Place the bottom of both arms over the
deck plates that you installed.
Secure both arms to the deck plate by
lifting the ground bracket handle and
rotating it clock-wise approximately
1/4 turn until it locks.
FIGURE 6
Using a helper, unlatch both arms
from the wall brackets. Swing both
arms, at the same time, away from the
house, half way out, set them on the
floor and secure with your foot. Lower
both arms all the way down.
FIGURE 3
Using the hand crank, unroll the
awning until the fabric is fully
extended.
Deck Plate
Rotate
Lift
FIGURE 4
Adjust the roller bar position until the
arrow on the Roller Bar aligns with
the OPEN arrow on the side of the
Drive Unit.
OPEN Arrow
Roller Bar
Arrow
Drive Unit
15
6
FIGURE 5
Push both rafters 'UP' until they lock.
FIGURE 6
Extend the LEFT arm until the front
roller reaches head height.
FIGURE 7
Unlatch the RIGHT arm from the wall
bracket. Swing the arm away from the
house, half way out, set it on the floor
and secure with your foot. Lower
that arm all the way down.
FIGURE 8
Swing the arm to the fully vertical
position.
FIGURE 9
Place the bottom of the arm over the
deck plate that you installed. Secure
the arm to the deck plate by lifting the
ground bracket handle and rotating
it clock-wise approximately 1/4 turn
until it locks.
FIGURE 10
Release the handle and make sure it is
locked in the 'down' position. Test
to be sure that the arm is secured to
the deck plate.
Deck Plate
Rotate
Lift
Deck Plate
LOCK
Deck Plate
LOCK
FIGURE 1
Extend both arms until the lift handles
reach waist height.
FIGURE 10
Extend both arms to the desired
height.
FIGURE 2
Release both arms from the deck
plates by lifting the ground bracket
handle and rotating approximately
1/4 turn counter-clockwise to unlock.
CLOSE:
WARNING: DO NOT LEAVE THE AWNING
UNATTENDED WITH BOTH ARMS VERTICAL.
YOU MUST AT LEAST BRING ONE ARM BACK
TO THE WALL BRACKET, AND LOWER THE
ANGLED ARM TO CREATE ENOUGH DROP
(FRONT TO BACK) AND PREVENT RAIN
FROM ACCUMULATING ON THE
FABRIC. FAILURE TO DO SO MAY RESULT IN
THE COLLAPSE OF THE STRUCTURE, WHICH
COULD CAUSE PERSONAL INJURY.
Deck Plate
UNLOCK
FIGURE 9
Release the handle and make sure it is
locked in the 'down' position. Test
to be sure that the arms are secured to
the deck plates.
16 5
FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 5
Using the hand crank wand, roll up the
awning until it is completely against the
house.
CAUTION: Once the awning is closed
against the house, do not continue
cranking.
We recommend that the hand crank
wand be removed from the crank loop
when it is not in use to prevent damage
to your house.
FIGURE 8
Using the hand crank,
roll up the awning until
it is completely against
the house.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 3
Using the hand crank, unroll the
awning until the fabric is fully
extended.
Right arm vertical, left arm angled
OPEN:
FIGURE 3
Using a helper swing both arms, at the
same time, back to the wall brackets.
FIGURE 7
Lower both arms all the way down.
CAUTION: Once the awning is closed
against the house, do not continue
cranking.
We recommend that the hand crank
wand be removed from the crank loop
when it is not in use to prevent damage
to your house.
FIGURE 4
Lower both arms until the front roller
reaches waist height.
FIGURE 5
Unlock both rafters by pressing the
rafter lock latch.
FIGURE 6
CAUTION: Be sure that both Rafters are
unlocked.
Using the hand crank, roll up the awning
until the front roller reaches head height.
Rafter lock
Latch
FIGURE 4
Adjust the roller bar position until the
arrow on the Roller Bar aligns with
the OPEN arrow on the side of the
Drive Unit.
OPEN Arrow
Roller Bar
Arrow
Drive Unit
4 17
The awning fabric and the structure
are not designed to support the load
of water pooling on the fabric or
excessive windy conditions.
WARNING: YOU MUST PREVENT RAIN
WATER FROM ACCUMULATING OR
POOLING ON THE FABRIC! FAILURE
TO DO SO MAY RESULT IN THE
COLLAPSE OF THE STRUCTURE,
WHICH COULD CAUSE PERSONAL
INJURY!
Damage to the awning fabric, arms
and mechanism caused by water
pooling or windy conditions, is not
covered by the manufacturer product
warranty.
NOTE: Optional Rain-Away-Arches help
prevent water from accumulating on
the fabric. To purchase Rain-Away-
Arches call our sales department at
1-800-876-2340.
TO PREVENT RAIN WATER FROM
ACCUMULATING ON THE FABRIC,
you must lower or raise an arm on
one side of the awning to allow the
rain water to run off (creating enough
drop, front to back or left to right) –
see figures 9 and 10.
CAUTION: If lowering or raising one
arm is not enough and water still
accumulates on the fabric, you must
fully retract your awning against the
house.
WARNING: FAILURE TO TILT THE
AWNING ENOUGH FOR APPROPRIATE
DRAINAGE MAY RESULT IN THE
COLLAPSE OF THE STRUCTURE, WHICH
COULD CAUSE PERSONAL INJURY.
WHEN LEAVING THE AWNING
UNATTENDED:
To prevent water from accumulating and
pooling on the fabric, you must set the
awning with at least one arm angled
back to the wall bracket, and lower that
arm to create enough drop (front to
back) and allow rain water to run off.
WARNING: WHEN THE WEATHER
FORECAST IS UNCLEAR, AND COULD
POSSIBLY BE STORMY, THE AWNING
MUST BE RETRACTED COMPLETELY
AGAINST THE HOUSE WHEN
UNATTENDED.
Angled Position-Figure 9
Tilt awning for use in the rain
CARE AND MAINTENANCE OF YOUR SUNSETTER AWNING
Vertical Position-Figure 10
Tilt awning for use in the rain
FIGURE 1
Lower both arms until the front roller
reaches waist height.
FIGURE 2
Unlock both rafters by pressing the
rafter lock latch.
CLOSE:
FIGURE 3
CAUTION: Be sure that both Rafters
are unlocked.
Using the hand crank, roll up the
awning until the front roller reaches
head height.
FIGURE 4
Lower both arms all the way down.
WARNING: DO NOT LEAVE THE
AWNING UNATTENDED IN THIS
POSITION. YOU MUST LOWER
ONE ARM OR BOTH TO CREATE
ENOUGH DROP (FRONT TO BACK) AND
PREVENT RAIN FROM
ACCUMULATING ON THE FABRIC.
FAILURE TO DO SO MAY RESULT IN THE
COLLAPSE OF
THE STRUCTURE, WHICH COULD
CAUSE PERSONAL INJURY.
Rafter lock
Latch
18 3
PROTECTING THE SUNSETTER FABRIC
FROM MILDEW
If it is necessary to roll the awning up
wet, be sure to roll it out to dry when
the weather is better. While the vinyl
awning fabric itself won't mildew,
mildew can form on the dust and dirt
allowed to accumulate on the fabric. If
the fabric is rolled up and stored when
wet, the moisture will promote the
formation of mildew. Do not use caustic
cleaners.
CLEANING THE FABRIC
Cleaning the awning regularly will
extend the life of the fabric and prevent
the formation of mildew. Call 1-800-876-
2340 to order a SunSetter cleaning and
maintenance kit.
FOR EASE OF OPERATION
If it becomes difficult to raise and lower
the awning height, apply some of the
supplied wax to the small tracks on the
inside of the outer arms.
CAUTION: NEVER USE A BARBEQUE
GRILL (Figure 11), ANY TYPE OF PATIO
HEATER (Figure 12) OR FIREPLACE
(Figure 13) UNDER YOUR SUNSETTER
AWNING.
ENJOY YOUR AWNING!!!!
Figure 11
Figure 12
Figure 13
FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 4
Adjust the roller bar position until the
arrow on the Roller Bar aligns with
the OPEN arrow on the side of the
Drive Unit.
FIGURE 5
Push both rafters 'UP' until they lock.
FIGURE 6
Extend both arms to the desired
height.
Both arms angled
(Recommended for stronger wind support)
OPEN:
FIGURE 3
Using the hand crank, unroll the
awning until the fabric is fully
extended.
OPEN Arrow
Roller Bar
Arrow
Drive Unit
2 19
The following manual shows you how to properly operate your
SunSetter awning. It is important that you follow the steps listed for the
specific way that you plan to use your awning.
NOTE: Left and right references are as you are Facing the house.
Table of Contents
Using the awning with both arms angled............................................page 3
Using the awning with right arm vertical- left arm angled.................page 5
Using the awning with left arm vertical- right arm angled.................page 9
Using the awning with both arms vertical...........................................page 13
Care and Maintenance.........................................................................page 17
CAUTION: THE SUNSETTER AWNING MUST BE USED WITH THE FABRIC FULLY
EXTENDED AND BOTH RAFTERS LOCKED IN THE 'UP' POSITION.
HOMEOWNER'S
OPERATION
AND
MAINTENANCE
MANUAL
FOR
MODEL 900XT & 1000XT
AWNINGS
Rev 10/13/03
©SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden MA 02148
For Technical support visit us at www.sunsetter.com/ownerscorner
or call Toll Free 800-670-7071 • Fax 877-224-4944
WARNING:
Failure to follow
these instructions
could result in
PERSONAL INJURY!
Other manuals for 900XT
5
This manual suits for next models
1
Table of contents
Other SunSetter Accessories manuals
SunSetter
SunSetter OASIS Series User manual
SunSetter
SunSetter Oasis Guide
SunSetter
SunSetter VISTA Quick start guide
SunSetter
SunSetter Oasis Guide
SunSetter
SunSetter 900XT User manual
SunSetter
SunSetter Gaviota Quick start guide
SunSetter
SunSetter Motorized PRO Guide
SunSetter
SunSetter Vista Series User manual
SunSetter
SunSetter EASYSHADE Use and care manual
SunSetter
SunSetter Oasis Guide
SunSetter
SunSetter Oasis Use and care manual
SunSetter
SunSetter Platinum Plus Guide
SunSetter
SunSetter 900XT Use and care manual
SunSetter
SunSetter Platinum Plus Series Original instructions
SunSetter
SunSetter PRO Operating and safety instructions
SunSetter
SunSetter Motorized Series Original instructions
SunSetter
SunSetter 900XT User manual
SunSetter
SunSetter VISTA Original instructions
SunSetter
SunSetter Wireless Wind Sensor User manual
SunSetter
SunSetter VISTA Operating instructions
Popular Accessories manuals by other brands
Ryval Hoops
Ryval Hoops C872 Series Installation & owner's instructions
ETCR
ETCR 016 user manual
Dometic
Dometic POWER AWNING PRO Installation and operation manual
NTI
NTI XTENDEX VOPEX-C5SV-x Installation and operation manual
Delta Electronics
Delta Electronics Frequency Measurement Card DVP-F2FR instruction sheet
IFM
IFM PN7160 operating instructions
Ledvance
Ledvance MS-SV-INF-CS-360-230V-IP20 installation guide
SICK
SICK LMS5 Series operating instructions
PSI Woodworking Products
PSI Woodworking Products PKFLYRXX quick start guide
HBM
HBM PW29 Series Mounting instructions
ROBOTIQ
ROBOTIQ FT 300 instruction manual
Quark-Elec
Quark-Elec QK-AS07-0183 manual
