SWorkz Apollo User manual

※This RTR buggy comes with unpainted pre-cut body shell.

2
1. Quality T7075 Aluminum Main Chassis.
2. Quality T7075 Front and Rear Shock Towers.
3. SWORKz Pro 2.0 Shock System with 4mm Shock Shafts.
4. High Performance CNC machined Crown Gears and Pinion Gears.
5. F/R Full CVD Drive Shafts.
6. T7075 Aluminum Adjustable Front and Rear Lower Plastic Insert Toe-In system.
7. Double Protection Bumper Design.
8. Sealed Front and Rear Arms design.
9. Adjustable Front Upper and Lower Suspension Arm System.
10. Pre Cut Falcon II Body Shell included.
11. 2.4G Radio System (SW-T1 Radio with USB charge system).
12. Comes standard with SWORKz SE-100 100A 1/8 BL ESC (Made by HobbyWing)
13. SWORKz SP-2150 3670 BL MOTOR for 1/8 RTR motor system.
14. SWORKz SES-2S steering servo (with 12kg metal gear) made by the world famous brand SAVOX.
INTRODUCTION
Introducing the new APOLLO 1/8th scale o󰀨-road brushless powered professional ready to run
buggy from SWORKz. The 1/8th APOLLO buggy is a Pro RTR version based on the successful
S35-2E buggy.
The APOLLO (assembled in the same factory as the S350 BX1e ) incorporates many of the
same race-inspired features as the S35-2E Pro Kit. The buggy provides precise feedback and
a nimble yet balanced feel that suits drivers of all levels. The SWORKz design team focused
their efforts into the proper weight distribution on the APOLLO. Proper weight distribution
proved to be instrumental to the ease of setup during the testing phase of the APOLLO.
The SWORKz APOLLO 1/8th scale brushless powered o󰀨-road Pro RTR buggy comes standard
with many high quality parts as T7075 aluminum chassis, front and rear shock towers. It also
has S350 BK1 Pro Kit's Big Bore Shocks version 2.0 (4mm shock shafts), High Performance
Crown Gears and Pinion Gears and oil filled differentials providing traction and balance on
multiple o󰀨-road surfaces. The pivot ball steering system gives the driver sharp and accurate
feedback. The APOLLO also comes with a race inspired base setting that is easy to drive.
The APOLLO set comes with high quality electronics from HobbyWing (SWORKz SE-100) 100A
1/8 BL ESC and an S-ePOWER SP2150 BL 3670 MOTOR.
The SWORKz SES-2S steering servo (with 12kg metal gear) is made by SAVOX. All packages
also includes a 2.4G Radio System.
A pre-cut clear body shell is included.
APOLLO Kit Features:
Specification
Length: 530mm
Width: 308mm
Height: 220mm
Ground Clearance: 65mm
Wheelbase: 325-330mm
Track: F:306mm / R:306mm
Gear Ratio: C:(45~47)/15T, F/R 43/13T
Weight: 3700g

3
WARRANTY
Your SWORKz APOLLO Pro RTR kit warranty covers workmanship and
manufacturing defects of the original and unmodified parts. Warranty claims
resulting from crashes, abuse, improper operation, improper mounting, improper
adjustment or lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz.

4
INDEX
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages 14 and older.
INTRODUCTION 2
Warranty 3
Required Equipment for Operation 5
Operation Guide 6
Assembly Steps 7-33
Blank Set-up Sheet 34-36
APOLLO Key No. List 37-38
APOLLO Spare Part List 38-39
APOLLO Option Part List 39
End cover 40

5
Charger and LiPo Battery
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear
Stick Type
ESC system
Wheel & Trigger Type
Receiver
Steering servo
Tools Recommended
Breshless Motor
Side cutter
Curved scissors
Grease
Required Equipment for Operation

6
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil Air lter oil
Operation Guide
Safety Precautions
The SWORKz APOLLO is a high performance radio controlled model which needs to be
operated with caution and common sense.
The APOLLO Kit is not intended for children under the age of 14 without adult supervision.
SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of
nature, arising from the abuse or misuse of this product or any other product required while
operating this model.
- The LiPO Battery can be dangerous is improperly handled.
- Always keep your LiPO Battery in a cool area and never use near flame, sparks, or while
smoking.
- Keep your LiPO Battery, and all other ammables, out of the reach of children.
- After running your car, all parts of the Motor and ESC can become extremely hot. Be careful
not to touch these parts.
- This model is controlled by your radio and that is vulnerable to interference from many
outside sources. This interference can cause a loss of control so it is necessary to operate this
model in an open area to avoid personal, or property damage. Always ensure turning on your
radio rst.
- Keep all the products included in the package out of reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instruction included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential for injury and or damage to people and or property.
- Always use original SWORKz spare and option parts.
- Always encure the buggy is in proper working condition before use.
- Always exercise caution when using any and all tools.

7
BAG B1
2
330014A
116006
330015
320003 400002
320004
101004
101004
320004
101004
101004
610002
210002A
116006
330164
330015
320003
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
116006
Ball Bearing 8x16x5mm x4
101004
Washer 3.5X10X0.2mm x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Di󰀨. Oil 7000cps
for the front Di󰀨.
and 3000cps for the
rear Di󰀨.
Remember to apply a light coat
of grease to the o-ring, then
slide it over the shaft of the out
drive and seat it in the di󰀨 case.
Insert the pin through the hole
in the di󰀨 case and through the
hole in the shaft of the out drive.
330013
OK! NG!
108003
108003
330014A
108003
M3x10mm FH/ST HEX Screw x4

8
4
3
BAG C
116006
330017
320003 400002
330015
108003
320004 330013
610002
108003
101004
101004
108007
108007
101004
101004
2501469-01 (45T)
2501469-02 (46T)
2501469-03 (47T)
210002A
116006
330017
330241
330015
320003
400002
108003
M3x10mm FH/ST HEX Screw x4
116006
Ball Bearing 8x16x5mm x2
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
Fill the
di󰀨erentials
with Oil up to
80% full.
Use SWORKz
Di󰀨. Oil
7000cps for
the center
Di󰀨.
Apply a light coat of grease
to the o-ring, then slide it over
the outdrive shaft and place it
in the di󰀨 case.
Insert the pin through the hole
of the out drive.
320004
108007
M3x6mm FH/ST HEX Screw x4

9
5
BAG D
116006
116006
104010
330160
2501114
2501114
2501529-3
108001 330227
108001
2501096-4
2501114
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm
101018
x3
106010
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
108001
106010
M3x6mm Hex Socket OH/TP Screw x3
106012
M3x35mmHex Soket OH/TP Screw x2
116006
Ball Bearing 8x16x5mm x2
104010
M5x4mm Set Screw (Flat Bottom) x1

10
6
7
106016
116006
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
106008
106008
101018
SHIM 13x16x0.2mm x3
108001
101018
104010
330160
330830
330227
106010
2501529
2501114
116006
Ball Bearing 8x16x5mm x2
104010
M5x4mm Set Screw (Flat Bottom) x1
106021A
M4x10mm Hex Socket OH/TP Screw X2
200120A
106005
200121A
106021A
330136
2501121D-6
330134
106005
M3x15mm Hex Socket OH/TP Screw x2
106008
M3x12mm Hex Socket OH/TP Screw x2
108001
M3x12mm FH/ST HEX Screw x2
BAG E1

11
8
9
2501100-4
2.0mm
108008
M3x35mm FH/ST HEX Screw x2
101020A
3mm Countersunk x2
Washers (GM)
200101
Pop in the Stabilizer Guide.
After assembly ensure that both
suspension arms move freely.
2501099-3
330831
2501099-3
330103
2501100-4
330103
108008
102020A
330103
Front/Rear Lower Arm HingPin x2
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
104004
104004
115008A
104004
M3x3mm Set Screw x2
BAG E1

12
11
10
104005
105004
104005
105004
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2
2501096-7 106002
106002
106002
300024
103001
2501096-1
200126
200126
106002
103001
M3 Nut Lock x2
106002
M3x10mm Hex Socket OH/TP Screw x5
BAG E1

13
12
13
330119
2501100-4
2501099
106008
106021A
M4x10mm Hex Socket OH/TP Screw X2
2501113
2501113
330828
330119
2501100-4
330119
Front Upper Arm HingPin x2
106008
M3x12mm Hex Socket OH/TP Screw x4
106021A
2501094C
106005
330136
2501121C
330134
106005
M3x15mm Hex Socket OH/TP Screw x2

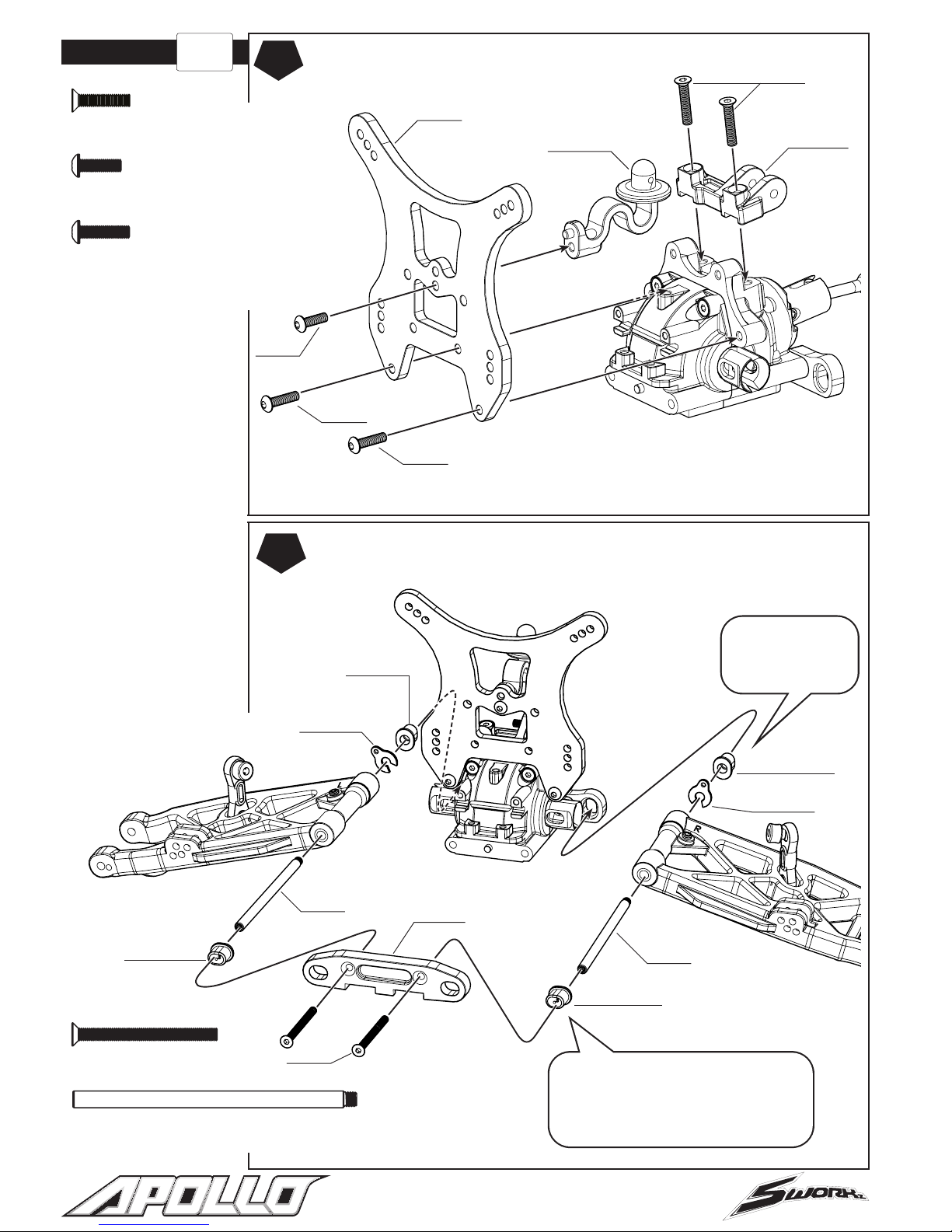

BAG E1

14
15
14
108005
M3x14mm FH/ST HEX Screw x2
2501097-5 2501122A
106008
106008
330829
106002
106002
M3x10mm Hex Socket OH/TP Screw x1
108005
330103
330103
108008
2501100-5
2501100-5
2502036
2502036
2502036
2501099-2
2501099-2
330103
Front/Rear Lower Arm HingPin x2
108008
M3x35mm FH/ST HEX Screw x2 The new rear changeable plastic lower arm plate with
2 inserts can offer 2.0, 3.0 and 3.5 rear toe-in for your
rear lower suspension.
200480 Rear Changeable Lower Arm Plate
Insert (2.0/3.5 Degree)
200481 Rear Changeable Lower Arm Plate
Insert (3.0 Degree)
The rear lower arm holder
insert can offer 1.0, 2.0 and
3.0 rear kick-up for your rear
lower suspension.
200108 R/F Insert (1 degree)
200109 R/F Insert (0 degree)
106008
M3x12mm Hex Socket OH/TP Screw x2
BAG E1

15
16
17
104004
104004
105005
104004
M3x3mm Set Screw x2
2501114
Pop in the Stabilizer Guide.
After assembly ensure that both
suspension arms move freely.
104005
104005
105004
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2
BAG E1

16
19
BAG E2
Please use the
6x10x0.2mm shim
to adjust play between
the servo saver post
and steering bell crank
plate.
8mm
The new rear changeable plastic lower arm plate with
2 inserts which can offer 2.0~3.5 rear kick-up for your
rear lower suspension.
Rear Changeable Lower Arm Plate
Insert (2.0/3.5 Degree)
Rear Changeable Lower Arm Plate
Insert (3.0 Degree)
The rear lower arm holder
insert can offer 1.0, 2.0 and
3.0 rear kick-up for your rear
lower suspension.
R/F Insert (1 degree)
R/F Insert (0 degree)
18
330251
330251
103001
103001
101021
330251
101021
101021
101021
106007
106007
330135A
115004
106004
330114A
2501122A
2501667-5
2501122B
106004
330827
103001
M3 Nut Lock x2
116004
Ball Bearing 6x10x3mm x2
101021
M3x8xT1mm x4
116004
Ball Bearing 6x10x3mm x2
101019
SHIM 6.0x10.0x0.2mm x1
106007
M3x12mm Hex Socket OH/TP Screw(HT) x1
106004
106004
330113
106002
106002
M3x10mm Hex Socket OH/TP Screw x2

17
20
21
BAG E3
2501100
2501098A
2501098A
2501100
330118A
330826
330826
330118A
330252
330252
Screw and adjust 330118A Knuckle
Pivot Ball Nut so as the pivot ball can
be moved smoothly.
106002
Left
Right
330110
330112
330111
330109
116012
116006
330124
104010
330121A
330111
Pin M2.5x14.8mm x2
116012
Ball Bearing 15x21x4mm x2
116006
Ball Bearing 8x16x5mm x2
330124
Pin M3.0x16.8mm x2
104010
M5x4mm Set Screw (Flat Bottom) x2
106002
M3x10mm Hex Socket OH/TP Screw x4

18
23
22
330121A
330110
330109
330111
116012
330112
116006
2501095A
2501095A
330124
104010
330111
Pin M2.5x14.8mm x2
116012
Ball Bearing 15x21x4mm x2
116006
Ball Bearing 8x16x5mm x2
Left
Right
330124
Pin M3.0x16.8mm x2
330117A
Knuckle Pivot Ball Washer x2
104010
M5x4mm Set Screw (Flat Bottom) x2
330117A
330117A

19
10mm
330401
Rear Hub Carriers Hing Pin with Nut x2
103001
M3 Nut Lock x2
24
25
330401
103001
103001
330232
2501100
330232
2501100
330401
2501100
2501100
330125
2501121D-4
330123A
2501121D-9
330125
200135
Rear Wheel Axle Insert (1mm) x4
200136
Rear Wheel Axle Insert (2mm) x2
330123A
Rear Upper Sus. Arm Turnbuckles x2

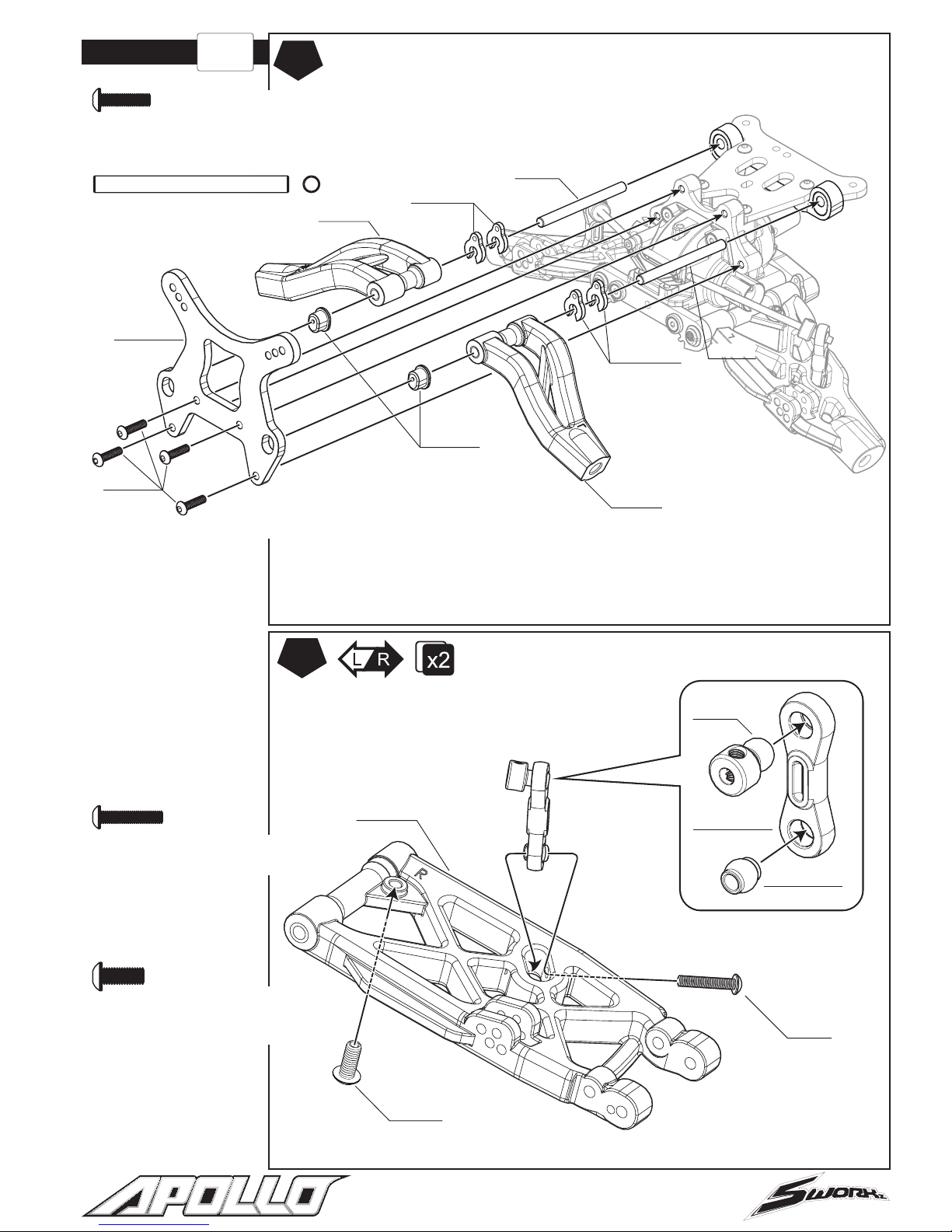

20
26
103001
106003
105011
103001
105011
M3x23mm Cap Screw x2
106003
M3x16mm Hex Socket OH/TP Screw x2
103001
M3 Nut Lock x4
