SWORKz S350 BX1 series INSTRUCTION MANUALSWORKz S350 BX1 series INSTRUCTION MANUAL
1/8 Off Road Sport Racing ARTR Buggy

2
INSTRUCTION
Specification
Length: 535mm
Width: 308mm
Height: 220mm
Ground Clearance: 70mm
Wheelbase: 323-327mm
Track: F:306mm / R:306mm
Gear Ratio: C:46/13T, F/R 43/13T
Weight: 3350g
Congratulations on your purchase of the new SWORKz S350 BX1 1/8 scale off-road Rear to
Race Sport Buggy.
Please read this manual thoroughly, before you attempt to start or drive your S350 BX1.
This manual contains step-by-step instructions to help you complete, prepare for startup,
and ne-tune your Buggy. Updates, setups, and product news will be posted on our website
(www.sworkz.com), so check often.
As always, if you should ever have any questions or need help with your S350 BX1, please feel
free to contact our ocial SWORKz dealers and distributors, as they will be glad to help you.
You may also contact us at any time for the most up to date information and support.
The SWORKz S350 BX1 1/8 scale o-road ready to race nitro buggy is derived from the DNA
of S350 BK1 race kit.
Assembled in the same factory as the BK1, the BX1 incorporates many of SWORKz racing
experience therefore giving strength and performance to the car.
The SWORKz design team put a lot of effort into the weight distribution of the S350
BX1. This contributes a major factor in the car performance and general car setup.
The BX1 Sport RTR comes standard with Big Bore Shocks and oil lled dierentials providing
traction and balance on any o road tracks. The pivot ball steering system gives the driver
good feedbacks while driving the S350 BX1. The Standard set up is a good base start for any
drivers.
Overall, the S350 BX1 is a perfect combination of design, high quality and outright
performance.
S350 BX1 Kit Features :
1. Race design with T6 6061 Aluminum Chassis.
2. BK1 pro kit Suspension system.
3. High Performance Crown Gears and Pinion Gears.
4. Front CVD Drive Shafts.
5. Front and Rear Big Bore Shocks.
6. Double Protection Bumper Design.
7. Adjustable front upper and lower suspension arm system.
8. Rear kick up chassis system.
9. Pre-mounted Clear Body Shell.
10. 2.4G Radio System (SW-T1 Radio with the USB charge system and Li-Po battery included)
11. Comes standard with 2pc of 9kg metal gear servos.
12. Comes standard with S-POWER S2 SPORT Engine with In-line pipe system.

3
WARRANTY
Your SWORKz S350 BX1 kit warranty covers workmanship and manufacturing
defects of the original and unmodified parts. Warranty claims resulting from
crashes, abuse, improper operation, improper mounting, improper adjustment or
lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz .

4
INDEX
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages
14 and older.
INSTRUCTION 2
Warranty 3
Required Equipment for Operation 5
Operation Guide / Safety Precautions 6
Assembly Steps 7-38
Set-up Sheet 39
Blank Set-up Sheet 40
S350 BX1 Key No. List 41
S350 BX1 Spare Part List 42-43
Company lnfo 44
Exploded View 45-46

5
Starter box
Engine Starting Equipment
Glow
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Fuel bottle
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear Nitro fuel
Stick Type
Throttle servo
Receiver batteries
Wheel & Trigger Type
Receiver
On/Off Switch
We recommend that you use fuel
containg 20~25% nitro.
Steering servo
Tools Recommended
Side cutter
Curved scissors
Grease
ST-4 Turbo Plug
ST-5 Turbo Plug
ST-6 Turbo Plug
Required Equipment for Operation

6
Operation Guide
Safety Precautions
The SWORKz S350 BX1 is a high performance radio controlled model which needs to be
operated with caution and common sense.
The S350 BX1 Sport RTR is not intended for children under the age of 14 without adult
supervision. SWORKz shall not be held liable for any loss or damages, whether direct,
indirect, act of nature, arising from the abuse or misuse of this product or any other product
required while operating this model.
- The nitro fuel can be dangerous is improperly handled.
- Always keep your nitro fuel in a cool area and never use near flame, sparks, or while
smoking.
- Keep your nitro fuel, and all other ammables, out of the reach of children.
- Always run your model in a well ventilated area outdoors. Never run your model indoors.
- After running your car, all parts of the engine and exhaust can become extremely hot. Be
careful not to touch these parts especially when refueling, or making repairs.
- This model is controlled by your radio and that is vulnerable to interference from many
outside sources. This interference can cause a loss of control so it is necessary to operate this
model in an open area to avoid personal, or property damage. Always ensure turning on your
radio rst.
- Keep all the product included in the package out of reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instruction included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential for injury and or damage to people and or property.
- Always use original SWORKz spare and option parts.
- Always encure the buggy is in proper working condition before use.
- Always exercise caution when using any and all tools.
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil Air lter oil

7
1
2
330014
116006
330015
320003 420002
108003
101004
320004
320004
320004
330013
610002
101004
210002
116006
330014
330164
330015
320003
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
116006
Ball Bearing 8x16x5mm x4
101004
Washer 3.5X10X0.2mm x8
108003
M3x10mm FH/ST HEX Screw x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Diff. Oil 3000cps
for the front Diff.
and 1000cps for the
rear Diff.
Remember to apply a very light
coat of grease to the o-ring, then
slide it over the shaft of the out
drive and seat it in the diff case.
Insert the pin through the hole
in the diff case and through the
hole in the shaft of the out drive.

8
4
3
116006
330017
330015
320003 420002
108003
101004 320004 330013
610002
320004
101004
210002
116006
330017
330018
330015
320003
400002
108003
M3x10mm FH/ST HEX Screw x4
116006
Ball Bearing 8x16x5mm x2
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Diff. Oil 3000cps for
the center Diff.
Remember to apply a very light coat
of grease to the o-ring, then slide it
over the shaft of the out drive and
seat it in the diff case.
Insert the pin through the hole in the
diff case and through the hole in the
shaft of the out drive.

9
5

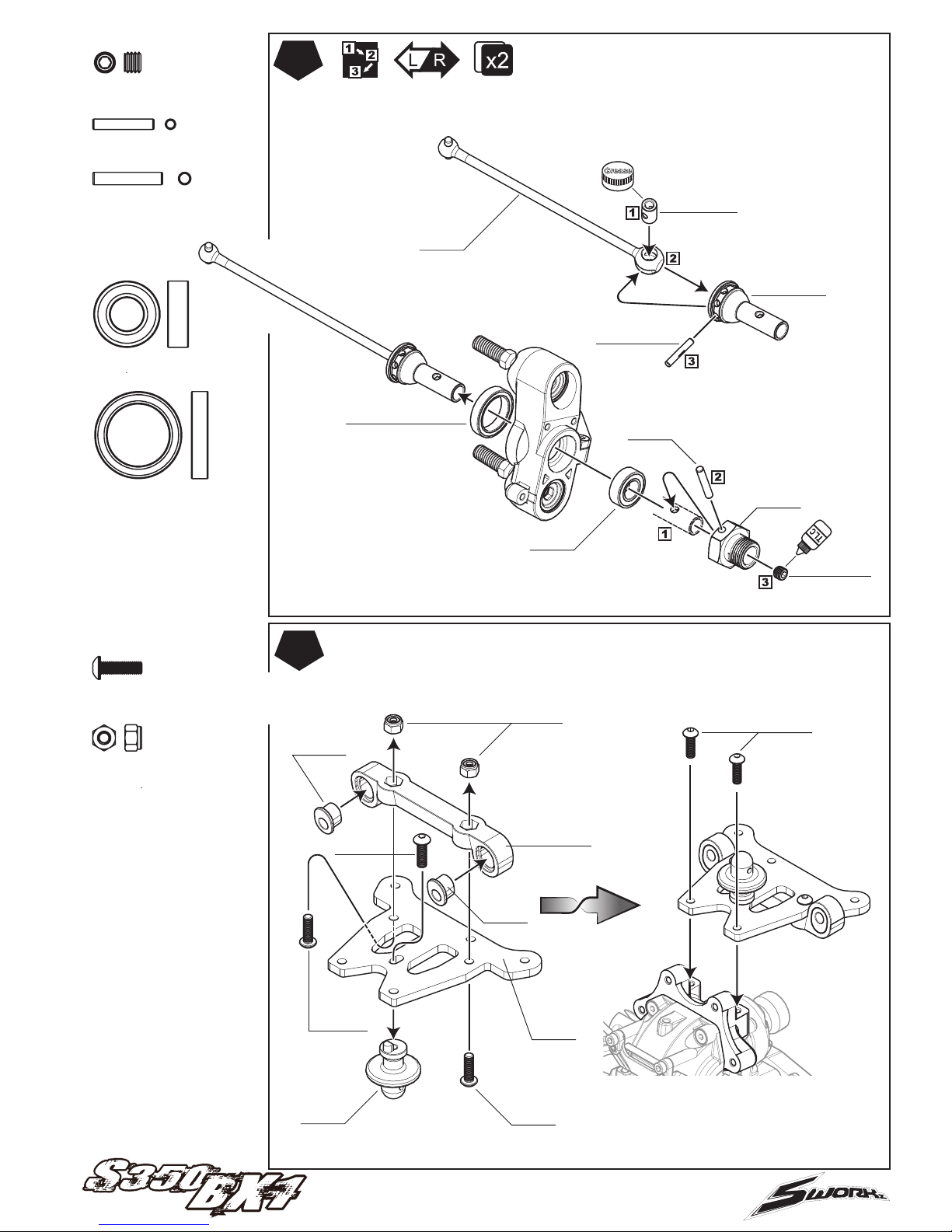

The standard front lower arm holder (200102) can
offer 0° kick-up for your front lower suspension.
You may use the optional one (200103) to get 1°
kick-up for your front lower suspension.
200102 Front Lower Arm Holder (0 degree)
200103 Front Lower Arm Holder (1 degree)
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
101018
108001
300029 106012
330160
200102
108001 330227
106010
116006
200267
104001
200024
116006
Ball Bearing 8x16x5mm x2
108001
M3x12mm FH/ST HEX Screw x4
101018
SHIM 13x16x0.2mm x2
104001
M5x4mm Set Screw x1
106010
M3x6mm Hex Socket OH/TP Screw x3
106012
M3x35mmHex Soket OH/TP Screw x2

10
6
7
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
The rear lower arm plates can offer 2.5~3.0 rear toe-in
with 0°~1° kick-up for your rear lower suspension.
200104Rear Lower Arm Plate (0-2.5 D)
200105Rear Lower Arm Plate (0-3.0 D)
200106Rear Lower Arm Plate (1-2.5 D)
200107Rear Lower Arm Plate (1-3.0 D)
The rear lower arm holder
insert can offer 1.0, 2.0 and
3.0 rear kick-up for your rear
lower suspension.
200108 R/F Insert (1 degree)
200109 R/F Insert (0 degree)
330160
200108
200280
300026
200267
116006
200024
106010
104001
330227
106003
101018
108001
200104 108008
330136
200158
200120A
106005
200121A
104007
330134
116006
Ball Bearing 8x16x5mm x2
108008
M3x35mm FH/ST HEX Screw x2
101018
SHIM 13x16x0.2mm x2
104001
M5x4mm Set Screw x1
104007
M4x8mm Set Screw x2
106010
M3x6mm Hex Socket OH/TP Screw x3
106005
M3x15mm Hex Socket OH/TP Screw x2
106003
M3x16mm Hex Socket OH/TP Screw x2
108001
M3x12mm FH/ST HEX Screw x2

11
8
9200101
104004
104004
115008
330103
200110
200110
200134
200134
2.0mm
330103
Front/Rear Lower Arm HingPin x2
104004
M3x3mm Set Screw x2
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
Pop in the Stabilizer Guide.

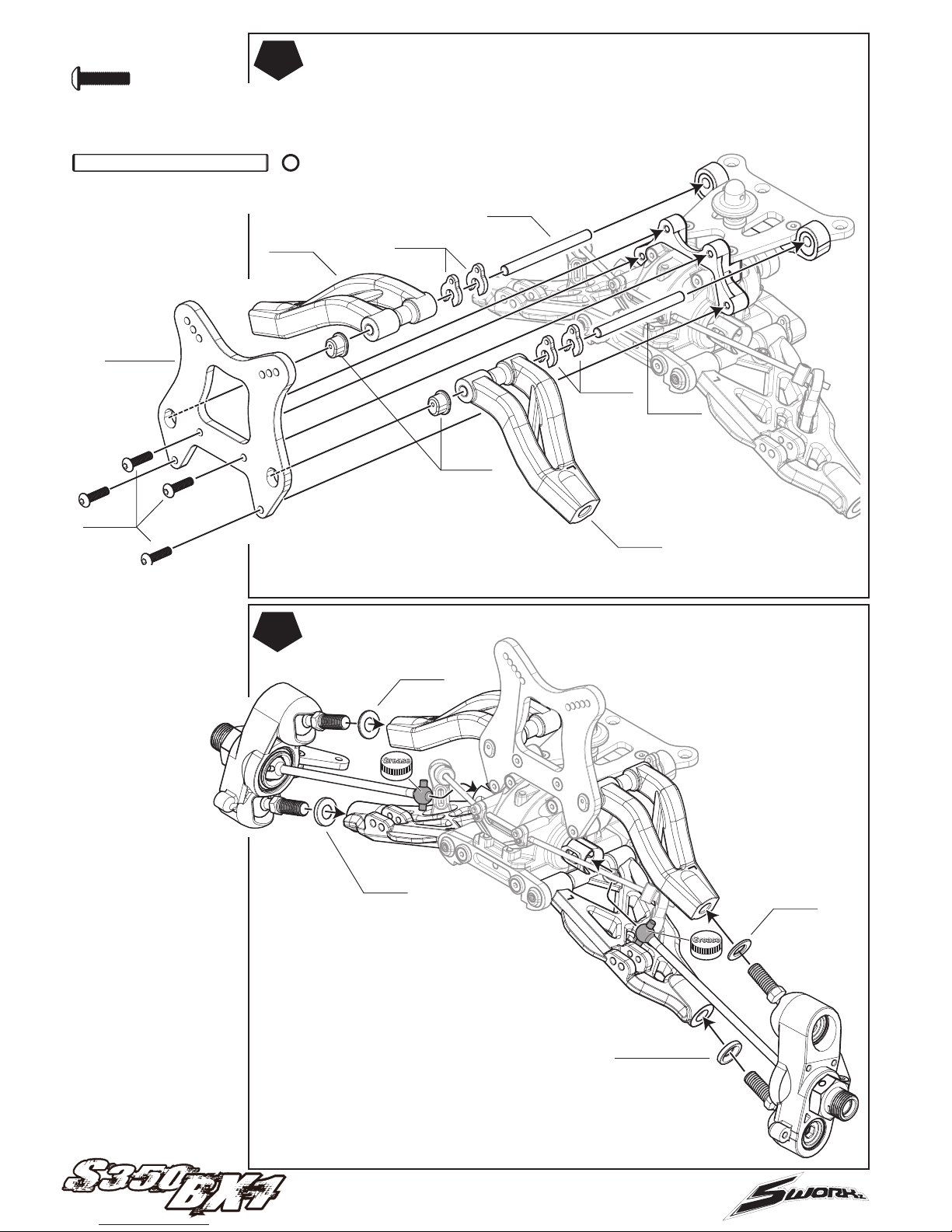

12
11
10
106002
300030
200124
330252
200124
330252
330118
300030
105004
104005
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2
Screw and adjust 330118 Knuckle
Pivot Ball Nut so as the pivot ball can
be moved smoothly.
106002
M3x10mm Hex Socket OH/TP Screw x4

13
12
13
200171 106002
106002
106002
300024
103001
200125
200126
200126
106002
330110
330112
330111
330109
116012
116006
330124
330121
104001
104001
M5x4mm Set Screw x2
330111
Pin M2.5x14.8mm x2
330124
Pin M3.0x16.8mm x2
116012
Ball Bearing 15x21x4mm x2
116006
Ball Bearing 8x16x5mm x2
103001
M3 Nut Lock x2
106002
M3x10mm Hex Socket OH/TP Screw x5

14
15
14
200128
200127
200134
300027
200297
200297
106008
200133
330119
200133
330119
330119
Front Upper Arm HingPin x2
106008
M3x12mm Hex Socket OH/TP Screw x4
200298
200298

15
16
17
Please use the SHIM
6x10x0.2mm to adjust
when the play was
bigger between the
servo saver post and
settring bellcrank
plate.
106002
200296
330113
101019
106008
106008
330251
330251 300031
101021
101021
330135
115004
200296
200117
200116
330114
200118
103001
103001
200296
103001
M3 Nut Lock x2
101019
SHIM 6.0x10.0x0.2mm x1
330251
Steering Plate Bushing x2
101021
M3x8xT1mm x2
106008
M3x12mm Hex Socket OH/TP Screw x2
106002
M3x10mm Hex Socket OH/TP Screw x2

16
19
18
200119
200170
106002
106008
300028
108015
200172
104007
200132
106005
330136
200158
330134
104007
M4x8mm Set Screw x2
Ensure that the
direction of the shock
tower insert #200119
is facing towards the
user during installation.
106005
M3x15mm Hex Socket OH/TP Screw x2
108015
M3x16mm FH/ST HEX Screw x2
106008
M3x12mm Hex Socket OH/TP Screw x2
106002
M3x10mm Hex Socket OH/TP Screw x1

17
20
21
106010
200101
104004
104004
105005
330103
330103
200133
200133
330103
Front/Rear Lower Arm HingPin x2
104004
M3x3mm Set Screw x2 Pop in the Stabilizer Guide.
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
(Check page 11)
106010
M3x6mm Hex Socket OH/TP Screw x2

18
23
22
330121
116012
116006
200129
200130
330228
330124
104001
105004
104005
104005
104005
M3x4mm Set Screw x2
105004
M2.6x6mm Cap Screw x2
330124
Pin M3.0x16.8mm x2
104001
M5x4mm Set Screw x2
116012
Ball Bearing 15x21x4mm x2
116006
Ball Bearing 8x16x5mm x2

19
24
25
10mm
330120
106010
330232
200136
330232
200135
106010
330120
200135
200136
330125
200138
330123
200137
330125
330120
Rear Hub Carriers Hing pin x2
200135
Rear Wheel Axle Insert (1mm) x4
200136
Rear Wheel Axle Insert (2mm) x2
330123
Rear Upper Sus. Arm Turnbuckles x2
Use a 2mm Hex Wrench
and slowly tighten the
Hinge Pins.
106010
M3x6mm Hex Socket OH/TP Screw x2

20
27
26
200156
200155
106010
106010
103001
106003
105011
103001
103001
105011
103001
105011
M3x23mm Cap Screw x2
106003
M3x16mm Hex Socket OH/TP Screw x2
106010
M3x6mm Hex Socket OH/TP Screw x4
103001
M3 Nut Lock x4
