Preface
Scope of Manual
This Programming and Service Manual provides information on installing,
operating, programming and servicing TOP and TM8000 radios fitted with
Midian encryption modules.
Enquiries and Comments
If you have any enquiries regarding this manual, or any comments,
suggestions and notifications of errors, please contact Technical Support
(refer to “Tait Contact Information” on page 2).
Updates of Manual and Equipment
In the interests of improving the performance, reliability or servicing of the
equipment, Tait Electronics Ltd reserves the right to update the equipment
or this manual or both without prior notice.
Copyright
All information contained in this manual is the property of Tait Electronics
Ltd. All rights are reserved. This manual may not, in whole or in part, be
copied, photocopied, reproduced, translated, stored, or reduced to any
electronic medium or machine-readable form, without prior written
permission from Tait Electronics Ltd. All trade names referenced are the
service mark, trademark or registered trademark of the respective
manufacturers.
Disclaimer
There are no warranties extended or granted by this manual. Tait
Electronics Ltd accepts no responsibility for damage arising from use of the
information contained in the manual or of the equipment and software it
describes. It is the responsibility of the user to ensure that use of such
information, equipment and software complies with the laws, rules and
regulations of the applicable jurisdictions.

4Preface Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited
Associated Documentation
This manual should be read in conjunction with the following:
■TM8000 Service and Programming documentation
■Tait Orca Portable Service and Programming documentation
■Midian module Service and Programming documentation
■Midian KL3 Programmer Service and Programming documentation
■Technical notes are published from time to time to describe applications
for Tait products, to provide technical details not included in manuals,
and to offer solutions for any problems that arise.
Document Conventions
Within this manual, four types of alerts may be given to the reader. The
following illustrate each type of alert and its associated symbol.
Warning!! This alert is used when there is a potential risk
of death or serious injury.
Caution This alert is used when there is a risk of minor or
moderate injury to people.
Important This alert is used to warn about the risk of equipment dam-
age or malfunction.
Note This alert is used to highlight information that is required to
ensure procedures are performed correctly.
Publication Record
Issue Publication Date Description
1 October 2005 first release
2 June 2006 second release

Midian Encryption Programming and Service Manual Contents 5
© Tait Electronics Limited June 2006
Contents
Safety and Servicing Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Equipment Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Screw Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Recommended Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
1 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
1.1 Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
1.2 Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
1.3 Encrypted Radio Programming and Service Kit . . . . . . . . . . . . . . . . . .14
1.4 Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
1.5 Tait Encryption Products. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2 Midian Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2.1 Encryption Module Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2.2 Radio Hardware Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2.3 Radio Firmware and Software Compatibility . . . . . . . . . . . . . . . . . . . .18
2.4 Encryption Module Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
2.5 Encryption Module Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
2.6 Testing the Midian Encryption Module . . . . . . . . . . . . . . . . . . . . . . . .25
2.7 Programming Cable Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .26
3 Tait Orca Portable (TOP) Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
3.1 User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
3.2 Circuit Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
3.3 Programming the TOP Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
3.4 Encryption Module Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
3.5 Testing the Encryption Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
3.6 TOP Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
3.7 TOP Fault Finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
3.8 Fitting the TOP Encryption Upgrade Flex. . . . . . . . . . . . . . . . . . . . . . .38
3.9 TOP Encryption Upgrade Flex PCB Information . . . . . . . . . . . . . . . . . .45
4 TM8000 Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
4.1 User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
4.2 Circuit operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
4.3 Link Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
4.4 Programming the TM8000 radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
4.5 Encryption-Enabled TM8000 Operating Instructions . . . . . . . . . . . . . .56
4.6 TM8000 Fault Finding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
4.7 Fitting the TM8000 Encryption Options Board . . . . . . . . . . . . . . . . . .57
4.8 TM8000 Encryption Options PCB Information. . . . . . . . . . . . . . . . . . .60

6 Contents Midian Encryption Programming and Service Manual
© Tait Electronics Limited June 2006

Midian Encryption Programming and Service Manual Safety and Servicing Information 7
June 2006 © Tait Electronics Limited
Safety and Servicing Information
This chapter contains general information on safety and servicing
procedures for Tait radio equipment. The procedures described in this
manual should only be carried out by service personnel trained and
accredited by Tait Electronics to service encryption-enabled TOP and
TM8000 radios.
Important Any modifications you make to this equipment which are
not authorised by Tait Electronics Ltd may invalidate your
compliance authority’s approval to operate the equipment.
Equipment Safety
ESD Precautions
Important This equipment contains devices which are susceptible to
damage from static charges. You must handle these devices
carefully and according to the procedures described in the
manufacturers’ data books.
We recommend you purchase an antistatic bench kit from a reputable
manufacturer and install and test it according to the manufacturer’s

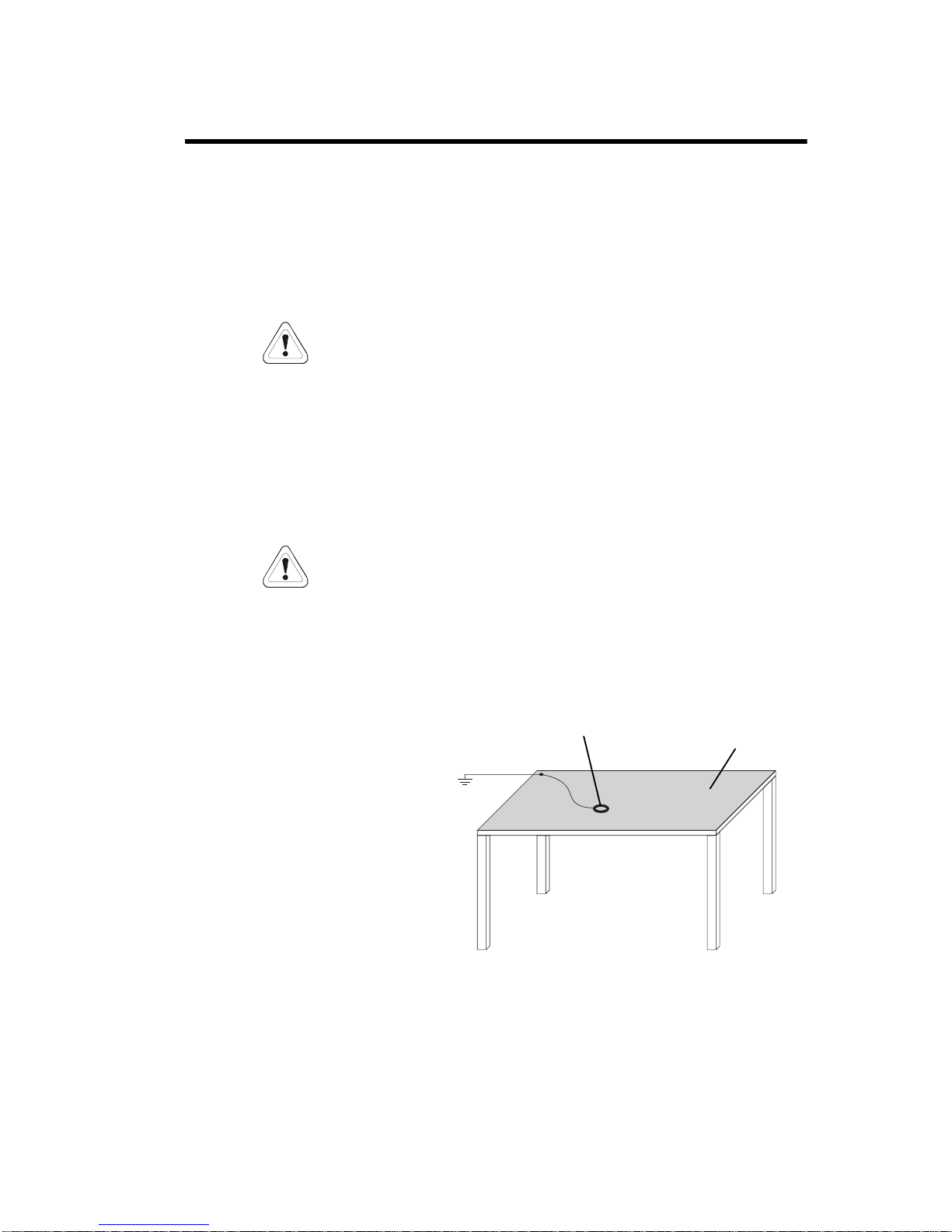

instructions. The diagram below shows a typical antistatic bench set-up..
Youcanobtainfurtherinformationonantistaticprecautionsandthedangers
of electrostatic discharge (ESD) from standards such as ANSI/ESD
S20.20-1999 or BS EN 100015-4 1994.
commonpointground
(building ground or
mains ground via 1M
ohm series resistor)
conductive wrist strap dissipative rubber
bench mat

8 Safety and Servicing Information Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited
Screw Types
The TM8000 and TOP radios documented in this manual may have any of
the following screw types used. For full disassembly instructions, see the
relevant service information.
Torx Recess Head Screws
Torx recess head screws are the standard type of screw used in Tait
equipment, although Pozidriv and Allen recess head screws are also used in
a few special applications.
The diagram below shows a typical Torx recess head screw (actual hardware
may differ slightly from this illustration due to variations in manufacturing
techniques).
Pozidriv Recess Head Screws
Pozidriv recess head screws are used in Tait equipment in a few special
applications. It is important that you use the correct type and size
screwdriver to avoid damaging the screw head.
It is particularly important that you do not use Philips screwdrivers on
Pozidriv screw heads as the tapered driving flutes of the Philips screwdriver
do not engage correctly with the parallel-sided slots in the Pozidriv screw
head. This can result in considerable damage to the screw head if the
screwdriver tip turns inside the recess.
Note If you find you need excessive downwards pressure to keep the
screwdriver tip in the Pozidriv screw head, you are probably using
the wrong type or size screwdriver.
“star”shaped recesswith
six internal notches

Midian Encryption Programming and Service Manual Safety and Servicing Information 9
June 2006 © Tait Electronics Limited
ThediagrambelowshowsthemaindifferencesbetweentypicalPozidrivand
Philips screw heads and screwdriver tips (actual hardware may differ slightly
from these illustrations due to variations in manufacturing techniques).
Recommended Tools
It is beyond the scope of this manual to list every tool that a service
technician should carry. However, the tools specifically required for
servicing encrypted TOP and TM8000 radios are listed below.
■Fine tipped (1-2mm) temperature controlled soldering iron
■Tweezers
■Solder and flux pen
■Scissors
■Stainless steel spike (TOP only)
■#6 Torx drive screwdriver bit (TOP only)
■Adjustable spanner
internal notches
Pozidriv Philips
no special markings
“star”markings
between slots
slots with parallel sides
slots with tapered sides
driving flutes with
parallel sides
driving flutes with
tapered sides
ridges between
driving flutes

10 Safety and Servicing Information Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited
Components
Replacing components
Ensure that any replacement components are of the same type and
specifications as the originals. This will preventthe performance and safety
of the encrypted radios from being degraded.
Surface Mount Devices
Important Surface mount devices (SMDs) require special storage, han-
dling, removal and replacement techniques. This equip-
mentshouldbe servicedonlybyan approved Tait Dealeror
Customer Service Organisation equipped with the neces-
sary facilities. Repairs attemptedwithincorrectequipment
orbyuntrainedpersonnelmayresultinpermanentdamage.
If in doubt, contact your nearest Tait Dealer or Customer
Service Organisation.
Leaded Components
Whenever you are working on a PCB and removing or fitting components,
you must take care not to damage any copper tracks or pads. The two
satisfactory methods of removing components from plated-through hole
(PTH) PCBs are detailed below.
Desoldering Iron
Method This method requires the use of a desoldering station.
1. Place the tip over the lead and, as the solder starts to melt, move the
tip in a circular motion.
2. Start the suction and continue the movement until three or four
circles have been completed.
3. Remove the tip while continuing suction to ensure that all solder is
removed from the joint, then stop the suction.
4. Before pulling the lead out, ensure it is not stuck to the plating.
5. If the lead is still not free, resolder the joint and try again.
Note The desoldering iron does not usually have enough heat to desol-
der leads from the ground plane. Additional heat may be applied
by holding a soldering iron on the tip of the desoldering iron (this
may require some additional help).
Component Cutting
Method 1. Cut the leads on the component side of the PCB.
2. Heat the solder joint sufficiently to allow easy removal of the lead
by drawing it out from the component side: do not use undue force.
3. Fill the hole with solder and then clear with solderwick.

Midian Encryption Programming and Service Manual Safety and Servicing Information 11
June 2006 © Tait Electronics Limited
Cased Mica Capacitors
Cased mica capacitors can be removed by heating the top with a heavy-duty
soldering iron and gently lifting the capacitor off the PCB with a
solder-resistant spike or equivalent. Make sure that the solder at the tab
solder joint is melted or removed before attempting to lift the capacitor.
Encryption Modules
Important The encryption module can control the radio PTT, and
while programming, may cause the radio to transmit.
Always provide protection for test equipment (such as RF
signalgenerators) so they cannotbedamagedby transmitter
power.
Important Each encryption module is provided with a sheet for
recording programmable settings. As Midan TVS-2
encryption codes, and all VPU12 module settings cannot
be read back, it is strongly recommended that all settings be
recorded for each fitted module and kept in a secure place.

12 Safety and Servicing Information Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited

Midian Encryption Programming and Service Manual System Operation 13
June 2006 © Tait Electronics Limited
1 System Operation
Encrypted radios provide increased privacy for conversations by jumbling
speech so that only radios with the right hardware and settings can
reconstruct it. The diagram below shows a typical radio system comprising
portable radios, mobile radios, base stations or repeaters.
Whether or not a radio transmission is encrypted is the user’s choice. When
the encryption mode is selected, the radio sends and receives encrypted calls
to and from other radios with compatible encryption module and settings.
However, even when encryption is not selected, an encryption-enabled
radio will always decode encrypted communication from any radio with
compatible modules and settings.
Note When modules or settings are incompatible, communication is
reduced to unintelligible noise.
355355
355355
355355
355355
encrypted radios with
correct code key
=
clear
speech
radios with no
encryption module
=
unintelligible
noise
encrypted radios with
correct code key
=
clear
speech
scanner
=
unintelligible
noise
encrypted radios with
incorrect code key
radio network
=
unintelligible
noise
TB8100
10101

14 System Operation Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited
1.1 Configuration
Both encryption modules and radios have many settings which affect
encryption. Refer to the module manufacturer’s installation and
programming manuals provided with your encryption hardware.
This manual describes how to connect your hardware for setup, testing and
maintenance, but does not describe how to determine the settings you
should use. These are determined during system design by technical
personnel trained in the relevant Tait and third-party products.
Contact your Authorised Tait Service Centre for further assistance.
1.2 Compatibility
Some combinations of encryption hardware, software, radio versions and
configurations, accessories and programmable features may not be
supported. In particular:
■encryption modules from different manufacturers are not compatible
■features available in a Tait encryption-enabled radio are not necessarily
the full list of features specified by the module manufacturer.
1.3 Encrypted Radio Programming and Service Kit
This manual forms a part of the TOPA-EA-003 Tait Encrypted Radio
Programming and Service Kit. The kit provides service centres and large
users of Tait encrypted radios with all cables and information required to set
up, manage and maintain a fleet ofencrypted TOPand/or TM8000 Mobile
radios.
The programming and service kit TOPA-EA-003 (KIT Midian KL3 Prog
+ cables) contains the following items:
■Midian Encryption for Tait TOP and TM8000 Radios Operation and
Service Manual (IPN MAS-02434-MD-0X) - this manual - also
available separately
■TOPProgrammingCable(IPN219-02931-0X)toconnectMidian KL3
programmer to radio for programming
■TM8000 Programming Cable (IPN 219-03026-0X) to connect Midian
KL3 programmer to radio for programming
■Midian KL3 programmer and software kit (IPN 005-00021-0X)

Midian Encryption Programming and Service Manual System Operation 15
June 2006 © Tait Electronics Limited
1.4 Related Documents
This manual is intended to be read in conjunction with the following:
■Service and programming manuals for TOP radios
■Service and programming manuals for TM8000 radios
■Service and programming manuals for Midian Encryption Modules
■Service and programming manuals for Midian Programmer
For more information on Tait encryption technology, see Tait Encryption
White Papers at: http://taitweb.co.nz.
Information for programming and servicing Tait radios with Midian
encryption modules is included in this manual.
1.5 Tait Encryption Products
Atthetime of printing,the following encryptionproductswere available for
ordering. However, further encryption products are regularly being added.
for further information, contact your Tait dealer.
Encryptable Radios
New encryptable radio models are added to the standard Tait product range
as requested.
Modules
Encryption Module Programs
Encryption Upgrade Kits (encryption modules not included)
IPN Description Comments
005-00018-0X MDL Ecrypt VPU-12-Tait Midian Midian module VPU-12-Tait
005-00019-0X MDL Ecrypt TVS-2-Top Midian Midian module TVS-2-Tait
IPN Description Comments
005-00021-XX MDL prog Kl3+S/W Ecrypt Midian Programmer and software for radios with
Midian modules (included in TOPA-EA-003)
IPN Description Comments
TOPA-EA-001 Kit Ecrypt Upgrd Flex 5000 Tait Orca encryption upgrade kit

16 System Operation Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited
Encryption Module Programming
Support Products
Documentation
Encryption Training
Tait offers training programmes for personnel responsible for fitting,
programming and servicing encrypted radios. In order to provide successful
support for this technology, it is strongly recommended thatthistraining
be undertaken.
IPN Description Comments
TOPA-EA-011 Charge Program/Test Ecrypt Kit Factory fitting and programming of encryption
module
IPN Description Comments
TOPA-EA-003 KIT Midian KL3 prog + cables Tait Orca and TM8000 Encrypted Radio
Programming and Service Kit - including this
manual
219-02931-0X CBL assy KL3 prog T/Orca Direct programming cable for TOP radios fitted
with Midian TVS-2 modules (included in TOPA-
EA-003)
219-03026-0X CBL assy Ecrypt dir TMA TVS2 Direct programming cable for TM8000 radios
fitted with Midian TVS-2 modules (included in
TOPA-EA-003)
IPN Description Comments
MAS-02434-MD-01 MANL Serv TOP/TM8k Ecrypt Midi This manual

Midian Encryption Programming and Service Manual Midian Encryption 17
June 2006 © Tait Electronics Limited
2 Midian Encryption
2.1 Encryption Module Compatibility
At the time of printing, the following Midian encryption modules are
compatible with encryption-enabled TM8000 and TOP radios.
■Midian TVS2-Tait
■Midian VPU12-Tait
For other Midian encryption modules, check with aTait Service Centre, or
www.taitworld.com/.
Important Either module can be fitted to TOP or TM8000 radios
without modification. However, module snap-off sections
must not be removed when fitting a module into a TM8000
radio, as these snap-offs include screw holes necessary to fit
the module. The snap-offs are removed for TOP applica-
tions.
2.2 Radio Hardware Compatibility
TOP Radios
The TOP Encryption Upgrade Flex PCB described in this manual is
suitableforuseinmostTOP5000radios(5010,5020,5035,5040).The flex
can be retrofitted to most radio models, but this should first be verified by
providing the serial numbers to a Tait Service Centre for confirmation.
TM8000 Radios
At the time of printing, the TM8000 Encryption Options PCB described
in this manual is compatible with any TM8000 radio. However, the
TM8000 firmware must be upgraded to support the TA2434-0X
Encryption Options Board. For the current version, consult your Tait
dealer.

18 Midian Encryption Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited
2.3 Radio Firmware and Software Compatibility
TOP Radios
Encrypted TOP radios require specific encryption-capable radio firmware
and programming software. This is fitted during manufacture ofencryptable
radios, but will need to be programmed separately where an encyption
upgrade kit is used. Contact the Tait Strategic Sales Team for confirmation
of encryption firmware support.
TM8000 Radios
EncryptedTM8000radiosrequire a firmwarechange to support encryption
function. This is normally fitted during manufacture. Standard TM8000
programming software supports encryption functions in TM8100
applications. A custom version of programming software is required for
TM8200 applications. Some specific I/O settings are required to support
encryption in all TM8000 radios. For more information, see
“Programming the TM8000 radio” on page 52 of this manual.
2.4 Encryption Module Programming
Important When programming a Midian module, it is strongly rec-
ommended that you use the manufacturer’s default secu-
rity codes. See the Midian programming manual for more
information on standard codes, and instructions for chang-
ing them if necessary.
■TOP and TM8000 radios fitted with Midian TVS2-Tait Encryption
Modules can be programmed without opening the radio, using 219-
02931-0X Direct Programming Cable (TOP) or 219-03026-0X
(TM8000). Instructions forTVS2-Tait Module Direct Programming are
on page 19.
■TOP and TM8000 radios fitted with Midian VPU-12 modules are
factory-programmed with the correct settings, and Tait recommend that
these be used. However, encryption codes can be changed, using the
Midian-supplied clip-lead cables fitted directly to the module. See the
KL3 Programmer documentation for instructions.
Specific information on module parameter settings and values is available in
the Programmer and Module service manuals. However, some useful
module settings information is included in this manual on page 20.
Note Somelinksettingsand functionsonthemodulesmay be forfuture
use, or require special setup or additional components to operate.
If a function is not documented, please ask for assistance before
using it.

Midian Encryption Programming and Service Manual Midian Encryption 19
June 2006 © Tait Electronics Limited
TVS2-Tait Over-the-Air Programming
The Midian TVS2-Tait Module encryption code can be remotely changed.
Contact your Tait Service Centre for more information.
TVS2-Tait Direct Programming
A radio with Midian TVS2-Tait Encryption Module can be direct-
programmed without openingthe radio, to change anyof its programmable
parameters. This requires a dedicated direct programming cable as follows:
■TOP radios use 219-02931-0X (see Cable Specifications on page 25)
■TM8000 radios use 219-03026-0X (see Cable Specifications on page 25)
Note The Midian KL3 programmer includes a dedicated programming
cable. However, as this cable requires the radios to be opened, its
use is not recommended or supported by Tait.
DirectProgramming
Method Equipment
■PC with serial port, and if necessary 25pin D-range plug to 9 pin D-
range socket adaptor.
■Midian KL3 programmer (supplied cable not required).
■Midian software to suit the module to be programmed.
■TVS-2 encrypted TOP or TM8000 radio to be programmed
■Encryption Direct Programming Cable 219-02931-0X (TOP) or 219-
03026-0X (TM8000)

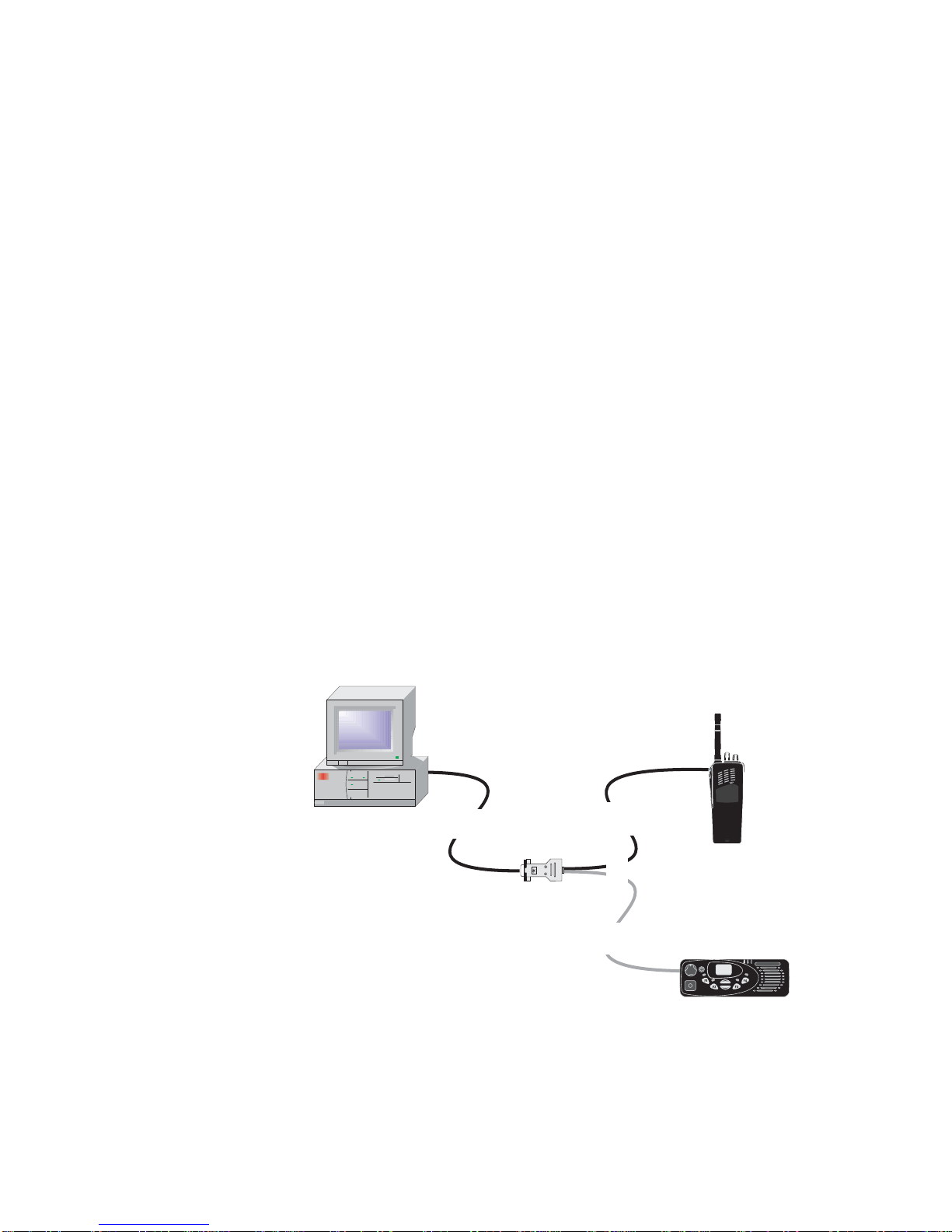

Setup
connect cable to
15way D-range
on radio rear
TM8000 Encryption Direct
Programming Cable
Connect cable to TOP
accessory connector
TOP Encryption Direct
Programming Cable
RS232 serial cable
(not provided)
or

20 Midian Encryption Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited
VPU-12 Programming
To program Midian VPU-12 Encryption Modules in either a TM8000 or a
TOP radio usually requires a hard-wired connection from the Midian
programmer tothe module. Thisrequiresopeningthe radioand connecting
the dedicated programming cable (provided with the Midian programmer)
to pads on the Tait flex or board.
Important Each encryption module is provided with a sheet for
recording programmable settings. As Midan VPU12 mod-
ule settings and TVS-2 encryption codes cannot be read
back, it is strongly recommended that all settingsberecorded
for each fitted module and kept in a secure place.
2.5 Encryption Module Settings
Refer to the programmer manual for PC settings, software commands and
register values.
Before programming the Midian encryption module, it is important to
understand the meaning of various identifiers in the programmer manual.
Some of these are outlined in the table below:
Note Each encryption module is provided with a sheet for recording
programmable settings. As some module settings cannot be read
back, it is strongly recommended that all settings be recorded for
each radio and kept in a secure place.
TVS-2 Factory Default Settings
The screen dumps that follow illustrate the current TVS2-Tait module
programming interface and factory default settings. For information
regarding module programming codes and programming configuration for
your system, see the Midian Programming Manual.
Midian Identifier Description
ANI and Primary Individual decode ID ANI for individual module addressing
Secondary Decode IDs ANI Group number for paging or alerting a group of radios
Security Code Unique multi-digit code sets which code a module can decifer.
