Tally T2280 SprintPro User manual

Maintenance Manual Matrix Printer
T2265
SprintPro
®
T2280
SprintPro
T2155
T2170

7.1
Housing
Housing Spare Parts and Schematics
7-2

1 Front Flap Assy 061 293 061 293 061 293 061 293 B t 1
1 Front Flap Assy (US version) 061 091 061 091 061 091 061 091 B t 1

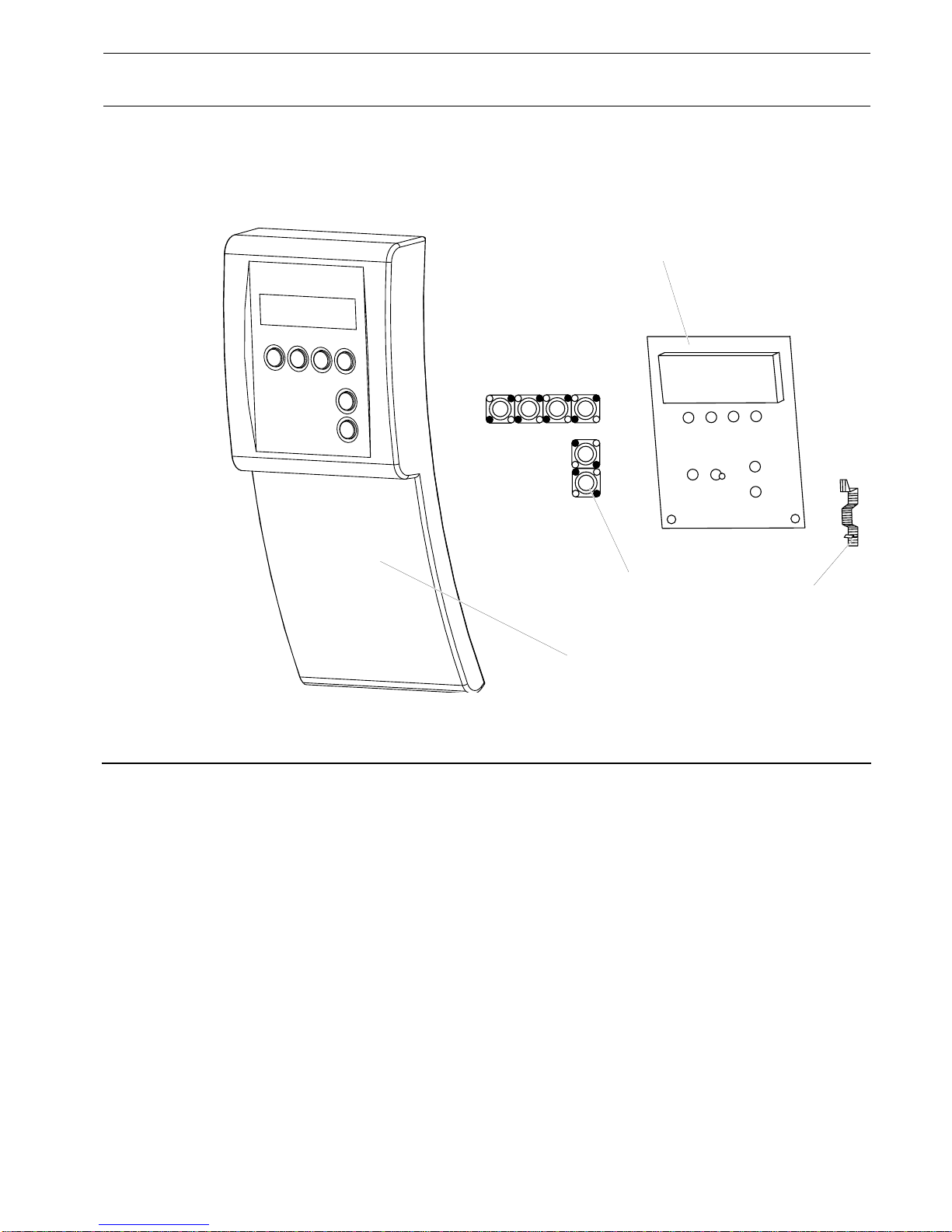

2 Panel Assy 060 014 060 009 061 619 A s 1
2 Panel Assy /neutral 061 575 061 575 061 575 061 575 B c 1
3 Screen Left 060 003 060 003 060 003 060 003 B c 1
4 Screen Tractor Transverse 060 004 060 004 060 004 060 004 B c 1
5 Housing Assy Lower Part 060 005 060 005 060 005 060 005 B t 1
6 Screen Optional Interface, Triangle 054 588 054 588 054 588 054 588 B t 1
7 Suspension Rubber 060 496 060 496 060 496 060 496 B t 5
8 Housing Assy Upper Part 060 006 060 006 060 006 060 006 B t 1
9 Rear Cover Assy Standard Model 054 569 054 569 054 569 054 569 B c 1
9 Rear Cover Assy 2T Model na 054 939 na 054 939 B c 1
10 Front Top Cover Assy 454 570 454 570 454 570 454 570 B c 1
11 Silencer Assy 454 925 454 925 454 925 454 925 B c 1
12 Cover Logic Assy na na na na – 1
13 Push Lock 716 227 716 227 716 227 716 227 B c 1
na Panel Cable 047 520 047 520 047 520 047 520 B t 1
na Clamp Panel Cable 054 589 054 589 054 589 054 589 B t 1
na Screen Short Interface 053 507 053 507 053 507 053 507 B c 1
na Holder/Lock Main Board 054 605 054 605 054 605 054 605 B c 1
na ESD Metal Housing Lower Part 054 607 054 607 054 607 054 607 B c 1
na Holder Interconnection PCB 054 551 054 551 054 551 054 551 B c 2
na Power Switch 047 869 047 869 047 869 047 869 B t 1
“/” no item number available. Please see details in according chapters
“na” no spare part

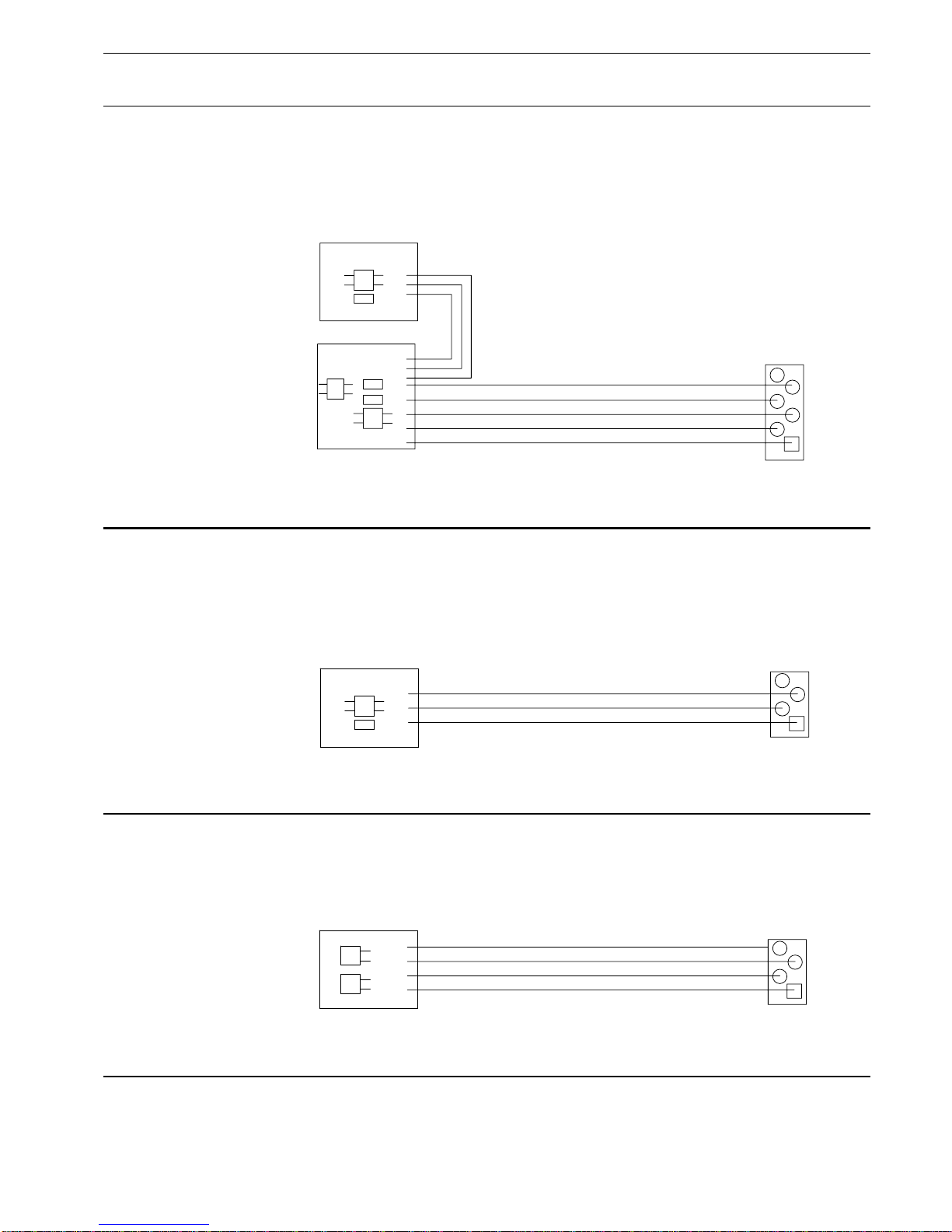

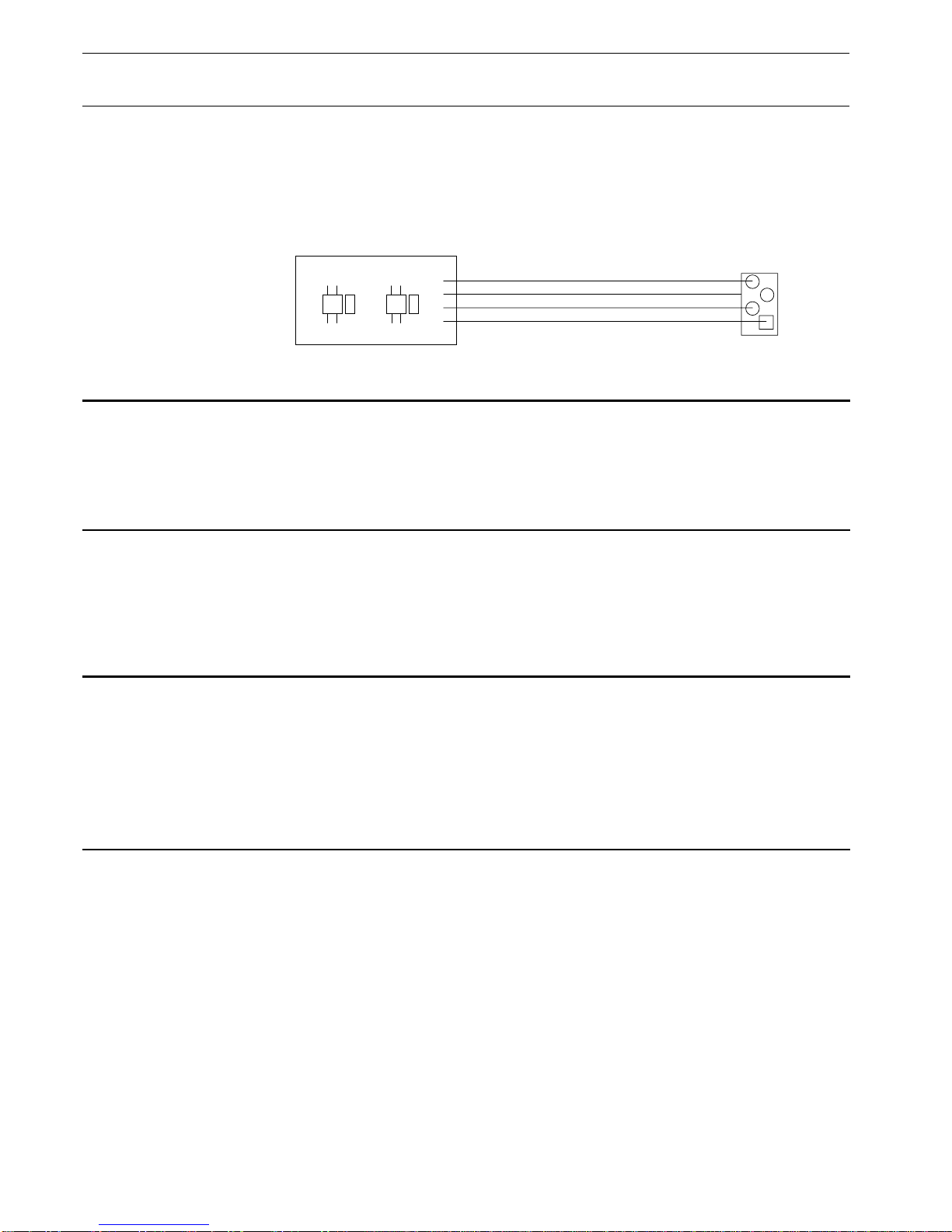

Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
Spare Parts and Schematics Housing
7-3

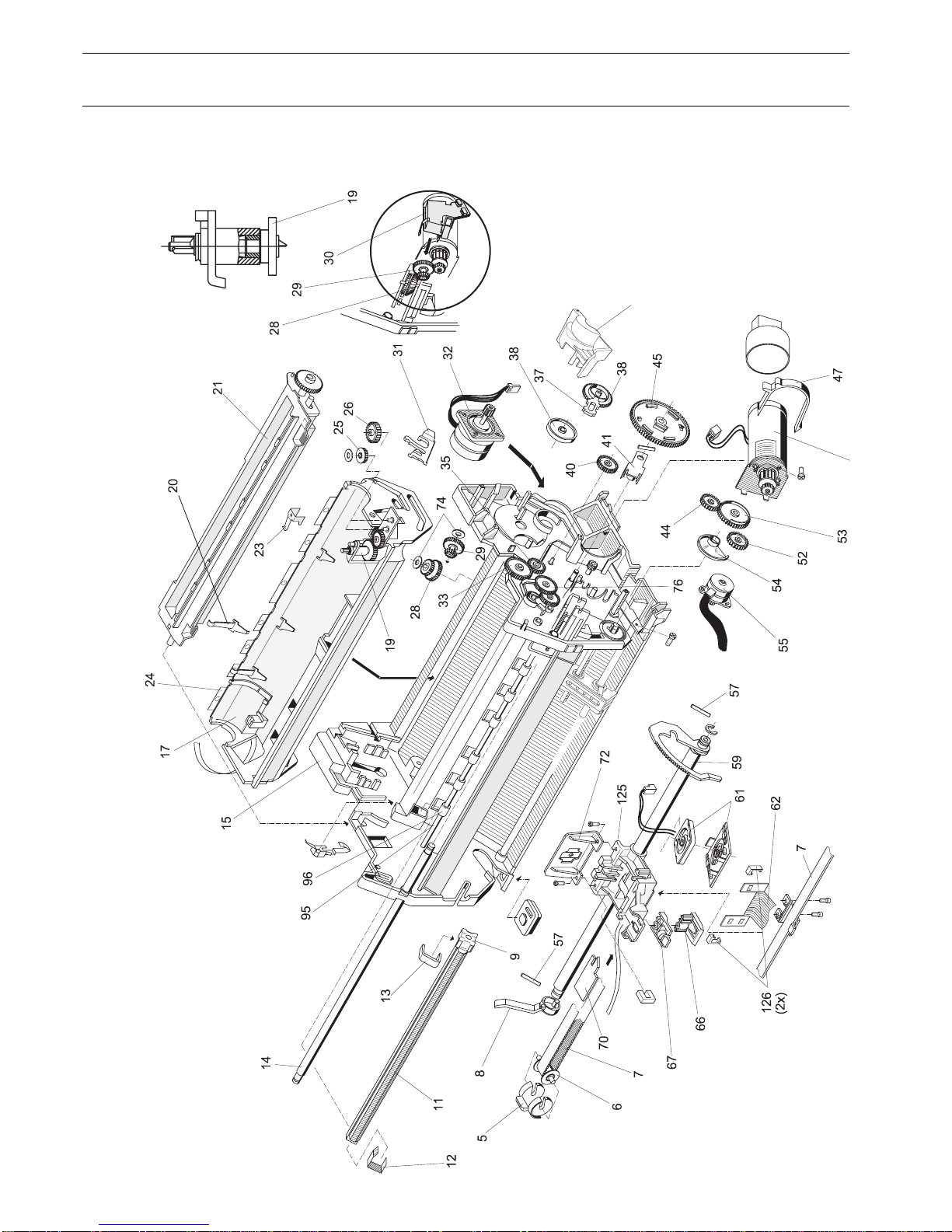

7.2
Basic Printer
133
1/3
Basic Printer Spare Parts and Schematics
7-4

Basic Printer
2/3
Spare Parts and Schematics Basic Printer
7-5

Basic Printer
3/3
Basic Printer Spare Parts and Schematics
7-6

Electronic Parts
/ Main Board Complete Standard Spare Assy 048 232 048 240 048 576 048 502 A s 1
/ Connection PCB 448 006 448 006 448 006 448 006 A s 1
62 Carriage Adapter 447 575 447 575 447 575 447 575 A s 1
84 Sensor Papermotion/end 061 312 061 312 061 312 061 312 A s 1
112 Sensor ASF/3rd Tractor 048 025 048 025 048 025 048 025 A s 1
124 Sensor Interlock 047 523 047 523 047 523 047 523 A s 1
131 Sensor Function Selection 061 523 061 523 061 523 061 523 A s 1 Kit
/ AGA Sensor 447 540 447 540 447 540 447 540 A s 1
/ Horizontal Sensor 447 514 447 514 447 514 447 514 A s 1
Motors and Cables
/ Cable ASF/Cutter 046 807 046 807 046 807 046 807 B t 1
/ Cable Power Switch 047 869 047 869 047 869 047 869 B t 1
/ Panel Cable 047 520 047 520 047 520 047 520 B t 1
32 LF Motor 053 437 053 437 053 437 053 437 A s 1
47 Clamp CR Motor 053 289 053 289 053 289 053 289 B t 1
48 CR Motor 461 506 447 568 461 506 447 568 A s 1
55 AGA Motor Stepper 048 367 048 367 048 367 048 367 A s 1
61 Fan 24VDC Assy 047 726 047 726 047 726 047 726 B c 1
120 Function Motor Stepper 053 441 053 441 053 441 053 441 A s 1
Printhead/Carriage System
/ Print Head 455 348 455 371 455 348 455 371 A, E s 1
14 Carriage Shaft 053 275 053 275 053 275 053 275 B c 1
59 CR Shaft Assy with Toothed Segment 461 001 461 001 461 001 461 001 B c 1
70 Cable Holder Carriage 054 593 054 593 054 593 054 593 B c 1
125 Carriage System Assy Standard 454 563 454 563 454 563 454 563 B t 1
125 Carriage System Assy Color 454 826 454 826 454 826 454 826 B t 1
126 Holder Sensor Board, Carriage 054 615 054 615 054 615 054 615 B c 2
Mechanical Parts I
6 Pulley Assy 053 433 053 433 053 433 053 433 B c 1
7 Belt Z=557 706 949 706 949 706 949 706 949 B c 1
11 Print Platen 454 772 454 772 454 772 454 772 B c 1
15 Side Panel Assy (LE + RE) 061 611 061 611 061 611 061 611 B, D s 1
17 Transverse Carrier Assy Complete 460 079 460 079 460 079 460 079 B c 1
19 Ribbon Drive Assy 061 080 061 080 061 627 061 627 A s 1
21 Upper Friction Assy 454 562 454 562 454 562 454 562 A s 1 till 2Q02
21 Upper Friction Assy 454 562 454 562 461 547 461 547 A s 1 by 2Q02
24 Paper Foil Transverse Carrier 054 944 054 944 054 944 054 944 B t 1
28 Bevel Gear 453 579 453 579 453 579 453 579 B s 1
29 Bevel Gear Drive 453 580 453 580 453 580 453 580 B s 1
34 Base Transverse Connection 060 075 060 075 060 075 060 075 B c 1
81 Paper Shaft Assy Standard Model 460 059 460 059 460 059 460 059 B c 1
81 Paper Shaft Assy 2T Model na 061 081 na 061 081 B c 1
82 Transverse Paper Finger 060 551 060 551 060 551 060 551 B c 1
86 Side Panel Assy (RE + LE) 061 611 061 611 061 611 061 611 B, D s 1
“/” no item number available. Please see details in according chapters
“na” no spare part
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
Spare Parts and Schematics Basic Printer
7-7

Mechanical Parts II
/ Leaf Spring Indicator Axle 054 974 054 974 054 974 054 974 B t 3
5 Belt Tightener 060 740 060 740 060 740 060 740 B t 1
8 Lever, Parallelity 053 213 053 213 053 213 053 213 B t 1
9 Bearing Platen 052 042 052 042 052 042 052 042 B t 2
10 Foot 053 229 053 229 053 229 053 229 B s 4
12 ESD Spring Platen 061 065 061 065 061 065 061 065 B c 2
13 Clamp Platen 052 051 052 051 052 051 052 051 B c 1
23 Spring Timing strip 053 227 053 227 053 227 053 227 B s 1
25 Intermediate Wheel Z=21 053 281 053 281 053 281 053 281 B t 1
26 Intermediate Wheel Z=30 053 201 053 201 053 201 053 201 B t 2
30 Lid, Toothed Wheel Drive Ribbon 053 286 053 286 053 286 053 286 B t 1
31 Damper Right Upper Friction 053 204 053 204 053 204 053 204 B t 1
33 Toothed Wheel Z=58 Option Drive 053 423 053 423 053 423 053 423 B t 1
36 Eccentric Wheel Upper Friction Z=76 (Set) 060 844 060 844 na na B t 2
37 Damper Indicator Axle 053 546 053 546 053 546 053 546 B t 2
38 Eccentric Wheel Upper Friction Z=76 /right na na 061 543 061 543 B t 1
40 Intermediate Wheel 2 Z=68 053 202 053 202 053 202 053 202 B t 2
41 Bearing 053 220 053 220 053 220 053 220 B t 1
45 Drive Wheel Z=128 054 617 054 617 054 617 054 617 B t 1
49 Wrap Spring Clutch 054 529 054 529 054 529 054 529 A s 1
52 Intermediate Wheel Z 053 335 053 335 053 335 053 335 B t 1
52 Toothed Wheel Z=30 M=0.7 060 031 060 031 060 031 060 031 B t 2
53 Switching Wheel Z=76 M=0.5 060 039 060 039 060 039 060 039 B t 1
54 Worm Gear Head Distance 053 217 053 217 053 217 053 217 B t 1
57 Bar Spring 053 218 053 218 053 218 053 218 B t 2
60 Flag AGA 054 616 054 616 054 616 054 616 A s 1
66 Spring 050 119 050 119 050 119 050 119 B t 1
67 Guide 053 270 053 270 053 270 053 270 B t 1
72 Ribbon Mask Assy 054 426 054 426 054 426 054 426 A s 1
74 Washer 053 282 053 282 053 282 053 282 B t 2
76 Intermediate Wheel Z=50/14 060 066 060 066 060 066 060 066 B t 1
87 Curve Plate Ribbon 053 284 053 284 053 284 053 284 B t 1
88 Gearing Down Wheel 2 Z=84/14 053 216 053 216 053 216 053 216 B t 1
89 Toothed Wheel Z=56 053 283 053 283 053 283 053 283 B t 1
95 Indicator Axle Set 061 025 061 025 061 025 061 025 B t 1
96 Roller Indicator Axle 053 898 053 898 053 898 053 898 B t 6
103 Timing Strip 053 230 053 230 053 230 053 230 A s 1
104 Leaf Spring Roller Tube 053 544 053 544 053 544 053 544 B c 3
105 Roller Tube 053 258 053 258 053 258 053 258 B c 6
110 Cable Cover 053 522 053 522 053 522 053 522 B c 1
111 Cable Holder Print Head Cable 054 594 054 594 054 594 054 594 B c 1
113 Cable Clamp 054 552 054 552 054 552 054 552 B c 2
114 Carrier Paper Motion Sensor 061 311 061 311 061 311 061 311 B c 1
114 Timing Wheel Paper Motion Sensor 060 064 060 064 060 064 060 064 B c 1
117 Gearing Down Wheel Z=70/14 054 402 054 402 054 402 054 402 B t 1
122 Damper Left Upper Friction 053 205 053 205 053 205 053 205 B t 1
130 Axle Function Select 053 212 053 212 053 212 053 212 B c 1
133 Dust Protection Cap 061 523 061 523 061 523 061 523 B s 1 Kit
134 Eccentric Wheel Upper Friction Z=76 (Set) 060 844 060 844 na na B t
134 Eccentric Wheel Upper Friction Z=76 /left na na 061 544 061 544 B t 1
135 Tractor Support 060 040 060 040 060 040 060 040 B c 1
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
Basic Printer Spare Parts and Schematics
7-8

This page intentionally left blank

7.3
Standard Tractor
Assy
Standard Tractor Assy Spare Parts and Schematics
7-10

Standard Tractor Parts
/ Tractor Assy Complete 460 037 460 037 460 037 460 037 B t 1
17 Tractor LE/RI Complete 061 064 061 064 061 064 061 064 A s 1
132 Sensor Option Recognition 061 523 061 523 061 523 061 523 A s 1
/ Support na na na na 1
3 Side Panel Tractor 1 Right na na na na 1
4Bearing nananana 4
5 Toothed Wheel Z=50 M=0.7 na na na na 2
6 Distance Washer na na na na 1
7 Axle Tractor 1 Long Square na na na na 1
8 Axle Tractor 1 Short Square na na na na 1
24 Axle Tractor 1 Round na na na na 1
25 Sleeve Disc na na na na 1
26Turret nananana 1
27 Toothed Wheel Z=72 M=0.7 na na na na 1
28 Sliding Sleeve na na na na 1
29 Revolving Sleeve na na na na 1
30 Toothed Wheel Z=50 M=0.7 na na na na 1
31 Pressure Spring na na na na 1
32 Disc na na na na 1
33 Extention Spring Function Select na na na na 2
34 Side Panel Tractor 1 Left na na na na 1
35 Sensor Option Recognition na na na na 1
38 Paper Guard Metal na na na na 1
39 Paper Guard Tractor na na na na 1
134 Tracking Wheel na na na na 1 Kit
“/” no item number available. Please see details in according chapters
“na” no spare part
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
Spare Parts and Schematics Standard Tractor Assy
7-11

7.4
AGA
Spare
Item Name Part No Class depot Qty.
AGA
1 AGA Assy 048 030 A s 1
2 AGA Flag 054 616 A s 1
3 Indicator Axle 054 765 B c 1
/ AGA Sensor Holder 054 614 B c 1
“/”: no item number available. Please see details in according chapters; “na”: no spare part
7.5
Connection
Board/Cables
3
2
1
AGA Spare Parts and Schematics
7-12

Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark

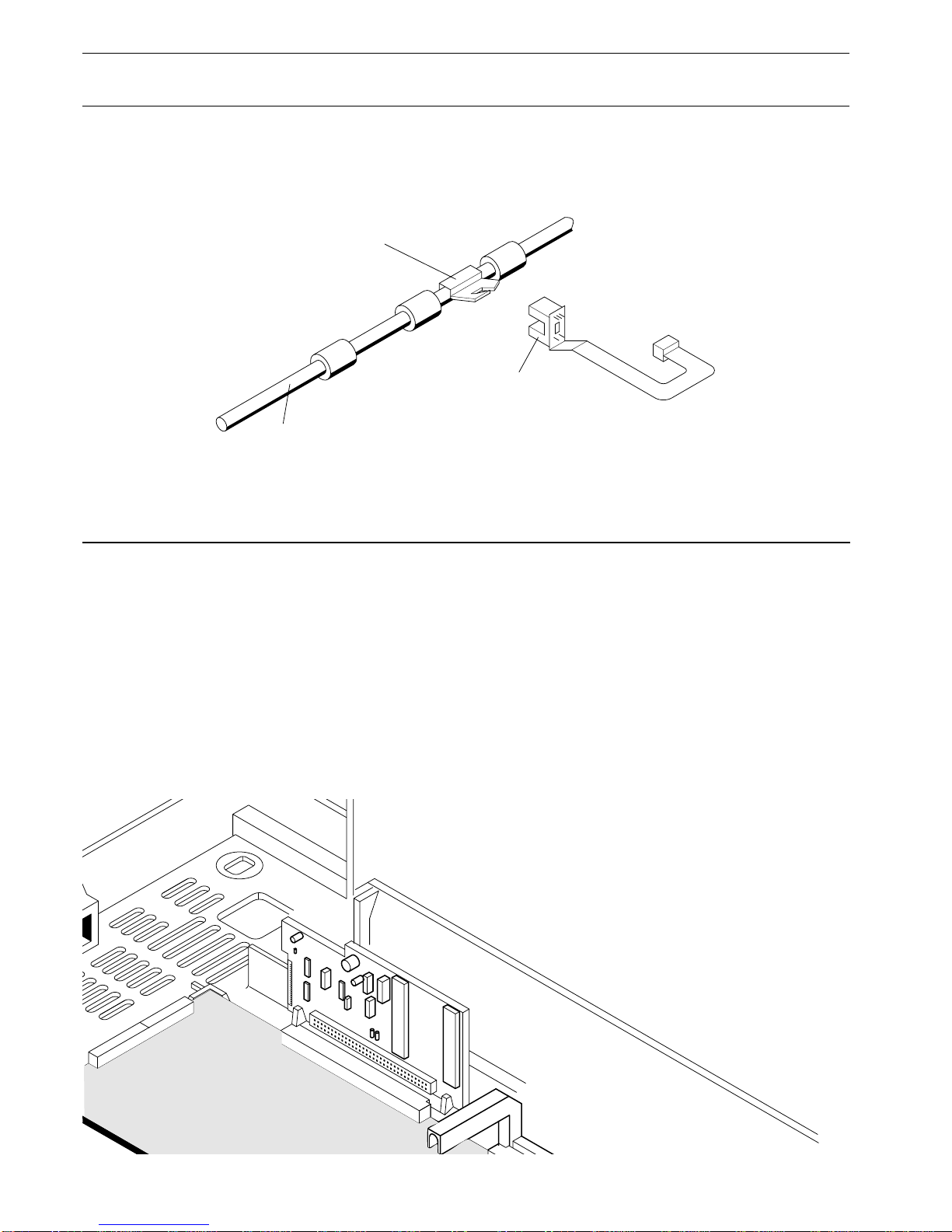

/ Connection Board 448 006 448 006 448 006 448 006 A s 1
1 Carriage Adapter I 047 575 047 575 047 575 047 575 A s 1
2 Carriage Adapter II 047 575 047 575 047 575 047 575 A s 1
3 ASF/Cutter Cable 046 807 046 807 046 807 046 807 B t 1
4 Interlock Assy 047 523 047 523 047 523 047 523 B c 1
5 CR-Motor 461 506 447 568 461 506 447 568 A s 1
6 Rear Tractor Cable (option) 1 na 047 563 na 047 563 B c 1
7 Color Motor Cable na 047 527 B c 1
8 Function Select Sensor 061 523 061 523 061 523 061 523 A s 1 Kit
9 Option Recognition Sensor 048 022 048 022 048 022 048 022 B c 1
10 LF-Motor 053 437 053 437 053 437 053 437 A s 1
11 AGA-Motor 048 367 048 367 048 367 048 367 A s 1
12 Panel Cable 047 520 047 520 047 520 047 520 B t 1
13MainController ––––
14 Function Select Motor 053 441 053 441 053 441 053 441 A s 1
15 Sensor PE Rear 048 025 048 025 048 025 048 025 A s 1

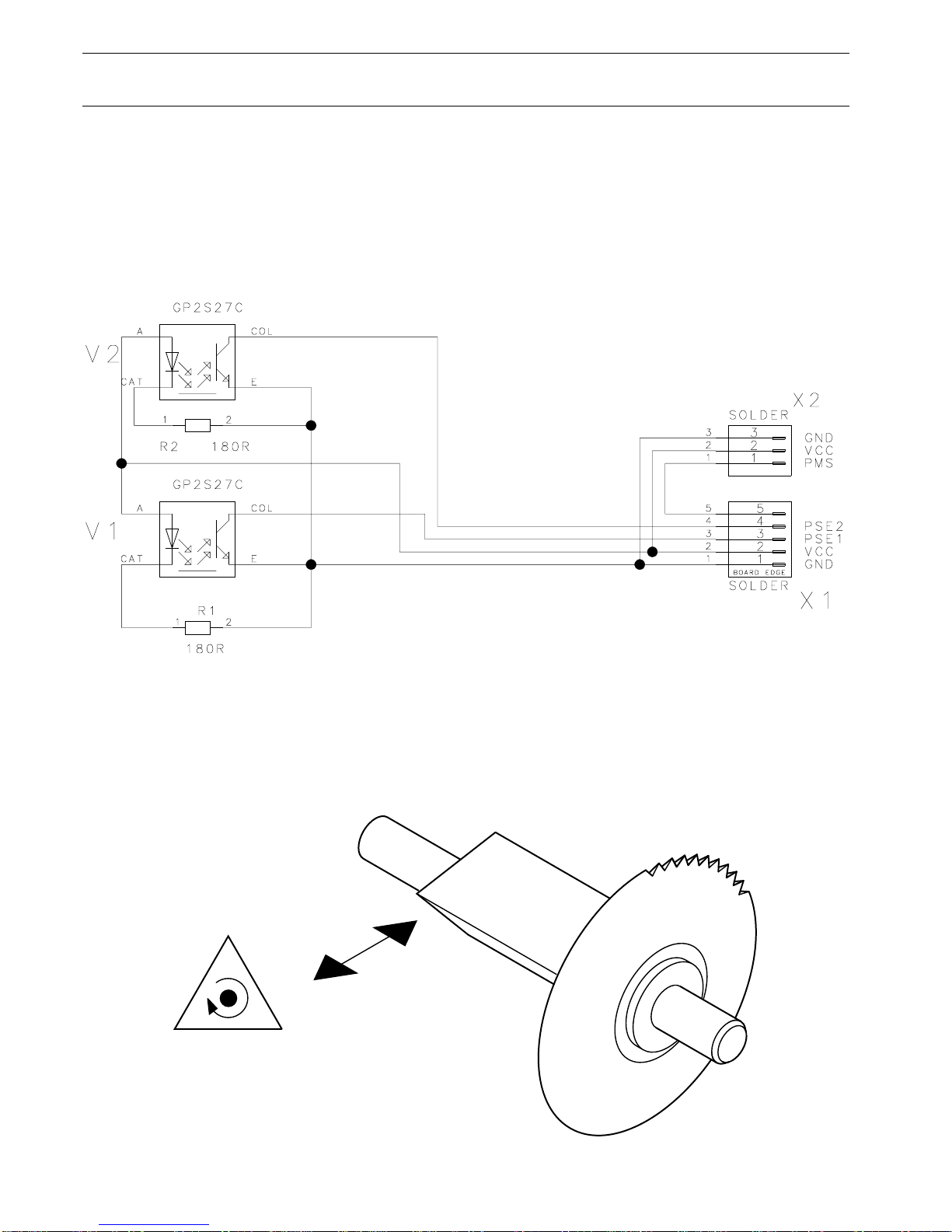

16 PE and PMS-Sensor 048 027 048 027 048 027 048 027 A s 1
3
2
A1 / LP 48005
1
4
5
X5 X11 X17 X3
X6 C2
X12
X12 X16
X15
X4
X7
F2
X8
C3
X9 X13
X10
X14
A3
X2
11 10 9
12
16
14
13
15
6
7
8
Spare Parts and Schematics Connection Board/Cables
7-13

“/”: no item number available. Please see details in according chapters; “na”: no spare part
Part ID-No Class. Qty
Power Switch Assy 047 526 A 1
Part ID-No Class. Qty
Cable Power Supply 047 522 B 1
Connection Board/Cables Spare Parts and Schematics
7-14

7.6
Electronic Parts
and Sensors
7.6.1
Mainboard
Complete Standard
Spare Assy
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
/Main Board Complete Standard Spare Assy 048 232 048 240 048 576 048 502 A s 1
Spare Parts and Schematics Electronic Parts and Sensors
7-15

7.6.2
Carriage Adapter
Assy
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
/ Carriage Adapter 447 575 447 575 447 575 447 575 A s 1
A1
B-Seite
Darstellung
ohne A2/A3/A4
Kabelführung A4
Kabel L-Seite A2
L-Seite (A1)
B-Seite (ohne Bestückung)
Kabel B-Seite A3
X2
C1
X7
X1
Electronic Parts and Sensors Spare Parts and Schematics
7-16

7.6.3
Sensor
Papermotion/End
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
/ Sensor Papermotion/end 061 312 061 312 061 312 061 312 A s 1
7.6.4
Sensor ASF/3rd
Tractor
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
/ Sensor ASF/3rd Tractor 048 025 048 025 048 025 048 025 A s 1
7.6.5
Sensor Interlock
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
/ Sensor Interlock 047 523 047 523 047 523 047 523 A s 1
615 mm
PMS
LP. 48023
LP.48026
Paper End
AFI1
X7
PMS (PT6)
PSE2 (PT7)
PSE1 (PT3)
Vcc
GND
100 mm
rt
530 mm
LP. 48023 PSE4 (PT
4
Vcc
GND
rt
X9
LP. 47517
680 mm
ISW2
Vcc
GND
br
ISW1
X8
Spare Parts and Schematics Electronic Parts and Sensors
7-17

7.6.6
Sensor Funciton
Selection
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
/ Sensor Function Selection 061 523 061 523 061 523 061 523 A s 1 Kit
7.6.7
AGA Sensor
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
/ AGA Sensor 447 540 447 540 447 540 447 540 A s 1
7.6.8
Horizontal Sensor
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
/ Horizontal Sensor 447 514 447 514 447 514 447 514 A s 1
7.6.9
Non Standard
Controller Parts
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
/ Korea Controller + Power Supply na 048 244 na 048 548 B c 1
/ China Mainland Controller + Power Supply 048 234 048 242 048 604 048 510 B c 1
/ Taiwan Controller + Power Supply 048 238 048 246 048 602 048 506 B c 1
LP. 47684
FSS2
Vcc
GND
rt
FSS1
250 mm
X3
Electronic Parts and Sensors Spare Parts and Schematics
7-18

7.7
Panel
Spare
Item Name T2155 T2170 T2265 T2280 Class. depot Qty. Remark
1 Panel complete 060 014 060 009 061 618 061 619 A s 1
2 Switch Unit 070 109 070 109 070 109 070 109 B c 1
3 Panel Logic na na na na B 1
4 Clamp 054 589 054 589 054 589 054 589 B c 1
“/”: no item number available. Please see details in according chapters; “na”: no spare part
1
2
3
4
Spare Parts and Schematics Panel
7-19

7.8
PMS + Double
Sensor
PMS mechanic
PMS + Double Sensor Spare Parts and Schematics
7-20
