Multipower
User Guide
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

2
A B D
C
06081002
E
Contents
Multipower
Identification of the manufacturer and equipment
The identification plate of the equipment and manufacturer, affixed to the frame
behind the barbell rack, gives the following details:
A Name and address of the manufacturer
B CE Mark
C Serial number
D Cautions
E Equipment classification
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

3
06081003
Contents
Multipower
Description of the equipment
Barbell
Guide rods
Barbell supports
Stop hooks
Safety stops
Weight plate storage posts

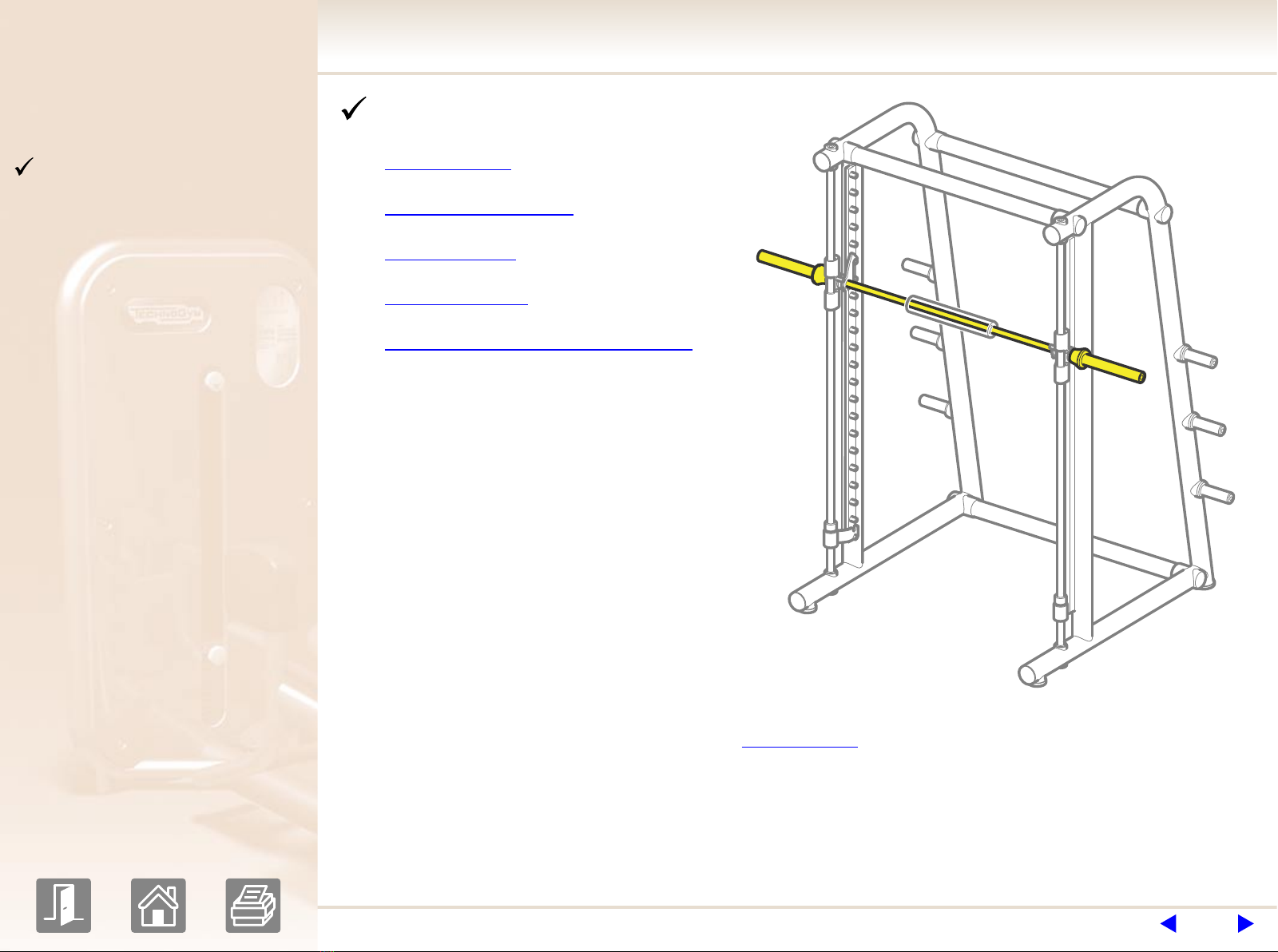

Barbell: moves up-and-down on the guide rods and provides the exercise workload.
The weight plates can be positioned on its ends to increase the workload.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

4
06081004
Contents
Multipower
Description of the equipment
Barbell
Guide rods
Barbell supports
Stop hooks
Safety stops
Weight plate storage posts
Barbell: moves up-and-down on the guide rods and provides the exercise workload.
The weight plates can be positioned on its ends to increase the workload.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

5
06081005
Contents
Multipower
Description of the equipment
Barbell
Guide rods
Barbell supports
Stop hooks
Safety stops
Weight plate storage posts

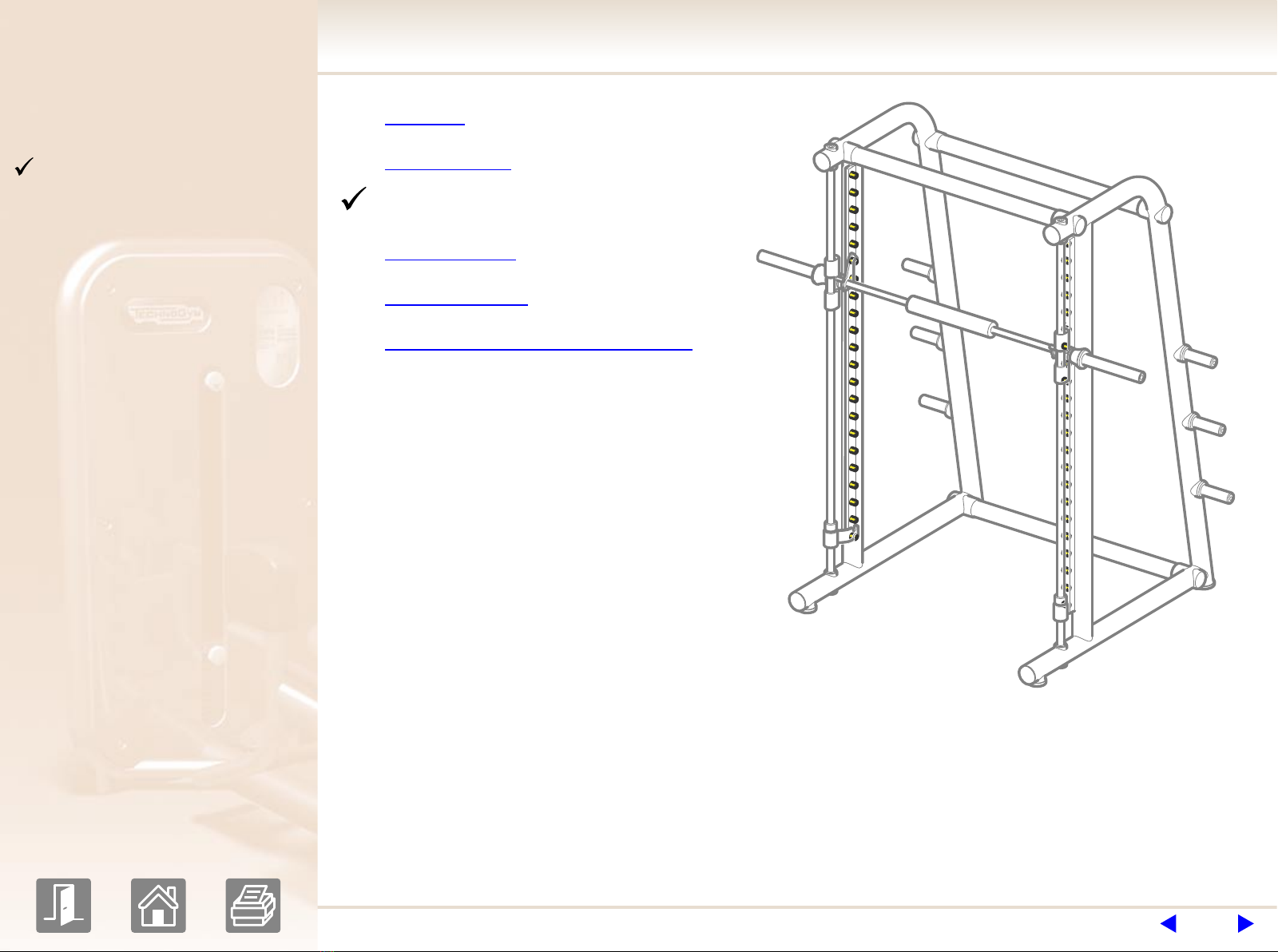

Barbell supports: pin used to set the starting position of the barbell.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

6
06081006
Contents
Multipower
Description of the equipment
Barbell
Guide rods
Barbell supports
Stop hooks
Safety stops
Weight plate storage posts
Stop hooks: are operated by the user with a twist of the wrist, to lock and release
the barbell on the supports.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

7
06081007
Contents
Multipower
Description of the equipment
Barbell
Guide rods
Barbell supports
Stop hooks
Safety stops
Weight plate storage posts
Safety stops: are positioned on the barbell support pins to set the lowest travel
limit of the barbell.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

8
06081008
Contents
Multipower
Description of the equipment
Barbell
Guide rods
Barbell supports
Stop hooks
Safety stops
Weight plate storage posts
Weight plate storage posts: are used for holding the weight plates (not included)
that are not needed for the exercise.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

9
06081013
06081014
2097 mm
(86")
1380 mm
(54")
185 kg (408 lb)
15.5 kg (34 lb)
2221 mm
(87")
1485 mm
(58")
Contents
Multipower
Technical data
The maximum weight that can be loaded on the barbell is 250 kg (552 lb).
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

10
04194016_targ_schiacciamento
Contents
Multipower
Safety labels and devices
The equipment does not have any sharp corners.
The stop hooks, integral with the barbell, lock the barbell on the supports at the
end of the set. Are operated by the user with a twist of the wrist.
Warning
It is important to pay attention to the labels affixed to the equipment,
as they provide information about possible risks and hazards.
Pay particular attention to the parts of
the equipment with labels indicating
“DANGER OF SQUASHING”.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

11
Contents
Multipower cont.
Packing
The equipment is supplied disassembled, protected by cellophane and carton
and secured to a pallet.
The equipment is supplied disassembled into the following parts:
- 2 frames, secured to the pallet with straps
- 3 cross-bars
- 1 barbell, already assembled in the guide rods
- 6 weight plate posts
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

12
04194017
Contents
Multipower
Packing

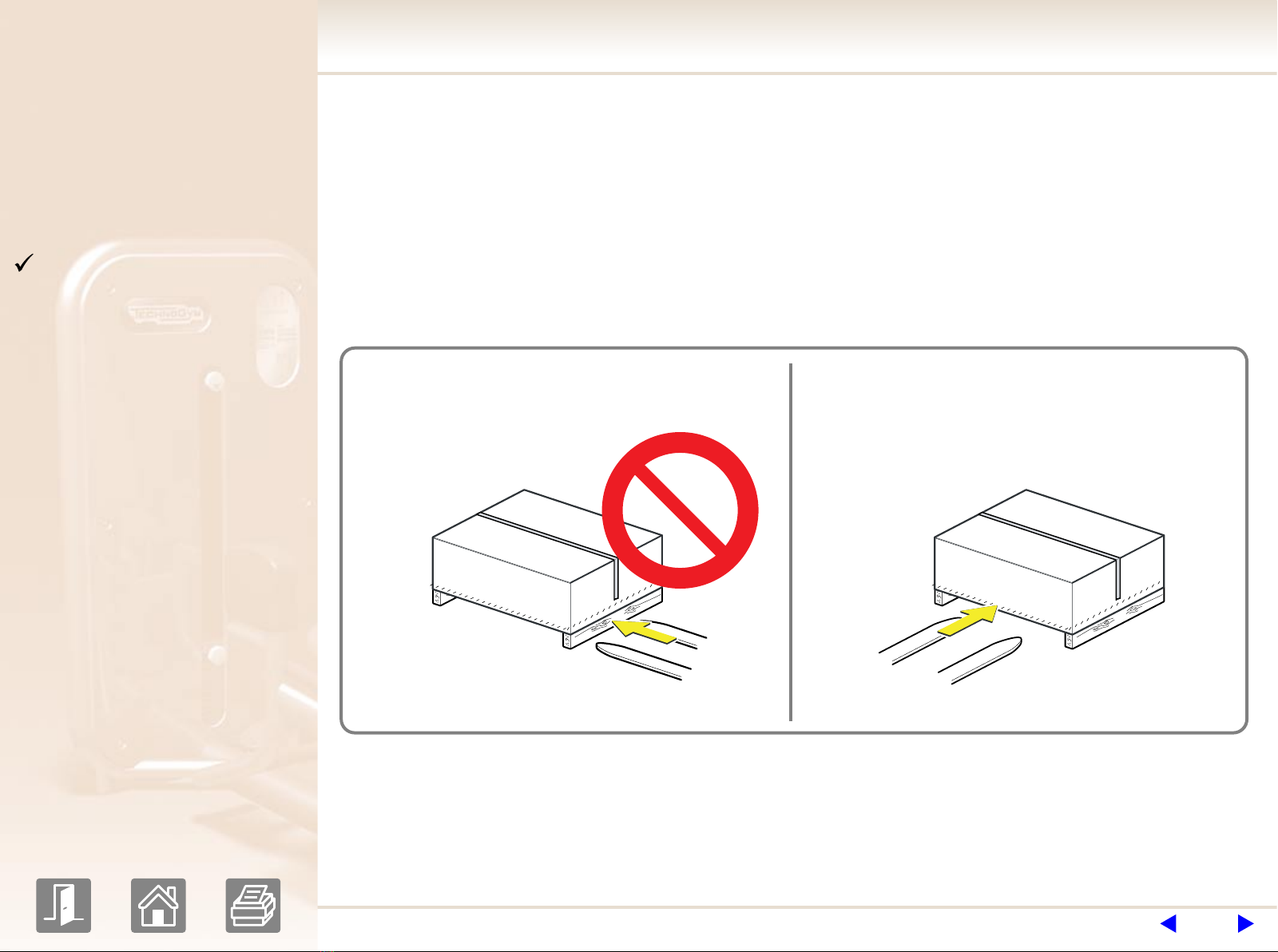

The lifting and carrying can be done with normal lifting machines.
In order to ensure the safety of persons and property, carefully determine the lifting
and handling machine used as a function of the place of installation.
OK
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

13
Contents
Multipower
Place of installation
To guarantee safe, comfortable and effective use of the equipment, the place
of installation must comply with certain specific requirements; in particular,
before choosing where to install the equipment it is recommended to check the
following:
- temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90% when
the equipment is in use;
- adequate lighting, so that the physical exercise takes place in pleasant and
relaxing conditions;
- sufficient clearance on all sides of the equipment, taking into account its
maximum dimensions during the movements, necessary for safety reasons;
- a flat, stable and vibration-free floor surface, with adequate carrying capacity
for the equipment’s weight.
If the equipment is to be installed in a public recreation area, the place of
installation must comply with all binding regulations.
Warning
The equipment must be installed and used in a place whose access
and supervision are specifically controlled by the owner.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

14
06081018
Contents
Multipower cont.
Unpacking
The equipment is supplied on a pallet, to
which it is secured by means of straps.
To remove the equipment from the
packing:
- cut the carton along the bottom and
pull it away from the top;
- remove the cellophane by pulling it
away from the top;
- untie the straps securing the
equipment to the pallet;
- lift each component and place it on
the ground;
- separate and lift the two frames,
rest them up against a wall or other
fixed object and support them until
the three cross-bars have been

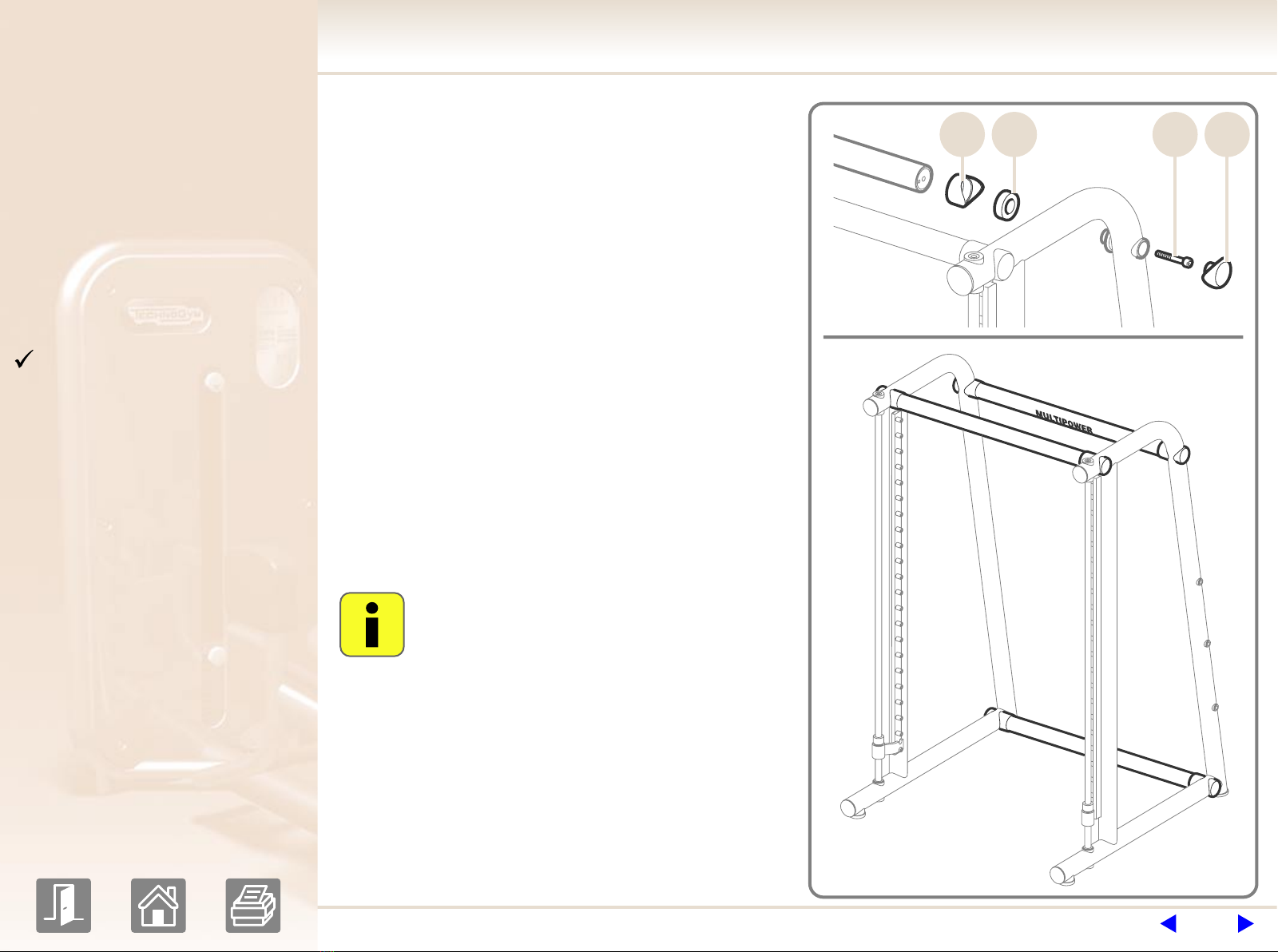

assembled.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

15
Contents
Multipower
Unpacking
Warning
Given the weight of the equipment, we recommend that more than
one person be involved in lifting it.
Danger
The packing materials (boxes, bags, etc.) must not be left within the
reach of children, as they constitute a possible hazard; nor must they
be disposed of in the environment.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

16
06081020
DCAB
Contents
Multipower cont.
Assembling the equipment
Assembly the tree cross-bars and join
the two frames:
- rest the protection (A) against the
frame;
- join the cross-bar to the frame,
on the special protection, with the
spacer (B);
- fix the cross-bar with the screw (C);
- cover the screw with the cap (D).
The cross-bar with the equipment name
goes in the middle; the writing must face
the barbell.
Warning
Given the weight of the
equipment, we recommend
that more than one person be
involved in lifting and moving
the frames.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

17
06081021
EE
F
F
Contents
Multipower cont.
Assembling the equipment
To assemble the barbell:
- unscrew the screws (E) to free the guide rods in the bottom; they are not fixed
at the top;
- lift the bars and insert the barbell guide rods (F);
- lower the bars back in their seating and tighten the screws (E).
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

18
06081022
G H
Contents
Multipower
Assembling the equipment

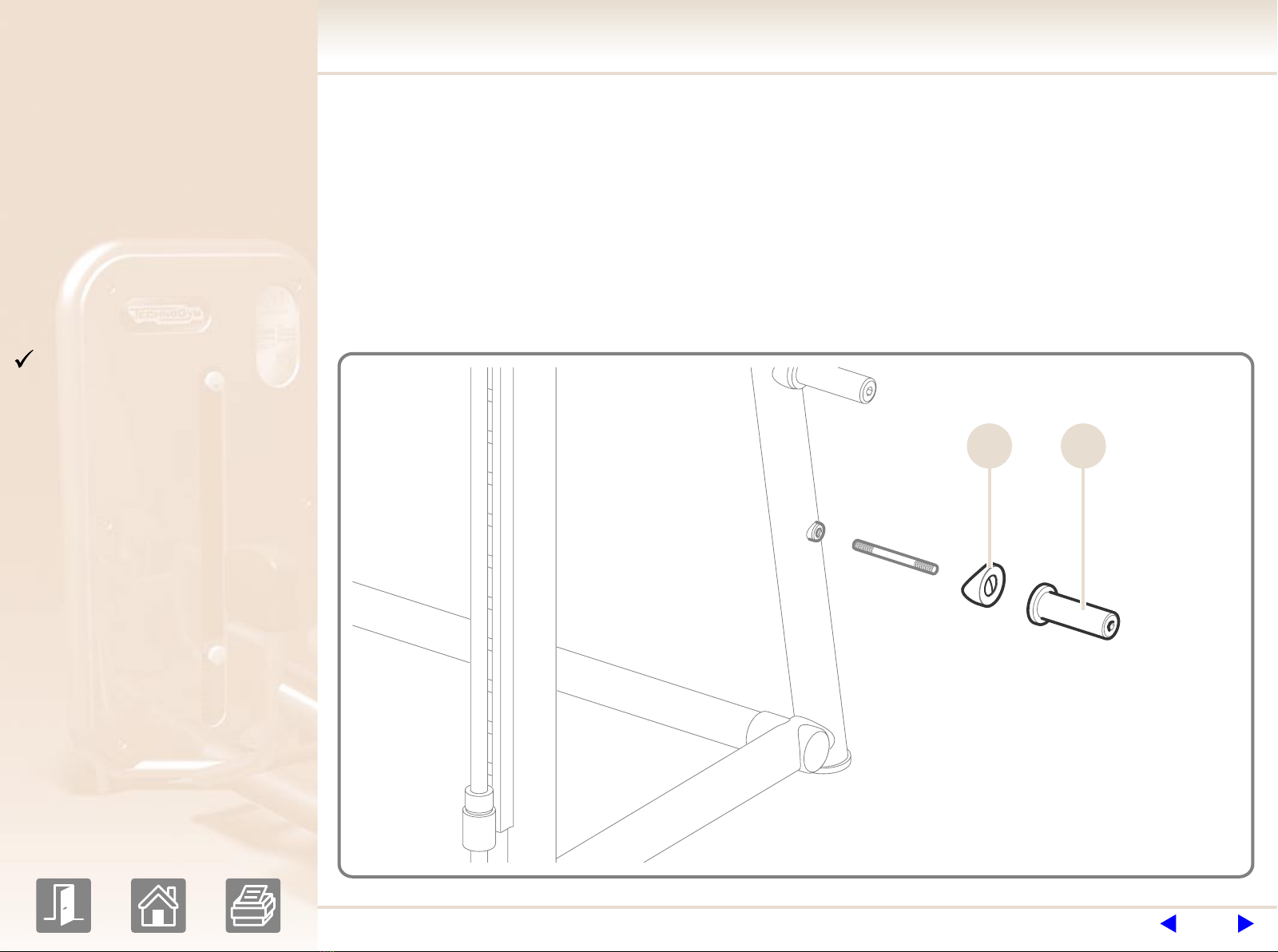

To assemble the weight plate posts:
- screw the screw in the frame hole;
- insert the spacer (G) on the screw;
- screw the pin (H) on the screw.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

19
Contents
Multipower
Lifting and handling the equipment
Before moving the equipment, firstly release it from the floor-mounting and
disassemble it.
Follow the instructions described in the assembly section in reverse order.
Warning
Given the weight of the equipment, we recommend that more than
one person be involved.
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment

20
06081023
BA
BA
Contents
Multipower cont.
Securing the equipment

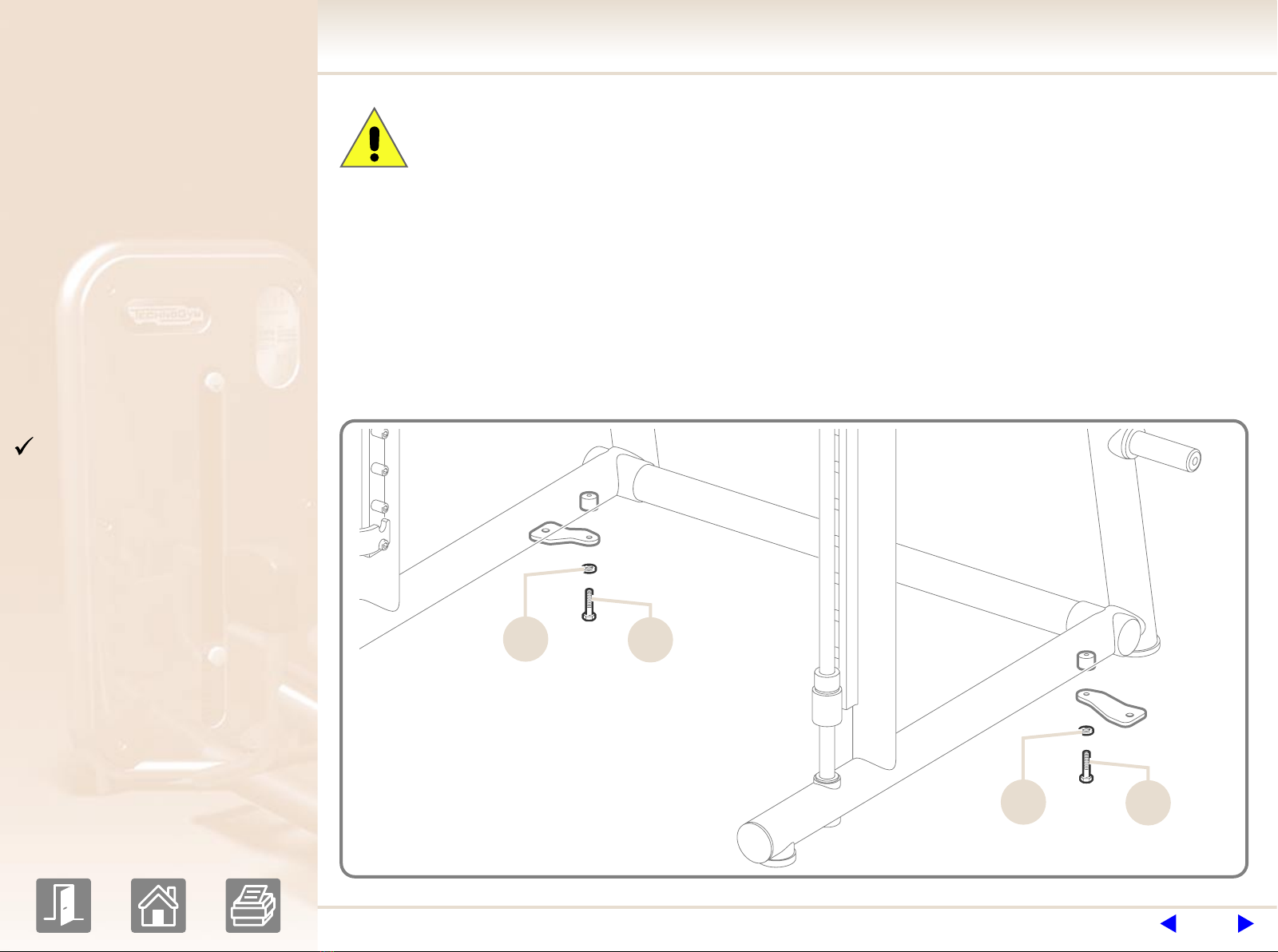

Danger
It is mandatory to secure the equipment to the floor with the specific
fixing screws and brackets.
Technogym cannot be held liable for any damage caused by failure to
secure the equipment.
Proceed as follows to secure each frame to the floor:
- secure the brackets to the frame with screws (A) and washers (B);
Identification of the manufacturer
and equipment
Description of the equipment
Technical data
Safety labels and devices
Packing
Place of installation
Unpacking
Assembling the equipment
Lifting and handling
the equipment
Securing the equipment
Adjusting the equipment
Routine maintenance
Replacing the weight plate posts
Technical Service
Storage
Disposing of the equipment
Using the equipment
