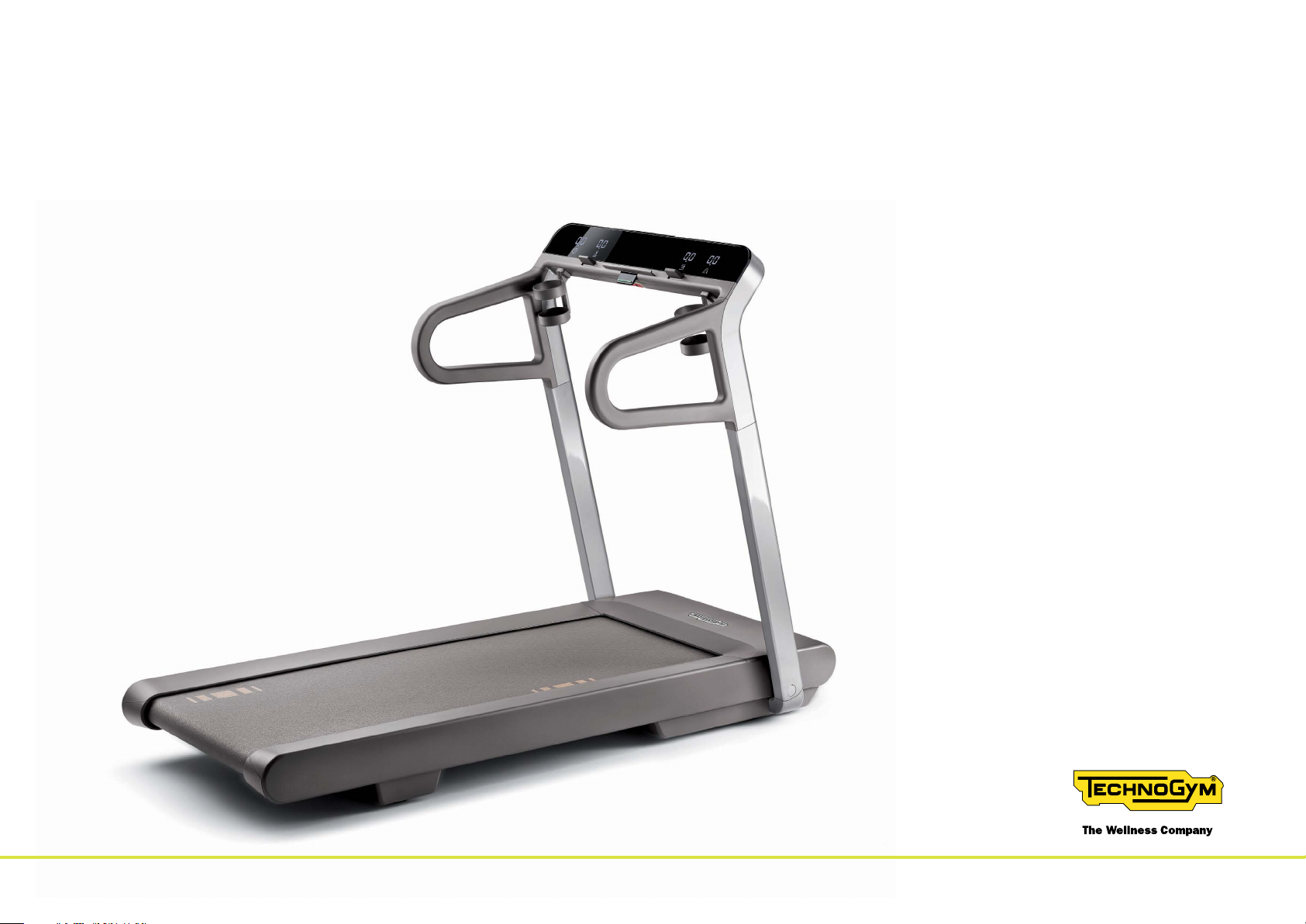

Technogym MyRun User manual

MYRUN TECHNOGYM
User Manual

MYRUN TECHNOGYM 2
Contents
Important safety instructions.......................................................3
Personal safety ...............................................................................5
Identication of the unit.................................................................7
Technical data..................................................................................8
Description of the equipment........................................................9
Accessories....................................................................................12
Safety devices and warnings......................................................13
Place of installation ......................................................................16
Moving the equipment .................................................................17
Levelling........................................................................................ 18
Electrical connection....................................................................19
Turning on and o........................................................................ 20
Working out with MYRUN TECHNOGYM ...................................... 22
Using a tablet................................................................................ 25
Setting exercise data................................................................... 26
Routine maintenance.................................................................. 27
Treadmill belt alignment ............................................................. 28
Easily solved problems ............................................................... 29
Error messages............................................................................ 31
Fitting and removing the side handgrips.................................. 32
Technical Service ......................................................................... 33
Storage .......................................................................................... 34
Disposal ........................................................................................ 35

MYRUN TECHNOGYM 3
Important safety instructions
Always consult a qualied and licensed medical professional or healthcare practitioner before beginning any nutritional or diet regime and any stretching
or training programme. Remember that it is always good practice to make full inquiries and nd out about any possible eects that actions and choices you
make may have on your health.
MYRUN TECHNOGYM is intended for home use.
Please read all instructions before using the equipment. These instructions were written to ensure your safety and to protect the unit.
When using an electrical appliance, basic precautions should be always followed, including those listed below.
D
To reduce the risk of electric shock, always unplug the unit from the electrical outlet immediately after using and before cleaning or
performing any maintenance procedures.
W
To reduce the risk of burns, re, electric shock or injury to person, take the following precautions.
The unit should never be left unattended when plugged in. Unplug the unit from the power outlet when not in use, before cleaning it, and before installing or
removing electrical parts.
Do not allow children unsupervised access to the unit; parents and any other adults to whom the children are entrusted must take responsibility for them
and prevent any situations from occurring and any behaviour for which the equipment is not intended. When children are present, they must be carefully
supervised, bearing in mind their psycho-physical development in relation to the use of the equipment. The equipment is totally unsuitable for use as a toy.
The equipment may be used by or near disabled persons only under careful supervision by qualied personnel.
Use the unit exclusively for the purposes described in the user manual; only perform the exercises for which the unit has been designed, following the
instructions given in the manual. Any other use should be considered incorrect and therefore dangerous.
Do not use any accessories other than those recommended by Technogym.

MYRUN TECHNOGYM 4
Important safety instructions
Never turn on the equipment if it has a damaged cable or plug, if it does not work correctly, if it has been knocked over or damaged, or if it has fallen into
water. In these circumstances, contact the Technogym Technical Support Service.
Do not use the power cable to pull the equipment or as a handle.
Keep the power cable away from heated surfaces.
Keep your hands away from moving parts.
Never drop or insert any object into any opening.
Do not use outdoors. Do not leave the unit outdoors, exposed to the elements (rain, sun, wind, etc.). Do not expose the unit to water jets.
Do not operate the unit where aerosol (spray) products are being used or where oxygen is being handled.
To disconnect power, turn all controls to the o position, then remove the plug from the outlet.
W
Connect the unit only to a properly earthed outlet. See earthing instructions.
SAVE THESE INSTRUCTIONS

MYRUN TECHNOGYM 5
Personal safety
Before beginning any exercise, it is advisable to carefully read all parts of the manual and gain full understanding of the unit's controls.
Use of the unit is subject to a medical examination in relation to the type of workout exercise you intend to perform, and in compliance with the conditions
for use laid down by Technogym.
Before beginning a training plan, consult a doctor to ascertain any limitations to use of the equipment.
Persons suering from certain physical conditions may only use the unit under the strict supervision of a doctor with specic qualications.
If you feel unwell (dizziness, chest pain, etc.) while performing the training, immediately stop the exercise and consult a doctor.
Before starting any workout, make sure your position on the unit is correct, and be careful with any components that might constitute an obstruction.
Plan the workout according to your physical characteristics and state of health, beginning with less demanding workloads.
Do not overexert yourself or work to exhaustion. If you feel pain or unusual symptoms, stop training immediately and seek medical assistance.
Incorrect or excessive workout may cause physical harm.
Wear proper workout clothing and shoes during training; do not wear loose clothing. Tie long hair back. Keep garments or towels away from moving parts.
During use other people must remain at a safe distance.
Do not use the unit when children or pets are present.
Completely assemble the unit before using it. Check the unit before each use. Do not continue to operate the unit when it is not working properly.
Assemble and operate the unit on a solid, level surface.
Keep all the components, such as for example the power cable and the on/o switch, away from liquid substances, to avoid all risk of electric shock.
Keep the equipment in good operating condition. If you see signs of wear, contact Technogym's technical support service.
Do not attempt to perform maintenance operations on the equipment other than those described in the user manual.
Do not place anything on the frame, on the treadmill belt or on the control panel.

MYRUN TECHNOGYM 6
Personal safety
The equipment is designed and constructed in compliance with the requirements for user safety and health; however, there are some areas that may give
rise to risks that are not plainly evident. We therefore recommend taking particular care to avoid any risk of crushing upper and lower limbs.
W
Technogym S.p.a. holds itself responsible for the equipment only if the following precautions are taken:
- the equipment is used in compliance with its specications;
- all sections of the user manual have been carefully read;
- the place of installation complies with the requirements stated in the user manual;
- the electrical system conforms to the standards and legal requirements in the country of use;
- the user wears suitable clothing;
- no towels or anything else are placed on the equipment.
Technogym is not responsible for any harm due to any failures or damage caused by unauthorized maintenance, misuse, accident, negligence, improper
assembly or installation, debris resulting from any construction activities in the area where the unit is used, rust or corrosion as a result of the product’s
location, alterations or modications without Technogym’s written authorization or for failure on your part to use, operate and maintain the unit as set out
in this User Manual.

MYRUN TECHNOGYM
Technogym S.p.A.-Cesena (FC)
MYRUN Model no. DCKH2BB
Maximum User’s Weight: 130kg
Electric Class: I
EN957 - 6 Class: HB
S/N DCKH2BB 1400001 05/14
7
Identication of the unit
A- Manufacturer’s name and address
B- Description of the product
C- Maximum user weight
D- Classication of the unit
E -CE Mark
F- Consultation of user manual required
G -Serial number and date of manufacture
H- Product code
The data shown in the drawing are given purely as an indication; for correct
information, check the label on the equipment or the data given in the
"Technical data" paragraph.

MYRUN TECHNOGYM
1760 mm (69")
1260 mm (49")
790 mm (31")
8
Technical data
Maximum power input 1500 W
Stand-by power consumption Less than 0.5 W
Weight of the unit 92 kg (203 lb)
Maximum user weight 140 kg (309 lb)
Maximum capacity of water
bottle-holder 0,8 kg (1,8 lb)
Speed (*) 0.8÷20 km/h ± 5%
(up to 2 km/h ± 0.1 km/h)
Starting speed of a workout 1.2 km/h
Gradient 0÷12% ± 1%
Time 0÷999 min ± 1%
Distance 0÷99.99 km ± 5%
Noise Less than 70 dB
Protection rating IP 20
Operating temperature from +5° to +35°C
Electrical insulation class Class I
Product class HB
Manufacturer Technogym s.p.a.
via Perticari 20 - 47065 Gambettola FC
Marks and certications CE
(*) Performance measured with user weighing 85 kg (187 lb).
Power supply 200 - 240 Vac ± 10%
50/60 Hz
100 - 120 Vac ± 10%
50/60 Hz
Standard unit, not protected against ingress of water.

MYRUN TECHNOGYM
A
F G
C
C
B
D E
E
B
9
Description of the equipment
Treadmill belt (A): is a correctly cushioned running surface.
Side handgrips (B): provide a safe support for you when climbing onto the
equipment or if you lose your balance. They may be gripped to take long
strides.
Footrests (C): by moving your feet from the treadmill belt to the footrest, you
can take a short rest if you are tired or in danger
Screen (D): displays the parameters of the current exercise, that is the time
elapsed, speed and gradient of the belt, distance covered.
Fast track controls (E): allow you to change the speed and gradient of the
belt during the exercise.
Start/stop key (F): when it is green, you can start an exercise; when it is red,
you can stop the belt.
When held down for at least 2 seconds it pauses the exercise; it lights up green
while paused. Press the button again to restart the paused exercise; hold the
button down for at least 2 seconds to end the paused exercise.
Support for small electronic devices (G): you can place your tablet on it.

MYRUN TECHNOGYM
mls
km
mphmin/mi
min/km km/h
%mm.ss
+1h+2h
+3h mm:ss
%
10
The following information is shown on the display during the exercise.
Belt speed or pace Distance covered Belt gradient
Elapsed time
The elapsed time is expressed in minutes and seconds.
For each hour of exercise, a luminous indicator turns on next to the clock icon.
The belt gradient is shown as a percentage.
Description of the equipment

MYRUN TECHNOGYM
mphmin/mi
min/km km/h
mls
km
11
Depending on the setting selected, either the treadmill speed or the pace can be displayed.
The speed is expressed in kilometres per hour (km/h) or miles per hour (mph), depending on the setting.
The pace is expressed in minutes per kilometre (min/km) or minutes per mile (min/mi), depending on the setting
To select the value to be displayed, see the paragraph “Setting the exercise data”.
The distance covered is expressed in kilometres; above 100 kilometres, the count restarts from 0.
The distance can be expressed in kilometres or miles, depending on the selected setting.
To select the value to be displayed, see the paragraph “Setting the exercise data”.
.
Description of the equipment

MYRUN TECHNOGYM
24
16
4
5
2
3
1
6
7
8
12
Accessories
The kit supplied with the equipment includes the following accessories:
1- Spanner for assembly
2- Important safety instructions
3- Guarantee certicate and statement of conformity
4- Power cable
5- Cleaning cloth
6- Levelling spanner
7- Tool for removing the panels for access to adjustments
8- Water bottle holder

MYRUN TECHNOGYM
B
A
13
Safety devices and warnings
Pull-operated magnetic stop device (A). Located under the start/stop key, it
immediately stops the equipment in an emergency situation. A cord connects
the stop device to a clip (B) to be attached to your clothing; in this way, if
you are too far from the screen, dropping back towards the edge of the belt,
the stop device will be pulled away, thus causing the treadmill belt to stop,
without any need to use the controls.
The stop device must be repositioned to restore operation to the equipment.
To put the clip back in its holder, wind the cord in the direction shown in the
illustration.
Before using the equipment, check that the stop device works correctly
and attach the cord to your clothing with the clip provided.
Product immobilisation
To prevent uncontrolled use of the product, remove the magnetic stop
device (A) and store it in a safe place.

MYRUN TECHNOGYM
C
14
Safety devices and warnings
Main switch (C). Turns the unit’s power on and o. It also protects the unit’s
electrical parts: when the current increases excessively, the circuit breaker
opens thus protecting the internal electronics.
This symbol indicates the presence of moving parts.
Only trained personnel may work on the product areas where this symbol is present.

MYRUN TECHNOGYM
D
D
15
Safety devices and warnings
User Present Function
The user present function is a safety function which stops the belt if it is moving without any person walking or running on it.
This function is activated if the belt is at a speed greater than or equal to 3 km/h.
If no user is detected for 30 seconds when at a speed of 3 km/h or more, the belt stops and the exercise is paused.
At minimum speed, the user is detected only if they weigh at least 50 kg.
Marking on the treadmill belt (D)
The marking on the two sides of the treadmill belt indicates if the treadmill
is moving.

MYRUN TECHNOGYM 16
Place of installation
To guarantee safe, comfortable and eective use of the unit, it must be
installed in a place which complies with certain specic requirements; in
particular, before choosing where to install the unit we recommend that you
check that the following conditions are available:
- a temperature between +10°C and +25°C;
- sucient ventilation to maintain a humidity level between 20% and 70%,
when the equipment is in use;
- adequate lighting, so that the workout takes place in pleasant and relaxing
conditions;
- a safety clearance of 2 x 1 m, as shown in the illustration;
- a at, stable and vibration-free surface, and strong enough to bear the
weight of the equipment plus user.
The place of installation must comply with all the suitability requirements laid down in current legislation on this matter.
Do not expose the equipment to direct sunlight.
Do not install the equipment in areas with high humidity levels, for example close to swimming pools, whirlpools or saunas.
A dedicated power-supply circuit is recommended; this should be tted with a combined MCB/RCD with the following characteristics:
- Type C10, if the mains voltage is 200-240VAc;
- Type C16, if the mains voltage is 100-120Vac.
If it is not possible to connect the product to a dedicated power-supply circuit with the specications given, consult an electrician.

MYRUN TECHNOGYM 17
Moving the equipment
W
Move the equipment very carefully, because it may become unstable and tip over.
After each move, check that the equipment is level, to ensure that it operates correctly.
The product has two xed front wheels.
To move it, lift it slightly at the sides, as shown in the illustration, and push
it forwards or backwards.
Given the weight of the equipment, we recommend that more than one person
be involved in moving it.
If the state of the oor does not allow the wheels to be used, the unit must be
moved by using standard lifting and transport equipment.

MYRUN TECHNOGYM
C
D
A B
A
D
E
18
Levelling
Before use, check that the unit is level.
If one of the two feet (A) or (B) does not touch the oor, foot (A) must be
adjusted, using the spanner provided as described below.
Insert the tool supplied (C) into the hole provided and use it to prize open the
panel (D).
Loosen the lock nut (E).
Screw foot (A) in or out until both feet (A) and (B) touch the oor.
Tighten lock nut (E) after adjustment is completed.
Close panel (D).

MYRUN TECHNOGYM 19
Electrical connection
Beforeconnectingtheunit to the mainspower supply,ensurethattheelectricalinstallationcomplieswithcurrentregulations. Check the mains power supply
specications on the unit's identication plate.
W
The wall socket must be located in a place where the unit may be easily and safely plugged in and unplugged.
When plugging in, the main switch on the unit must be in the 0 position (i.e. the unit must be switched o).
Check the state of the power cable periodically.
Plug the power cable into the unit's socket rst and then into the wall socket.
The unit must be earthed. If the unit malfunctions or breaks down, earthing
provides a minimum resistance path for electric current thus reducing the risk
of electric shock. The unit is equipped with a cable that includes an earth wire
and an earthing plug. The plug must be connected to an appropriate socket
that is properly installed and earthed in accordance with all local codes and
ordinances.
W
The power supply socket must be earthed . If not, an earth connection must be installed by a qualied electrician before connecting
the unit to the electricity mains.
Improper connection of the earth wire may result in a risk of electrical shock. Check with a qualied electrician or serviceman if you
are in doubt as to whether the product is properly earthed. Do not modify the plug provided with the unit; if it does not t the socket,
have a suitable socket installed by a qualied electrician.

MYRUN TECHNOGYM 20
Turning on and o
Turn the unit on only after completing its assembly.
To turn the unit on, ip the main switch to position “I” (on).
After a quick system check (reset), the equipment is ready for use.
To turn the unit o, switch the main switch to position “0” (o).
Turn the unit o only at the end of the exercise, when the belt is not turning.
If the unit is not expected to be used for a long time, in addition to turning it
o with the main switch, you should also pull the plug out of the wall socket.
W
The switch is used to turn the unit on and o, but does not fully
disconnect it from mains power, even when set to the “0” (o)
position. For complete disconnection you must remove the
plug from the power supply.
