Technogym MB430 User manual

Dual Adjustable Pulley
User manual

Dual Adjustable Pulley 2
Contents
Important safety instructions.................................................................................3
Personal safety .........................................................................................................4
Identication of the manufacturer and the equipment........................................6
Description of the equipment..................................................................................7
Technical data............................................................................................................8
Accessories................................................................................................................9
Place of installation ................................................................................................10
Assembling the equipment....................................................................................11
Assembling the barbell supports .........................................................................18
Adjusting the equipment........................................................................................19
Lifting and handling the equipment.................................................................... 20
Securing the equipment.........................................................................................21
Routine maintenance............................................................................................ 22
Replacing the spring hook......................................................................................23
Technical Service ....................................................................................................24
Storage .....................................................................................................................25
Disposing of the equipment ..................................................................................25
Using the equipment ............................................................................................. 26

Dual Adjustable Pulley 3
Important safety instructions
Always consult a qualied and licensed medical professional or healthcare practitioner before beginning any nutritional or diet regime and any stretching
or training programme. Remember that it is always good practice to make full inquiries and nd out about any possible eects that actions and choices
you make may have on your health.
Please read all instructions before using the equipment. These instructions were written to ensure your safety and to protect the unit.
Do not allow children unsupervised access to the unit; parents and any other adults to whom the children are entrusted must take responsibility for
them and prevent any situations from occurring and any behaviour for which the equipment is not intended. When children are present, they must be
carefully supervised, bearing in mind their psycho-physical development in relation to the use of the equipment. The equipment is totally unsuitable for
use as a toy.
The equipment may be used by or near disabled persons only under careful supervision by qualied personnel.
Use the unit exclusively for the purposes described in the user manual; only perform the exercises for which the unit has been designed, following the
instructions given in the manual. Any other use should be considered incorrect and therefore dangerous.
The product Dual Adjustable Pulley is a xed weight training equipment unit that can be used for body-building or sculpting, physical activity aimed at
keeping in shape, physical education and training for specic competitions and sports.
The product must be installed and used in a place in which access and supervision are specically controlled by the owner.
The product Dual Adjustable Pulley is intended for commercial use.
Do not use any accessories other than those recommended by Technogym.
Keep your hands away from moving parts.
Never drop or insert any object into any opening.
Do not use outdoors. Do not leave the unit outdoors, exposed to the elements (rain, sun, wind, etc.). Do not expose the unit to water jets.
SAVE THESE INSTRUCTIONS

Dual Adjustable Pulley 4
Personal safety
Use of the unit is subject to a medical examination in relation to the type of workout exercise you intend to perform, and in compliance with the conditions
for use laid down by Technogym.
Before beginning a training plan, consult a doctor to ascertain any limitations to use of the equipment.
Persons suering from certain physical conditions may only use the unit under the strict supervision of a doctor with specic qualications.
If you feel unwell (dizziness, chest pain, etc.) while performing the training, immediately stop the exercise and consult a doctor.
Before starting any workout, make sure your position on the unit is correct, and be careful with any components that might constitute an obstruction.
Plan the workout according to your physical characteristics and state of health, beginning with less demanding workloads.
Do not overexert yourself or work to exhaustion. If you feel pain or unusual symptoms, stop training immediately and seek medical assistance.
Incorrect or excessive workout may cause physical harm.
Wear proper workout clothing and shoes during training; do not wear loose clothing. Tie long hair back. Keep garments or towels away from moving parts.
During use other people must remain at a safe distance.
Do not use the unit when children or pets are present.
Completely assemble the unit before using it. Check the equipment before each use, and check that the cable is correctly routed inside the races
of all the pulleys and the state of wear of the cable. If there are signs of wear, contact the Technogym Technical Support service. Do not continue to
operate the unit when it is not working properly.
Assemble and operate the unit on a solid, level surface.
Keep the equipment in good operating condition. If you see signs of wear, contact Technogym's technical support service.
Make sure that the load selection pin is fully inserted. Use only the pin provided by the manufacturer. Contact the sta for any questions.
Only remove the pin when the weight stack is in the rest position. The weight stack is in the rest position when both the weights and the crosspiece are
not in the air. If the weight stack is not in the rest position, contact oor sta and do NOT use the equipment.
Do not attempt to perform maintenance operations on the equipment other than those described in the user manual.

Dual Adjustable Pulley 5
Personal safety
The instruction label must be applied on the equipment. Technogym declines all responsibility in the event of the equipment being used before axing
the instruction label.
The equipment is designed and constructed in compliance with the requirements for user safety and health; however, there are some areas that may give
rise to risks that are not plainly evident. We therefore recommend taking particular care to avoid any risk of crushing upper and lower limbs.
The product has no sharp corners.
The maximum user weight is 180 kg (397 lb).
This symbol accompanies safety warnings and IS used to draw attention to potential risks of personal injury. Pay attention to all
safety warnings accompanied by this symbol to avoid possible injury.
WARNINGS
During all operations involving transport, maintenance and cleaning, pay attention to any part of the product where body parts
may become trapped.
Attention must be paid to the labels attached to the product, as they provide information about possible risks and hazards.
We recommend immediately replacing the labels when they become damaged or dicult to read.
Technogym is not responsible for any harm due to any failures or damage caused by unauthorized maintenance, misuse, accident, negligence, improper
assembly or installation, debris resulting from any construction activities in the area where the unit is used, rust or corrosion as a result of the product’s
location, alterations or modications without Technogym’s written authorization or for failure on your part to use, operate and maintain the unit as set
out in this User Manual.

Controllare periodicamente lo stato di usura
Peso MAX utente: 180 kg
Peso MX di lavoro: vedi pacco pesi
Tipo: IC EN957 - 1/2
CABLE STATIONS CB350C0 - ALK0GGGK
Maximum user’s body weight: 180 kg
Maximum training weight: see weight block
CB350C0900001 c
AB
C
D
E
Dual Adjustable Pulley 6
Identication of the manufacturer and the equipment

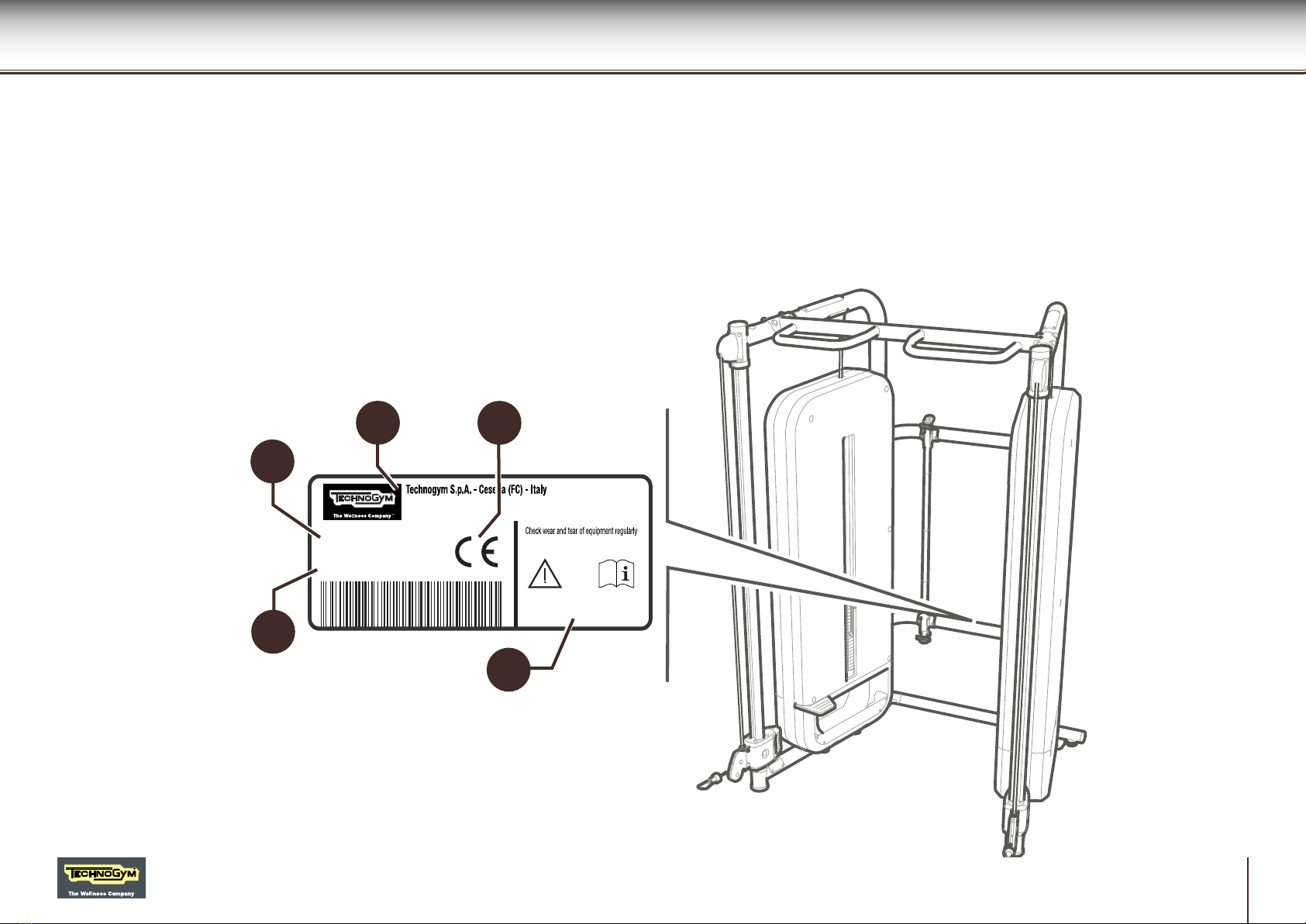

The identication plate of the equipment and manufacturer gives the following details:
AName and address of the manufacturer
BCE Mark
CSerial number
DCautions and maximum user weight
EEquipment classication

A
B
C
F
M
B
B
H
E
E
L
G
I
D
Dual Adjustable Pulley 7

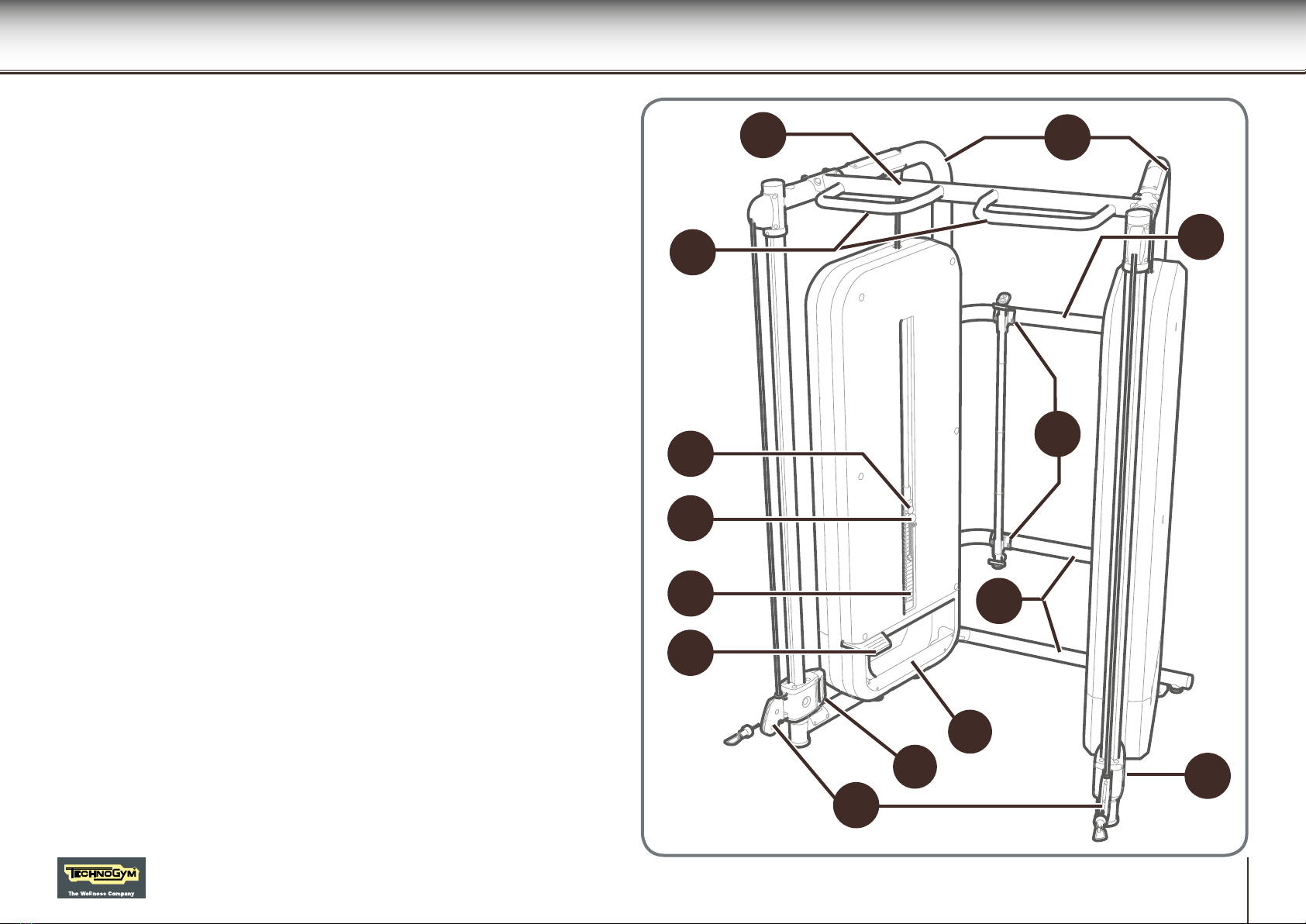

Description of the equipment
Frames (A): the load-bearing structure of the equipment.
Crosspieces (B): elements that join the two frames.
Upper handgrips (C): held by the user to perform certain exercises.
Adjustable output cable (D): their position can be adjusted in height
with the handles (E).
Weight stack(F): each pulley, operated by the user, moves the weights
along two guides by means of a cable. A pin (G) is used for selecting the
load in order to adjust the exercise eort level.
Foothold (H): to help climb on.
Barbell support (I): optional device used to support the barbell, when
not in use.
Tray (L): used to place accessories, or anything else, during the workout.
Power mode (M): eliminates the weight stack inertia in order to perform
power and explosive strength exercises. Push the knob forward to
activate the mechanism; pull the knob back to disable it.

1450 mm
(57")
1196 mm
(47")
MB430
2324 mm
(91")
513 kg (1140 lb)
648 kg (1430 lb)
2 x 140 kg (2 x 309 lb)
2 x 200 kg (2 x 441 lb)
MB436
Dual Adjustable Pulley 8

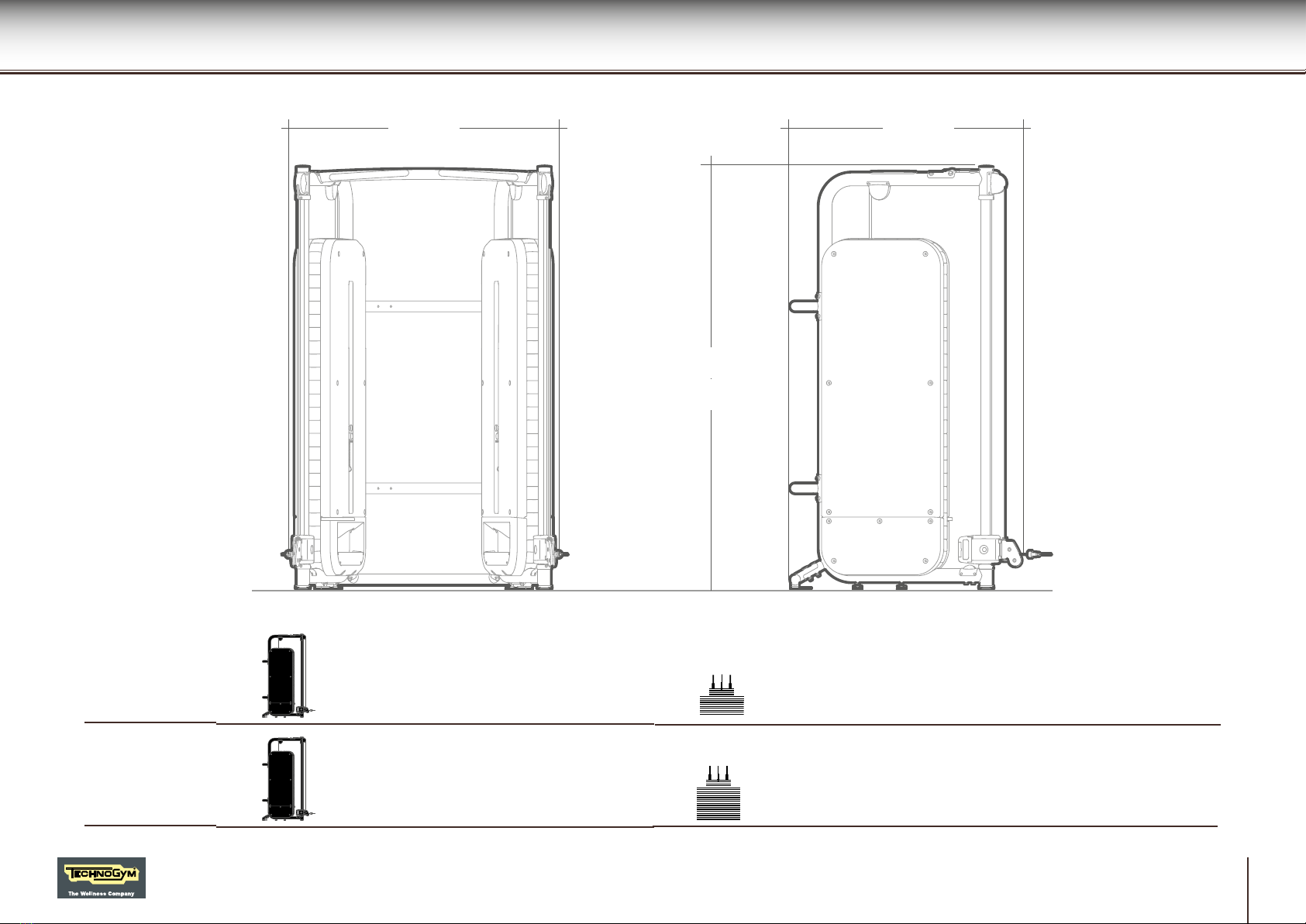

Technical data

A0000510
A0000511
A0000515
A0000514 A0000513
A0000516 A0000517
Dual Adjustable Pulley 9
Accessories
The equipment’s standard outt comprises:
- user manual
- warranty certicate
- two handles A0000510
- two handles A0000511
- one ankle strap A0000515
The following are optional:
- belt A0000514
- thigh strap A0000513
- barbell with relative supports A0000516
- bar A0000517.

Dual Adjustable Pulley 10
Place of installation
To guarantee safe, comfortable and eective use of the equipment, the place of installation must comply with certain specic requirements; in particular,
before choosing where to install the equipment it is recommended to check the following:
- temperature between +10°C and +25°C;
- sucient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- adequate lighting, so that the physical exercise takes place in pleasant and relaxing conditions;
- sucient clearance on all sides of the product, taking into account its maximum dimensions when in use, to ensure safety; and a space at least 60
cm wide on the side where the product is accessed;
- a at, stable and vibration-free oor surface, with adequate carrying capacity for the equipment’s weight.
If the equipment is installed in a public recreational area, the place must conform to all the requirements prescribed by the regulations in force.
WARNINGS
The equipment must be installed and used in a place whose access and supervision are specically controlled by the owner.
When installing the equipment, use suitable personal protective equipment.

A
A
A
A
A
Dual Adjustable Pulley 11
Assembling the equipment
WARNING
Given the weight of the equipment, we recommend that more than one person be involved in lifting and moving the modules.
Unscrew the screws (A) to remove the upper and rear brackets, that join the two modules in the packing.

Dual Adjustable Pulley 12
Assembling the equipment
Move one module at the time to the installation location, with normal lifting and moving
equipment.
To facilitate going through narrow doors, lift the equipment as shown in the gure.

D
D
D
D
B
C
D
M10x30 IX
10.5x17.5x2.2
10x25x3 IX
16
16
16
Dual Adjustable Pulley 13
Assembling the equipment
Place the modules in a diverging position and firstly secure the upper crosspiece (B), then the
crosspiece (C), with the 16 screws (D), without tightening them.
WARNING
There are coloured indications on the crosspieces for their correct positioning.

E
E
F
F
Dual Adjustable Pulley 14
Assembling the equipment
Lower the adjustable feet (E) until they rest on the oor.
Unscrew the 6 screws (F) to remove the lower brackets.

G
I
I
H
D
D
M10x90 IX 4
10x25x3 IX
M10 Z
8
4
D
I
M10x30 IX
10.5x17.5x2.2
10x25x3 IX
8
8
8
Dual Adjustable Pulley 15
Assembling the equipment

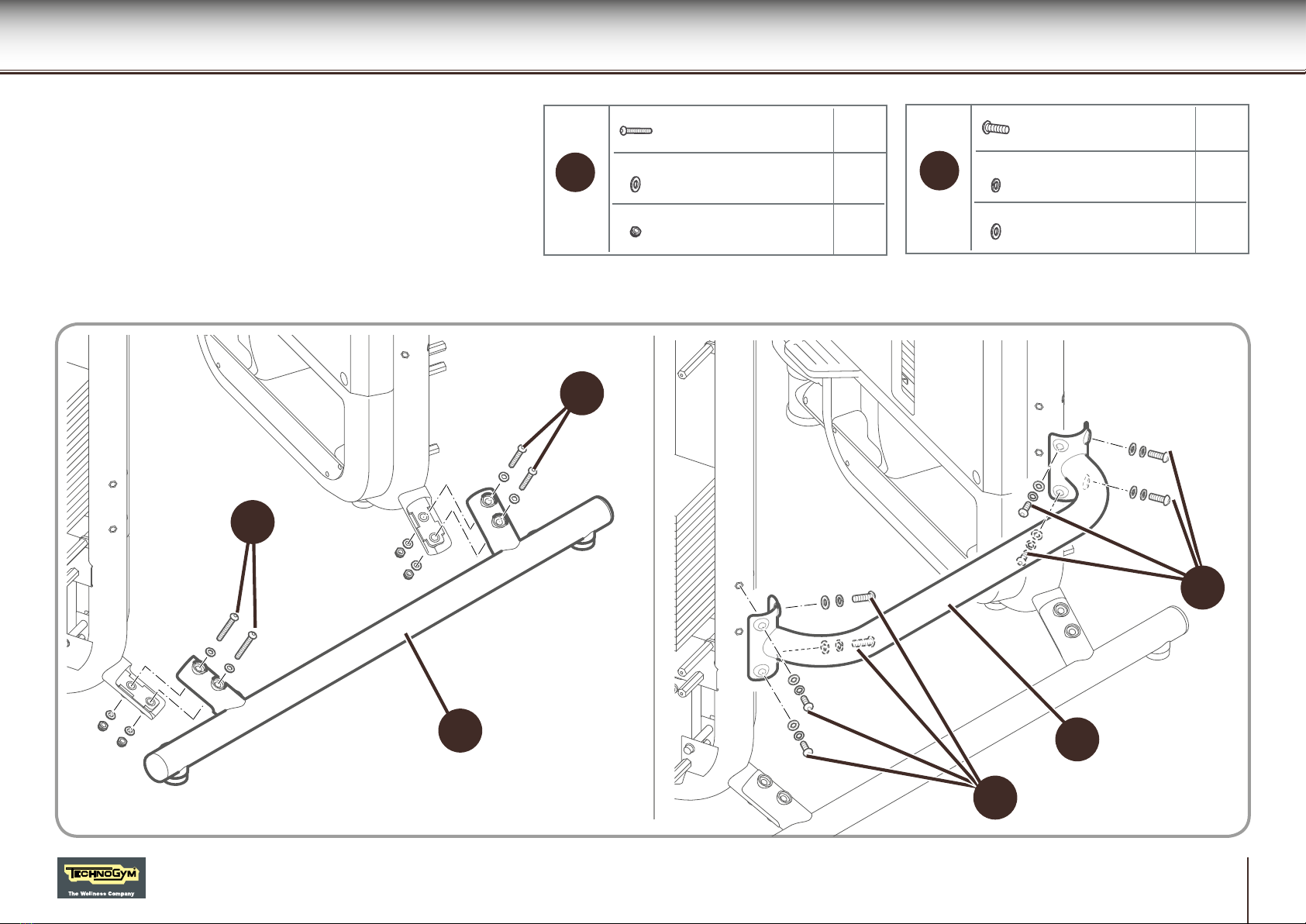

Secure the lower crosspiece (G) with the 4 screws (I); then
the crosspiece (H), with the 8 screws (D).
Tighten all the screws.

Dual Adjustable Pulley 16
Assembling the equipment

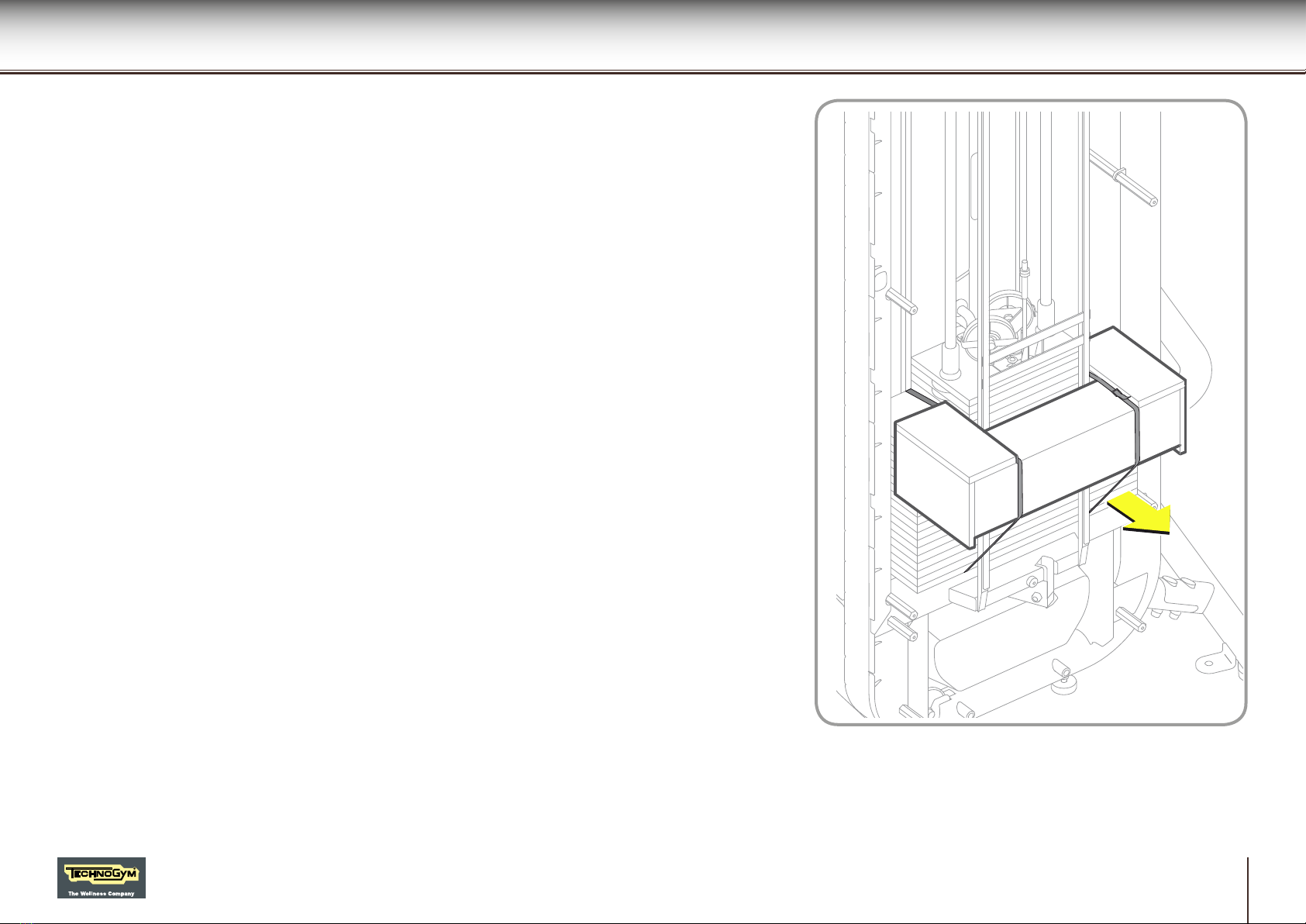

Remove the packing materials from the weight stack and check the correct operation of the
equipment.

N
L
M
M
M6x30 IX
6.4x12x1.6
M6 T163
11
11
11
M
M
Dual Adjustable Pulley 17
Assembling the equipment
Assemble the protection panels for the weight stack (L) with the 6 screws (M).
Assemble the tray cover (N) with the 5 screws (M).

A
A
B
C
AD
AD
Dual Adjustable Pulley 18
Assembling the barbell supports

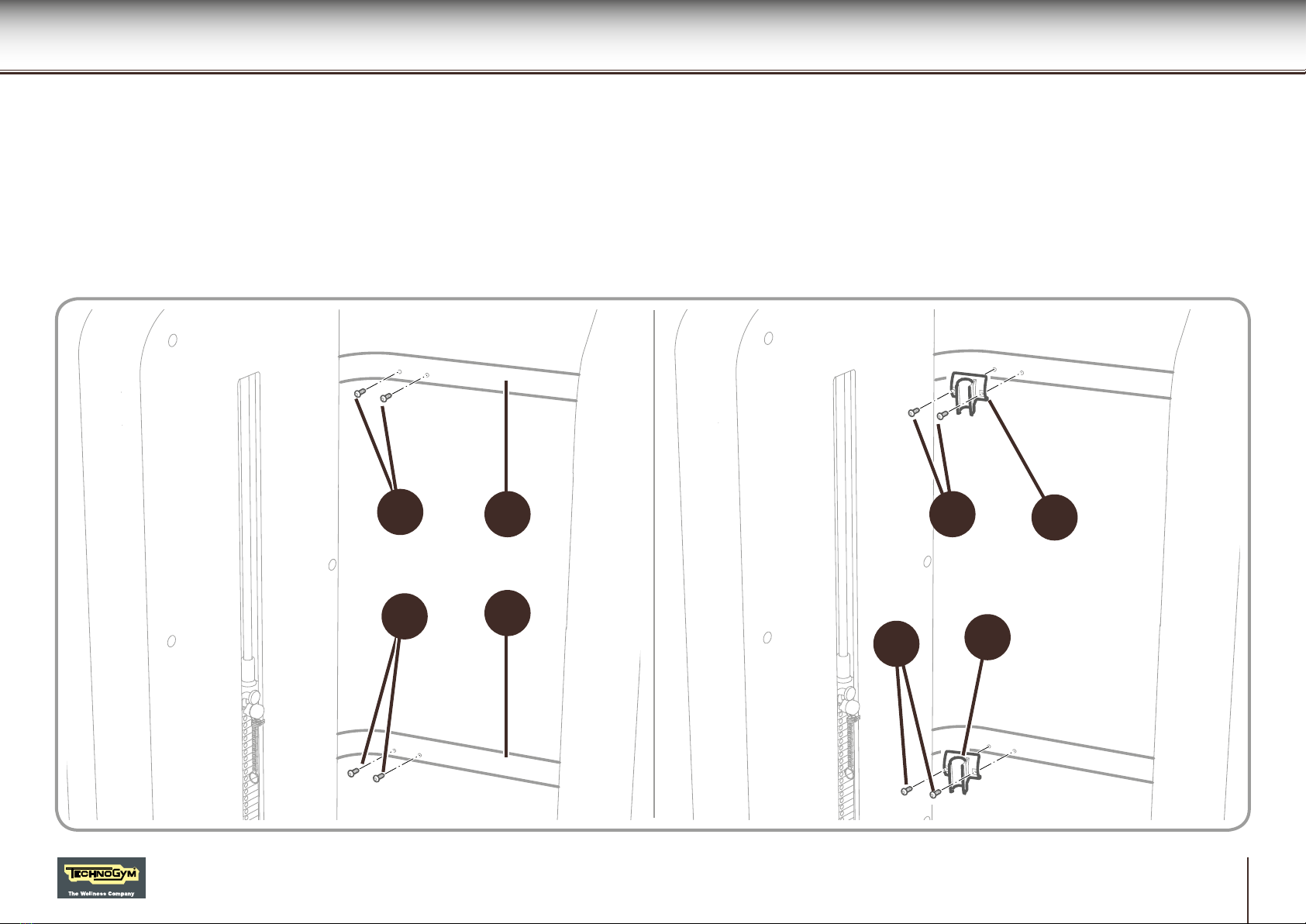

Unscrew the screws (A) on the crosspieces (B) and (C).
Position the 2 supports (D) for the barbell and secure them with the screws (A).

AA
B
A
Dual Adjustable Pulley 19
Adjusting the equipment

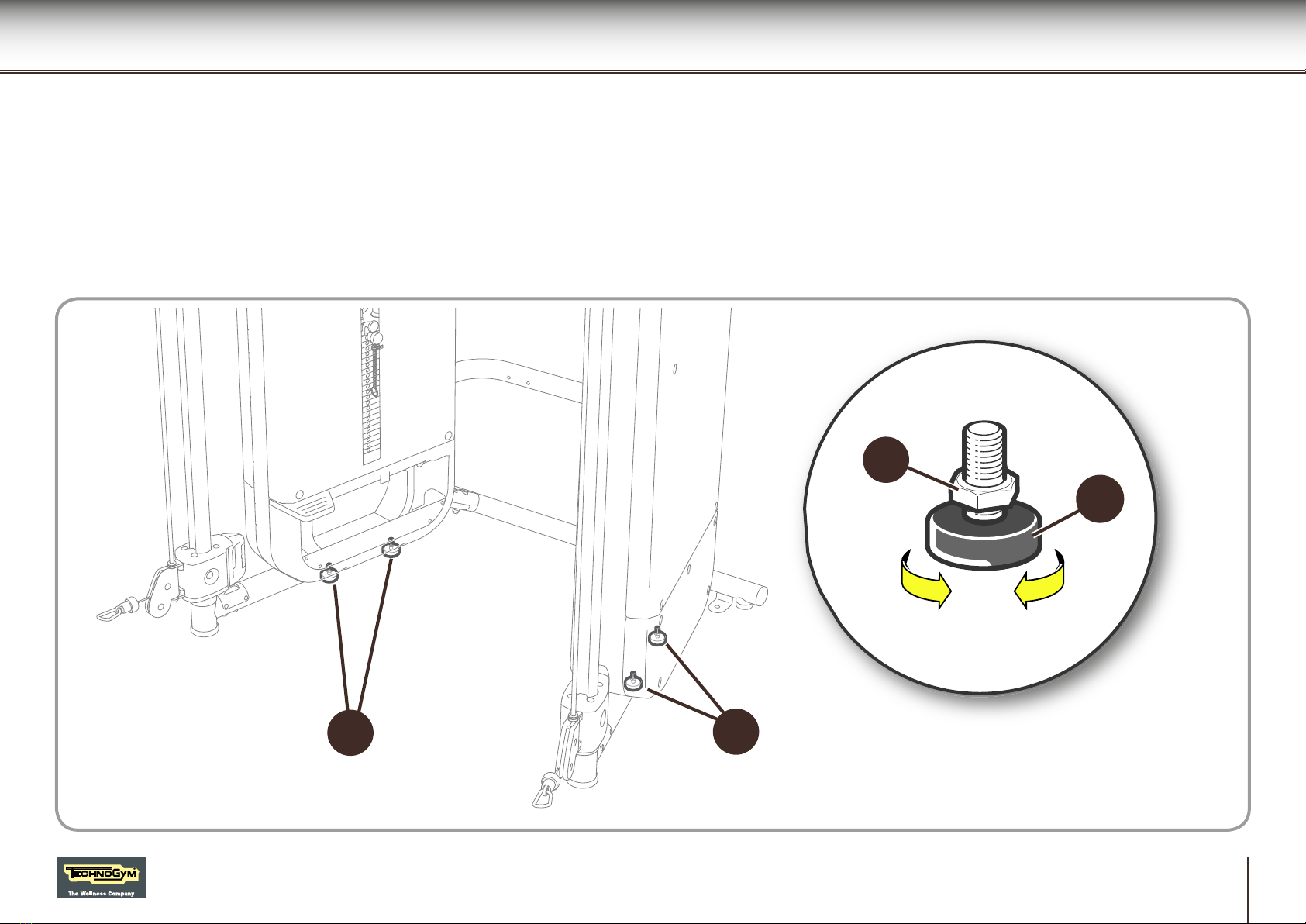

Once the equipment is assembled, check that it is level.
The feet (A) are adjustable for this purpose: loosen the lock nut (B) then screw or unscrew the foot (A) until the equipment is stable; once the adjustment
is complete tighten the lock nut (B).

Dual Adjustable Pulley 20

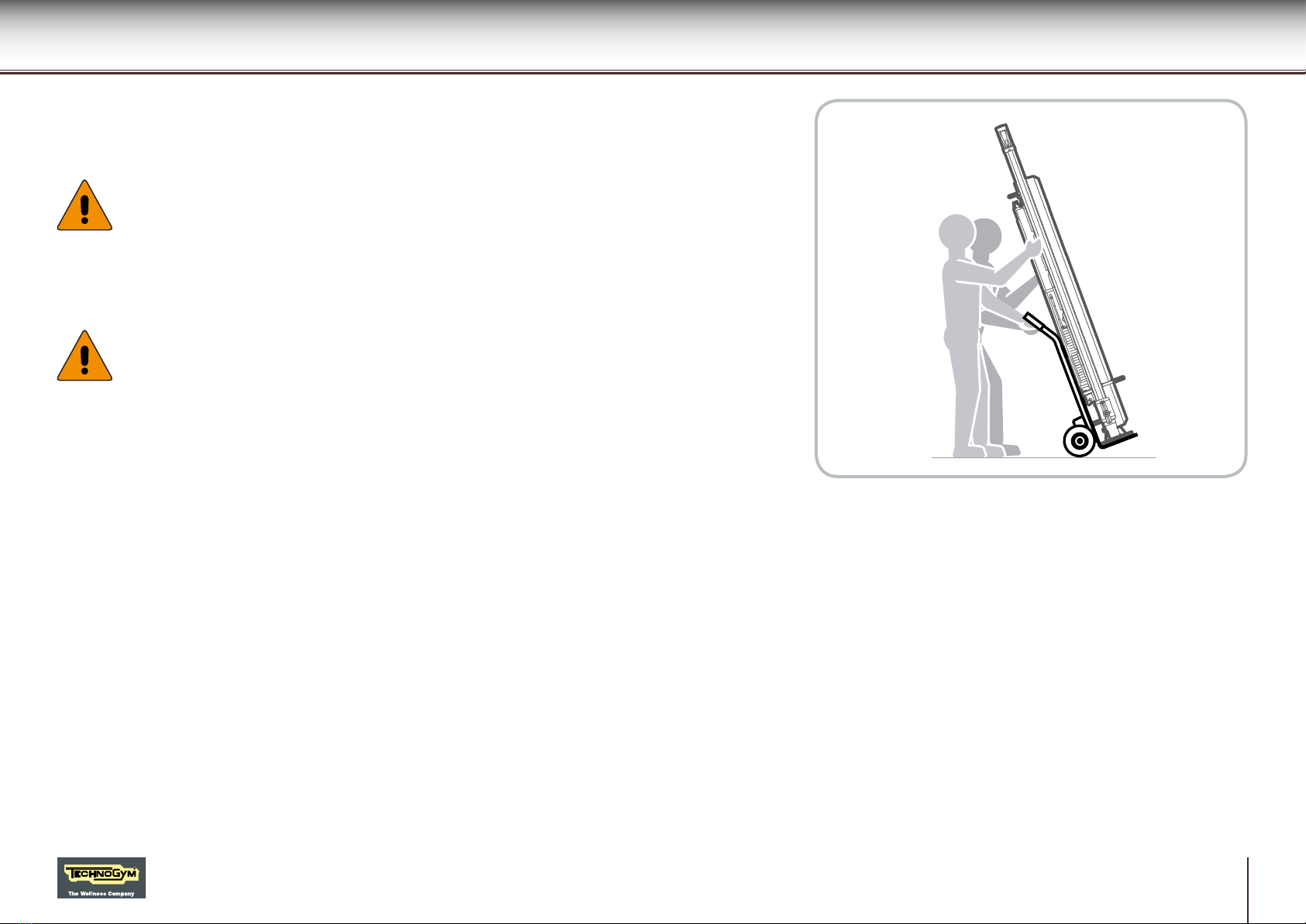

Lifting and handling the equipment
Before moving the equipment, rstly release it from the oor-mounting and disassemble it.
Follow the instructions described in the assembly section in reverse order.
WARNING
The equipment must be moved with great care, due to the risk of it tipping over.

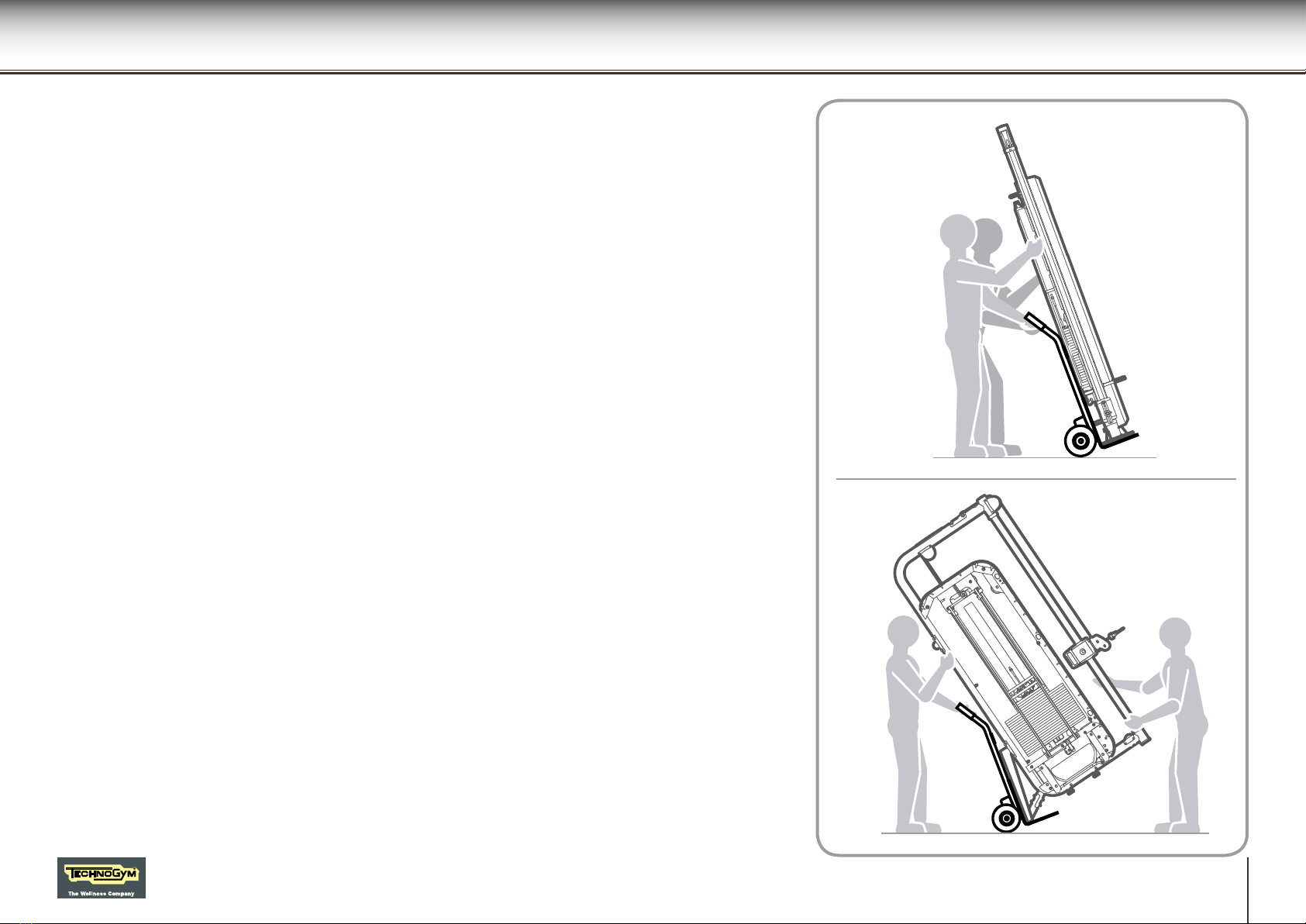

Lift the equipment, as shown in the gure.
WARNINGS
Given the weight of the equipment, we recommend that more than one person
be involved in lifting it.
It is recommended to place some padded material between the frame and the
lifting machine.
After moving the equipment, it must be anchored to the oor before use.
