UNIS Lane Master User manual

www.universal-space.com
Operation Manual
IMPORTANT
NOTE: Some portions of assembly may require additional assistance.

Lane Master Manual
01/17/2018
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Fax: [phone]
Email: [e-mail]

Lane Master Manual
01/17/2018
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS........................................................................ 3
1. SPECIFICATIONS ..................................................................................................... 5
2. CONTENTS OF THE ACCESSORY KIT .................................................................... 7
3. PART NAME.............................................................................................................. 9
4. SET UP & INSTALLATION......................................................................................10
5. HOW TO PLAY ........................................................................................................20
6. GAME OPTION .......................................................................................................21
7. TROUBLESHOOTING..............................................................................................28
8. MAINTENANCE & INSPECTION ...........................................................................31
9. OVERALL CONSTRUCTION ...................................................................................34

Lane Master Manual
01/17/2018
3
Thank you for purchasing Lane Master. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Lane Master Manual
01/17/2018
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Lane Master Manual
01/17/2018
5
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz
Min. Power consumption: 520W
Max. Power consumption: 580W
Dimension: W65×D116×H105 in
W1650×D2921×H2651 (mm)
Weight：Approximately 1150 lb
Part No: L105
Model No: C-489
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.

Lane Master Manual
01/17/2018
6
This machine will be divided into two parts during transportation.
Back Cabinet: W65×D28.8×H85.7 in
W1650×D720×H2148 mm
Ally part: W64.34×D87.21×H40.12 in
W1650×D2235×H1030 mm
Note: Game specifications are subject to change without notice.

Lane Master Manual
01/17/2018
7
2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
1. Following accessories
*For bowling ball, it is suggested to take 2 for each lane.
No. Part No. Code Name Qty Picture
1 L105-801-000 25300171002
Key
(171) 6
2 L105-803-000 25300172002
Key
(171B) 1
3 L105-802-000 23301010020 Power cord 1
4 L105-529-000 21901000013
Fuse
(Φ5×20mm
T10A)
1
5 L105-804-000 41440000173 Manual 1
6 L105-805-001 20611605027A
Bowling ball
(With Unis logo)
4
7 L105-807-000 20311605A007
Blank door
(MDF/with lock)
1
8 L105-525-000 21503000053
Sensor
SW(receive) 2
Please refer to P20
Disassemble the lane
sensor
9 L105-526-000 21503000052
Sensor
SW(send) 2
10 L105-808-000 23302000012 Network cable 1
NOTE: Part models are subject to change without notice.

Lane Master Manual
01/17/2018
8

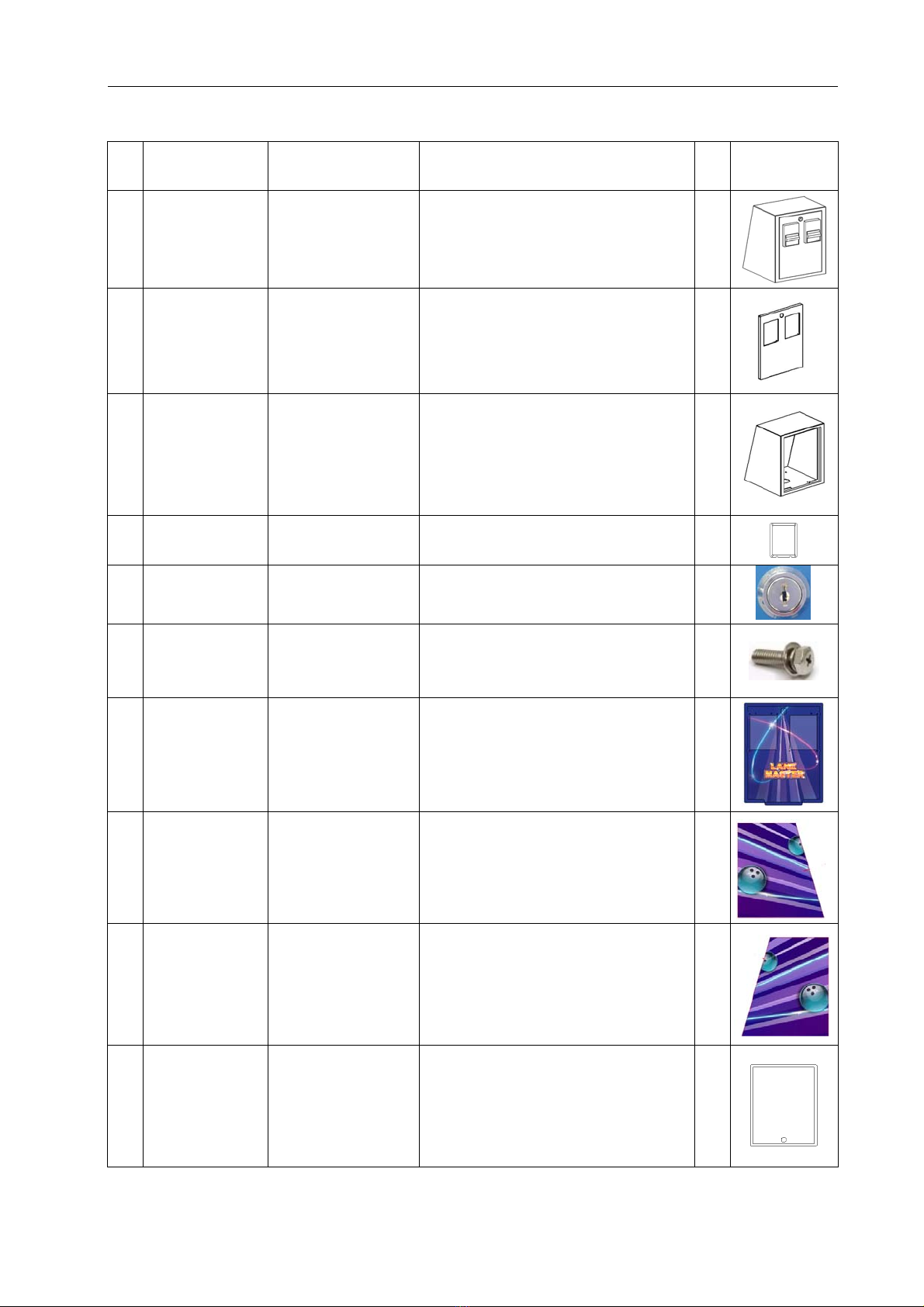

2. Optional Parts
No. Part No. Code Name Qty Picture
1 L105-014-000 / Bill acceptor box Assy. 1
2 L105-320-001 20211605A001A
DBV door
(With lock) 1
3 L105-809-001 20211605A003A DBV cabinet 1
4 L105-810-000 20211605A004 Door S cover 2
5 L105-504-000 25300171001 171A lock
2
6 L105-141-000 20104020002 Cross recessed hexagon screw kit
4
7 L105-814-000 20511605A028 DBV decal
1
8 L105-812-000 20511605A026 DBV L decal
1
9 L105-813-000 20511605A027 DBV R decal
1
10 L105-806-001 20211605A002A
Blank door
(Q235/with lock)
1
Please refer to chapter 4.4.5 for DBV box installation.

Lane Master Manual
01/17/2018
9
3. PART NAME
Key Components
Ball exit
Coin Ass
y
.
Mar
q
uee Ass
y
.
T
icket dispenser
42” LED Display
Lane with
coin box
and ticket
dispenser
Lane
Back cabinet
32” display

Lane Master Manual
01/17/2018
10
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game
. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 0.2 in. Repeat the same for all levelers.
Leveler Caster
Move F
i
Caster Leveler
About 0.2 in
Move Fix
NOTICE
Make sure the machine is level.
We do not recommend using power tools as they may cause damage.
NOTICE

Lane Master Manual
01/17/2018
11
4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Service area
Play area
Your unit must be leveled to operate properly. Please assure that the
cabinet levelers are in place and assure that the main cabinet and alleys
are leveled. This will prevent the ball jamming.
NOTICE

Lane Master Manual
01/17/2018
12
4.4 Machine Installation
Before processing with assembly assure you have the following tools.
4.4.1 Marquee Installation
No. Name Picture
Use for
1 Cross screwdriver
For Marquee
Installation& Connect
Lane Assembly
2 Wrench
3 Allen hexagon wrenches
Connect Lane Assembly
& Display Assembly
Step 2 Attach support bracket.
Note: It is recommended to have the minimum of two
staff members available for this installation.
Step 1 Lift the marquee into place and
attach to the bracket. Install hardware
where indicated by the red arrows.
P1 P2

Lane Master Manual
01/17/2018
13
No. Part No. Code No. Name Picture Qty
1 L105-139-000 20104000002 Cross recessed hexagon screw 4
2 L105-282-000 20211605037 Fixed connected rod 2
Step 3 Install the bolts as indicated in the green area.
Cross recessed
hexagon screw
(4 pcs)
Cross recessed
hexagon screw
(4 pcs)
P3
Reconnect screws on the brackets.
Fixed connected rod

Lane Master Manual
01/17/2018
14
4.4.2 Connect Lane Assembly
No. Part No. Code No. Name Picture Qty
1 L105-142-000 20104023002
Cross recessed hexagon
screw
8
Step 1
Open the coin door and
the ticket door to bolt the
lanes together utilizing
the hardware indicated by
the red arrows.
P1
4 pcs
Step 2
Open the back plate and
attach the screws in the
red arrow area.
P2
4 pcs

Lane Master Manual
01/17/2018
15
4.4.3 Connect Lane Assembly & Display Assembly
No. Part No. Code No. Name Picture Qty
1 L105-125-000 20101048028
Hexagon flat round head
screws
16
2 L105-144-000 20113040051 C flat washer 16
For Cabinet connection, there are two versions, please refer to your machine to find the
version you need.
Place the Lane in front of the dis
p
la
y
assembl
y
and install as shown.
Connect the Lane Assembly and
Display Assembly with screws and
washers.
P1
One side 8 pcs

Lane Master Manual
01/17/2018
16
4.4.4 Connect Lane Assembly & Display Assembly (updated version)
Step 4 Lower leg levelers into place for initial leveling of the back box and the lanes if the
floor is uneven.
Step 5 Add ball to each lane and apply power.
Step 6 Once game is powered on and operational place it in position. Utilizing the leg
levelers to assure the back box and lanes are level with each other.

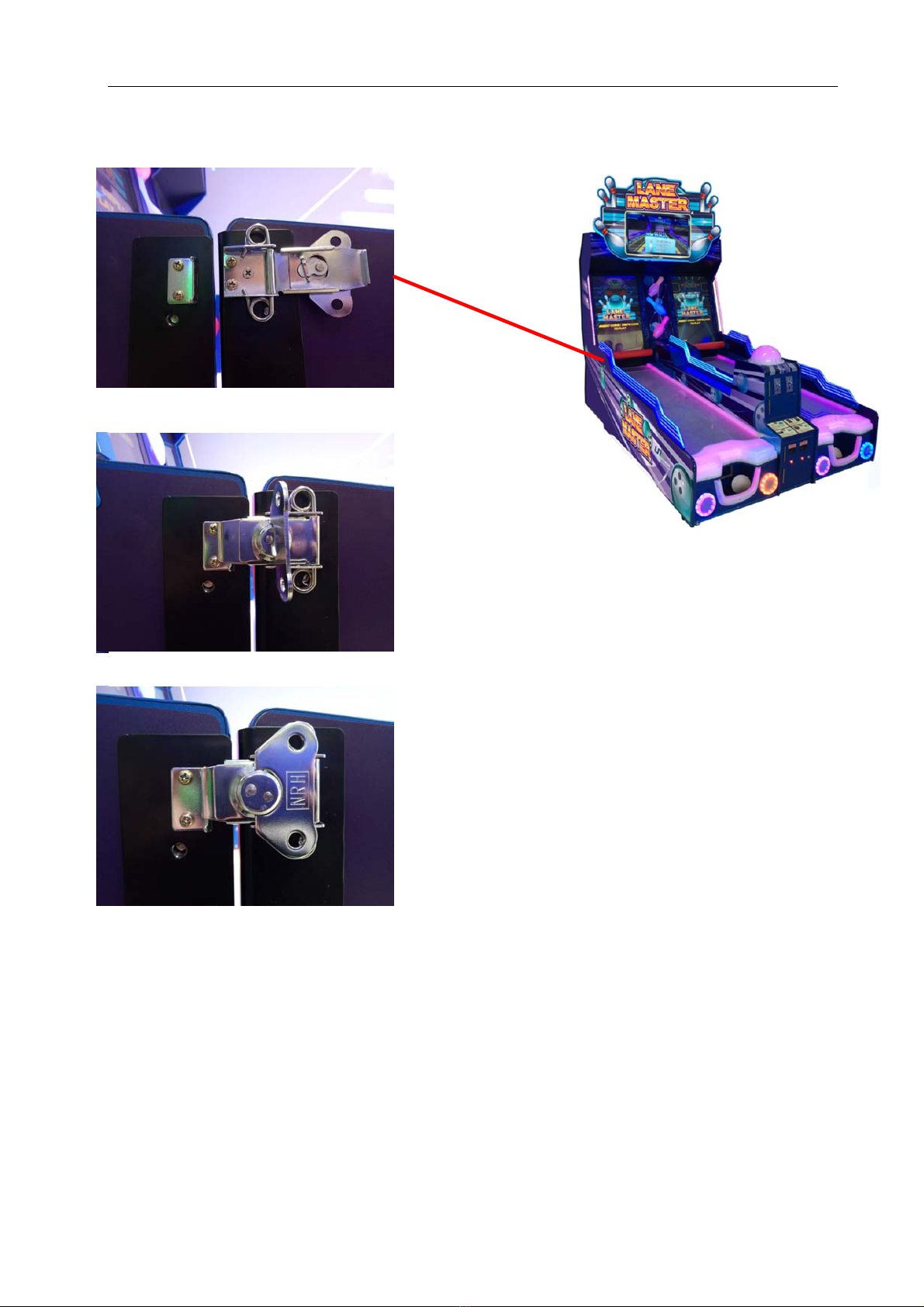

Step 1 Fold the right buckle to the left side.
Place the Lane in front of the display assembly and install as shown.
Step 2 Turn the handle clock wise to lock the latch. (Counter-clockwise to unlock the latch.)
Step 3 Fold the handle after locking the latch.

Lane Master Manual
01/17/2018
17
4.4.5 Disassemble the bowling light and Install the DBV assy.

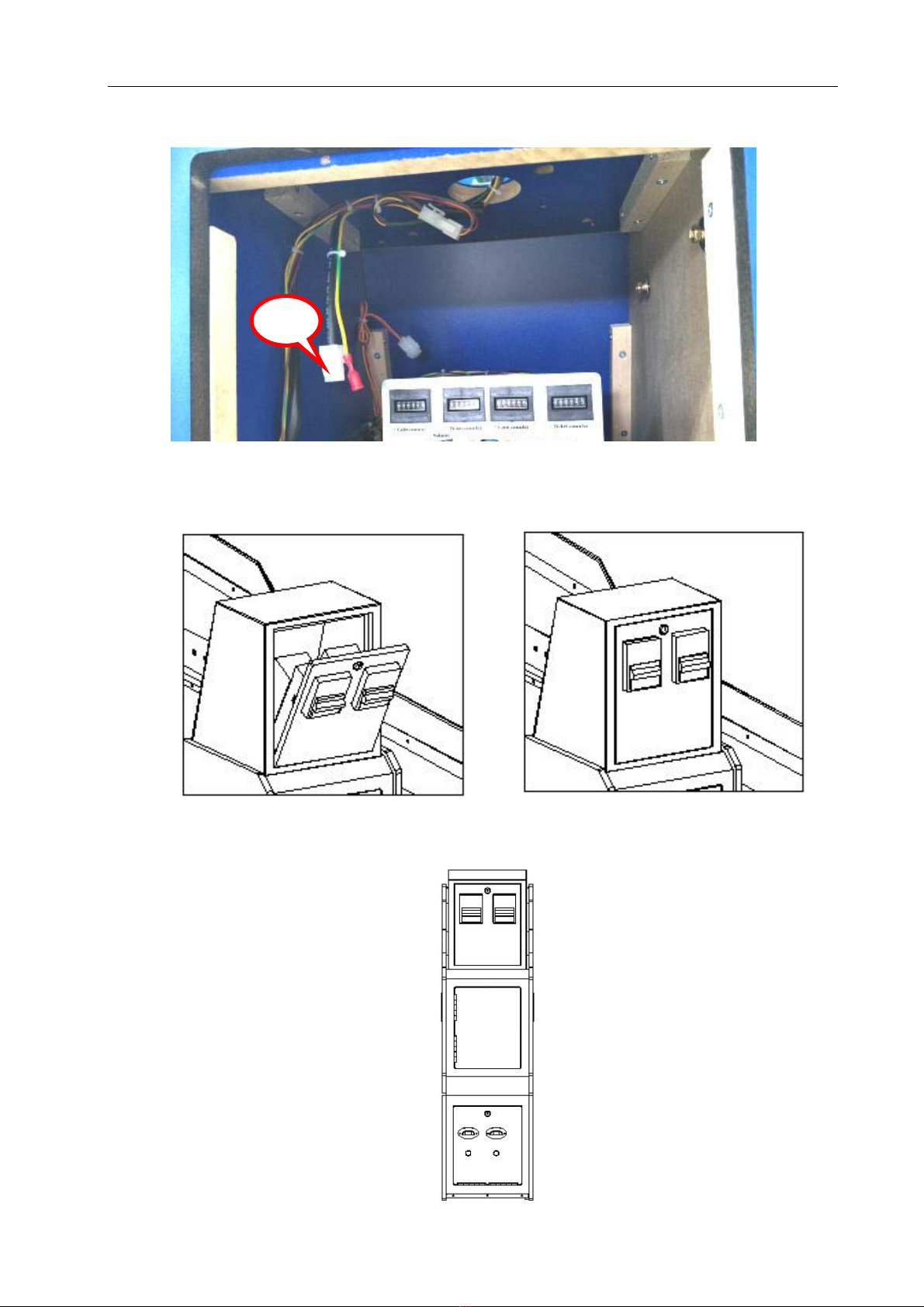

Step 1 Open the coin door and unplug two plugs.
(1-Coin mech. plug; 2-Bowling light plug)

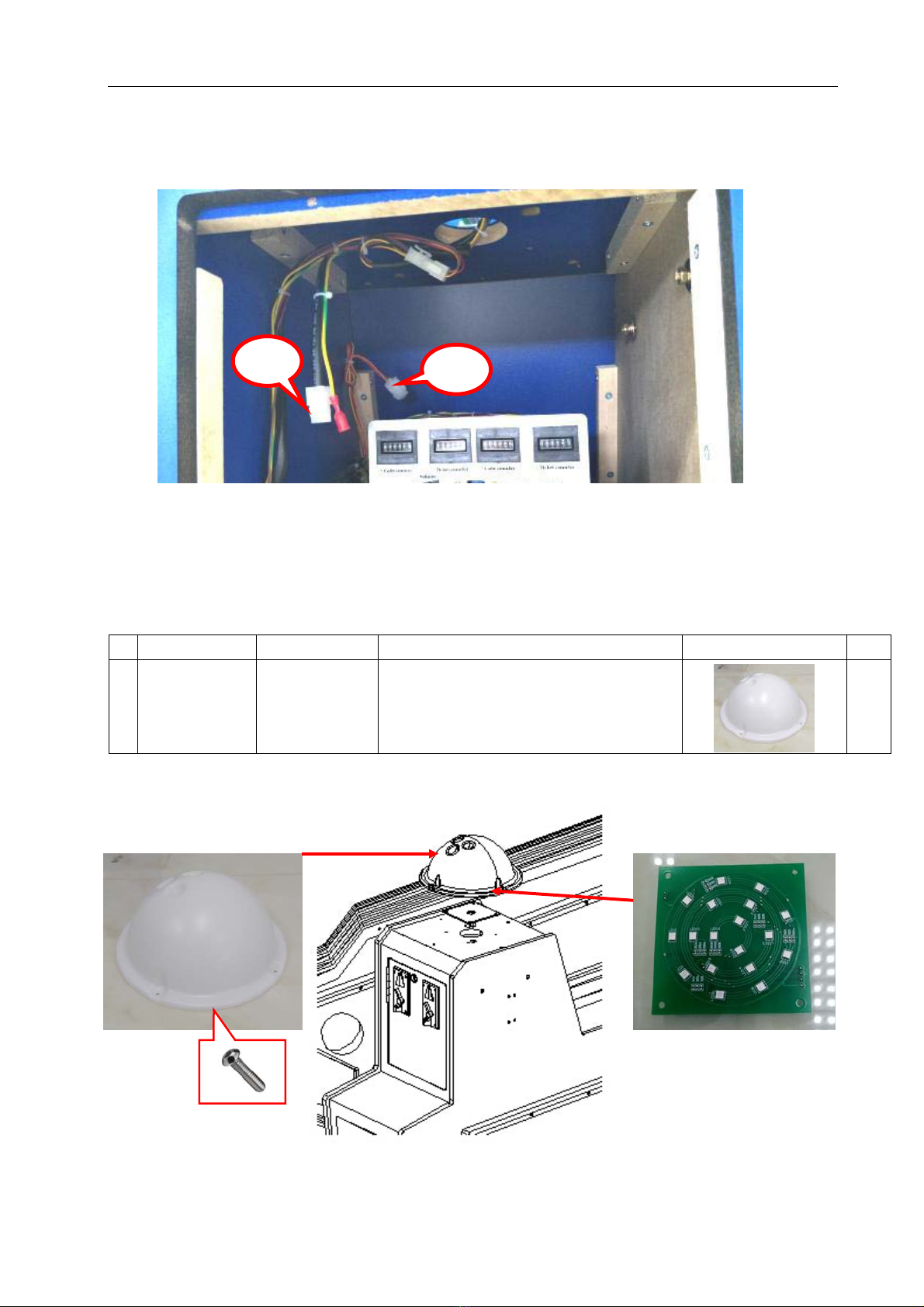

Step 2 Disassemble the bowling light white plastic and light PCB
1- Check the Light PCB connector;
2- Install Bowling light cover with four screws.
No. Part No. Code No. Name Picture Qty
1 L105-266-000 20611605003 Bowling light cover 1
1 2

Lane Master Manual
01/17/2018
18

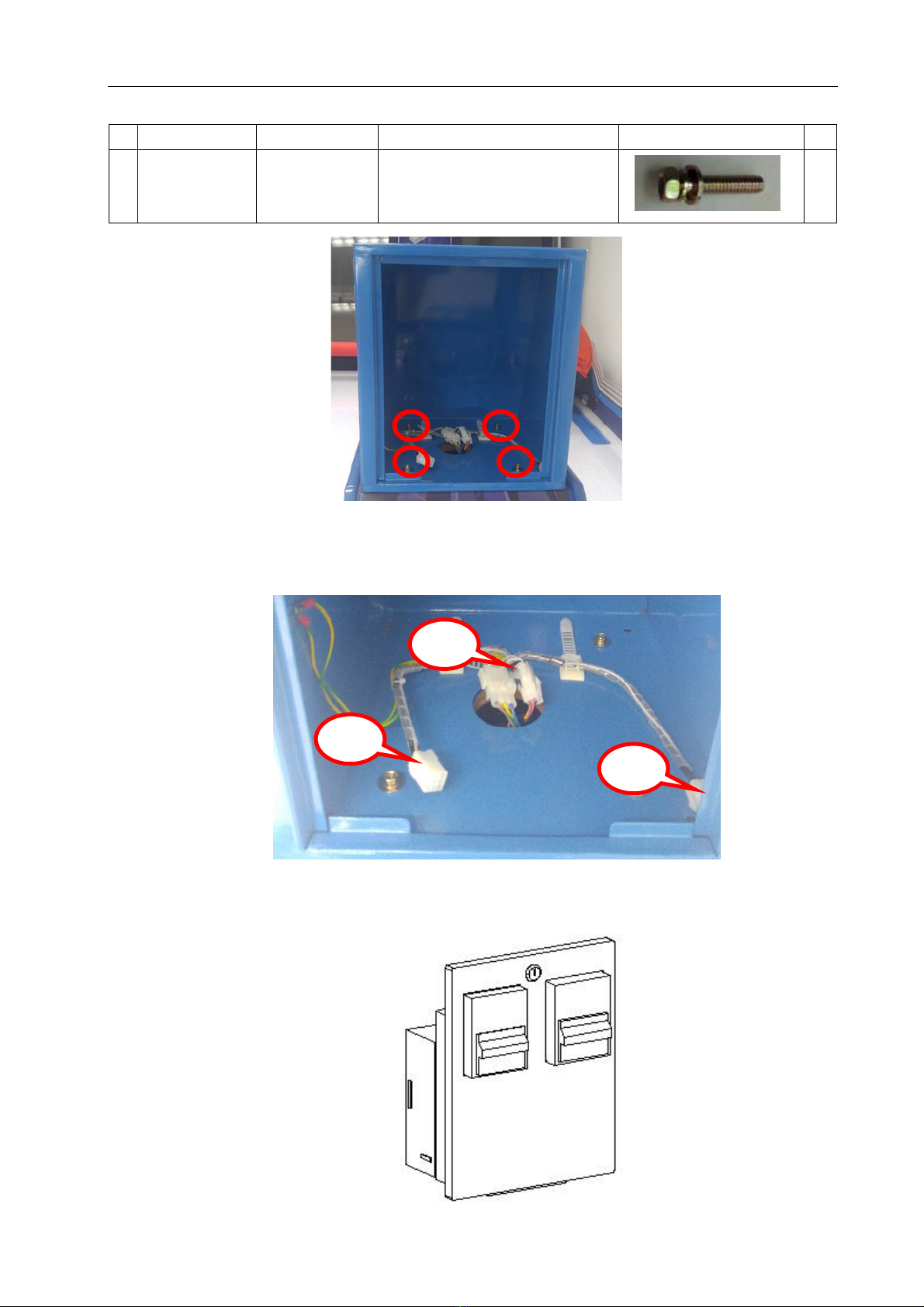

Step 3 Install the DBV cabinet.
No. Part No. Code No. Name Picture Qty
1 L105-141-000 20104020002
Cross recessed hexagon
screw kit
4
Step 4 Connect the plugs.
(3- DBV plugs; 4- 1P DBV plug; 5- 2P DBV plug)
Step 5 Install the DBV door and your DBV.
3
4
5

Lane Master Manual
01/17/2018
19
Step 6 Connect the coin mech. plug.
Step 7 Use the key to lock the coin door.
Finish!
1
