TEINNOVA TEGRAS ifoam compact User manual

user manual EN
original manual translation
ifoamifoam
compactcompact
Smart active foam generator

ifoam compactifoam compact Smart active foam generator 2-28
introduction
Training service
Technical service
Thank you very much for placing your trust in a quality product from TEINNOVA.
This product is manufactured using modern production processes and extensive
quality assurance measures.
We try to do everything possible to ensure that you are satisfied with this product and
can work with it without any problems.
If you have any questions about this product, please contact your dealer or our com-
pany directly.
Before operating the machine, carefully read the operating instructions for your
equipment.
Please consider this manual as part of the machine and keep it handy for future ref-
erence.
We offer the option of providing companies with specific training in the use of our
equipment and training their operators to provide the best service and thus contrib-
ute to the success of their end customers.
Aspects such as knowing how to draw up a good estimate objectively, responding to
specific problems that may arise, or offering a more professional and efficient service.
Thanks to our own manufacturing of cleaning equipment we can control at all times
the quality and performance of each machine we manufacture, and this has allowed
us to have very low repair ratios which have always been solved with our own
Technical Service led by the same team that manufactures it, and in very short
periods of time.
We have all types of spare parts for your equipment, as well as related accessories.
These operating instructions are protected by copyright. We reserve all rights, in particular the right of
production, translation and processing with electronic systems.
Dear customer:
©

ifoam compactifoam compact Smart active foam generator 3-28
symbology
safety warnings
conditions of use
know your machine
control panel
operating instructions
use of chemical products
5-28
6-28
7-28
8-28
9-28
12-28
20-28
accessories and related equipment
10-28
index

ifoam compactifoam compact Smart active foam generator 4-28
transport
maintenance and care
waste management
technical specifications
CE declaration of conformity
23-28
24-28
25-28
26-28
28-28
warranty conditions
27-28
index

ifoam compactifoam compact Smart active foam generator 5-28
symbology
DANGER!
WARNING!
CAUTION!
IMPORTANT NOTE!
All the existing graphic symbols in this manual as well as those indicated on the equipment itself are explained
in this section, it is important to read with special attention the text related to this symbology since it is related to
personal and equipment safety.
This symbol alerts you to a potentially hazardous situation which can result in
death or serious injury if the instructions are not followed properly. Be sure to
read all instructions described in the “Safety Information” section.
This symbol alerts you to a potentially hazardous situation which may result in
minor or moderate injury, or property damage resulting in personal injury if you
do not properly follow the instructions.
This symbol alerts you to a situation that may result in property damage
without personal injury if you do not properly follow the instructions.
This symbol alerts you to information regarding the optimal use of the
equipment to avoid possible misuse.

ifoam compactifoam compact Smart active foam generator 6-28
The IFOAM equipment must NOT be used for purposes other than those described in this instruction
manual.
Before starting up the equipment, make sure that all electrical and fluid connections are correct.
Do not direct the jet of the spears at people.
Be careful to place your equipment on a smooth and stable surface.
Persons operating this equipment must be sufficiently trained.
It is advisable to wear mechanical protection gloves and coveralls when operating the equipment.
Full face protection equipment must be worn to prevent chemical splashes from reaching the operator’s
eyes.
Properly secure the IFOAM in an upright position during transport in a vehicle.
Do not open the enclosure of your IFOAM or tamper with any of the internal elements of the equipment.
In the event of a fault, please contact TEINNOVA’s Technical Assistance Service on [phone].
safety warnings

ifoam compactifoam compact Smart active foam generator 7-28
Low pressure
foaming/clarifying
lance
ifoam compactifoam compact
Active foam generator
and rinsing
Any other use is strictly prohibited
without the written permission of
the manufacturer.
Donotplacethedeviceinahorizontal
position under any circumstances,
as this could lead to malfunctions.
LEGEND
Unless otherwise specified, the de-
greasing chemical must be the one
recommended by the manufactu-
rer, COMEGRAS.
The use of a different chemical will
void the warranty and may cause
irreparable damage to your TE-
GRAS equipment.

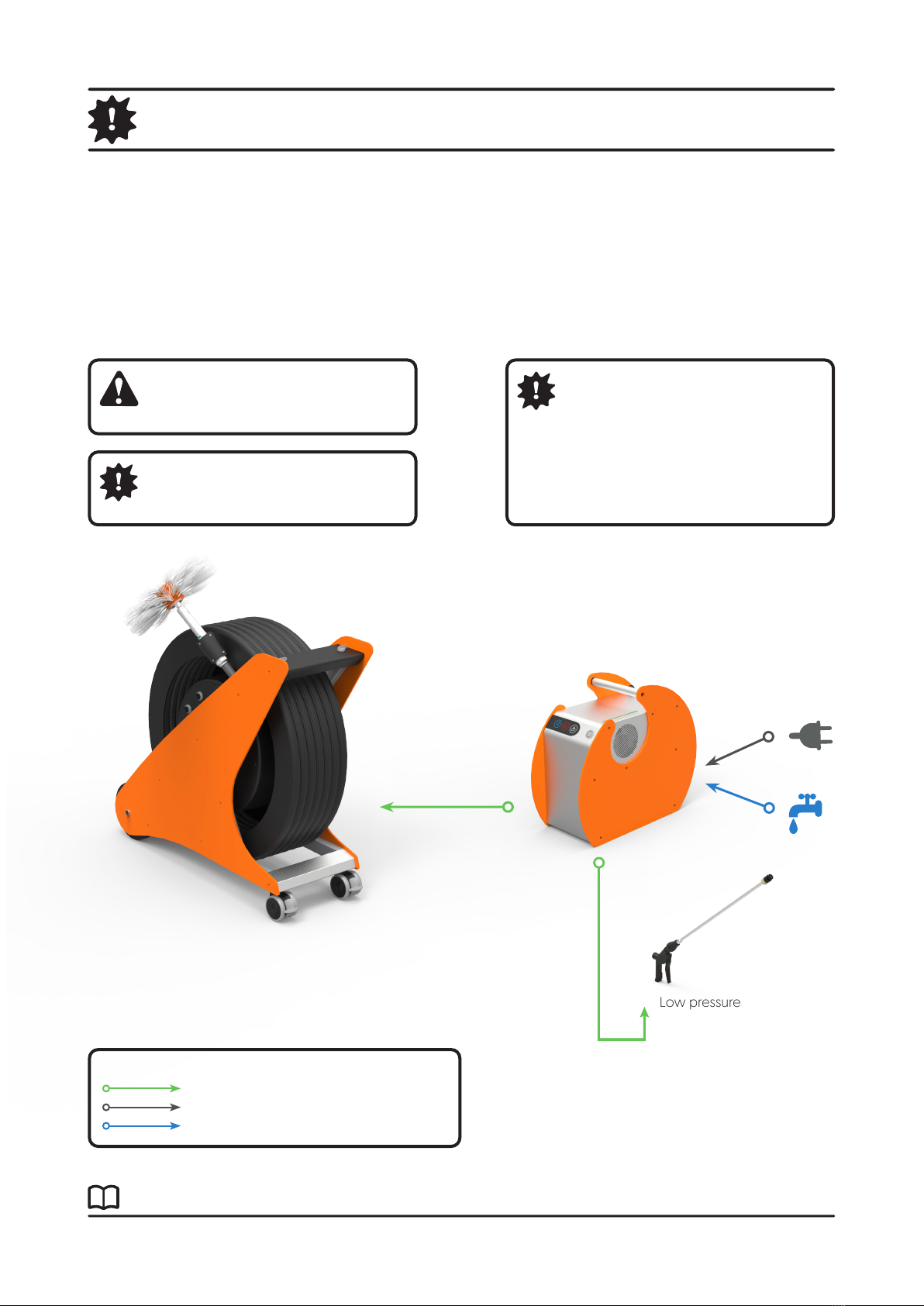

IFOAM is a machine to generate and apply active foam and then rinse with water.
It is suitable for work in kitchens and food businesses, as well as for the use of tested aggressive chemicals. It
can be used in exhaust ducts and extraction hoods.
It can be used in combination with a TEGRAS brushing robot or with a manual lance as shown in the diagram.
chemical and low pressure rinsing
power supply
mains water
conditions of use
forteforte
Pneumatic brushing robot for
duct cleaning

ifoam compactifoam compact Smart active foam generator 8-28
3
4
8
7
6
5
1
9
210
12
11
Componentes:
1- Carrying handle
2- LED indicator
3- Control panel
4- On / off button
5- Active foam output / rinse
6- Mains water inlet
7- Resettable fuse
8- Power supply hose
9- Power supply hose support
10- Chemical suction wand support
11- Chemical suction rod
12- Chemical inlet
know your machine

ifoam compactifoam compact Smart active foam generator 9-28
1
2
4
3
5
Main control panel:
Stop
General Switch
Rinse button
Foam button
LED Strip
General shutdown of any system in operation.
Switching the equipment on and off.
Activates the foaming system.
Indicates machine status.
Activates the rinsing system.
control panel

ifoam compactifoam compact Smart active foam generator 10-28

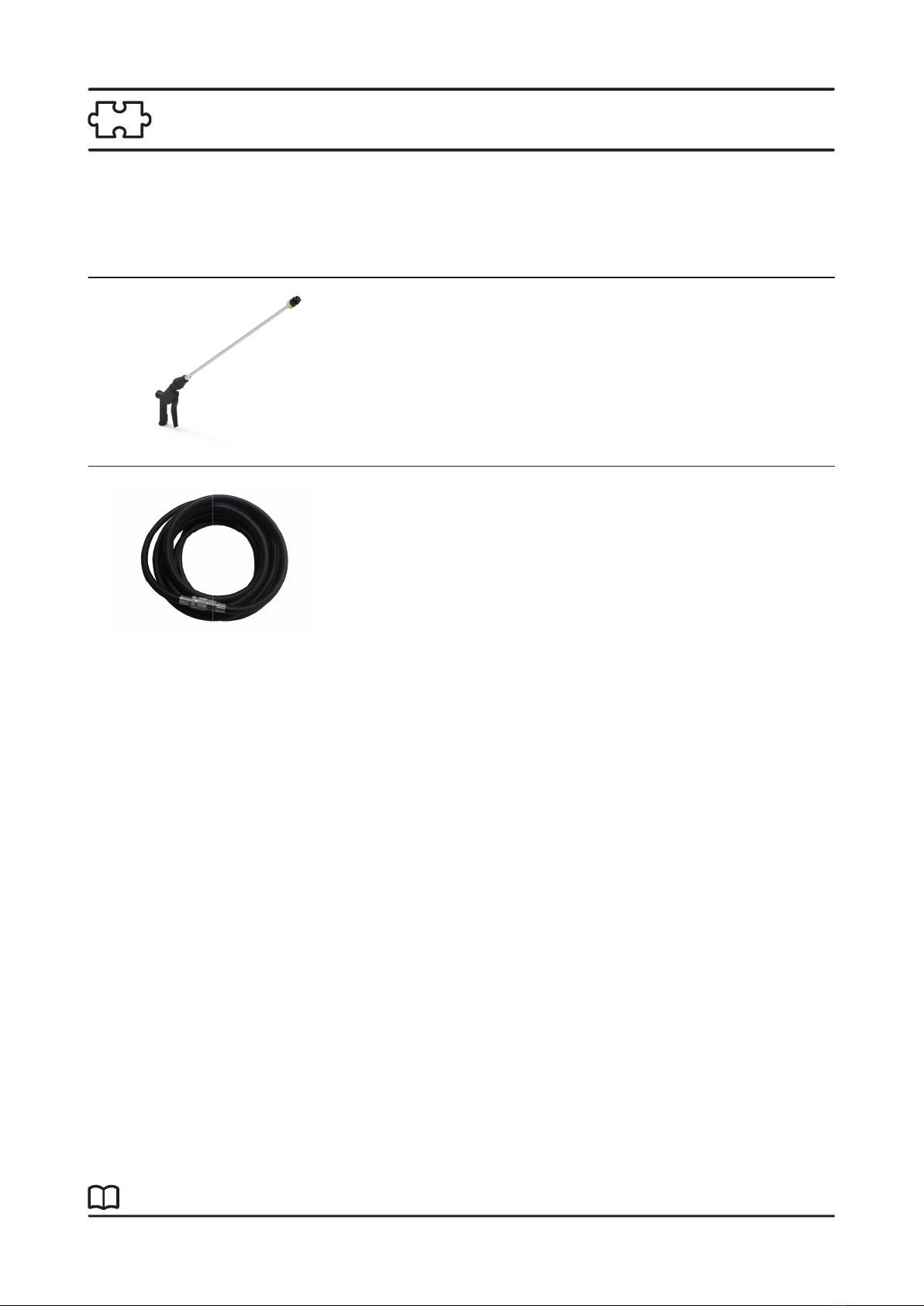

Accessories included for the low pressure system:
60 cm lance specifically for low pressure rinsing and foaming. It is
included and integrated in the IFOAM.
Cod. AC3303301
8 metre hose, with standardised connections, specifically for feeding
low pressure liquids to the low pressure lance supplied by Teinnova. The
connections correspond to those used in the equipment supplied by
TEINNOVA.
Cod. AC3303221
Low pressure lance 60 cm
Ifoam low pressure liquid hose with brushing robot
accessories and related equipment

ifoam compactifoam compact Smart active foam generator 11-28

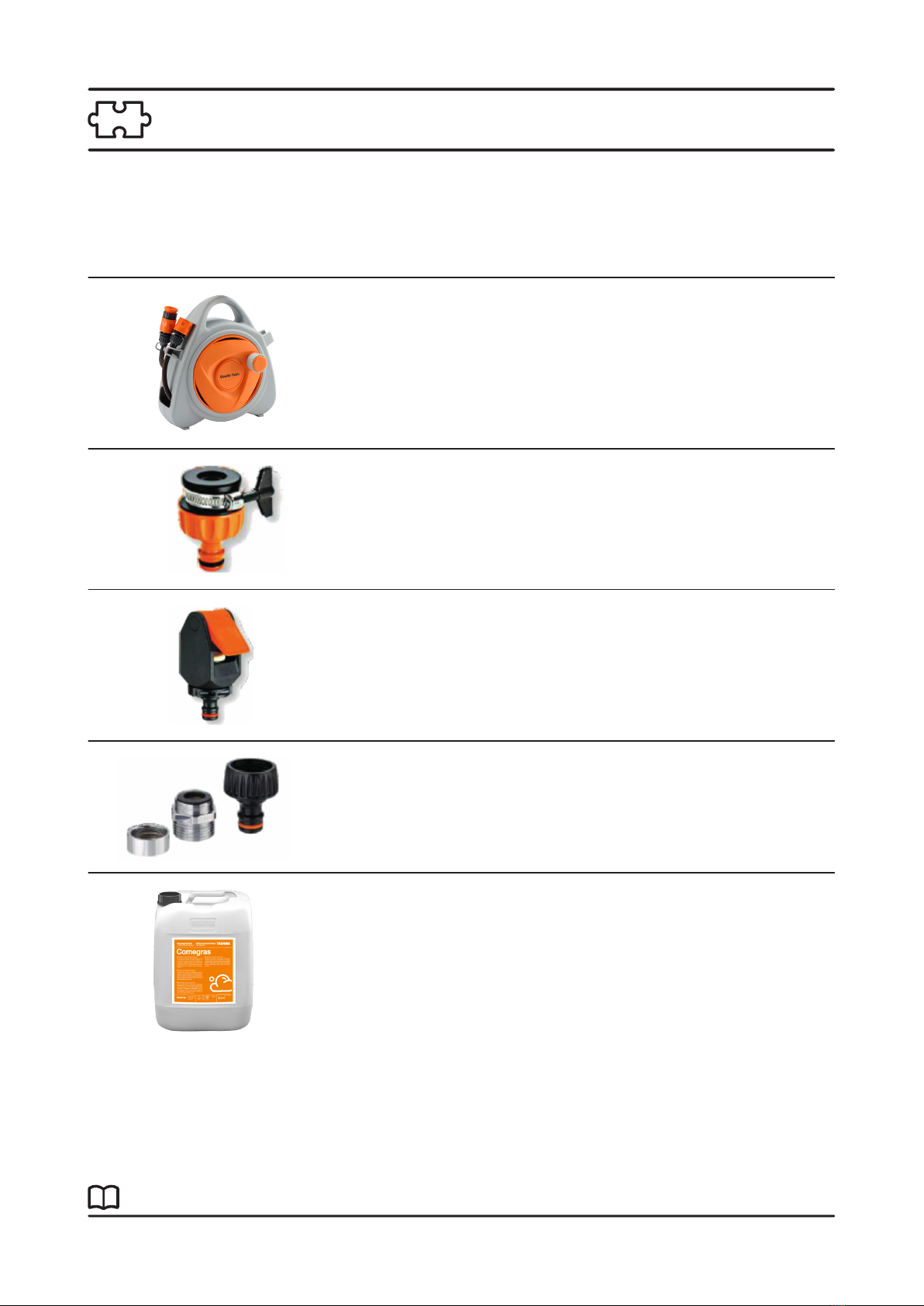

Optional accessories:
Adapter for connecting taps with round inlets to the mains water hose
supplying your IFOAM.
Cod. AC6200004
Adaptador para conectar grifos con tomas cuadradas con la manguera
de agua de red que abastece a su IFOAM.
Cod. AC6200003
Mains water hose reel
Adapter for taps with round sockets
Adapter for taps with square sockets
Hose reel that makes it possible to supply your IFOAM with mains water
from a mains socket far away from the cleaning area. The length of the
hose is 10 metres.
Cod. HE7300200
accessories and related equipment
Ultra-concentrated degreasing chemical product for extremely or heavily
soiled cleaning and disinfection of ducts.
Cod. PQ8100122
Chemical COMEGRAS 10 Kg bottle
Tap connection for threaded sockets with mains water hose.
Cod. AC6200005
Tap connection for threaded sockets

ifoam compactifoam compact Smart active foam generator 12-28
accessories and related equipment
Adjustable nozzle for foam injection angle and low-pressure rinsing.
Cod. AC3303341
Adjustable lance

ifoam compactifoam compact Smart active foam generator 13-28
Pneumatic brushing robot for duct cleaning.
Cod. TG3320349
Electric brushing robot for duct cleaning.
Cod. TC3120414
Electric brushing robot for duct cleaning.
Cod. TC3120630
Related equipment:
forteforte
eoneon
ibrushibrush
accessories and related equipment

ifoam compactifoam compact Smart active foam generator 14-28
operating instructions
The connection is made by means of an electrical connection cable
supplied with the machine.
Remove the cable from the bracket and connect it to the mains,
making sure that the connector is suitable for the type of socket.
Connect the hose to a mains water supply with a minimum pressure
of 2 bar. Adapters for different taps are available as optional
accessories. Connect the hose to your IFOAM at the water inlet
connection.
Steps for a correct installation of your IFOAM:
Connection to a mains water supply:
Mains connection:
1
2
The inlet temperature of the mains water must not be
higher than 60ºC, as this may cause failures in the internal
components of the equipment.

ifoam compactifoam compact Smart active foam generator 15-28
Open the cap of the COMEGRAS chemical bottle.
Chemical connection:
3
operating instructions
Remove the suction rod from your IFOAM and insert it into the
chemical bottle.
When connecting a new chemical bottle, to speed up the
chemical suction and pump priming, activate the foaming
option with the water flow closed. Once you detect that
foam starts to come out continuously, open the water
flow again.

ifoam compactifoam compact Smart active foam generator 16-28

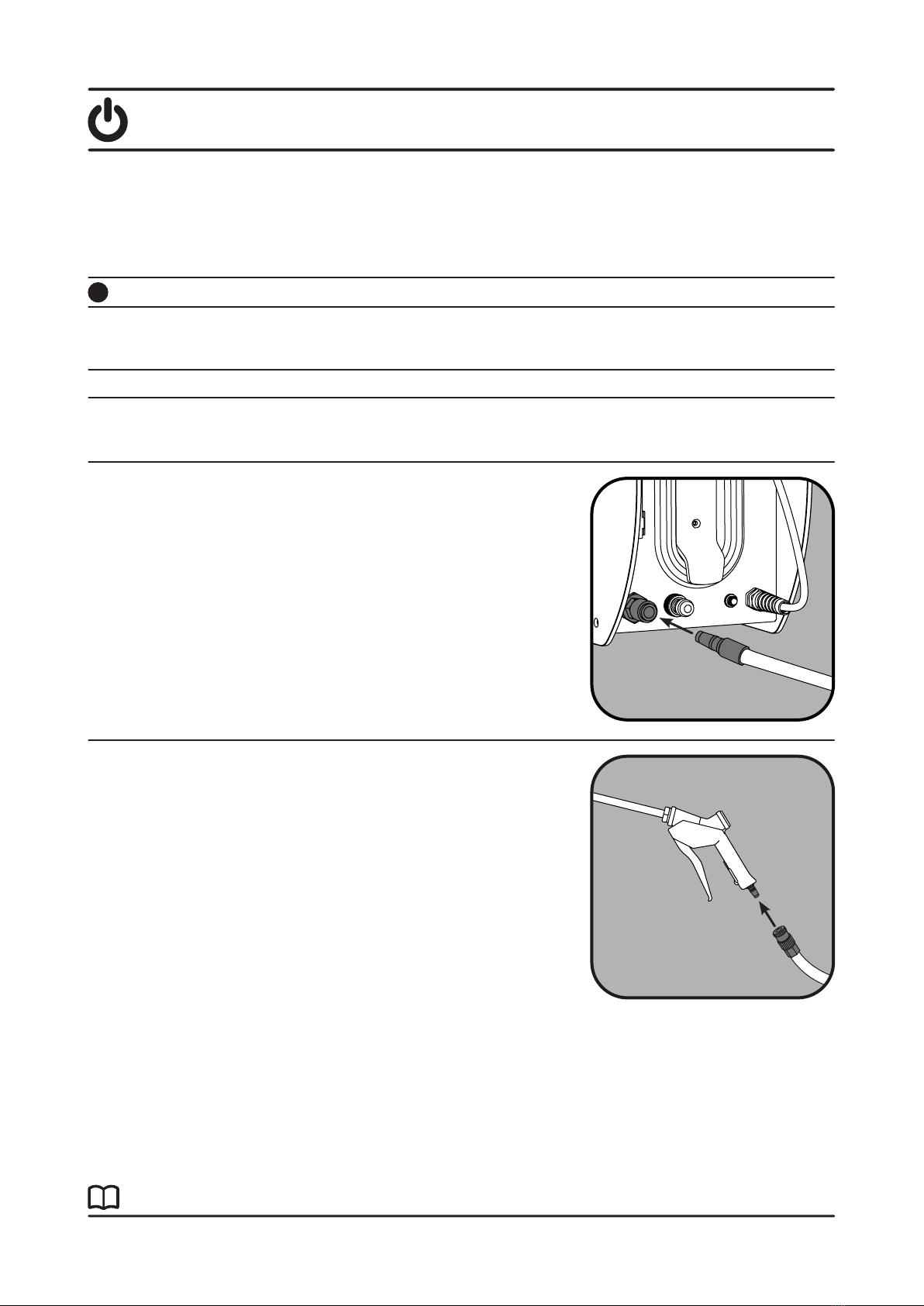

The IFOAM low pressure system can be connected to a foaming and rinsing lance and a Tegras brushing
robot. The connection is selected according to the function to be performed.
The low-pressure lance enables the rinsing and foaming function. The connection is made directly to the
machine by means of a hose connected to the lower rear part of the machine.
Use in low pressure mode:
Low pressure lance connection:
4
Connect the liquid hose to the low pressure lance.
Connect the liquid hose to your IFOAM.
operating instructions

ifoam compactifoam compact Smart active foam generator 17-28

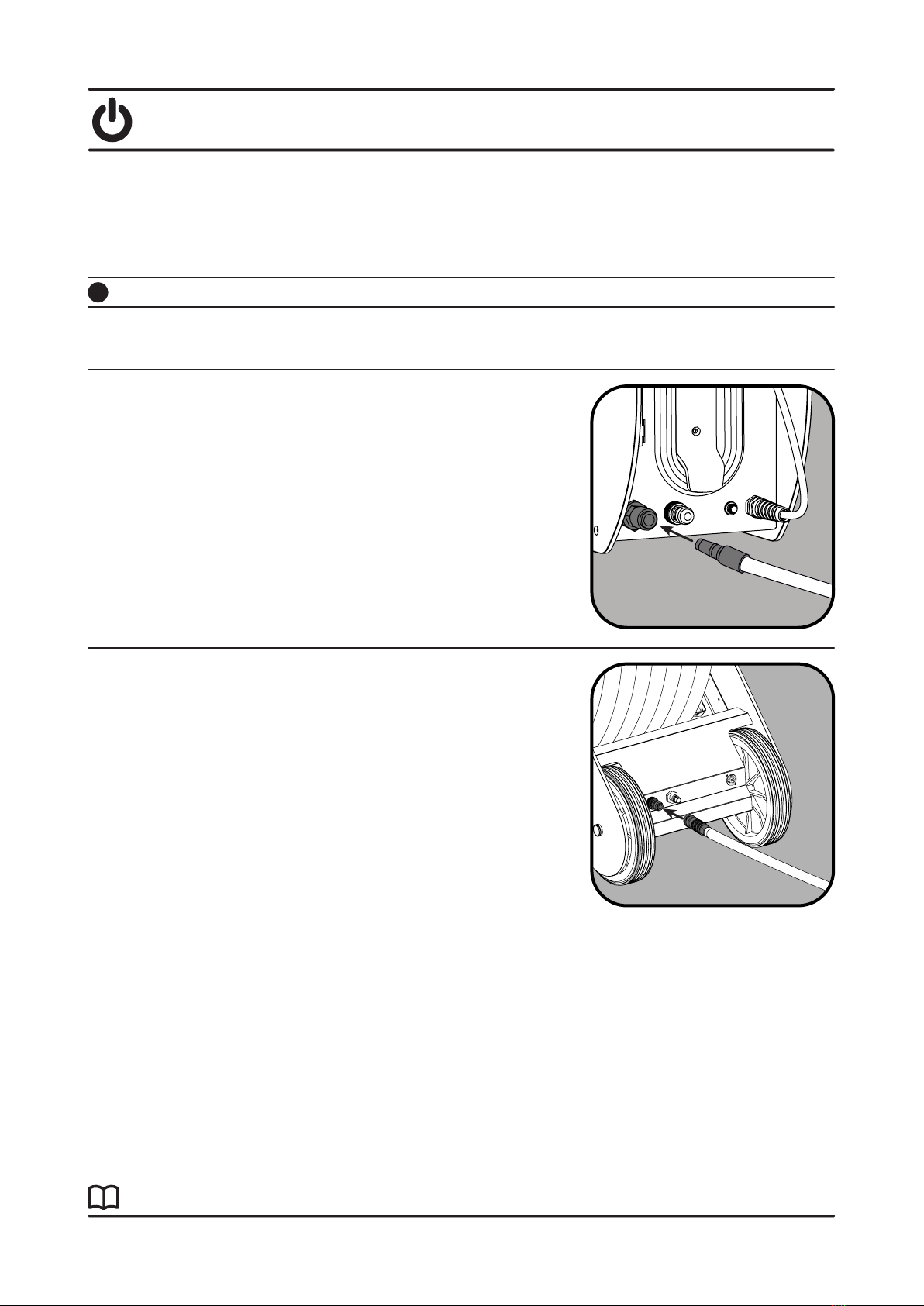

This connection is made by means of the low-pressure hose also used with the low-pressure lance. The
connection must be made with your IFOAM switched off.
Connect the liquid hose to the liquid inlet connection of the Tegras
brushing machine.
Connect the liquid hose to your IFOAM.
Use with Tegras brushing robot:
5
operating instructions

ifoam compactifoam compact Smart active foam generator 18-28
The foaming system is activated by pressing the white button. Once
activated, the LED strip will turn white and work can begin.
Selection of the function to be performed:
Activate foaming system
Switching the equipment on
1
2
Switch on your IFOAM by pressing the on/off button.
The LED strip will turn green in colour, with intensity ramps up and
down.
The equipment is now ready for use.
Activate rinse system
3
The rinsing system is activated by pressing the blue button. Once
activated, the LED strip will turn blue and work can begin.
operating instructions

ifoam compactifoam compact Smart active foam generator 19-28
Switch off your IFOAM by pressing the on / off buttonoff button.
The LED strip will turn off.
Unplug the unit from the mains and the mains water supply.
Switching off the equipment
Equipment shutdown
4
5
Press the stop button to end the function being performed by the
equipment.
The LED strip will turn green, with increasing and decreasing intensi-
ty, indicating that the equipment is paused awaiting orders.
operating instructions

ifoam compactifoam compact Smart active foam generator 20-28
Remove the chemical suction rod from the chemical and place it in
the equipment brackets.
Close the chemical bottle and store it in a safe place.
Operate the low-pressure lance so that no water, air or chemicals
are left in the lines.
If desired, detach the hose from the lance to store them separately.
Disconnect the hose from the mains water supply.
Disconnect the mains water hose from your IFOAM.
Steps for a correct stop of your Ifoam
Disconnection of the lance:
Disconnection of the mains water supply:
Disconnection of the chemist:
1
2
3
operating instructions
