Timago FS 914L User manual

1
INSTRUCTIONS FOR USE
Aluminium 2-wheeled walker
Product code: FS 914L

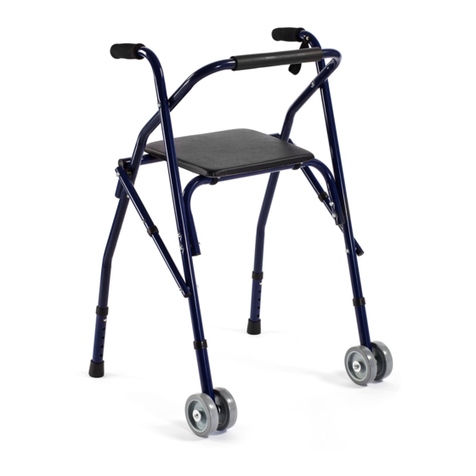

1. Characteristics
Folding 2-wheeled walker is made of powder coated light aluminium
frame. It possesses wide and welded black seat made of plastic
material, and soft backrest.The walker is equipped with height
adjustable legs with castors at the front, and soft foamed push
handles.
Elements of the walker:
a. push handle
b. seat
c. backrest
d. locking pin
e. locking seat strap
f. height adjustment pin
2. Application
The walker is designed for patients with reduced mobility who need
stable support and help while walking. It is also recommended to the
elderly as an aid in keeping balance, improving walking comfort and
ensuring safety from falling. The use of the walker affects positively on
the return to activity of the people with locomotion and tilting to erect
position problems. It guarantees better stabilization, support and
security while walking. The walker is suitable for indoor use only.
3. Assembly
Unfolding and folding the walker
•To unfold the walker, remove the locking tape from the seat
frame and unfold the walker until the metal pins located on the
outside of the frame are completely locked.

2
•To fold the walker, lift the seat and lock it with the use of strap.
Press the metal pins on both sides of the frame simultaneously
and fold the walker.
Height adjustment
•The height of the handles should be adjusted so that the user can
stand upright, as far as he or she is able to, with his or her
shoulders in rest position and with slightly bent elbows. It is
inadvisable to hang on the walker with all the body weight.
•To adjust the height of the legs, press the metal pin, select
appropriate height, and lock the position of the legs relative to
each other. The legs are adjustable in
2.5 cm increments.
Note! The pins must be set on the same level.
4. Technical data
Overall width
59 cm
Overall depth
48 cm
Seat dimensions
34.5 cm x 30 cm
Seat height from the
ground
52-62 cm
Height adjustment
78-88 cm
Weight
4.3 kg
Maximum capacity
100 kg
Frame colour
blue, green
5. Notes
Timago International Group does not bear responsibility of improper
use of the walker, failure to comply safety regulations and misuse.
6. Cleaning and maintenance
Control the technical condition of the walker regularly:
•Clean the frame with damp cloth and dry thoroughly.

3
•Do not use strong polishing agents due to the damage of
protecting coatings.
•Clean the dirt from moving parts of the walker regularly (hinges,
clamping screws, locks).
7. Storage and transport conditions
Device should not be exposed to direct sunlight, water or moisture.
8. Warranty information
All products distributed by our company are covered by a warranty, the
terms of which are described in the warranty card available on our
website. Please contact the retailer from whom you purchased the
product. Please, keep in mind that for warranty purposes, the proof of
purchase (receipt or invoice) should be retained
9. Labels
Reference
number
Manufacturer
LOT number Manufacture date
Serial number Medical device
Note
Please read the
instruction
The manufacturer checked for compliance with
essential medical devices requirements.
Our complete line of products is available from our distributors.
Learn more at: www.timago.com. Thank you for choosing Timago!

4
Timago International Group
Spółka z o.o. i Spółka – Spółka komandytowa
ul. Karpacka 24/12
43-316 Bielsko-Biała, Polska
T.: [phone]
F.: [phone]
E.: [e-mail]
Rev. II, date 20.05.2021
