TOORX BRX-R3000 User manual

Ed : 07/18 Rev : 00 Cod:
INSTRUCTION
GRLDTOORXBRXR3000
iConsole App Manual
www.toorx.it/iconsole

4
CHECK LIST (CONTENTS OF PACKAGE):
1
3
2
48
X1X1X1
X1
X1
X1X1
X1
X1
M8x1.25x20L 8pcs
9
D15.4xD8.2x2T 8pcs
7
D16xD8.5x1.2T 8pcs
13
D15.4xD8.2x2T 4pcs7
D16xD8.5x1.2T 4pcs
13
D22xD8.5x1.5T 2pcs11
M8x1.25x50L 4pcs
8
M8x1.25x50L 2pcs
8
108 D14xD6.5x0.8T 4pcs
61 M6*15L 1pcs
M8x1.25x20L 4pcs9
D16xD8.5x1.2T 4pcs
13
61 M6*15L 4pcs
X1
X1
X1
Step-1
Step-2 Step-4
Step-5
5
60
42
38
39
16R
16L
64
&
(mm)
KH-817K2

5
Exploded drawing:

6
Part List:
Part NO.
Description
Material
Specification
QTY
1
Main frame
1
2
Rear stabilizer
1
3
Front stabilizer
1
4
Wheel cover
PP
93.2*64.7*62
2
5
Handlebar post
1
6
Sliding beam
Q195
50*100*1.8T*740L
1
7
Spring washer
70#
D15.4 XD8.2x2T
14
8
Allen bolt
35#
M8*1.25*50L,8.8
6
9
Allen bolt
35#
M8x1.25x20L,8.8
12
10
Nut
Q235A
M8*1.25*8T
7
11
Curved washer
Q235A
D22xD8.5x1.5T
2
12
Rear chain cover (left)
PS
1
13
Flat washer
Q235A
D16*D8.5*1.2T
16
14
Allen bolt
35#
M8x1.25x15L,8.8
4
15L
Left crank
1015A
170Lx9/16"-20BC
1
15R
Right crank
1015A
170Lx9/16"-20BC
1
16L
Left pedal
JD-36A 9/16"
1
16R
Right pedal
JD-36A 9/16"
1
18
Crank axle welding set
1
19
C ring
65Mn
D22.5*D18.5*1.2T
2
20
Hex nut
35#
M6x1.0x15L，8.8
4
21
Nut
Q235A
M6x1.0x6T
4
22
Anti-loose nut
35#
M10*1.25*10T
2
23
Screw cap
PE
D26*11L
2
24
Bearing
GCr15
#6004-2RS(C0)
2
25
Belt
410 (1041) PJ6
1
26
Magnetic system
D265*86
1
27
Hex nut
Q235A
M18*1.5*14
1
28
Tri-angle cap(left)
PE
95.7*57.2*51.3
2
29
Tri-angle cap(right)
PE
95.7*57.2*51.3
2
30
Flat washer
Q235A
D24*D16*1.5T
1
31
Idle wheel fixing plate
1
32
Spring
72A#
D3*D19*67L
1
33
Bearing
GCr15
#99502
2
34
Pin
Q235A
D9*143.5L
1
35
Spring
D1.0*131.9
1
36
C ring
65Mn
S-16(1T)
3
37
Ball knob
ABS+Q235A
D33*M8*1.25
1
38
Backrest
1
39
Adaptor
Output：26V,2.3A
1
40
Rear chain cover (right)
PS
1
41
Adjustable pole
Q235A
D12*122*162
1
42
Seat
1
43
Foam
NBR
D30*3T*480L,PAHS
2
44
Axle
Q235A
D12*100L
1
45
Bushing
Fe
D29*D12.1*9T
2
46
Upper handle pulse cable
750L
2
47
Lower handle pulse cable
1850L
1
48
Handlebar
1
49
Handle pulse cable
690L
1
50
Upper handle pulse cable
750L
2

7
Part NO.
Description
Material
Specification
QTY
51A
Bushing
NL
125*75*53
1
51
Bushing
NL
125*75*53
1
52A
Upper computer cable
600L
1
52B
Lower computer cable
950L
1
53
Sensor cable
150L
1
54
Electric cable
450L
1
55
Belt wheel
ZL102
D260*19
1
56
Handle pulse
PE18
2
57
Waved washer
65Mn
D27*D20.3*0.5T
1
58
Allen bolt
35#
M8*1.25*50L,8.8
1
59
Round magnet
M02
1
60

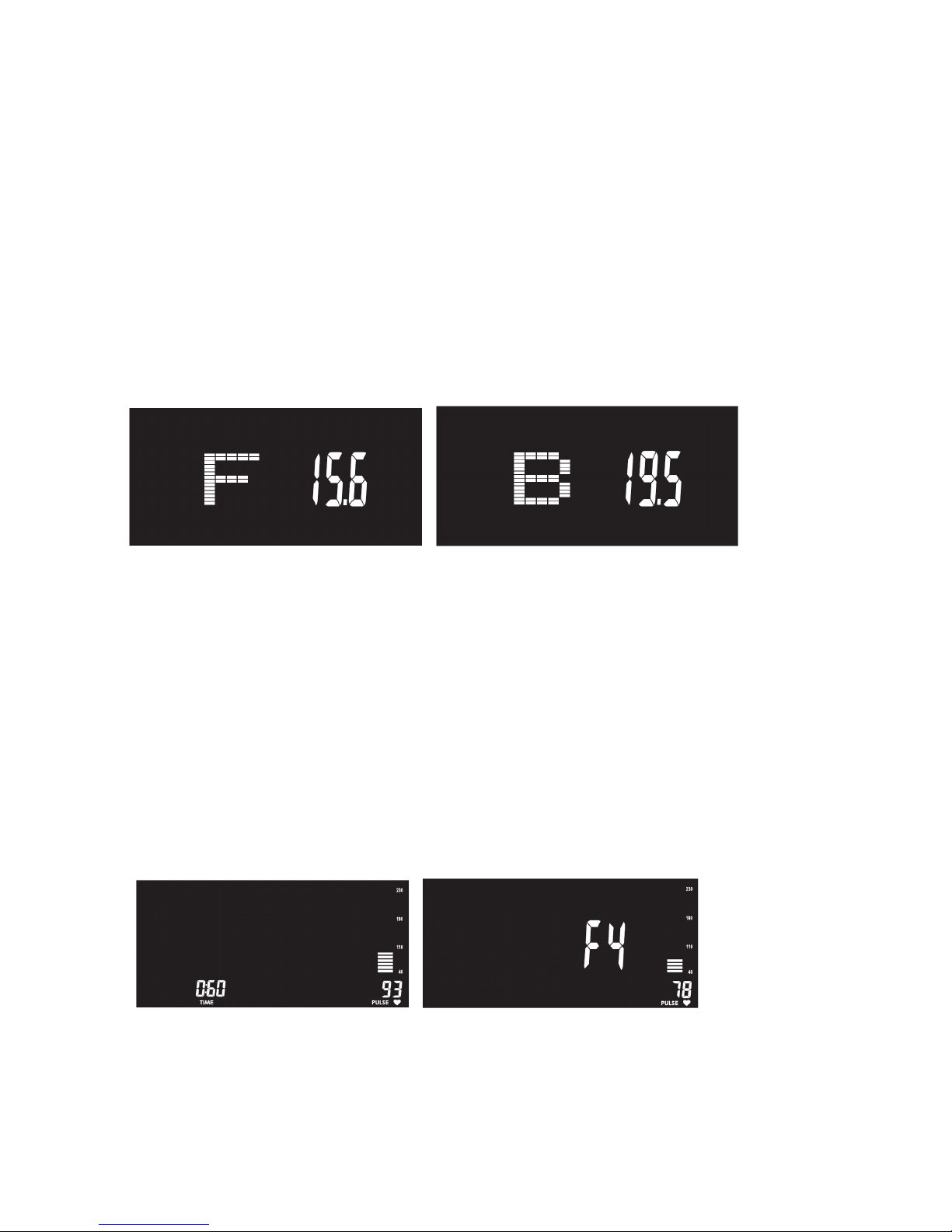

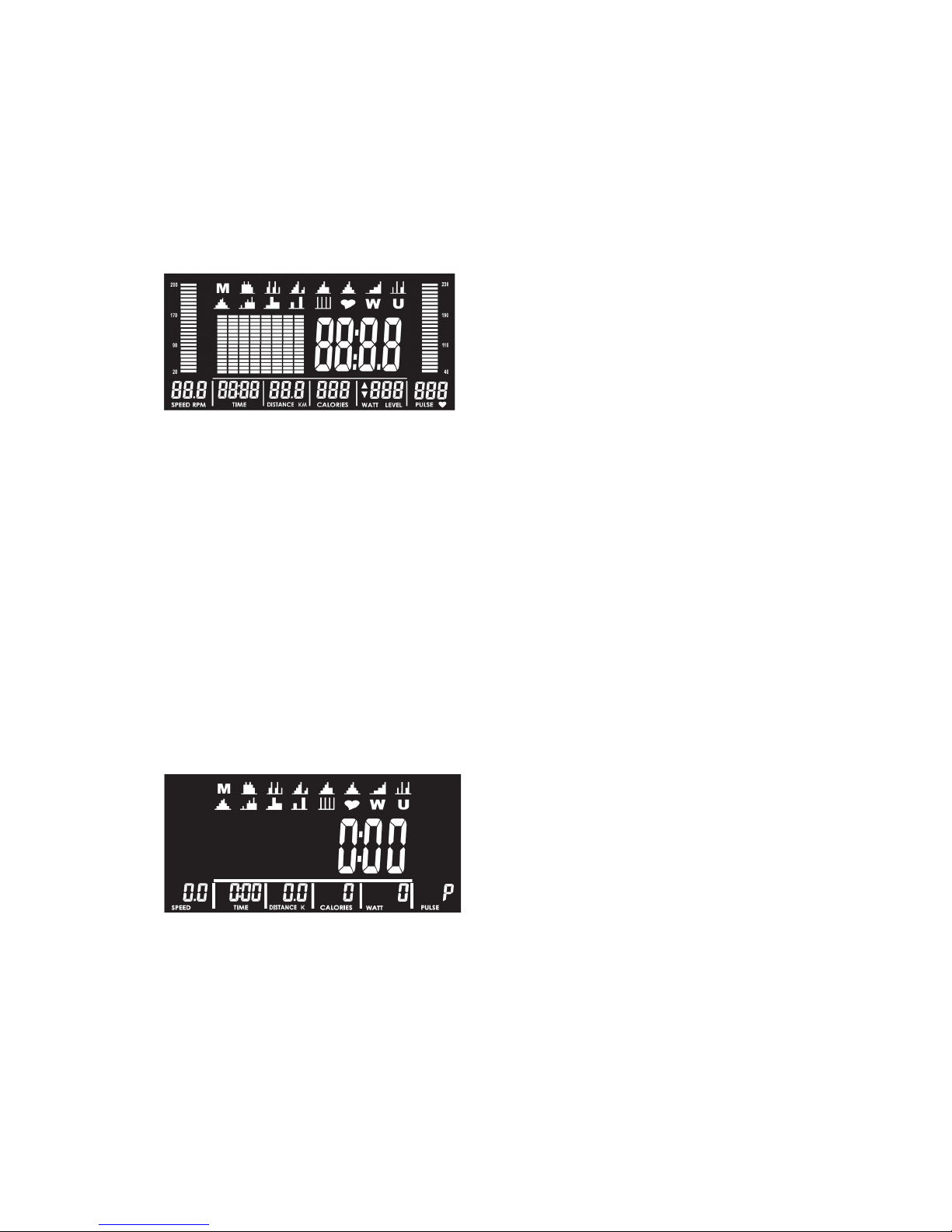

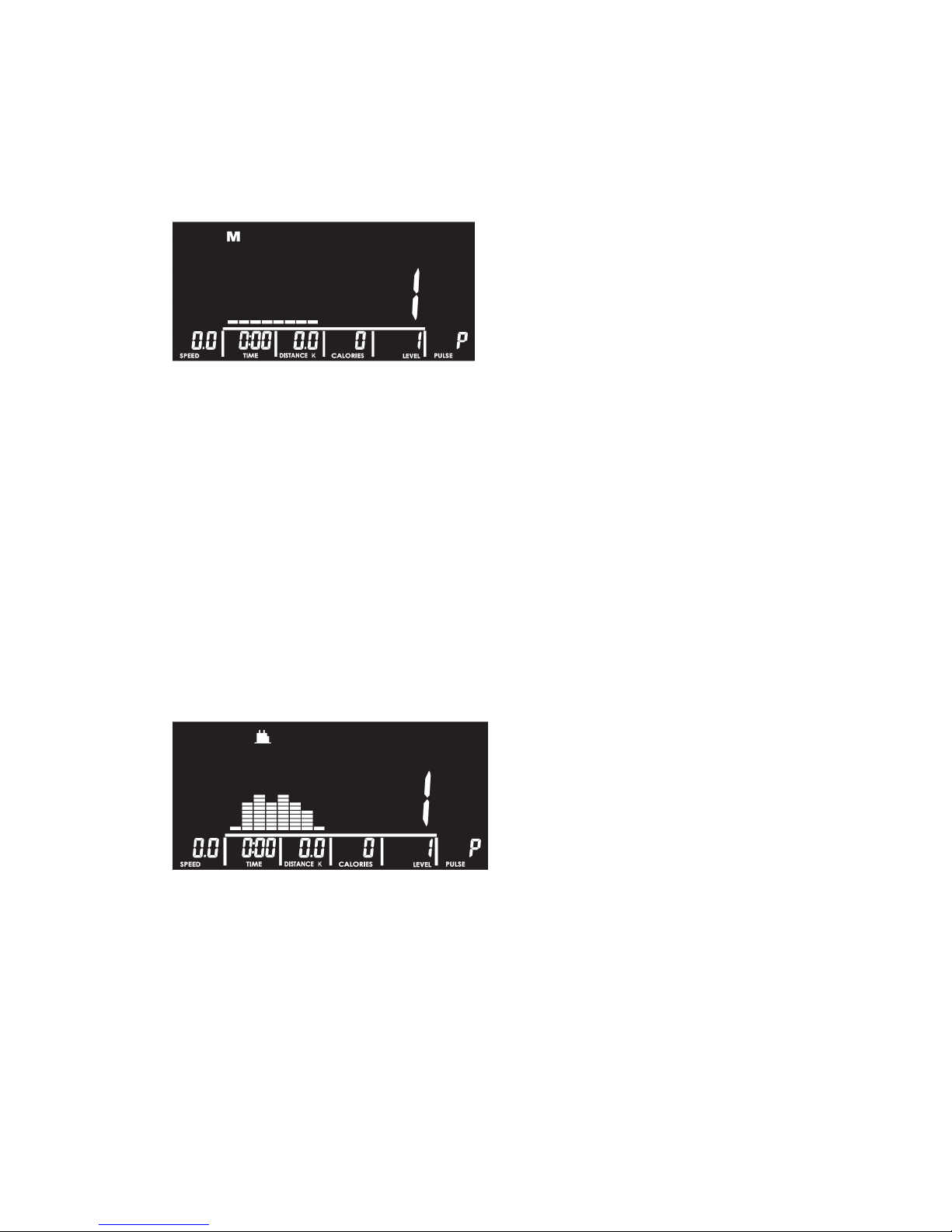

Computer
SE-1699-31
1
61
Screw
35#
M6*1.0*15L,8.8
9
62
Foam
NBR
D30*3T*520L,REACH
2
63
Cap
PVC
D1 1/4"*29L
4
64
Upper protective cover
HIPS
137.1*121*73.4
1
65
Control board
EMS2500-A01
1
66
Waved washer
65Mn
D21xD16.2x0.3T
1
67
Allen bolt
35#
M8x1.25x30L ,8.8
1
68
Plastic washer
NL66
D10*D24*0.4T
2
69
Flat washer
Q235A
D25xD8.5x2.0T
1
70
Cap
PE
30*70*17L
1
71
Flat washer
Q235A
D25*D8.5*2T
2
72
Hex bolt
35#
M8*1.25*15L,8.8
2
73
Hex nut
Q235A
M8*1.25*6T
2
74
Screw cover
PVC
D28x14(M8)
2
75
Adjustable tube of backrest
1
76
C ring
65Mn
S-12(1T)
2
77
Spring washer
70#
D10.5*D6.1*1.3T
4
78
Nut
Fe
D15*13L
1
79
Flat washer
Q235A
D13*D6.5*1.0T
4
80
Bushing
D29*D11.9*9T
2
81
Axle
D26*41
1
82
Stopper
ABS
53*41*38
1
83
Protective cover
PS
95.4*69*49.3
1
85
Foam
PVC
D9.6*1T*213L
1
86
Left chain cover
HIPS
534.7*502*82.7
1
87
Right chain cover
HIPS
534.7*502*78.1
1
88
Seat post tube
1
89
Screw cover
PVC
D3*30L
1
90
Allen bolt
Q235A
M8*1.25*40L,8.8
2
91
Wheel
D65*24
2
92
Nut
Q235A
M8*1.25*8T
1
93
Screw
10#
ST4.2x1.4x15L
2
94
Buffer
NBR+Q235A
D20*10L*M8*1.25
4
95
Bolt
Q235A
M5x0.8x12L
1
96
Screw
10#
ST4.2x1.4x20L
19
97
Screw
10#
ST4*1.41*12L
1
98
Fixing plate
Q235A
30*27*4T
1
99
Adjustable round wheel
Q235A+rubber
D38*M10*1.5
4
100
Pin
ABS
D6*26.5*7.7
3

8
101
Bolt
Q235A
M5x0.8x15L,8.8
2
Part NO.
Description
Material
Specification
QTY
102
Buffer strip
EVA
219*15*2T
2
103
Screw
10#
ST4*1.41*15L
8
104
Bolt
Q235A
M5x0.8x10L
2
107
Line plug
PVC
D4*D12*13
1
108
Flat washer
Q235A
D14*D6.5*0.8T
4
110
Computer fixing plate
Q235A
220*120*3T
1
111
Bolt
4
113
Computer bracket
ABS
120*40*70
1
114
Computer fixing bracket
ABS
120*110*2.5T
1
115
Screw
35#
M8*1.25*45L
1
117
Connect cable
150L
1
118
Buffer
NBR
40.5*28.5*6T
1
119
Screw
10#
ST4*1.4L*25L
2
\
Allen spanner
35#
M6,8.8
1
\
Spanner
Q235A
155*30*5T
1
\
Allen spanner
Q235A
M5
1
STEP 1
1) Assemble the front stabilizer (3) and rear stabilizer (2) onto the main frame (1) by
using the spring washer (7), the Allen bolt (9), and the flat washer (13).
2) Adjust the proper height by turning the adjustable round wheel of foot cap(99).

9
STEP 2
1) Suggest assembling this step by two persons.
2) First, lift up the upper protective cover (64) like fig. a. Then connect the handle pulse
cable (46 & 47) like fig. b.
3) Insert the handlebar post (5) on the main frame and tighten it by using the spring
washer (7), the Allen bolt (8), and the flat washer (13). Place down the cover for
handlebar post (64) and make it tight on the main frame.

10
STEP 3

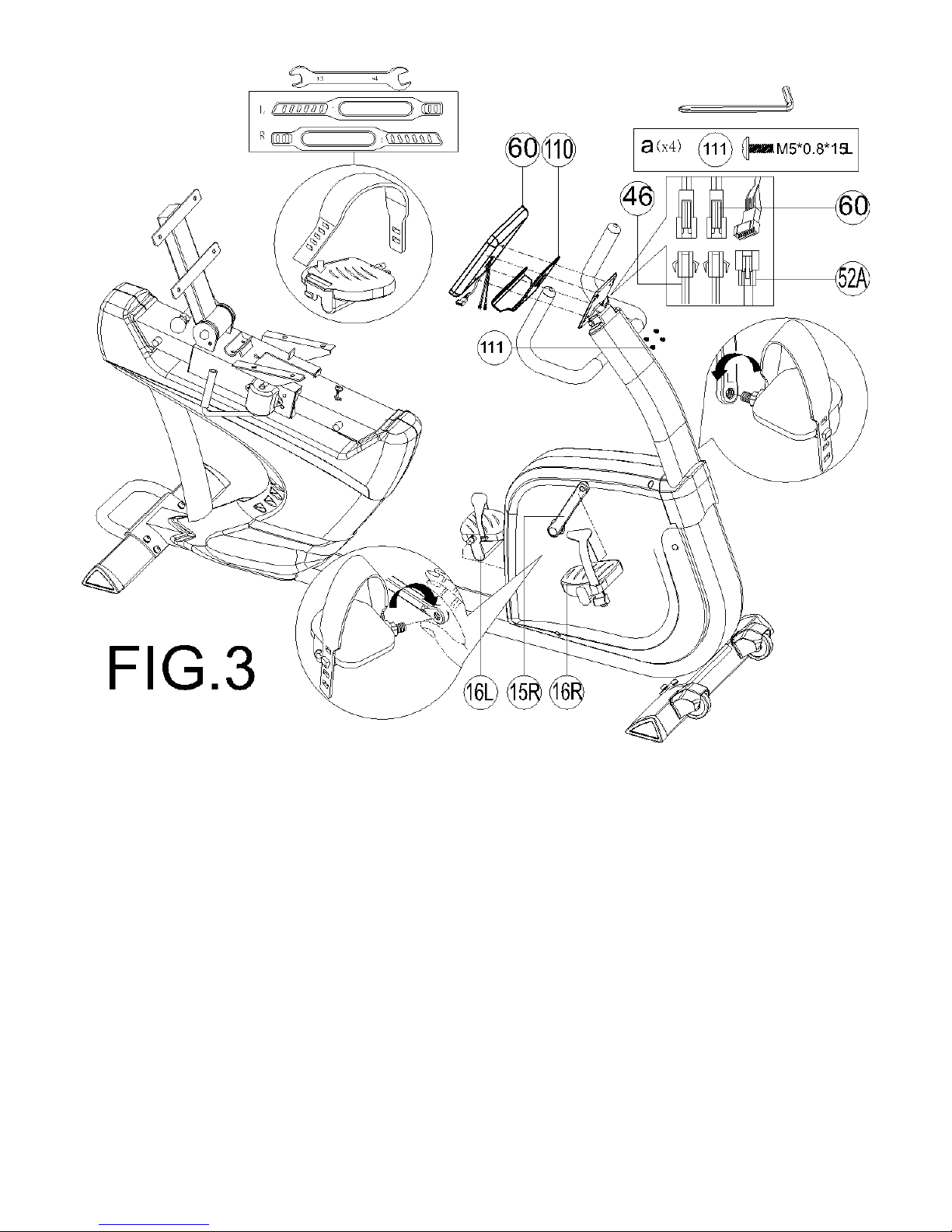

1) Assemble the upper handlebar pulse cable (46) & upper computer cable (52A) to the
computer (60).
2) Assemble the computer (60) to Computer fixing plate(110)& the handlebar post (5) by
using the bolt (111).
3) Assemble the left pedal (16L) on the crank (15L) by anti-clockwise. Assemble the
right pedal (16R) and the right crank (15R) by clockwise.

11
STEP 4

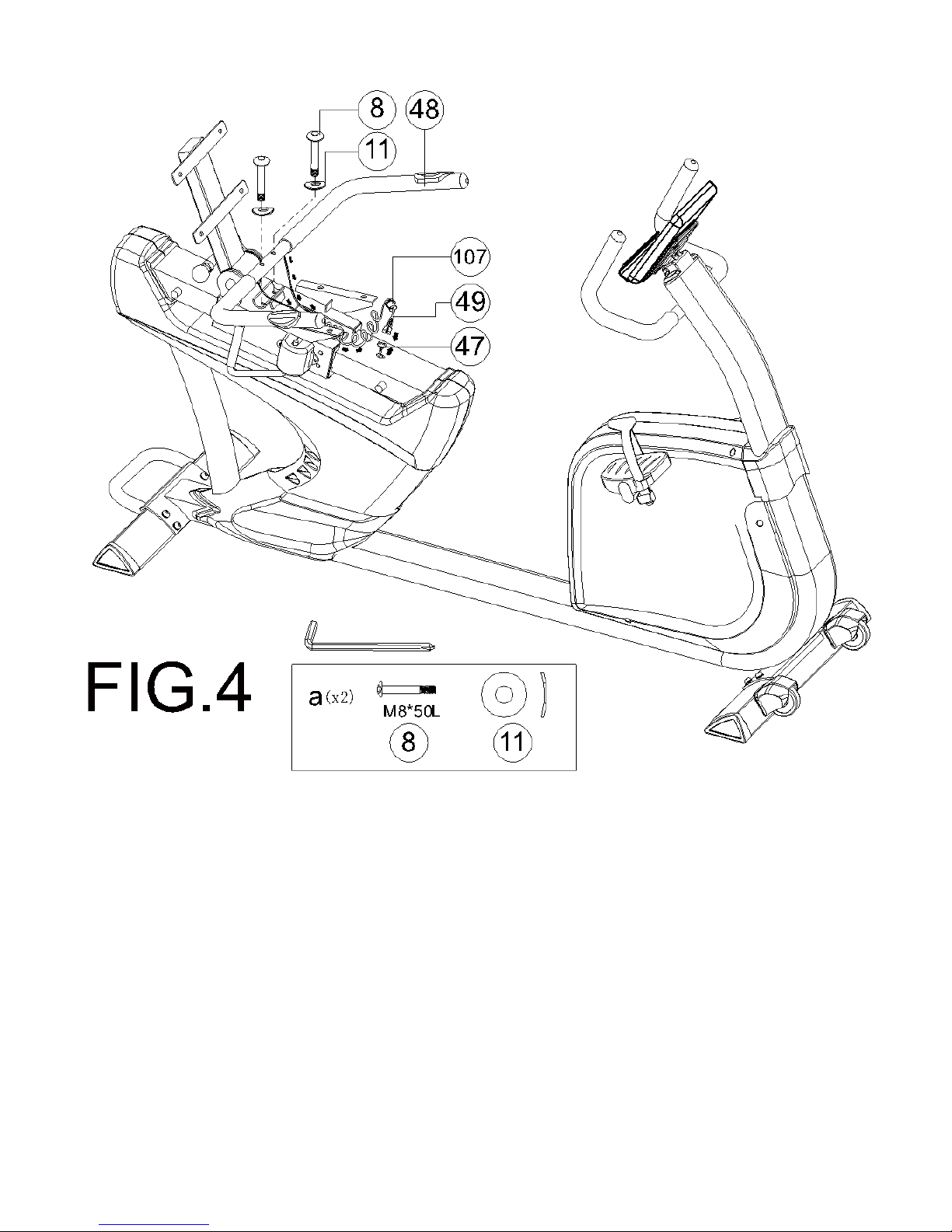

1) Assemble the handlebar (48) to the main frame (1) by using the Allen bolt (8), and
the curved washer (11).
2) Connect the lower handle pulse cable (47) with the handle pulse cable (49), then
cover with line plug(107).

12
STEP 5
1) Assemble the seat (42) to the seat support tube(88) by using the screw (61) and the
flat washer (108).
2) Assemble the backrest (38) to the backrest post by using the Allen bolt (9) and the
flat washer (13).
3) Connect the adaptor (39) to the adaptor input on the front of the bike.
