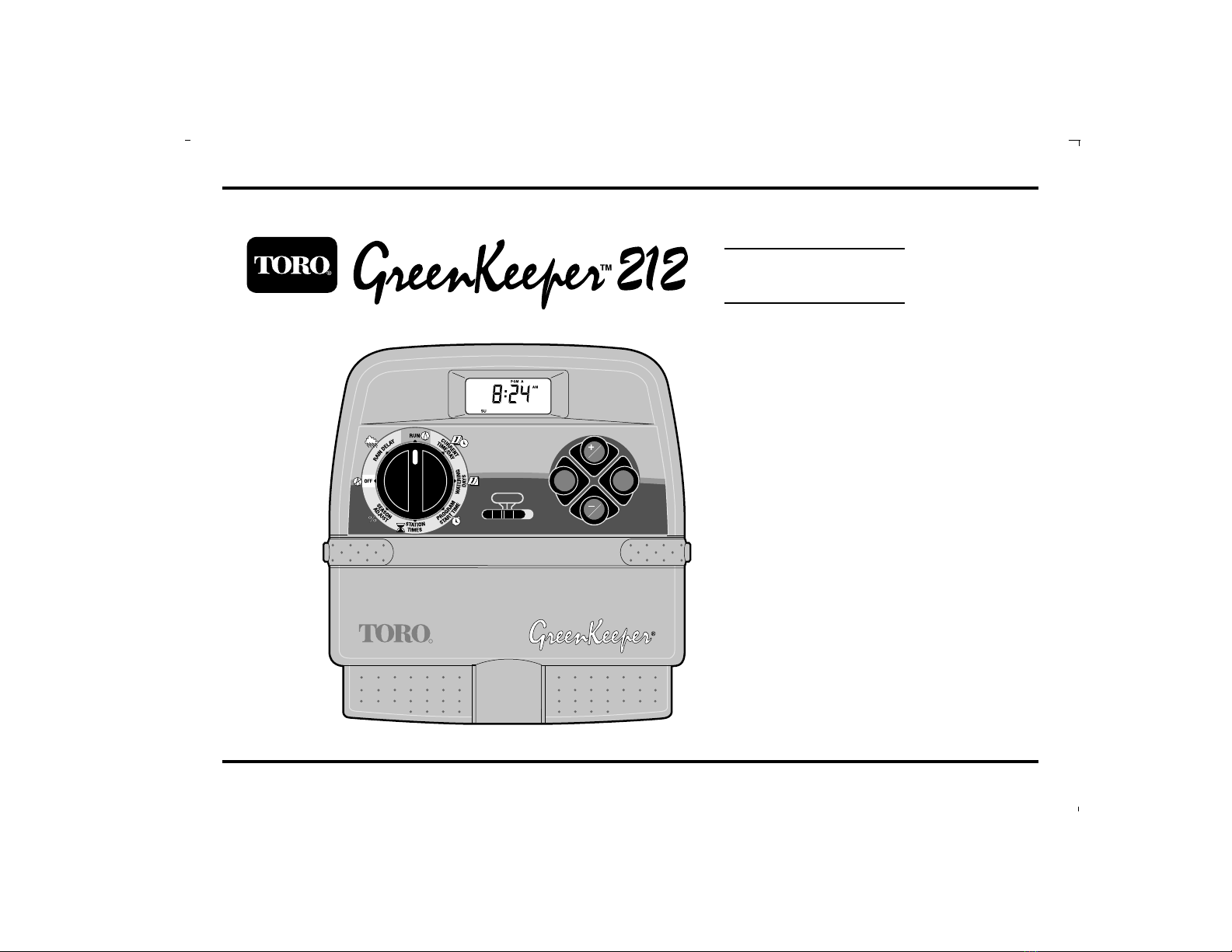

Toro Green Keeper 212 User manual

R
MANUAL
START
ON
NEXT
OFF
PROGRAMS
BCA
GreenKeeper 212 Features:
•EasilyExpandableUpTo12Stations
With 2-Station Plug-In Modules
•3WateringProgramsWith:
- Calendar, Interval and Odd/ Even Days
- 1 Min. to 4 Hrs. Zone Run Time
- 4 Start Times Per Program
•BatteryBack-Up
•AutomaticPumpStart
•SeasonalRunTimeAdjust
•RainDelay
•RainSensorReady
•RemoteControlReady
•Snap-InWireConnectors
Automatic Sprinkler System Controller
User’s Guide
(For Indoor Use Only)

Introduction and Set Up
■GreenKeeper 212 Components......................2-5
■Sprinkler System Basics ....................................6
■Watering Program Basics ..................................7
■Watering Program Details ..............................8-9
■Planning Your Watering Schedule...................10
■Filling Out The Watering Schedule Form ...10-11
❚Watering Schedule Form ..............................12
■Programming Before Installation .....................13

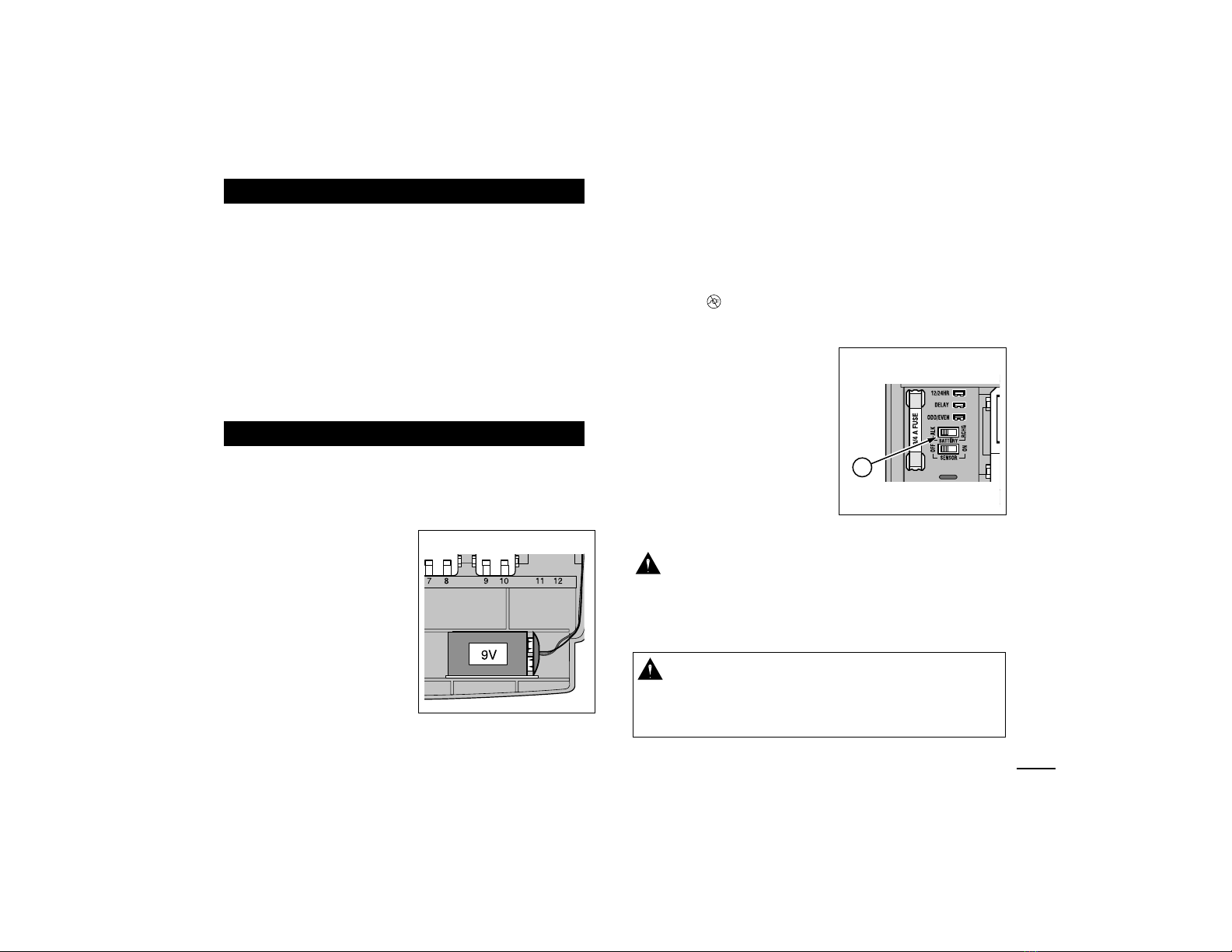

■Installing The Battery .......................................13
■Selecting Optional Features ............................14
❚24-Hour Clock Mode .....................................14
❚15-Second Run Delay ..................................14
❚Odd/Even Watering Days..............................14
■About The Controller Memory..........................14

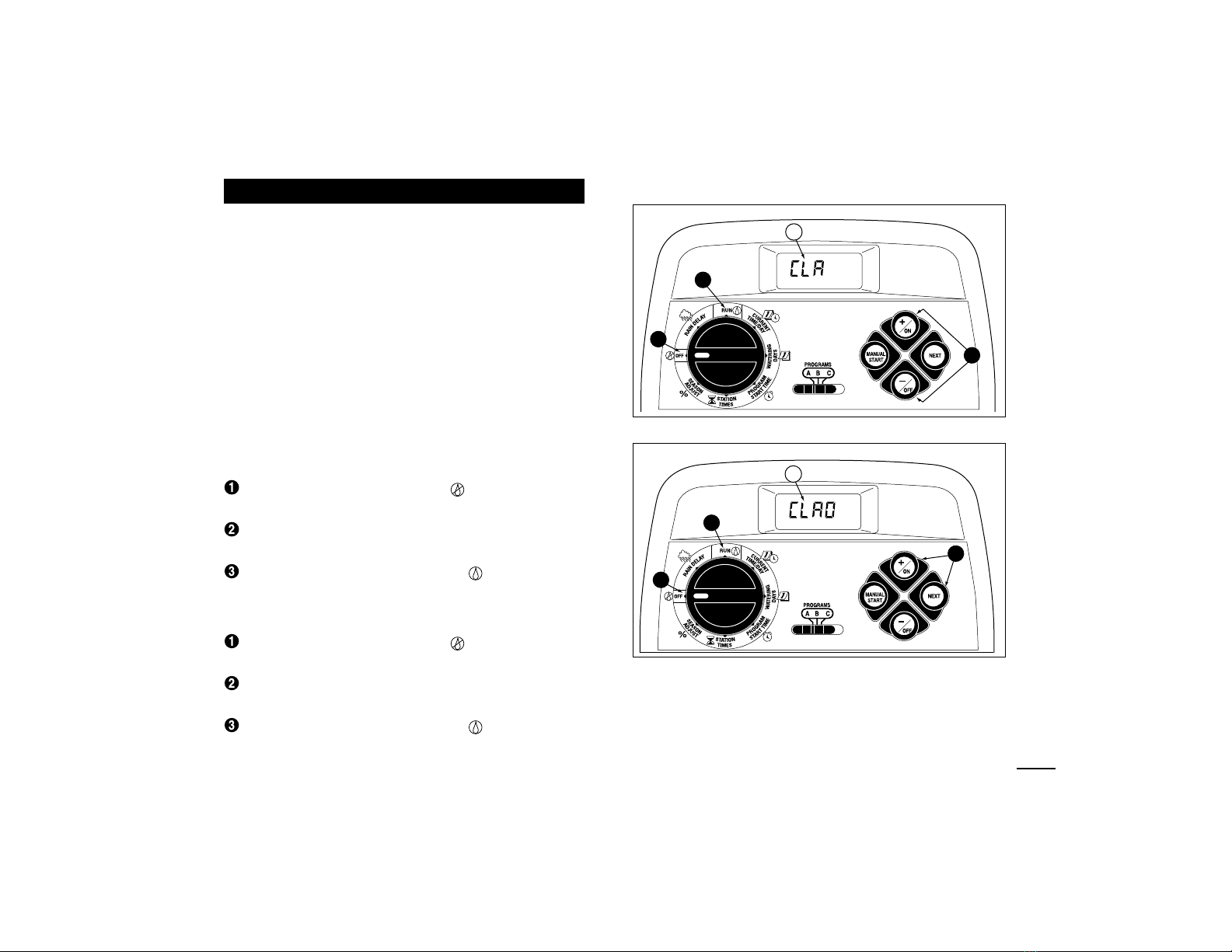

■Resetting The Controller Memory....................15
❚To Reset The Permanent Memory................15
❚To Clear The Memory ..................................15
Programming The Controller

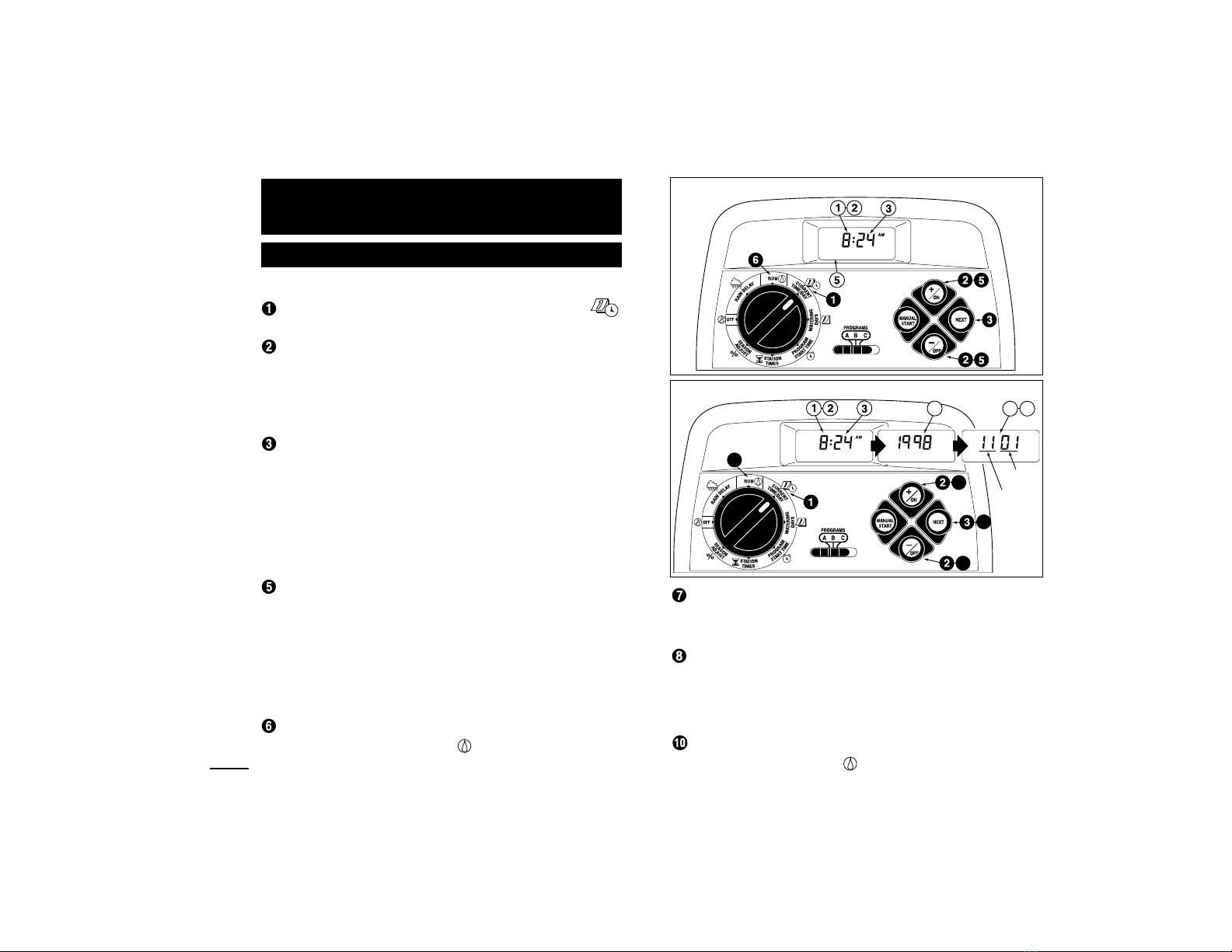

■Setting The Current Time And Day or Date.....16
■Setting The Watering Day Schedule ..........17-19

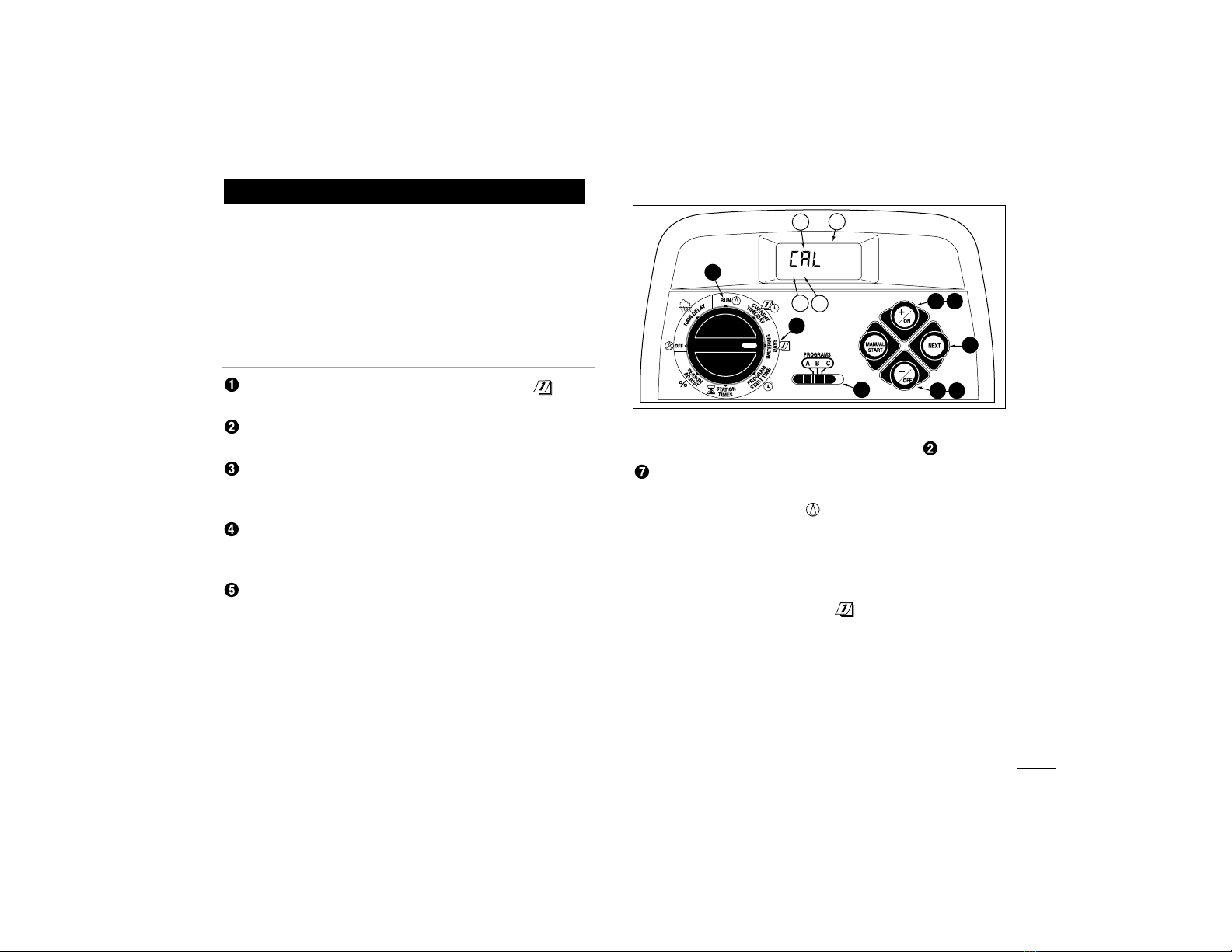

❚Setting A Calendar Schedule ........................17

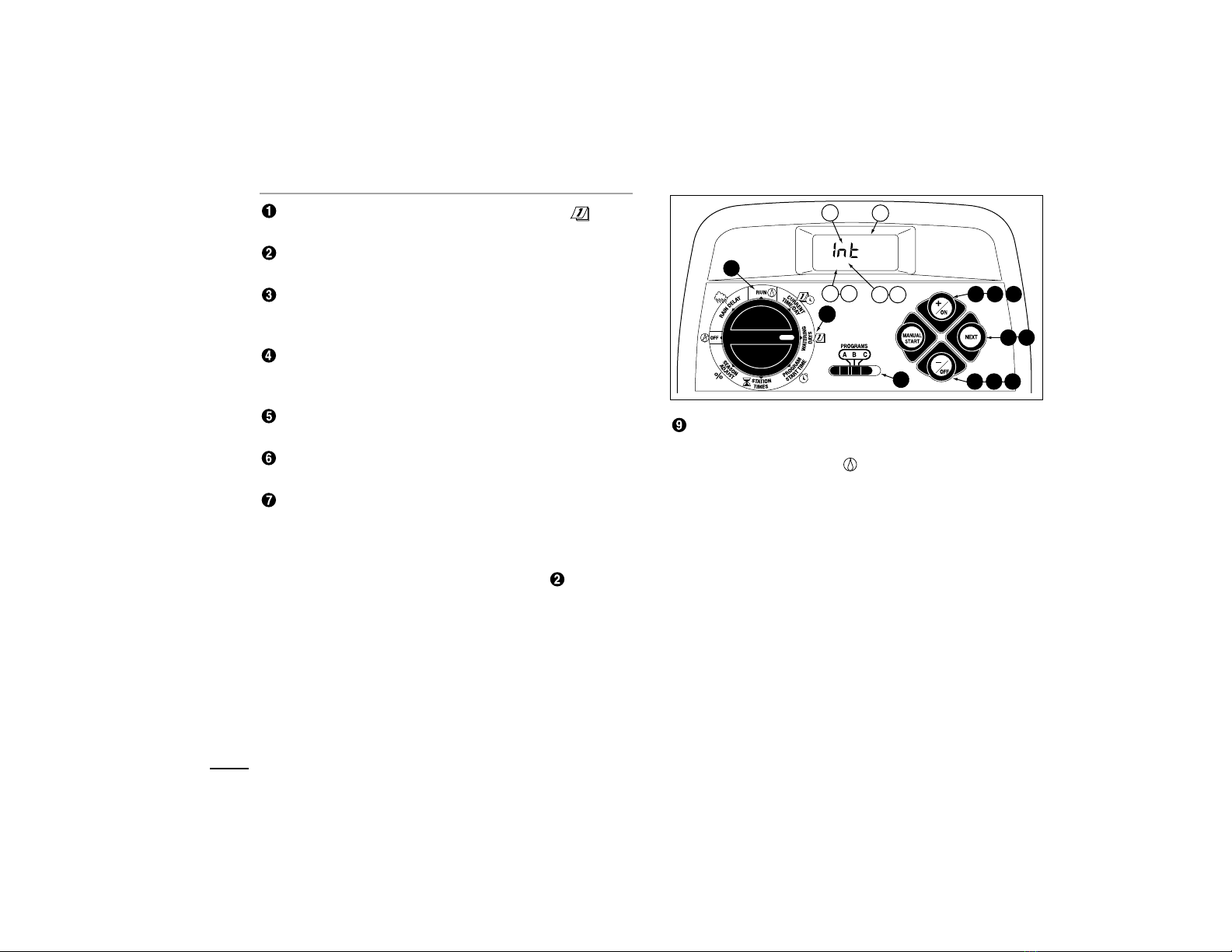

❚Setting An Interval Schedule.........................18
❚Setting An Odd or Even Schedule ................19
❚Turning Off A Program .................................19

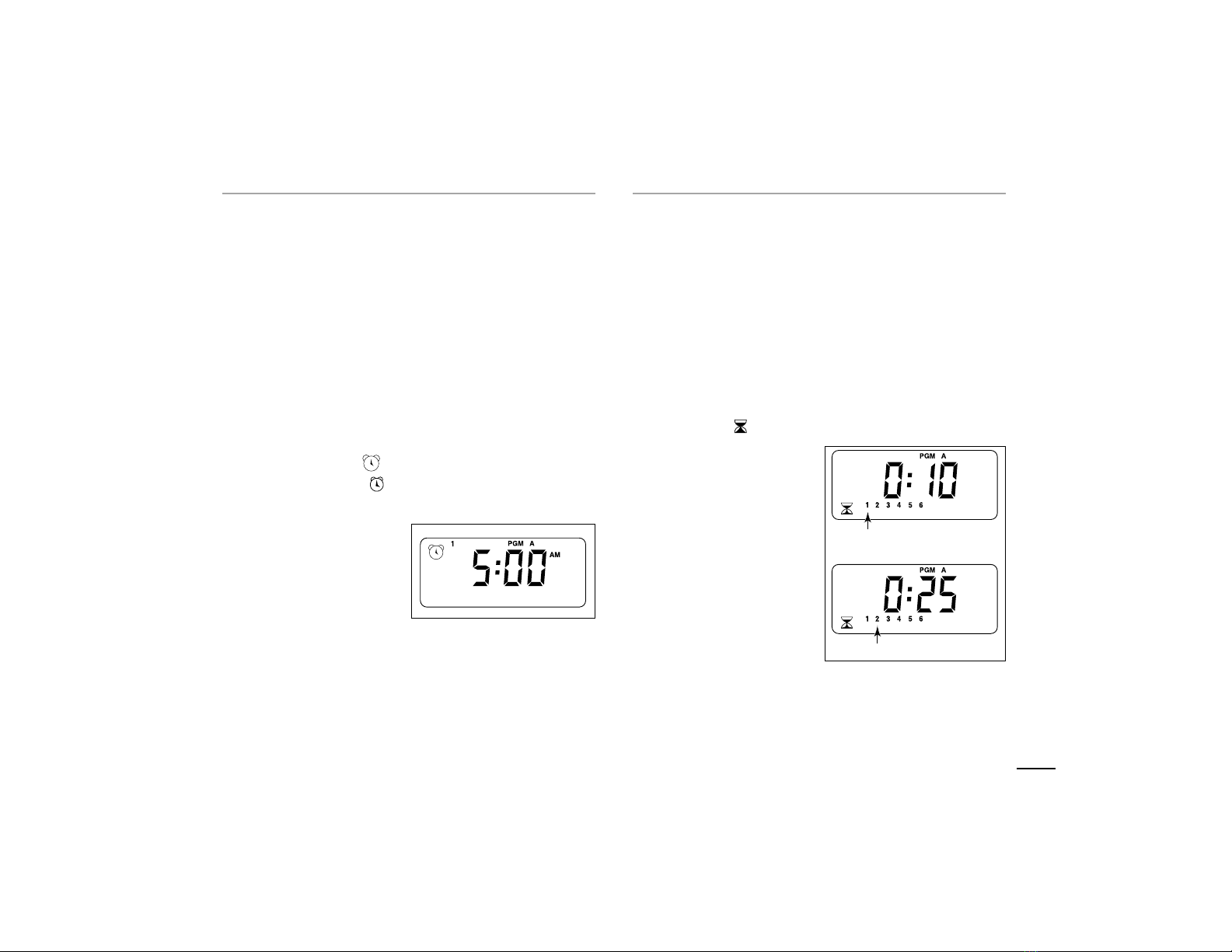

■Setting Program Start Times ...........................20
■Setting Station Run Times ...............................21
Installation
■Mounting The Controller ..................................22
■Connecting The Valves....................................23
■Connecting A Pump Start Relay ......................24
■Connecting The Transformer...........................24
■Connecting A Toro Rain Switch.......................25
Controller Operation
■Automatic Operation .....................................26
■Manual Operations ........................................27
❚Starting Programs Or Stations Manually.......27
❚Watering Control Features ............................28
❚ To Pause Watering .....................................28
❚ To Resume Watering..................................28
❚ To Cancel Watering ....................................28
❚ To Skip Zones.............................................28
❚ To Adjust The Station Run TIme ................29
■Turning Off The GreenKeeper 212 ..................29
■Using The Rain Delay Feature ........................29
■Using The Season Adjust Feature...................30
Service and Specifications
■Replacing The Fuse.........................................31
■Adding A Station Module .................................32
■Troubleshooting ...............................................32
■Specifications...................................................33
■Warranty Information .......................................33
■Electromagnetic Compatibility .........................34
Table of Content s
1

Controller Components
GreenKeeper 212 Introduction
and Set Up
2
1
3
BATT ERY
2

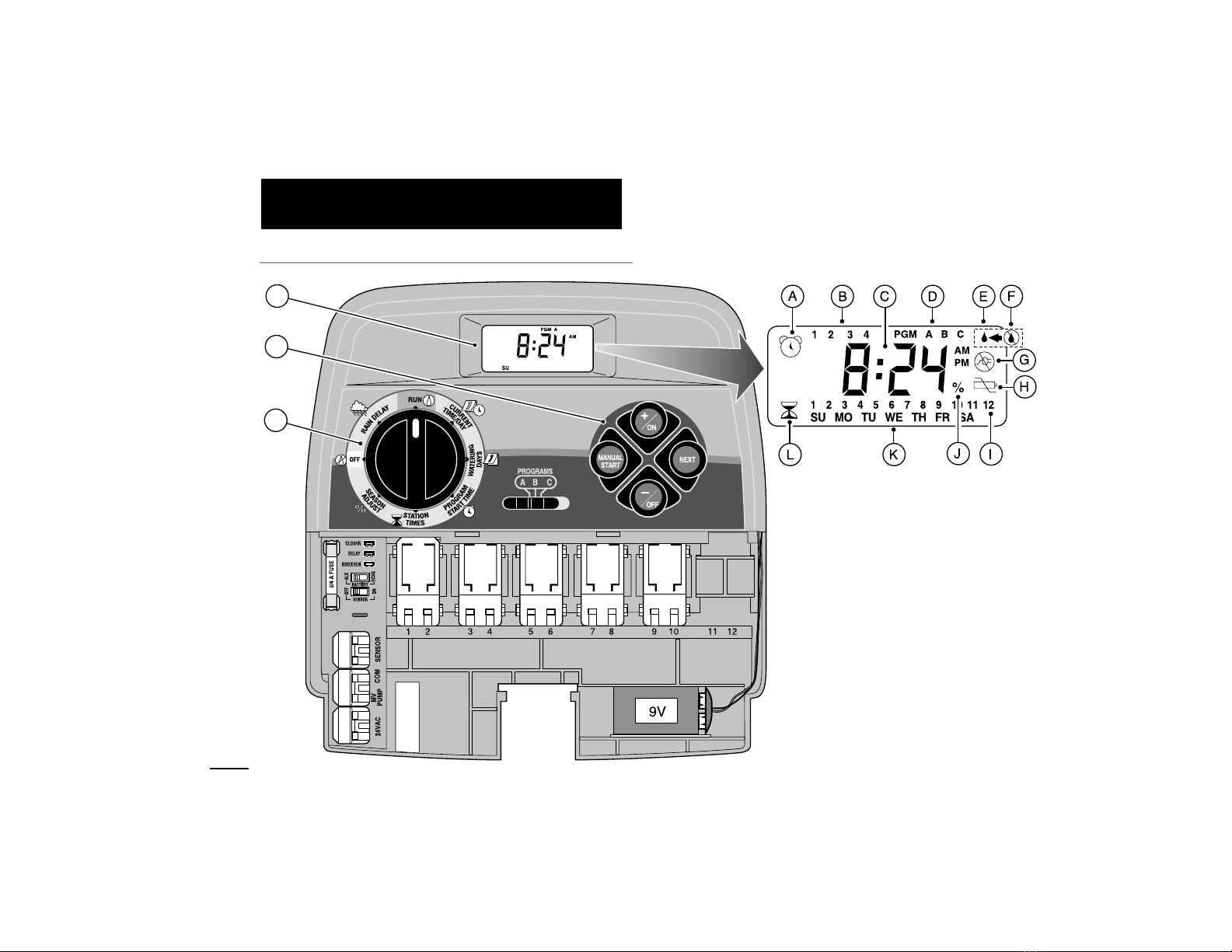

GreenKeeper 212 Components
The following are brief descriptions of the controller com-
ponents and display elements. Each of these items will
be explained in further detail within the appropriate pro-
gramming, operating and installation sections of this
guide.
1 - LCD Display
A - “Start Time” symbol – Alarm clock is displayed
when setting the program start times.
B - Program start time identification numbers 1–4.
C - Main display of various time values and prompts.
D - Program A, B and C identifiers.
E - “Watering On”symbol –Water droplet indicates a
watering station is running. Droplet flashes if water-
ing is paused.
F - “Watering Off”symbol –Water droplet with slash
indicates all watering activity is Off.
G - “Power Off”symbol –Displayed when 24 V a.c. is
disconnected and controller is on battery power
only.
H - “Low Battery Voltage”symbol –Indicates low bat-
tery voltage (when transformer is disconnected).
I - Watering Station identification numbers.
J - “Percent”symbol –Indicates the Season Adjust
feature is in use.
K - Day of the week identifiers.
L - “Run Time”symbol –Hourglass is displayed when
setting the watering station run times.
2 - Control Buttons
+/ON button –Increases the time display, scrolls for-
ward through the program information and selects
watering days.
–/OFF button –Decreases the time display, scrolls
backward through the program information and
removes watering days.
NEXT button –Advances to the next portion of pro-
gram information. Resumes watering if paused.
Advances through stations manually when watering.
MANUAL START button –Selects and starts manual
watering operations.
3 - Control Dial –Selects all controller programming
and operation controls (except Manual Start).
Control Dial Positions
RUN –The normal dial position for all automatic
and manual operations.
CURRENT TIME/DAY –Enables the clock time
and day to be set.
WATERING DAYS –Enables the watering day
schedules to be set and reviewed.
PROGRAM START TIME –Enables the program
start times to be set and reviewed.
STATION TIMES –Enables the station run time to
be set and reviewed.
(continued)
3

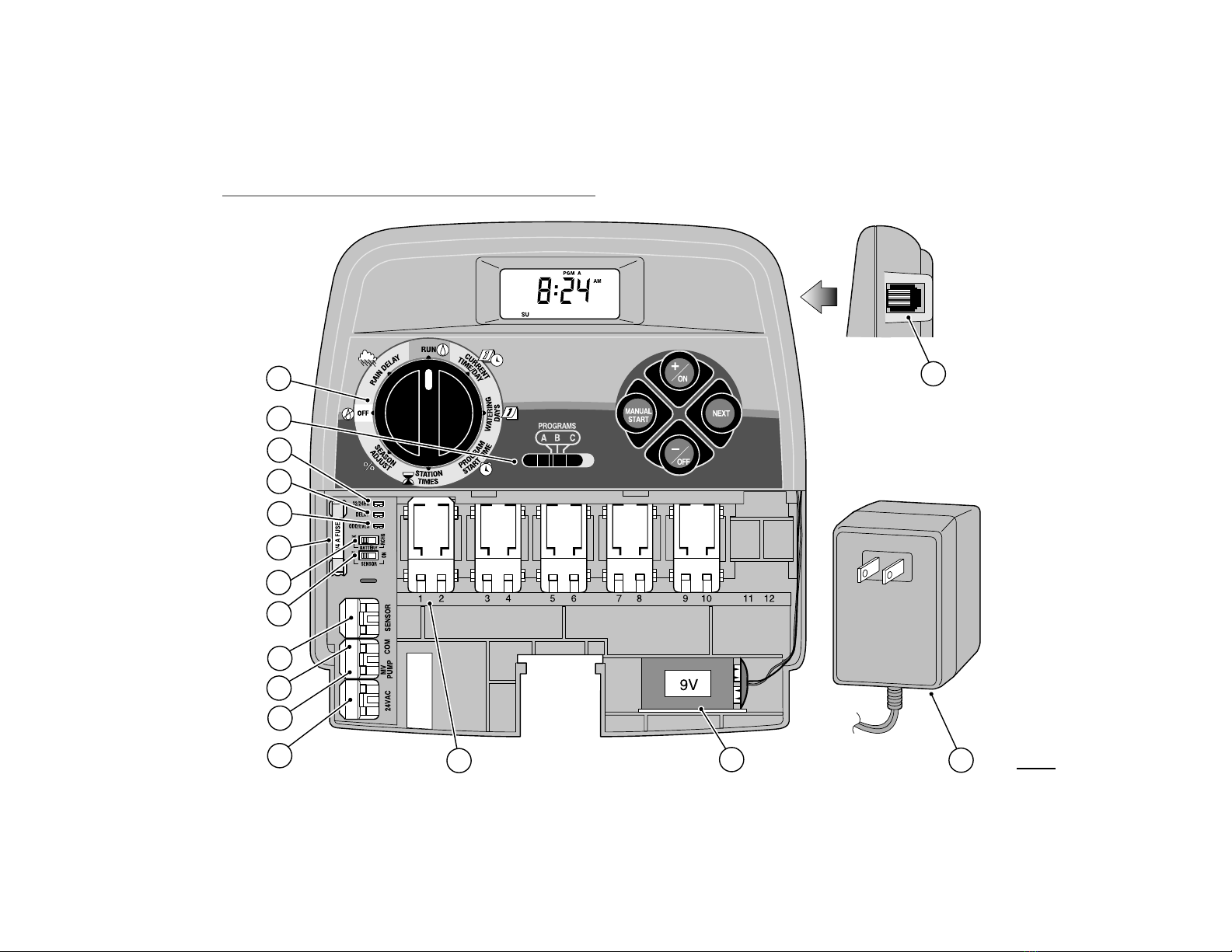

Controller Components
3 - Control Dial Positions (continued)
SEASON ADJUST –Enables the run time of all
zones in a program to be simultaneously increased
or decreased in 10% increments.
OFF –Shuts off and prevents all automatic and
manual watering activity.
RAIN DELAY –Enables all watering operations to
be delayed from 1 to 7 days.
4 - Program Select Switch –Three-position slide
switch used to select watering program A, B or C
during the programming procedures and manual
operation.

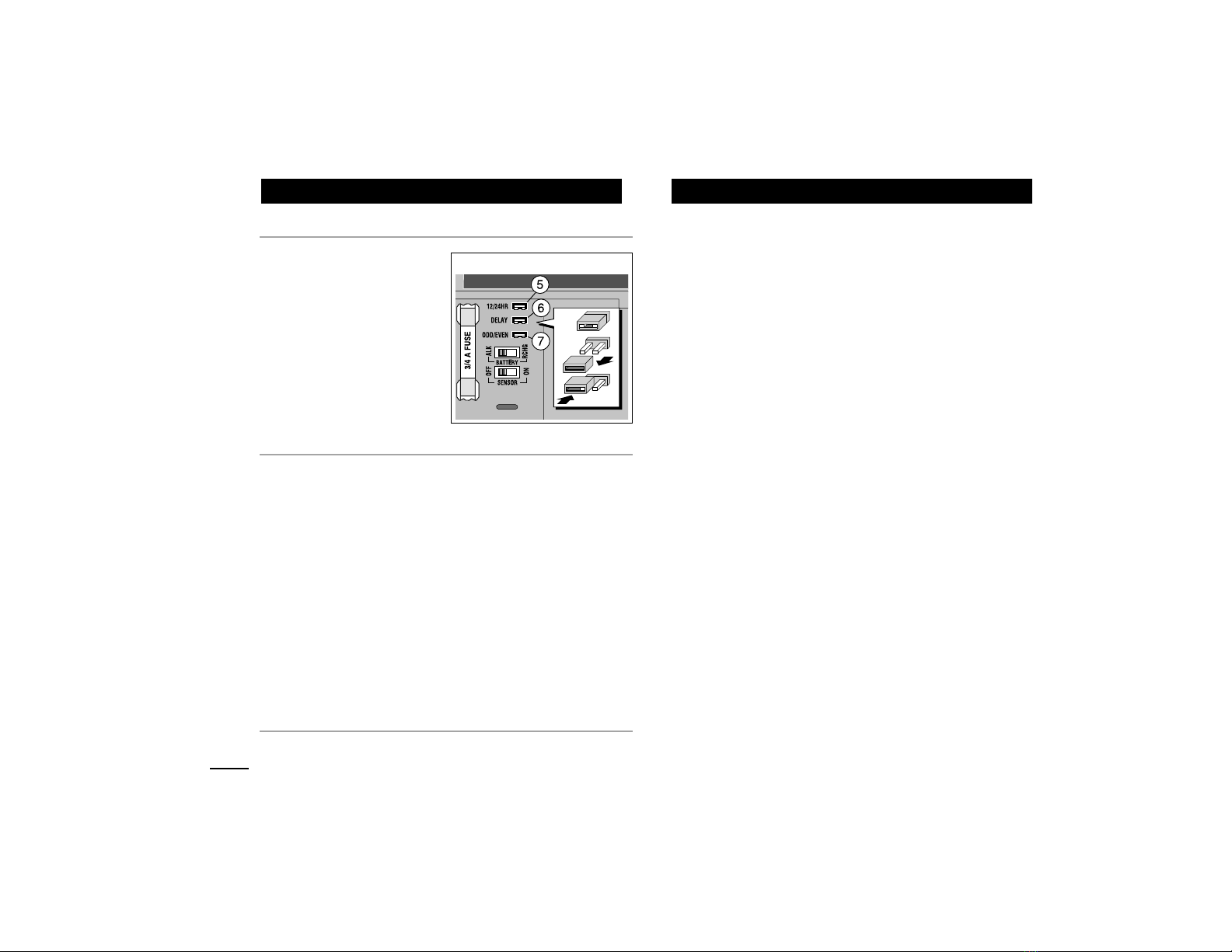

5 - 12 or 24-Hour Clock Selector Jumper –Removing
this jumper selects 24-hour (military time) clock
mode. Jumper installed selects 12-hour clock mode.
6 - Run Delay Selector Jumper–Removing this
jumper selects a 15-second delay period before a
station begins watering. Jumper installed provides a
2-second delay.
7 - Odd/Even Day Schedule Selector Jumper –
Removing this jumper enables an Odd/Even water-
ing day schedule to be selected.
8 - Fuse –0.75 Amp, 250V Fast Blow fuse.
9 - Battery Charger Switch –Controls the battery
charging circuit. Switch positions provided for
Alkaline and rechargeable batteries.
10 - Rain Sensor Control Switch –Controls the sensor
input circuit. Switch positions provided for sensor
circuit On and Off.
11 - Sensor Connection Terminals –Snap-in connec-
tors for connection of an (optional) Toro Rain Switch.
12 - Common Connection Terminal –Snap-in wire
connector for the valve common wire.
13 - Pump/Master Valve Connection Terminal –
Snap-in wire connector for a pump start relay or
master valve.
14 - Transformer Connection Terminals –Snap-in
connectors for the plug-in transformer wires.
15 - Plug-In Station Control Module –Each control
module provides snap-in connectors for two station
control valve power wires. Up to six modules can be
installed.
16 - 9-Volt Battery –The battery maintains the con-
troller memory if the transformer power is discon-
nected. Either Alkaline or rechargeable battery types
can be installed.
17 Power Supply –A Plug-in transformer supplies
24 V a.c. power to the controller.
(Domestic transformer version shown.)
18 - Remote Control Receiver Jack –Modular jack
provided for connection of the optional Toro Remote
Control receiver cable.
(Refer to the instructions provided with the remote
control device for installation and operation details.)
4

5
BATT ERY
16 17
18
5
6
7
10
11
12
13
14
9
8
15
3
4
Controller Components

The three main components of every automatic sprinkler
system are the controller, station control valves and
sprinklers.
The controller is the brain of the system, telling the control
valves when and how long to supply water to the sprin-
klers. The sprinklers direct and control the water applied to
the lawn and plants.
Each valve controls a specific group of sprinklers called
a watering station. The stations are generally laid out
and installed according to the type of plant material to be
watered, the location of the plant within the landscape
and the maximum amount of water which can be sup-
plied. Each valve is connected to a numbered terminal
within the controller, identifying it as Station 1, Station 2,
etc.
The controller operates the valves in order, one at a
time. In other words, one station would water completely
before another station would turn on. This is called a
watering cycle. The information stored in the controller
memory which determines when and how long the sta-
tions will water is called a program.
The next section of this guide is very important. It explains
what a program is and how the GreenKeeper 212 controls
the operation of the sprinkler system.
Sprinkler System Basics
6
R
MANUAL
START
ON
NEXT
OFF
PROGRAMS
BCA
Valve 1 - Station 1 - Parkway Lawn - Fixed Spray
Valve 2 - Station 2 - Front Lawn - Fixed Spray
Valve 3 - Station 3 - Front Shrubs - Flood Bubbler
Valve 4 - Station 4 - Back Lawn - Geared Rotor
Valve 5 - Station 5 - Garden - Drip
Valve 1
Controller
Valve 2
House
Valve 3
Valve 4
Valve 5

A watering program requires three basic instructions to
operate automatically:
•What days to water –called watering days
•When to water –called a program start time
•How long to water –called station run time
The following example illustrates how a typical watering
program could be set for the sprinkler system shown on
the previous page.
Example: The program start time is set for 5:00 AM. Lawn
stations 1 and 2 each have a run time of 10 minutes and
lawn station 4 is set to run for 20 minutes. Note that sta-
tions 3 and 5 water shrubs and flowers and have been
excluded from this program. (These stations will be set
to operate on separate programs).

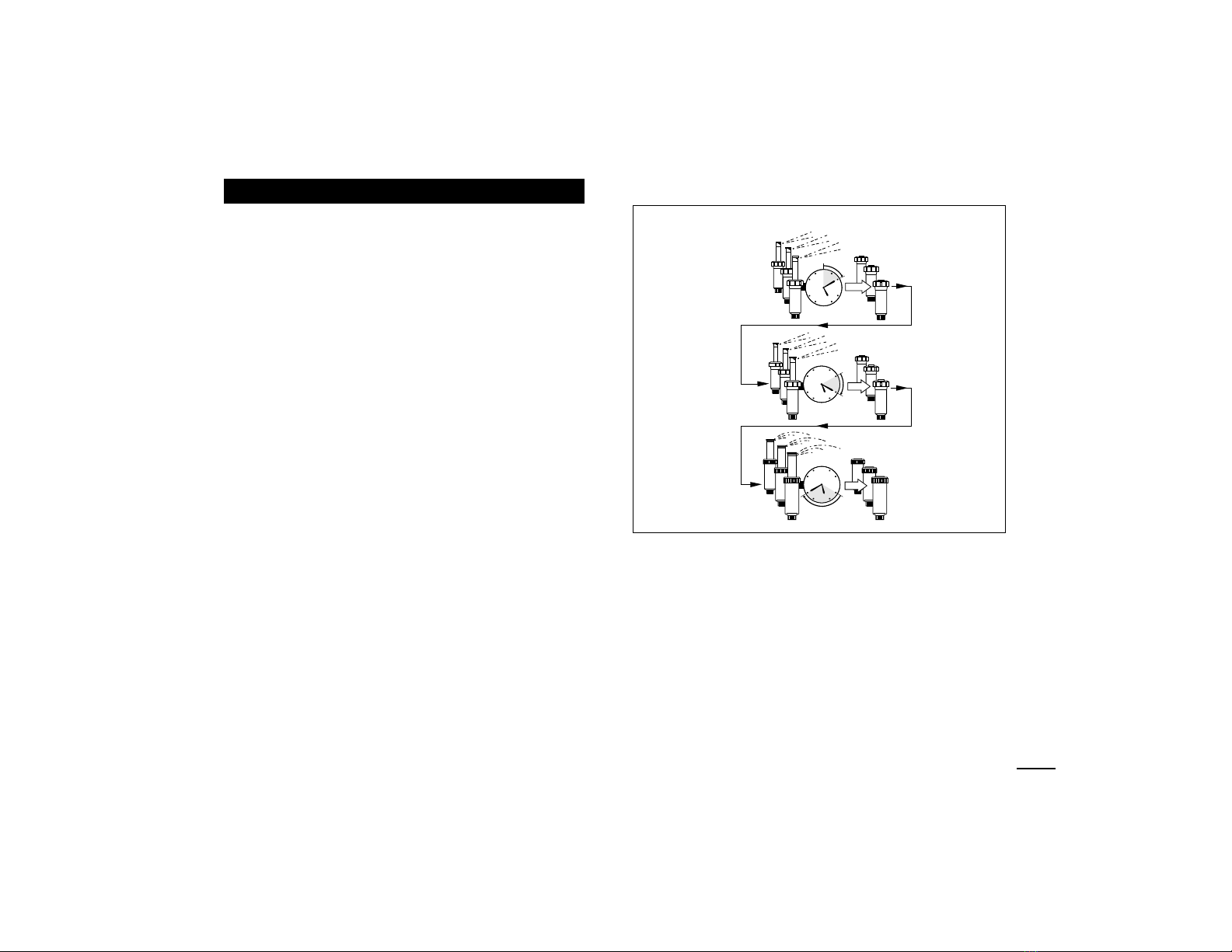

As shown in the watering program diagram, at 5:00 AM
the controller starts the program watering cycle. Station
1 sprinklers run for 10 minutes and shut off. Station 2
sprinklers turn on, run for 10 minutes and shut off. The
controller skips station 3 and turns on station 4, which
runs for 20 minutes and shuts off. Station 5 is skipped
and the watering cycle ends at 5:40 AM.
As you can see from this example, only one program
start time was needed to operate three different stations.
Because of variations in plant watering needs, the
GreenKeeper 212 provides three separate programs.
The programs, called A, Band C, are completely inde-
pendent of one another –like having three timers in one
housing.
Using more than one program for example, would enable
lawn zones to be watered every day on program A,
shrub zones to run on on Monday, Wednesday and Fri-
day on program Band drip irrigation to soak the flower
beds every three days on program C.
Although the GreenKeeper 212 offers the multiple pro-
gram feature, you may want to have all zones on one
program if it meets your needs. The other programs can
remain turned off until you need to use them.
Watering Program Basics
7
3
12
9
6
3
12
9
6
3
12
9
6
Station 1
Program
Starts - 5:00 AM
Program
Ends- 5:40 AM
Station 2
Station 4
Watering Program Diagram

This section covers in detail each of the three parts of a
watering program –watering days, program start times
and station run times.
Selecting Watering Days
The GreenKeeper 212 provides four options for schedul-
ing watering days: Calendar, Interval, Odd or Even and
Off.
Calendar Schedule
ACalendarscheduleenablesyoutoselectspecificdays
of the week to water, for example, Monday, Wednesday
and Friday. This is a seven-day schedule which starts on
Sunday and ends on Saturday.
This illustration shows how a Calendar schedule would
be displayed when the control dial is in the
WATERING DAYS position.
In this example, program A
has watering days set for MO
(Monday), WE (Wednesday)
and FR (Friday).
Interval Schedule
An Interval schedule enables you to set watering days
without regard to the actual days of the week. For exam-
ple, if you want to water every third day, you would
select a 3-day Interval. Interval schedules range from
1-day (watering every day) to 7-day (watering every sev-
enth day). Once you have selected an Interval schedule,
you can choose which day of the week will be the first day
of the Interval. The number of days in the Interval deter-
mines the available start days. For example, if you have
selected a 3-day Interval and today is Sunday, you may
choose to start the Interval today, Monday or Tuesday.
This illustration shows how
an Interval schedule would
be displayed. In this exam-
ple, program Bhas a 3-day
Interval schedule which will
start on Monday.
Odd/Even Schedule
The Odd/Even schedule enables you to select odd even
numbered days of the month as watering days.
This illustration shows how
an Odd day schedule
would be displayed.
Program Off
Selecting OFF suspends the operation of the program
when it is not needed. Turning the program off does not
alter or erase the watering day schedule of the program,
it simply places the program on hold until it is needed.
This illustration shows how a
program would be displayed
if its watering day schedule
is turned off. In this exam-
ple, program Cis off.
Watering Program Details
8
PGM A
SU MO TU WE TH FR SA
PGM A B C
SU MO TU WE TH FR SA
1 2 3 4 5 6 7 8
PGM A

Selecting Program Start Times
A program start time is the time of day you select to
begin an automatic program watering cycle.
It is important to remember that a program only
requires one start time to operate automatically.
When a program starts, each station assigned to a pro-
gram will water in numerical order, one at a time for its
set run time.
Sometimes it is necessary to run a watering program
more than one time per day. For example, when growing
a new lawn. The GreenKeeper 212 enables each pro-
gram to have up to four separate start times per day.
Program start times are numbered 1 through 4. These
numbers are shown at the top left of the display next to
the start time symbol when the control dial is in the
PROGRAM START TIME position and indicate how
many start times are currently set for the program.
This illustration shows how
a program start time is
displayed. In this example,
program Ahas one start
time (start time number 1)
set for 5:00 AM.
Setting The Station Run Time
A station run time is the length of time the station (con-
trolled by the valve) will water during the program water-
ing cycle. The run time for each station can be set from
Off (no run time) to 4 hours, in one-minute increments.
A station is assigned to a program when it is given a run
time. If the run time for a station is turned Off in a pro-
gram, it will not operate during the program watering
cycle. This is how the GreenKeeper 212 enables you to
assign stations to different programs.
All stations assigned to the program are shown on the
lower portion of the display when the control dial is in the
STATION TIMES position.
This illustration shows how
a station run time is dis-
played for a program. In this
example, zones 1–6 are
assigned to program A.
Station 1 has a 10-minute
run time and station 2 is set
to run for 25 minutes.
The station run time being
displayed is identified by the
flashing station number.
9
Flashing
Flashing

It is always helpful to plan your watering schedule on
paper before beginning the programming steps. You will
have a record of your watering schedule and station loca-
tions which can be kept with your GreenKeeper 212 after
it is installed. A watering schedule form is provided on
page 12 for you to fill out.
◆Guidelines For Watering
There are several factors to be considered when decid-
ing when and how long to water. For example, the soil
type (i.e., clay, loam, etc.), the part of the landscape
being watered, climate conditions and the type of sprin-
klers being used. Because of these variables, we cannot
provide an exact schedule to follow, but here are some
general watering guidelines to help you get started.
•Waterearly inthemorning, oneto twohours before
sunrise. You will have the best water pressure at this
time and the water can soak into the plant root zone
while evaporation is minimal. Watering during mid-day
or in the evening may cause plant damage or mildew.
•Watch for signs of under- or over-watering and make
program adjustments immediately.
Filling Out The Watering Schedule Form
When filling out this form, use a pencil so changes can be
easily made. Carefully remove the page from the booklet
to use as a guide during programming. After installing the
controller, fold the form in half and store it in the pocket
behind the controller.
Refer to the example form shown on the opposite page
and fill out your form in a similar manner with the follow-
ing information:
•Location - Identify the location of each watering sta-
tion and the type of plant being watered.
Note: Enter the following information for each pro-
gram. If the program is not needed, leave its informa-
tion column blank.
•Watering Day Schedule - For a Calendar schedule,
indicate which day(s) of the week watering is desired.
For an Interval schedule indicate the desired Interval
number. For Odd or Even days, simply mark the
appropriate box.
•Station Run Time - Indicate the amount of run time
(1 minute to 4 hours) for each station. Write “Off”for
any station which you do not want to operate in the
program.
•Program Start Times - Indicate the time of day to
start the program. Each program can have 1 to 4 start
times per watering day.
Planning Your Watering Schedule
10

11
(Example)

12
SU MO TU WE TH FR SA SU MO TU WE TH FR SA SU MO TU WE TH FR SA
1
1
2
3
4
5
6
7
8
9
10
11
12
23 45 6 7 123 456 7 123 456 7
CALENDAR
LOCATIONZONE ZONE RUN TIME ZONE RUN TIME ZONE RUN TIME
WATERING
DAY SCHEDULE INTERVAL
ODD
ODD/EVEN EVEN
PROGRAM
START TIMES
1
2
3
4
PROGRAM AWatering Schedule Form PROGRAM B PROGRAM C
ODD EVEN ODD EVEN

The GreenKeeper 212 utilizes a 9-volt battery to retain its
watering program information in the event of a main power
interruption. This battery backup feature also enables
your controller to be fully programmed for operation right
out of the box—before installation—in the comfort of your
home. Simply attach the battery and begin the program-
ming steps. The program information will be retained for
the duration of the battery life –about 72 hours for an
Alkaline battery or 24 hours for a rechargeable Nickel-
Metal Hydride (Ni-MH) battery.
Note: The 9-volt battery does not supply enough voltage
to operate the station control valves. Power from the
transformer must be supplied.
1. Slide the lower housing
cover toward the bottom
of the controller to
remove. Locate the bat-
tery wire clip and attach it
to the battery terminals.
Place the battery into the
cabinet compartment as
shown in Figure 1.
2. The display will begin flashing 12:00 AM. Press the
+/ON button to stop the display from flashing. The
colon (:) will continuously flash while displaying the
time and during watering operation. The Power Off
symbol will be displayed until the main power sup-
ply is connected.
3. Locate the battery charger
switch (9) as indicated in
Figure 2. If an Alkaline bat-
tery is installed, the switch
must be set to the left posi-
tion to turn the charging
circuit off. If a rechargeable
Ni-MH battery is used, the
switch must be set to the
right position to turn the
charging circuit on.
Caution: The battery charger switch must be set
correctly. Damage to the controller can result
from an Alkaline battery which may fail if
charged.
4. Reinstall the lower housing cover.
Installing The Battery
Programming Before Installation
13
BATT ER Y
Figure 1
Figure 2
9
Warning: Always replace battery with the same
or equivalent type. Dispose of used batteries
according to the battery manufacturer’s recom-
mendations.

24-Hour Clock Mode
The GreenKeeper 212 is
set to display time in the
12-hour clock mode. If you
prefer to use a 24-hour
clock mode (military time),
select this option by remov-
ing the 12/24 Hour Selector
Jumper (5). To store the
jumper, install it on one pin
as shown. See Figure 3.
15-Second Run Delay
The 15-second run delay feature is useful for sprinkler
systems utilizing a pump or master valve. For example,
a pump usually requires a few seconds to build pressure
after first starting. With the 15-second run delay select-
ed, the pump would be running (or the master valve
would open) 15 seconds before the first station begins
watering. A 15-second delay would also occur between
station operations. This helps ensure that one valve is
closed before another valve opens.
Note: A 2-second run delay will occur if this option is not
selected.
To select the 15-second delay option, remove the Delay
Selector Jumper (6). See Figure 3.
Odd/Even Watering Days
If you plan to use an Odd/Even day watering schedule,
remove the Odd/Even Selector Jumper (7) for this option.
The GreenKeeper 212 has a permanent watering sched-
ule within its memory to assist you in two ways. First, it
will restore watering operation in case your watering pro-
gram is lost due to a power interruption lasting longer
than the battery backup reserve. This prevents your
landscape from going unwatered if the power outage
occurs while you are away.
Secondly, if you do not want to program your
GreenKeeper 212, you can use the permanent water-
ing schedule to operate your sprinklers. Just set the
current time and day and your GreenKeeper 212 will
be ready to operate automatically.
The permanent watering schedule operates as follows:
When power is applied, the controller clock is set to
12:00 AM Sunday. Program Ahas a Calendar watering
schedule set to water every day. One program start time
is set for 5:00 AM (5:00) and a run time of 10 minutes is
set for each station. Programs Band Care turned Off
and have no program start times or run times.
Note: An optional feature is provided which enables the
The GreenKeeper 212 memory to be reset to the perma-
nent program or cleared completely if you choose. If you
do not want to use this option, skip the next procedure
“Resetting The Controller Memory”and continue at page
16 to begin programming.
About The GreenKeeper 212 Memory
Selecting Optional Features
14
BATT ER Y
Figure 3

15
The GreenKeeper 212 program memory can be reset to
the permanent program values or cleared completely at
any time without removing power.
Resetting the permanent program erases all user input
and replaces it with the permanent program values.
Clearing the program memory sets all program values to
Off (i.e., no active days, program start times or station
run times). You may find that this simplifies programming
the controller if your watering requirements are quite
different than the permanent values.
Note: When power is first applied, the GreenKeeper 212
will always reset to the permanent program values.
To Reset The PermanentProgram (Figure 4)
Turn the control dial to the OFF position. OFF will
be displayed.
Press the +/ON and –/OFF buttons at the same time
until CLR is displayed.
Return the control dial to the RUN position.
To Clear The Memory (Figure 5)
Turn the control dial to the OFF position. OFF will
be displayed.
Press the +/ON and NEXT buttons at the same time
until CLR 0 is displayed.
Return the control dial to the RUN position.
Resetting The Controller Memory
2
2
1
3
2
1
3
2
Figure 4
Figure 5

16
Note: To select the 24-hour clock mode, see page 14.
Turn the control dial to the CURRENT TIME/DAY
position (the hour digits will begin flashing).
To adjust the display, press the +/ON button to scroll
the digits forward or the –/OFF button to scroll the
digits backward.
Note: The display will begin to change rapidly if either
button is held down for more than two seconds.
Press the NEXT button to select the next portion of
the display.
4. Repeat step 2 and 3 to set the current minutes.
Note: If the Odd/Even Jumper is removed, the current
year, month and day must be set. Continue at step 7 for
this procedure. If this option is not selected, set the cur-
rent day by continuing at step 5. Refer to Example 1.
To set the current day, press the +/ON button to
scroll forward or the –/OFF button to scroll backward
until the current weekday is displayed.
The weekday abbreviations are as follows:
SU (Sunday) MO (Monday)
TU (Tuesday) WE (Wednesday)
TH (Thursday) FR (Friday) SA (Saturday)
When the current time and day are displayed, return
the control dial to the RUN position.
To adjust the display, press the +/ON button to scroll
the digits forward or the –/OFF button to scroll the
digits backward. Refer to Example 2.
Press the NEXT button to select the next portion of
the display.
9. Repeat steps 7 and 8 to set the current month (first
two digits) and the day (second two digits).
When the current time and date are set, return the
control dial to the RUN position.
Setting The Current Time and Day or Date
Programming The Controller
SU
SU
7
10
8
7
7
7
8
Example 1
Example 2
Day
Month

For each program, you can select Calendar, Interval
Odd, Even or Off. To set a Calendar schedule, continue
here. To set an Interval schedule see page 18. To set an
Odd or Even schedule see page 19. To turn Off a pro-
gram, see page 19.
Setting A Calendar Schedule
Turn the control dial to the WATERING DAYS
position.
Check the PROGRAMS switch setting. If necessary,
reposition the switch to select the desired program.
The current watering schedule will be displayed. If
CAL (Calendar) is not displayed, press the +/ON or
–/OFF button as needed to select CAL.
Press the NEXT button. The watering days currently
set for this program will be displayed. SU (Sunday)
will begin flashing.
To select Sunday as a watering day, press the +/ON
button. To remove Sunday from the schedule, press
the –/OFF button. MO (Monday) will now begin flash-
ing. Continue to select or remove each day of the
week until only the desired watering days are shown.
6. To set a Calendar schedule for another program,
repeat all of the steps beginning at step .
When you have completed setting the Calendar
schedule for each program (as needed) return the
control dial to the RUN position.
Note: Each program can have its own Calendar, Inter-
val or Odd/Even schedule, but only one schedule can
be active at a time for that program. The watering day
schedule or OFF shown in the display when the control
dial is in the WATERING DAYS position, will be the
current schedule for that program.
Setting The Watering Day Schedule
17
3
1
PGM A
3
2
7
5
4
5
5
4
2
SU MO TU WE TH FR SA
3

Setting An Interval Schedule
Turn the control dial to the WATERING DAYS
position.
Check the PROGRAMS switch setting. If necessary,
reposition the switch to select the desired program.
The current watering schedule will be displayed. If
Int (Interval) is not displayed, press the +/ON or
–/OFF button as needed to select Int.
Press the NEXT button. The current Interval number
(1–7) will begin flashing. The day of the week on
which the Interval will start will be shown.
To change the Interval number, press the +/ON or
–/OFF button until the desired number is flashing.
Press the NEXT button. The Interval start day will
begin flashing.
To change the Interval start day, press the +/ON
button or the –/OFF button until the desired day is
flashing.
8. To set an Interval schedule for another program,
repeat all of the steps beginning at step .
When you have completed setting the Interval
schedule for each program (as needed) return the
control dial to the RUN position.
18
9
5 7
4 6
3
5 73
2
PGM A
3
5
74
1
32
MO
6
