Chapter 1
Product Information
System Requirements
❖Microsoft®Windows®7, Windows Vista®, or Windows®XP
❖Available USB 3.0 Port or USB 2.0 Port
IMPORTANT: Toshiba recommends that you install the latest service
packs and updates on your computer to obtain the highest
performance and reliability.
Compatibility may vary depending on user's hardware configuration
and operating system.
NOTE
NOTE

8Product Information
Components
Components
Toshiba SSD (pre-loaded with PC data migration
software)
CD-ROM (includes PC data migration software
(from PC to SSD), User's Manual (this
document), and Warranty information)
USB-SATA Conversion cable for PC data
migration (from PC to SSD)
SATA Signal Cable for mounting SSD into
Desktop PC
SATA Power Cable for mounting SSD into
Desktop PC
Bracket and screws for mounting SSD into
Desktop PC
Quick Installation Guide

9
Product Information
Capacity Calculation
Capacity Calculation
One Gigabyte (1GB) means 109= 1,000,000,000 bytes and One
Terabyte (1TB) means 1012 = 1,000,000,000,000 bytes using
powers of 10. A computer operating system, however, reports
storage capacity using powers of 2 for the definition of 1GB= 230 =
1,073,741,824 bytes and 1TB = 240 = 1,099,511,627,776 bytes, and
therefore shows less storage capacity. Available storage capacity
(including examples of various media files) will vary based on file
size, formatting, settings, software and operating system and other
factors.

10
Chapter 2
Installation
Precautions
❖Keep the SSD in the anti-static bag (shipping configuration)
until you are ready to install.
❖To minimize static electricity, touch the computer case before
handling the SSD.
❖Handle the SSD with care. Do not touch the connectors.
❖Do not disassemble the SSD or remove the label, doing so will
void the SSD warranty.
❖Make sure the SSD you are installing has a storage capacity
larger than data currently stored on your PC.
Toshiba is not responsible for data loss or damage caused by
replacing the storage devices.
Installing the SSD to a Notebook PC
Connecting the SSD to your PC
The first step in installing the SSD to a notebook is to connect the
SSD to the PC in preparation for migrating the data from the
existing drive.
NOTE

11
Installation
Installing the SSD to a Notebook PC
To connect the SSD to your PC:
3Connect the USB-SATA Conversion cable:
❖With the PC turned off, connect the two standard USB
connectors of the USB-SATA Conversion cable to your
PC.

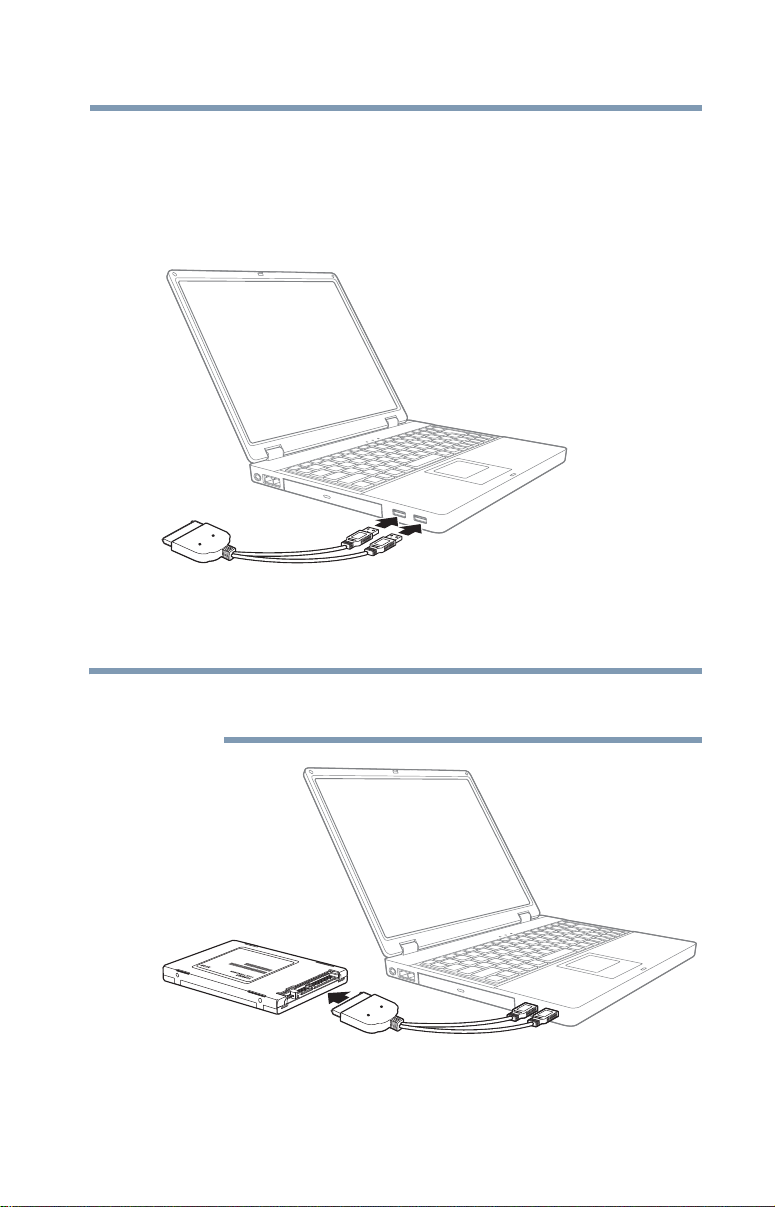

(Sample Image) Connect USB-SATA Conversion cable to PC
❖Connect the remaining end of USB-SATA Conversion
cable to the SSD.
This cable is recommended for initial PC data migration only and not
to be reused for other purposes.
(Sample Image) Connect USB-SATA Conversion cable to SSD
4Turn on your PC, and make sure all programs are closed.
NOTE

12 Installation
Installing the SSD to a Notebook PC
5Open Windows Explorer.
You will see the SSD volume mounted.
(Sample Image) Explorer window with SSD
6Follow the instruction in “Migrating PC data to the SSD” on
page 15 to move the data from the computer’s HDD to the
SSD.
Replacing the internal HDD with the SSD
To replace the internal HDD with the SSD:
1After the data migration has finished and the computer has shut
down, detach the USB-SATA Conversion cable from the SSD
and from your PC.
2With the computer turned off, remove the HDD from the PC's
storage bay.

13
Installation
Installing the SSD to a Desktop PC
3Install the SSD in the PC by aligning the SATA connector of
SSD with the SATA connector in the PC and then gently and
firmly connecting the SATA connectors.

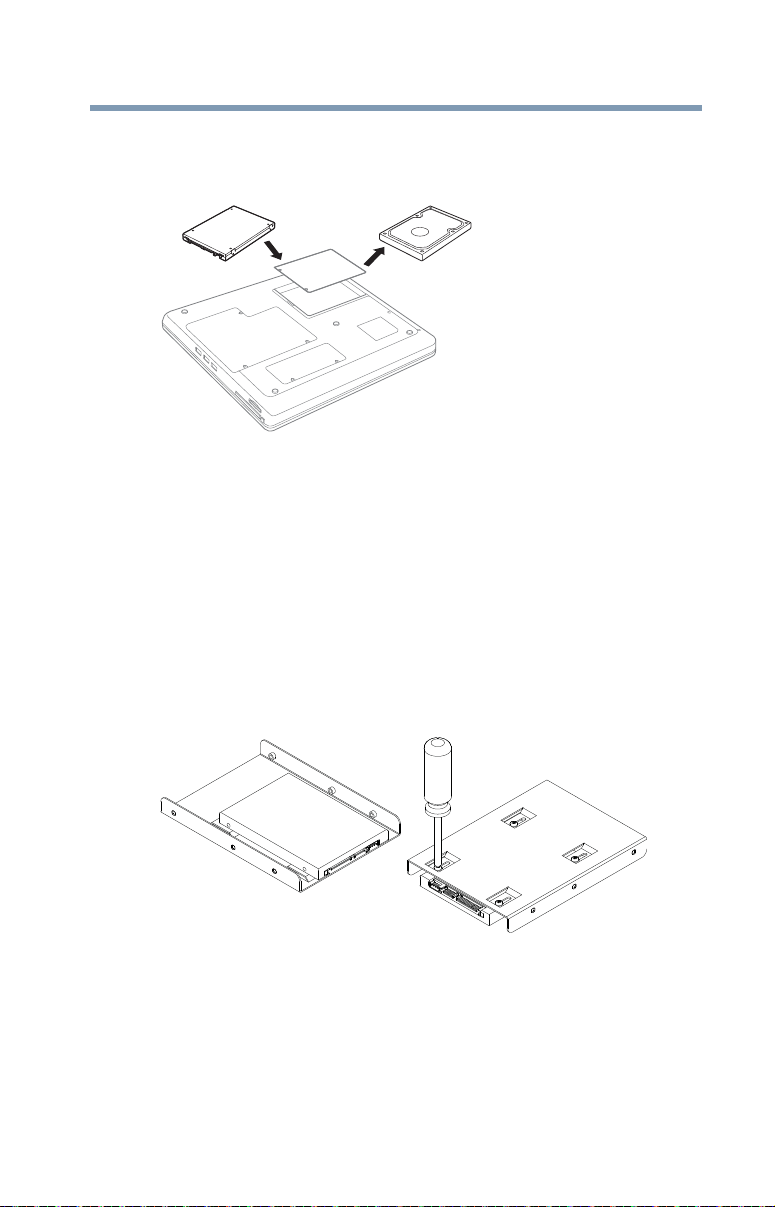

(Sample Image) Replace the HDD with the SSD
4Close the cover of the storage bay, and turn on your PC.
Your SSD is now available to boost your PC’s performance.
Installing the SSD to a Desktop PC
Connecting the SSD to your PC
To connect the SSD to your PC:
1Make sure the PC is turned off.
2Mount the SSD onto the bracket as shown.
(Sample Image) Mount the SSD onto the bracket
3Mount the bracket into the 3.5 inch bay of your PC.

14 Installation
Installing the SSD to a Desktop PC
4Find the available SATA connector in your PC, and connect the
SSD using the SATA signal cable.

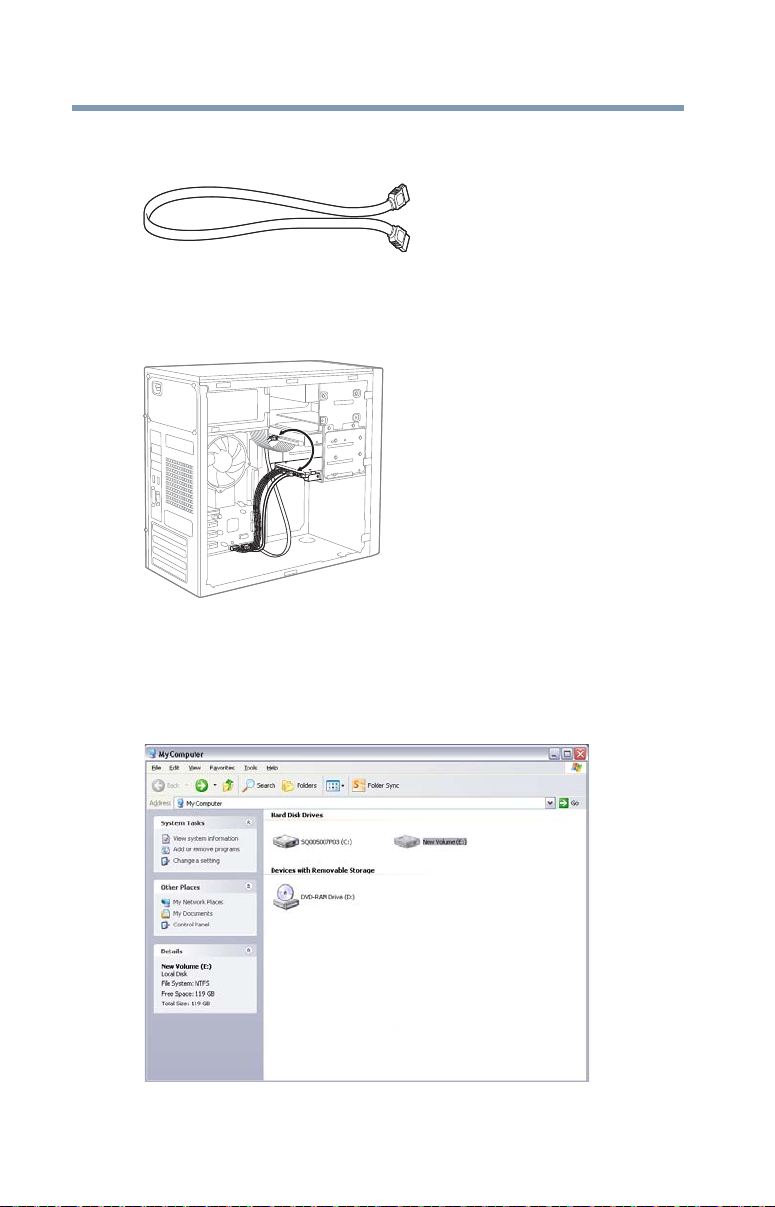

(Sample Image) SATA signal cable
5Connect the SSD and the PC power supply using the SATA
power cable.
(Sample Image) Desktop SATA connections
6Turn on your PC, and make sure all programs are closed.
7Open Windows Explorer.
You will see the SSD volume mounted.
(Sample Image) Explorer window with SSD

15
Installation
Migrating PC data to the SSD
8Perform the data migration procedure: “Migrating PC data to
the SSD” on page 15.
At the end of the data migration procedure, the PC shuts down.
You may then remove the HDD from your PC or keep it as
secondary storage.
Configuring the SSD as the primary boot device
After you have transferred the data from the previous storage to the
SSD, you can configure the SSD as the primary boot device.
To configure the SSD as the primary boot device:
1Turn on your PC.
2In the BIOS menu, configure SSD as the primary boot device.
(For more information, refer to system help or the manual for
your PC.)
3Restart your PC.
Your SSD is now available to boost your PC performance.
Migrating PC data to the SSD
Please make sure to back up all data on your storage device prior to
running the data migration software.
Before you can do this procedure, you must connect the SSD to
your notebook or desktop computer, see “Installing the SSD to a
Notebook PC” on page 10 or “Installing the SSD to a Desktop PC”
on page 13.
To migrate PC data to the SSD:
1Be sure all programs are closed.
2Install the Data Migration Software as follows:
❖In Windows Explorer, locate the Data Migration Software
folder in the SSD volume.
❖Double-click setup.exe, and follow the screen prompts.
3Perform Data Migration.
❖Make sure no other programs are running.
❖Launch the migration software.
NOTE

16 Installation
Migrating PC data to the SSD
❖Select the PC's HDD as the source storage, and select the
SSD as the destination storage.
(Sample Image) Source and destination selection screen
❖Click Start.
The following screen will be displayed.
(Sample Image) Confirmation screen
❖Click OK to confirm the message and perform the data
migration.

17
Installation
Migrating PC data to the SSD
Your PC reboots and the migration software begins the process. The
progress bar is displayed.
(Sample Image) Progress screen
At the completion of the migration process, the message below will
be displayed.
(Sample Image) Complete and shut down confirmation screen

18 Installation
Migrating PC data to the SSD
❖Click OK to finish the migration process and shut down
your computer.
You can now proceed with the next installation step for your
computer. For notebooks, see “Replacing the internal HDD
with the SSD” on page 12. For desktop computers, see
“Configuring the SSD as the primary boot device” on page 15.

19
Chapter 3
Other Information
Toshiba Support
If you require help or are having problems operating your product,
you may need to contact Toshiba for additional technical assistance.
Before you call
Since some problems may be related to software, it is important that
you investigate other sources of assistance first. Try the following
before contacting Toshiba:
❖Review the documentation supplied with your product.
❖If a problem occurs when you are running software
applications, consult the software documentation for
troubleshooting suggestions. Contact the software company’s
technical support department for assistance.
❖Consult the reseller or dealer from whom you purchased your
product. They are your best resource for current information
and support.

20 Other Information
Contacting Toshiba
Contacting Toshiba
Toshiba’s technical support Web site
For technical support, or to stay current on the most recent software
and hardware options for your product and for other product
information, be sure to regularly check the Toshiba Web site at
support.toshiba.com.
Toshiba voice contact
For technical support, call the Toshiba Customer Support Center:
Within the United States at [phone]
Outside the United States at [phone]
Warranty
Three (3) year standard limited warranty for computer accessories and
electronics
This product is covered by a three (3) year Standard Limited
Warranty. A copy of the warranty is pre-installed on the CD-ROM
or can be viewed online at pcsupport.toshiba.com/accessories3yr.
Obtaining warranty service
Customers located in the fifty United States and District of
Columbia may obtain warranty service by visiting the Toshiba
Acclaim Web site at acclaim.toshiba.com or by contacting the
telephone support center at [phone].
Customers located outside the fifty United States and District of
Columbia may obtain warranty service by contacting the telephone
support center at [phone].
