Trevi MPV 1703 S User manual

MPV
1703 S
Mini lettore MP3 con clip
Mini MP3 player with clip
Mini lecteur MP3 avec clip
Mini MP3 Player mit clip
Mini reproductor MP3 con clip

MPV 1703 S
2
MANUALE UTENTE
Le informazioni contenute in questo documento sono soggette a variazioni
senza preavviso.
Il presente documento non può essere riprodotto o trasferito, neppure
parzialmente, in alcun modo e con nessun mezzo, elettronico o meccanico,
né tanto meno fotocopiato,copiato o tradotto verso altre lingue per nessun
scopo senza esplicito consenso da parte del costruttore.
I nomi, i disegni e i marchi registrati presenti in questo manuale sono pro-
prietà dei rispettivi proprietari.
Leggere attentamente il presente libretto di istruzioni e seguire attentamente
le informazioni riportate prima di utilizzare il prodotto.
AVVERTENZA PER IL CORRETTO UTILIZZO DELLA BATTERIA
RICARICABILE
- Ricaricare la batteria ad una temperatura compresa tra i 5°C e i 35°C.
- Non prolungare la ricarica oltre i tempi indicati per evitare il rischio di
surriscaldamento e scoppio.
- La ricarica della batteria oltre i tempi indicati o un prolungato periodo
di inattività possono ridurne la durata.
- La batteria ricaricabile è soggetta ad usura e la sua capacità diminuisce
gradualmente.
- Per prolungare la durata dellabatteria,utilizzarla quando è completamente
carica no al completo scaricamento, quindi ricaricarla completamente di
nuovo prima di utilizzarla nuovamente. Mettendo in carica una batteria
non completamente esaurita, la sua durata risulterà ridotta. In questo
caso, ripetere il ciclo caricamento/scaricamento completo più volte.
Attenzione!
L’uso inappropriato della batteria può causare esplosioni
o surriscaldamenti della stessa.
Italiano

MPV 1703 S
3
DESCRIZIONE COMANDI
1. Clip a molla
2. Presa cufa
3. LED di stato
4. TastoVOL-
5. TastoVOL+
6. Tasto I<< PREV
7. Tasto >>I NEXT
8. Tasto >II PLAY/PAUSA / Accensione/Spegnimento
9. Presa microUSB
10.Tasto RESET
11.Ingresso microSD Card
12.Copertura ingresso microSD Card
Italiano
Per evitare possibili danni all’udito, limitare il tempo di ascolto a
volumi elevati.
3
Special Features
•Elegant appearance and easy to use.
•Playback from Micro SD Memory Card.
•Multi-Code Player - Supporting MP3, WMA and WAV formats.

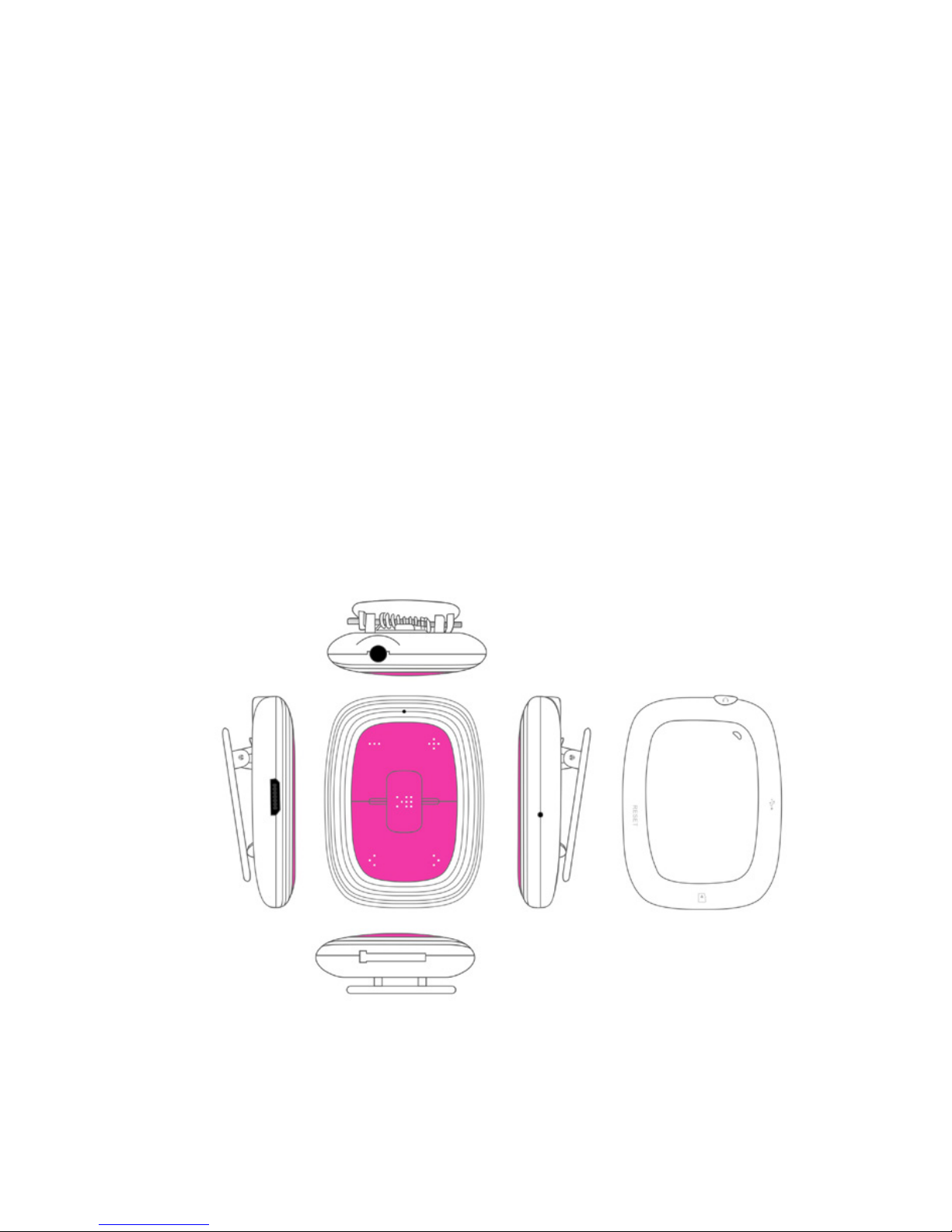

Brief View of Player
A. Outlook and Controls
3
4
5
6 7
8
9 10
2
1
11
12

MPV 1703 S
4
CARICAMENTO DELLA BATTERIA
L’MPV 1703S ha al suo interno una batteria ricaricabile al Lithio.
1) Collegare l’MPV 1703S ad un computer dotato di presa USB. Il LED di
stato (3) lampeggerà rosso.
2) Ricaricare il lettore per un tempo non superiore alle 2 ore. A ricarica
terminata il LED di stato (3) rimarrà acceso rosso.
NB: La durata della batteria completamente carica si aggira intorno
alle 8 ore e 30 minuti di riproduzione continua.
INSERIMENTO DELLA microSD
1) Inserire la scheda microSD (non in dotazione) tenendo la supercie con
il lato scritto rivolto verso il basso e inserirla delicatamente nell’apposito
ingresso (11) no a sentire un click. A questo punto il lettore è in grado
di riprodurre i brani musicali presenti nella scheda microSD.
2) Per rimuovere la scheda microSD, premere contro essa.
TRASFERIMENTO FILEAUDIO MP3/WMA/WAV DA PC NELLA
MEMORIA micro-SD
1) Collegare l’MPV 1703S ad un computer dotato di presa USB.
2) La memoria della microSD verrà riconosciuta automaticamente dal
computer.
3) Copiare i le audio MP3/WMA/WAV dal computer alla microSD.
NB: Per la rimozione della memoria della micro-SD utilizzare la
“Rimozione sicura dell’hardware”.
Italiano

MPV 1703 S
5
ACCENSIONE/SPEGNIMENTO, RIPRODUZIONETRACCE
E FUNZIONI PRINCIPALI
1) Premere il tasto >II PLAY/PAUSA (8) per 2 secondi per accendere il
lettore. In presenza di le audio il lettore avvierà automaticamente la
riproduzione. Il LED di stato (3) lampeggerà blu.
NB: In caso di assenza di le audio il lettore si spegnerà
automaticamente.
2) Premere il tasto >II PLAY/PAUSA (8) per arrestare momentaneamente
la riproduzione. Il LED di stato (3) rimarrà acceso blu.
3) Premere nuovamente il tasto >II PLAY/PAUSA (8) per tornare alla normale
riproduzione.
4) Premere il tasto >>I NEXT (7) per passare alla traccia successiva.
5) Premere il tasto I<< PREV (6) per passare alla traccia precedente.
6) Premere il tastoVOL+ (5) per aumentare il volume.
NB: Un segnale acustico avviserà quando si è raggiunto il livello
massimo del volume.
7) Premere il tastoVOL- (4) per diminuire il volume.
8) Premere il tasto >II PLAY/PAUSA (8) per 2 secondi per spegnere il lettore.
NB: In caso di blocco del lettore premere il tasto RESET (10) per
effettuare un reset.
SPECIFICHETECNICHE
Sistema operativo............................... Windows® 2000/XP/Vista/7/8/10
................................................................ Mac OS 9.2 o superiore
Versione USB ...................................... microUSB 2.0
Capacità................................................ microSD Card no a 32GB
Formati audio supportati.................. MP3, WMA,WAV
Risposta in frequenza ........................ 20-20000Hz
Rapporto S/N...................................... 80dB
Alimentazione..................................... Batteria al Lithio ricaricabile tramite presa USB
Dimensioni........................................... 24x24x14mm
Italiano

MPV 1703 S
6
INFORMATIVA SULLA RIMOZIONE E LO SMALTIMENTO
DELLA BATTERIA
Attenzione: Questa operazione è riservata esclusivamente al
personale tecnico specializzato!
PROCEDURA PER LA RIMOZIONE DELLA BATTERIA
Operare esclusivamente in assenza di collegamento dell’apparec-
chio alla rete elettrica!
1. Rimuovere il mobile inferiore dagli incastri;
2. Individuare la batteria, scollegarla e rimuoverla.
Qualunque sia il tipo di batteria esaurita, essa non deve essere gettata tra i
riuti domestici,nel fuoco o nell’acqua. Ogni tipo di batteria esaurita deve
essere, riciclata oppure smaltita presso gli appositi centri raccolta dedicati.
INFORMAZIONI AGLI UTENTI ai sensi del Decreto
Legislativo N° 49 del 14 Marzo 2014
“Attuazione della Direttiva 2012/19/UE sui riuti di
apparecchiature elettriche ed elettroniche (RAEE)”
Il simbolo del cassonetto barrato riportato sull’apparecchiatura indica che il prodotto alla
ne della propria vita utile deve essere raccolto separatamente dagli altri riuti. L’utente
dovrà, pertanto, conferire l’apparecchiatura integra dei componenti essenziali giunta a
ne vita agli idonei centri di raccolta differenziata dei riuti elettronici ed elettrotecnici,
oppure riconsegnarla al rivenditore al momento dell’acquisto di nuova apparecchiatura
di tipo equivalente,in ragione di uno a uno,oppure 1 a zero per le apparecchiature aventi
lato maggiore inferiore a 25 cm. L’adeguata raccolta differenziata per l’avvio successivo
dell’apparecchiatura dimessa al riciclaggio, al trattamento e allo smaltimento ambientale
compatibile contribuisce ad evitare possibili effetti negativi sull’ambiente e sulla salute e
favorisce il riciclo dei materiali di cui è composta l’apparecchiatura.Lo smaltimento abusivo
del prodotto da parte dell’utente comporta l’applicazione delle sanzioni amministrative
di cui al D.Lgs n. Decreto Legislativo N° 49 del 14 Marzo 2014.
TREVI persegue una politica di continua ricerca e sviluppo, pertanto i prodotti possono
presentare caratteristiche diverse da quelle descritte.
Italiano

MPV 1703 S
7
English
`
USER’S MANUAL
MPV 1703 S
MP3 Player
With
Micro SD Card Slot

MPV 1703 S
8
English
To avoid possible hearing damage, limit the time listening at high
volumes.
WARNING FOR A CORRECT USE OF RECHARGEABLE
BATTERY
- Recharge the battery in an ambient temperature between 5°C and 35°C.
- When the recharge is complete the device shows a message/signal (check
the user’s guide).
- Don’t recharge more than the suitable period to prevent the risk of
overheating and burst.
- Recharging the battery over the suitable period or an extended period
of inactivity may reduce battery duration.
- Rechargeable battery is liable to wear and tear and its performance will
reduce gradually.
- To extend the duration of the battery use it when is completely charged
up to the complete discharging, then recharge it fully before use it again.
Recharge a battery not completely consumed, will result a reduced du-
ration. In this case, repeat the full charging/discharging cycle many times.
- Avoid recharge the battery for the whole night.
Warning!
Misuse of the battery may cause explosion or overheating
of the battery.

MPV 1703 S
9
English
2

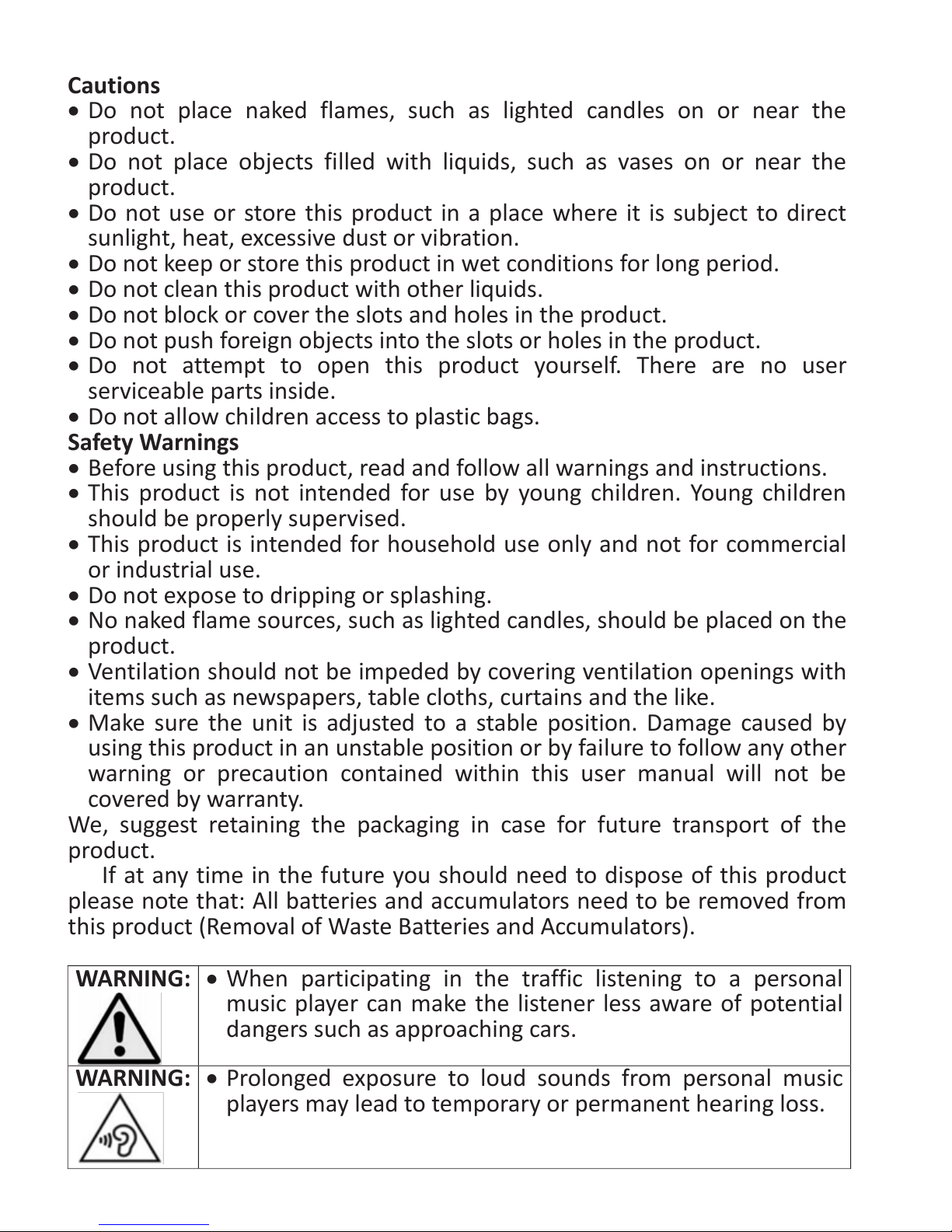

Cautions
•Do not place naked flames, such as lighted candles on or near the
product.
•Do not place objects filled with liquids, such as vases on or near the
product.
•Do not use or store this product in a place where it is subject to direct
sunlight, heat, excessive dust or vibration.
•Do not keep or store this product in wet conditions for long period.
•Do not clean this product with other liquids.
•Do not block or cover the slots and holes in the product.
•Do not push foreign objects into the slots or holes in the product.
•Do not attempt to open this product yourself. There are no user
serviceable parts inside.
•Do not allow children access to plastic bags.
Safety Warnings
•Before using this product, read and follow all warnings and instructions.
•This product is not intended for use by young children. Young children
should be properly supervised.
•This product is intended for household use only and not for commercial
or industrial use.
•Do not expose to dripping or splashing.
•No naked flame sources, such as lighted candles, should be placed on the
product.
•Ventilation should not be impeded by covering ventilation openings with
items such as newspapers, table cloths, curtains and the like.
•Make sure the unit is adjusted to a stable position. Damage caused by
using this product in an unstable position or by failure to follow any other
warning or precaution contained within this user manual will not be
covered by warranty.
We, suggest retaining the packaging in case for future transport of the
product.
If at any time in the future you should need to dispose of this product
please note that: All batteries and accumulators need to be removed from
this product (Removal of Waste Batteries and Accumulators).
WARNING:
•When participating in the traffic listening to a personal
music player can make the listener less aware of potential
dangers such as approaching cars.
WARNING:
•Prolonged exposure to loud sounds from personal music
players may lead to temporary or permanent hearing loss.

MPV 1703 S
10
English
3
Special Features
•Elegant appearance and easy to use.
•Playback from Micro SD Memory Card.
•Multi-Code Player - Supporting MP3, WMA and WAV formats.
Brief View of Player
A. Outlook and Controls
3
4
5
6 7
8
9 10
2
1
11
12

MPV 1703 S
11
English
4
1. Clip
2. 3.5mm Jack : Earphone output
3. Status LED : For charge / play status
4. button : Decrease volume
5. button : Increase volume
6. button : Play previous song, Previous folder
7. button : Play next song, Next folder
8. button : On / Off, Play / Pause, Normal/Shuffle
9. Micro USB Port : For PC connect, Charge
10. Reset Hole : For reset device
11. Memory Card Slot : For micro SD memory card
12. Card Slot Silicon Cover
B. Insert Micro SD Memory Card (not included)
This device is design without an internal memory; before you use it,
insert a Micro SD memory card into player for music playback.
1. Turn “Off” the play, open the “Card Slot Silicon Cover (12)”, then plug in
the Micro SD memory card into player’s memory card slot and close the
card slot silicon cover.
2. Now you can use the player for upload / download the desired media
files with your PC computer.
3. Or, Upload the desired media files direct to the Micro SD memory card
direct with your computer before insert it into player.
Note:
1. Make sure the player power is in “Off” status when insert / remove the
Micro SD memory card from memory card slot. Otherwise, the player
functional may result dead halt or the internal data / files will be lost /
damaged.
2. The player will turn off in seconds automatically if no Micro SD memory
card inserted or no supported music file(s) detected in memory card.
C. About player’s battery
Player has an internal, non–user-replaceable rechargeable lithium
battery. For best results, the first time you use the player, let it charging for
about 1 ~ 2 hours or until the charging “Status LED (3)” to long light (solid)
from blinking red before you use it.
Maintain battery life: Player may continue using battery power energy
after it’s been turned off. For maintain the battery life and performance, if
unit isn’t used for a while, the battery need to be recharged, recharging the
battery at least once per month.
1Charging the Battery:
1.1 You can charge the Player’s battery in two ways;
1.2 Connect player to your computer. Or;
1.3 Use the USB power charger. (not included)

MPV 1703 S
12
English
5
2To Charge battery
2.1 Plug the USB plug of USB cable to the Player’s “USB micro port (9)”;
2.2 The “Status LED (3)” will light blinking red, for every 1 second, it is in
charging.
2.3 The “Status LED (3)” will long light red when the battery is fully
charged.
2.4 Disconnect the USB cable when it is done.
D. Connect Computer and Charge
You can connect the player to your computer to upload or download
those wanted music files, and charging the battery.
1To Connect PC:
1.1 Plug the USB plug of USB cable to the Player’ “USB micro port (9)”,
then plug the other side USB plug into a USB port on your computer;
1.2 The computer will detect and installing necessary driver
automatically. And removable disk drive(s) will display in “My
computer” folder. (For Windows system). Or;
1.3 An “Untitled” icon will display on desktop indicating the player is
removable disk(s). (for MAC system)
1.4 Now the player is ready for music files upload or download with
your computer. And the Player battery is in charging at background.
1.5 You can transfer the music files by using the computer mouse and
drag and place, or copy and paste, in between the player and
computer.
Note: In USB power charger or PC connection mode, the player can play
music if you press or press and hold the (8) button.
2Disconnect from computer :
It’s important not to disconnect player while it’s syncing. Don’t
disconnect, if you have uploading or downloading music files with your
computer.
2.1 If you’re using a Windows system PC, you can disconnect the player
in My Computer or by clicking the “Safely Remove Hardware” icon
in the Windows system tray, select the correspondence name of
USB Device and choose Stop > Confirm > Confirm follow by the
pop-up dialog from computer.
2.2 If you’re using a Mac system PC, you can also disconnect player by
dragging the player icon on the desktop to the Trash.
2.3 And, now is safe to disconnect the player with your computer,
unplug the player from your computer.
2.4 If you’re accidentally disconnect player without disconnect it,
reconnect it to your computer and sync again. However, some
media file will be loss if this circumstance happens.
Note: The player will go to play mode automatically when is disconnected
with computer. Please turn it off when you don’t use it.

MPV 1703 S
13
English
6
E. Getting start player
1Turn On / Off
1.1 Plug-in the earphone set into Player’s “3.5mm jack (2)”.
1.2 Press and hold the “(8)” button for until the “Status LED (3)”
light blue, the player is turning on and the music will play in seconds
automatically.
1.3 To Turn Off, press and hold the “ (8)” button until “Status LED
(3)” light Off.
2Play / Pause Music
2.1 Short press the “(8)” button to pause the playing music,
2.2 Short press the “(8)” button again to resume.
2.3 If player is in pause state for 3 minutes, it will be turned to Off
automatically.
3Play Next / Previous Music
3.1 Short press the “(7)” button to select next music.
3.2 Short press the “ (6)” button to select previous music.
4Switch Previous Folder / Next Folder
4.1 In music playing, press and hold the “(7)” button to switch direct
to next folder’s song to play.
4.2 In music playing, press and hold the “(6)” button to switch direct
to previous folder’s song to play.
5Adjust Volume
5.1 Press and hold the “ (5)” button to increase volume level.
5.2 Press and hold the “ (4)” button to decrease volume level.
5.3 For hearing protection; a beep warning will be heard from earphone
every time you increase the volume level and reach to the default
setting level, which may exceed 85dB. Press the “(8)” button to
accept the warning then press and hold the “ (5)” button again to
increase the level until to maximum level.
Important:
1. In order to protect your hearing and normal functions of the music player,
please do not continue listening to music at a high volume levels for
more than 20 hours, please restart the music player in 20 hours.
2. Ensure your player at low volume levels or turn it off before you leaving.
6Switch Normal / Shuffle Play mode
6.1 Press twice the “(8)” button in second to switch from “Normal”
to “Shuffle” play mode. Two beeps will sound and LED will flash 3
seconds once.
6.2 Press twice the “(8)” button in second again to switch from
“shuffle” to “Normal” play mode. One beep will sound and LED will
flash 1 second once.

MPV 1703 S
14
English
7
F. Indicator light function
Mode
Light Method
Normal playing mode
Blue light flashing 1 seconds once.
Shuffle playing mode
Blue light flashing 3 seconds once.
Pause mode
Blue light solid.
PC connecting mode
Blue light will flash when data transferring.
In charging Mode
Red light flashing 1 seconds once.
Charged
Red light solid
Low battery in 20%
Red light flashing
G. Reset the device
1. In some circumstances the device’s function may hanging and need to
reset. To reset the device;
2. Use a 0.8 ~ 1 mm stick or similar object (like tooth stick), and carefully
insert the stick, use dull side, into the “Reset Hole (10)” until you feel
to hit the end. Actually that is the tact switch button surface.
3. Then add a bit of force and you will get a click sound and feeling return
from switch. The device is reset and restart in seconds.
H. Troubleshooting
Play cannot turn ON
•Check whether battery have enough energy.
No sound is heard
•Check whether Volume is set to “minimum” and
connect the earphone plugs firmly.
•Check whether the earphone plug is dirty.
•Corrupted WMA / MP3 may make a
static noise
and the sound may cut off. Make sure that the
music files are not corrupted.
•Check whether music files format are support.
Download music files
fail.
•Check whether USB plug of USB cable is
connected properly.
•Check whether driver is installed correctly.
•
Check whether memory card is installed firmly
and correctly.
•Check whether the player’s memory is in full.
No FM station
•Check whether signal strength of broadcasting is
good enough in that area.
•Move location closer
to open area if you using
device inside your house.
I. Specification
Dimension
48mm (H) x 36.6mm (W) x 16.6mm (D)
Weight
15.5g (approximate)
PC Connection
USB 2.0 (High Speed)

MPV 1703 S
15
English
8
Earphone Impedance
32 Ohm
Internal Memory
Not Applicable
Memory Card Slot
Micro SD Memory Card
(Support up to 32GB and possible to 64GB)
Power Source
DC Input: DC 5V 500mA
Battery
Lithium-Polymer (3.7V 110mAh)
Playing Time: 6 ~ 7 hours
Supports Music Format
MP3
32kbps - 320kbps
WMA
32kbps - 384kbps
WAV
IMA-ADPCM
PCM
32kbps - 384kbps
128kbps - 1536kbps
Earphone Output
2mW x 2 channels
(at 32 Ohm)
Freq. Response
20Hz – 20,000Hz
SNR
80dB
Operation Temperature
0°C - 40°C
Operation Systems
Windows 2000/XP/Vista/Win7/Win8 /10
MAC 9.2 or above
J. Disclaimer
Updates to Firmware and/or hardware components are made regularly.
Therefore some of the instruction, specifications and pictures in this
documentation may differ slightly from your particular situation. All items
described in this guide for illustration purposes only and may not apply to
particular situation. No legal right or entitlements may be obtained from
the description made in this manual.
K. Recycling
This symbol indicates that the relevant electrical product
or battery should not be disposed of as general household
waste in Europe. To ensure the correct waste treatment of
the product and battery, please dispose them in
accordance to any applicable local laws of requirement for
disposal of electrical equipment or batteries. In so doing,
you will help to conserve natural resources and improve
standards of environmental protection in treatment and
disposal of electrical waste (Waste Electrical and
Electronic Equipment Directive).

MPV 1703 S
16
INFORMATION NOTE ON THE REMOVAL AND DISPOSAL
OF BATTERIES
Warning: Only high-qualified personnel should perform this
operation!
BATTERY REMOVAL
1) Remove the back part of the appliance from cogs;
2) Select the battery;
3) Disconnect and remove the battery.
Used batteries should not be disposed of with household waste or thrown
into re or water. Used batteries should be recycled or disposed of in
separate waste collection centres.
Precautions for correct disposal of the product.
The symbol shown on the equipment indicates that waste must be disposed
of in “separate collection” and so the product must not be disposed of
together with urban waste.
The user must take the product to special “separate waste collection cen-
tres” provided by local government, or deliver it to the retailer against the
purchase of a new product.
Separate collection of waste and subsequent treatment, recycling and disposal
operations promotes the production of equipment with recycled materials
and limits negative effects on the environment and on health caused by
improper handling of waste.
Illegal disposal of the product leads to the enforcement of administrative
penalties.
English

MPV 1703 S
17
Français
MANUEL DE L’UTILISATEUR
Les informations contenues dans ce document sont sujet à changement
sans préavis.
Ce document ne peut pas être reproduit ou transféré,même partiellement,
de quelque manière et par quelque moyen, électronique, mécanique, pho-
tocopie, ni copié ou traduit dans d’autres langues pour n’importe quel but
sans autorisation expresse du fabricant.
Noms, dessins et marques de commerce gurant dans ce manuel sont la
propriété de leurs propriétaires respectifs.
Attentivement lire ce mode d’emploi et suivre attentivement les informations
suivantes avant d’utiliser ce produit.
AVERTISSEMENT POUR UNE UTILISATION CORRECTE DE
LA BATTERIE RECHARGEABLE
- La température de recharge doit être comprise entre 5°C et 35°C.
- Ne prolongez pas la recharge plus du temps indiqué pour éviter le risque
de surchauffement et explosion.
- Recharger la batterie plus du temps indiques ou temps prolongés de
inactivité peuvent diminuer la durée de la batterie.
- La batterie rechargeable est susceptible à l’usure et sa capacité diminue
graduellement
- Pour prolonger la durée de la batterie, utilisez-le jusqu’à quand elle est
complètement déchargée, ensuite rechargez-le complètement avant de
l’utiliser uneautrefois.Recharger unebatterie pas complètementdéchargée
peut diminuer sa capacité. Dans ce cas,répétez le cycle charge/décharge
plusieurs fois.
Attention!
Utilisation abusive de la batterie peut provoquer une explosion
ou une surchauffe de la même.

MPV 1703 S
18
DESCRIPTION ET FONCTIONS CLÉS
1. Pince à ressort
2. Prise pour casque
3. LED d’État
4. VOL-
5. VOL+
6. I<< PREV
7. >>I NEXT
8. >II PLAY/PAUSA / Alimentation marche/arrêt
9. microUSB
10.RESET
11.microSD
12.Couverture de silicium pour le slot microSD
Français
Pour éviter d’éventuels dommages auditifs, limiter le temps
d’écoute à volume élevé.
3
Special Features
•Elegant appearance and easy to use.
•Playback from Micro SD Memory Card.
•Multi-Code Player - Supporting MP3, WMA and WAV formats.
Brief View of Player
A. Outlook and Controls
3
4
5
6 7
8
9 10
2
1
11
12

MPV 1703 S
19
Français
CHARGEMENT DE LA BATTERIE
Le MPV 1703S a à sa base une batterie rechargeable au lithium.
1) Connectez le MPV 1703S à un ordinateur avec un port USB. Le LED
d’État (3) clignotera en rouge.
2) Recharger le lecteur pendant pas plus de 2 heures.Lorsque la charge est
terminée, le LED d’État (3) restera allumé en rouge.
Remarque: vie de la batterie complètement chargée rôde environ 8
heures et 30 minutes de lecture en continu.
INSÉREZ LA CARTE micro-SD
1) Insérer la parementure de carte micro-SD (non inclus) avec la surface
(côté écrite) vers le bas et placez-le délicatement dans la fente (11) jusqu’à
ce que vous entendiez un clic. À ce stade, le joueur est en mesure de
jouer les chansons présentes dans la carte micro-SD.
2) Retirez la carte micro SD en pressant contre elle.
TRANSFERT DE FICHIERS AUDIO MP3/WMA/WAV
D’ORDINATEUR MÉMOIRE micro-SD
1) Connecter le MPV 1703S à un ordinateur avec un port USB.
2) La mémoire micro-SD sera automatiquement reconnue par l’ordinateur.
3) Copier les chiers audio MP3/WMA/WAV depuis votre ordinateur, la
carte micro-SD.
Remarque: Pour supprimer l’utilisation de mémoire micro SD le
«retirer le périphérique en toute sécurité».

MPV 1703 S
20
Français
ALIMENTATION MARCHE/ARRÊT, LECTURE DE PISTES ET
PRINCIPALES FONCTIONS
1) Appuyez sur la touche >II PLAY/PAUSE (8) pendant 2 secondes pour
allumer le lecteur. En présence de chiers audio le lecteur démarre
automatiquement la lecture. Le LED d’État (3) clignotera en bleu.
Remarque: En cas d’absence d’audio les la volonté du joueur éteint
automatiquement.
2) Appuyez sur la touche >II PLAY/PAUSE (8) pour arrêter temporairement
la lecture. Le LED d’État (3) restera allumé en bleu.
3) Appuyezsur latouche>II PLAY/PAUSE(8)pour revenirenlecture normale.
4) Appuyez sur la touche >>I NEXT (7) pour sélectionner la piste suivante.
5) Appuyez sur la touche I<< PREV (6) pour sélectionner la piste précédente.
6) Appuyez sur la toucheVOL+ (5) pour augmenter le volume.
Remarque: Un signal sonore vous avertit lorsque vous avez atteint le
niveau de volume maximum.
7) Appuyez sur la toucheVOL- (4) pour diminuer le volume.
8) Appuyez sur la touche >II PLAY/PAUSE (8) pendant 2 seconde pour
éteindre le lecteur.
Remarque: Lors du verrouillage du lecteur en même temps, appuyez
sur la touche RESET (10) pour effectuer une réinitialisation.
SPÉCIFICATIONSTECHNIQUES
Système d’exploitation...................... Windows® 2000/XP/Vista/7/8/10
................................................................ Mac OS 9.2 ou supérieur
Version USB......................................... microUSB 2.0
Stockage externe ............................... Carte microSD jusqu’à 32GB
Formats audio pris en charge ......... MP3, WMA, WAV
Réponse en fréquence ...................... 20-20000Hz
Rapport Signal/Bruit .......................... 80dB
Bloc d’alimentation............................ Batterie au Lithium rechargeable avec port USB
Taille ...................................................... 24x24x14mm
