Tyco Fire Product Gem ISSUE D QUARTZOID User manual

PENDENT AND UPRIGHT SPRINKLERS
ISSUE D QUARTZOID®
STANDARD RESPONSE, 11 mm BULB TYPE, K=8.0, 3/4" NPT
GENERAL DESCRIPTION
The 8.0 K-Factor (17/32 inch orifice),
Issue D Quartzoid Pendent and Up-
right Sprinklers with 3/4 inch NPT con-
nection (Ref. Figure A) are very extra
high and ultra high temperature rated
automatic sprinklers of the frangible
bulb type. They are “standard re-
sponse - standard spray sprinklers”
intended for use in fire sprinkler sys-
tems designed in accordance with the
standard installation rules recognized
by the applicable Listing or Approval
agency (e.g., UL Listing is based on
NFPA 13 requirements). The Pendent
and Upright Sprinklers all produce a
hemispherical water distribution pat-
tern below the deflector.
APPROVALS AND STANDARDS
Laboratory listings and approvals for
the 8.0 K-Factor, Issue D Pendent and
Upright Sprinklers with 3/4 inch NPT
connection are given in Table A.
WARNING
The 8.0 K-Factor, Issue D Pendent
and Upright Sprinklers with 3/4 inch
NPT connection described herein
must be installed and maintained in
compliance with this document, as
well as applicable standards of the
National Fire Protection Association,
in addition to the standards of any
other authorities having jurisdiction.
Failure to do so may impair the integ-
rity of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. The installing contractor or
manufacturer should be contacted
relative to any questions.
Installation of Issue D Sprinklers in
recessed escutcheons will void all
sprinkler warranties, as well as pos-
sibly void the sprinklers Approvals
and/or Listings.
TECHNICAL DATA
The 8.0 K-Factor Issue D Pendent
and Upright Sprinklers with 3/4 inch
NPT connection are rated for use at a
maximum service pressure of 175 psi
(12,1 bar) and they are available in the
temperature ratings and finishes indi-
catedinTableA.
The flow “Q” in GPM (LPM) as deter-
mined by the following formula:
where the nominal discharge coeffi-
cient “K” equals 8.0 (115,2); and, “p”
equals the residual flowing pressure in
psi (bar).
Table A indicates the frame color code
and bulb liquid color as a function of
temperature rating.
INSTALLATION
NOTES
Do not install any bulb type sprinkler
if the bulb is cracked or there is a loss
of liquid from the bulb. With the
sprinkler held horizontal, a small air
bubble should be present. The diame-
ter of the air bubble is approximately
1/4 inch (6,4 mm).
A leak tight 3/4 inch NPT sprinkler
joint should be obtained with a torque
of 10 to 20 ft.lbs. (13,4 to 26,8 Nm). A
maximum of 30 ft. lbs. (40,7 Nm) of
torque is to be used to install the
sprinklers. Higher levels of torque
may distort the sprinkler inlet with
consequent leakage or impairment of
the sprinkler.
The Issue D Sprinklers must be in-
stalled in accordance with the follow-
ing instructions.
Step 1. Upright sprinklers must be in-
stalled in the upright position and pen-
dent sprinklers must be installed in the
pendent position. The deflector is to be
parallel to the ceiling or roof, as appli-
cable.
Step 2. With pipe thread sealant ap-
plied, hand tighten the sprinkler into
the sprinkler fitting.
Step 3. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
11 Sprinkler Wrench (Ref. Figure B).
CARE AND MAINTENANCE
Issue D Sprinklers must be maintained
and serviced in accordance with the
following instructions:
NOTE
Before closing a fire protection system
control valve for maintenance work
QKp =
Printed in U.S.A. 3-01 TD527Q
FIGURE A
8.0 K-FACTOR ISSUE D PENDENT (SIN G1140) AND UPRIGHT (SIN G1136) SPRINKLERS
WITH 3/4 INCH NPT CONNECTION
1 - Frame
2 - Deflector,
SSU-3 for
Upright Sprinkler,
SSP-1 for
Pendent Sprinkler
3 - Upper Bulb Seat
4 - Lower Bulb Seat
5 - Pin
6 - Button
7 - Spacer
8 - Spring Plates
9 - Lower Bulb
Gasket
10 - Gasket
11 - Bulb Pendent
Upright Cross-Section
TYCO FIRE PRODUCTS, 7071 S. 13th Street, Suite 103 Oak Creek, WI 53154 — www.gemsprinkler.com
Customer Service/Sales: Tel: [phone] / Fax: [phone]
Technical Services: Tel: [phone] / Fax: [phone]
OBSOLETE

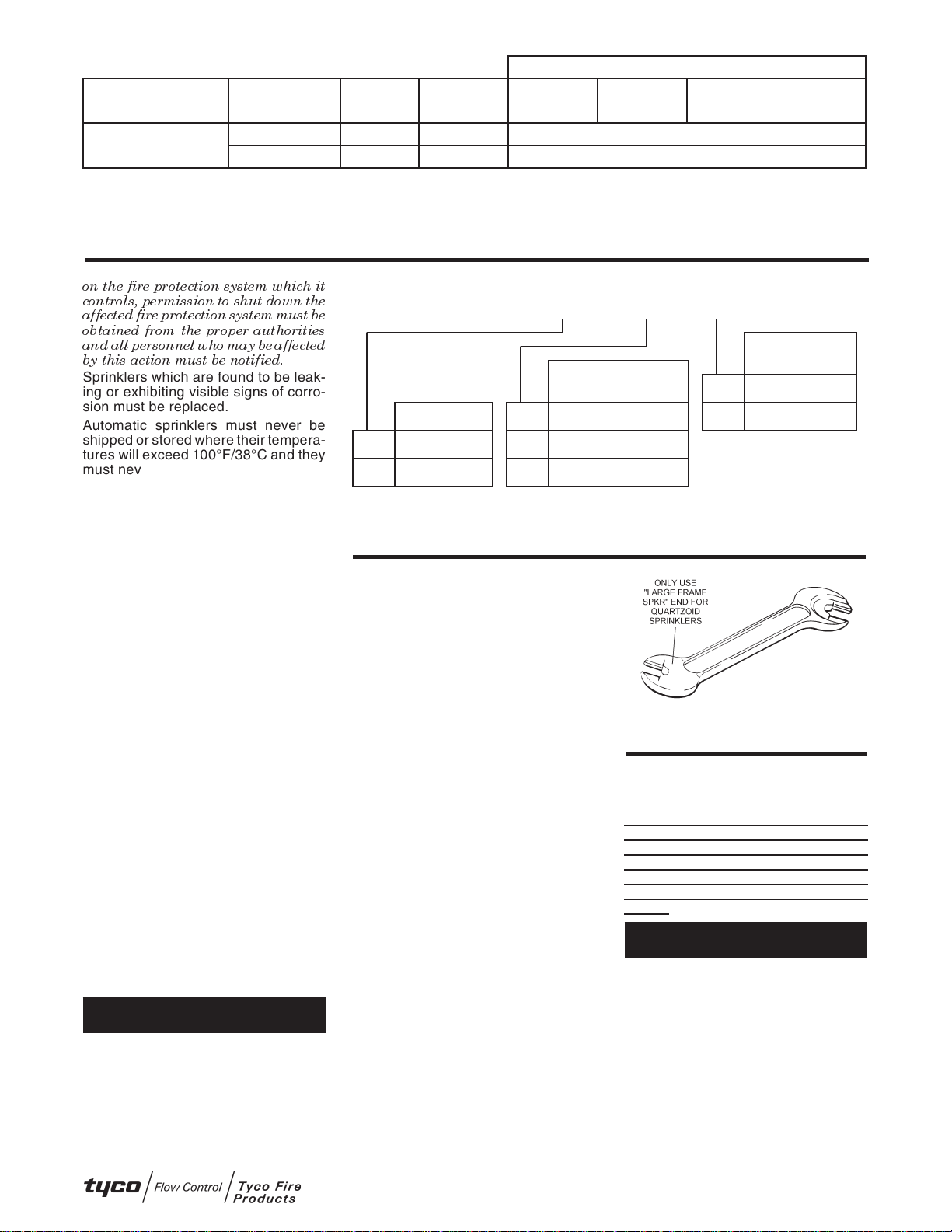

on the fire protection system which it
controls, permission to shut down the
affected fire protection system must be
obtained from the proper authorities
and all personnel who may be affected
by this action must be notified.
Sprinklers which are found to be leak-
ing or exhibiting visible signs of corro-
sion must be replaced.
Automatic sprinklers must never be
shipped or stored where their tempera-
tures will exceed 100°F/38°C and they
must never be painted, plated, coated
or otherwise altered after leaving the
factory. Modified sprinklers must be
replaced. Sprinklers that have been
exposed to corrosive products of com-
bustion, but have not operated, should
be replaced if they cannot be com-
pletely cleaned by wiping the sprinkler
with a cloth or by brushing it with a soft
bristle brush.
Care must be exercised to avoid dam-
age to the sprinklers — before, during,
and after installation. Sprinklers dam-
aged by dropping, striking, wrench
twist/slippage, or the like, must be re-
placed. Also, replace any sprinkler that
has a cracked bulb or that has lost
liquid from its bulb (ref. Installation
Section Note).
The owner is responsible for the in-
spection, testing, and maintenance of
their fire protection system and de-
vices in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association (e.g., NFPA 25), in
addition to the standards of any other
authorities having jurisdiction. The in-
stalling contractor or sprinkler manu-
facturer should be contacted relative
to any questions.
It is recommended that automatic
sprinkler systems be inspected,
tested, and maintained by a qualified
Inspection Service.
LIMITED WARRANTY
Products manufactured by Tyco Fire
Products are warranted solely to the
original Buyer for ten (10) years
against defects in material and work-
manship when paid for and properly
installed and maintained under normal
use and service. This warranty will ex-
pire ten (10) years from date of ship-
ment by Tyco Fire Products. No war-
ranty is given for products or compo-
nents manufactured by companies not
affiliated by ownership with Tyco Fire
Products or for products and compo-
nents which have been subject to mis-
use, improper installation, corrosion,
or which have not been installed,
maintained, modified or repaired in ac-
cordance with applicable Standards of
the National Fire Protection Associa-
tion, and/or the standards of any other
Authorities Having Jurisdiction. Mate-
rials found by Tyco Fire Products to be
defective shall be either repaired or
replaced, at Tyco Fire Products’ sole
option. Tyco Fire Products neither as-
sumes, nor authorizes any person to
assume for it, any other obligation in
connection with the sale of products or
parts of products. Tyco Fire Products
shall not be responsible for sprinkler
system design errors or inaccurate or
incomplete information supplied by
Buyer or Buyer’s representatives.
IN NO EVENT SHALL TYCO FIRE
PRODUCTS BE LIABLE, IN CON-
TRACT, TORT, STRICT LIABILITY
OR UNDER ANY OTHER LEGAL
THEORY, FOR INCIDENTAL, INDI-
RECT, SPECIAL OR CONSEQUEN-
TIAL DAMAGES, INCLUDING BUT
NOT LIMITED TO LABOR CHARGES,
REGARDLESS OF WHETHER TYCO
FIRE PRODUCTS WAS INFORMED
ABOUT THE POSSIBILITY OF SUCH
DAMAGES, AND IN NO EVENT
SHALL TYCO FIRE PRODUCTS’ LI-
ABILITY EXCEED AN AMOUNT
EQUAL TO THE SALES PRICE.
THE FOREGOING WARRANTY IS
MADE IN LIEU OF ANY AND ALL
OTHER WARRANTIES EXPRESS
OR IMPLIED, INCLUDING WARRAN-
TIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PUR-
POSE.
ORDERING PROCEDURE
Contact your local distributor for avail-
ability.
Sprinkler Assemblies:
Specify: 8.0 K-Factor, (specify tem-
perature rating), Issue D (specify Pen-
dent or Upright) Sprinkler with 3/4 inch
NPT connection and with (specify type
of finish), PSN (specify from Table B)
Sprinkler Wrench:
Specify: W-Type 11 Sprinkler Wrench,
PSN 56-452-1-001.
TYPE TEMPERATURE
RATING
BULB
LIQUID
COLOR
NATURAL
BRASS
CHROME
PLATED
LEAD COATED
(Maximum 150°F/66°C
Ceiling Temperature)
400°F/204°CPENDENT (SIN G1140)
and
UPRIGHT (SIN G1136)
SPRINKLER FINISH
Orange
1, 2, 3Black
Black500°F/260°C
NOTES:
1. Listed by Underwriters Laboratories, Inc.
2. Listed by Underwriters’ Laboratories of Canada.
3. Approved by the City of New York under Calendar Number 334-79-SA.
TABLE A, LABORATORY LISTINGS AND APPROVALS
FRAME
COLOR
CODE
Green
1, 2, 3
PSN 51 — XXX — X — XXX
500°F/260°C500
TEMPERATURE
RATING
400°F/204°C400
PENDENT
136
140
1
SPRINKLER
FINISH
TABLE B
PRODUCT SYMBOL NUMBER SELECTION
8.0 K-FACTOR ISSUE D PENDENT AND UPRIGHT SPRINKLERS
WITH 3/4 INCH NPT CONNECTION
UPRIGHT
LEAD COATED
NATURAL BRASS
9
7
TYPE
CHROME PLATED
FIGURE B
W-TYPE 11
SPRINKLER WRENCH
OBSOLETE
