Tyco ESFR-14 User manual

Page 1 of 4 APRIL 2022 TFP319
Worldwide
Contacts
www.tyco-fire.com
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the “INSTALLER
WARNING” that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/
model-esfr-14-k-pen-sup-fast-res
Model ESFR-14
14.0 K-factor Pendent Sprinklers
Early Suppression, Fast Response
General
Description
The TYCO Model ESFR-14, K-factor
Pendent Sprinklers are Early Suppres-
sion, Fast Response (ESFR) sprin-
klers with a nominal K-factor of 14.0.
They are suppression-mode sprinklers
that are especially advantageous as a
means of eliminating the use of in-rack
sprinklers when protecting high-piled
storage.
Model ESFR-14 Sprinklers are primarily
designed for protection of the following
storage arrangements:
• Most encapsulated or non-encap-
sulated common materials including
cartoned, unexpanded plastics
• Some storage arrangements of rub-
ber tires, roll paper, flammable liquids
For more specific criteria, see Table B
and the applicable design standard.
NOTICE
The TYCO Model ESFR-14 Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association (NFPA), in addition
to the standards of any other authorities
having jurisdiction, such as FM Global.
Failure to do so may impair the perfor-
mance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
In all cases, the appropriate NFPA,
FM Approvals installation standard, or
other applicable standard, must be ref-
erenced to ensure applicability and to
obtain complete installation guidelines.
The general guidelines in this technical
data sheet are not intended to provide
complete installation criteria.
Sprinkler
Identification
Number (SIN)
See Table A
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
EAC Approved
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Bulb (3 mm). . . . . . . . . . . . . . . . . . . . . . . . . Glass
Sealing Assembly ..Beryllium Nickel w/TEFLON
Additional Technical Data
See Table A

TFP319
Page 2 of 4
Operation
The glass bulb contains a fluid which
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass bulb, allowing the sprinkler to
activate and water to flow.
Item Description
Sprinkler Identication Number (SIN) TY6236
K-factor, gpm/psi½(Lpm/bar½) 14.0 gpm/psi½(201,6 Lpm/bar½)
Temperature Rating ºF (ºC) 155°F (68°C)
200°F (93°C)
Thread Size 3/4 in. NPT or ISO 7-1
Sprinkler Orientation Pendent
Maximum Working Pressure, psi (bar) 175 psi (12 bar)
*
*
*
**
**
Temperature rating is
indicated on Deector.
Pipe thread connections per
ISO 7-1 can be provided on
special request.
2-3/8"
(60,3 mm)
WRENCH
FLATS
1/2"
(12,7 mm)
NOMINAL
MAKE-IN
Components:
2
3
4
5
6
1
-Sealing Assembly
6
-Compression Screw
3
Bulb
Button
-
4
-
5
Deector
Frame
-
1
2
-
3/4" NPT
1-1/2"
(38,1 mm)
CENTERLINE
THERMAL
SENSING
ELEMENT
FIGURE 1
MODEL ESFR-14, 14.0 K-FACTOR, PENDENT SPRINKLER
EARLY SUPPRESSION, FAST RESPONSE
TABLE A
MODEL ESFR-14 PENDENT SPRINKLER
TECHNICAL DATA

TFP319
Page 3 of 4
Design
Criteria
The following general guidelines pro-
vided for the TYCO Model ESFR-14,
14.0 K-factor, Pendent Sprinklers can
be used for quick reference.
NOTICE
The National Fire Protection Associa-
tion and FM Approvals provide instal-
lation standards that must be used to
properly design an automatic sprinkler
system utilizing Early Suppression,
Fast Response (ESFR) Sprinklers. The
guidelines provided by NFPA and FM
Global may differ; consequently, the
appropriate standard must be used for
a given installation.
In all cases, the appropriate NFPA or
FM Approvals installation standard
must be referenced to assure appli-
cability and to obtain complete instal-
lation guidelines, since the following
general guidelines are not intended to
provide complete installation criteria.
Roof Construction
Unobstructed or obstructed construc-
tion; for example, smooth ceiling, bar
joists, beam and girder, and so forth.
Where the depths of solid structural
members, such as beams and stem,
exceed 12 in. (302 mm), install Model
ESFR-14 Sprinklers in each channel
formed by the structural members.
Ceiling Slope
Maximum 2 in. rise for 12 in. run (16.7%)
Maximum Coverage Area
100 ft2(9,3 m2)
Minimum Coverage Area
64 ft2(5,8 m2) per
NFPA 13 and FM Global 2-0
Maximum Spacing
• 12 ft (3,7 m) for building heights up
to 30 ft (9,1 m)
• 10 ft (3,1 m) for building heights
greater than 30 ft (9,1 m)
Minimum Spacing
8 ft (2,4 m)
Minimum Clearance to Commodity
36 in. (914 mm)
NFPA 13
Deflector-to-Ceiling Distance
6 in. to 14 in. (152 mm to 356 mm)
FM Global
Centerline of Thermal Sensing
Element-to-Ceiling Distance
Refer to FM Global 2-0 for Storage
Sprinklers.
Storage Type NFPA FM Global
Sprinkler Type ESFR Storage
Response Type FR QR
System Type Wet Wet
Temperature Rating ºF (ºC) 155°F (68°C)
200°F (93°C)
155°F (68°C)
200°F (93°C)
Open Frame (i.e., no solid shelves) Single, Double, Multiple-
Row, or Portable Rack Storage of Class I-IV and Group A or
B Plastics
Refer to NFPA 13 Refer to FM 2-0 and 8-9
Solid Pile or Palletized Storage of Class I-IV and Group A or
B Plastics Refer to NFPA 13 Refer to FM 2-0 and 8-9
Idle Pallet Storage Refer to NFPA 13 Refer to FM 2-0, 8-9, and 8-24
Rubber Tire Storage Refer to NFPA 13 Refer to FM 2-0 and 8-3
Roll Paper Storage
(Refer to the Standard) Refer to NFPA 13 Refer to FM 8-21
Flammable/Ignitable Liquid Storage
(Refer to the Standard) Refer to NFPA 30 Refer to FM 7-29
Aerosol Storage
(Refer to the Standard) Refer to NFPA 30B Refer to FM 7-31
Automotive Components in Portable Racks
(Control mode only; refer to the Standard) N/A N/A
N/A – Not Applicable
TABLE B
MODEL ESFR-14 PENDENT SPRINKLERS
COMMODITY SELECTION AND DESIGN CRITERIA OVERVIEW

TFP319
Page 4 of 4
NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association;
TEFLON is a trademark of The Chemours Company FC, LLC
1400 Pennbrook Parkway, Lansdale, PA 19446 | Telephone [phone]
© 2022 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
Installation
TYCO Model ESFR-14 Pendent Sprin-
klers must be installed in accordance
with this section.
General Instructions
Do not install any bulb type sprinkler
if the bulb is cracked or there is a loss
of liquid from the bulb. With the sprin-
kler held horizontally, a small air bubble
should be present.
A leak-tight 3/4 in. NPT sprinkler joint
should be obtained by applying a min-
imum-to-maximum torque of 10 to 20
lb-ft (13,4 to 26,8 N∙m). Higher levels
of torque can distort the sprinkler inlet
with consequent leakage or impairment
of the sprinkler.
Note: Install the Model ESFR-14 Pendent
Sprinkler only in the pendent position as
shown in Figure 1.
Step 1. With pipe thread sealant
applied, hand-tighten the sprinkler into
the sprinkler fitting.

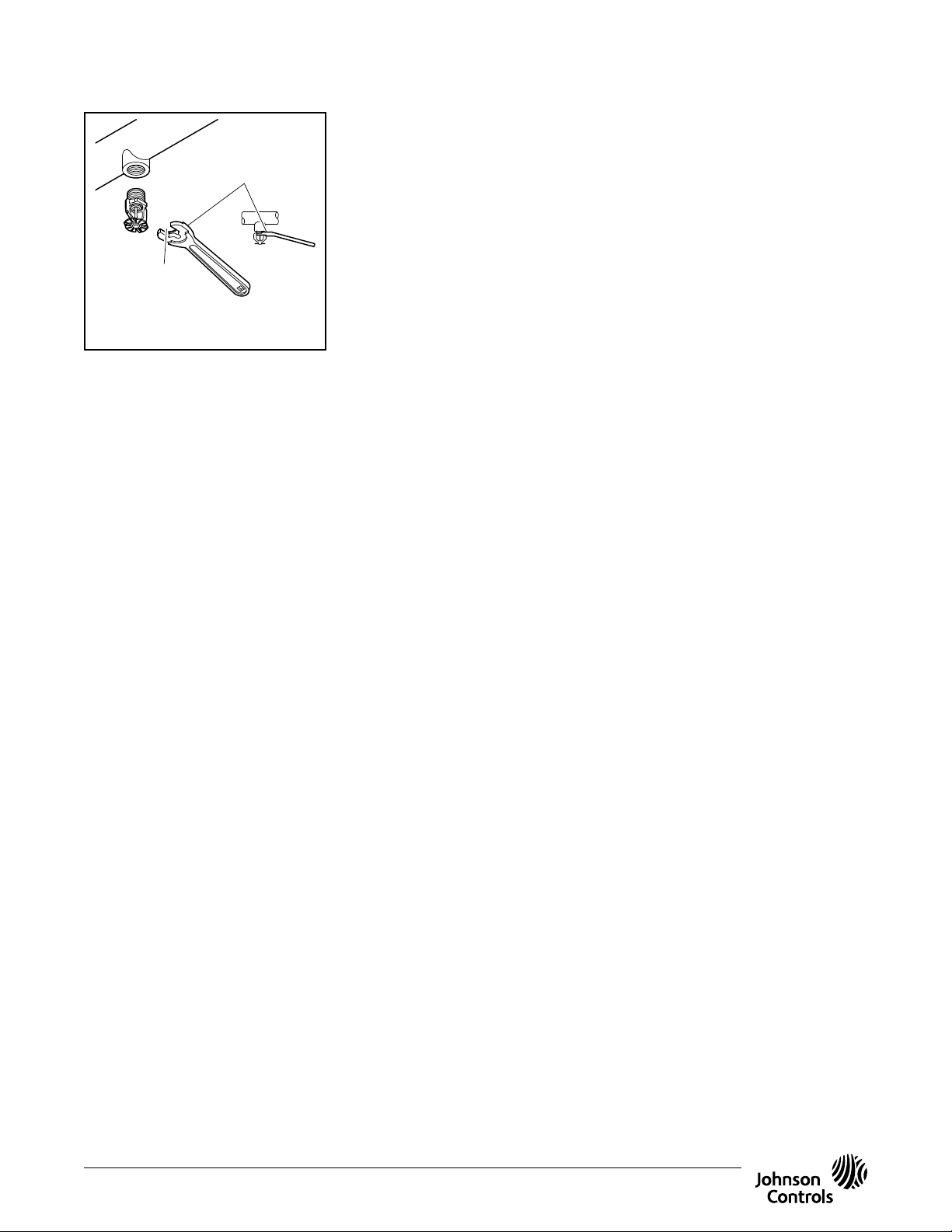

Step 2. Wrench-tighten the Model
ESFR-14 Sprinkler using only the
W-Type 34 Sprinkler Wrench as shown
in Figure 2, and by fully engaging
(seating) the wrench on the sprinkler
wrench flats as shown in Figure 1.
Step 3. After installation, inspect the
bulb of each Model ESFR-14 Sprinkler
for damage. In particular, verify that the
bulb is not cracked. Replace damaged
sprinklers.
Care and
Maintenance
TYCO Model ESFR-14, 14.0 K-factor,
Pendent Sprinklers (TY6236) must be
maintained and serviced in accordance
with this section.
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system
that it controls, obtain permission to
shut down the affected fire protection
systems from the proper authorities
and notify all personnel who may be
affected by this action.
Sprinklers which are found to be
leaking or exhibiting visible signs of
corrosion must be replaced.
Automatic sprinklers must never be
painted, plated, coated, or other-
wise altered after leaving the factory.
Modified sprinklers must be replaced.
Sprinklers that have been exposed to
corrosive products of combustion, but
have not operated, should be replaced
if they cannot be completely cleaned
by wiping the sprinkler with a cloth or
by brushing it with a soft bristle brush.
Care must be exercised to avoid
damage to the sprinklers before,
during, and after installation. Sprin-
klers damaged by dropping, striking,
wrench twist/slippage, or the like, must
be replaced. Also, replace any sprinkler
that has a cracked bulb or that has lost
liquid from its bulb. For more informa-
tion, see the Installation section.
The owner is responsible for the
inspection, testing, and maintenance of
their fire protection system and devices
in compliance with this document, as
well as with the applicable standards
of the National Fire Protection Associ-
ation, such as NFPA 25, in addition to
the standards of any other authorities
having jurisdiction. Contact the install-
ing contractor or product manufacturer
with any questions.
Automatic sprinkler systems are rec-
ommended to be inspected, tested,
and maintained by a qualified Inspec-
tion Service in accordance with local
requirements and/or national codes.
Limited
Warranty
For warranty terms and conditions, visit
www.tyco-fire.com.
Ordering
Procedure
Contact your local distributor for avail-
ability. When placing an order, indicate
the full product name and Part Number
(P/N).
Sprinkler Assemblies
Specify: Model ESFR-14 (TY6236),
K=14.0, Pendent Sprinkler with
(specify) temperature rating, Natural
Brass, P/N (specify):
155°F (68°C)..................58- 449-1-155
200°F (93°C) .................58-449-1-20 0
Special Order
Sprinkler Assemblies with
ISO 7-1 Thread Connections
Specify: Model ESFR-14 (TY6236),
K=14.0, Early Suppression, Fast
Response Pendent Sprinkler with
ISO 7-1 Thread Connection, (specify)
temperature rating, Natural Brass,
P/N (specify):
155°F (68°C)..................58- 443-1-155
200°F (93°C) .................58-443-1-20 0
Sprinkler Wrenches
Specify: W-Type 34 Sprinkler Wrench
P/N 56-462-1-001
WRENCH
RECESS
"FITTING SIDE"
TOWARD SPRINKLER
FITTING
FIGURE 2
W-T YPE 34
SPRINKLER WRENCH
