UNIA HERMES 3.0 User manual

MANUAL
ACTIVE HARROW
HERMES 3.0 / 4.0
Before starting machine read the operating manual and follow
the safety instructions contained in it.
VERSION
ENG 01/2018
UNIA-FAMAROL Sp. z o.o.
ul. Przemysłowa 100, 76 – 200 SŁUPSK, POLAND
tel. [phone] | Service: 59 841 80 27 | [email protected]
uniamachines.com

2

3
UNIA-FAMAROL Sp. z o.o.
ul. Przemysłowa 100
PL 76-200 SŁUPSK
tel + 48 59 841 80 01
fax + 48 59 841 37 25
Serwis, tel + 48 59 841 80 27
www.uniamachines.com
3.0 / 4.0
HERMES CULTIVATOR UNIT
OPERATING MANUAL
Machine identification data:
Type
Date of production
Factory No.
This operating manual is an integral part of the machine. It is important that
the manual is always in the possession of the user of the machine. Access
to the manual must be provided to machine operators and people involved
in its operation, setting, repair and overhauling.
REV.: I - April 2018
No.
LANGUAGE VERSION:
Read the operating manual thoroughly and
follow the safety instructions contained in it
before operating the machine
EN

4
Developed by:
UNIA-FAMAROL sp. z o.o.
Design Office
Read the manual thoroughly and then learn the design and operation of the cultivator
unit and its assemblies.
Thorough adherence to the instructions contained in this manual will ensure long-term,
efficient, trouble-free and safe operation of the machine.
In case of any problems or doubts with the operation, please contact the authorized
seller or the manufacturer’s Sales Department.
The seller is obliged to enter the address where warranty service was performed into
the warranty card.
UNIA-FAMAROL Spółka z o. o. will be grateful for any comments to this manual as well
as comments regarding the unit, its operation and service sent to us.
UNIA-FAMAROL Spółka z o. o. shall not be liable for any damages resulting from non-
observance of instructions contained in this manual.
Throughout the text of the manual, ‘left’ or ‘right’ hand sides (LH/RH sides) of the unit
are to be understood as when looking from the back of the machine, i.e. in the direction
of its operation /driving/.
A special vehicle marking plate must be attached at the back of the machine before
leaving for highways!
UNIA-FAMAROL Sp. z o.o.
ul. Przemysłowa 100; 76-200 Słupsk, Poland

5
Contents
2. Preface .....................................................................................................................................................6
2.1. Warning sign................................................................................................................................6
2.2. Rules of Driving on Highways ......................................................................................................6
2.3. Safety symbols.............................................................................................................................9
2.4. Nameplate .................................................................................................................................10
3. Technical and identification data...........................................................................................................10
4. Operating Conditions .............................................................................................................................11
4.1. Intended Use and Operating Conditions...................................................................................11
4.2. Restrictions on Use and Unacceptable Methods of Operation.................................................11
5. Design and Operation Principle .............................................................................................................11
6. Preparation to Work ..............................................................................................................................12
6.1. Unloading the Machine .............................................................................................................12
6.3. Connection of Hydraulic Hoses .................................................................................................14
6.4. Lubrication.................................................................................................................................14
7. Settings and Adjustments ......................................................................................................................15
7.1. Adjustment of the Vertical Position ..........................................................................................15
7.3. Adjustment of Fender Beam .....................................................................................................16
7.4. Adjustment of Side Shields........................................................................................................16
7.5. Adjustment of Scrapers .............................................................................................................16
7.6. Setting Supports Under the Seed Drill Wheels..........................................................................16
7.7. Changing the Speed of Working Knives.....................................................................................16
9. Delivery and Shipment ...........................................................................................................................18
10.Maintenance and Storage......................................................................................................................19
10.1. Maintenance .............................................................................................................................19
10.2. Storage ......................................................................................................................................19
11.Disassembly, Scrapping and Utilization..................................................................................................19
12.Responsibilities of the Manufacturer.....................................................................................................20
13.Warranty Terms and Conditions ............................................................................................................20
14.Additional Information...........................................................................................................................20
UWAGI I NOTATKI........................................................................................................................................22

6
2. Preface
You have decided to purchase of a mounted rotary cultivator unit. You have selected a cost-
effective and modern machine.
You use all the advantages of the HERMES cultivator unit for a long time and learn about its
special features, if you read this operating and maintenance manual thoroughly, and if necessary,
use it in the future.
Please note that spare parts ordering can only take place on the basis of the spare part number.
In the interest of your own safety, as well as for trouble-free operation of the machine for a long
period of time, please do not put away the operating manual without reading it.
Pay particular attention to those parts of the operating manual that concern safety
instructions. We ask you to follow these instructions to prevent accidents and to avoid damage
to the machine. Please also forward all safety instructions to other users.
For any detailed information about the machine and explanations to the user manual, please
contact the seller or the manufacturer of the machine.
The manufacturer reserves the right to make changes to the machine design and the contents of
the operating manual.
2.1. Warning sign
We use this sign in the manual, whenever there is a danger to the user or other
people.
Moreover, we use this sign when there is a risk personnel, the environment or
property.
Please note the safety and warning signs in this manual.
2.2. Rules of Driving on Highways
Traffic safety and applicable regulations require that when driving on a public
road, the unit consisting of a tractor and agricultural machine connected to it
must meet the same requirements as the tractor alone.
Warning!
WHEN DRIVING ON HIGHWAYS, THE TRACTOR + POWER HARROW UNIT MUST BE
ADDITIONALLY MARKED WITH A TRIANGLE DISTINGUISHING SLOW MOVING VEHICLES (to
be bought in the depot of agricultural machines.)

7
Lighting devices should be mounted so that both the rear unit lamps and the surface of the
plate, painted in white and red stripes, were directed to the back of the tractor/machine unit,
and the white marking lamps and the white and red surface of the plate – to the front of the
unit. It is necessary to secure the devices in the holders with a standard linchpins, used in
agricultural tractors.
Double-sided panels are allowed, fixed in one holder, in accordance with the above rules.
Remember to connect portable lighting devices to the tractor’s electrical installation.
Warning!
THE USE OF PORTABLE LIGHTING DEVICES WITHOUT WARNING PLATES IS
PROHIBITED
Units with working widths up to 3 m can move on highways under the
condition of installation portable warning plates on the machine, with
oblique white and red stripes, equipped with white front and red rear side
marking lamps (in accordance with PN-R-41001 and PN-R-41002, to be
bought in a machine depot.

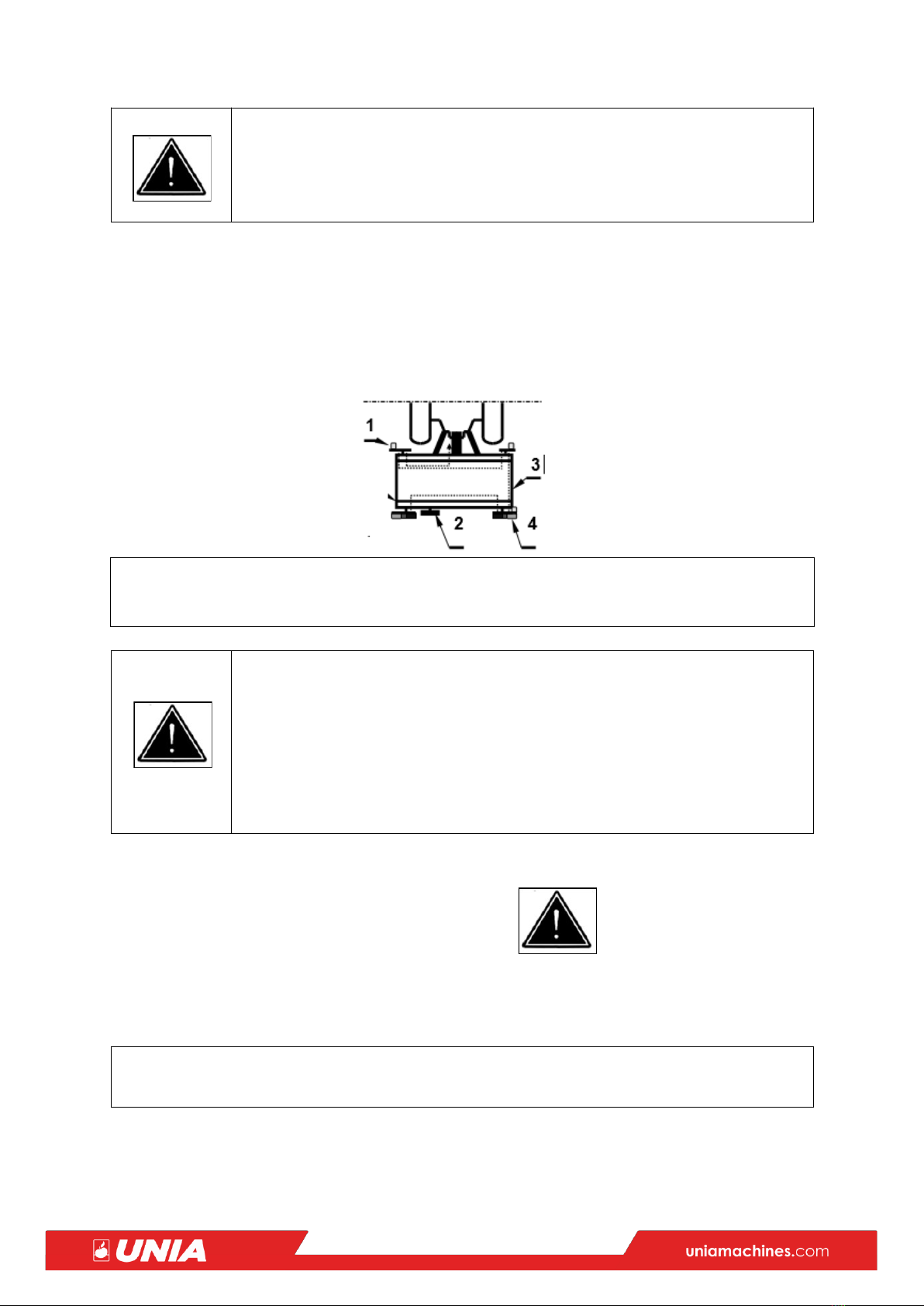

Fig. 2-1. Diagram of fixing portable lighting devices
(1-front panel; 2- triangle distinguishing slow moving vehicles; 3-cultivator or seeding
combination unit; 4- rear panel)
Caution!
Use typical protection hardware, such as pins and linchpins to secure the
suspension journals and all bolts included in the agricultural unit.
Use of substitute securing measures, such as: screws, rods or wires is
forbidden, since they can become sheared or fall out during operation or
transport and thus, they may cause damage to the tractor and the
machine, and to jeopardize the safety of other road users.
DRIVING ON HIGHWAYS WITHOUT WARNING SIGNS AND LIGHTING REQUIRED BY
TRAFFIC REGULATIONS MAY CAUSE ACCIDENTS!

8
For transporting the machine mounted on the tractor, it is necessary:
Raise the machine using the hydraulic lift of the tractor three-point linkage (hitch)
so that the clearance under the machine is min 25 cm
Lock the hydraulic control lever in the tractor
Secure the three-point linkage (hitch) with the chain to avoid lowering the
machine
Stiffen the lower links of the tractor so that the machine does not swing
sideways
In addition, when driving with the seeder raised on the lift (coupling), HERMES power
harrow should be:
-place the seeder on the properly adjusted supports (see par. 9.6) and interlock the lift
/coupling/ (see par. 11), in order to prevent the seeder from falling while driving
-travelling with seed material in the seed box is forbidden
Adjust the driving speed to road conditions, however, do not exceed 20 km/h. Driving and
gear shifting can negatively affect the tractor lowering and lifting mechanism and the
machine mounted on it. That’s why you should always leave enough room for manoeuvre
and control the gears.
CAUTION !
It is forbidden to carry passengers or materials on the machine.
When driving with seeder mounted on HERMES 3.0 power cultivator unit on highways,
observe also the rules of transport specified for the transported seeder.

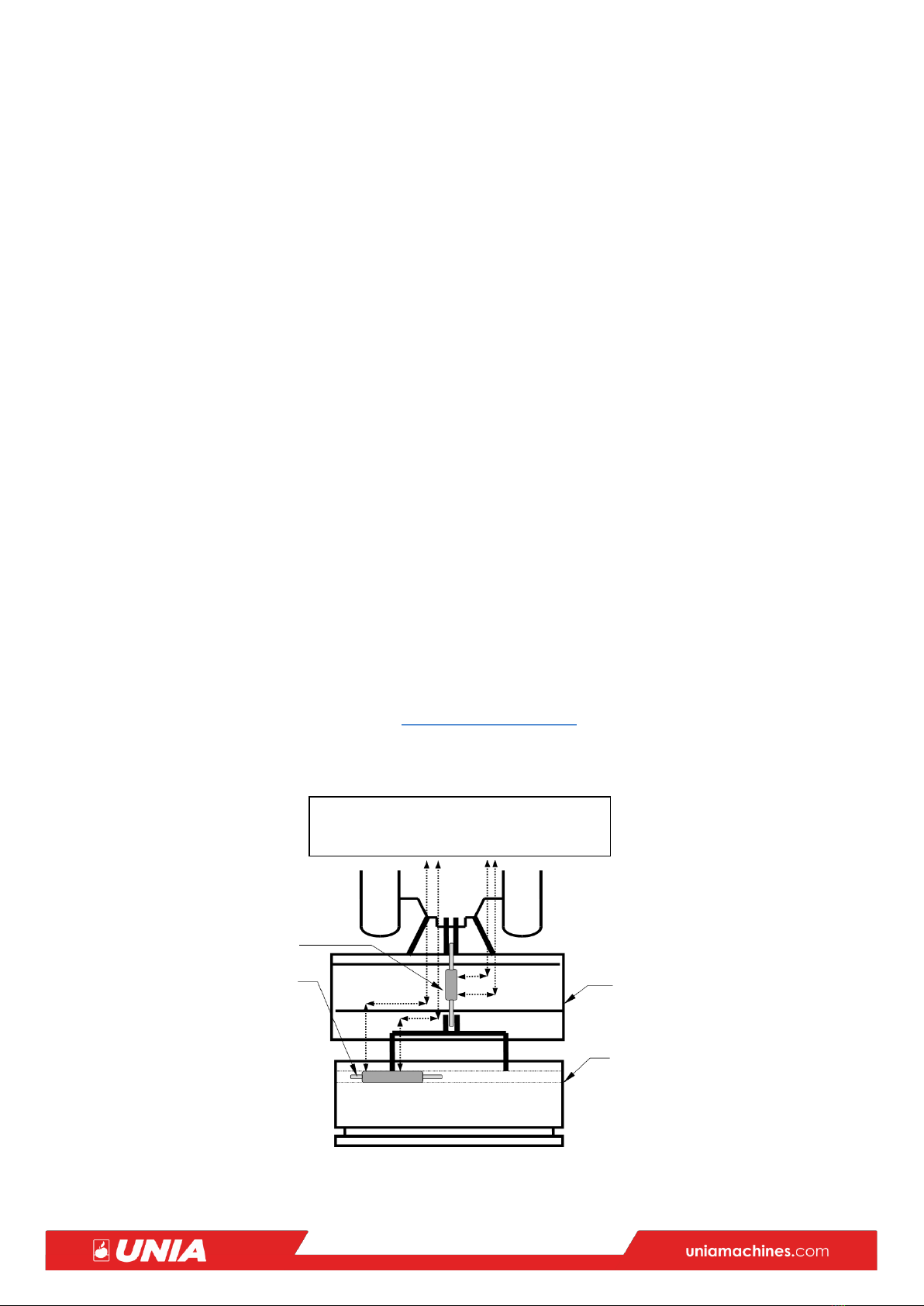

DIAGRAM OF THE HYDRAULIC SYSTEM
cultivator unit + seeder
• seeder equipped with hydraulic marker triggner
• the tractor has four outputs for controlling the external hydraulics
Tractor hydraulics
Input/Output
Lift cylinder
Trigger cylinder Cultivator unit
Seed drill

9
means hydraulic hoses operating alternately – in pairs (i.e. pressure in
one of them and return in the other)
HERMES 4.0 cultivator unit should be transported on highways on a trailer, tow truck, etc.,
observing traffic regulations.

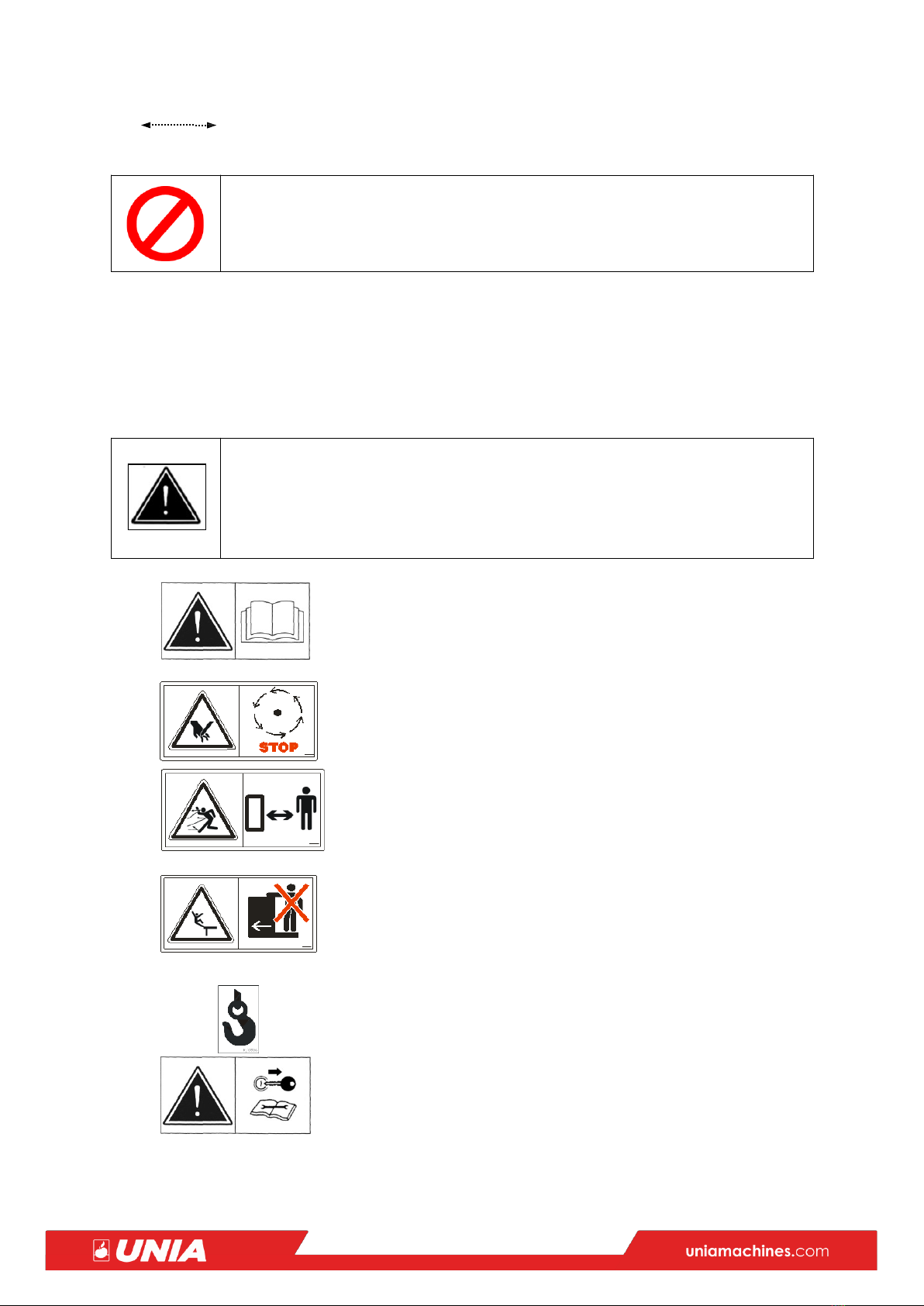

2.3. Safety symbols
1
Read the user manual!
2
C.2.23 – Do not touch the machine components until all of
its assemblies stop!
3
C.2.24 – Keep a safe distance from the machine!
4
C.2.27 – Do not ride on the machine components!
7
Place for hanging slings for unloading
8
C.2.26 – Stop the engine and remove the key before starting
maintenance!
The cultivator unit with a working width of 4 m exceeds the road width
of 3.0 m allowed in road traffic, hence driving on highways with the
unit mounted on a tractor is forbidden.
Read all the safety symbols on the machine and follow the instructions. If you find
that the warning labels are missing or damaged (illegible), replace them with new
ones that can be ordered (purchased) from the machine seller or manufacturer.

10
PRODUCER
Sales Department
Phone: [phone]
e-
mail:info@uniamachin
UNIA FAMAROL Sp. z
2.4. Nameplate
Each machine is provided with an identification plate containing the following data:
-CE mark
-manufacturer’s mark
-manufacturer’s name and address
-machine type
-number and year of production
-weight
These data are required each time the machine is to be repaired or its parts replaced.
MODEL
TYP / TYPE
ROK PROD. / YEAR
NUMER / SERIAL
Fig. 5.1 Nameplate
3. Technical and identification data
Name of the machine
HERMES 3.0
HERMES 4.0
Type
Mounted
Mounted
Types of rear rollers:
Pipe roller (R), ø 500;
Pipe roller (R), ø 500;
Packer roller (P), ø 530;
Packer roller (P), ø 530;
Tyre roller (G), ø 500;
Tyre roller (G), ø 500;
Weight
R=1120 kg ; P=1310 kg ; G=1350 kg
R=1430 kg ; P=1670 kg ; G=1710 kg
W
3.0 m
4.1 m
L
1.4 m
1.4 m
H
1.7 m
1.7 m
Working width
3,0 m
4.0 m
Working depth
max. 20 cm
max. 20 cm
Capacity
1.5 ha/h
2.0 ha/h
Power demand
min 80 HP/min.130 HP for
HERMES+seeder
min100 HP/min.150 HP for
HERMES+seeder
PTO speed
540 RPM
540/standard/ or 1000 RPM (option)
No. of rotors
12 pcs.
16 pcs.
No. of knives
24 pcs.
32 pcs.
Max working speed
10 km/h
10 km/h
Operator(s)
1 driver
1 driver
PTO drive shaft
BP DS7N061CER07001
BP CS9N061CER07N81 (standard) BP
7108061PLR07324 6/6 lub 6/8 (option)
