Uplift desk Height adjustable standing desk 4-leg User manual

For assembly assistance,

visit upliftdesk.com/4leg-srd or scan QR code,

call 800-349-3839 or email [email protected]

355 lb

two person

assembly

V2 Standard 4-Leg

Height Adjustable Frame

upliftdesk.com/4leg-srd

Thank you for choosing UPLIFT Desk.

SAFETY AND WARNINGS

WARNING: Designed for use in dry work environments only. Risk of re, electric shock, or personal

injury if used outdoors or in a damp location. Use only indoors.

WARNING: Only plug the desk into a properly grounded 120V outlet. Unplug the desk from the electrical

outlet before moving the desk or before adding/removing parts or accessories. Risk of electric shock.

WARNING: Do not open any desk component or insert any object in a desk component. Risk of electric

shock.

WARNING:

In case of spilled liquids, immediately unplug desk. Then clean spill with a dry cloth. Risk of

desk failure or electric shock if desk components become wet.

WARNING: Keep heated surfaces away from plug. Never use desk with a damaged cord or plug. Risk

of electric shock. Call us for a free replacement cord.

WARNING: Keep ngers and all body parts clear of the moving desk. Check surroundings on all sides

before using the desk to ensure there are no immobile obstacles within the desk’s range of motion. Ensure

all cords are the appropriate length so they don’t pull as the desk moves.

WARNING: Keep unsupervised children away from desk. Before use, teach children about desk

safety with this manual. Risk of personal injury and electric shock if the desk is misused.

Please read this manual carefully. This desk is height adjustable so that it may be positioned at a user’s ergonomic

height as described in this manual. Inappropriate use of this desk can cause property damage or bodily injury.

Under no circumstances does the manufacturer accept warranty or liability claims for damages caused from

improper use or handling of this desk. Provide this manual to any new user.

PACKAGE CONTENTS

355 lb

You’ll also need:

Phillips-head

screwdriver

HARDWARE

#10x3/4’’

Wood screw

(qty 4)

#10-5/8’’

Flathead

Wood screw

(qty 6)

Washer

(qty 4)

Cable mount

(qty 20)

M6x10

Machine screw

(qty 24)

4mm Allen

wrench

(4mm size)

M8x8

Set screw

(qty 16)

#10-24x5/8’’

Flathead

Machine screw

(qty 6)

Adhesive pads

(qty 8)

#10x5/8’’

Wood screw

(qty 6)

H4 c H4 d

H4 aH3

H12 H14

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

COMPONENTS Box 1

COMPONENTS Box 2

Leg

(qty 2)

Leg

(qty 2)

Control box

Crossbar end

(qty 2)

Crossbar end

(qty 2)

Crossbar rail

(qty 2)

Crossbar rail

(qty 2)

Side bracket

(right and left, qty 2)

Keypad

(one of two types, qty 1)

C7 C8 C9

C1 C1

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

Leg cable

(qty 4)

Wire

management

tray

Power cable

(qty 1)

(either in main components box

or in the desk’s accessory box)

Step 2

Place Crossbar ends (C2) upside down as shown.

Insert the Leg (C1) so that the back of the Leg and the

back of the Crossbar end are ush.

To avoid cross-threading and to ensure all the screw

holes are lined up, start the four M6x10 Machine screws

(H1) by rotating each for only a few turns through the

Crossbar end holes into the Leg as shown, but do not

tighten them all the way.

Once all four screws have been started, tighten them

all the way using the 4mm Allen wrench (H6).

Repeat this step for the other 3 Legs.

Step 3

Peel off four Adhesive pads (H12) from the backing

and place onto one of the Side brackets (C4) where

shown.

Repeat for second Side bracket.

DESK ASSEMBLY INSTRUCTIONS

Step 1

Count all pieces before disposing of any packing

material. Inspect both sides of your desktop for

damage. To avoid any damage to your oor or your

desk, assemble on top of a debris-free carpeted area

or a blanket.

For ease and safety, we recommend two people for

assembly.

Before assembly, consider where you want your desk

to be located. Since your new desk is height adjustable,

you will want it located a safe distance from window

frames, furniture, radiators, or anything else that

could obstruct the desk from raising or lowering. Do

not place any objects underneath the desk that are

taller than 21”, and consider any accessories mounted

to your desk that would lower even further than the

desk itself.

H12

Step 4

For Desktops with Threaded Screw Inserts: You’ll

be using the #10-24x5/8” Flathead Machine screws

(H4c) to attach the Side brackets (C4) to the desktop.

For Desktops without Threaded Screw Inserts: You’ll

be using the #10x5/8” Flathead Wood screws (H4d)

to attach the Side brackets (C4) to the desktop.

Machine screw: at end

Wood screw: pointy end

H4 c

H4 d

Step 5

Place your Desktop upside down on a debris-free

carpeted area or a blanket. Make sure the Desktop is

upside down. If your Desktop has pre-drilled holes or

threaded inserts, they should be visible and facing up.

Align the holes in one Side bracket (C4) with the pre-drilled

holes or threaded inserts on one side of the Desktop. Make

sure that the beveled edge of the Side bracket is pointed

towards the front of the Desktop. Then attach it with three

of the screws chosen in Step 4.

Be careful to not over-tighten, to avoid stripping.

Step 6

Slide two Leg assemblies onto the tabs of the Side

bracket. Connect them to the Side bracket with four

M6x10 Machine screws (H1).

Rotate each screw by hand for only a few turns to

avoid cross-threading.

Once the four screws are start-

ed, tighten all the way using the 4mm Allen wrench

(H6).

Step 7

Orient all the Crossbar rails (C3) so that the Center

indicator marks are facing up. When pairing two

rails together, make sure the slots are facing inward

(towards each other) and the slot on the Crossbar rails

is farther from the oor, as shown below

Insert two Crossbar rails (C3) into each Crossbar end

(C2) as far as they will go. Take the other two Leg as-

semblies and slide them onto the Crossbar rails as far

as they will go.

Center indicator marks

Step 10

Slide each Crossbar rail (C3) until the

Center indicator

mark

is in the middle. Once this is done, the Crossbar

rail will be centered and in the proper position.

Insert four M8x8 Set screws (H3) into the holes on

each Crossbar end to secure each Crossbar rail.

Tighten using the 4mm Allen wrench (H6).

Step 8

Align the holes in the second Side bracket (C4) with

the pre-drilled holes or threaded inserts on the other

side of the Desktop. Once again, make sure that the

beveled edge of the Side bracket is pointed towards

the front of the Desktop. Then attach it with three of

the screws chosen in Step 4.

Be careful to not over-tighten, to avoid stripping.

Slide two Leg assemblies onto the tabs on the Side

bracket and connect them to the Side bracket with

four M6x10 Machine screws (H1).

Once all the screws are inserted, tighten down the

screws using the 4mm Allen wrench (H6).

Step 9

Once the Side brackets and Crossbar ends are in

place, attach the Crossbar ends to the Desktop us-

ing four of the #10x3/4’’ Wood screws (H4a) and four

Washers (H5).

Make sure all screws are started before fully tighten-

ing them.

If you own a drill, you can make pilot holes to make this

a little easier. Use it with a 1/8” diameter drill bit and,

ensuring that you DO NOT DRILL DEEPER THAN 1/2”,

drill pilot holes where you’ve made your marks.

Check

that the frame assembly is in the right location prior

to drilling by conrming that your marks are lined up.

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

H4 a

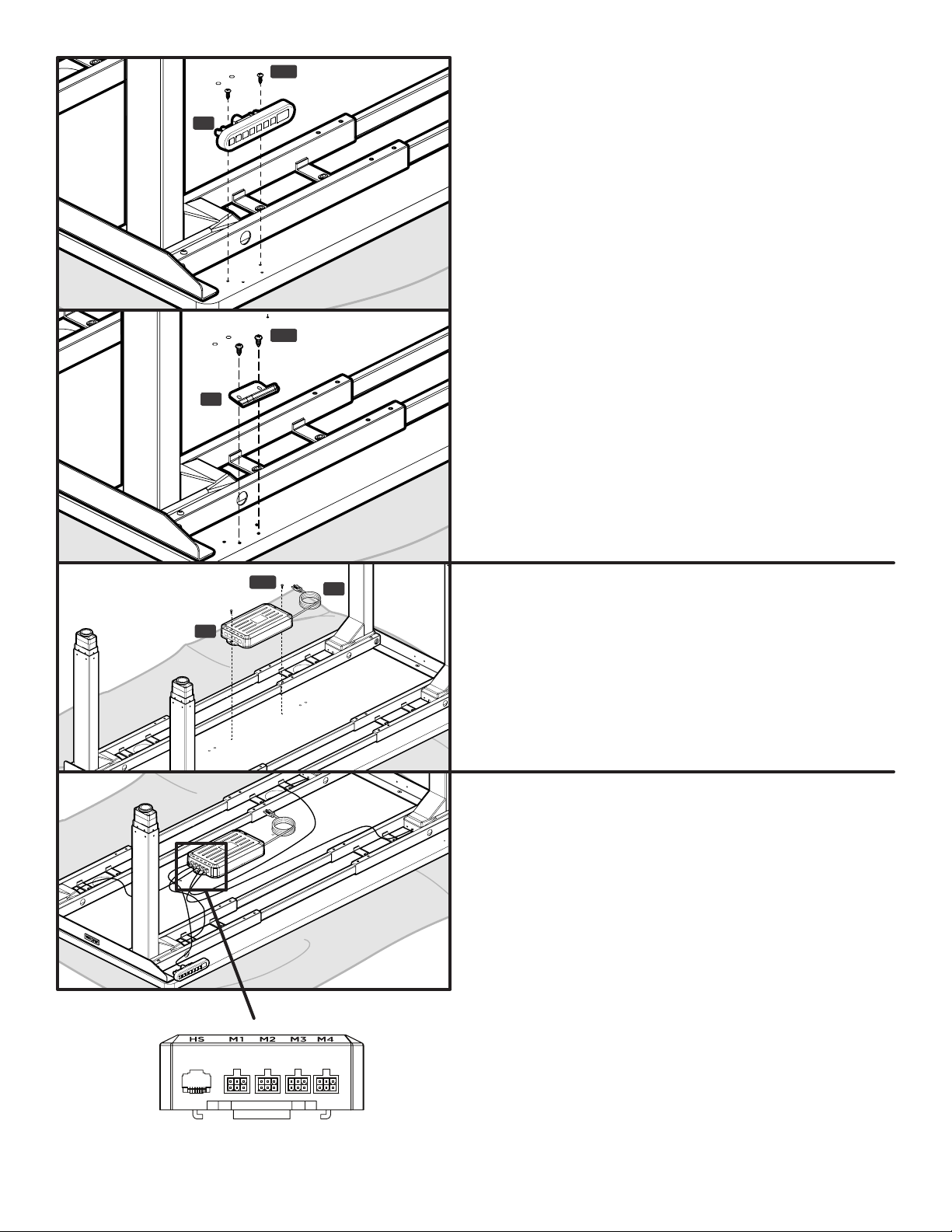

Step 11

Choose which side of the Desktop you’d like your

Keypad to be on. Remember that you’re installing

your desk upside down, so the nal location of the

Keypad will be opposite of what you’re seeing during

assembly.

For Desktops with Pre-Drilled Holes: There are two

sets of holes to accommodate different Keypads. Line

up your Keypad (C6) with the pre-drilled holes, and

attach it to the Desktop with two #10x5/8’’ Wood

screws (H14).

For Desktops without Pre-Drilled Holes: The Keypad

(C6) can be placed anywhere along the front edge

of the Desktop. Typically you will want it to the side

where it won’t interfere with your legs, your chair,

or any accessories. After carefully considering the

placement, hold the Keypad in the desired location

and make a pencil mark at each hole location.

If you own a drill, you can make pilot holes to make this

a little easier. Use a 1/8” diameter drill bit and, ensur-

ing that you DO NOT DRILL DEEPER THAN 1/2”, drill

pilot holes where you’ve made your marks.

Or you can

drive the screws directly into the desktop if you do

not own a drill. Then fasten the keypad with the two

#10x5/8” Wood screws (H14).

C7 Step 12

Plug the Power cable (C7) into the power socket on

the Control box (C5) marked “AC”.

Line up your Control box (C5) with the pre-drilled

holes, and attach it to desktop with two #10x5/8’’

Wood screws (H14) each.

The Control box will be in the center of the desk, equi-

distant from each side.

Step 13

Plug each Leg into a Leg cable (C8), and then plug

the Leg cable into the white ports on the Control box

marked “M1”, “M2”, “M3”, and “M4”.

Now, plug the Keypad (C6) into the Control box port

labeled “HS”.

H14

ACCESSORY INSTRUCTIONS

Installing Wire Management Tray:

If you will have a lot of wires to wrangle, install the Wire

management tray while assembling your desk. Assess

where your wires may be concentrated. M

ove it un-

til you nd the placement you want, and make a pencil

mark at each hole’s location.

Attach tray to your desk using

two (2) #10x5/8’’ Wood

screws (H14).

If you own a drill, you can make pilot holes to make this

a little easier. Use it with a 1/8” diameter drill bit and,

ensuring that you DO NOT DRILL DEEPER THAN 1/2”,

drill pilot holes where you’ve made your marks.

Now is a good time to install accessories such as wire management, CPU holders, keyboard trays, or anything

else that fastens to the bottom of your desk. This section will cover accessories that are included with this

Frame. For additional accessories, refer to the instructions that came with those accessories.

Desk Cable Management:

Use the included Cable mounts (H9) to organize your

wires, keep a clean presentation, and prevent any wires

from snagging on anything when adjusting height. The

Cable mounts work best when stuck directly to the

metal desk frame. Attach Cable mounts to the inside

of frame parts. You might want to save some for once

you have everything on your desk plugged in.

Step 14

Double check that all accessible screws on the desk

are tight.

And then check all screws again and make sure they’re

tight.

This isn’t a typo, it’s important and it’s far easier to

tighten them with the desk upside down than it is later.

Be careful not to miss the screws marked with an ar-

row in the diagram.

Step 15

If you purchased Casters, remove the leveling pads

and install the Casters now before ipping your desk

over.

With you and your friend on opposite ends of the

desk, grab the Desktop AND Side bracket with one

hand and a Leg in the other. Be aware and be care-

ful of the cables, any attached components or acces-

sories especially an accessory that might move on a

track like a Keyboard tray or CPU holder.

Support the

desk frame and the Desktop equally and tilt it gently

rotating it 90 degrees back, so the Keypad is facing up.

Readjust your grip at the Desktop and Side bracket

with one hand and keep the other hand on the Leg.

Lift and rotate 90 more degrees until your Desk is

right-sideup. Adjust the leveling studs or Casters as

needed to make the desk level.

Step 16

Position your desk where you’d like it to be. Keep it

close to a wall outlet and away from obstacles which

may interfere with the desk’s height adjustability range.

If your desk has Casters:

Moving is easy! Make sure the

casters are unlocked and roll it to the desired position.

If your desk does not have Casters: Using three peo-

ple, lift your desk (do not drag it) by holding onto the

Side bracket (marked with arrows, to the left).

Note: Never lift by holding on to the Desktop itself, as

this will put undue stress on the screws.

Once the desk is in position, proceed to the next step.

Step 17

Check your desk’s surroundings to make sure there

will be no obstacles in the desk’s path and that all

cords are long enough to accommodate the motion

of your desk.

Plug your desk into a 120V outlet.

Before using your desk, you’ll need to sync all the com-

ponents by using the reset procedure.

Initial Desk Reset Procedure

Press and hold the DOWN button for 10 seconds, then

release the button.

Press and hold the DOWN button again, the desk will

lower a little, then rise a little, and then stop. Release

the button. Your desk is now ready for use!

If you are using a Memory keypad, see additional key-

pad instructions for further information on how to use

your keypad.

KEYPAD LOCK

The keypad can be locked to prevent accidental activation or movement of the desk.

To lock: Press and hold “M” button until display changes to “LOC”

To unlock: Press and hold “M” button until display changes to numeric height setting.

NOTE: If a power outage occurs, the program will automatically return to the unlocked setting.

MEMORY SETTINGS

Save up to four commonly used desk heights and recall them quickly.

l. Use the UP or DOWN button to move the desk to the desired height.

2. Press the “M” button.

3. Press the “1, 2, 3, or 4” button to assign the current height to a number on the keypad.

4. To recall any of those heights, press the numbered button to bring desk to assigned height.

HEIGHT CALIBRATION

Make sure the numeric display matches the actual height of the desktop in its lowest position.

1. Hold the DOWN button on the Keypad until the desk reaches its lowest height, then release.

2. Measure the height from the oor to the underside of the desktop. If the displayed height does

not match your measurement, follow the next steps.

Hold the DOWN button again until the LED display reads “RST”

4. Press the “M” button until the numeric display begins ashing.

5. Press the UP or DOWN button to set desk to the measured height.

6. Once display changes back to “RST”, Hold the DOWN button until the desktop lowers slightly,

then rises slightly and the display changes back to the numeric height setting, then release.

*Note: “RST” will look like

“ASr” on the display

CONSTANT-TOUCH & ONE-TOUCH

These steps allow the desktop to be set to either One-Touch or Constant-Touch. One-Touch requires

only a single touch of the “1, 2, 3, or 4” button to move the desktop to a preset memory location.

Constant-Touch requires a continuous touch of the “1, 2, 3, or 4” button to move the desktop to a preset

memory location. Constant-Touch is the default setting.

Change between One-Touch and Constant-Touch:

l. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.

2. Hold the DOWN button again until display ashes “RST”.

3. Press the “1” button until display shows “10.1” (One-Touch) or “10.2” (Constant-Touch)

and goes back to “RST”.

Note: While “RST” is still ashing, you can press the “1” button as many times as you’d like

to toggle between the two settings.

4. Hold the DOWN button until the desktop lowers slightly, then rises slightly and the display

changes back to the numeric height setting, then release.

These UPLIFT Desk programming instructions

are compatible only with Memory keypads.

PROGRAMMING (Memory keypad only)

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

PROGRAMMING (continued)

MINIMUM & MAXIMUM HEIGHT SETTINGS

The desk frame ships defaulted to its minimum and maximum height limits. These steps allow the

upper and lower limits to be adjusted to your preference.

Note: If memory settings were previously set outside of the new minimum and maximum height

settings, they will default to the new minimum and maximum settings. To set new minimum and

maximum height settings outside of the current settings, you will need to rst remove the current

minimum and maximum settings.

To Set a new maximum desk height:

l. Use the UP or DOWN buttons to bring desk to the desired maximum height.

2. Press the “M” button once, and “S-” will appear on the display. Immediately follow by

pressing the UP button once, so the “S-” ashes once.

3. Hold the “M” button until the Display shows “999” then changes to numeric value of new

upper limit.

To Set a new minimum desk height:

l. Use the UP or DOWN buttons to bring the desk to the desired minimum height.

2. Press the “M” button once, and “S-” will appear on the display. Immediately follow by

pressing the DOWN button once, so the “S-” ashes once.

3. Hold the “M” button until the Display shows “000” then changes to numeric value of new

lower limit.

Removing adjusted maximum and minimum heights:

l. Press the “M” button once and the display will show “S-”.

2. Hold the “M” button again until the display shows “555” then changes to the current

numeric height setting.

DISPLAY UNITS

Change the numeric display to show heights in either inches or centimeters.

l. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.

2. Hold the DOWN button again until display ashes “RST”.

3. Press the “2” button until display shows “10.3” (centimeters) or “10.4” (inches) and goes

back to “RST”.

Note: While “RST” is still ashing, you can press the “2” button as many times as you’d like

to toggle between the two settings.

4. Hold the DOWN button until the desktop lowers slightly, then rises slightly and the display

changes back to the numeric height setting, then release.

If your desk does not respond when you try to raise it or lower it, or if the Keypad displays error messages

(“EO1” through “EO12”), check to make sure all the cables are secure (Legs to cables, cables to Control box).

If the problem persists, perform the reset procedure below.

If the error message persists after performing the Reset procedure, or if there is a height difference between

the legs which exceeds 1.5’’, contact UPLIFT Desk at the email address or phone numbers listed at the bot-

tom of each page of these instructions.

*Note: “RST” will look like

“ASr” on the display

RESET PROCEDURE

1. Unplug the power cord and hold the DOWN button on the Keypad for 30 seconds.

2. Plug the power cord back in.

3. Hold the DOWN button until the desk reaches its lowest height, then release.

Hold the DOWN button again until the LED display reads “RST”

(or for about 10 seconds on non-LED keypads), then release.

Hold the DOWN button again until the desk lowers a bit more, then

slightly rises and stops, then release.

Your desk is now ready to use.

4. The Advanced Keypad will then display the current height, and you should be able

to operate the desk.

5. You may also need to do this if the desktop is ever unplugged or loses power.

TROUBLESHOOTING

CODE DESCRIPTION TROUBLESHOOTING SOLUTION

H01 Overheated

The desk motor has a 10% duty cycle to protect from overheating. For

example, in a 20 minute period if your desk motor is activated for 2 minutes

you will want to let it rest for 18 minutes. Otherwise you may see an H01

code on your keypad.

E01-E06 Firmware or

connectivity issues

Check all cables to ensure they’re all rmly plugged in, and perform Reset

procedure above

E07-E012 Legs are uneven Perform Reset procedure above

Notes

512-614-3152

800-349-3839

[email protected]

upliftdesk.com

Work Better. Live Healthier

Copyright Notice: This guide is a component of the UPLIFT Desk™. This guide is a part of the scope of delivery, even if the item is resold. This guide

is also available on the UPLIFT Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties or used in any other published

form without the prior written consent of UPLIFT Desk. These instructions are subject to United States copyright law.

SAVE THESE INSTRUCTIONS

Study this manual carefully. If this desk is sold, please provide this

manual to the buyer, installers, or support personnel operating the product.

90.014.01.0644v.B - AI-FRMA-4-SRD-2.0

4933053182460 - THS062

4933053182460

Other manuals for Height Adjustable Standing Desk 4-Leg

Table of contents

Other Uplift Desk Indoor Furnishing manuals

Uplift Desk

Uplift Desk Adapt Pogo UDA130 User manual

Uplift Desk

Uplift Desk UPL140 User manual

Uplift Desk

Uplift Desk FRM240 User manual

Uplift Desk

Uplift Desk T-Frame User manual

Uplift Desk

Uplift Desk CPU128-NTS User manual

Uplift Desk

Uplift Desk FRM413 User manual

Uplift Desk

Uplift Desk 2-Leg Side Table Quick setup guide

Uplift Desk

Uplift Desk ACC009 User manual

Uplift Desk

Uplift Desk V2 4-Leg User manual

Uplift Desk

Uplift Desk FRM067 User manual

Uplift Desk

Uplift Desk UDA100-riser User manual

Uplift Desk

Uplift Desk CHR463 User manual

Uplift Desk

Uplift Desk KBT002 User manual

Uplift Desk

Uplift Desk ACC036 User manual

Uplift Desk

Uplift Desk CHR456 User manual

Uplift Desk

Uplift Desk CHR467 User manual

Uplift Desk

Uplift Desk ACU011 User manual

Uplift Desk

Uplift Desk UDA115 User manual

Uplift Desk

Uplift Desk V2-Commercial F600 C-Frame User manual

Uplift Desk

Uplift Desk ACC089 User manual

Uplift Desk

Uplift Desk J3 CHR456 User manual

Uplift Desk

Uplift Desk Vert Ergonomic Chair CHR458 User manual

Uplift Desk

Uplift Desk PDC005 User manual

Uplift Desk

Uplift Desk CHR457 User manual

Popular Indoor Furnishing manuals by other brands

Denver

Denver DNTB3 Assembly instructions

OSP Home Furnishings

OSP Home Furnishings SENNA SEN26 Assembly instructions

Rauch

Rauch M1919 Assembly instructions

Amart Furniture

Amart Furniture AVA 67601 Assembly instruction

Whittier Wood Furniture

Whittier Wood Furniture Addison 1242DUETb Assembly instructions

Furniture of America

Furniture of America CM7155N Assembly instructions

Baumax

Baumax Havanna HVNT121 Assembling Instruction

WEBER Buro

WEBER Buro M60EN169 quick start guide

Politorno

Politorno BAHAMAS Assembly instructions

Amart Furniture

Amart Furniture RUMPUS 41708 Assembly instruction

Next 565475 Assembly instructions

Eaton

Eaton LINX Linear Worksurface manual

SkyLine

SkyLine Lazy Susans CB33 Assembly instructions

Humanscale

Humanscale World One Assembly guide

Zoovilla

Zoovilla PTH0641720110 Care Instructions

AMQ

AMQ TIZU installation guide

Walker Edison

Walker Edison LCDK48BR Assembly instructions

Coaster

Coaster 350044KW Assembly instruction

Uplift Desk Height Adjustable Standing Desk 4-Leg User manual

Popular Indoor Furnishing manuals by other brands
