Uplift Desk V2-Commercial User manual

For assembly assistance,
visit upliftdesk.com/4leg-com or call 800-349-3839
or email [email protected]
355 lb
two person
assembly
Patent Pending, ©2022 UPLIFT Desk®. All Rights Reserved
V2-Commercial 4-Leg
Standing Desk Frame
®

Please read these instructions carefully. This desk is height adjustable to t the user’s height.
Inappropriate use of this desk can cause property damage and/or bodily injury. Under no circumstances
does the manufacturer accept warranty or liability claims for damages caused from improper use of this
desk. Please provide these instructions to any new user or owner of the desk.
WARNING: Keep ngers and body parts clear of the moving desk. Check the desk’s surroundings
on all sides before raising or lowering the desk to ensure there are no obstacles that can be
damaged or can damage the desk.
WARNING: Ensure all cords and cables have enough slack so they don’t pull as the desk moves up
and down.
WARNING: Keep children away from the desk unless supervised. Misuse of the desk can cause
personal injury. If children cannot be supervised at all times, use the desk’s safety lock feature or
remove the power cord to prevent its operation.
WARNING: The desk is designed for use in dry environments, use indoors only. Use of desk
outdoors or in damp locations can cause risk of electric shock, re, or personal injury.
WARNING: Only plug the desk into a properly grounded, 120V power outlet. Using a voltage
converter is considered improper use and can cause damage to the desk.
WARNING: Do not open or insert any object into a desk frame component such as the motor
housing or control box. Doing so may cause damage and presents a risk of electric shock.
WARNING: In case of spilled liquid on any desk component, disconnect the desk from the power
outlet immediately. Clean up the spill with a dry cloth and plug the desk back into the power outlet.
There is a risk of desk failure or electric shock if desk components become wet.
WARNING: Never use the desk if the power cord or plug is damaged as this can cause a risk of re
and electric shock. Contact UPLIFT Desk for a replacement power cord if it is damaged in any way.
WARNING: Risk of serious injury or death. Adjusting the height of the desk can pinch or crush body
parts trapped between the desk and stationary objects. Do not place feet or other body parts on any
items located under the desk other than on approved items such as foot rests and desk mats.
WARNING: Be sure there is a gap of at least 1 inch between the moving parts of the standing desk
and objects located next to it to avoid pinch and crush hazards. Move the desk through its full
range of motion to ensure the 1 inch gap is maintained above, below, and all around the desk.
WARNING: Persons with limited mental or physical capabilities who are unable to comprehend the
safe operation of the height adjustability feature must not operate the desk.
WARNING: Inspect the desk regularly and stop using immediately if you notice any damaged or
loose parts. Only replace damaged desk parts with authorized UPLIFT Desk parts and instructions.
Safety and Warnings

© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com 3
Note: Desk image is for reference only. Desk shape and leg quantity
or style may change based on the desk conguration ordered.
Max
Height
Min
Height
>1"
vertical gap
between items
on desk and any
obstructions above
>1"
horizontal gap
from desktop to
wall and other
furniture

Package Contents
Hardware (packed in multiple boxes)
M6x10
Machine Screw
(qty 24)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
M6x14
Machine Screw
(qty 16)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
M8x8
Set Screw
(qty 16)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
#10x3/4’’
Wood Screw
(qty 4)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
#10-24x5/8’’
Flat Head Machine
Screw
(qty 6)
#10x5/8’’
Flat Head
Wood Screw
(qty 6)
Washer
(qty 4)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
4 mm
Allen Wrench
(qty 1)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
Cable Mount
(qty 20)
Adhesive
Pads
(qty 8)
#10x5/8’’
Wood Screw
(qty 6)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
Allen
Wrench Handle
(qty 1)
Small
Hole Plug
(qty 4)
Small16mm Plug
Small16mm Plug
Large
Hole Plug
(qty 4)
Large 22mm Plug
Large 22mm Plug
H9H6
H5
H2 aH4
H1 H3 H4 cH4 d
H12 H14 H15 H17 H18
Box Marked: FRM604
Crossbar
(qty 1)
M8x8
Set Screw
(qty 2)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
M6x12
Flat Head Screw
(qty 4)
You’ll also need:
355 lb
Phillips Head Screwdriver
P10 H3 H16
Components (packed in multiple boxes)
Back Leg
(qty 2)
Front Leg
(qty 2)
Crossbar End
(qty 4)
Crossbar Rail
(qty 4)
Side Bracket
(qty 2)
Control Box
(qty 1)
Keypad
(qty 1)
Power Cable
(qty 1)
Leg Extension
Cable
(qty 4)
Wire
Management Tray
(qty 1)
Foot
(qty 2)
P1 aP1 b
P7 P8 P9
P5P3 P4
P2
P6 P11
left
right
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
(2 long & 2 short)
(Packed in this box, or an accessory box)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
or or or

© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com 5
Side Bracket
Side Bracket
Front Leg
Back Leg
Crossbar
Crossbar Rail
Crossbar End
M6x10 Machine Screw
M6x12 Flat Head Screw
M8x8 Set Screw
M6x14 Machine Screw
Foot

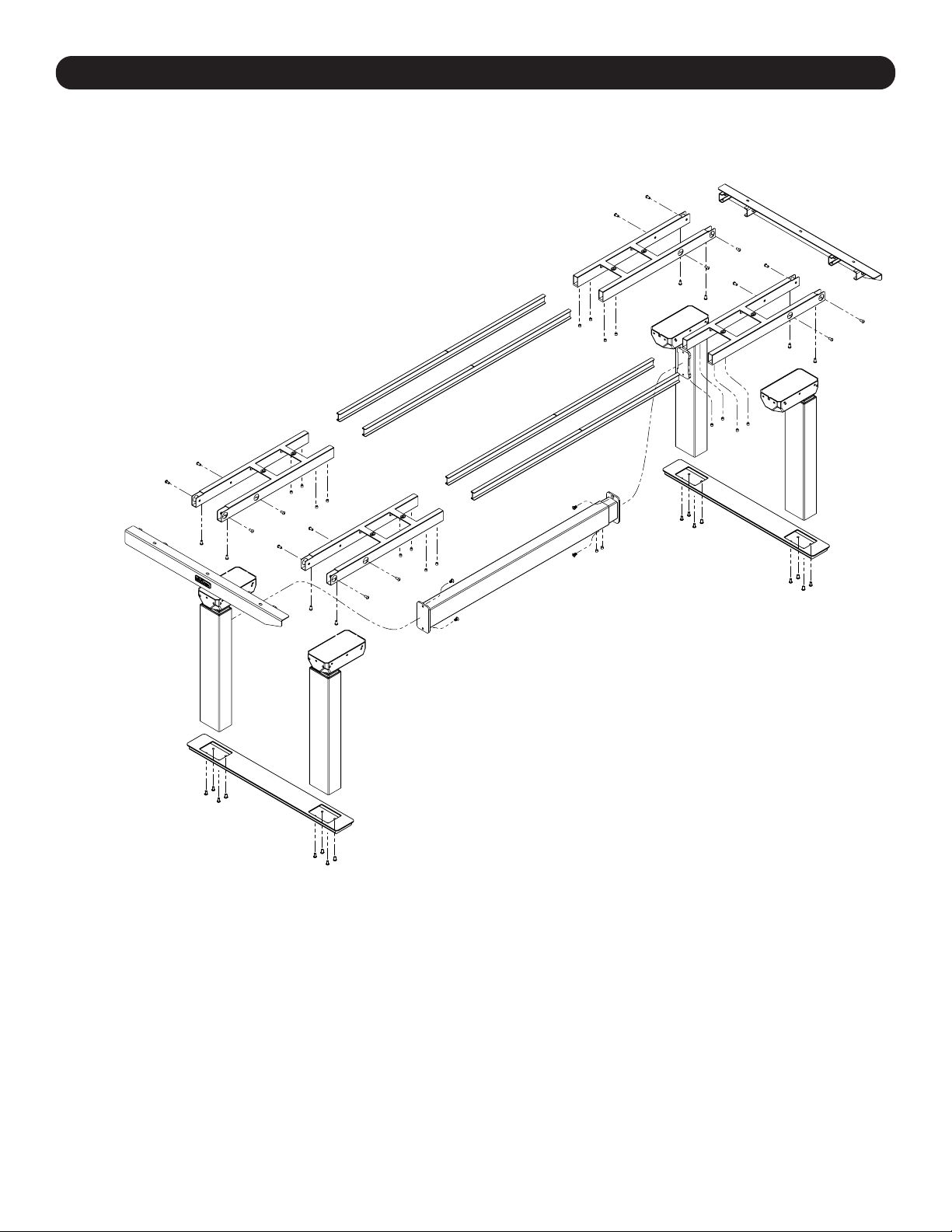

Component Diagram

H1
P2
Desk Assembly Instructions
Step 2 - Crossbar End Attachment
A. Place one of the Crossbar Ends (P2) upside down as shown.
B. Position one of the Back Legs (P1a) so that the back of the leg
and the back of the Crossbar End are aligned and ush.
NOTE: Back Legs have a plate welded on for attachment of the
Crossbar (P10). See images of Front and Back Legs below for
reference.
Step 1 - Inventory of Parts
A. For ease and safety, we recommend using two people for
assembly. Before assembly, consider where you want your desk
to be located. Since your new desk is height adjustable, you
will want it located a safe distance from anything that could
obstruct the desk from being raised or lowered (like a wall-
mounted shelf or cabinet). With an Advanced Keypad, you can
set the upper and lower height limits for your desk to avoid any
potential collisions.
B. To avoid any damage to your oor or desktop, we recommend
assembling your desk on a debris-free carpet or blanket.
C. Ensure you have received all components and hardware before
disposing of any packing material. Lay out the components
from all boxes and make sure the items and quantities match
what is shown in each of the package contents sections in
these instructions.
D. The included Allen Wrench Handle (H15) provides increased
leverage and better grip while tightening frame screws. Insert
the 4 mm Allen Wrench (H6) into the side marked with the
number “4”. Push the Allen Wrench all the way into the slot of
the handle until it “snaps” securely into place.
&
P1 aP1 b
C. Using the 4 mm Allen Wrench (H6), loosely insert four M6x10
Machine Screws (H1) through the Crossbar End holes and into
the leg as shown, but do not tighten them.
D. Once all four screws have been started, tighten them using the
Allen Wrench.
E. Repeat this step for the second Back Leg (P1a) and the two
Front Legs (P1b).
(P1b) Front Leg(P1a) Back Leg with (Crossbar
attachment plate)

© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com 7
Step 4 (if applicable) - Drill Side Bracket Holes
Skip this step and proceed to Step 5 if your desktop has
threaded metal inserts or pre-drilled holes. See images showing
a desktop with pre-drilled holes and inserts and without pre-
drilled holes and inserts.
A. Select the top surface of your desktop and make sure that side
is facing down. Make sure you only drill into the bottom surface
of your desktop.
B. Place the left Side Bracket (P4) onto the desktop as shown so
it’s centered between the front and back edges of the desktop
and approximately 1/2” from the side edge of the desktop.
Make sure the tapered end of the Side Bracket is towards the
front of the desktop where the four Keypad attachment holes
are located and make a pencil mark in the center of each of the
three holes in the Side Bracket.
IMPORTANT: Don’t drill through your desktop top surface. DRILL
NO DEEPER THAN 1/2”. To ensure this, we recommend wrapping
a piece of tape around your drill bit 1/2” from the tip. Stop
drilling just before the tape touches the desktop.
C. Move the Side Bracket out of the way and drill pilot holes at
your pencil marks using a 1/8” drill bit.
D. Follow the same pre-drilling process with the other Side
Bracket at the other end of the desktop.
P4
H12

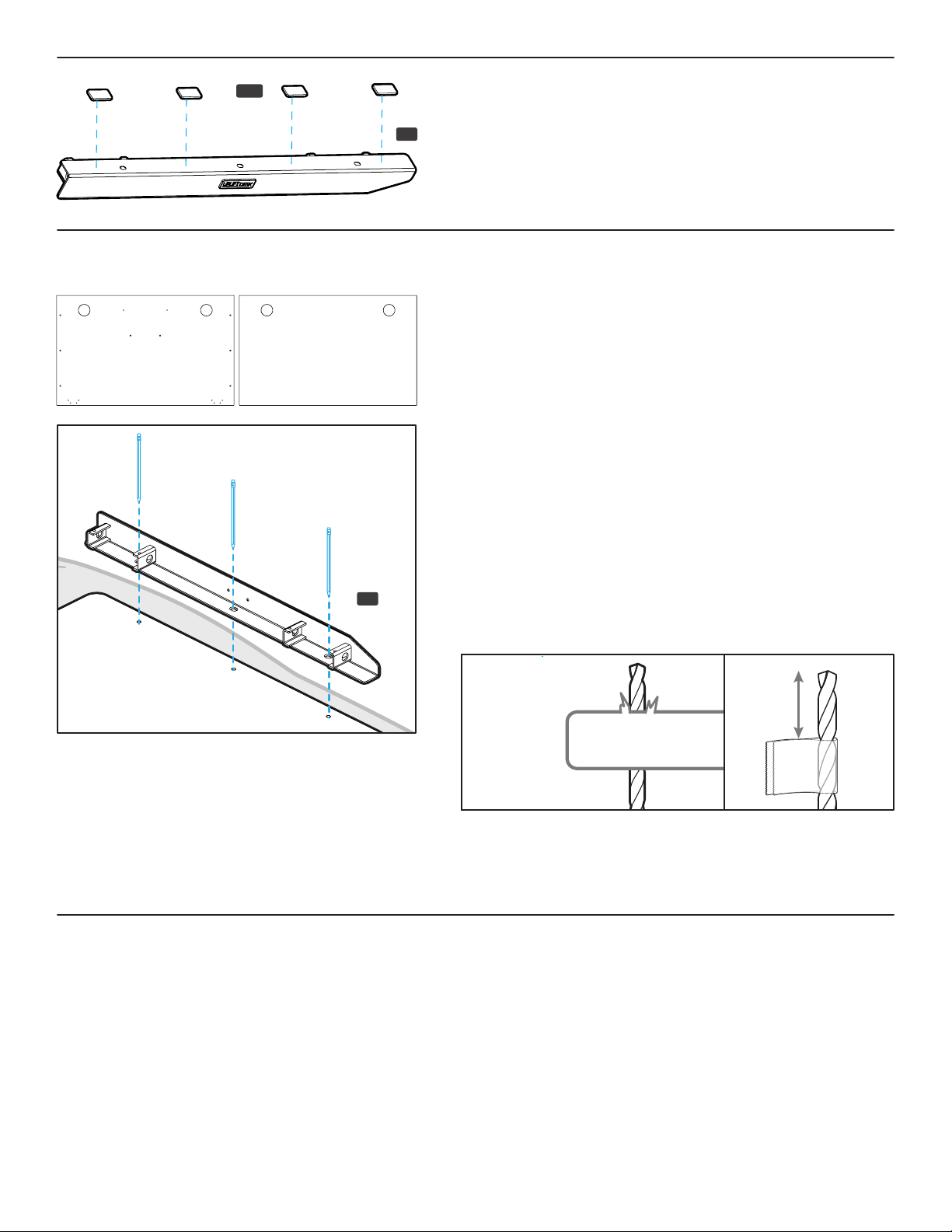

Step 3 - Adhesive Pad Application
A. Peel the backing off of four Adhesive pads (H12) and place onto
one of the Side Brackets (P4) on the side adjacent to the UPLIFT
DESK logo plate where shown.
B. Repeat for the second Side Bracket.
X
0.5”
Tape
P4
left
with pre-drilled holes without pre-drilled holes

H1

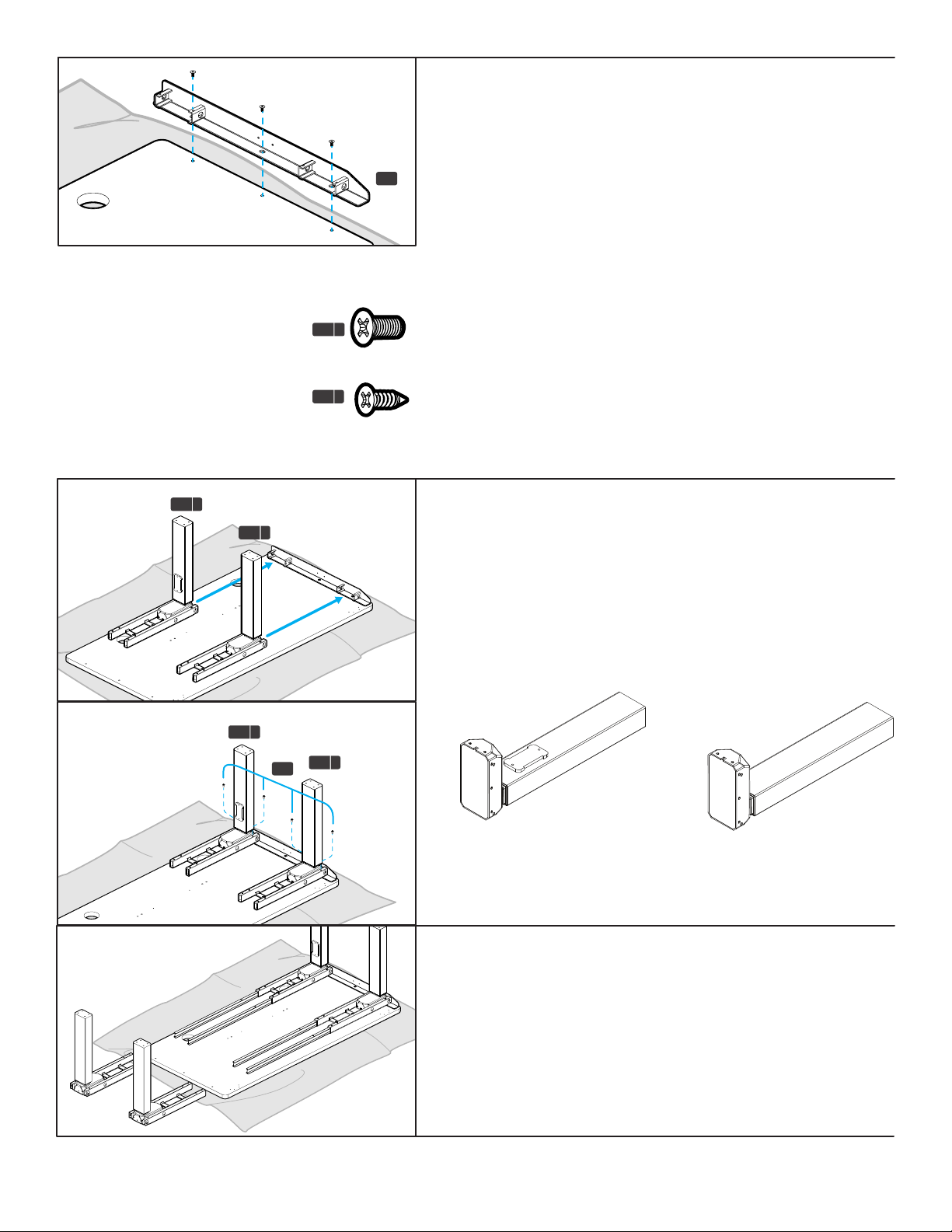

Step 6 - Leg Attachment (rst side)
A. Slide a Back Leg Assembly (P1a) and a Front Leg Assembly (P1b)
from Step 2 onto the tabs of the Side Bracket (P4) as shown.
IMPORTANT: The Front Legs do not have Crossbar attachment
plates in the middle of the leg (see reference images of Front
and Back Legs below). The front legs should be mounted closer
to the tapered end of the Side Bracket as shown.
P1 a
P1 a
P1 b
P1 b

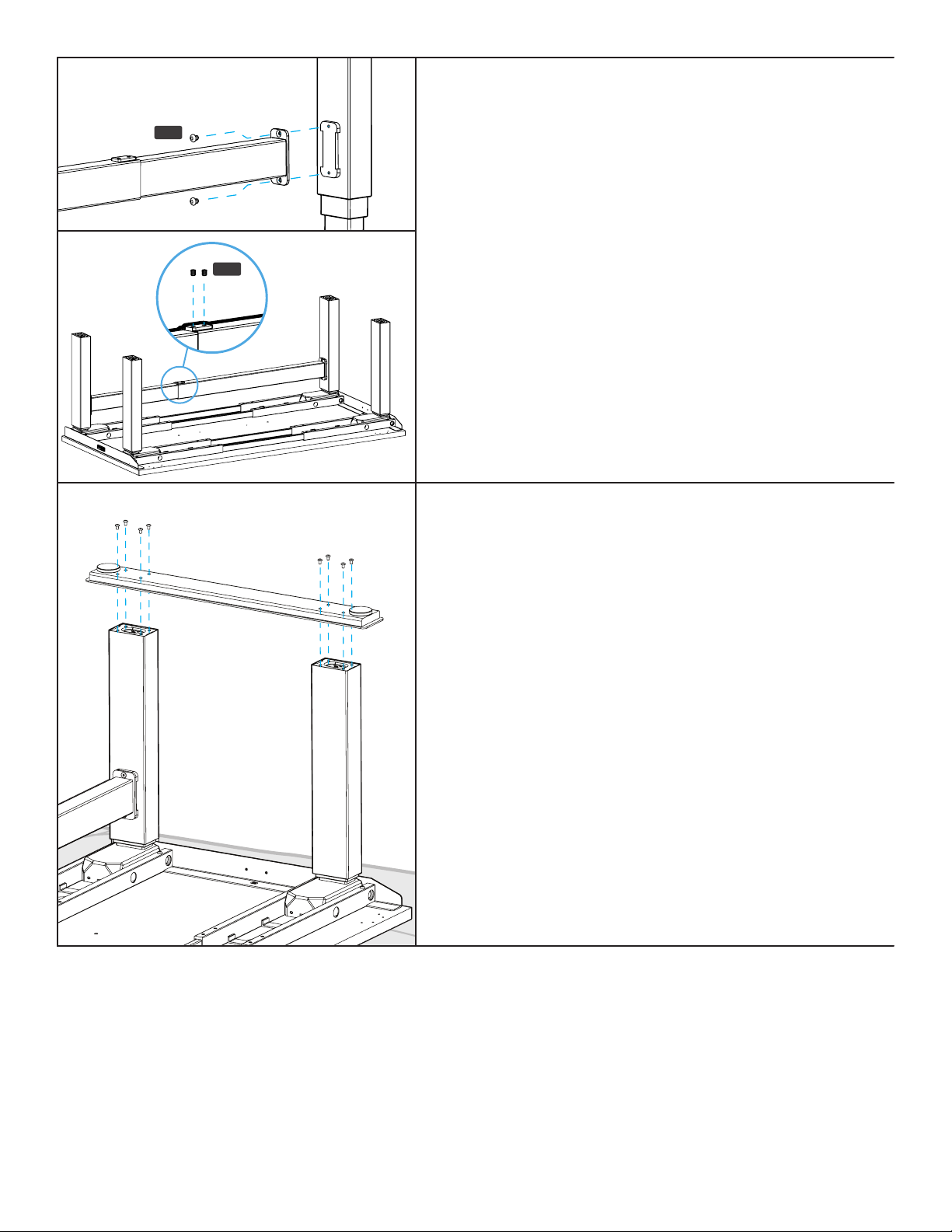

Step 7 - Crossbar Rail Installation
A. Insert two Crossbar Rails (P3) into each Crossbar End (P2) as
far as they will go.
B. Take the remaining Back Leg Assembly (P1a) and Front Leg
Assembly (P1b) and slide them onto the Crossbar Rails as far
as they will go.
NOTE: Be sure that the two Back Leg Assemblies and the two
Front Leg Assemblies are positioned across from each other.
Step 5 - Side Bracket Attachment
(rst side)
A. Align the holes in the Side Bracket (P4) with the holes or
threaded metal inserts in the desktop. Note: Be sure that the
tapered end of the Side Bracket is pointing towards the front
of the desktop where the four Keypad attachment holes are
located.
IMPORTANT: Determine the correct screws to use based on
whether your desktop has threaded metal inserts or pre-drilled
holes.
• For desktops that have threaded metal inserts: use the
#10-24x5/8” Flat Head Machine Screws (H4c) for the
following steps. Do not use the wood screws with the pointy
end.
• For desktops that have pre-drilled holes: use the #10x5/8”
Flat Head Wood Screws (H4d) for the following steps.
B. Use a Phillips Head Screwdriver and the screws above to attach
the Side Bracket to the desktop.
P4
left
Machine screw: at end H4 c
Wood screw: pointy end H4 d
(P1b) Front Leg(P1a) Back Leg (with Crossbar
attachment plate)
B. Loosely insert two M6x10 Machine Screws (H1) through the top
of each Crossbar End (P2) and into the Side Bracket as shown.
Once all four screws have been started, tighten them using the
4 mm Allen Wrench (H6).

© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com 9
Step 8 - Side Bracket Attachment
(second side)
A. Align the holes in the right Side Bracket (P4) with the holes or
threaded metal inserts in the desktop at the other end.
B. Use a Phillips Head Screwdriver and the screws used in Step 5
to attach the Side Bracket to the desktop.
right
P4
C. Slide the second set of leg assemblies back towards the Side
Bracket and onto the tabs of the Side Bracket.
D. Loosely insert two M6x10 Machine Screws (H1) through the top
of each Crossbar End (P2) and into the Side Bracket as shown.
Once all four screws have been started, tighten them using the
Allen Wrench.
Step 9 (if applicable) - Drill Crossbar End Holes
See image showing a desktop with pre-drilled holes for the
Crossbar Ends (circled). Skip this step and proceed to Step 10 if
your desktop has pre-drilled holes for the Crossbar End.
A. If you are using a desktop that does not include pre-drilled
holes for the Crossbar End (P2) attachment, you will need to
pre-drill holes for the attachment screws now.
B. Make a pencil mark in the center of each of the holes at the end
of each of the 4 Crossbar Ends where shown.
IMPORTANT: Don’t drill
through your desktop top
surface. DRILL NO DEEPER
THAN 1/2”. To ensure this, we
recommend wrapping a piece
of tape around your drill bit
1/2” from the tip. Stop drilling
just before the tape touches
the Crossbar Ends.
C. Drill pilot holes at your pencil marks using a 1/8” drill bit.
H1
X
0.5”
Tape

Step 11 - Crossbar Rail Positioning
A. Slide each Crossbar Rail (P3) left or right until the center
indicator mark is located approximately in the middle of the
Crossbar Ends (P2).
Step 10 - Crossbar End Attachment
A. Using a Phillips Head Screwdriver, loosely insert one #10x3/4”
Wood Screw (H4a) and one Washer (H5) through each Crossbar
End and into the desktop as shown.
B. Once all four screws are started, tighten them but be careful to
not overtighten to avoid stripping.
Step 12 - Crossbar Attachment
A. Slide the two halves of the Crossbar (P10) together as shown.
B. Orient the Crossbar so that the metal tab with holes on the
outer section (marked with an “ ” in the illustration) are
facing upwards and away from the desktop.
C. While a second person holds the Crossbar in place, line up the
holes on one end of the Crossbar with the holes in the Crossbar
mounting plate on one of the Back Leg Assemblies. Loosely
start two M6x12 Flat Head Screws (H16) by rotating each only a
few turns, but do not tighten them yet.
NOTE: Either end of the Crossbar can be attached to either Leg
Assembly.
*
P10
H3
H16
*
B. Insert four M8x8 Set Screws (H3) into the holes in each
Crossbar End and tighten using the 4 mm Allen Wrench (H6).
P3
Center indicator marks
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
H5
H4 a

© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com 11
Step 12 (Continued)
D. With the second person still holding the Crossbar, extend
the other end of the Crossbar to the mounting plate on
the opposite Back Leg Assembly and loosely insert the two
remaining Flat Head Screws.
E. Once all four of the screws are started, tighten them using the
Allen Wrench (H6).
F. Insert two M8x8 Set Screws (H3) included with the Crossbar
into the two holes at the middle of the Crossbar assembly
where the two telescoping halves slide together and tighten
them using the Allen Wrench.
H16
Step 13 - Foot Attachment
A. Place a Foot (P11) on top of Front Leg (P1b) and Back Leg (P1a)
on one side of the desk with the pre-installed leveling glides
facing up as shown. The ends of the legs should t inside
the rectangular holes in the Foot on the opposite side as the
leveling glides.
B. Loosely insert eight M6x14 Machine Screws (H2) through the
holes in the Foot and into the eight threaded holes in the ends
of the two legs.
Note: If you are having difculty getting the ends of the legs
into the Foot or aligning the holes of the Foot and legs, use the
4 mm Allen Wrench (H6) to loosen, WITHOUT REMOVING, the
four screws that attach the Legs to the Crossbar Ends (P2). Be
sure to rmly tighten these screws again once the Foot has
been fastened to the legs.
C. Once all eight screws have been started, tighten them with the
4 mm Allen Wrench.
D. Repeat the previous steps for the second Foot.
E. Do one nal tightening of all foot screws. Tight foot screws add
signicant stability.
H3

Step 15 - Keypad Attachment
There are two pairs of Keypad mounting holes pre-drilled into each
side of most UPLIFT desktops to accommodate several different
Keypad designs. Align the Keypad with the pre-drilled desktop
holes that best align with the Keypad’s mounting holes.
If you are using a desktop that does not include pre-drilled holes
for the Keypad (P6) attachment, locate the Keypad approximately
where shown in the image. Refer to Step 4 to make pre-drilled
holes for the Keypad attachment; be careful not to drill through
your desktop surface.
A. Choose which side of the desktop you’d like your Keypad (P6)
to be located. Remember that you are assembling your desk
upside down, so the Keypad will be on the opposite side once
the desk is upright.
B. Align the Keypad with the pre-drilled desktop holes that best
align with the Keypad’s mounting holes.
C. Using a Phillips Head Screwdriver, attach the Keypad to the
desktop with two #10x5/8” Wood Screws (H14). Be careful to not
overtighten to avoid stripping.
Top of desktop
Keypad left side
Keypad right side
Keypad right side
Keypad left side
Bottom of desktop
P6
H14
P6
H14
P6
H14
H14
P6
Step 14 - Caster Installation (optional)
If you purchased Casters for your desk, we recommend installing
them now.
A. First, remove the pre-installed Leveling Glides from the Feet by
rotating them counterclockwise to unthread them from the
mounting holes.
B. Install a Caster in each of the Leveling Glide holes by turning
the stem of the Caster clockwise, threading it into the hole. Use
a 12 mm or ½” at wrench to tighten Casters that include a hex
nut on the threaded stem for tightening. Tighten rmly.

© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com 13
Step 16 - Control Box Attachment
If you are using a desktop that does not include pre-drilled holes
for the Control Box (P5) attachment, locate the Control Box
approximately where shown in the image. Refer to Step 4 to make
pre-drilled holes for the Control Box attachment; be careful not to
drill through your desktop surface.
A. Connect the Power Cable (P7) into the port on the Control Box
marked “AC”.
B. Align the Control Box with the pre-drilled holes.
C. Using a Phillips Head Screwdriver, attach the Control Box to the
desktop with two #10x5/8” Wood Screws (H14). Be careful to
not overtighten to avoid stripping.
Step 17 - Cable Connections
A. Connect a Leg Extension Cable (P8) to the end of each of the leg
cables.
B. Connect the other ends of the Leg Extension Cables to the ports
on the Control Box marked M1, M2, M3, and M4.
Note: Leg Extension Cables can be connected to any port on the
Control Box, there is no specic order. If any of the shorter Leg
Extension Cables do not reach one of the ports on the Control
Box, you can swap it with one of the longer cables.
C. Connect the end of the Keypad (P6) cable into the port on the
Control Box marked “HS”.
P5
P7
H14
HS M1 M2 M3 M4
Cable Mounts
NOTE: The adhesive backing on the Cable Mounts is very strong,
please carefully decide locations before adhering them under your
desktop or desk frame. Do not attach them to the top surface of your
desktop. Some potential cable mount locations are shown circled.
Use the included Cable Mounts (H9) to organize your wires and
keep them tidy and out of the way. The Cable Mounts can help
prevent cables from snagging on stationary objects while the desk
is moving. The Cable Mounts consist of an adhesive-backed plastic
anchor and a reusable hook and loop strip.
You can also use the hook and loop strips without the plastic anchor
in places where it can be slid underneath frame parts. You might
want to save some of the Cable Mounts for cable management of
personal devices after completing the desk assembly.
Now is a good time to install any accessories such as the Wire Management Tray, CPU Holder, Keyboard Tray, or other items
that attach to the underside of your desktop. This section will cover accessories that are included with your desk frame. For
other accessories, refer to the instructions that were provided with those products.
Accessory Installation

Desk Placement
When preparing to ip the desk, be aware of loose cables and
attached accessories, especially an accessory that might move on
a track like a Keyboard Tray or CPU Holder.
A. With one person located at each end of the desk, support the
desk frame and the desktop equally and begin to tilt it slowly
towards the back of the desk so that the Keypad is facing up
and the back of the Feet are touching the oor.
P9
Wire Management Tray (optional)
Most UPLIFT desktops include two pre-drilled holes about 12” apart
located near the back of the desktop. If your desktop includes
grommets, these holes will be located between them. These holes
are meant for attaching the included Wire Management Tray
(P9). If you choose to place the tray in a different location, refer
to Step 4 to make pre-drilled holes for the Wire Management Tray
attachment; be careful not to drill through your desktop surface.
Attach the tray to your desktop using two #10x5/8” Wood Screws
(H14).
IMPORTANT:
Take this moment to double check that all of the screws indicated
with arrows are tight. This is an important step and it is much
easier to ensure they are tight now before ipping the desk
upright.
Also, the desk frame screws may not have been completely
tightened during the initial assembly. Since the desk is upside
down, take the opportunity to ensure all frame screws are tight
using the 4 mm Allen Wrench. We supplied Loctite pre-applied
to all screws to keep them tight over time, so if you tighten
thoroughly this one time you’re all set.

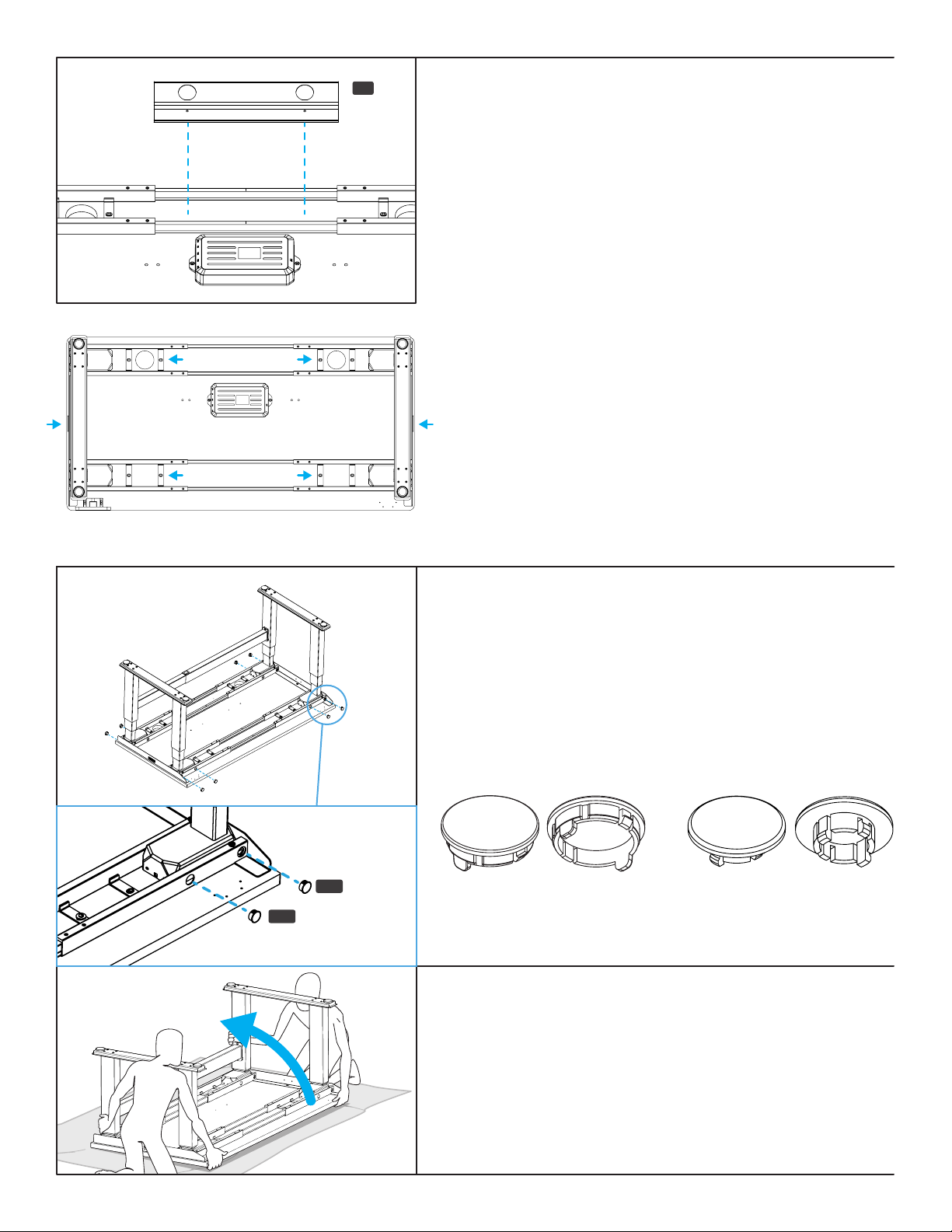

Hole Plugs (optional)
If you prefer to cover the four large holes in the front and back of
the upper frame section, use the provided Small Hole Plugs (H17)
and Large Hole Plugs (H18). The smaller plugs t in the holes that
are closer to the side of the desk and the frame Side Bracket while
the larger plugs t in the holes further away from the sides of the
desk. See images for reference.
H17
H18
Large 22mm Plug
Large 22mm Plug
Large Hole Plugs (H18).
Small16mm Plug
Small16mm Plug
Small Hole Plugs (H17).

© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com 15
Desk Reset Procedure
IMPORTANT! Before using your desk, perform the Initial Desk Reset
Procedure below.
Initial Desk Reset Procedure
A. Press and hold the DOWN button for approximately 10 seconds,
then release the button. If you have a Keypad with a display, it
will read “RST”.
B. Press and hold the DOWN button again, the desk will lower a
little, then rise a little, and then stop.
C. Release the button. Your desk is now ready for use! If you are
using an Advanced Keypad, see the Programming section for
further information on how to use your Keypad.
1234M
Desk Placement (Continued)
B. Readjust your grip and continue to rotate the desk until it is
rightside up with both Feet completely on the oor.
C. Position your desk where you would like it to be. Never lift the
desk by just the desktop, doing so will put undue stress
on the attachment screws. Be sure to hold the frame Side
Brackets when lifting.
• If your desk has Casters: Moving is easy! If your Casters
include locks, make sure they are unlocked and roll the desk
to the desired location. Be sure to relock the Casters to keep
the desk stationary.
• If your desk does not have Casters: Using two people, lift
your desk (do not drag it) by holding onto the desktop and
Side Brackets together.
D. Adjust the Leveling Glides as needed to level the desk.
E. Check your desk’s surroundings to make sure there will be
no obstacles within the desk’s path while it is being raised or
lowered. Do not place any objects underneath the desk that
are taller than 21” and be aware of any accessories mounted
underneath your desk.
F. Ensure that the Power Cord and all accessory cords are long
enough to accommodate the raising and lowering of your desk.
G. Plug your desk into a grounded, 120V power outlet.

Height Calibration
This feature will help you ensure that the numeric display matches the actual height to the top of the desktop in the
desk’s lowest position. This is particularly helpful if you have added Casters to your desk.
1. Hold the DOWN button on the Keypad until the desk reaches its lowest height, then release.
2. Measure the height from the oor to the top side of the desktop. If the displayed height
does not match your measurement, follow the next steps.
3. Hold the DOWN button again until the Keypad display reads “RST”.
4. Press the “M” button until the numeric display begins ashing.
5. Press the UP or DOWN button to set the desk to the measured height.
6. Once the display changes back to “RST”, hold the DOWN button until the desktop lowers slightly, then rises slightly, and
the display changes back to the numeric height setting, then release.

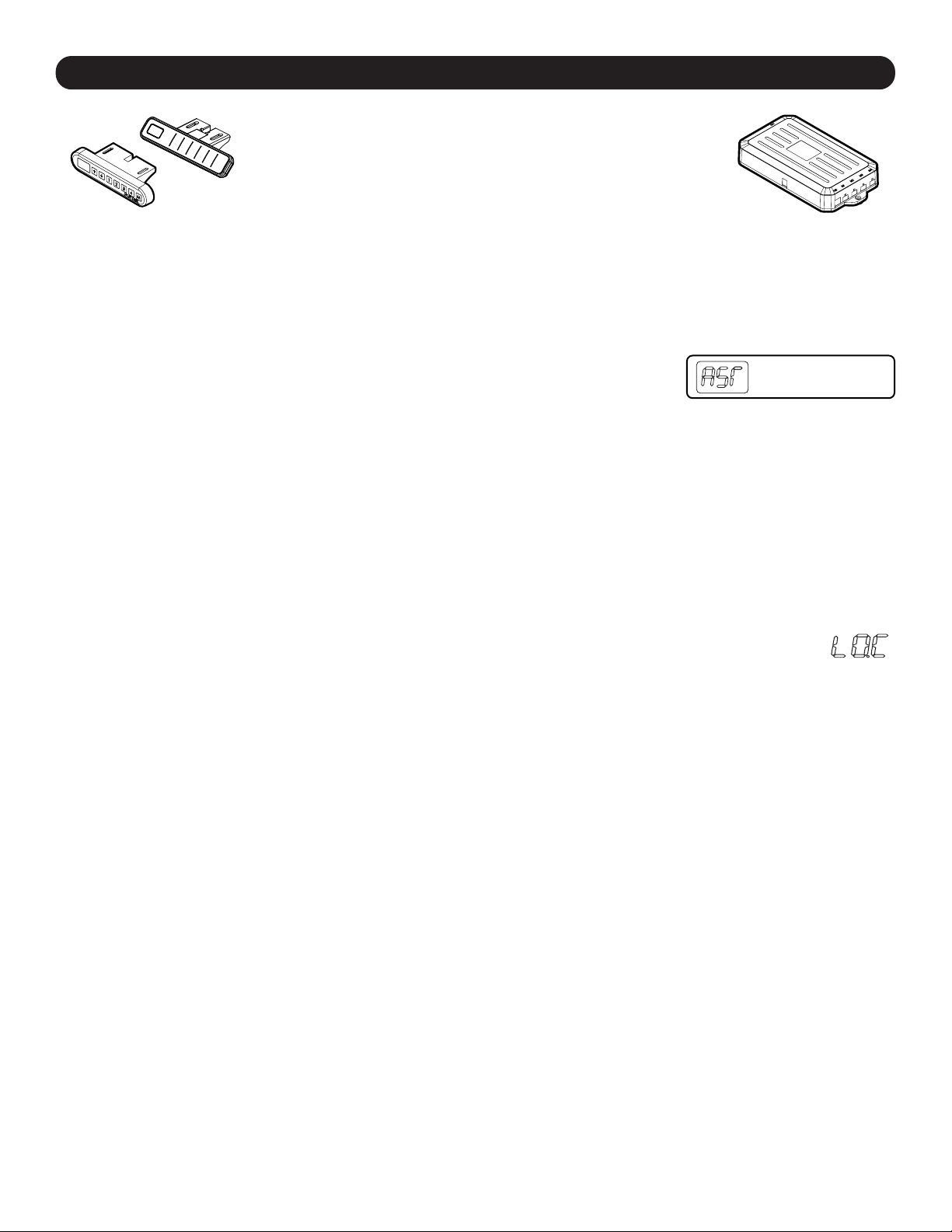

*Note: “RST” will look like
“ASr” on the display
Memory Settings
Save up to four commonly used desk heights and recall them quickly.
1. Use the UP or DOWN button to move the desk to the desired height.
2. Press the “M” button.
3. Press the “1, 2, 3, or 4” button to assign the current height to a number on the Keypad.
4. To return the desk back to any of the saved heights, press the number button of the desired saved height.
Keypad Lock
Warning! If your Keypad does not offer the Lock feature and there are unsupervised children present, remove and
secure your power cord to prevent the desk from being operated.
If a power outage occurs, the Control Box will automatically return to the unlocked setting. The Keypad can be locked to
prevent accidental activation or movement of the desk and to prevent desk settings from being accidentally changed by
others.
• To lock the Keypad: Press and hold the “M” button. The display will show “S-” then it will show the current
numeric height setting of the desk and nally will change to “LOC”. Do not release the “M” button until
“LOC” is displayed.
• To unlock the Keypad: Press and hold the “M” button until the display changes to a numeric height setting.
These UPLIFT Desk programming instructions are compatible only
with Advanced Keypads.
For Advanced Paddle Keypad programming steps, refer to the
instructions received with that Keypad.
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
Programming (Advanced Keypads only)
Constant-Touch & One-Touch
These steps allow the desk to be set to either One-Touch or Constant-Touch. One-Touch requires only a single touch of the
“1, 2, 3, or 4” button to move the desktop to a preset memory location. One-Touch is the default setting of the Control Box
when received. Constant-Touch requires a continuous touch of the “1, 2, 3, or 4” button to move the desktop to a preset
memory location.
Change between One-Touch and Constant-Touch:
1. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.
2. Hold the DOWN button again until display reads “RST”.
3. Press the “1” button until display shows “10.1” (One-Touch) or “10.2” (Constant-Touch) and goes back to “RST”.
Note: While “RST” is still ashing, you can continue to press and hold the “1” button to toggle between the two settings.
4. Hold the DOWN button once more until the desk lowers slightly, then raises slightly, and the display changes back to
the numeric height setting, then release.

© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com 17
Minimum & Maximum Height Settings
The desk frame ships with the Control Box set to the lowest minimum height and the highest maximum height. The
following steps allow the minimum and maximum height limits to be changed to your preference.
Note: If your desk memory settings were previously set outside of the new minimum and maximum height settings, they
will default to the new minimum and maximum settings. To set new minimum and maximum height settings, you will
need to rst remove the current minimum and maximum settings.
To set a new maximum desk height:
1. Move the desk to the desired maximum height pressing the UP or DOWN button.
2. Press the “M” button once, and “S-” will appear on the display. Immediately follow by pressing the UP
button once, so the “S-” ashes once.
3. Hold the “M” button until the display shows “999” then changes to numeric value of new upper limit.
To set a new minimum desk height:
1. Use the UP or DOWN buttons to bring the desk to the desired minimum height.
2. Press the “M” button once, and “S-” will appear on the display. Immediately follow by pressing the
DOWN button once, so the “S-” ashes once.
3. Hold the “M” button until the display shows “000” then changes to numeric value of new lower limit.
Removing adjusted maximum and minimum heights:
1. Press the “M” button once and “S-” will appear on the display.
2. Hold the “M” button again until the display reads “555” and then changes to the current
numeric desk height setting.
Programming (Continued)
Display Units
Change the numeric display to show the desk height in either inches or centimeters.
1. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.
2. Hold the DOWN button again until display ashes “RST”.
3. Press the “2” button until display shows “10.3” (centimeters) or “10.4” (inches) and goes back to “RST”.
Note: While “RST” is still ashing, you can continue to press and hold the “2” button to toggle between the two settings.
4. Hold the DOWN button once more until the desk lowers slightly, then raises slightly, and the display changes back to
the numeric height setting, then release.

*Note: “RST” will look like
“ASr” on the display
If your desk does not respond when you try to raise it or lower it, or if the Keypad displays error messages from “E01”
through “E012”, check to make sure that all the cables to the Legs and Control Box are secure. If the problem persists,
perform the reset procedure below.
If the error message persists after performing the Reset Procedure above or if there is a height difference between the Legs
which exceeds 1.5’’, contact UPLIFT Desk at the email address or phone number listed on these instructions.
Starting & Stopping
If your desk is continuously starting and stopping as you try to raise or lower it, check to make sure the Control Box
is attached securely to the Frame. The Control Box MUST be attached to your Frame in order for your desk to function
properly.
Code Description Troubleshooting Solution
H01 Overheated The desk motor has a 10% duty cycle to protect from overheating. For example, in a
20 minute period if your desk motor is activated for 2 minutes you will want to let
it rest for 18 minutes. Otherwise you may see an H01 code on your keypad
E01-E06 Firmware or
connectivity issues
Check all cables to ensure they’re all rmly plugged in, and perform Reset
Procedure above
E07-E012 Legs are uneven Perform Reset procedure above
Troubleshooting
Reset Procedure
1. Unplug the Power Cord and hold the DOWN button on the Keypad for 30 seconds.
2. Plug the Power Cord back in.
3. Hold the DOWN button until the desk reaches its lowest height, then release. Hold
the DOWN button again until the LED display reads “RST” (or for about 10 seconds
on the Basic Keypad without display), then release. Hold the DOWN button again
until the desk lowers a bit, then slightly rises and stops, then release. Your desk is
now ready to use.
4. Advanced Keypads and the Basic Display Keypad will display the current desk height and you should be able to
operate the desk.
5. You may also need to perform this Reset Procedure if the desk is unplugged or loses power.

Notes

Work Better. Live Healthier
Copyright Notice: This guide is a component of this UPLIFT Desk product. This guide is a part of the
scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website:
upliftdesk.com. These instructions are subject to United States copyright law.
©
If this product is sold, please provide this
manual to the buyer, installers, or support
personnel operating the product.
SAVE THE INSTRUCTIONS
90.014.01.0687v.F AI-FRM680-1.0
512-614-3152
800-349-3839
[email protected]
upliftdesk.com
