Uplift Desk T-Frame User manual

90.014.01.0666v.A
2-Leg Height Adjustable Standing Desk
COMMERCIAL-GRADE
®
SAVE THESE INSTRUCTIONS:
Study this manual carefully. If this desk is sold, please provide the manual
to the buyer, installers, or support personnel operating the product.
4933053182316 - THS058
4933053182316
355 lb
two person
assembly
C-Frame
or
T-Frame
AI-FRMA-2-COM-0.6

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com
2
This height adjustable desk has an electric motor and is designed for use in dry work areas only. The desk
height is adjustable so that it can be positioned at the most ergonomically suitable height. These desks are
designed only for the purposes included in this manual. They should not be used in environments with high
humidity or dampness. Any other use is at user’s risk.
Do not move around, crawl, or lie under the desk frame. Do not sit or stand on the desk frame.
Children should never use the desk unless they are supervised by adults.
Liability: Under no circumstances does the manufacturer accept warranty claims or liability claims for dam-
ages caused from improper use or handling of the desk frame other than that which is described in this
operation manual.
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using the desk.
FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY, AND OPERATION INSTRUCTIONS
AND WARNINGS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS PROPERTY DAM-
AGE OR BODILY INJURY.
DANGER - To reduce the risk of electric shock, always unplug this furnishing from the electrical outlet be-
fore moving, cleaning, or before adding or removing parts and accessories.
USAGE
SAFETY AND WARNINGS
WARNING - To reduce the risk of burns, re, electric shock, injury to persons, or property damage:
• Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled
persons. Children should only use the desk under adult supervision. Keep children away from electric
height adjustable desks, control units, and keypads. There is a risk of injury and electric shock.
• Use this desk only for its intended use as described in these instructions. Do not use attachments not
recommended by the manufacturer.
• Keep the desk close to the power outlet to be easily accessible.
• Never operate this desk if it has a damaged cord or plug, if it is not working properly, has been
dropped or damaged.
• Keep the cords away from heated surfaces.
• Do not open any of the components: legs, control box, or keypad. There is a danger of electric shock.
Do not insert anything into any seam or opening.
• Keep all electrical components away from liquids.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use outdoors.
• Inappropriate use of this product may cause property or bodily injury.
• Check surroundings on all sides before using the desk. Body parts and property can be crushed if
trapped between an immobile obstacle and the desk’s range of motion.
• Ensure the length of power cords are of appropriate length for desk travel. Monitors, computers,
speakers, and anything with a cord that is not long enough for the desk’s range of motion could be
pulled off the desk, cause other items to fall, and could damage personal property or cause injury.
• Please provide this manual to any users, installers, or support personnel operating the product.
• Make sure no obstacles are in the desk’s path.
• If casters are not installed, employ two people to lift the desk so that it can be moved without
dragging. Dragging the desk may cause the frame and screws to come loose from the desktop.
• Maximum weight capacity of this product is 355 Ib. Do not overload your desk.
• Desk contains pinch points. Keep hands and ngers clear of moving parts.

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com 3

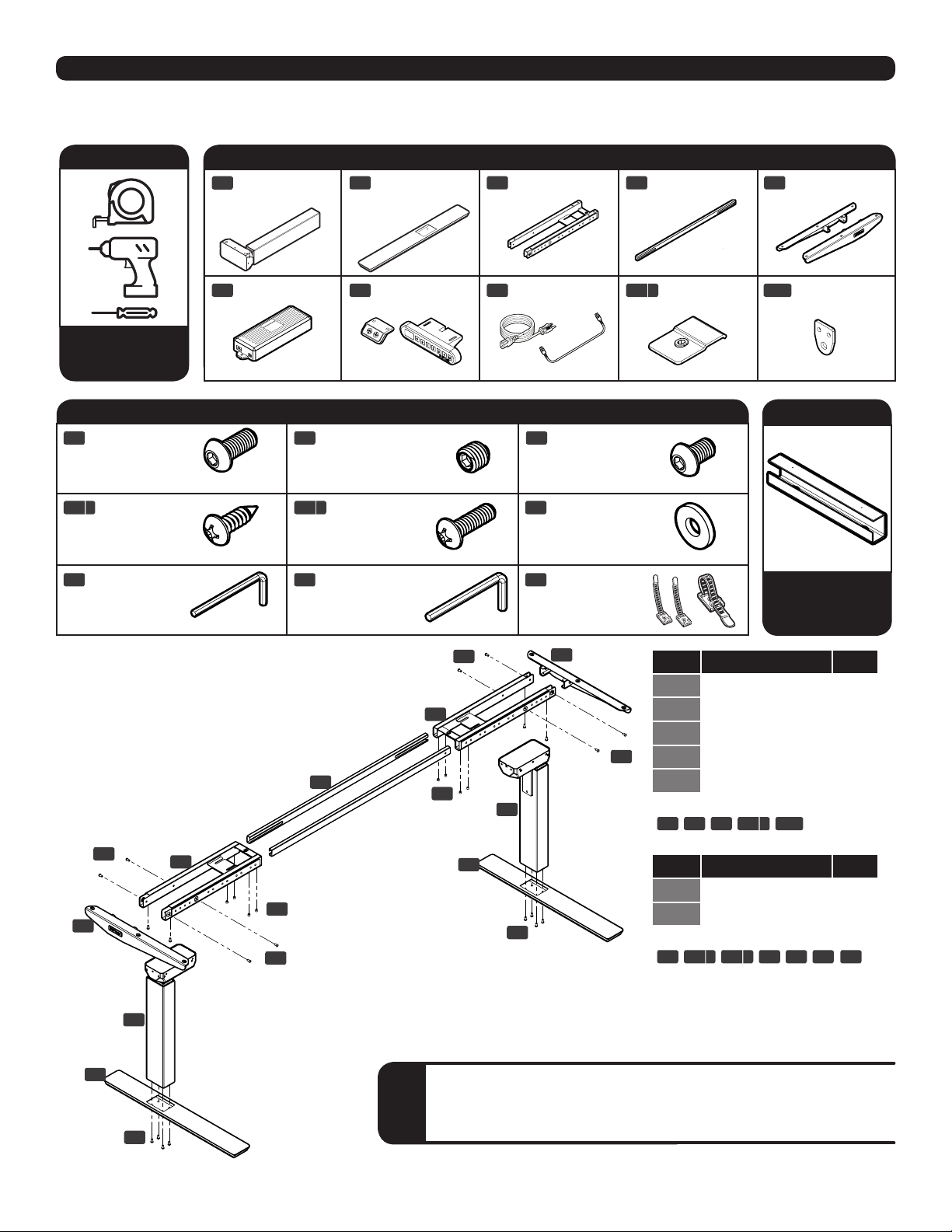

Count all pieces before disposing of any carton or packing material. Use a padded or carpeted area
for assembly to avoid damage. For ease and safety, we recommend two people for assembly.
355 lb
355 lb
355 lb
You’ll also need: COMPONENTS
PACKAGE CONTENTS
HARDWARE
Leg
(qty 2)
Control box
Frame end
(qty 2)
Anchor plate
(optional. qty 2)
Center rail
(qty 2)
Side bracket
(qty 2)
Keypad
(one of two types, qty 1)
Cables
(power cable qty 1)
End bracket
(optional. qty 2)
Foot
(includes leveling pads, qty 2)
#10x3/4’’
Wood screw
(qty 12)
#10-24x3/4’’
Machine screw
(qty 8)
Washer
(qty 8)
Cable mount
(qty 10)
M6x14
Machine screw
(qty 20)
4mm
Allen wrench
M8x8
Set screw
(qty 8)
M8x10
Machine screw
(optional. qty 4)
C10C8
H8
C6
H6
C5
H5
C4
H4 bH4 a
C3
H3
C2
H2
C1
H1
C7
C5
C5
C4
C3
C3
C2
C2
C1
C1
H1
H1
H1
H1
H1
H1
H2
H2
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
or
part component qty
C1 Leg 2
C2 Foot 2
C3 Frame end 2
C4 Center rail 2
C5 Side bracket 2
part hardware qty
H1 M6x14 M. screw 20
H2 M8x8 Set screw 8
C9 a
Freebie!
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
(See “Accessories” on page 8)(See Step 6.1 on page 6)(leg cable qty 1)
tape measure,
drill, and phillips-
head screwdriver
Wire management
tray! Keep your
wires under control.
C10C8
H8H6H5H4 bH4 a
C7
H7
Components not shown in exploded view:
Hardware not shown in exploded view:
C6
H3
C9 a
This is the Commercial-Grade C-Frame version of the UPLIFT
Desk. All assembly instructions in this booklet will show this
model. However we do cover another model in these pages, the
Commercial-Grade T-Frame (more on that later).
CIf you are assembling the C-Frame model, keep an eye out for
this “C” icon for instructions specic to this model.
5mm
Allen wrench
H7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
(See “Accessories” on page 8)

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com
4
C3
C1
H1
H1
Step 2
With the Leg assembly upside down, slide a Side
bracket (C5) into place, as shown. Then insert the tabs
on the Side bracket inside the Frame end, and attach
using two (2) M6x14 screws (H1).
Rotate each screw by hand for only a few turns to
avoid cross-threading. Do not tighten fully until step 3.
H1
C5
PACKAGE CONTENTS (continued) the Commercial-Grade T-Frame
Side bracket
(qty 2)
L-bracket
(qty 2)
C5
The Commercial-Grade Desk is also available as a T-Frame.
The details in this section only apply to the T-Frame.
This conguration assembles in the same way as the
C-Frame, just with slightly different parts, which are
pictured in the table below.
Standard T-Frame Components
Foot
(includes leveling pads, qty 2)
C2 C9 b
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
TIf you are assembling the T-Frame model, keep an eye out for
this “T” icon for instructions specic to this model.
Step 1
Place Frame ends (C3) upside down, as shown. In-
sert the Leg (C1) so the back of the Leg and the back
edge of the Frame end are ush. Attach using four (4)
M6x14 screws (H1).
Rotate each screw by hand for only a few turns to
avoid cross-threading. Do not tighten fully until step 3.
Repeat this step for the second leg.
ASSEMBLY INSTRUCTIONS

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com 5
C
Step 3
With each Leg assembly (C1) facing UP, screw on
the feet (C2) using four (4) M6x14 (H1) screws each.
Rotate each screw by hand for a few turns (to avoid
cross-threading) until all four screws are in place.
Make sure the long end of the C-Frame foot
is facing the same direction as the long end
of the Side bracket (C5).
Once all M6x14 screws (H1) are inserted and hold-
ing the Leg assemblies together, tighten down all of
the screws fully from steps 1, 2, and 3 using the 4mm
Allen wrench (H6).
H1
C2
Step 4
When the Leg assemblies are complete, lay down
both Center rails (C4) and slide the Leg assemblies
onto them.
Note: Center rails should be aligned as shown. If the
leg assemblies do not slide in all the way, ip the Cen-
ter rails over and reinsert them the correct way.
Step 5
To protect your desktop, lay down a blanket or towel,
and put the desktop on top. Make sure the desktop is
upside down, with the pre-drilled holes facing UP.
Line up your Frame assembly with the pre-drilled holes
on the desktop. Note: if holes on the Frame ends do not
perfectly align, see Step 6.1 and 6.2.
If you’re using your own desktop, move the desk around
until you nd the placement you want, and make a pencil
mark at each hole’s location. Using a drill with a 1/8’’ di-
ameter drill bit, drill pilot holes where you’ve made your
marks. Drill no deeper than 1/2’’ deep.
Note: Lift the frame, DO NOT SLIDE IT, when lining
up the frame for placement. Rubber grommets are
inserted inside each slot, and sliding the frame may
dislodge them. If a rubber grommet does come out,
they can be easily inserted back in the slot.
C4
The slots on the Center rails are offset, and should be further from the oor.

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com
6
T
C
Step 6.2
Regarding our T-Frames
UPLIFT Desktops are pre-drilled for our C-Frames.
Use the L-brackets (C9b). Line them up to one of
the pre-drilled holes. Attach to the frame using two
M8x10 screws and then use one (1) of the screws cho-
sen above, along with one (1) washer to connect it to
the desktop.
C9 b
C9 b
Step 7
Secure the Center rails at both ends using eight (8)
M8x8 Cup point set screws (H2), four (4) per side.
Tighten using the 4mm Allen wrench (H6).
The Center rails do not need to be perfectly centered,
but make sure that all eight Set screws make contact
with the rails.
H2
H2
C9 a
or
H4 b
H4 a
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
H5
Step 6
Choose which screw should attach frame to desktop.
If your pre-drilled desktop does not have metal thread-
ed inserts, use the #10x3/4’’ Wood screws (H4a).
If your pre-drilled desktop does have metal threaded
inserts, use the #10-24x3/4’’ Machine screws (H4b).
After ensuring that the desk frame is properly posi-
tioned, attach the frame to the desktop using eight
(8) of the chosen screws (H4a or H4b) and eight (8)
Washers (H5).
Make sure all screws are started before fully tighten-
ing them.
NOTE: See below for important information on this
step regarding C-Frame and T-Frame assembly.
Step 6.1
Regarding our C-Frames
If the pre-drilled holes tional End bracket (C9a), and
attach using one (1) of the screws chosen above, and
one (1) washer.

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com 7

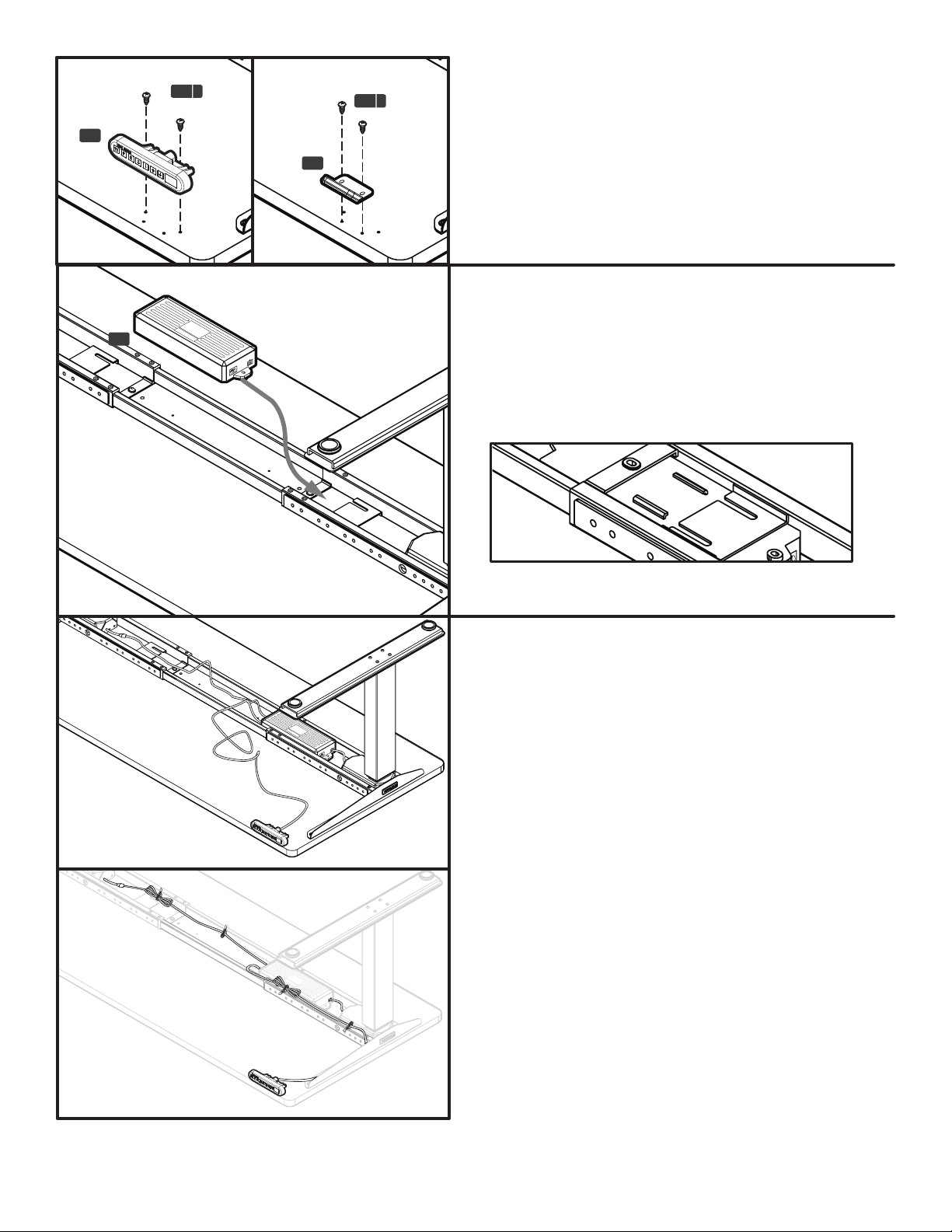

Step 8
Line up your Keypad (C7) up with the pre-drilled
holes, and attach it to desktop with two (2) #10x3/4’’
Wood screws (H4a).
If you’re using your own desktop and have no pre-
drilled holes, the Keypad can be placed anywhere
along the front edge of the desk. We recommend
placing it near the side so it doesn’t interfere with your
chair or legs when seated.
H4 a
H4 a
C7
C7
Step 10
Plug the cord of the closer Leg into the Control box.
This cord has enough slack to reach the white port on
the box.
For the other Leg, you’ll need the leg cable (C8) to
be able to plug the remaining leg assembly into the
Control box. Again, look for the white port.
Now, plug the Keypad into the port marked “HS”.
Use the Cable mounts (H8) to organize, bundle, and
secure your cords to the underside of your desktop
so they don’t get tangled or snagged on objects when
adjusting.
You can stick the mounts to the desktop or frame. The
adhesive often sticks better to the metal of the frame.
If you have purchased casters, or other accessories
like Keyboard Trays or CPU holders or the included
Wire management tray, now is a good time to add
them. Refer to the instructions that came with your
accessories, and refer to page 8 of this guide for the
Wire management tray.
Step 9
Slide the tabs of the Control box (C6) into the slots
on the Frame end. Refer to the diagram for how the
Control box interlocks with the frame end. It can be
placed on either frame end. We advise positioning the
power cord end pointing toward the Leg, and on the
side where the keypad is mounted.
C6
Control box tab & Frame end slot - Top View (Desktop not shown)

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com
8
NOTE: Make sure no obstacles are in the
desk’s path. Make sure cords are a length
that will accommodate the change in height.
!
Step 11
Grab a friend to turn the assembled desk right-side
up. Be sure to support the desktop and the frame
equally to limit stress on the screws.
After turning the desk over, adjust the Leveling studs
or casters as needed to make the desk level.
Step 12
Plug the power cable (C8) into the Control box (C6),
and then into a 120v wall outlet.
IMPORTANT! You must RESET the desk prior to
use (or if you change out the control box)! Hold the
DOWN button on the Keypad until the desk reaches
its lowest height, then release. Hold the DOWN but-
ton again for about 10 seconds*. Then hold the DOWN
button a third time until the desk lowers a little bit
more, slightly rises, then stops, then release. Your desk
has been reset, and is now ready to use.
*If you have the Advanced Digital Memory Keypad,
the digital display will ash “RST” when you press the
DOWN button a second time. For more programming
options with the Advanced Digital Memory Keypad,
refer to the “Programming” section on pages 9 thru 11.
When moving the desk, if casters are not installed, use a two-person lift and lift the desk so that it can be
moved without dragging. Dragging the desk may cause the frame and screws to pull loose from the desktop.
When moving the desk, DO NOT lift the desk by the desktop alone. Support both the frame and the desk-
top equally. Favoring one over the other can stress the fasteners connecting the desk frame to the desktop.
Lower the desk completely before moving it.
Choose a placement for the desk that’s a safe distance from window frames, radiators, furniture, etc., so that
people do not get stuck or trapped by the desk, and nothing obstructs the desk from rising or lowering.
Ensure adequate cord clearance before using the desk. Connect desk’s power cord to the 120v outlet to
make the desk ready for use.
Do not place any objects underneath the desk that are taller than 20’’.
DESK PLACEMENT

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com 9

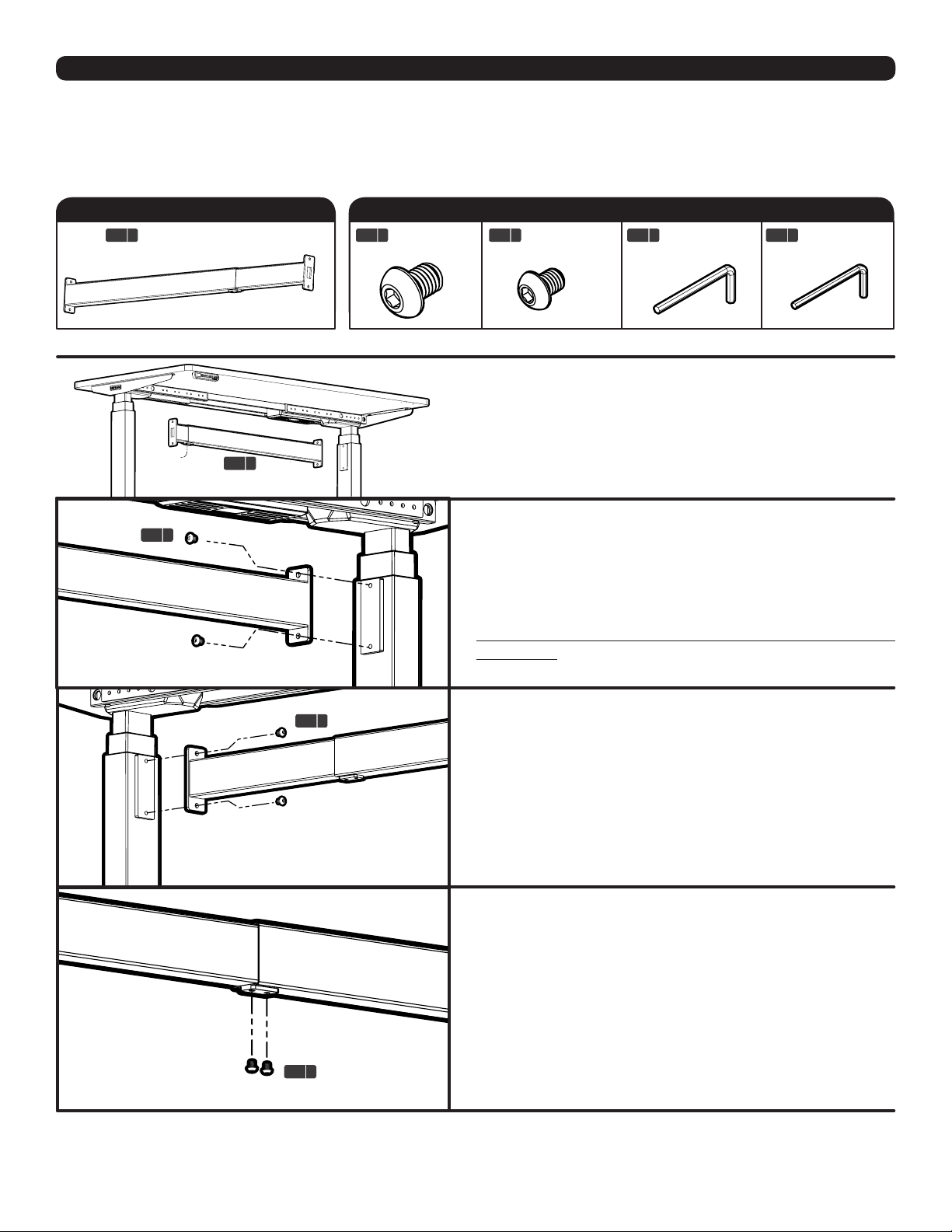

UPLIFT STEEL CROSSBAR (OPTIONAL)
The Steel Crossbar is available for maximum stability for your Commercial-Grade UPLIFT Desk and
adds additional side-to-side stability for your workstation.
This Steel Crossbar accessory is not required to complete assembly of your desk, but can be ac-
quired and installed to your desk later to add even more strength if you desire it.
CROSSBAR COMPONENTS CROSSBAR HARDWARE
2 pc. Steel Crossbar
(qty 1)
M8x12 Screws
(qty 4)
M6x12 Screws
(qty 2)
C1 s
C1 s
H1 s
H1 s
H1 s
H2 s H4 sH3 s
Step 1
Raise your desk up for easy access to the Leg’s mount-
ing plates. Position the Crossbar between the desk
legs and orient it so the side with the holes (marked
with “ ”) is facing down toward the oor.
*
*
Step 2
Starting on one side, line up the holes on the end of the
Crossbar with the holes on one of the Leg’s mounting
plates. Have a friend hold it in place while you attach
using two (2) M8x12 screws (H1s).
Rotate each screw only a few turns to avoid cross-
threading. Do not tighten fully until step 2.
Step 3
With your friend still holding the Crossbar in place, ex-
tend the other end to the opposite Leg’s mounting
plate and attach using the two remaining (2) M8x12
screws (H1s). After both ends of the Crossbar are at-
tached to the desk, you can fully tighten down all of
the M8x12 screws using the 5mm Allen wrench (H3s).
Step 4
To further stabilize your desk’s Crossbar, install the
two (2) M6x12 Screws (H2s) in the holes on the under-
side of the Crossbar. This will ensure the two halves
of the Crossbar are secure and will not move, or slide
out of place.
Tighten down using the 4mm Allen wrench (H4s). As
you tighten down both Screws, make sure both are in
contact with the inner Crossbar tube.
5mm
Allen wrench
4mm
Allen wrench
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
H2 s

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com
10

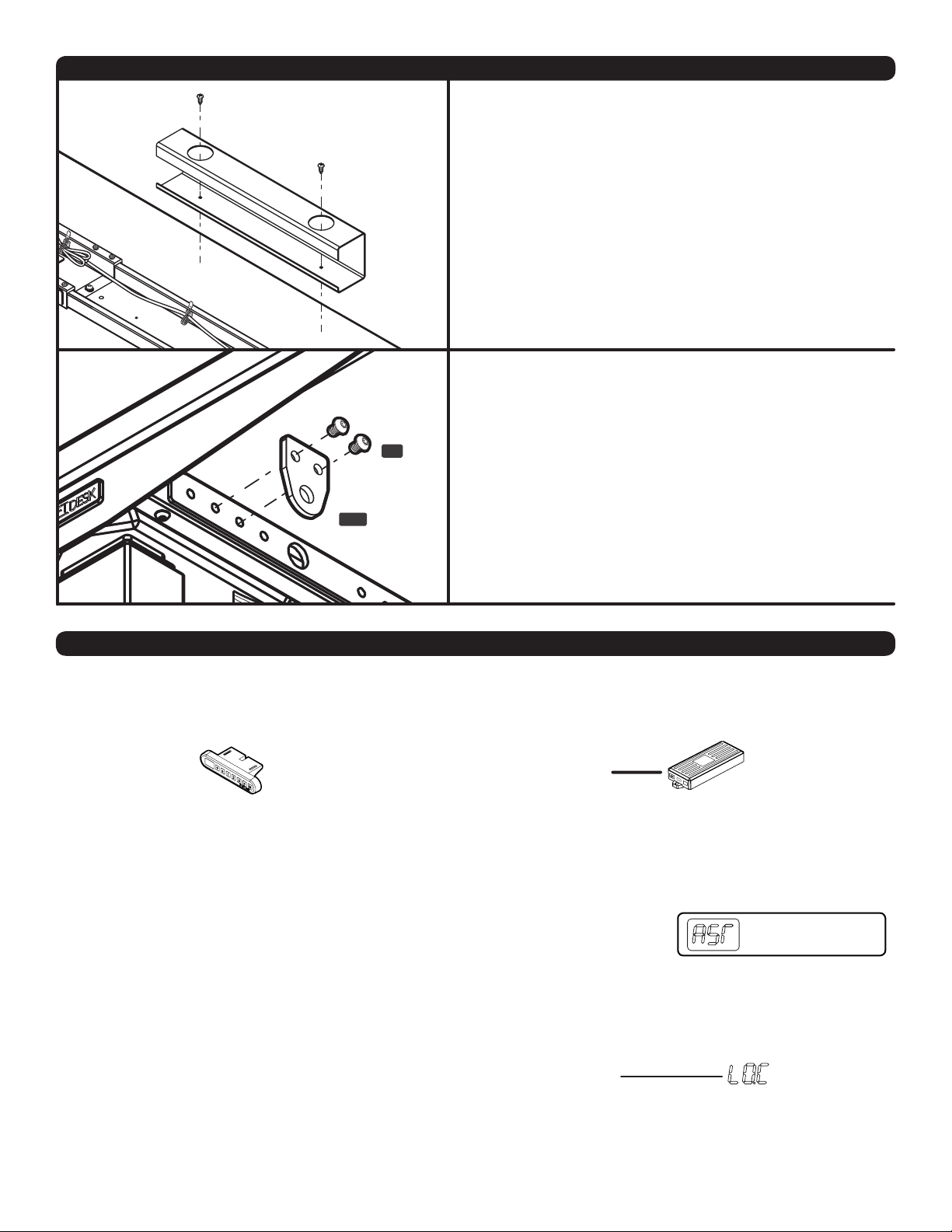

Installing future desk accessories:
UPLIFT Desk has many desk accessories that will
mount easily and directly to your frame by using the
two (2) included Anchor plates (C10).
Read your accessory’s instructions to see if you’ll need
the Anchor plates for installation. Attach them to the
frame using four (4) M8x10 screws (H3), and tighten
using the 5mm Allen wrench (H7) at the locations
mentioned in the accessory’s instructions.
C10
H3
Installing Wire Management Tray:
If you reckon you’ll have a lot of wires to wrangle, in-
stall the Wire Management Tray while assembling your
desk. Assess where your wires may be concentrated.
M ove it until you nd the placement you want, and make
a pencil mark at each hole’s location.
Using a drill with a 1/8’’ diameter drill bit, drill pilot holes
where you’ve made your marks. Drill no deeper than 1/2’’
into your desktop. Attach tray to your desk using two
(2) #10x3/4’’ Wood screws (H4a).
UPLIFT ACCESSORIES
These UPLIFT Desk programming instructions are compatible only with the Advanced 1-Touch Digital Memory
Keypad and control boxes with the following numbers located on the silver sticker:
FRMA-2-COM: 99.074.14.0089v4.2
HEIGHT CALIBRATION
Make sure the numeric display matches the actual height of the desktop in its lowest position.
1. Hold the DOWN button on the Keypad until the desk reaches its lowest height, then release.
2. Measure the height from the oor to the underside of the desktop. If the displayed height does
not match your measurement, follow the next steps.
3. Hold the DOWN button again until the LED display reads “RST”
4. Press the “M” button until the numeric display begins ashing.
5. Press the UP or DOWN button to set desk to the measured height.
6. Once display changes back to “RST”, Hold the DOWN button until the desktop lowers slightly,
then rises slightly and the display changes back to the numeric height setting, then release.
*Note: “RST” will look like
“ASr” on the display
PROGRAMMING (Advanced 1-touch digital keypad only)
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
KEYPAD LOCK
The keypad can be locked to prevent accidental activation or movement of the desk.
To lock: Press and hold “M” button until display changes to “LOC”
To unlock: Press and hold “M” button until display changes to numeric height setting.
NOTE: If a power outage occurs, the program will automatically return to the unlocked setting.

© UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • [e-mail] • upliftdesk.com 11
MEMORY SETTINGS
Save up to four commonly used desk heights and recall them quickly.
l. Use the UP or DOWN button to move the desk to the desired height.
2. Press the “M” button.
3. Press the “1, 2, 3, or 4” button to assign the current height to a number on the keypad.
4. To recall any of those heights, press the numbered button to bring desk to assigned height.
CONSTANT-TOUCH & ONE-TOUCH
These steps allow the desktop to be set to either One-Touch or Constant-Touch. One-Touch requires only a single touch
of the “1, 2, 3, or 4” button to move the desktop to a preset memory location. Constant-Touch requires a continuous touch
of the “1, 2, 3, or 4” button to move the desktop to a preset memory location. Constant-Touch is the default setting.
Change between One-Touch and Constant-Touch:
l. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.
2. Hold the DOWN button again until display ashes “RST”.
3. Press the “1” button until display shows “10.1” (One-Touch) or “10.2” (Constant-Touch)
and goes back to “RST”.
Note: While “RST” is still ashing, you can press the “1” button as many times as you’d like
to toggle between the two settings.
4. Hold the DOWN button until the desktop lowers slightly, then rises slightly and the display
changes back to the numeric height setting, then release.
PROGRAMMING (continued)
DISPLAY UNITS
Change the numeric display to show heights in either inches or centimeters.
l. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.
2. Hold the DOWN button again until display ashes “RST”.
3. Press the “2” button until display shows “10.3” (centimeters) or “10.4” (inches) and goes back to “RST”.
Note: While “RST” is still ashing, you can press the “2” button as many times as you’d like
to toggle between the two settings.
4. Hold the DOWN button until the desktop lowers slightly, then rises slightly and the display
changes back to the numeric height setting, then release.
MINIMUM & MAXIMUM HEIGHT SETTINGS
The desk frame ships defaulted to its minimum and maximum height limits. These steps allow the upper and
lower limits to be adjusted to your preference.
Note: If memory settings were previously set outside of the new minimum and maximum height settings, they
will default to the new minimum and maximum settings. To set new minimum and maximum height settings
outside of the current settings, you will need to rst remove the current minimum and maximum settings.
To Set a new maximum desk height:
l. Use the UP or DOWN buttons to bring desk to the desired maximum height.
2. Press the “M” button once, and “S-” will appear on the display. Immediately follow by
pressing the UP button once, so the “S-” ashes once.
3. Hold the “M” button until the Display shows “999” then changes to numeric value of new
upper limit.
To Set a new minimum desk height:
l. Use the UP or DOWN buttons to bring the desk to the desired minimum height.
2. Press the “M” button once, and “S-” will appear on the display. Immediately follow by
pressing the DOWN button once, so the “S-” ashes once.
3. Hold the “M” button until the Display shows “000” then changes to numeric value of new
lower limit.
Removing adjusted maximum and minimum heights:
l. Press the “M” button once and the display will show “S-”.
2. Hold the “M” button again until the display shows “555” then changes to the current
numeric height setting.

If your desk does not respond when trying to raise or lower it, or if the Keypad displays error messages (“Er1”
through “Er13”) check to make sure all the cables are secure (legs to cables, cables to control box). If the
problem persists, perform the reset procedure below.
If the error messages persist after the reset procedure, or if there is a height difference between the legs
which exceeds 1.5’’, stop the reset procedure and contact The Human Solution (phone: [phone] or
email: [email protected]).
If the Keypad displays “HO1”, then it is hot. Let the base cool down for 20 minutes.
If the desk seems to be uneven, try the reset instructions above. If that does not work you may need to adjust
the leveling studs at the bottom of the foot.
*Note: “RST” will look like
“ASr” on the display
RESET INSTRUCTIONS
1. Unplug the power cord and hold the DOWN button for 30 seconds.
2. Plug the power cord back in.
3. Hold the DOWN button on the Keypad until the desk reaches its lowest height, then release.
Hold the DOWN button again until the LED display reads “RST”
(or for about 10 seconds on non-LED keypads), then release.
Hold the DOWN button again until the desk lowers bit more, then
slightly rises and stops, then release. Your desk is now ready to use.
4. The Keypad will then display the current height, and you should be able to operate the desk.
5. You may need to do this if the desktop is ever unplugged or loses power.
TROUBLESHOOTING
TECHNICAL SPECIFICATIONS
Height Range 21.6” to 47.7” (without desktop or casters)
Base Width 41.3” min - 72.2” max (outside of feet)
Travel Speed 1.5” per second (varies, slowest w/ maximum load)
Max Weight Capacity 355 lbs
Duty Cycle 10%, Max. 2 mins on, 18 mins off
Input 120Vac/60Hz, 400W
Output 24Vdc
®
1-800-349-3839
[email protected]
upliftdesk.com
Copyright Notice: This guide is a component of the UPLIFT Desk™. This guide is a part of the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: upliftdesk.com.
Excerpts or copies may not be forwarded to third parties or used in any other published form without the prior written consent of UPLIFT Desk. These instructions are subject to United States copyright law.
©
