Vega VEGABAR 82 User manual

Quick setup guide
Pressure transmitter with ceramic
measuring cell
VEGABAR 82
Slave sensor for electronic di󰀨erential pres-
sure
With SIL qualication
Document ID: 48051

2
Contents
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
Contents
1 For your safety ......................................................................................................................... 3
1.1 Authorised personnel ....................................................................................................... 3
1.2 Appropriate use................................................................................................................ 3
1.3 Warning about incorrect use............................................................................................. 3
1.4 General safety instructions............................................................................................... 3
1.5 EU conformity................................................................................................................... 4
1.6 SIL qualication according to IEC 61508.......................................................................... 4
1.7 Permissible process conditions........................................................................................ 4
2 Product description ................................................................................................................. 5
2.1 Conguration.................................................................................................................... 5
3 Mounting................................................................................................................................... 6
3.1 General instructions for use of the instrument .................................................................. 6
3.2 Ventilation and pressure compensation............................................................................ 6
3.3 Combination Master - Slave ............................................................................................. 6
4 Connecting to power supply................................................................................................... 9
4.1 Connecting....................................................................................................................... 9
4.2 Single chamber housing................................................................................................. 10
4.3 Connection example ...................................................................................................... 11
5 Set up with the display and adjustment module ................................................................ 12
5.1 Insert display and adjustment module............................................................................ 12
5.2 Parameter adjustment .................................................................................................... 13
5.3 Menu overview ............................................................................................................... 16
6 Supplement ............................................................................................................................ 18
6.1 Technical data ................................................................................................................ 18
Information:
This quick setup guide enables quick setup and commissioning of
your instrument.
You can nd supplementary information in the corresponding, more
detailed Operating Instructions Manual as well as the Safety Manual
that comes with instruments with SIL qualication. These manuals are
available in the download area of "www.vega.com".
Operating instructions VEGABAR 82 - Slave sensor for elec-
tronic dierential pressure with SIL qualication: Document-ID
48046
Safety Manual VEGABAR series 80 - Two-wire 4 … 20 mA/HART
with SIL qualication: Document-ID 48369
Editing status of the quick setup guide: 2019-04-02

3
1 For your safety
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
1 For your safety
1.1 Authorised personnel
All operations described in this documentation must be carried out
only by trained, qualied personnel authorised by the plant operator.
During work on and with the device, the required personal protective
equipment must always be worn.
1.2 Appropriate use
VEGABAR 82 is a slave sensor for electronic dierential pressure
measurement.
You can nd detailed information about the area of application in
chapter "Product description".
Operational reliability is ensured only if the instrument is properly
used according to the specications in the operating instructions
manual as well as possible supplementary instructions.
1.3 Warning about incorrect use
Inappropriate or incorrect use of this product can give rise to applica-
tion-specic hazards, e.g. vessel overll through incorrect mounting
or adjustment. Damage to property and persons or environmental
contamination can result. Also, the protective characteristics of the
instrument can be impaired.
1.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and directives. The instrument must only be operated in a
technically awless and reliable condition. The operator is responsi-
ble for the trouble-free operation of the instrument. When measuring
aggressive or corrosive media that can cause a dangerous situation
if the instrument malfunctions, the operator has to implement suitable
measures to make sure the instrument is functioning properly.
During the entire duration of use, the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula-
tions.
The safety instructions in this operating instructions manual, the na-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
trary conversions or modications are explicitly forbidden. For safety
reasons, only the accessory specied by the manufacturer must be
used.
To avoid any danger, the safety approval markings and safety tips on
the device must also be observed and their meaning read in this oper-
ating instructions manual.

4
1 For your safety
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
1.5 EU conformity
The device fulls the legal requirements of the applicable EU direc-
tives. By axing the CE marking, we conrm the conformity of the
instrument with these directives.
You can nd the EU conformity declaration on our website under
www.vega.com/downloads.
1.6 SIL qualication according to IEC 61508
The Safety Integrity Level (SIL) of an electronic system is used to as-
sess the reliability of integrated safety functions.
For detailed specication of the safety requirements, multiple SIL
levels are specied according to safety standard IEC 61508. You can
nd detailed information in chapter "Functional safety (SIL)" of the
operating instructions.
The instrument meets the specications of IEC 61508: 2010 (Edi-
tion 2). It is qualied for single-channel operation up to SIL2. The
instrument can be used homogeneously redundant up to SIL3 in
multi-channel architecture with HFT 1.
1.7 Permissible process conditions
For safety reasons, the instrument must only be operated within the
permissible process conditions. You can nd detailed information on
the process conditions in chapter "Technical data" as well as on the
type label.
The permissible process pressure range is specied by "MWP"
(Maximum Working Pressure) on the type label, see chapter "Struc-
ture". The MWP takes the element of the measuring cell and process-
ing tting combination with the weakest pressure into consideration
and may applied permanently. The specication refers to a reference
temperature of +20 °C (+68 °F). It also applies when a measuring cell
with a higher measuring range than the permissible pressure range of
the process tting is installed order-related.
In order to prevent damage to the device, the test pressure may only
exceed the specied MWP briey by 1.5 times at reference tempera-
ture. The pressure stage of the process tting as well as the overload
resistance of the measuring cell are taken into consideration here
(see chapter "Technical Data").
In addition, a temperature derating of the process tting, e. g. with
anges, can limit the permissible process pressure range according
to the respective standard.

5
2 Product description
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
2 Product description
2.1 Conguration
The type label contains the most important data for identication and
use of the instrument:
9
10
11
8
6
7
2
3
4
1
5
Fig. 1: Layout of the type label (example)
1 Instrument type and product code
2 Field for approvals
3 Power supply and signal output, electronics
4 Technical data
5 Order number
6 Serial number of the instrument
7 QR code
8 Symbol of the device protection class
9 ID numbers, instrument documentation
10 Reminder to observe the instrument documentation
11 SILidentication
The type label contains the serial number of the instrument. With it
you can nd the following instrument data on our homepage:
• Product code (HTML)
• Delivery date (HTML)
• Order-specic instrument features (HTML)
• Operating instructions, quick setup guide and Safety Manual at the
time of shipment (PDF)
• Test certicate (PDF) - optional
Move to "www.vega.com" and enter in the search eld the serial
number of your instrument.
Alternatively, you can access the data via your smartphone:
• Download the VEGA Tools app from the "Apple App Store" or the
"Google Play Store"
• Scan the Data Matrix code on the type label of the instrument or
• Enter the serial number manually in the app
Type label
Serial number - Instru-
ment search

6
3 Mounting
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
3 Mounting
3.1 General instructions for use of the instrument
Protect your instrument against moisture ingress through the following
measures:
• Use a suitable connection cable (see chapter "Connecting to
power supply")
• Tighten the cable gland or plug connector
• When mounting horizontally, turn the housing so that the cable
gland or plug connector point downward
• Lead the connection cable downward in front of the cable entry or
plug connector
This applies mainly to outdoor installations, in areas where high
humidity is expected (e.g. through cleaning processes) and on cooled
or heated vessels.
To maintain the housing protection, make sure that the housing lid
is closed during operation and depending on the housing version
locked, if necessary.
Make sure that the degree of contamination specied in chapter
"Technical data" meets the existing ambient conditions.
3.2 Ventilation and pressure compensation
1 2 3
4 4 4
Fig.2:Positionofthelterelement-non-Ex,Ex-iaversion
1 Plastic, stainless steel housing (precision casting)
2 Aluminium housing
3 Stainless steel housing (electropolished)
4 Filter element
With the following instruments a blind plug is installed instead of the
lter element:
• Instruments in protection IP 66/IP 68 (1 bar) - ventilation via capil-
laries in non-detachable cable
• Instruments with absolute pressure
3.3 Combination Master - Slave
In principle, any sensor combination within the instrument series is
allowed. The following requirements must be fullled:
• Conguration, Master sensor suitable for electronic dierential
pressure
Protection against mois-
ture
Filter element - Position

7
3 Mounting
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
• Pressure type is identical for both sensors, i.e. relative pressure/
relative pressure or absolute pressure/absolute pressure
• Master sensor measures the higher pressure
• Measurement setup as shown in the following chapters
The measuring range of each sensor is selected such that it ts the
measuring loop. For this, the max. recommended turn down must be
noted. See chapter "Technical data". It is absolutely necessary the the
measuring ranges of Master and Slave correspond.
Measurement result = Measured value of Master (total pres-
sure) - measured value of Slave (static pressure)
Depending on the application, individual combinations can result, see
following examples:
Data
Application: Level measurement
Medium: Water
Vessel height: 12 m, hydrostatic pressure = 12 m x 1000 kg/m3x
9.81 m/s2 = 117.7 kPa = 1.18 bar
Superimposed pressure: 1 bar
Total pressure: 1.18 bar + 1 bar = 2.18 bar
Instrument selection
Nominal measuring range Master: 2.5 bar
Nominal measuring range Slave: 1 bar
Turn Down: 2.5 bar/1.18 bar = 2.1 : 1
Data
Application: Level measurement
Medium: Water
Vessel height: 500 mm, hydrostatic pressure = 0.50 m x 1000 kg/m3x
9.81 m/s2 = 4.9 kPa = 0.049 bar
Superimposed pressure: 350 mbar = 0.35 bar
Total pressure: 0.049 bar + 0.35 bar = 0.399 bar
Instrument selection
Nominal measuring range Master: 0.4 bar
Nominal measuring range Slave: 0.4 bar
Turn Down: 0.4 bar /0.049 bar = 8.2 : 1
Data
Application: Dierential pressure measurement
Medium: Gas
Static pressure: 0.8 bar
Dierential pressure on orice: 50 mbar = 0.050 bar
Total pressure: 0.8 bar + 0.05 bar = 0.85 bar
Instrument selection
Nominal measuring range Master: 1 bar
Example - large vessel
Example - small vessel
Example - orice in
pipeline

8
3 Mounting
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
Nominal measuring range Slave: 1 bar
Turn Down: 1 bar/0.050 bar = 20 : 1
The measuring result (level, pressure dierence) as well as meas-
ured value Slave (static or superimposed pressure) are output by the
sensor. Depending on the instrument version, output as 4 … 20 mA
signal or digitally via HART, Probus PA or Foundation Fieldbus.
Output measured values

9
4 Connecting to power supply
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
4 Connecting to power supply
4.1 Connecting
The connection to the Master sensor is carried out through spring-
loaded terminals in the respective housing. For this, use the supplied,
confectioned cable. Solid cores as well as exible cores with cable
end sleeves are inserted directly into the terminal openings.
In case of exible cores without end sleeves, press the terminal from
above with a small screwdriver, the terminal opening is then free.
When the screwdriver is released, the terminal closes again.
Information:
The terminal block is pluggable and can be removed from the
electronics. To do this, lift the terminal block with a small screwdriver
and pull it out. When reinserting the terminal block, you should hear it
snap in.
You can nd further information on the max. wire cross-section under
"Technicaldata-Electromechanicaldata".
Proceed as follows:
1. Unscrew the housing lid
2. Loosen compression nut of the cable gland and remove blind
plug
3. Remove approx. 10 cm (4 in) of the cable mantle, strip approx.
1 cm (0.4 in) insulation from the individual wires or use supplied
connection cable
4. Insert the cable into the sensor through the cable entry
Fig. 3: Connection steps 5 and 6
5. Insert the wire ends into the terminals according to the wiring plan
6. Check the hold of the wires in the terminals by lightly pulling on
them
Connection technology
Connection procedure

10
4 Connecting to power supply
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
7. Connect the screen to the internal ground terminal, connect the
external ground terminal to potential equalisation
8. Tighten the compression nut of the cable entry gland. The seal
ring must completely encircle the cable
9. Unscrew the blind plug on the Master, screw in the supplied cable
gland
10. Connection cable to Master, see steps 3 to 8
11. Screw the housing lid back on
The electrical connection is nished.
4.2 Single chamber housing
The following illustration applies to the non-Ex, Ex-ia and Ex-d-ia
version.
5678 4
2
1
connect to Master
Fig.4:WiringplanVEGABAR82Slavesensor
1 To the Master sensor
2 Ground terminal for connection of the cable screening1)
Electronics and connec-
tion compartment
1) Connect shielding here. Connect ground terminal on the outside of the hous-
ing to ground as prescribed. The two terminals are galvanically connected.

11
4 Connecting to power supply
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
4.3 Connection example
5678
4
2
3
1
4
connect to Master
5
12
+
( ) (-)
678
4...20mA
Fig.5:Connectionexample,electronicdierentialpressure
1 Master sensor
2 Slave sensor
3 Connection cable
4 Supply and signal circuit, Master sensor
Connection between master and sensor is carried out according to
the table:
Master sensor Slave sensor
Terminal 5 Terminal 5
Terminal 6 Terminal 6
Terminal 7 Terminal 7
Terminal 8 Terminal 8
Connection example,
electronic dierential
pressure

12
5 Set up with the display and adjustment module
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
5 Set up with the display and adjustment
module
5.1 Insert display and adjustment module
The display and adjustment module can be inserted into the sensor
and removed again at any time. You can choose any one of four dier-
ent positions - each displaced by 90°. It is not necessary to interrupt
the power supply.
Proceed as follows:
1. Unscrew the housing lid
2. Place the display and adjustment module on the electronics in the
desired position and turn it to the right until it snaps in.
3. Screw housing lid with inspection window tightly back on
Disassembly is carried out in reverse order.
The display and adjustment module is powered by the sensor, an ad-
ditional connection is not necessary.

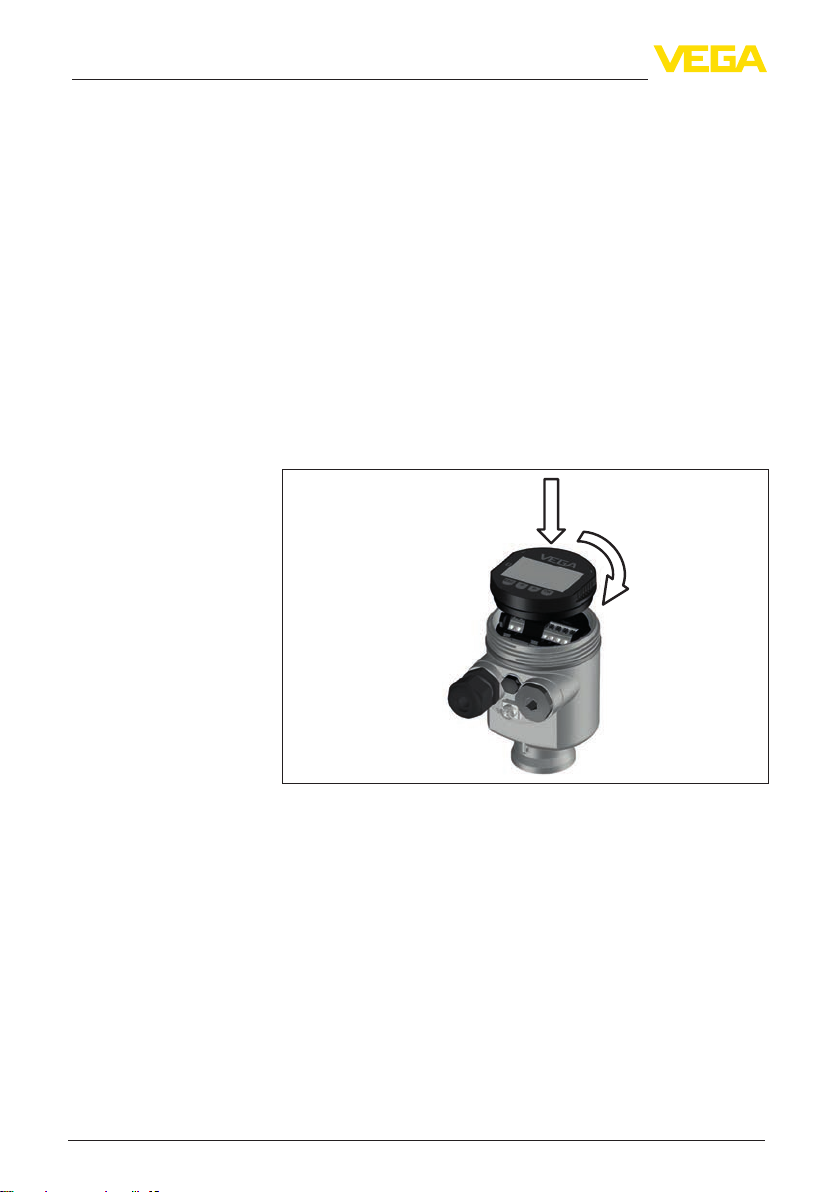

Fig. 6: Installing the display and adjustment module in the electronics compart-
ment of the single chamber housing

13
5 Set up with the display and adjustment module
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
1 2
Fig. 7: Installing the display and adjustment module in the double chamber
housing
1 In the electronics compartment
2 In the connection compartment
Note:
If you intend to retrot the instrument with a display and adjustment
module for continuous measured value indication, a higher lid with an
inspection glass is required.
5.2 Parameter adjustment
A parameter change with SIL qualied instruments must always be
carried out as follows:
• Unlock adjustment
• Change parameters
• Lock adjustment and verify modied parameters
This ensures that all modied parameters have been deliberately
changed.
Unlock adjustment
The instrument is shipped in locked condition.
To prevent unintentional or unauthorized adjustment, the instrument
is protected (locked) against all parameter changes while in normal
operating condition.
For each parameter change you have to enter the PIN of the instru-
ment. In delivery status, the PIN is "0000".
Change parameters
You can nd a description below the respective parameter.
Operating sequence

14
5 Set up with the display and adjustment module
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
Lock adjustment and verify modied parameters
You can nd a description below the parameter "Setup - Lock adjust-
ment".

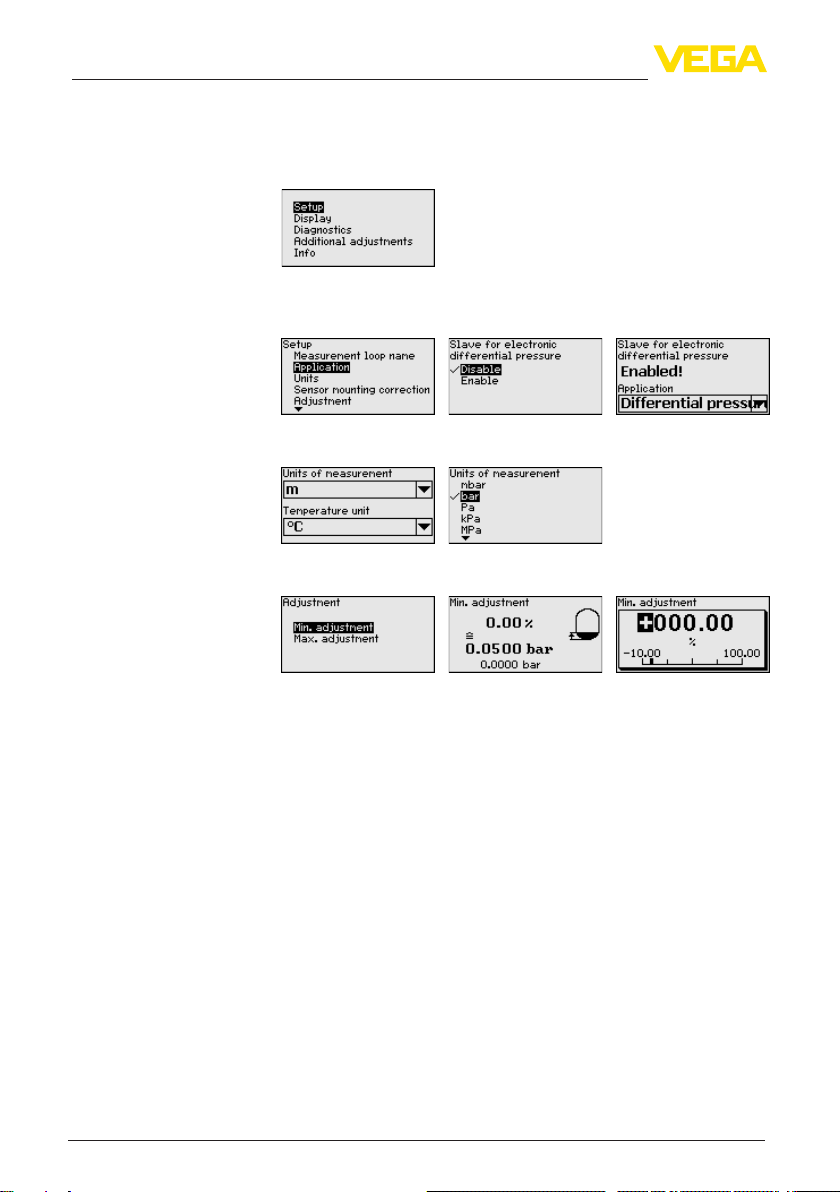

1. Go to the menu "Setup" via the display and adjustment module.
2. In this menu item you activate/deactivate the slave sensor for
electronic dierential pressure and select the application, e.g.
level
3. Select in the menu item "Units" the adjustment unit of the instru-
ment, e.g. "bar".
4. Depending on the application, carry out the adjustment e.g. in the
menu items "Min. adjustment" and "Max. adjustment".
VEGABAR 82 always measures pressure independently of the pro-
cess variable selected in the menu item "Application". To output the
selected process variable correctly, an allocation of the output signal
to 0 % and 100 % must be carried out (adjustment).
With the application "Level", the hydrostatic pressure, e.g. with full
and empty vessel, is entered for adjustment. A superimposed pres-
sure is detected by the slave sensor and automatically compensated.
See the following example:
Change setup parameters
Parameterization example

15
5 Set up with the display and adjustment module
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
2
1
100%
0%
5 m
(196.9
")
4
3
Fig. 8: Parameter adjustment example "Min./max. adjustment, level measure-
ment"
1 Min. level = 0 % corresponds to 0.0 mbar
2 Max. level = 100 % corresponds to 490.5 mbar
3 VEGABAR82
4 VEGABAR82,slavesensor
If these values are not known, an adjustment with lling levels of e.g.
10 % and 90 % is also possible. By means of these settings, the real
lling height is then calculated.
The real product level during the adjustment is not important, because
the min./max. adjustment is always carried out without changing the
product level. These settings can be made ahead of time without the
instrument having to be installed.
With this menu item you safeguard the sensor parameters against
unauthorized or unintentional modications.
To detect parameterization errors reliably, safety-relevant parameters
must be veried before saving them into the instrument.
1. Enter PIN
In delivery status, the PIN is "0000".
2. Character string comparison
You then have to carry out the character string comparison. This is
used to check the character presentation.
3. Serial number acknowledgement
Afterwards you conrm that the serial number of your instrument was
carried over correctly. This is used to check device communication.
4. Verify parameters
Conrm the modied values one after the other.
Setup - Lock adjustment

16
5 Set up with the display and adjustment module
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
If the described process of parameter adjustment was run through
completely and correctly, the instrument will be locked and hence
ready for operation.
5.3 Menu overview
Menu item Parameter Default setting
Measurement
loop name
Sensor
Application
(SIL)
Application Level
Slave for electronic dif-
ferential pressure
Deactivated
Units Unit of measurement mbar (with nominal measuring
range ≤ 400 mbar)
bar (with nominal measuring
ranges ≥ 1 bar)
Static pressure bar
Position cor-
rection (SIL)
0.00 bar
Adjustment
(SIL)
Distance (with density
and interface)
1.00 m
Zero/Min. adjustment 0.00 bar
0.00 %
Span/Max. adjustment Nominal measuring range in bar
100.00 %
Damping (SIL) Integration time 0.0 s
Linearization
(SIL)
Linear
Current output
(SIL)
Current output - Mode Output characteristics
4 … 20 mA
Reaction when malfunctions oc-
cur
≤ 3.6 mA
Current output - Min./
Max.
3.8 mA
20.5 mA
Lock adjust-
ment (SIL)
Last setting
Menu item Default setting
Menu language Order-specic
Displayed value 1 Current output in %
Setup
Display

17
5 Set up with the display and adjustment module
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
Menu item Default setting
Displayed value 2 Ceramic measuring cell: Measuring cell tempera-
ture in °C
Metallic measuring cell: Electronics temperature
in °C
Display format 1 and 2 Number of positions after the decimal point, auto-
matically
Backlight Switched on
Menu item Parameter Default setting
Sensor status -
Peak value Pressure Actual measured value
Temperature Actual temperature values from
measuring cell, electronics
Simulation -
Menu item Parameter Default setting
PIN 0000
Date/Time Actual date/Actual time
Copy instru-
ment settings
-
Special pa-
rameters
No reset
Scaling Scaling size Volume in l
Scaling format 0 % corresponds to 0 l
100 % corresponds to 0 l
Current output Current output - Meas.
variable
Lin. percent - Level
Current output - Adjust-
ment
0 … 100 % correspond to
4 … 20 mA
HART mode Address 0
DP ow ele-
ment
Unit m3/s
Adjustment 0.00 % correspond to 0.00 m3/s
100.00 %, 1 m3/s
Menu item Parameter
Device name VEGABAR 82
Instrument version Hardware and software version
Factory calibration
date
Date
Sensor characteristics Order-specic characteristics
Diagnostics
Additional adjustments
Info

18
6 Supplement
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
6 Supplement
6.1 Technical data
Note for approved instruments
The technical data in the respective safety instructions are valid for approved instruments (e.g. with
Ex approval). These data can dier from the data listed herein, for example regarding the process
conditions or the voltage supply.
Electromechanical data - version IP 66/IP 67 and IP 66/IP 68 (0.2 bar)2)
Options of the cable entry
ƲCable entry M20 x 1.5; ½ NPT
ƲCable gland M20 x 1.5, ½ NPT (cable ø see below table)
Ʋ Blind plug M20 x 1.5; ½ NPT
Ʋ Closing cap ½ NPT
Material cable gland/Seal insert Cable diameter
5 … 9 mm 6 … 12 mm 7 … 12 mm 10 … 14 mm
PA/NBR ● ● –●
Brass, nickel-plated/NBR ● ● – –
Stainless steel/NBR – – ●–
Wire cross-section (spring-loaded terminals)
Ʋ Massive wire, stranded wire 0.2 … 2.5 mm² (AWG 24 … 14)
ƲStranded wire with end sleeve 0.2 … 1.5 mm² (AWG 24 … 16)
Interface to the Master sensor
Data transmission Digital (I²C-Bus)
Connection cable Slave - Master, mechanical data
Ʋ Conguration Cores, strain relief, braided, metal foil, jacket
ƲStandard length 5 m (16.40 ft)
ƲMax. length 25 m (82.02 ft)
Ʋ Min. bending radius at 25 °C/77 °F 25 mm (0.985 in)
ƲDiameter approx. 8 mm (0.315 in), approx. 6 mm (0.236 in)
ƲMaterial PE, PUR
ƲColour Black
Connection cable Slave - Master, electrical data
ƲWire cross-section 0.34 mm² (AWG 22)
ƲWire resistance < 0.05 Ω/m (0.015 Ω/ft)
Voltage supply for the complete system through Master
Operating voltage
ƲUB min 12 V DC
2) IP 66/IP 68 (0.2 bar), only with absolute pressure.

19
6 Supplement
VEGABAR 82 • Slave sensor for electronic dierential pressure
48051-EN-190404
ƲUB min with lighting switched on 16 V DC
ƲUB max Depending on signal output and version of the master
sensor

Printing date:
VEGA Grieshaber KG
Am Hohenstein 113
77761 Schiltach
Germany
48051-EN-190404
All statements concerning scope of delivery, application, practical use and operat-
ing conditions of the sensors and processing systems correspond to the information
available at the time of printing.
Subject to change without prior notice
© VEGA Grieshaber KG, Schiltach/Germany 2019
Phone [phone]
Fax [phone]
E-mail: [email protected]
www.vega.com
