The Gateway is the simplest way to
connect computers to a high-speed
broadband connection.This easy-to-use
product is perfect for the home office or
small business. If you want to take your
computing to the next level, the Wireless
DSL Gateway is sure to be one of the keys
to your success.

Wireless DSL Gateway User Manual
10/16/08
7
© 2008 Verizon. All Rights Reserved.
1.1 System Requirements
The Gateway must be used with the following systems and software:
Actives DSL service
Computer with ans 10 Mbps or 10/100 Mbps Ethernet connection, or USB
connection
Microsoft Windows 98 Second Edition (SE), Millennium Edition (Me), NT 4.0,s
2000, XP,Vista Mac OS 7.1+, 8.0+, 9.0+, OS X+
Note: USB LAN port is not supported with Microsoft Windows NT 4.0, Windows
Vista 64-bit,or Mac OS.
Internet Explorer 4.0 or higher (5.x+ recommended) or Netscape Navigators
4.0 or higher (4.7+ recommended)
TCP/IP network protocol installed on each computers
1.2 Features
The Gateway features:
Plug-and-Play installation support for computers running Windows operatings
systems (98SE, Me, 2000, XP, and Vista)
ADSL WAN port (RJ-11)s
Full-rate ANSI T1.413 Issue 2, ITU G.992.1(G.dmt) and G.992.2(G.lite)s
standard compliance
Auto-handshake for different ADSL flavorss
USB 1.1 device specification compliances
12 Mbps USB data rate (full speed) supports
Bridged Ethernet over ATM, PPP over ATM,PPP over Ethernets
Precise ATM traffic shapings
IP packet routing and transparent bridges

Introduction
1.3 Important Safety Instructions
1
8
© 2008 Verizon. All Rights Reserved.
RIP-1, RIP-2, and static routing protocol supports
Built-in NAT, DHCP servers
DNS relay supports
PAP/CHAP authentication, administrative passwords through Telnets
64-, 128-, and 256-bit WEP/WPA wireless LAN securitys
IEEE 802.3 Ethernet standard compliances
10/100 Base-T Ethernet ports (4)s
Fast Ethernet flow control supports
Web-based configuration setups
FTP firmware upgradeables
Web download supports
802.11b/g supports
WPS supports
1.3 Important Safety Instructions
When using telephone equipment, basic safety precautions should always be
followed to reduce the risk of fire, electrical shock, and personal injury, including
the following:
Do not use this product near water – for example, near a bathtub, kitchens
sink, laundry tub, or swimming pool, or in a wet basement;
Avoid using a telephone (other than a cordless type) during an electricals
storm,as there may be a remote risk of electrical shock due to lightning;
Do not use the telephone to report a gas leak in the vicinity of the leak;s
Use only the power cord and batteries indicated in this manual;s
Do not dispose of batteries in fire, as they may explode – check with locals
codes for possible special disposal instructions.

Wireless DSL Gateway User Manual
10/16/08
9
© 2008 Verizon. All Rights Reserved.
1.3a Telephone Line Cord Caution
To reduce the risk of fire,use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed
or CSA Certified Telecommunication Line Cord.
1.4 Getting to Know the Gateway
This section contains a quick description of the Gateway’s lights, ports, etc.
The Gateway has several indicator lights (LEDs) and a button on its front panel,
and a series of ports and switches on its rear panel.
1.4a Front Panel
The front panel of the Gateway features nine lights: Power, DSL, Internet,
Ethernet (4), USB, and Wireless.
Power Light
The Power light displays the Gateway’s current status. If the Power light glows
steadily green, the Gateway is receiving power and fully operational.When the
Power light is rapidly flashing, the Gateway is initializing. If the Power light is
glows red when the Power cord is plugged in, the Gateway has suffered a critical
error and technical support should be contacted.
DSL Light
The DSL light illuminates when the Gateway is connected to a DSL line.

Introduction
1.4 Getting to Know the Gateway
1
10
© 2008 Verizon. All Rights Reserved.
Internet Light
When the Internet light glows steadily, the Gateway is connected to the DSL
provider.When it flashes, the Gateway’s built-in DSL modem is training for the
DSL service.
Ethernet Lights
The Ethernet lights illuminate when the Gateway is connected to one or more of
its yellow Ethernet ports.
USB Light
The USB light illuminates when the Gateway is connected via its USB port.
Wireless Light
The Wireless light illuminates when the Gateway is connected wirelessly (if the
Gateway’s Wireless feature is turned on).
WPS Button
The WPS button activates WPS (WiFi Protected Setup) on the Gateway. See
chapter 4,“Configuring Wireless Settings,”for more information about WPS.

Wireless DSL Gateway User Manual
10/16/08
11
© 2008 Verizon. All Rights Reserved.

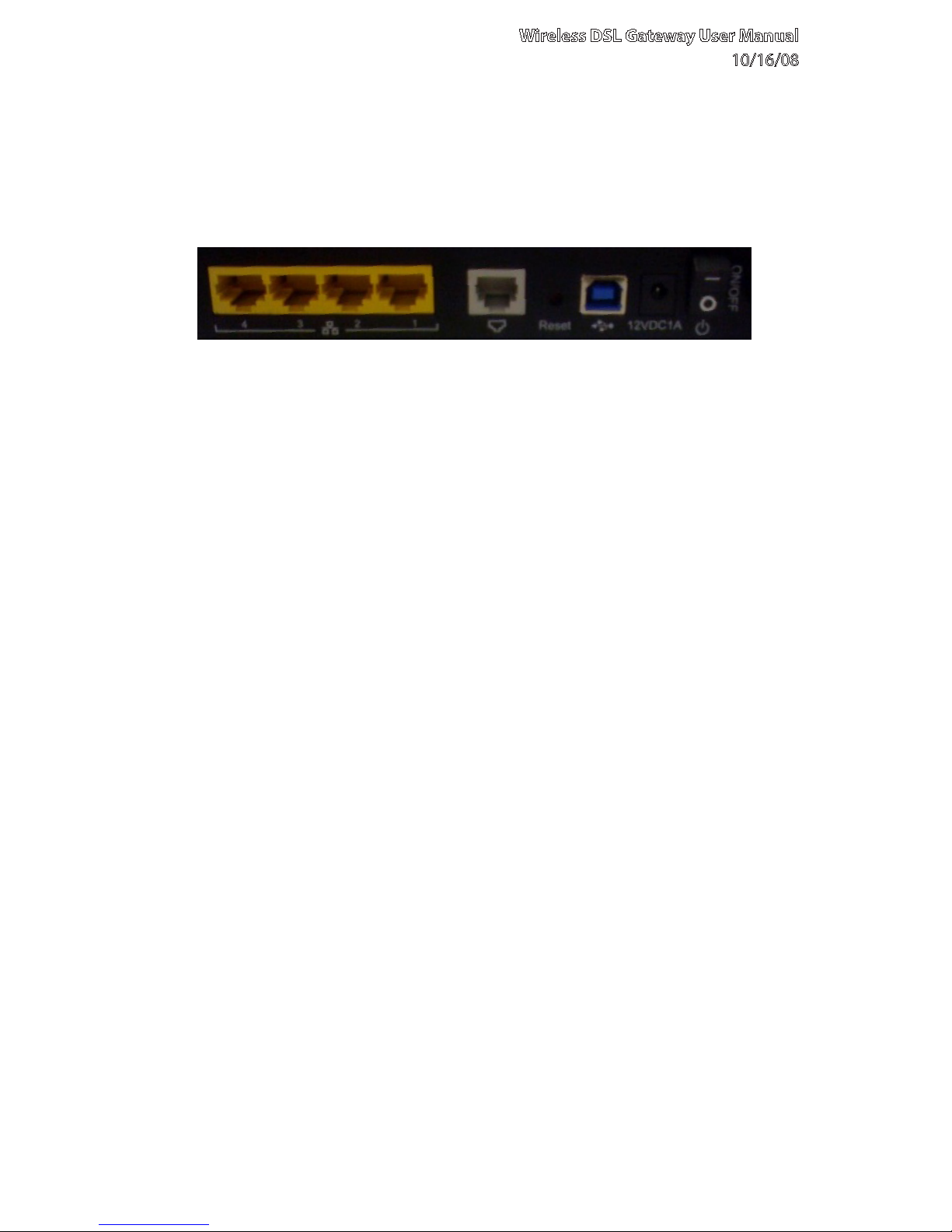

1.4b Rear Panel
The rear panel of the Gateway contains seven ports (Ethernet [4], Phone, USB,
and Power), as well as Reset and Power switches.
Ethernet Ports
The Ethernet ports are used to connect computers to the Gateway via Ethernet
cable.The Ethernet ports are 10/100 Mbps auto-sensing ports,and either a straight-
through or crossover Ethernet cable can be used when connecting to the ports.
DSL Port
The DSL port is used to connect the Gateway to a DSL (Digital Subcriber Line)
connection.
Reset Switch
Depressing the Reset switch for one second will restore the Gateway’s factory
default settings.To reset the Gateway, depress and hold the Reset switch for
approximately ten seconds.The reset process will start after releasing the switch.
USB Port
The USB port is used to connect a computer to the Gateway via USB cable.

Introduction
1.4 Getting to Know the Gateway
1
12
© 2008 Verizon. All Rights Reserved.
Power Port
The Power port is used to connect the Power cord to the Gateway.
Warning: Do not unplug the Power cord from the Gateway during the reset
process. Doing so may result in permanent damage to the Gateway.
Power Switch
The Power switch is used to power the Gateway on and off.

13
© 2008 Verizon. All Rights Reserved.
2
Performing a
Quick Setup
2.0 Introduction
2.1 Accessing Quick Setup
Screens
2.2 Changing the Password

14
© 2008 Verizon. All Rights Reserved.
This chapter is a guide through a quick
set up of the Gateway, including how
to connect the Gateway to the ISP and
changing the Gateway’s password.

Wireless DSL Gateway User Manual
10/16/08
15
© 2008 Verizon. All Rights Reserved.
2.1 Accessing Quick Setup Screens
To complete the quick setup, have the Welcome Letter or ISP Worksheet handy. If
the document is not available, contact the ISP immediately.

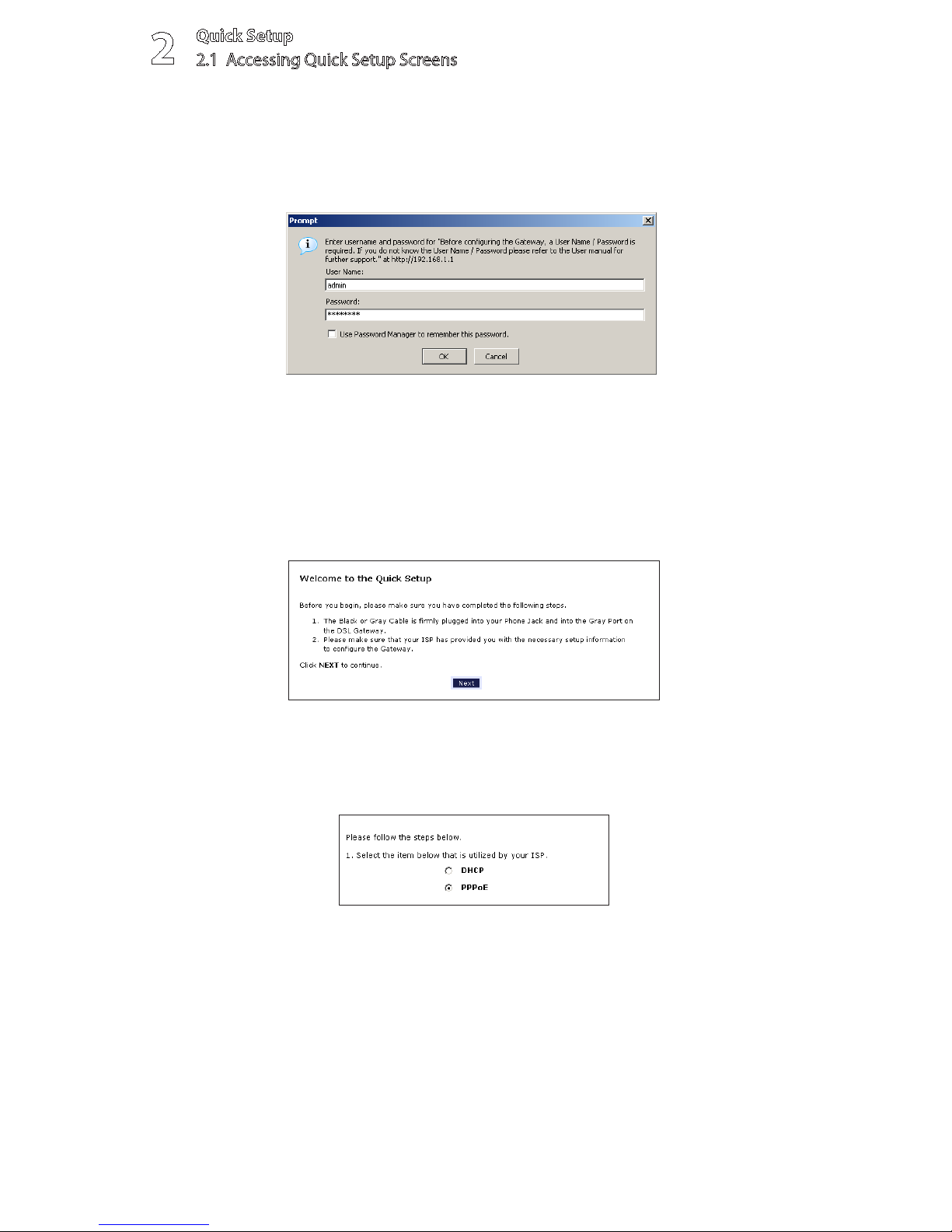

To access the Quick Setup screens:
Open a Web browser. In the“Address”text box, type:1.
http://192.168.1.1
then press Enter on the keyboard.
The“Home”screen appears. Click2. Quick Setup.

Quick Setup
2.1 Accessing Quick Setup Screens
2
16
© 2008 Verizon. All Rights Reserved.
A login window appears. Enter the user name and password in the3.
appropriate text boxes, then click OK.
Note:The default user name is“admin.”The default password is“password.”
Follow the instructions in the“Welcome to the Quick Setup”screen, then4.
click Next.
At the top of the next window, select5. PPPoE or DHCP.

Wireless DSL Gateway User Manual
10/16/08
17
© 2008 Verizon. All Rights Reserved.
If PPPoE was selected in step 5, the default user name and password are6.
entered in the appropriate text boxes.If“DHCP”was selected, go to step 8.
If PPPoE was selected in step 5, select the IP type (“Dynamic IP-DHCP7.
[Default]”or“Single Static IP Address”). If Single Static IP Address was
selected, enter the address in the appropriate text box.
Optional8. - Select the DNS type (“Dynamic DNS Addresses [Default]”or
“Static DNS Addresses”). If Static DNS Addresses was selected, enter the
primary and secondary DNS addresses in the appropriate text boxes. If
unsure what to enter in this section, contact the ISP.
Click9. Apply at the bottom of the screen.

Quick Setup
2.2 Changing the Password
2
18
© 2008 Verizon. All Rights Reserved.
Read the instructions on the next screen.The Gateway is successfully10.
configured.
The Power light flashes rapidly while the Gateway restarts, then glows steadily
green when fully operational.The Internet light will also glow steadily green.The
Gateway is now configured and users can start surfing the Internet.
If an error appears, stating the Web browser was unable to connect to the
Internet, check the configuration settings. Ensure all the information required by
the ISP is entered correctly.

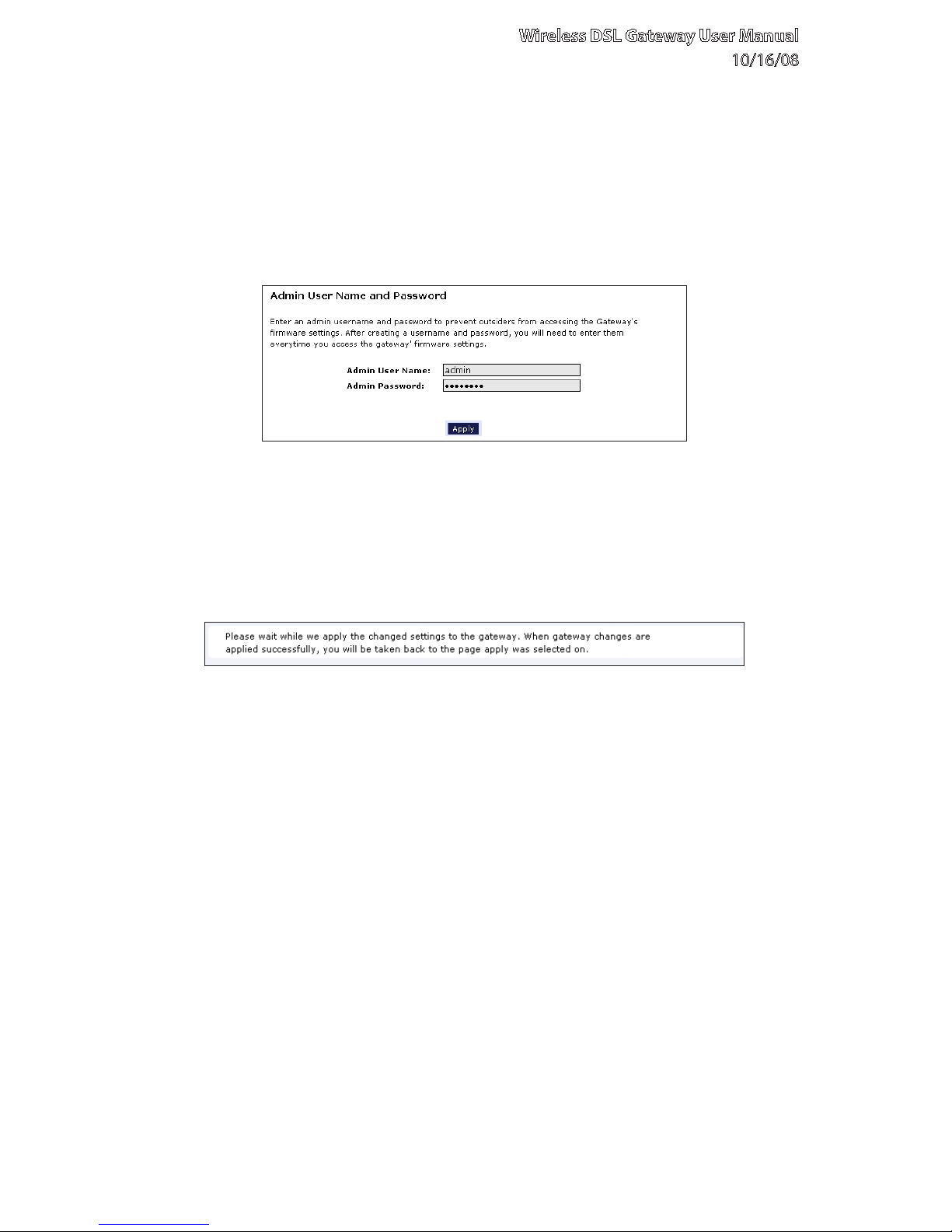

2.2 Changing the Password
To create or change the password allowing access to the Gateway’s Web
Configuration screens, follow these instructions:
From the“Home”screen, select1. Security.
The“Security” screen appears. Select2. Admin User Name and Password.

Wireless DSL Gateway User Manual
10/16/08
19
© 2008 Verizon. All Rights Reserved.
The“Change Admin Username/Password”screen appears. Enter a new3.
Username in the“Admin User Name”text boxt, then enter a new password in
the“Admin Password”text box. Make sure to write down the user name and
password and keep it in a secure location.They will be needed to access the
Gateway’s Web Configuration screens in the future.
Click4. Apply at the bottom of the screen.
Read the instructions on the next screen.The user name and password are5.
successfully changed.
Once the Gateway has rebooted, the new user name and password are active.
To access the Gateway’s Web Configuration screens, the new user name and
password must be entered.
