Verizon GT784WNV User manual

© 2012 Verizon. All Rights Reserved.
Wireless
DSL
Gateway
GT784WNV
User Manual

Contents
Wireless DSL Gateway User Manual
1
Introduction
1.0 Introduction
1.1 System Requirements
1.2 Features
1.3 Important Safety Instructions
1.4 Getting to Know the Gateway
2
Quick Setup
2.0 Introduction
2.1 Performing a Quick Setup
2.2 Home Screen
3
Status
3.0 Introduction
3.1 Accessing the Status Screens
3.2 Status Screens
4
Wireless Networking
4.0 Introduction
4.1 Overview
4.2 Accessing the Wireless Setup Screens
4.3 Connecting a Wireless Client
4.4 Basic Wireless Setup
4.5 Wireless Setup Screens

Contents
Wireless DSL Gateway User Manual (con’t)
5
Utilities
5.0 Introduction
5.1 Accessing the Utilities Screens
5.2 Utilities Screens
6
Advanced Settings
6.0 Introduction
6.1 Accessing the Advanced Settings Screens
6.2 Advanced Screens
6.3 Blocking and Filtering
6.4 DSL Settings
6.5 IP Addressing
6.6 QoS Settings
6.7 Remote
6.8 Routing
6.9 Security
A
Parental Controls
A.0 Introduction
A.1 General
A.2 Wireless Operation
A.3 LED Indicators
A.4 Environmental

Contents
Wireless DSL Gateway User Manual (con’t)
B
Computer Security
B.0 Introduction
B.1 Overview
B.2 Comparing DSL Service with
a Dial-Up Modem
B.3 Gateway Security
B.4 Computer Security
B.5 Electronic Security
C
Glossary
C.0 Introduction
C.1 Glossary
B.3 Gateway SecurityB.3 Gateway Security

5
© 2012 Verizon. All Rights Reserved.
1
Introduction
1.0 Introduction
1.1 System Requirements
1.2 Features
1.3 Important Safety
Instructions
1.4 Getting to Know the
Gateway

6
© 2012 Verizon. All Rights Reserved.
The Gateway is the simplest way to
connect computers to a high-speed
broadband connection. This easy-to-use
product is perfect for the home oce or
small business. If you want to take your
networking to the next level, the Wireless
DSL Gateway is sure to be one of the keys
to your success.

Wireless DSL Gateway User Manual
7
© 2012 Verizon. All Rights Reserved.
1.1 System Requirements
The Gateway must be used with the following systems and software:
Active• DSL service
Computer with an• 10 Mbps or 10/100 Mbps Ethernet connection
Microsoft Windows XP, Vista, and 7; Mac OS OS• X+
Modern web browser•
TCP/IP network protocol installed on each computer•
1.2 Features
The Gateway features:
Plug-and-Play installation support for computers running Windows•
operating systems (XP, Vista, and 7)
ADSL WAN port (RJ-14)•
Full-rate ANSI T1.413 Issue 2, ITU G.992.1(G.dmt) and G.992.2(G.lite)•
standard compliance
Auto-handshake for different ADSL flavors•
12 Mbps USB data rate (full speed) support•
Bridged Ethernet over ATM, PPP over ATM, PPP over Ethernet, Static IP•
mode
Precise ATM traffic shaping•
IP packet routing and transparent bridge•
RIP-1, RIP-2, and static routing protocol support•
Built-in NAT, DHCP server•
DNS relay support•

Introduction
1.3 Important Safety Instructions
1
8
© 2012 Verizon. All Rights Reserved.
PAP/CHAP authentication, administrative passwords through Telnet•
64- and 128-bit, WEP/WPA/WPA2 wireless LAN security•
IEEE 802.3 Ethernet standard compliance•
10/100 Base-T Ethernet ports (4)•
Fast Ethernet flow control support•
Web-based configuration setup•
Firmware upgradeable•
Web download support•
802.11b/g/n support•
WPS support•
1.3 Important Safety Instructions
When using telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electrical shock, and personal injury,
including
the following:
Do not use this product near water – for example, near a bathtub, kitchen•
sink, laundry tub, or swimming pool, or in a wet basement;
Avoid using a telephone (other than a cordless type) during an electrical•
storm, as there may be a remote risk of electrical shock due to lightning;
Do not use the telephone to report a gas leak in the vicinity of the leak;•
Use only the power cord and batteries indicated in this manual;•
Do not dispose of batteries in fire, as they may explode – check with local•
codes for possible special disposal instructions.

Wireless DSL Gateway User Manual
9
© 2012 Verizon. All Rights Reserved.
1.3a Telephone Line Cord Caution
To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL
Listed or CSA Certified Telecommunication Line Cord.
1.4 Getting to Know the Gateway
This section contains a quick description of the Gateway’s LEDs, ports, etc.
The Gateway has several indicator LEDs and a button on its front panel, and a
series of ports and switches on its rear panel.
1.4a Front Panel
The front panel of the Gateway features eight indicator LEDs: Power, DSL,
Internet, Ethernet (4), and Wireless. It also features the WPS button.
DSL
Power
Internet
Wireless
WPS
Ethernet
1
2
3
4

Introduction
1.4 Getting to Know the Gateway
1
10
© 2012 Verizon. All Rights Reserved.
Power LED
The Power LED displays the Gateway’s current status. If the Power light
glows steadily green, the Gateway is receiving power and fully operational.
When the Power light is rapidly flashing, the Gateway is initializing. If the
Power light is glows red when the Power cord is plugged in, the Gateway has
suffered a critical error and technical support should be contacted.
DSL LED
The DSL LED illuminates when the Gateway is connected to a DSL line.
Internet LED
When the Internet LED glows steadily, the Gateway is connected to the DSL
provider. When it flashes, Internet traffic is moving through the Gateway.
Ethernet LEDs
The Ethernet LEDs illuminate when the Gateway is connected to one or more
of its yellow Ethernet ports.
Wireless Light
The Wireless light illuminates when the Gateway is connected wirelessly (if
the Gateway’s Wireless feature is turned on).
WPS Button
The WPS button activates WPS (WiFi Protected Setup) on the Gateway. See
chapter 4, “Configuring Wireless Settings,” for more information about WPS.

Wireless DSL Gateway User Manual
11
© 2012 Verizon. All Rights Reserved.
1.4b Rear Panel
The rear panel of the Gateway contains six ports (Ethernet [4], Phone, and Power
[12VDC1A]), as well as Reset and Power switches.
12VDC1A
Reset
On
Off
1
2
3
4
USB
Phone Port
The Phone port is used to connect the Gateway to a DSL (Digital Subcriber Line)
connection.
Ethernet Ports
The Ethernet ports are used to connect computers to the Gateway via Ethernet
cable. The Ethernet ports are 10/100 Mbps auto-sensing ports, and either a straight-
through or crossover Ethernet cable can be used when connecting to the ports.
Reset Switch
Depressing the Reset switch for one second will restore the Gateway’s factory
default settings. To reset the Gateway, depress and hold the Reset switch for
approximately ten seconds. The reset process will start after releasing the
switch.

Introduction
1.4 Getting to Know the Gateway
1
12
© 2012 Verizon. All Rights Reserved.
Power Port
The Power port is used to connect the Power cord to the Gateway.
Warning: Do not unplug the Power cord from the Gateway during the reset
process. Doing so may result in permanent damage to the Gateway.
Power Switch
The Power switch is used to power the Gateway on and off.

13
© 2012 Verizon. All Rights Reserved.
2
Quick Setup
2.0 Introduction
2.1 Performing a Quick
Setup
2.2 Home Screen

14
© 2012 Verizon. All Rights Reserved.

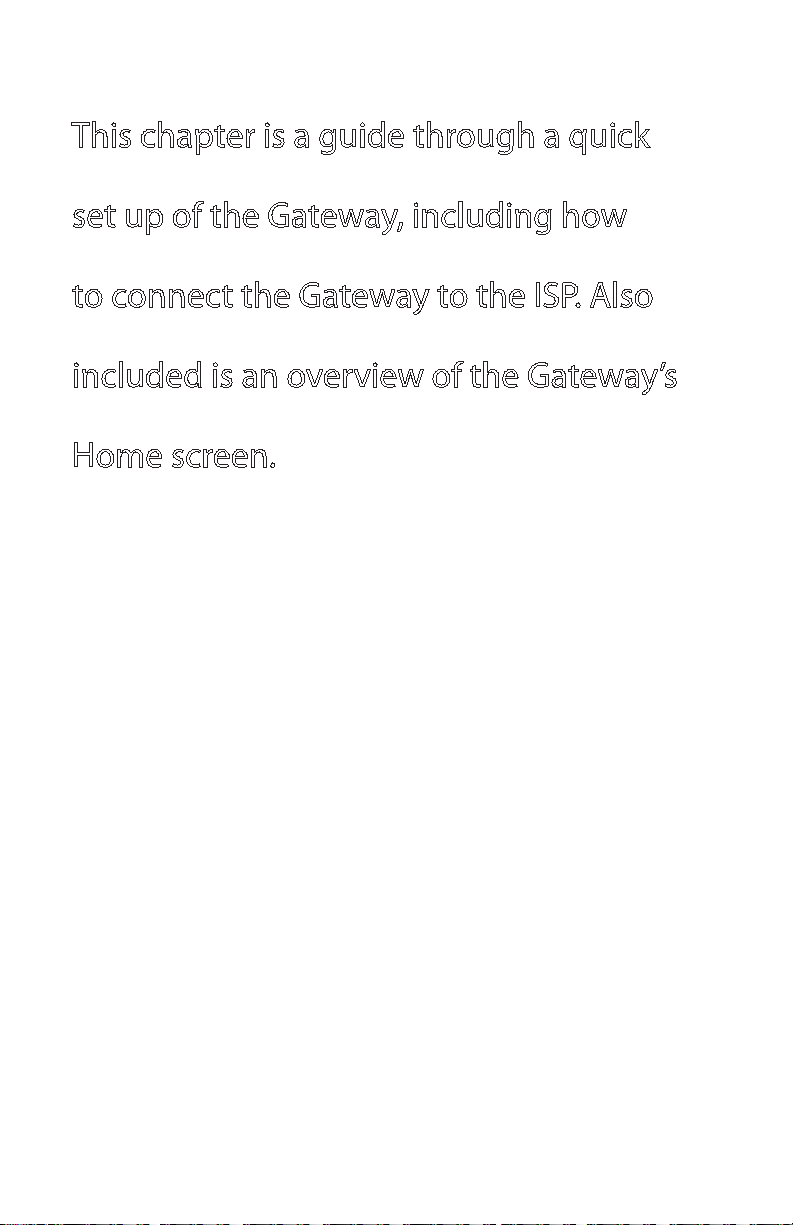

This chapter is a guide through a quick
set up of the Gateway, including how
to connect the Gateway to the ISP. Also
included is an overview of the Gateway’s
Home screen.

Wireless DSL Gateway User Manual
03/16/12
15
© 2012 Verizon. All Rights Reserved.
2.1 Performing a Quick Setup
To perform a quick setup on the Gateway, have the Welcome Letter or ISP
Worksheet handy. If the document is not available, contact the ISP immediately.
To access Quick Setup screens:
Open a Web browser. In the “Address” text box, type:1.
http://192.168.1.1
then press Enter on the keyboard.
The “LogIn” screen appears. Enter a password in both the “New Password”2.
and “Re-type New Password”text boxes. Make sure to write the password
down on a piece of paper and keep it in a safe place for future reference, as
you will need it to access the Gateway’s firmware graphical user interface
(GUI).

Quick Setup
2.1 Performing a Quick Setup
2
16
© 2012 Verizon. All Rights Reserved.
Select your local time zone from the“Time Zone”drop-down list.3.
Click4. Apply.
After the changes are applied, the Gateway’s Home screen appears. Select5.
Quick Setup from the row of button above the red bar.

Wireless DSL Gateway User Manual
03/16/12
17
© 2012 Verizon. All Rights Reserved.
The first “Quick Setup” screen appears. Read the onscreen instructions, and if6.
you have performed all of the requirements, click Next.

Quick Setup
2.1 Performing a Quick Setup
2
18
© 2012 Verizon. All Rights Reserved.
The second Quick Setup screen appears. Select the network protocol used7.
by your ISP. If you select PPPoE, you must enter the user name and password
assigned to you by your ISP in the appropriate text boxes.
Click8. Apply.
The Gateway will reboot. After it does, you will be returned to the Home Screen.

Wireless DSL Gateway User Manual
03/16/12
19
© 2012 Verizon. All Rights Reserved.
2.2 Home Screen
The Gateway’s firmware GUI Home screen is the first screen you will normally
see after entering the user name and password. This section provides an
overview of the Home screen’s options.
2.2.1 Main Menu
At the top of the screen is the main menu, which contains the important
configuration options accessible from the Home screen. Status (see chapter
3) contains information regarding the Gateway’s connections and other vital
statistics; Quick Setup (earlier in this chapter) includes a fast and simple
procedure to connect to your ISP; Wireless Setup (chapter 4) allows you
to modify the Gateway’s wireless settings and perform other wireless tasks;
Utilities (chapter 5) contains such items as Reboot, System Log, and Ping
Test; and Advanced Setup (chapter 6) allows you to make highly technical
changes to the Gateway (we recommend that you only make changes to the
Advanced Setup settings only if requested to do so by your ISP, or if you are an
experienced networking technician).

Quick Setup
2.2 Home Screen
2
20
© 2012 Verizon. All Rights Reserved.
2.2.2 Internet Services
Internet Services is a list of links that will take you to various entertaining or
helpful Verizon web sites, including our home page, Verizon Surround, and
Verizon Business Center.
2.2.3 Home Network Map
The Home Network Map provides a graphical representation of the Gateway’s
network, both wired and wireless. Any clients connected to the Gateway will be
shown, as well as the state of the Gateway’s Internet connection, and the state
of the Gateway’s firewall.
