Vertiv Cybex SC KM 120 Installation and maintenance instructions

Cybex™ SC Switching System
Installer/User Guide

Vertiv™ | Cybex™ SC Switching System Installer/User Guide
Technical Support Site
If you encounter any installation or operational issues with your product, check the pertinent
section of this manual to see if the issue can be resolved by following outlined procedures.
Visit https://www.VertivCo.com/en-us/support/ for additional assistance.
The information contained in this document is subject to change without notice and
may not be suitable for all applications. While every precaution has been taken to
ensure the accuracy and completeness of this document, Vertiv assumes no
responsibility and disclaims all liability for damages resulting from use of this
information or for any errors or omissions. Refer to other local practices or building
codes as applicable for the correct methods, tools, and materials to be used in
performing procedures not specifically described in this document.
The products covered by this instruction manual are manufactured and/or sold by
Vertiv. This document is the property of Vertiv and contains confidential and
proprietary information owned by Vertiv. Any copying, use or disclosure of it without
the written permission of Vertiv is strictly prohibited.
Names of companies and products are trademarks or registered trademarks of the
respective companies. Any questions regarding usage of trademark names should
be directed to the original manufacturer.

TABLE OF CONTENTS
1 Product Overview 1
1.1 Features and Benefits 2
2 Basic Operation 3
2.0.1 Factory reset 3
2.1 Switch Overview 3
2.1.1 Switching between computers 14
2.1.2 Dedicated Peripheral Port (DPP) 15
2.1.3 KM multi-monitor support 15
2.2 Keyboard and Mouse Settings 18
2.2.1 Keyboard settings 18
2.2.2 Mouse settings 19
2.2.3 Filtered USB port (fUSB) 19
2.2.4 Interchangeable KVM to KM functionality 19
2.3 Keyboard Shortcuts 19
2.4 KM Configuration 22
2.4.1 Creating a KM configuration file 23
2.4.2 Loading a KM configuration file 29
3 Troubleshooting 31
3.1 General 31
3.2 KM Configuration File 31
3.3 Video 33
3.4 Keyboard 34
3.5 Mouse 35
3.6 DPP 36
4 Appendices 37
Appendix A: Technical Specifications 37
i

Vertiv™ | Cybex™ SC Switching System Installer/User Guide
ii
This page intentionally left blank

1 PRODUCT OVERVIEW
Cybex™ SC switches are field-proven, secure, KVM and KM switching solutions with special support for
government agencies. This switching system allows users to switch safely between computers operating
at different classification levels from a single set of peripherals, providing continuous access to critical
data. With multiple security features, the secure design prevents the transfer of data between the
connected computers, ensuring data security is not compromised.
WARNING! This product is equipped with active intrusion protection and tamper-evident seals.
Tampering with the switch or breaking/removing the seals will permanently disable it and void
the warranty. If the enclosure appears to have been tampered with or if all the port LEDs flash
continuously, please contact Technical Support.
The appliances covered in this manual include:
KM Models:
•Cybex™ SC KM 120 Secure 2-Port KM Switch
•Cybex™ SC KM 140/145 Secure 4-Port KM Switches
KVM Models:
•Cybex™ SC 820D/920D Secure 2-Port DisplayPort to HDMI KVM Switches
•Cybex™ SC 820H/920H Secure 2-Port HDMI KVM Switches
•Cybex™ SC 820DP/920DP Secure 2-Port DisplayPort KVM Switches

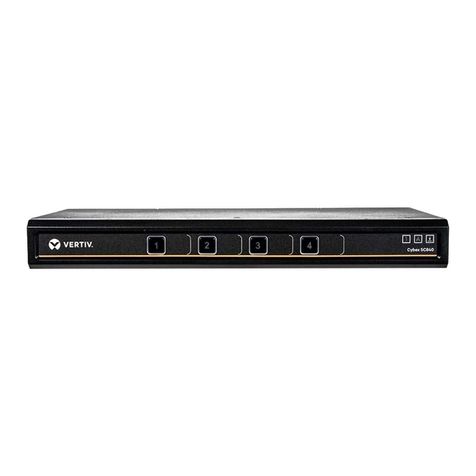

•Cybex™ SC 840/845/940/945 Secure 4-Port DVI-I KVM Switches

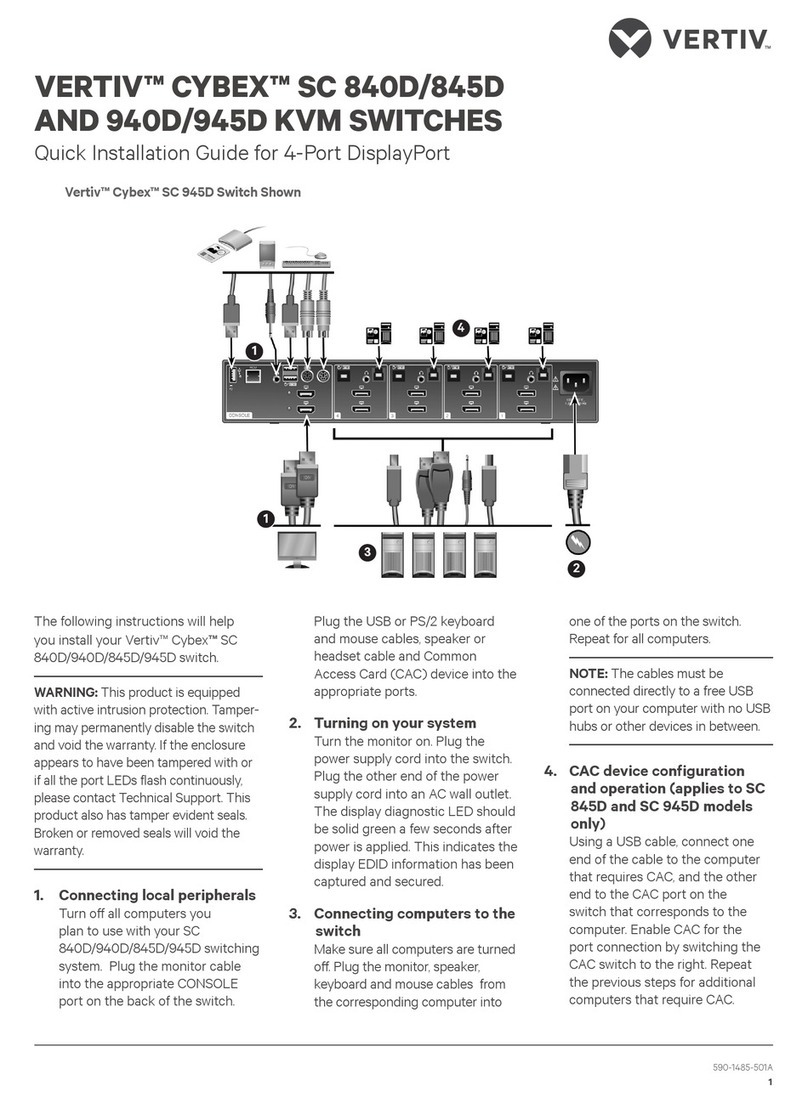

•Cybex™ SC 840D/845D/940D/945D Secure 4-Port DisplayPort to HDMI KVM Switches

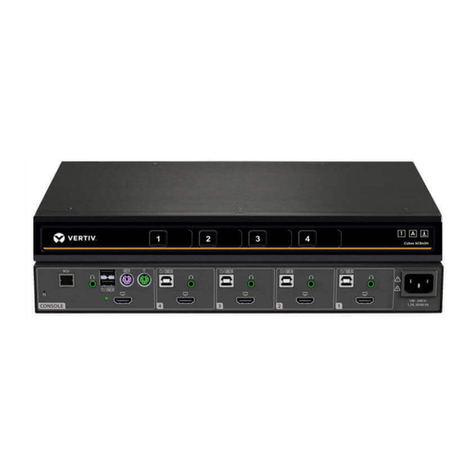

•Cybex™ SC 840H/845H/940H/945H Secure 4-Port HDMI KVM Switches
•Cybex™ SC 840DP/845DP/940DP/945DP Secure 4-port DisplayPort KVM Switches
•Cybex™ SC 920XD Secure 2-Port Mixed HDMI, DisplayPort and DVI-I KVM Dual Head KVM
Switch
•Cybex™ SC 945XD Secure 4-Port Mixed HDMI, DisplayPort and DVI-I KVM Dual Head KVM
Switch
•Cybex™ SC 885DP/985DP Secure 8-port DisplayPort KVM Switches
•Cybex™ SC 820/920 Secure 2-Port DVI-I KVM Switches
•Cybex™ SC 885/985 Secure 8-port DVI-I KVM Switches
•Cybex™ SC 920XP Secure 2-Port Mixed DisplayPort and DVI-I KVM Dual Head KVM Switch
•Cybex™ SC 945XP Secure 4-Port Mixed DisplayPort and DVI-I KVM Dual Head KVM Switch
1

1.1 Features and Benefits
The SC switching system offers the following options, depending on the model:
•Support for HDMI, DVI-I, VGAand/or DisplayPort video
•Support for Common Access Card (CAC), USB biometric device and USB authentication token
•Certification to Evaluation Assurance Level (EAL) 4+
•Support for USB and PS/2 keyboard and mouse
NOTE: Supports most keyboards and mice. For more information, contact Technical Support.
The SC switching system is also designed to provide additional layers of security, preventing unintended
data leaks between computers and providing additional USB port protection.
FEATURE DESCRIPTION
Complete
network
segmentation
Data flow is controlled and insulated from peripheral devices using optical data diodes. EDID emulators and
internal firewalls protect shared displays and prevent external memory leaks.
Protection from
shared
resources
The switches are designed to securely operate, even when peripheraldevices are vulnerable to signaling attacks.
They do not allow computer access to any shared resource and do not share controllable power sources.
Non-
reprogrammable
firmware
Custom firmware is not reprogrammable preventing the ability to remotely attack switch controllers.
Audio
protection Microphone switching is not supported to prevent data leaks through audio ports.
CONSOLE USB
port protection
CONSOLE USB ports protect from the use of unsafe USBstorage devices. Unqualified devices are rejected when
connected through the switch even though keyboard and mouse data is passed through.
Table 1.1 Security and Protection Features
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
2

2 BASIC OPERATION
Although installation of your SC switching system is complete, ensure you have one of the following
compatible operating systems:
•Microsoft® Windows®
•Red Hat®, Ubuntu® or any other Linux® platform
•Mac OS® X version 10.3 or higher
The switches are compatible with stereo headphones and amplified stereo speakers.
NOTE: Do not connect a microphone device to the switch's audio output port. Opt to use headset
devices that do not include microphone capabilities.
Wireless devices and non-standard keyboards with integrated USB hubs and other USB-integrated
devices are not fully supported for security reasons.
2.0.1 Factory reset
A factory reset clears the device settings and restores the device to its original configuration.
To factory reset:
Type Ctrl +Ctrl +F11 +R
2.1 Switch Overview
The following figures and tables show the controls and connectors on the front panel and connectors on
the back of the switching systems covered in this manual.
NOTE: The SC 800 series models are single-head devices. They have identical ports, except for the
number of ports on the device. The SC 900 series models are dual-head devices.
3

Figure 2.1 SC KM120 Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 8 PC keyboard/mouse USB Type-B port
2 Channel label 9 PC ports
3 PCport selectors 10 CONSOLE mouse USB Type-A port
4 Num lock indicator 11 CONSOLE keyboard USB Type-A port
5 Caps lock indicator 12 CONSOLE reset button
6 Scroll lock indicator 13 CONSOLE audio jack (3.5 mm stereo)
7 PC audio jack (3.5 mm stereo) 14 DC Power Inlet
Table 2.1 SC KM120 Switch Description
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
4

Figure 2.2 SC KM145 Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED DPP channel indicator 11 PC audio jack (3.5 mm stereo)
2 LED channel selector 12 PC keyboard/mouse USB Type-B port
3 Channel label 13 PC ports
4 PCport selectors 14 CONSOLE mouse PS/2 mini-DIN 6-pin port
5 DPP freeze button 15 CONSOLE keyboard PS/2 mini-DIN 6-pin port
6 Num lock indicator 16 CONSOLE keyboard/mouse USB Type-A port
7 Caps lock indicator 17 CONSOLE audio jack (3.5 mm stereo)
8 Scroll lock indicator 18 CONSOLE DPP LED connection indicator
9 AC power inlet 19 CONSOLE system reset
10 DPP USB Type-B port 20 CONSOLE DPP USB Type-A port
Table 2.2 SC KM145 Switch Description
2 Basic Operation 5

Figure 2.3 SC 920 DVI-I KVMSwitch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 9 PC ports
2 Channel label 10 CONSOLE mouse USB Type-A port
3 Num lock indicator 11 CONSOLE DVI-I video ports
4 Caps lock indicator 12 CONSOLE keyboard USB Type-A port
5 Scroll lock indicator 13 Status LEDs
6 PC audio jack (3.5 mm stereo) 14 CONSOLE audio jack (3.5 mm stereo)
7 PC DVI-I video ports 15 DCpower inlet
8 PC keyboard/mouse USB Type-B port
Table 2.3 SC 920 DVI-I KVM Switch Description
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
6

Figure 2.4 SC 940 DVI-I KVMSwitch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 10 CONSOLE DVI-I video ports
2 Channel label 11 Status LEDs
3 PC port selectors 12 CONSOLERemote Control Unit (RCU) port
4 Num lock indicator 13 CONSOLE audio jack (3.5 mm stereo)
5 Caps lock indicator 14 CONSOLE keyboard/mouse USB Type-A port
6 Scroll lock indicator 15 CONSOLE keyboard PS/2 mini-DIN 6-pin port
7 AC power inlet 16 CONSOLE mouse PS/2 mini-DIN 6-pin port
8 PC ports 17 PC keyboard/mouse USB Type-B port
9 PC DVI-I video ports 18 PC audio jack (3.5 mm stereo)
Table 2.4 SC 940 DVI-I KVM Switch Description
2 Basic Operation 7

Figure 2.5 SC 940D KVM Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 10 CONSOLE HDMI video ports
2 Channel label 11 Status LEDs
3 PC port selectors 12 CONSOLE Remote Control Unit (RCU) port
4 Num lock indicator 13 CONSOLE audio jack (3.5 mm stereo)
5 Caps lock indicator 14 CONSOLE keyboard/mouse USB Type-A port
6 Scroll lock indicator 15 CONSOLE keyboard PS/2 mini-DIN 6-pin port
7 AC power inlet 16 CONSOLE mouse PS/2 mini-DIN 6-pin port
8 PC ports 17 PC keyboard/mouse USB Type-B port
9 PC DisplayPort video ports 18 PC audio jack (3.5 mm stereo)
Table 2.5 SC 940D KVM Switch Description
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
8

Figure 2.6 SC 940H KVM Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 10 CONSOLE HDMI video ports
2 Channel label 11 Status LEDs
3 PC port selectors 12 CONSOLERemote Control Unit (RCU) port
4 Num lock indicator 13 CONSOLE audio jack (3.5 mm stereo)
5 Caps lock indicator 14 CONSOLE keyboard/mouse USB Type-A port
6 Scroll lock indicator 15 CONSOLE keyboard PS/2 mini-DIN 6-pin port
7 AC power inlet 16 CONSOLE mouse PS/2 mini-DIN 6-pin port
8 PC ports 17 PC keyboard/mouse USB Type-B port
9 PC HDMI video ports 18 PC audio jack (3.5 mm stereo)
Table 2.6 SC 940H KVM Switch Description
2 Basic Operation 9

Figure 2.7 SC 920DP KVM Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 9 PC ports
2 Channel label 10 CONSOLE mouse USB Type-A port
3 Num lock indicator 11 CONSOLE DisplayPort video ports
4 Caps lock indicator 12 CONSOLE keyboard USB Type-A port
5 Scroll lock indicator 13 Status LEDs
6 PC audio jack (3.5 mm stereo) 14 CONSOLE audio jack (3.5 mm stereo)
7 PC DisplayPort video ports 15 DC power inlet
8 PC keyboard/mouse USB Type-B port
Table 2.7 SC 920DP KVM Switch Description
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
10

Figure 2.8 SC 920XD KVM Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 10 PC ports
2 Channel label 11 CONSOLE mouse USB Type-A port
3 Num lock indicator 12 CONSOLE HDMI video port
4 Caps lock indicator 13 CONSOLE DVI-I video port
5 Scroll lock indicator 14 CONSOLE keyboard USB Type-A port
6 PC audio jack (3.5 mm stereo) 15 Status LEDs
7 PC DisplayPort video port 16 CONSOLE audio jack (3.5 mm stereo)
8 PC DVI-I video port 17 DC power inlet
8 PC keyboard/mouse USB Type-B port
Table 2.8 SC 920XD KVM Switch Description
2 Basic Operation 11

Figure 2.9 SC 945XD KVM Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED DPP channel indicator 14 CONSOLE DVI-I video port
2 LED channel selector 15 Status LEDs
3 Channel label 16 CONSOLE DPP USB Type-A port
4 PCport selectors 17 CONSOLE DPP LED connection indicator
5 DPP freeze button 18 CONSOLE Remote Control Unit (RCU) port
6 Num lock indicator 19 CONSOLE audio jack (3.5 mm stereo)
7 Caps lock indicator 20 CONSOLE keyboard/mouse USB Type-A port
8 Scroll lock indicator 21 CONSOLE keyboard PS/2 mini-DIN 6-pin port
9 AC power inlet 22 CONSOLE mouse PS/2 mini-DIN 6-pin port
10 PC ports 23 PC keyboard/mouse USB Type-B port
11 PC DisplayPort video port 24 PC audio jack (3.5 mm stereo)
12 PC DVI-I video port 25 PC DPP USB Type-B port
13 CONSOLE HDMI video port
Table 2.9 SC 945XD KVM Switch Description
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
12

Figure 2.10 SC 945XP KVM Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED DPP channel indicator 14 CONSOLE DVI-I video port
2 LED channel selector 15 Status LEDs
3 Channel label 16 CONSOLE DPP USB Type-A port
4 PCport selectors 17 CONSOLE DPP LED connection indicator
5 DPP freeze button 18 CONSOLE Remote Control Unit (RCU) port
6 Num lock indicator 19 CONSOLE audio jack (3.5 mm stereo)
7 Caps lock indicator 20 CONSOLE keyboard/mouse USB Type-A port
8 Scroll lock indicator 21 CONSOLE keyboard PS/2 mini-DIN 6-pin port
9 AC power inlet 22 CONSOLE mouse PS/2 mini-DIN 6-pin port
10 PC ports 23 PC keyboard/mouse USB Type-B port
11 PC DisplayPort video port 24 PC audio jack (3.5 mm stereo)
12 PC DVI-I video port 25 PC DPP USB Type-B port
13 CONSOLE DisplayPort video port
Table 2.10 SC 945XP KVM Switch Description
2 Basic Operation 13

Figure 2.11 SC 985DPKVMSwitch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED DPP channel indicator 12 CONSOLE DisplayPort video ports
2 LED channel selector 13 CONSOLE Remote Control Unit (RCU) port
3 PCport selectors 14 CONSOLE DPP LED connection indicator
4 DPP freeze button 15 CONSOLEDPP USB Type-A port
5 Num lock indicator 16 CONSOLE audio jack (3.5 mm stereo)
6 Caps lock indicator 17 CONSOLE mouse USB Type-A port
7 Scroll lock indicator 18 CONSOLE keyboard USB Type-A port
8 AC power inlet 19 PC audio jack (3.5 mm stereo)
9 PC ports 20 PC keyboard/mouse USB Type-B port
10 PC DisplayPort video ports 21 PC DPP USB Type-B port
11 Status LEDs
Table 2.11 SC 985DP KVM Switch Description
2.1.1 Switching between computers
After turning on the switch, the default channel is channel one. You can select which computer to operate
using the front panel push-buttons. The LED number illuminates to indicate which computer is currently
selected. Allow approximately one second for the video signal to sync after switching computers.
After selecting a new channel, the mouse cursor is positioned in the center of the selected computer
display. When you select a new channel, the mapping for the keyboard, mouse, audio and USB device also
changes to the specified channel.
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
14

To switch between computers:
Select the computer by pressing the corresponding front panel push-button on the front of the switch.
2.1.2 Dedicated Peripheral Port (DPP)
The DPPfeature allows secure use of authentication devices such as a CAC or smartcard reader. See the
Vertiv Cybex™ SC/SCMSwitching System AdditionalOperations and Configuration Technical Bulletin for
detailed DPP configuration procedures.
The host detection function of the DPP enables you to switch between ports without disconnecting the
user authentication session, known as DPP freeze. When locked, switching channels does not affect
processes performed by the USB device connected to the locked channel. If only one computer is using
the DPP function, ensure that it is connected to channel 1.
The DPP status LED is illuminated after a qualified USBdevice is connected to the switch and ready for
use. If the USB device is not qualified or is rejected from the switch's DPPport, the DPPstatus LED flashes
and the USB device is inoperable. If the USB device is not detected by the port, the DPPstatus LED does
not illuminate and the USBdevice is inoperable.
NOTE: Do not connect a cable to the DPP if an authentication device is not needed. The switch will
automatically detect a cable and attempt to program the DPP selection logic. If you are connecting to
the DPP, your device must be fully compliant with a standard USB 1.1 or USB 2.0 and turned on.
Using DPP freeze
If you need to retain authentication information on one channel after switching to another, you can freeze
the DPP of the first channel.
To freeze the DPP channel:
1. Select the DPP channel you want to freeze.
2. On the front panel, enable the DPP freeze button and verify the channel indicator illuminates
on the selected channel and on the freeze button.
NOTE: If you are on a channel that has a DPP enabled and you switch to a channel that is not using a
DPP, then you will lose the connection and the ability to freeze the information. You must switch back
to a DPP-enabled channel to reactivate the feature.
2.1.3 KM multi-monitor support
The switches are configured to support one monitor per channel. The switch configuration must match
the physical positioning of the display units. When configuring the switch, you can select from the setup
presets or you can create a custom configuration file. To create a configuration file, see KM Configuration
on page 22.
When Virtual Display Technology (VDT)switching is enabled, you can set up a multiple monitor
configuration and seamlessly switch between displays by moving the mouse cursor to the desired display.
2 Basic Operation 15

To use the multiple monitor feature, you must download and install the KM Multi-Monitor Driver from the
Software Downloads section on the Vertiv website on each of the applicable computers.
VDTswitching
By default, the switch is configured to use the relative mouse setting, which confines mouse cursor
movement to the screen of the selected computer. With this setting, you must use the front panel channel
selection buttons to switch between computers.
Alternatively, the switch can be configured to use the absolute mouse setting, which allows you to move
between isolated computer systems by moving the mouse cursor across display borders. When the mouse
cursor scrolls beyond the screen border from one computer to another, the keyboard, mouse, audio and
USB device mapping switch accordingly. You can enable the absolute or relative mouse settings by
pressing a keyboard shortcut on the connected keyboard. See Keyboard Shortcuts on page 19 for a list of
the keystroke combinations.
You can use the preset keys to configure the KM to support more than one monitor per channel. The
following images detail the different preset monitor configurations.
NOTE: In the configurations, gray indicates a single computer and black indicates a multi-monitor
display. P indicates the primary display and S indicates the secondary display in a multi-monitor display
configuration.
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
16
