FBP-HD4i/HD4iP
and OLP-82/82P
SmartClass™ Fiber
User manual
22002224
2022.11
English

Please direct all enquiries to your local VIAVI sales office.
The addresses can be found at: www.viavisolutions.com/contact-us
Copyrights
This product or parts of this product are based on recommendations
and/or standards from the standardization section of the International
Telecommunication Union – ITU-T and/or the European
Telecommunications Standards Institute – ETSI. These recommendations
and standards are subject to the proprietary rights of these
organizations. It is not permitted to copy ITU-T recommendations or
ETSI standards fully or in part and/or to pass them on to third parties
without prior written permission from ITU-T and/or ETSI.
Copyright
© Copyright 2022 VIAVI Solutions Inc. All rights reserved.
VIAVI and the VIAVI logo are trademarks of VIAVI Solutions Inc.
All other trademarks and registered trademarks are the property of their
respective owners.
Order number: 22002224
Issue: 2022.11
Previous issue: 2021.07
Notes:
Changes may be made to specifications, designations and delivery infor-
mation.

FBP-HD4i/HD4iP / OLP-82/82P 3
CONTENTS
CONTENTS
1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SmartClass Fiber Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
User Manual Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Symbols Used in this User Manual . . . . . . . . . . . . . . . . . . . . 6
2 SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . 8
Proper Usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PS4 Universal AC/DC Power Supply . . . . . . . . . . . . . . . . . . . 9
3 GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Unpacking the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Delivery Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operation from AC Power. . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4 DEVICE SETUP AND CONTROLS . . . . . . . . . . . . . . . . . 18
Operator Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Input Select Key (ISK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

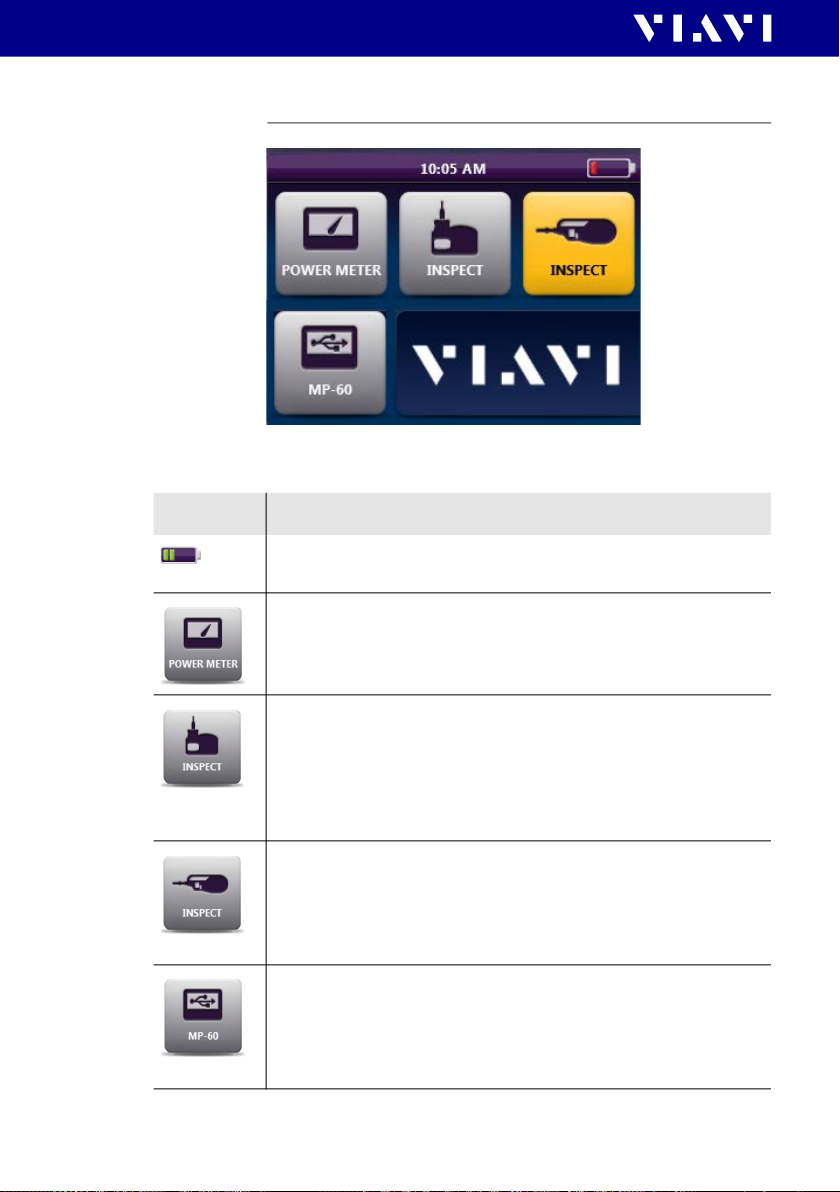

Home Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Navigating in the Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Home Screen Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Recall Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Review OPM Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
System Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
User Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
PC CONNECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
P5000i Digital Probe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Integrated Patch Cord Microscope (PCM) . . . . . . . . . . . . . 33
Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Tip / Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
More.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4 FBP-HD4i/HD4iP / OLP-82/82P
CONTENTS
6 OPTICAL POWER MEASUREMENT . . . . . . . . . . . . . . . . 40
Optical Power Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Power Meter Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Measuring Optical Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
7 SPECIFICATIONS AND ORDERING INFORMATION . . . . . . 46
8 ADDITIONAL INFORMATION . . . . . . . . . . . . . . . . . . . . 47

FBP-HD4i/HD4iP / OLP-82/82P 5
SMARTCLASS FIBER DEVICES
1 INTRODUCTION
1INTRODUCTION
SmartClass Fiber Devices
VIAVI’s SmartClass Fiber family is the next generation of optical
handheld test solutions that allow technicians to inspect, test,
certify, and save on a single device. Designed to help users work
smarter and faster, the SmartClass Fiber family incorporates the
features that technicians rely on every day to deliver best-in-
class reliable networks to their customers.
Products in the SmartClass Fiber family include:
Key Features and Functions
HD4i
Digital handheld
video display
OLP-82
Digital handheld video display
with optical power meter
Description HD4i OLP-82
Portable handheld display with 3.5" color touch screen  
Simple graphical menu-driven interface  
Accepts PASS/FAIL P5000i Probe  
Accepts external USB power meter  
Integrated connector certification reporting  
On-board storage: Endface images and inspection analysis  
User-definable acceptance criteria  
Integrated optical power meter 
On-board storage: Power meter results 
Integrated PON power meter (BPON, EPON, and GPON)
Integrated PASS/FAIL patch cord microscope option  

6 FBP-HD4i/HD4iP / OLP-82/82P
1 INTRODUCTION
USER MANUAL UPDATE
This User Manual will focus on the HD4i and OLP-82 products.
For further information on other VIAVI fiber test tools, visit
www.viavisolutions.com
User Manual Update
If the operating instructions about features provided by your
device are missing, please visit the VIAVI web site to check if
additional information is available.
To download the latest user manual:
1. Visit the VIAVI web site at www.viavisolutions.com.
2. Search for HD4i or OLP-82.
3. Open the download area and download the user manual if
available.
Symbols Used in this User Manual
Various elements are used in this user manual to draw attention
to special meanings or important points in the text.
Symbols and terms used in warnings
The following warnings, symbols and terms are used in this
document in compliance with the American National Standard
ANSI Z535.6-2011:
Warning format
All warnings have the following format:
CAUTION
Follow the instructions carefully to avoid a low or medium risk
of injury to persons.
WARNWORD
Type and source of danger
Consequences of ignoring the warning
JAction needed to avoid danger.

FBP-HD4i/HD4iP / OLP-82/82P 7
SYMBOLS USED IN THIS USER MANUAL
1 INTRODUCTION
Character formats used in this user manual
The following character formats are used in this user manual:
IRequirement
This requirement must be met first; e.g.
IThe device is switched on.
J
1.
2.
Instruction
Follow the instructions given (the numbers indicate the order
in which the instructions should be followed); e.g.
JSelect mode.
Italics Result
Indicates the result of following an instruction; e.g.
The page opens.
Bold type face Pages, controls, and display elements
Screen pages, controls, and display elements are indicated in
bold type.
Text in blue Cross references
Cross references are indicated in blue type. When using the
PDF version, just click on the blue text to skip to the cross
reference.

8 FBP-HD4i/HD4iP / OLP-82/82P
2 SAFETY INFORMATION
PROPER USAGE
2SAFETY INFORMATION
Proper Usage
This instrument is intended for measurements on optical fiber
devices and systems. Please make sure the instrument is not
operated outside the permitted ambient conditions. Always
make sure that the instrument is in proper working order before
switching it on.
Battery Information
Short-circuiting the batteries
Short-circuiting the batteries can result in overheating,
explosion or ignition of the batteries and their surroundings.
Li-ION battery
The Li-ION battery used in this device may present a risk of fire
or chemical burn if mistreated. Do not disassemble, heat above
65 °C or incinerate. Replace battery with manufacturer-specified
battery only. Use of another battery may present a risk of fire or
explosion. Dispose of used battery promptly.
JNever short-circuit the battery contacts by touching both
contacts simultaneously with an electrical conducting object.
JOnly use AA size dry batteries or rechargeable batteries.
JMake sure the batteries are inserted with the correct polarity.

FBP-HD4i/HD4iP / OLP-82/82P 9
VENTILATION
2 SAFETY INFORMATION
Ventilation
Insufficient ventilation
Insufficient ventilation can damage the instrument or adversely
affect its function and safety
JEnsure adequate ventilation when operating the instrument.

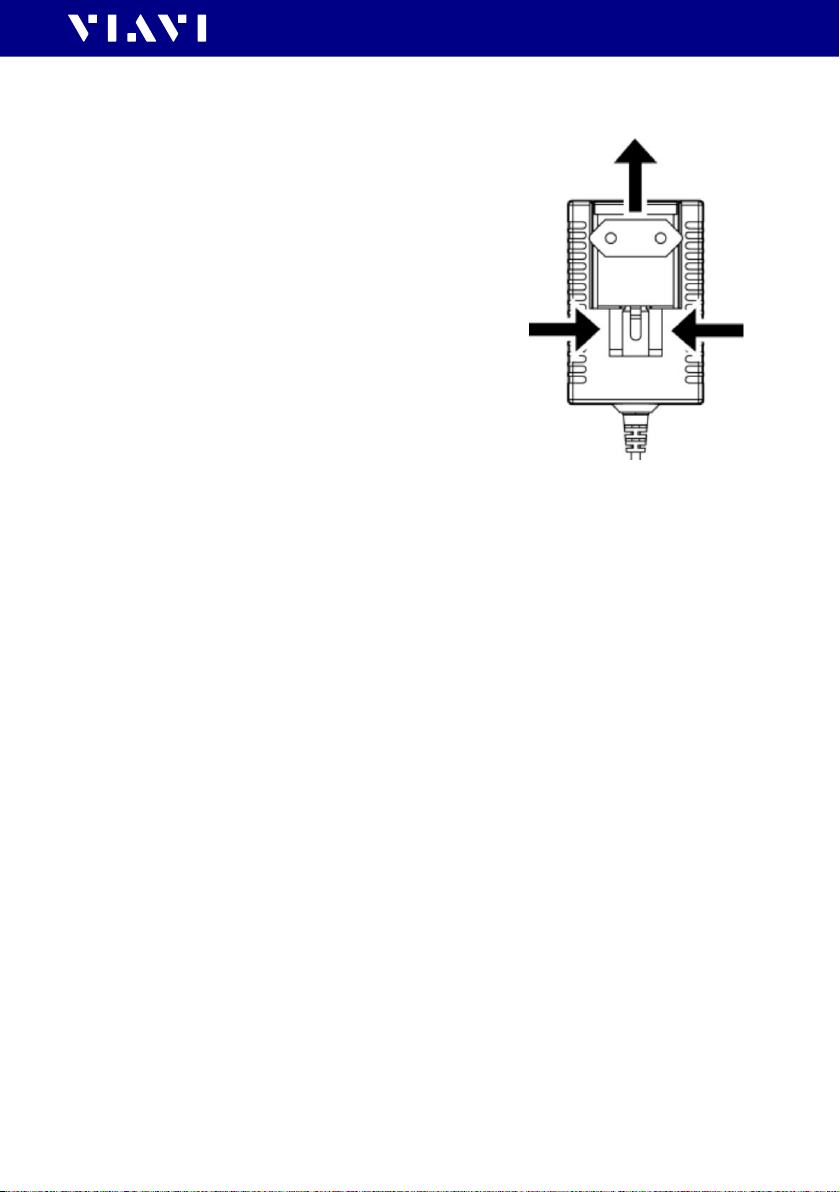

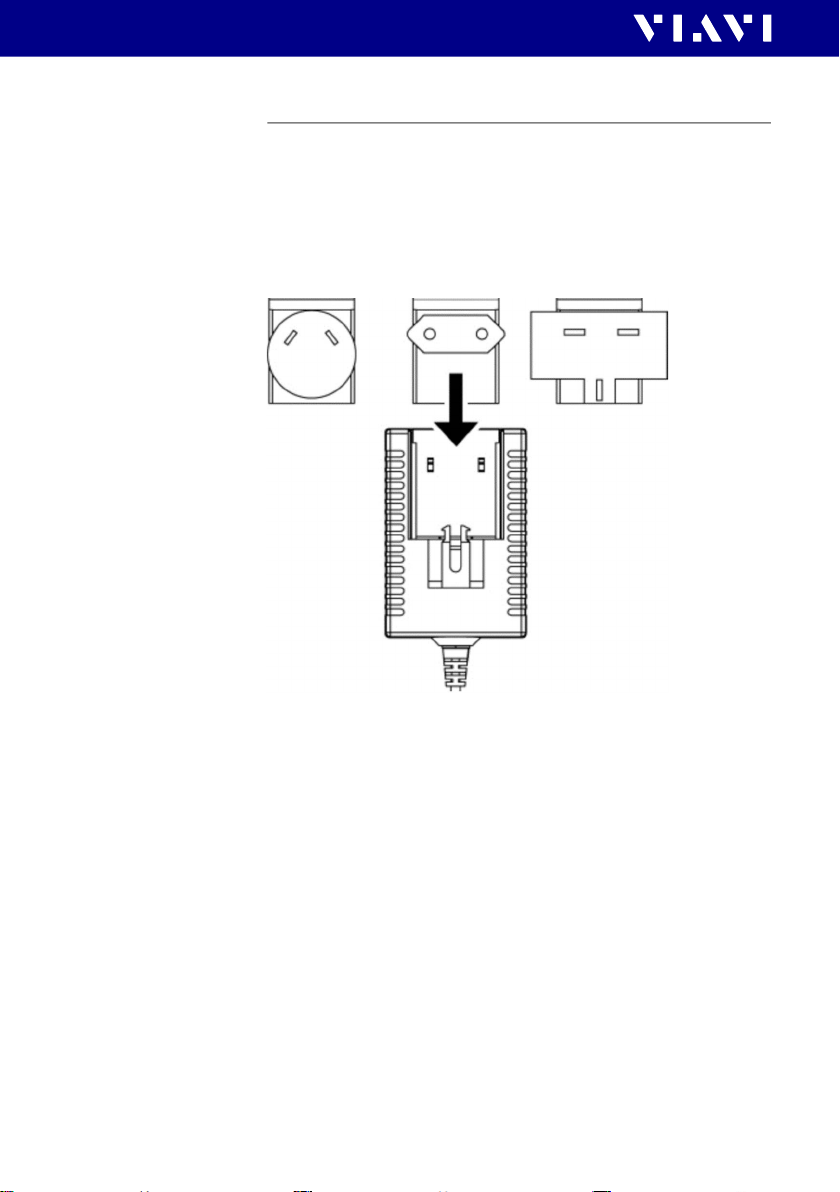

PS4 Universal AC/DC Power Supply
Safety class
The PS4 Universal AC/DC Power Supply unit has a protective
isolation that conforms with IEC 60950.
Ambient temperature too high/low
Temperatures outside the operating range of 0 to +40 °C can
damage the PS4 Universal AC/DC Power Supply or adversely
affect its function and safety.
JOnly operate the PS4 Universal AC/DC Power Supply indoors.
JThe PS4 Universal AC/DC Power Supply must only be operated
at ambient temperatures between 0 and +40 °C.
Insufficient ventilation
Insufficient ventilation can damage the PS4 Universal AC/DC
Power Supply or adversely affect its function and safety.
JEnsure adequate ventilation when operating the PS4 Universal
AC/DC Power Supply.
Condensation
Operation in the presence of condensation can damage the PS4
Universal AC/DC Power Supply or adversely affect its function
and safety.
JDo not operate the PS4 Universal AC/DC Power Supply if
condensation has formed.
JIf condensation cannot be avoided, such as when the PS4
Universal AC/ DC Power Supply is cold and is moved to a warm
room, wait until the PS4 Universal AC/DC Power Supply Unit
is dry before plugging it into the AC power line.

10 FBP-HD4i/HD4iP / OLP-82/82P
3 GETTING STARTED
UNPACKING THE INSTRUMENT
3GETTING STARTED
Unpacking the Instrument
Packing material
We suggest that you keep the original packing material. It is
designed for reuse. Using the original packing material ensures
that the instrument is properly protected during shipping.
Checking the package contents
The following items will be included with each SmartClass Fiber
instrument. Kitted packages contain additional items.
Delivery Content
• SmartClass Fiber Instrument
• Soft bag for SmartClass Fiber and accessories
• Power Supply and Plugs
• USB cable USB-A to micro-USB
• Quick Start Guide and Safety Instructions
• Dry batteries (8X AA)

FBP-HD4i/HD4iP / OLP-82/82P 11
CONTROLS
3 GETTING STARTED
Controls
1
2
3
4
5
6
with Patch Cord Microscope (PCM)
7
8
10
9
1Connector interface (OLP-82/82P only)
23.5 inch color touch screen
3Key pad (operator control panel)
4LED indicators
5Patch Cord Microscope (PCM) with FMAE adapter
(HD4iP and OLP-82P only)
6Test head cover (OLP-82/82P only)
7Battery life indicator
8Graphic menu interface
9PCM controls (focus control, automated PASS/FAIL analysis, magnification
control)
10 2x USB2 interfaces, 1x micro-USB interface, external power supply connector

12 FBP-HD4i/HD4iP / OLP-82/82P
3 GETTING STARTED
POWER SUPPLY
Power Supply
The following power sources can be used to operate SmartClass
Fiber devices:
• Eight 1.5 V dry batteries (Mignon AA size, alkaline type
recommended)
• Eight 1.2 V NiMH rechargeable batteries (Mignon AA size)
• PS4 Universal AC/DC Power Supply (optional)
• Li-ION Battery Pack (optional)
Battery operation
General tips on using batteries
• Always handle batteries with care.
• Do not drop or damage the batteries or expose them to
excessively high temperatures.
• Do not store the batteries for more than one or two days at
very high temperatures (e.g., in a vehicle), either separately or
fitted in the instrument.
• Do not leave discharged batteries in the instrument for a long
time if it is not being used.
• Dispose of used batteries promptly.
• Keep away from children.
• Do not disassemble and do not dispose of in fire.
CAUTION
Dangers in handling batteries
Batteries can be dangerous if not handled properly.
JDo not replace individual batteries. Always change all
batteries at the same time.
JAlways use batteries of the same type; i.e. do not mix
rechargeable and non-rechargeable batteries.

FBP-HD4i/HD4iP / OLP-82/82P 13
POWER SUPPLY
3 GETTING STARTED
Replacing AA batteries
Recharging the batteries
The rechargeable Li-ION Battery Pack will be recharged when
the PS4 Universal AC/DC Power Supply is being used to power
the instrument. The instrument switches to trickle charging
automatically as soon as the Li-ION Battery Pack is fully charged.
NOTE: Rechargeable AA-Batteries will not be recharged in the
instrument. For AA-type rechargeable batteries, please use an
external charger.
IThe battery compartment is on
the back of the instrument.
3. Open the lid of the battery
compartment.
4. Insert new batteries or remove
the used batteries and replace
them with fresh ones.
5. Close the battery compartment.
6. Press POWER key to switch
on.

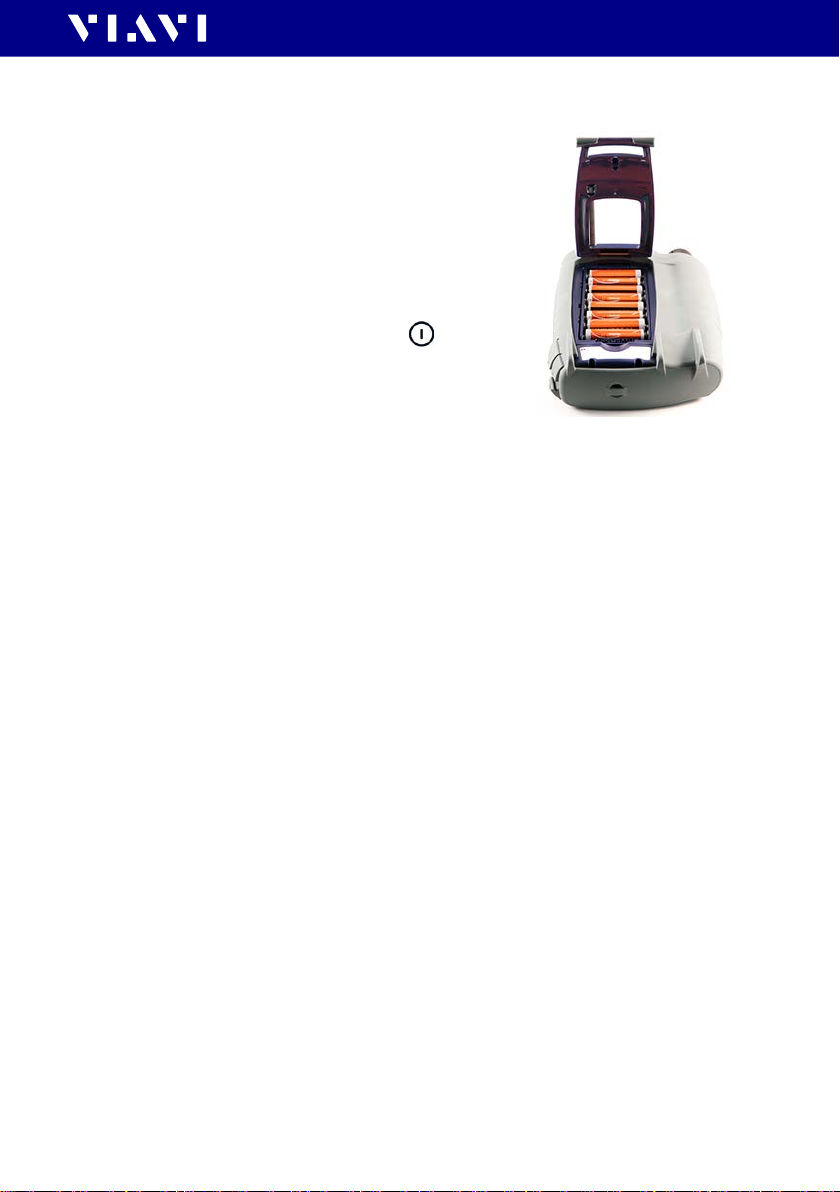

Fig. 1: AA batteries fully loaded
in back

14 FBP-HD4i/HD4iP / OLP-82/82P
3 GETTING STARTED
POWER SUPPLY
Using or replacing the Li-ION Battery Pack
CAUTION
Dangers in handling batteries
Batteries can be dangerous if not handled properly.
JDispose of used batteries promptly.
JKeep away from children.
JDo not disassemble and do not dispose of in fire.
1. Open the lid of the battery
compartment.
2. Remove the AA battery tray or
existing Li-ION battery.
3. Replace with battery pack.
4. Close the battery compartment.
5. Press POWER key to switch on.

FBP-HD4i/HD4iP / OLP-82/82P 15
POWER SUPPLY
3 GETTING STARTED
Other basic safety precautions
• Do not use PS4 Universal AC/DC Power Supply outdoors or in
wet or damp locations.
• Connect the PS4 Universal AC/DC Power Supply to the correct
mains voltage, as indicated on the ratings label.
• Do not allow anything to rest on the power cord, and do not
locate the product where people can walk on the power cord.
• Avoid using this product during electrical storms. There may
be a remote risk of electric shock from lightning.
• Do not use this product in the vicinity of a gas leak or in any
explosive environment.
• Do not attempt to service this product yourself, as opening or
removing covers may expose you to dangerous, high voltage
points and other hazards.
• Contact qualified service personnel for all service and repair.
Protecting the environment
Please dispose of any unwanted dry batteries and rechargeable
batteries carefully. They should also be removed from the
instrument if it is to be scrapped. If facilities in your country exist
for collecting such waste or for recycling, please make use of
these rather than throwing the batteries in with normal trash.
You will often be able to return used batteries to the place where
you purchase new ones. Any dry or rechargeable batteries that
you purchased from VIAVI can be returned to one of our Service
Centers for disposal.

16 FBP-HD4i/HD4iP / OLP-82/82P
3 GETTING STARTED
OPERATION FROM AC POWER
Operation from AC Power
NOTE: Only the PS4 Universal AC/DC Power Supply may be used to
operate the SmartClass Fiber device from AC power.
To fit one of the mains plug adapters:
1. Select the appropriate AC line plug adapter.
2. Slide the AC line plug adapter into the slot.
Fig. 2: PS4 Universal AC/DC Power Supply is ready for use

FBP-HD4i/HD4iP / OLP-82/82P 17
OPERATION FROM AC POWER
3 GETTING STARTED
To change the AC line plug adapter:
To operate the SmartClass Fiber device from AC power:
1. Connect the PS4 DC power cord to the DC power socket on
the device. (The socket is under the cover on the right side.)
2. Plug the PS4 into the AC line socket.
NOTE: The PS4 provides power even if dry or rechargeable batteries are
fitted in the instrument.
1. Squeeze both sides of the PS4
latch lock.
2. Push the AC line plug adapter
upwards.
3. Slide a different AC line plug
adapter into the slot.
Fig. 3: AC line plug adapter

18 FBP-HD4i/HD4iP / OLP-82/82P
4 DEVICE SETUP AND CONTROLS
OPERATOR CONTROL PANEL
4DEVICE SETUP AND CONTROLS
Operator Control Panel
Mode Description
Home
JPress to go to the home screen.
Menu
JPress to open a menu.
Back
JPress to go back one step.
Input Select Key (ISK)
JPress for fast toggling between device functions.
JSee “Input Select Key (ISK)” on page 19 for more information
on using the ISK.
Power
JPress to switch the instrument ON and OFF.
LED glows green when the instrument is ON.
Arrow keys
JPress to navigate through the menus.
JPress to change values in the menus.
Center key
JPress to confirm the selection.
Save
JPress to save results
Low battery
Glows red when battery is low
Test in process
Glows red when a measurement is running in the background
Charge
Glows amber when battery is charging.
If the power is OFF, charging will continue with no LED
indicator.

FBP-HD4i/HD4iP / OLP-82/82P 19
INPUT SELECT KEY (ISK)
4 DEVICE SETUP AND CONTROLS
Input Select Key (ISK)
The Input Select Key allows users to inspect, test, certify, and
save results quickly on the SmartClass Fiber device. Using this
feature drives the user’s behavior by incrementally stepping
them through each application as it should be used in a proper
testing workflow. Pressing the ISK will immediately switch to the
next application that is used in a typical workflow. Once pressed,
a small icon will appear on the screen for a few seconds to
indicate the application that is now active.
When pressing from the Home Screen:
Display switches to PCM Inspection (or the next available
application)
When pressing from an active application:
Display switches to the next available application as follows:
PCM Inspection > Probe Inspection > USB OPM >
On-board OPM > PCM Inspection >...
NOTE: Each application will only appear if it is available on the device,
either on-board or via USB connection.

20 FBP-HD4i/HD4iP / OLP-82/82P
4 DEVICE SETUP AND CONTROLS
HOME SCREEN DISPLAY
Home Screen Display
Fig. 4: OLP-82P Home Screen shown with P5000i Probe and MP-series
USB OPM attached via USB
Icon Description
Battery Status
Indicates the battery charge level / status.
Optical Power Meter (OPM)
Activates the on-board OPM to view optical power
measurement results, edit acceptance criteria, and view saved
results.
Inspect (PCM)
Activates the integrated Patch Cord Microscope (PCM) to
inspect and analyze fiber endfaces, detect scratches and
defects, and provide PASS/FAIL results. The PCM is ideal for
inspecting male fiber connectors such as patch cords and test
leads.
Inspect (Probe)
Activates the handheld P5000i Digital Probe microscope to
inspect and analyze fiber endfaces, detect scratches and
defects, and provide PASS/FAIL results. The probe is ideal for
inspecting connectors located behind bulkheads.
USB Optical Power Meter (OPM)
Activates OPM devices (such as MP-60 or MP-80) that are
connected to one of the USB ports to view optical power
measurement results, edit acceptance criteria, and view saved
results.
