T-BERD®/MTS 5800 Network Tester
Ethernet Layer 3 IPv4 Traffic Loopback
This quick card describes how to set the T-BERD/MTS 5800 up as a Layer 3, IPv4 Loopback device.
Equipment Requirements:
•T-BERD/MTS 5800 equipped with the following:
oBERT software release V26.0 or greater
oEthernet test options:
▪C510M1GE for 10 Megabit to 1 Gigabit Ethernet
▪C510GELAN for 10 Gigabit Ethernet
▪C525GELAN for 25 Gigabit Ethernet
▪C540GELAN for 40 Gigabit Ethernet
▪C5100GELAN for 100 Gigabit Ethernet
oSFP, QSFP, or CFP4 optical transceiver to match the
line under test
•CAT5E cable or fiber optic Jumper cables to match the
optical transceiver and the line under test
•Fiber inspection microscope
(VIAVI P5000i or FiberChek Probe)
•Fiber optic cleaning supplies

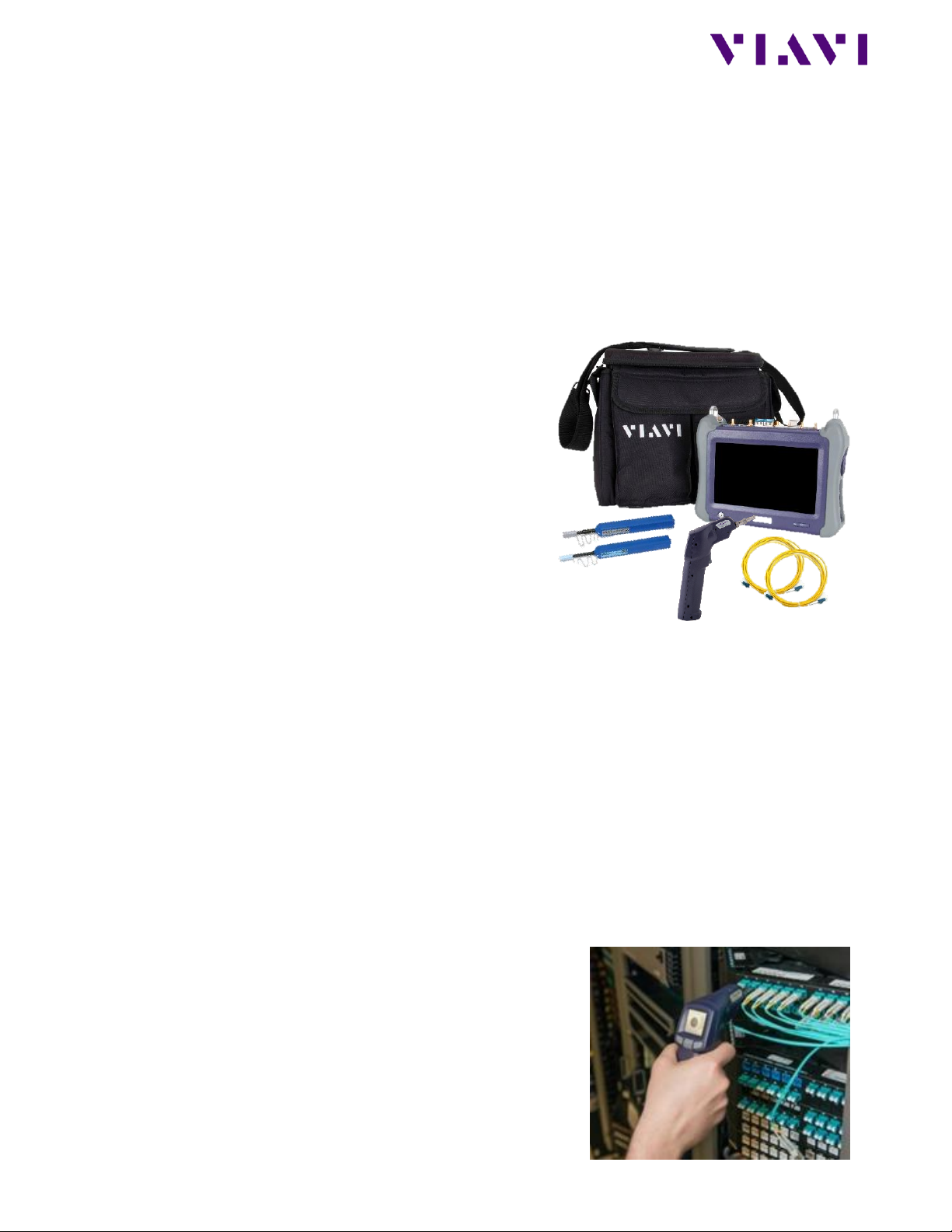

Figure 1: Equipment Requirements
The following information is required to complete the test:
•Physical Interface (10/100/1000BASE-T, 1000BASE-LX, 10GBASE-LR, 100GBASE-LR4, etc.)
•Auto Negotiation settings of the port under test (if 1 Gigabit or below)
•Encapsulation (VLAN or None)
•VLAN ID (if Encapsulation = VLAN)
•Source IP Type (Static or DHCP)
•Source IP Address (if Source IP Type = Static)
•Subnet Mask (if Source IP Type = Static)
•Default Gateway (if Source IP Type = Static)
•Destination IP Address
Fiber Inspection Guidelines:
Inspect both sides of every fiber optic connection being used
(bulkhead connectors, patch cords, and SFP ports) prior to
reconnection for each test. Using the VIAVI P5000i or
FiberChek Probe microscope:
•Focus fiber on the screen. If dirty, clean the connector.
•If it appears clean, run inspection test.
•If it fails, clean the fiber and re-run inspection test. Repeat
until it passes.
Figure 2: FiberChek Probe

VIAVI Solutions
•To inspect SFP ports with the P5000i, insert the probe tip
into the SFP port, move the focus wheel all the way to one
end, and slowly move the focus wheel to the other end.
•To inspect SFP ports with the FiberChek Probe, manually
focus with middle toggle switch or pull the trigger to auto-
focus.
•If a fiber stub (a darker circle on a lighter background as
shown in figure 3) is detected, follow standard inspection
and cleaning procedures. If you are unable to focus on a
fiber end face, do not clean the port. The SFP contains a
lens and cannot be cleaned.
Figure 3: Image of Clean Fiber
Connect to Line Under Test:
1. For copper 10/100/1000BASE-T
testing with the T-BERD/MTS
5800v2, connect the Port 1
10/100/1000 RJ-45 jack to the port
under test using CAT 5E or better
cable.
2. For copper 10/100/1000BASE-T
testing with the T-BERD/MTS 5800-
100G, insert a copper SFP into the
Port 1 SFP+/SFP28 slot and connect
to the port under test using CAT 5E
or better cable.
Figure 4: T-BERD 5800v2 Dual Port mainframe
3. For optical interfaces:
•Insert desired SFP, QSFP, or
CFP4 into the Port 1 slot on the
top of the T-BERD/MTS.
•Inspect and, if necessary, clean
all SFPs, fibers, and bulkheads,
as described on page 1.
•Connect the SFP, QSFP, or CFP4
to the port under test using a
Single Mode or Multimode
jumper cable compatible with
the interface under test.
Figure 5: T-BERD 5800-100G mainframe

VIAVI Solutions
Launch and Configure Test:
1. Press the Power button to turn on the
test set.
2. Using the Select Test menu, Quick Launch
menu, or Job Manager, launch an Ethernet,
Layer 3 Traffic, IPv4, Terminate test on port
1 for the desired physical interface.
For example:
Ethernet►10/100/1000►Layer 3 Traffic
►IPv4►P1 Terminate.
3. If the test is not in the default setup, tap
the Tools icon , and select
.
Press to continue and wait for
test to reconfigure.
4. For 10/100/1000 Electrical and 1GigE
Optical tests, tap the Ethernet tab of the
Quick Configuration menu and set Auto
Neg. to the same value as the Ethernet port
under test.
5. For 1GigE, 10GigE, 25GigE, 40GigE, or
100GigE optical tests, select the Laser tab in
the Actions panel, and press . The
button will turn yellow and be relabeled
.
6. Press the Restart soft key , on the
right side of the screen.
7. A green Signal Present LED ●indicates the
T-BERD/MTS is receiving an optical signal
from the port under test. Green Sync
Acquired and Link Active LEDs indicate that
the T-BERD/MTS has successfully connected
to the port under test and the link is active.

VIAVI Solutions
Contact Us +1 844 GO VIAVI
([phone])
To reach the VIAVI office nearest you,
visit viavisolutions.com/contacts.
© 2018 VIAVI Solutions Inc.
Product specifications and descriptions in this
document are subject to change without notice.
8. Press the Setup soft key , and select
the Ethernet settings tab. If a VLAN is
present, set Encapsulation to VLAN, tap the
VLAN field, and enter the VLAN ID.
9. Select the IP settings tab and tap the
Source/Destination Address field. Enter
the Source IP Type (Static or DHCP). If
Static, enter the Source IP address, Subnet
Mask, and Default Gateway.
10. Set Destination Address to the IP Address
of the T-BERD/MTS traffic generator,
running the Layer 3 Traffic, RFC-2544, or
Y.1564 SAMComplete test. Tap the PING
button to verify IP connectivity.
11. Press the Results Soft Key , to view
the progress of the test.
