Viega Easytop 2170 User manual

for drinking water and heating installation
Model Year built:
2170 from 07/2007
en_INT
Easytop ball valve with SC-Contur
Instructions for Use

Easytop ball valve with SC-Contur 2 from 19

Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Standards and regulations 6
2.2 Intended use 8
2.2.1 Areas of use 8
2.2.2 Media 8
2.3 Product description 9
2.3.1 Overview 9
2.3.2 Press connection with SC-Contur 9
2.3.3 Sealing elements 10
2.3.4 Markings on components 10
2.3.5 Compatible components 11
2.3.6 Technical data 11
2.4 Information for use 11
2.4.1 Corrosion 11
2.5 Optional accessories 12
3Handling 14
3.1 Assembly information 14
3.1.1 Mounting instructions 14
3.1.2 Required tools 14
3.2 Assembly 15
3.2.1 Shortening the pipes 15
3.2.2 Calibrating the pipes 16
3.2.3 Pressing the connection 17
3.2.4 Leakage test 18
3.3 Maintenance 18
3.4 Disposal 19
Table of contents
Easytop ball valve with SC-Contur 3 from 19

1 About these instructions for use
Trade mark rights exist for this document; for further information, go to
viega.com/legal.
1.1 Target groups
The information in this manual is directed at heating and sanitary pro‐
fessionals and trained personnel.
Individuals without the abovementioned training or qualification are not
permitted to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns of possible life-threatening injury.
WARNING!
This symbol warns of possible serious injury.
CAUTION!
This symbol warns of possible injury.
NOTICE!
This symbol warns of possible damage to property.
This symbol gives additional information and hints.
About these instructions for use
Easytop ball valve with SC-Contur 4 from 19

1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand‐
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
About these instructions for use
Easytop ball valve with SC-Contur 5 from 19

2 Product information
2.1 Standards and regulations
The following standards and regulations apply to Germany / Europe and
are provided as a support feature.
Scope / Notice Regulations applicable in Ger‐
many
Planning, execution, operation
and maintenance of potable water
installations
DIN EN 806, part 1
Planning, execution, operation
and maintenance of potable water
installations
DIN EN 806, part 2
Planning, execution, operation
and maintenance of potable water
installations
DIN EN 806, part 3
Planning, execution, operation
and maintenance of potable water
installations
DIN EN 806, part 4
Planning, execution, operation
and maintenance of potable water
installations
DIN EN 806, part 5
Planning, execution, operation
and maintenance of potable water
installations
DIN EN 1717
Planning, execution, operation
and maintenance of potable water
installations
DIN 1988
Planning, execution, operation
and maintenance of potable water
installations
VDI/DVGW 6023
Planning, execution, operation
and maintenance of potable water
installations
Trinkwasserverordnung (TrinkwV)
Scope / Notice Regulations applicable in Ger‐
many
Suitability for drinking water Trinkwasserverordnung (TrinkwV)
Suitability for heating water for
pump hot water heating systems
VDI 2035 Page 1 and page 2
Regulations from section: Fields of application
Regulations from section: Media
Product information
Easytop ball valve with SC-Contur 6 from 19

Scope / Notice Regulations applicable in Ger‐
many
Suitability for drinking water
installations
Trinkwasserverordnung (TrinkwV)
Suitability for drinking water
installations
DIN 50930-6
Requirements in plastic compo‐
nents in drinking water installa‐
tions
DVGW-Arbeitsblatt W270
Scope / Notice Regulations applicable in Ger‐
many
Compliance with the inspection
requirements (fittings group I)
DIN EN 13828
Scope / Notice Regulations applicable in Ger‐
many
Designation noise class I DIN EN 13828
Scope / Notice Regulations applicable in Ger‐
many
External corrosion protection DIN EN 806-2
External corrosion protection DIN 1988-200
External corrosion protection DKI-Informationsdruck i. 160
Scope / Notice Regulations applicable in Ger‐
many
Leakage test for potable water
installations
DIN EN 806, part 4
Leakage test for potable water
installations
ZVSHK-Merkblatt
„Dichtheitsprüfungen von Trink‐
wasserinstallationen mit Druckluft,
Inertgas oder Wasser‟
Regulations from section: Product description
Regulations from section: Overview
Regulations from section: Marking on components
Regulations from section: Corrosion
Regulations from section: Leakage test
Product information
Easytop ball valve with SC-Contur 7 from 19

Scope / Notice Regulations applicable in Ger‐
many
Operation and maintenance of
potable water installations
DIN EN 806-5
2.2 Intended use
Coordinate the use of the model for areas of use and media
other than those described with the Viega Service Center.
2.2.1 Areas of use
Use is possible in the following areas among others:
nSanfix Fosta PE-Xc/AI/PE-Xc pipes (dimensionally stable, with
external oxygen seal coat)
– Drinking water installations
– Industrial and heating systems
– Compressed air systems
nSanfix PE-Xc pipes (flexible without external oxygen seal coat)
– Drinking water installations
The general rules of engineering and the applicable regulations must be
observed for planning, execution, operation and maintenance potable
water installations, see Ä „Regulations from section: Fields of applica‐
tion“ on page 6.
2.2.2 Media
The model is also suitable for the following media, amongst others:
nDrinking water without limitations acc. to the applicable directives,
see Ä „Regulations from section: Media“ on page 6
nmaximum chloride concentration 250 mg/l pursuant to applicable
regulations, see Ä „Regulations from section: Media“ on page 6
nHeating water for pump hot water heating systems, see Ä „Regula‐
tions from section: Media“ on page 6
nRainwater
nCompressed air in compliance with the specification of the sealing
elements being used
– EPDM at oil concentration < 25 mg/m3
Regulations from section: Maintenance
Product information
Easytop ball valve with SC-Contur 8 from 19

2.3 Product description
According to the applicable regulations, Easytop system fittings can be
used for all types of potable water and are DVGW certified, see Ä „Reg‐
ulations from section: Product description“ on page 7. Their plastic
components comply with the KTW recommendation and the require‐
ments pursuant to the applicable regulations.
2.3.1 Overview
The Easytop system fittings comply with the test require‐
ments specified in the applicable regulations, see Ä „Regu‐
lations from section: Overview“ on page 7.
Sound protection Lap ≤ 20 dB(A)
The model is equipped as follows:
nvalve casing made of gunmetal/silicon bronze
ndual-sided Sanfix-P press connection with SC-Contur
nactuating lever made of plastic
nprotective caps for the actuating lever in the red and green for the
identification of the corresponding area of use
nposition indication open/closed
nkey surface on the casing
nmaintenance-free selector shaft
nsealing elements made of EPDM
nball seal made of Teflon®
The model is available in the following dimensions: d 16 / 20 / 25 / 32.
2.3.2 Press connection with SC-Contur
Fig. 1: SC-Contur
SC-Contur
Product information
Easytop ball valve with SC-Contur 9 from 19

Viega press connections are equipped with the SC-Contur. The SC-
Contur is a safety technology that is certified by the DVGW and ensures
that the connection is guaranteed to be leaky in an unpressed state. In
this way, unpressed connections are noticed immediately during a
leakage test.
Viega guarantees that unpressed connections are visible during a
leakage test:
nwith wet leakage test in the pressure range from 0.1 hPa–0.65 MPa
(1.0 mbar–6.5 bar)
nwith dry leakage test in the pressure range from 22 hPa–0.3 MPa
(22 mbar–3.0 bar)
2.3.3 Sealing elements
NOTICE!
Only EPDM sealing elements are approved in potable water
installations. The use of other sealing elements is not per‐
mitted.
The model is factory-fitted with EPDM sealing elements.
Area of use Potable water Heating Compressed air
Use all pipeline sections Pump hot water heating
system
all pipeline sections
Operating temperature
[Tmax.]70 °C 80 °C 60 °C
Operating pressure [Pmax]1.0 MPa (10 bar) 1.0 MPa (10 bar) 1.0 MPa (10 bar)
Comments see notes
Ä Chapter
2.2.2 „Media“ on page 8 —dry, oil content
< 25 mg / m3
1) Consultation with the Viega Service Center required.
2.3.4 Markings on components
The press connections are marked with a coloured dot. This identifies
the SC-Contur, where the test medium would escape in the case of an
inadvertently unpressed connection.
The model is marked as follows:
nnoise class I pursuant to applicable regulations, see Ä „Regulations
from section: Marking on components“ on page 7
ndimension
Area of use of the EPDM sealing element
Product information
Easytop ball valve with SC-Contur 10 from 19

nDVGW writing
ngreen dot for potable water
nPosition indicator on the actuating lever
2.3.5 Compatible components
The model is equipped with Sanfix-P press connections and compatible
with the Sanfix / Sanfix Fosta system.
2.3.6 Technical data
Observe the following operating conditions for the installation of the
model:
Potable water Heating
Operating tempera‐
ture [Tmax]
70 °C 80 °C
Operating pressure
[Pmax]
1.0 MPa (10 bar) 1.0 MPa (10 bar)
2.4 Information for use
2.4.1 Corrosion
Overground pipelines and fittings in rooms do not normally require
external corrosion protection.
There are exceptions in the following cases:
nContact with aggressive building materials such as nitrite or mate‐
rials containing ammonium
nContact with aggressive chemicals
nin aggressive surroundings
If external corrosion protection is required, observe the pertinent guide‐
lines, see Ä „Regulations from section: Corrosion“ on page 7.
Easytop fittings made of gunmetal/silicon bronze are suit‐
able for all types of potable water.
The chloride concentration in the medium must not exceed
a maximum value of 250 mg/l.
This chloride is not a disinfectant, but in fact pertains to the
content in sea and table salt (sodium chloride).
Product information
Easytop ball valve with SC-Contur 11 from 19

2.5 Optional accessories
The following optional accessories are available:
nactuating lever made of metal
nactuating lever made of plastic
nProtective caps for the actuating lever made of plastic in red and
green for the identification of the corresponding area of use
nInsulating shells

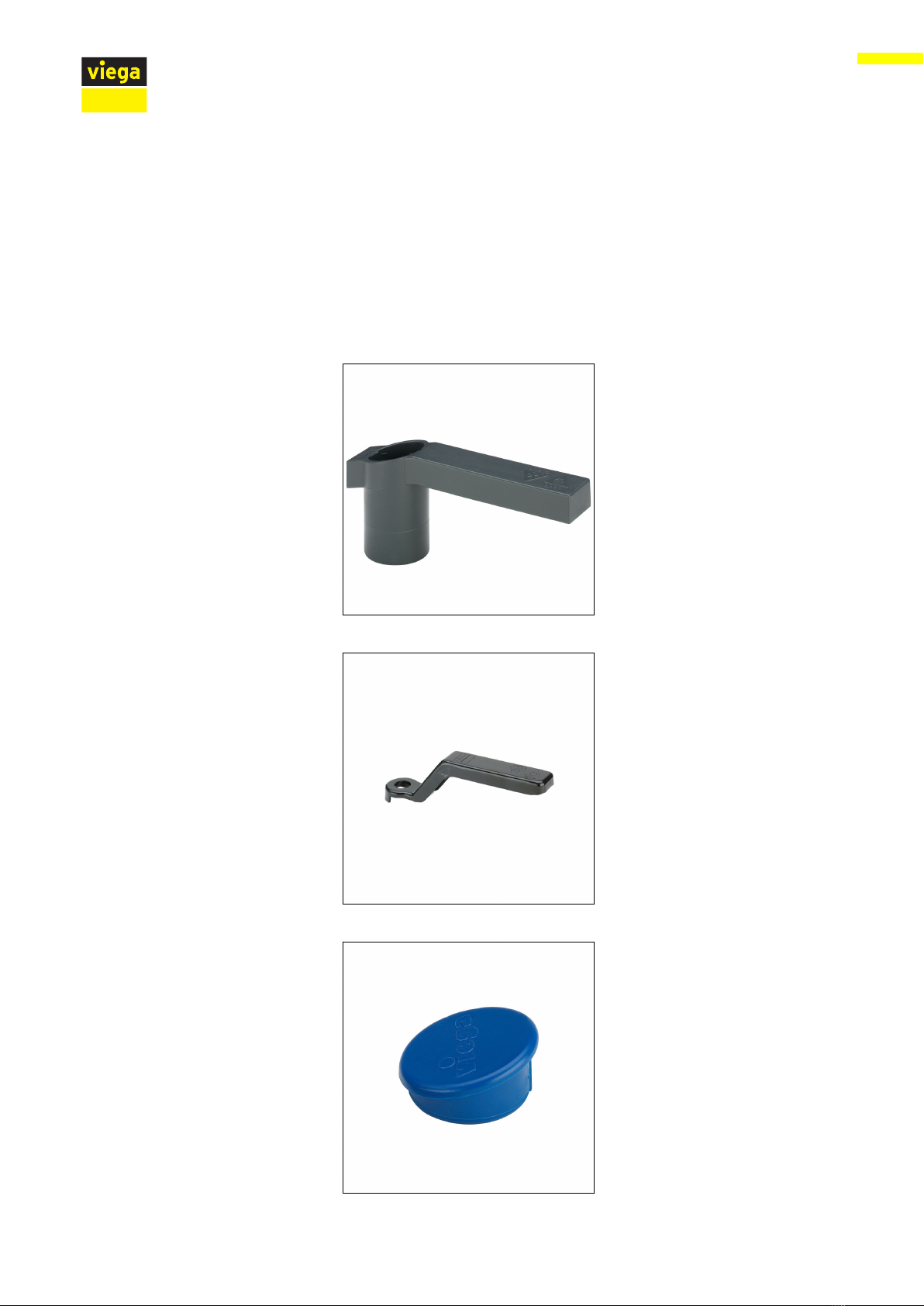

Fig. 2: Model 2270.21 Easytop actuating lever made of plastic
Fig. 3: Model 2270.26 Easytop actuating lever made of metal
Fig. 4: Model 2270.23, protective cap in blue
Product information
Easytop ball valve with SC-Contur 12 from 19

Insulating shells
EPS insulating shells are available for all sizes of ball valves. The two-
piece shells are self-supporting and are mounted without tools and
holding grips. They connect seamlessly to the front surfaces of the
pipeline insulation.
Fig. 5: Model 2210.40 Easytop insulating shell
Product information
Easytop ball valve with SC-Contur 13 from 19

3 Handling
3.1 Assembly information
3.1.1 Mounting instructions
Do not remove the model from the packaging until immedi‐
ately before use.
System components may, in some cases, become damaged through
transportation and storage.
nCheck all parts.
nReplace damaged components.
nDo not repair damaged components.
nContaminated components may not be installed.
Observe the following when mounting:
nUse suitable tools.
nInstallation is not dependent on the direction of flow.
Choose the place of installation so that the fitting is easily
accessible, simple to operate and the insulating shell can be
well mounted.
Information can be found in the instructions for use of the Sanfix /
Sanfix Fosta systems.
Information can be found in the instructions for use of the Sanfix /
Sanfix Fosta systems.
3.1.2 Required tools
The following tools are required for production of a press connection:
Checking system components
During assembly
Laying and fixing pipes
Length expansion
Handling
Easytop ball valve with SC-Contur 14 from 19

Hand or electric saws or angle grinders are not permitted.
npress machine with constant pressing force
nsuitable Sanfix press jaws for PE-Xc systems (model 2299.7 or
2484.7)
npipe shear (model 5341) for dimensions 16–25 mm
npipe cutters (model 2191) for dimensions 32–63 mm
nbending tool (model 5331 or 5331.2)
ncalibrating tool suitable for the pipe size:
– 16 / 20 mm (model 2139.0)
– 25 / 32 / 40 mm (model 2139.3)
Fig. 6: Press jaws
Recommended Viega press machines:
nPressgun 5
nPressgun Picco
nPressgun 4E / 4B
nPicco
nType PT3-AH
nType PT3-H / EH
nType 2 (PT2)
3.2 Assembly
3.2.1 Shortening the pipes
NOTICE!
Leaky press connections due to damaged material!
Press connections can become leaky due to damaged
pipes.
For information about tools, also see Ä Chapter 3.1.2 „Required
tools“ on page 14.
Handling
Easytop ball valve with SC-Contur 15 from 19

Cut the protective pipe to length using the protective pipe cutter
(model 5341).
Cut the pipe to length using a pipe shear.
Make sure that the cut surface is clean and straight.
Cut the pipe to length using a pipe cutter (model 2191).
3.2.2 Calibrating the pipes
Dimensions 16–25 mm
Dimensions 32–63 mm
Handling
Easytop ball valve with SC-Contur 16 from 19

Using the calibrating tool, prepare pipe ends ≥ 25 mm and
deformed pipe ends before pressing.
Push the calibrating tool in as far as it will go.
Calibrate the pipe with turning movements.
ðPipe is calibrated.
3.2.3 Pressing the connection
Information regarding the intervals can be found in the
Sanfix / Sanfix Fosta system instructions for use.
Push the pipe into the press connector until the pipe end is visible in
the inspection window.
Handling
Easytop ball valve with SC-Contur 17 from 19

Check the insertion depth in the inspection window.
Open the press jaw and place at a right-angle onto the connector.
Start the pressing procedure.
ðConnection is pressed.
3.2.4 Leakage test
The installer must perform a leakage test before commissioning.
Carry out this test on a system that is finished but not yet covered.
Comply with the general rules of engineering and the applicable direc‐
tives, see Ä „Regulations from section: Leakage test“ on page 7.
Perform leakage test should in acc. with the general rules of engineering
for non-potable water installations.
Document the result.
3.3 Maintenance
NOTICE!
Inform your customer or the operator of the drinking water
installation that the system has to be maintained on a reg‐
ular basis.
Observe the applicable regulations for the operation and maintenance
of drinking water installations, see Ä „Regulations from section: Mainte‐
nance“ on page 8.
Handling
Easytop ball valve with SC-Contur 18 from 19

Viega recommends actuating the fitting regularly and
checking its function.
3.4 Disposal
Separate the product and packaging materials (e. g. paper, metal,
plastic or non-ferrous metals) and dispose of in accordance with valid
national legal requirements.
Handling
Easytop ball valve with SC-Contur 19 from 19
