Instructions for Use
Geopress tapping valve
for water applications
Model Year built (from)
9690TW 01/2018
AU

Table of contents
1About these instructions for use 3
1.1 Target groups 3
1.2 Labelling of notes 3
1.3 About this translated version 4
2Product information 5
2.1 Standards and regulations 5
2.2 Intended use 6
2.2.1 Areas of use 6
2.2.2 Media 7
2.2.3 Replacing a damaged tapping valve 7
2.3 Product description 8
2.3.1 Overview 8
2.3.2 Pipes 8
2.3.3 Tapping valve 10
2.3.4 Mark on tapping valves 11
2.3.5 Compatible connecting pieces for the tapping
valve 11
3Handling 13
3.1 Transport 13
3.2 Storage 13
3.3 Assembly information 13
3.3.1 Mounting instructions 13
3.3.2 Space requirements and intervals 14
3.3.3 Required tools 14
3.4 Assembly 16
3.4.1 Pressing onto the supply line 16
3.4.2 Producing a house service connection 19
3.4.3 Tapping the supply line 20
3.4.4 Commission the house service connection 20
3.4.5 Use 21
3.4.6 Leakage test 22
3.5 Disposal 22
Table of contents
Geopress tapping valve 2

1 About these instructions for use
Trade mark rights exist for this document; for further information, go to
viega.com/legal.
1.1 Target groups
The information in this manual is directed at utility and pipeline con‐
struction companies and their technical professionals.
Only specialist companies which can prove they are qualified in accord‐
ance with the applicable directives may be engaged for the construction
of gas and potable water house service connections, see Ä ‘Regula‐
tions from section: Target group’ on page 5.
Individuals without the abovementioned training or qualification are not
permitted to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
In addition, the applicable regulations must be observed for potable
water house service connections, see
Ä ‘Regulations from section:
Target group’ on page 5.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns of possible life-threatening injury.
WARNING!
This symbol warns of possible serious injury.
CAUTION!
This symbol warns of possible injury.
NOTICE!
This symbol warns of possible damage to property.
About these instructions for use
Geopress tapping valve 3

This symbol gives additional information and hints.
1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e.g. EN) and/or in Germany
(e.g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand‐
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
About these instructions for use
Geopress tapping valve 4

2 Product information
2.1 Standards and regulations
The following standards and regulations apply to Germany / Europe.
National regulations can be found on the relevant website of your
country at viega.com.au/standards.
Scope / Notice Regulations applicable in Ger‐
many
Qualification of specialist compa‐
nies
DVGW-Arbeitsblatt GW 301
Qualification and requirements in
the potable water supplier
DVGW-Arbeitsblatt W 1000
Scope / Notice Regulations applicable in Ger‐
many
Planning, execution, operation
and maintenance of potable water
house service connections
DIN EN 805
Planning, execution, operation
and maintenance of potable water
house service connections
DVGW-Arbeitsblatt W 400-1
Planning, execution, operation
and maintenance of potable water
house service connections
DVGW-Arbeitsblatt W 400-2
Planning, execution, operation
and maintenance of potable water
house service connections
DVGW-Arbeitsblatt W 400-3
Planning, execution, operation
and maintenance of potable water
installations
DVGW-Merkblatt W 333
Scope / Notice Regulations applicable in Ger‐
many
Suitability for potable water Trinkwasserverordnung (TrinkwV)
Regulations from section: Target group
Regulations from section: Fields of application
Regulations from section: Media
Product information
Geopress tapping valve 5

Scope / Notice Regulations applicable in Ger‐
many
Permitted use with piping mate‐
rials in potable water installations
(PE-HD)
DIN 8074, DIN 8075
Permitted use with piping mate‐
rials in potable water installations
(PE-X)
DIN 16893, DIN 16892
Scope / Notice Regulations applicable in Ger‐
many
Threshold values for ovalities DIN 12201-2, Table 1
Scope / Notice Regulations applicable in Ger‐
many
Leakage test before commis‐
sioning the connection line
DVGW-Arbeitsblatt W 400-2
Leakage test before commis‐
sioning the connection line
DVGW-Arbeitsblatt W 333
Leakage test before commis‐
sioning the connection line
DIN EN 805
2.2 Intended use
Coordinate the use of the model for areas of use and
media other than those described with the Viega Service
Center.
The expression "SC-Contur" appearing in the instructions
for use means "Smart Connect Feature".
2.2.1 Areas of use
The tapping valve is suitable for connecting house service connections
on pressurised water supply pipelines.
Regulations from section: Pipes
Regulations from section: Notes on mounting
Regulations from section: Leakage test
Product information
Geopress tapping valve 6

For planning, execution and operation of potable water house service
connections, observe the applicable regulations, see Ä ‘Regulations
from section: Fields of application’ on page 5.
2.2.2 Media
The max. operating pressure depends on the type of pipe used and the
specific application.
Potable water / Class A Recycled Water
nOperating pressure pmax = 1600 kPa (16 bar)
2.2.3 Replacing a damaged tapping valve
CAUTION!
A hole must be drilled in accordance with Ä Chapter 3.4.3
‘Tapping the supply line’ on page 20 to make a tight con‐
nection. The tapping valve must not be positioned at the
location of an existing hole. When a Viega tapping valve is
replaced, the new tapping valve must not be placed in the
position of the previously dismounted tapping valve.
Failure to comply may cause a leak in the connection to
the supply line.
Potable water installation
Product information
Geopress tapping valve 7

2.3 Product description
2.3.1 Overview
Fig. 1: Geopress tapping valve
The model is available in the following dimensions:
d 63 / 90 / 110 / 125 / 140 / 160 / 180 / 200.
2.3.2 Pipes
The tapping valve is suitable for the connection of house service con‐
nections on supply lines under pressure in acc. with the following
tables:
Product information
Geopress tapping valve 8

Permitted use with piping materials
d [mm] PE-HD 1)
SDR 11–17.6
PE-X 1)
SDR 11–13.6
63 ✓ ✓
90 ✓ ✓
110 ✓ ✓
125 ✓ ✓
140 ✓ ✓
160 ✓ ✓
180 ✓ ✓
200 ✓ ✓
1) see
Ä ‘Regulations from section: Pipes’ on page 6
Potable water
Product information
Geopress tapping valve 9

2.3.3 Tapping valve
Fig. 2: Components tapping valve
1 Spindle
2 Tapping / valve casing
3 Outlet sleeve with clamping ring
4 Pipe clamp bottom piece
5 Pipe clamp top
Geopress tapping valves are made of high-quality plastic. They are
equipped with an outlet sleeve for Geopress K.
The fitting is pressed onto the supply line. A spring set in the bottom
part of the pipe clamp keeps the pressing force on the pipe at a con‐
stant level. The integrated cutter is connected to the actuating spindle.
The cutter is used for tapping and subsequently remains in the fitting.
The cutter holds the cut-out pipe wall plate securely. The sleeve in the
drill hole prevents the tapping valve from twisting on the supply line.
The model is equipped with an operation shut-off for the house service
connection. The spindle acts as a drilling rod during tapping, and after
commissioning as an actuating spindle for the shut-off.
Product information
Geopress tapping valve 10

2.3.4 Mark on tapping valves
The model has a mark for alignment on the supply line.
The position of newly laid pipes and connection lines, including detailed
information about pipeline parts, must be documented and regularly
updated. The traceability code on the tapping valve allows every con‐
nector to be traced back and simplifies the documentation in as-com‐
pleted drawings.
2.3.5 Compatible connecting pieces for the tapping valve
Fig. 3: Connecting pieces Geopress K
Alignment markings
Traceability code
Product information
Geopress tapping valve 11

The tapping valve is integrated into the Viega product network. At the
outlet of the tapping valve, the house service connection is connected
by means of a connecting piece or connection elbow.
Product information
Geopress tapping valve 12

3 Handling
3.1 Transport
Leave the fitting in the original box, in this way spare parts important for
mounting won't get lost.
3.2 Storage
Remove the protective foil during mounting, as described in the
mounting instructions Ä Chapter 3.4.1 ‘Pressing onto the supply line’
on page 16.
3.3 Assembly information
3.3.1 Mounting instructions
The design of the tapping valve for d 63 is different from
the other pipe sizes. The pressing takes place on the
opposite side of the outlet sleeve.
Pipes must be visually inspected for the following damage before instal‐
lation:
nOvalities: threshold values must not be exceeded, see Ä ‘Regula‐
tions from section: Notes on mounting’ on page 6.
This is valid for coiled bundles as well as rods.
nDents
nCracks
nGrooves (maximum depth 10 % of nominal wall thickness)
Only process the sections of the pipes, which do not exhibit these fea‐
tures.
The following components must be included:
nTapping valve
nclamping ring
nLocking pin for clamping ring and a replacement pin
nFixing bolts for tapping valve
Check scope of delivery
Handling
Geopress tapping valve 13

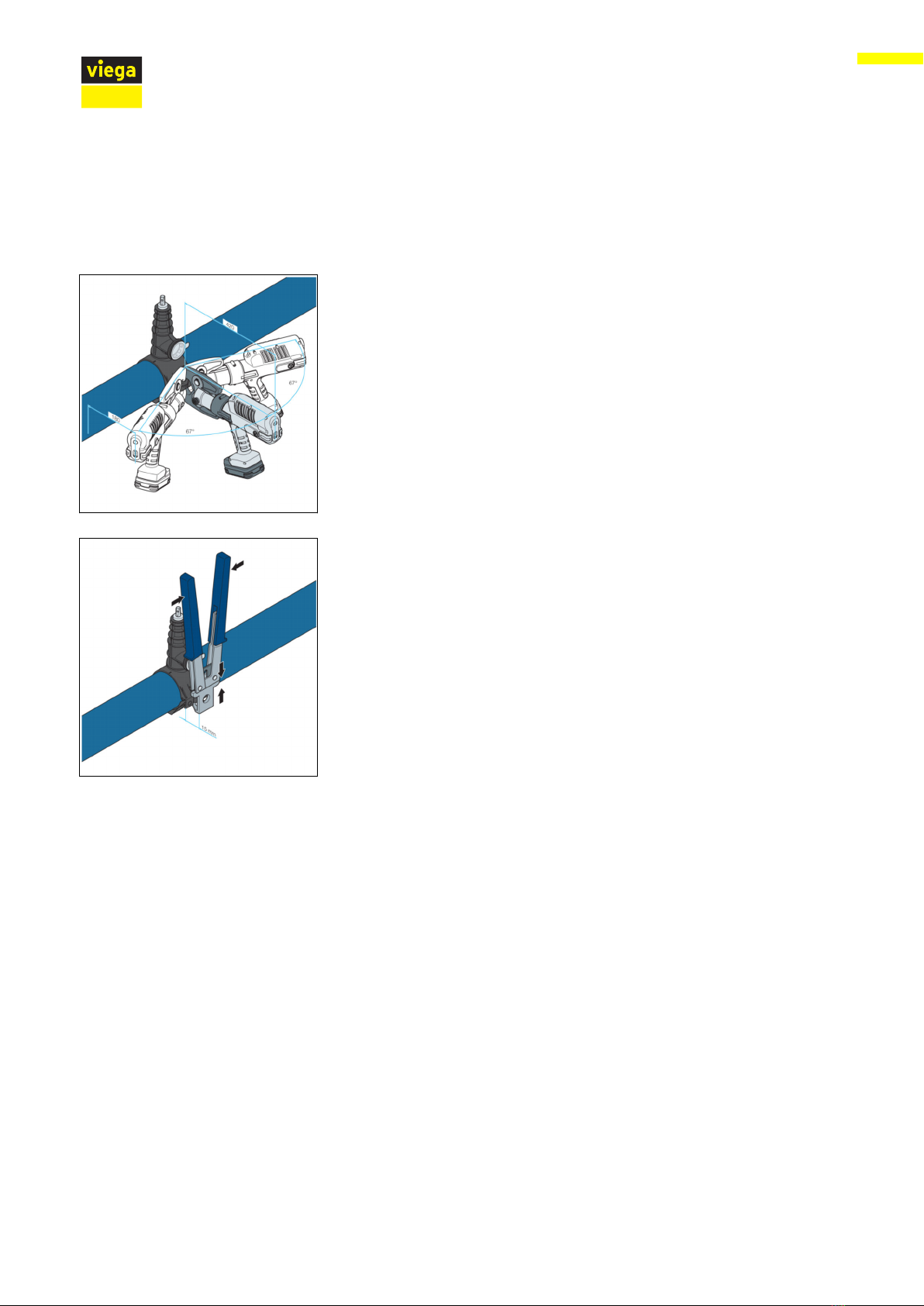

3.3.2 Space requirements and intervals
Adequate space is a prerequisite for mounting. Only carry out the
pressing when the hinged adapter jaw (model 2296.2 or 0796.2, Z2) or
Geopress hand press tool is placed exactly in the seat of the tapping
valve.
For the Z dimensions, refer to the respective product page in the online
catalogue.
3.3.3 Required tools
The following tools are required for mounting the tapping valve:
nBattery-powered press machine:
nPressgun 5 or
nPressgun 4B
nhinged adapter jaw Z2 (model 2296.2 or 0796.2)
nalternative: Geopress hand press tool (model 9696.5)
nratchet or key rod
Z dimensions
Handling
Geopress tapping valve 14

Fig. 4: Pressgun 5
Recommended Viega press machines:
nPressgun 5
with rechargeable battery
nPressgun 4B
with rechargeable battery
Handling
Geopress tapping valve 15

3.4 Assembly
3.4.1 Pressing onto the supply line
Pressing with a battery-powered press machine is
described in the following. Alternatively, the Geopress
hand press tool can be used.
When replacing a faulty tapping valve, observe the instruction in
Ä Chapter 2.2.3 ‘Replacing a damaged tapping valve’ on page 7.
Requirements:
nThe supply line has operating pressure.
nThe pipeline trench has been made properly.
nThe main shut off valve for the supply line is accessible.
nThe tapping point is 5 x DN, however at least 0.5 m from pipe con‐
nections or other pipe fittings.
nInformation about the supply line to be tapped are available:
nGeneral manufacturer's information
nExperience from previous mountings
nAll components are operational.
nThe required components of the tapping valve / connecting pieces
are the correct sizes.
nPipes with protective coating have been stripped.
nThe tapping point is free of grooves, damage and ovalities.
nAll of the required tools are ready for use.
▶Prepare and clean the tapping point at the supply line. The surface
around the mounting point must be clean, undamaged and free from
grease.
Handling
Geopress tapping valve 16

▶Remove the protective foil from the inlet of the tapping valve.
▶Check the seal for damage, contamination and correct positioning.
▶Position the tapping valve at the prepared point on the supply pipe.
▶Push the bottom part of the pipe clamp into the first notch until it
snaps into place.
▶Alignment: Turn the marking on the tapping valve centrally to the
pipe axis. The tapping valve is vertical after pressing.
NOTICE! Do not re-align the tapping valve after pressing!
Handling
Geopress tapping valve 17

▶Place the hinged adapter jaw Z2 accurately in the seat on the oppo‐
site side of the outlet sleeve.
▶Carry out the pressing process until the machine switches off.
▷Connection is pressed.
▶Place the hinged adapter jaw Z2 accurately in the seat of the tap‐
ping valve.
▶Carry out the pressing process until the machine switches off.
▷Connection is pressed.
▶Hit the fixing bolts in flush with the surface.
▶Remove the protective foil from the outlet sleeve.
Pipe diameter d 63
Pipe diameter larger than d 63
Handling
Geopress tapping valve 18

3.4.2 Producing a house service connection
Requirements:
nThe protective foil is removed from the outlet sleeve.
▶Push the connecting piece as far as it will go into the outlet sleeve.
▶Place the clamping ring around the connecting piece and mount the
fixing bolt.
▶Mount the house service connection in accordance with the instruc‐
tions of the Geopress K system.
▶Perform a leakage test, see
Ä Chapter 3.4.6 ‘Leakage test’
on page 22.
Handling
Geopress tapping valve 19

3.4.3 Tapping the supply line
When replacing a faulty tapping valve, observe the instruction in
Ä Chapter 2.2.3 ‘Replacing a damaged tapping valve’ on page 7.
Requirements:
nA leakage test has been carried out Ä Chapter 3.4.6 ‘Leakage test’
on page 22.
▶Screw the spindle in as far as possible using a ratchet or a spanner.
▶Unscrew the spindle to open the operation shut-off.
3.4.4 Commission the house service connection
▶Check for proper function.
▶Carry out floor filling work.
Take care to avoid mechanical damage to the tapping valve during
filling work.
▷The house service connection is operational.
Handling
Geopress tapping valve 20
