Viessmann VITOTROL 300A Quick guide

Installation and service instructions
for contractors
VIESMANN
Vitotrol 300-A
Remote control
For applicability, see the last page
VITOTROL 300-A
5784 752 GB 8/2016 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on gas installations may only be carried out by
a registered gas fitter.
■Work on electrical equipment may only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for environmental protection
■Codes of practice of the relevant trade associations
■All current safety regulations as defined by DIN, EN,
DVGW, TRGI, TRF, VDE and all locally applicable
standards
aÖNORM, EN, ÖVGW-TR Gas, ÖVGW-TRF and
ÖVE
cSEV, SUVA, SVGW, SVTI, SWKI, VKF and
EKAS guideline 1942: LPG, part 2
Safety instructions for working on the system
Working on the system
■Where gas is used as the fuel, close the main gas
shut-off valve and safeguard it against unintentional
reopening.
■Isolate the system from the power supply, e.g. by
removing the separate fuse or by means of a mains
isolator, and check that it is no longer 'live'.
■Safeguard the system against reconnection.
■Wear suitable personal protective equipment when
carrying out any work.
Danger
Hot surfaces can cause burns.
■Before maintenance and service work, switch
OFF the appliance and let it cool down.
■Never touch hot surfaces on the boiler, burner,
flue system or pipework.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Replace faulty components only with genuine
Viessmann spare parts.
Safety instructions
Safety instructions
5784 752 GB

3
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate our warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions for operating the system
If you smell gas
Danger
Escaping gas can lead to explosions which may
result in serious injury.
■Do not smoke. Prevent naked flames and
sparks. Never switch lights or electrical appli-
ances on or off.
■Close the gas shut-off valve.
■Open windows and doors.
■Evacuate any people from the danger zone.
■Notify your gas or electricity supply utility from
outside the building.
■Have the power supply to the building shut off
from a safe place (outside the building).
What to do if you smell flue gas
Danger
Flue gas can lead to life threatening poisoning.
■Shut down the heating system.
■Ventilate the installation site.
■Close doors to living spaces to prevent flue
gases from spreading.
What to do if water escapes from the appliance
Danger
If water escapes from the appliance there is a
risk of electrocution.
Switch off the heating system at the external iso-
lator (e.g. fuse box, domestic power distribu-
tion).
Danger
If water escapes from the appliance there is a
risk of scalding.
Never touch hot heating water.
Condensate
Danger
Contact with condensate can be harmful to
health.
Never let condensate touch your skin or eyes
and do not swallow it.
Flue systems and combustion air
Ensure that flue systems are clear and cannot be
sealed, for instance due to accumulation of conden-
sate or other causes. Ensure an adequate supply of
combustion air.
Inform system users that subsequent modifications to
the building characteristics are not permissible (e.g.
cable/pipework routing, cladding or partitions).
Danger
Leaking or blocked flue systems, or an inade-
quate supply of combustion air can cause life
threatening poisoning from carbon monoxide in
the flue gas.
Ensure the flue system is in good working order.
Vents for supplying combustion air must be non-
closable.
Extractors
Operating appliances that extract air to the outside
(cooker hoods, extractors, air conditioning units, etc.)
can create negative pressure. If the boiler is operated
at the same time, this can lead to reverse flow of the
flue gas.
Danger
The simultaneous operation of the boiler and
appliances that extract air to the outside can
result in life threatening poisoning due to
reverse flow of the flue gas.
Fit an interlock circuit or take suitable steps to
ensure an adequate supply of combustion air.
Safety instructions
Safety instructions (cont.)
5784 752 GB

4
1. Information Disposal of packaging ............................................................................ 5
Symbols ................................................................................................. 5
Intended use .......................................................................................... 6
2. Installation sequence Installation location ................................................................................ 7
Installing and connecting the Vitotrol 300-A .......................................... 7
Connecting several remote control units ............................................... 8
Installing and removing the programming unit ....................................... 9
3. Commissioning Configuring the remote control .............................................................. 10
4. Troubleshooting Fault display ........................................................................................... 11
5. Parts lists ................................................................................................................ 12
6. Specification ................................................................................................................ 14
7. Certificates Declaration of conformity ....................................................................... 15
Index
Index
5784 752 GB

5
Disposal of packaging
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
The steps in connection with commissioning, inspec-
tion and maintenance are found in the "Commission-
ing, inspection and maintenance" section and identified
as follows:
Symbol Meaning
Steps required during commissioning
Not required during commissioning
Steps required during inspection
Not required during inspection
Steps required during maintenance
Not required during maintenance
Information
Disposal of packaging
5784 752 GB
Information

6
Install and operate the appliance as intended, in con-
junction with the electronic control units and controllers
for the Viessmann heat and power generators
designed for this system. Also take account of the rele-
vant installation, service and operating instructions. In
particular, observe the current and voltage specifica-
tions for connections and hook-ups.
The device is exclusively designed for operation in
buildings of a domestic or commercial nature.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and will result in an exclusion of liability. Incorrect
usage also occurs if the components in the heating
system are modified from their intended function.
Note
The appliance is intended exclusively for domestic or
semi-domestic use, i.e. even users who have not had
any instruction are able to operate the appliance
safely.
Information
Intended use
5784 752 GB
Information

7
■Weather-compensated operation
Installation in any room.
■Operation with room temperature hook-up
–On an internal wall in the main living room, approx.
1.5 m above the floor
–Not near windows or doors
–Not above radiators
–Not near heat sources (direct sunlight, fireplace,
TV set, etc.)
Do not install additional control devices in this room. If
the radiators are equipped with thermostatic valves,
these must always be fully opened.
Note
If the remote control cannot be installed in a suitable
location, connect the separate room temperature sen-
sor, part no. 7438 537.
Installing and connecting the Vitotrol 300-A
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing any work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Fig. 1
Connection
2-core cable with a cross-section of at least 0.75 mm²;
cores are interchangeable.
Max. cable length 50 m.
Note
Never route the cable to the remote control immedi-
ately next to 230/400 V cables.
Installation sequence
Installation location
5784 752 GB
Installation

8
E
13c
9
A
B
4 3 2 1
3 2 17 6 5 4
X3X4 C
145
1 2
D
2 1 54321
X3X4 aVG
X14

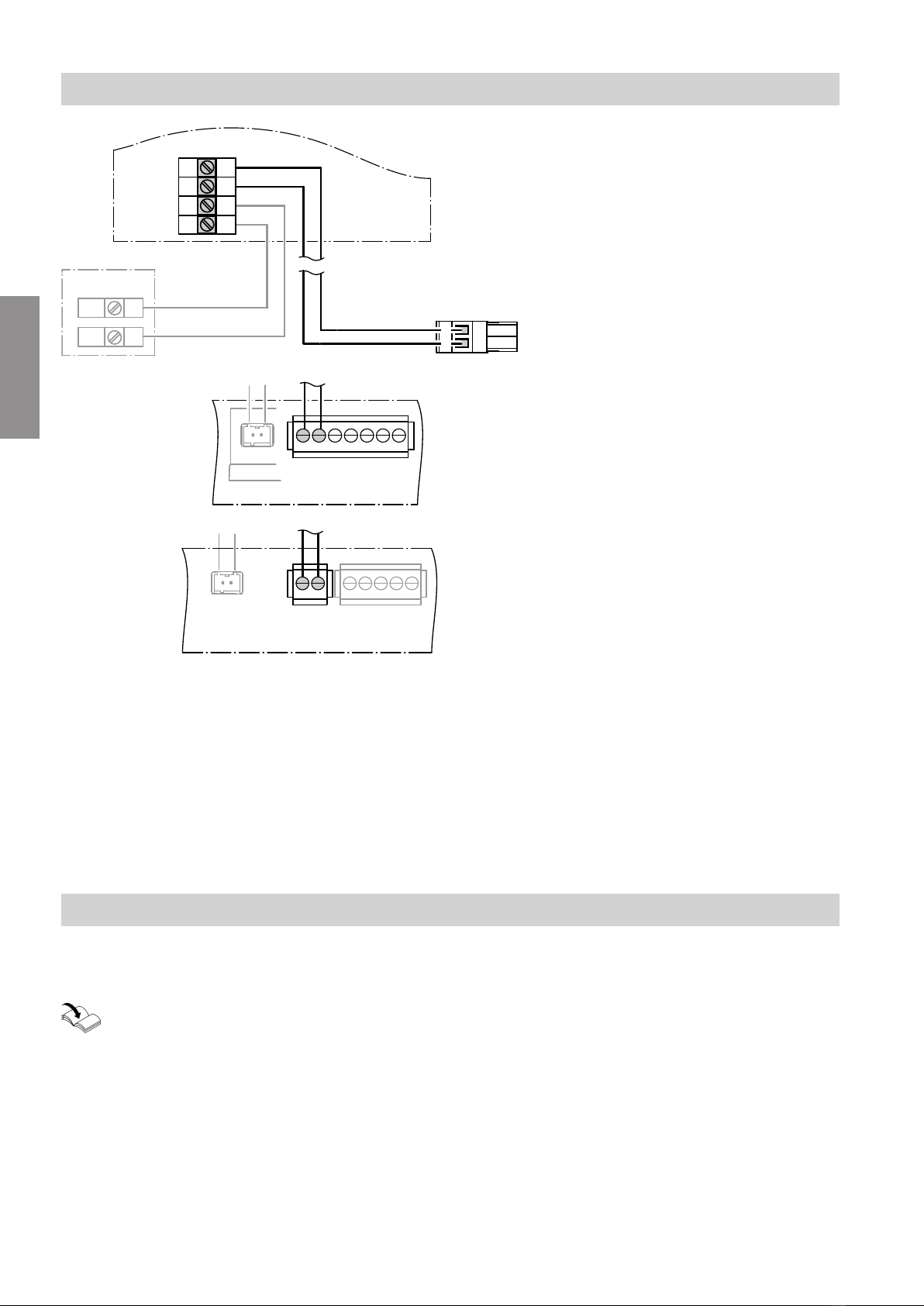

Fig. 2
AVitotrol 300-A
B2-pole plug aVG (control unit or KM-BUS distribu-
tor)
CVitotronic control unit with screw terminals for
KM-BUS connection
DWall mounted gas condensing boilers, storage
combi boilers and gas adsorption heating appli-
ance with plug aVG for KM-BUS connection
ESeparate room temperature sensor NTC 10 kΩ
(accessories)
Note
When replacing the Vitotrol 300-A, also replace the
room temperature sensor.
Connecting several remote control units
Vitotrol 200-A and Vitotrol 300-A can be connected
jointly to a Vitotronic control unit.
Vitotrol 200-A installation and service instruc-
tions
Installation sequence
Installing and connecting the Vitotrol 300-A (cont.)
5784 752 GB
Installation

9
Version 1
C
B B
A
15 m
15 m
4 3 2 1 4 3 2 1
Fig. 3
ATo the control unit (see connection diagram on
page 8)
BVitotrol 300-A
CKM-BUS distributor or on-site junction box
Max. total length of all KM-BUS cables 50 m.
Version 2
A
B
C
B
15 m
15 m
4 3 2 1 4 3 2 1
Fig. 4
ATo the control unit (see connection diagram on
page 8)
BVitotrol 300-A
CKM-BUS distributor or on-site junction box
Max. total length of all KM-BUS cables 50 m.
Installing and removing the programming unit
!Please note
The remote control is supplied with power by the
control unit.
Never insert batteries into the battery compart-
ment.
Installation
2.
3.
1.
Fig. 5
Removal
1.
2. 3.
Fig. 6
Installation sequence
Connecting several remote control units (cont.)
5784 752 GB
Installation

10
Up to 3 heating circuits can be operated with a
Vitotrol 300-A.
When combined with an Ecotronic control unit for
Vitoligno solid fuel boilers, up to 4 heating circuits can
be controlled.
A Vitovent ventilation system can also be operated.
Up to two Vitotrol 300-A can be connected to one
Vitotronic.
1. Switch ON the power supply at the control unit.
The operating status of the heating system is
transmitted. A progress bar appears on the display.
2. Use / to select the language.
3. OK to confirm.
4. Use to select the heating circuits, ventilation sys-
tem, and room temperature sensor (if installed) to
be controlled.
5. Use / to select "Save with OK".
6. OK to confirm.
7. Use / to select "Yes".
8. OK to confirm.
The operating state of the heating circuits/ventila-
tion system is transferred. A progress bar appears
on the display. This process may take several
minutes.
Note
While the progress bar is displayed, the configured
heating circuits can be called up by pressing .
Configuration has completed when the bar disap-
pears.
Otherwise, check the heating circuit assignment.
Note
To return to the configuration, press and
simultaneously for approx. 4 s.
Settings at the Vitotronic control unit:
Check and/or set relevant coding address/parameter.
Installation and service instructions or service
instructions of the control unit
Note
If the assignment of a heating circuit is subsequently
changed, reset the relevant coding address/parameter
for this heating circuit on the Vitotronic control unit to 0.
Commissioning
Configuring the remote control
5784 752 GB
Commissioning

11
In the event of a fault, the symbol flashes on the dis-
play and "Fault" is shown.
Call up the cause of the fault by pressing OK.
Fault
Acknowledge with OK
Fault 18
Fig. 7
Some faults are displayed as plain text.
For an explanation of the fault codes, see instal-
lation and service instructions for the respective
control unit.
Acknowledging a fault
Follow the instructions on the display.
Note
The fault message is adopted into the "Fault" menu.
Any connected alarm is switched off.
If an acknowledged fault is not remedied, the fault
message is redisplayed the following day and the
alarm is switched on.
Menu
Party mode
HC1
Fault
Heating
Economy mode ã
OKContinue with
Fig. 8
Calling up acknowledged fault messages
Extended menu
1.
2. "Fault"
Troubleshooting
Fault display
5784 752 GB
Diagnosis

12
0004
0006
0005
0002
0003
0001
Fig. 9

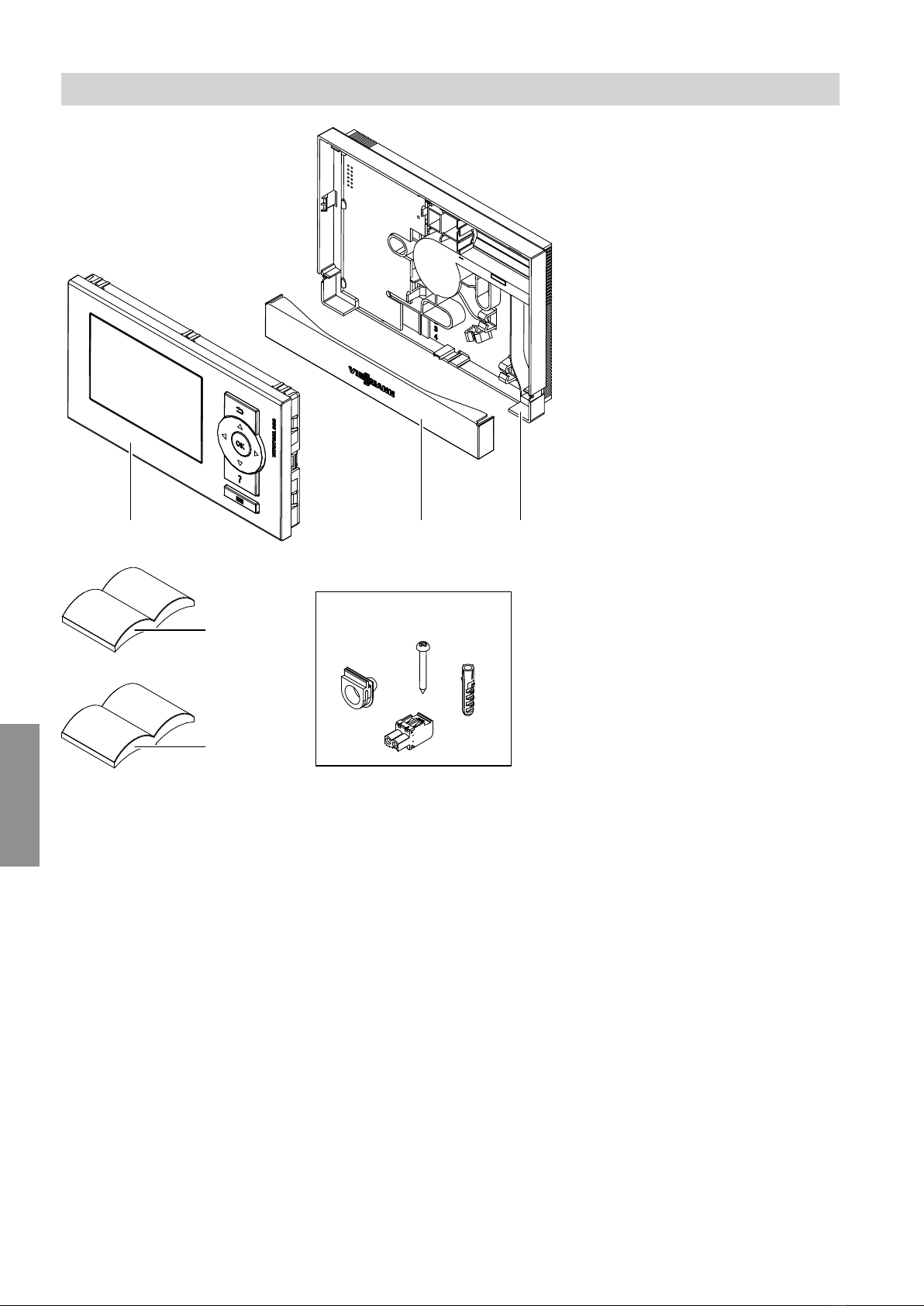

Parts lists
(cont.)
5784 752 GB
Components

13
Pos. Part
0001 Programming unit
0002 Wall mounting base
0003 Cover, wiring chamber
0004 Fixing materials and plugs
0005 Installation instructions
0006 Operating instructions
Parts lists
(cont.)
5784 752 GB
Components

14
Power supply Via KM-BUS
Power consumption W 0.5
Protection class III
IP rating IP 30
Permissible ambient temperature
■During operation °C 0 to 40
■During storage and transport °C −20 to +65 °C
Set room temperature setting range °C 3 to 37
Specification
Specification
5784 752 GB
Appendix

15
Vitotrol 300-A
We, Viessmann Werke GmbH & Co. KG, D-35107 Allendorf, declare as sole responsible body that the named
product complies with the provisions of the following directives and regulations:
2014/30/EU EMC Directive
2014/35/EU Low Voltage Directive
2011/65/EU RoHS II Directive
Applied standards:
EN 55014-1: 2011
EN 55014-2: 2008
EN 55022: 2010
EN 60730-1: 2011
EN 60730-2-9: 2010
In accordance with the listed directives, this product is designated with .
Allendorf, 01 May 2016 Viessmann Werke GmbH & Co. KG
Authorised signatory Manfred Sommer
Certificates
Declaration of conformity
5784 752 GB
Appendix

16
Applicability
Serial No.:
7571013 7571231
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP, GB
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Viessmann Werke GmbH & Co. KG
D-35107 Allendorf
Telephone: [phone]
Fax: [phone]
www.viessmann.com
5784 752 GB Subject to technical modifications.
