Viessmann VITOTROL 200 RF Quick guide

Installation and service instructions
for contractors
VIESMANN
Vitotrol 200 RF
Wireless remote control for one heating circuit
For applicability, see the last page
VITOTROL 200 RF
5602 119 GB 7/2017 Please keep safe.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for quali-
fied contractors.
■Work on gas installations may only be carried out by
a registered gas fitter.
■Work on electrical equipment may only be carried
out by a qualified electrician.
■The system must be commissioned by the system
installer or a qualified person authorised by the
installer.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for environmental protection
■Codes of practice of the relevant trade associations
■All current safety regulations as defined by DIN, EN,
DVGW, TRGI, TRF, VDE and all locally applicable
standards
aÖNORM, EN, ÖVGW G K directives,
ÖVGW-TRF and ÖVE
cSEV, SUVA, SVGW, SVTI, SWKI, VKF and
EKAS guideline 1942: LPG, part 2
Safety instructions for working on the system
Working on the system
■Where gas is used as the fuel, close the main gas
shut-off valve and safeguard it against unintentional
reopening.
■Isolate the system from the power supply, e.g. by
removing the separate fuse or by means of a mains
isolator, and check that it is no longer live.
■Safeguard the system against reconnection.
■Wear suitable personal protective equipment when
carrying out any work.
Danger
Hot surfaces can cause burns.
■Before maintenance and service work, switch
OFF the appliance and let it cool down.
■Never touch hot surfaces on the boiler, burner,
flue system or pipework.
!Please note
Electronic assemblies can be damaged by elec-
trostatic discharge.
Prior to commencing work, touch earthed
objects such as heating or water pipes to dis-
charge static loads.
Repair work
!Please note
Repairing components that fulfil a safety func-
tion can compromise the safe operation of the
system.
Replace faulty components only with genuine
Viessmann spare parts.
Safety instructions
Safety instructions
5602 119 GB

3
Auxiliary components, spare and wearing parts
!Please note
Spare and wearing parts that have not been tes-
ted together with the system can compromise its
function. Installing non-authorised components
and making non-approved modifications or con-
versions can compromise safety and may inva-
lidate our warranty.
For replacements, use only original spare parts
supplied or approved by Viessmann.
Safety instructions for operating the system
If you smell gas
Danger
Escaping gas can lead to explosions which may
result in serious injury.
■Do not smoke. Prevent naked flames and
sparks. Never switch lights or electrical appli-
ances on or off.
■Close the gas shut-off valve.
■Open windows and doors.
■Evacuate any people from the danger zone.
■Notify your gas or electricity supply utility from
outside the building.
■Have the power supply to the building shut off
from a safe place (outside the building).
If you smell flue gas
Danger
Flue gas can lead to life threatening poisoning.
■Shut down the heating system.
■Ventilate the installation site.
■Close doors to living spaces to prevent flue
gases from spreading.
What to do if water escapes from the appliance
Danger
If water escapes from the appliance there is a
risk of electrocution.
Switch OFF the heating system at the external
isolator (e.g. fuse box, domestic distribution
board).
Danger
If water escapes from the appliance there is a
risk of scalding.
Never touch hot heating water.
Condensate
Danger
Contact with condensate can be harmful to
health.
Never let condensate touch your skin or eyes
and do not swallow it.
Flue systems and combustion air
Ensure that flue systems are clear and cannot be
sealed, for instance due to accumulation of conden-
sate or other external causes.
Avoid continuous condensate disposal with a wind pro-
tector.
Ensure an adequate supply of combustion air.
Inform system users that subsequent modifications to
the building characteristics are not permissible (e.g.
cable/pipework routing, cladding or partitions).
Danger
Leaking or blocked flue systems, or an inade-
quate supply of combustion air can cause life
threatening poisoning from carbon monoxide in
the flue gas.
Ensure the flue system is in good working order.
Vents for supplying combustion air must be non-
sealable.
Extractors
Operating appliances that exhaust air to the outside
(extractor hoods, extractors, air conditioning units, etc.)
can create negative pressure. If the boiler is operated
at the same time, this can lead to a reverse flow of flue
gas.
Danger
The simultaneous operation of the boiler and
appliances that exhausts air to the outside can
result in life threatening poisoning due to a
reverse flow of flue gas.
Fit an interlock circuit or take suitable steps to
ensure an adequate supply of combustion air.
Safety instructions
Safety instructions (cont.)
5602 119 GB

4
1. Safety and liability Operational reliability ............................................................................. 5
Liability ................................................................................................... 5
2. Information Symbols ................................................................................................. 6
Intended use .......................................................................................... 6
Product information ................................................................................ 6
3. Preparing for installation Installation location ................................................................................ 7
■Operation with or without room temperature hook-up ........................ 7
■Wireless connection ........................................................................... 7
4. Installation sequence Overview of the installation and commissioning process ...................... 8

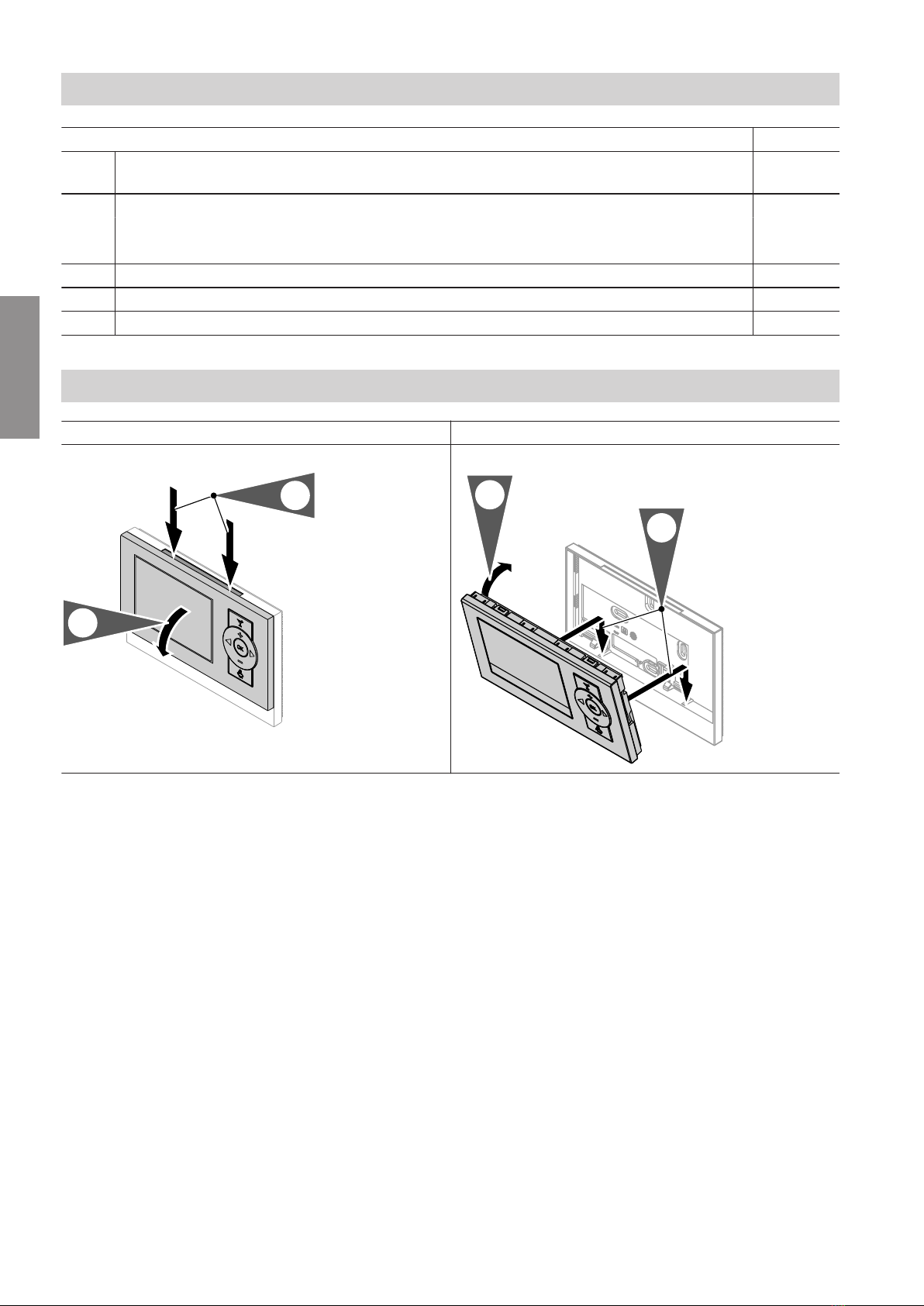

Removing / inserting the remote control ................................................ 8
Fitting the wall mounting base ............................................................... 9
Inserting the batteries ............................................................................ 9
5. Commissioning With wireless base station ..................................................................... 10
■Following replacement of the wireless base station ........................... 10
With Vitotronic with integral wireless interface ....................................... 11
Checking the reception quality at the installation site ............................ 12
■Displaying the reception quality on the screen ................................... 12
Changing the display contrast ............................................................... 13
Changing the heating circuit assignment ............................................... 13
6. Troubleshooting Fault display ........................................................................................... 14
7. Parts lists Ordering parts ........................................................................................ 15
Parts list ................................................................................................. 16
8. Specification ................................................................................................................ 18
9. Certificates Declaration of conformity ....................................................................... 19
10. Keyword index ................................................................................................................ 20
Index
Index
5602 119 GB

5
Danger
Wireless signals can interfere with electronic
devices, particularly cardiac pacemakers, hear-
ing aids and defibrillators.
If any such equipment is fitted, users should
avoid being in the immediate vicinity of opera-
tional wireless components.
■Wireless components may interfere with each other's
signal transmission. To ensure reliable signal trans-
mission, maintain a minimum clearance of 0.5 m
between wireless components.
■Radio frequency of the wireless components:
868 MHz
■Only operate wireless components indoors.
■Avoid impairment through moisture or dust.
■Ensure the wireless components do not come into
contact with gases, vapours or solvents and prevent
long-lasting direct insolation.
■Do not operate wireless components in conjunction
with the following devices:
–Devices which directly or indirectly serve for health
or life-saving purposes.
–Devices which, when operated, may result in a risk
to humans, animals or property.
■Check the status of the wireless components follow-
ing a power failure or restart.
Liability
The licensor rejects all liability for loss of profit, unat-
tained savings, or other direct or indirect consequential
losses resulting from the use of the wireless compo-
nents, as well as losses resulting from inappropriate
use. The limitation of liability shall not apply if the dam-
age was caused deliberately or through gross negli-
gence, or if mandatory liability applies due to product
liability legislation.
Safety and liability
Operational reliability
5602 119 GB
Information

6
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Intended use
Install and operate the appliance as intended, in con-
junction with the electronic control units and controllers
for the Viessmann heat and power generators
designed for this system. Also take account of the rele-
vant installation, service and operating instructions. In
particular, observe the current and voltage specifica-
tions for connections and hook-ups.
The device is exclusively designed for operation in
buildings of a domestic or commercial nature.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and will result in an exclusion of liability. Incorrect
usage also occurs if the components in the heating
system are modified from their intended function.
Note
The appliance is intended exclusively for domestic or
semi-domestic use, i.e. even users who have not had
any instruction are able to operate the appliance
safely.
Product information
One heating circuit can be operated with a
Vitotrol 200 RF. For each of the max. 3 heating circuits
within a heating system one Vitotrol 200 RF can be
used.
The Vitotrol 200-RF can be connected to the relevant
Vitotronic control unit with the associated wireless
base station. It can also be connected to Vitotronic
control units with integral wireless interface.
Information
Symbols
5602 119 GB
Information

7
Operation with or without room temperature hook-up
Do not install additional control devices in this room. If
radiators are equipped with thermostatic valves,
always open these fully.
■Weather-compensated mode
Installation in any room (preferably in the main living
room)
■Operation with room temperature hook-up (see
Fig. 1)
The integral room temperature sensor captures the
room temperature and effects any necessary correc-
tion of the flow temperature.
The captured room temperature depends on the
installation site:
–On an internal wall in the main living room, approx.
1.5 m above the floor
–Not next to windows or doors
–Not above radiators
–Not between shelves, in recesses, etc.
–Not near heat sources (direct sunlight, fireplace,
TV set, etc.)
1500
60
500
Fig. 1
Wireless connection
Danger
Wireless signals can interfere with electronic
medical devices, particularly pacemakers, hear-
ing aids and defibrillators.
If any such equipment is fitted, users should
avoid the immediate vicinity of the operational
wireless components.
The wireless components operate with a frequency of
868 MHz.
Select the installation site of the Vitotrol 200 RF so that
the radio signals are transmitted as vertically as possi-
ble through walls and floors to the wireless base sta-
tion or Vitotronic 200.
Note
Conducting metallic materials (e.g. steel-reinforced
concrete floors) strongly interfere with reception.
Preparing for installation
Installation location
5602 119 GB
Installation

8
Steps Page
1. Position the Vitotrol 200-RF close to the wireless base station or the Vitotronic with integral
wireless interface.
—
2. Commissioning the Vitotrol 200-RF:
■With Vitotronic with wireless base station 10
■With Vitotronic with integral wireless interface 11
3. Position the Vitotrol 200-RF at the chosen installation site. Test the reception quality. 11
4. If the reception is good, fit the Vitotrol 200-RF. 9
If the reception is poor, use the wireless repeater (accessories). Repeat commissioning.
Removing / inserting the remote control
Removing the remote control Inserting the remote control
2.
1.
2.
1.
Installation sequence
Overview of the installation and commissioning process
5602 119 GB
Installation

9
Commission the Vitotrol 200-RF before permanently
securing it in place (see page 10 or 11).
Fig. 2
Inserting the batteries
+ - + -
Fig. 3
Only use the batteries supplied or similar (LR 6/AA/
Mignon 3 V–, 2600 mAh).
Note
As soon as power is first supplied to the
Vitotrol 200 RF, the commissioning assistant starts
automatically. The display shows "C1" and "Lrn"
flashes.
n
Fig. 4
Installation sequence
Fitting the wall mounting base
5602 119 GB
Installation

10
1. Connect the wireless base station to the control
unit via KM BUS.
"Wireless base station" installation and serv-
ice instructions
Switch ON the Vitotronic control unit to which the
wireless base station is connected.
2. Insert batteries into the Vitotrol 200-RF: See
page 9.
3. Press button A on the wireless base station:
■Operation without wireless repeater: for 4 s
The green LED on the wireless base station
flashes slowly.
■Operation with wireless repeater: for 8 s
The green LED on the wireless base station
flashes quickly.
A
Fig. 5
4. Press OK on the Vitotrol 200 RF.
The Vitotrol 200 RF transmits a signal to log on to
the wireless base station.
■Successful connection to the wireless base sta-
tion:
The display shows "C2" and "000" (1st digit
flashes).
■Connection to the wireless base station failed:
The display shows "C1" and .
"Lrn" flashes.
Repeat the logon process with OK.
5. Note down the 3-digit wireless key:
The wireless key is printed on the protective foil on
the front of the wireless base station.
If the protective foil has been removed, use the
wireless key recorded in the installation and serv-
ice instructions for the wireless base station.
6. Enter the 3-digit wireless key:
■Use +/– to enter the first digit. Confirm with OK.
■Select the next position with . Use +/– to enter
the next digit. Confirm with OK.
■Successful input of the wireless key:
The display shows "C3" and "H 1".
■Input of the wireless key failed:
The display shows "C2" and "000" (1st digit
flashes).
Enter the 3-digit wireless key again.
7. Use +/– to select the heating circuit that is to be
operated via the Vitotrol 200 RF.
"H 1" for heating circuit 1
"H 2" for heating circuit 2
"H 3" for heating circuit 3
8. OK to confirm.
The initialisation takes approx. 5 min.
The default display appears.
Following replacement of the wireless base station
01. Remove the Vitotrol 200 RF and place it near the
wireless base station.
02. Simultaneously press and hold and on the
Vitotrol 200-RF for approx. 4 s.
The display shows "C1" and "Lrn" flashes.
Commissioning
With wireless base station
5602 119 GB
Commissioning

11
03. Press button A on the wireless base station:
■Operation without wireless repeater: for 4 s
The green LED on the wireless base station
flashes slowly.
■Operation with wireless repeater: for 8 s
The green LED on the wireless base station
flashes quickly.
A
Fig. 6
04. Press OK on the Vitotrol 200 RF.
The Vitotrol 200 RF transmits a signal to log on to
the wireless base station.
■Successful connection to the wireless base sta-
tion:
The display shows "C1" and "on".
The LED on the wireless base station illuminates
green.
■Connection to the wireless base station failed:
The display shows "C1" and .
"Lrn" flashes.
Repeat the logon process with OK.
05. Use to select "C2".
The display shows "C2" and "000" (1st digit
flashes).
06. Note down the 3-digit wireless key:
The wireless key is printed on the protective foil on
the front of the wireless base station.
If the protective foil has been removed, use the
wireless key recorded in the installation and serv-
ice instructions for the wireless base station.
07. Enter the 3-digit wireless key:
■Use +/– to enter the first digit. Confirm with OK.
■Use to select the next position; use +/– to
enter the next digit and confirm with OK.
■Input of the wireless key successful:
The display shows "C2" and "on".
■Input of the wireless key failed:
The display shows "C2" and "000" (1st digit
flashes).
Enter the 3-digit wireless key again.
08. Press .
09. "C3" and "H 1" appear on the display.
10. Use +/– to select the heating circuit that is to be
operated via the Vitotrol 200 RF.
"H 1" for heating circuit 1
"H 2" for heating circuit 2
"H 3" for heating circuit 3
11. OK to confirm.
The initialisation takes approx. 5 min.
12. Simultaneously press and hold and on the
Vitotrol 200-RF for approx. 4 s.
The default display appears.
Note
If the logon has failed, and appear on the
display. Repeat the logon process from step 2.
With Vitotronic with integral wireless interface
1. Start the Vitotronic control unit.
Heat generator installation and service
instructions
2. Insert batteries into the Vitotrol 200-RF; see
page 9.
3. Press OK on the Vitotrol 200 RF.
The Vitotrol 200 RF transmits a signal to log on to
the heat generator control unit.
■Log on successful:
The display shows "C2" and "000" (1st digit
flashes).
■Log on unsuccessful:
The display shows "C1" and .
"Lrn" flashes.
Repeat the logon process with OK.
Commissioning
With wireless base station (cont.)
5602 119 GB
Commissioning

12
4. Note down the 3-digit wireless key:
The wireless key is printed on the protective foil on
the front of the wireless base station.
If the protective foil has been removed, use the
wireless key recorded in the installation and serv-
ice instructions for the wireless base station.
5. Enter the 3-digit wireless key:
■The wireless key is displayed on the heat gener-
ator control unit.
Heat generator installation and service
instructions, chapter "Wireless accessory
logon"
■Use +/– to enter the first digit, then confirm with
OK.
■Use to select the next position; use +/– to enter
the next digit and confirm with OK.
■Successful input of the wireless key:
The display shows "C3" and "H 1".
■Input of the wireless key failed:
The display shows "C2" and "000" (1st digit
flashes).
6. Use +/– to select the heating circuit that is to be
operated via the Vitotrol 200 RF.
"H 1" for heating circuit 1
"H 2" for heating circuit 2
"H 3" for heating circuit 3
7. OK to confirm.
The initialisation takes approx. 5 min.
The default display appears.
Checking the reception quality at the installation site
Displaying the reception quality on the screen
1. Press OK and simultaneously and hold for
approx. 4 s.
The display shows "d1" and "H . . ." for the
assigned heating circuit.
2. Use / to show the reception quality on the dis-
play:
"d2" Transmission path between wireless base
station and Vitotrol 200 RF
or
Vitotronic control unit with integral wireless
interface and Vitotrol 200 RF
"d3" Transmission path between Vitotrol 200 RF
and wireless base station
or
Vitotrol 200 RF and Vitotronic control unit with
integral wireless interface
"d4" Transmission path between the wireless out-
side temperature sensor and wireless base
station
or
Wireless outside temperature sensor and
Vitotronic control unit with integral wireless
interface
3. Ending the check:
Simultaneously press and OK on the
Vitotrol 200-RF and hold for approx. 4 s.
Fig. 7
Commissioning
With Vitotronic with integral wireless interface (cont.)
5602 119 GB
Commissioning

13
Meaning of display
Display Value in dBm Reception quality
0 to –78 Very good
–79 to –83 Good
–84 to –87 Adequate
–88 to –91 Inadequate
–92 to –... No reception
Note
If the reception quality is inadequate, either select a
different installation site and repeat the check or use a
wireless repeater (accessories).
Changing the display contrast
1. Simultaneously press and hold and on the
Vitotrol 200-RF for approx. 4 s.
2. Use / to select "C4".
3. Change the contrast with +/-.
In the delivered condition, an average value (3) is
set.
4. Press OK to confirm
5. Simultaneously press and hold and on the
Vitotrol 200-RF for approx. 4 s.
Changing the heating circuit assignment
1. Simultaneously press and hold and on the
Vitotrol 200-RF for approx. 4 s.
2. Use / to select "C3".
3. Use +/– to select heating circuit 1 ("H 1"), heating
circuit 2 ("H 2") or heating circuit 3 ("H 3").
4. OK to confirm.
The operating status of the heating system is
transmitted.
5. Simultaneously press and hold and on the
Vitotrol 200-RF for approx. 4 s.
The default display appears.
6. Make the following settings at the Vitotronic control
units:
■Vitotronic 200, type CO1E, CO1I and
Vitotronic 300, type CM1E, CM1I:
For each heating circuit, adjust parameter "00" in
the "Heating circuit ..." group.
■Vitotronic 200 heat pump control unit:
Adjust parameters 2003, 3003, 4003.
■All other Vitotronic control units:
For each heating circuit, adjust coding addresses
"A0" in the "Heating circuit ..." group.
Installation and service instructions for the
relevant Vitotronic or for the heat generator
with Vitotronic with integral wireless interface
Commissioning
Checking the reception quality at the… (cont.)
5602 119 GB
Commissioning

14
The symbol flashes on the display if a fault has
occurred.
For troubleshooting, see the installation and
service instructions for the relevant Vitotronic
control unit or for the heat generator with
Vitotronic with integral wireless interface
If the display shows and , the wireless connec-
tion has been interrupted or has not been established
yet.
■Log components off for troubleshooting.
Installation and service instructions for the
wireless base station or the heat generator
with Vitotronic with integral wireless interface
■Log the components on again (see page 10 or 11). If
required, use wireless repeaters (accessories).
Troubleshooting
Fault display
5602 119 GB
Diagnosis

15
The following details are required when ordering parts:
■Serial no. (see type plate A)
■Position number of the part (from this parts list)
Parts lists
Ordering parts
5602 119 GB
Components

16
0003 0004
0002 0001
A
Fig. 8
Parts lists
Parts list
5602 119 GB
Components

17
Pos. Part
0001 Wall mounting base
0002 Programming unit
0003 Installation and service instructions
0004 Operating instructions
Parts lists
Parts list (cont.)
5602 119 GB
Components

18
Power supply 2 LR 6/AA/Mignon batteries
3 V–, 2600 mAh
Battery life Approx. 2 years
Radio frequency 868 MHz
Protection class III
IP rating IP 30
Permissible ambient temperature
■Operation 0 to +40 °C
■Storage and transport −20 to +65 °C
Setting range for set room temperature 3 to 37 °C
Specification
Specification
5602 119 GB
Appendix

19
Vitotrol 200-RF
We, Viessmann Werke GmbH & Co. KG, D-35107 Allendorf, declare as sole responsible body that the named
product complies with the provisions of the following directives and regulations:
2014/53/EU RED
2011/65/EU RoHS II
Applied standards:
EN 60730-1: 2016
EN 60730-2-9: 2010
EN 55014-1: 2016
EN 55014-2: 2015
EN 301489-1: V.2.2.1
EN 301489-3: V.2.1.1
EN 300220-2: V.3.1.1
EN 62479: 2010
In accordance with the listed directives, this product is designated with .
Allendorf, 17 July 2017 Viessmann Werke GmbH & Co. KG
Authorised signatory Reiner Jansen
Head of Strategic Quality Management
Certificates
Declaration of conformity
5602 119 GB
Appendix

20
B
Batteries....................................................................... 9
C
Checking the reception quality................................... 12
Commissioning...........................................................10
– With Vitotronic with integral wireless interface........ 11
– With Vitotronic with wireless base station............... 10
Contrast......................................................................13
F
Fault display............................................................... 14
Fitting........................................................................... 9
H
Heating circuit assignment......................................... 13
I
Information................................................................... 6
Installation location.......................................................7
Integral wireless interface............................................ 8
Intended use................................................................ 6
K
KM BUS..................................................................... 10
L
Liability......................................................................... 5
P
Parts list..................................................................... 16
Product information...................................................... 6
R
Reception quality........................................................12
Remote control.............................................................8
Room temperature hook-up......................................... 7
S
Safety........................................................................... 5
V
Vitotronic...................................................................... 8
W
Wall mounting base......................................................9
Weather-compensated mode.......................................7
Wireless base station................................................. 10
Wireless connection..................................................... 7
Wireless interface.........................................................8
Applicability
Serial No.:
7441652
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP, GB
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Viessmann Werke GmbH & Co. KG
D-35107 Allendorf
Telephone: [phone]
Fax: [phone]
www.viessmann.com
5602 119 GB Subject to technical modifications.
Keyword index
