OWNER’S
GUIDE
Fitness Bikes AND
Elliptical Trainers
SIMPLE, DELUXE, AND PREMIER

ongratulations on choosing a VISION FITNESS product. You’ve taken
an important step in developing and sustaining an exercise program! Your
VISION FITNESS product is a tremendously effective tool for achieving
your personal fitness goals. Regular use of your VISION FITNESS product
can improve the quality of your life in so many ways…
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help in Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your
new VISION FITNESS product will help you eliminate the obstacles that
prevent you from getting in your exercise time. Snow and rain and
darkness won't interfere with your workout when you have your VISION
FITNESS product in the comfort of your home. This Owner’s Guide
provides you with basic information on starting an exercise program. A
more complete knowledge of your new VISION FITNESS product will
assist you in realizing your goal of a healthy lifestyle.
Please contact your authorized VISION FITNESS retailer should service be
required. If a question or problem arises which cannot be handled by your
VISION FITNESS retailer, please contact us:
VISION FITNESS
500 South CP Avenue
P.O. Box 280
Lake Mills, WI 53551
Ph: 1.800.335.4348
Fax: [phone]
www.visionfitness.com
C

1
ALL BIKES ALL ELLIPTICALS SIMPLE DELUXE PREMIER GENERAL
HOME WARRANTY:
X1500,E1500, R1500 . . . . . . . . . 58
HOME WARRANTY: X6000, R2050,
X6200, E3200, R2250 . . . . . . . . 60
CORPORATE WARRANTY . . . . . . . . . 62
ALL BIKE MODELS
GENERAL
Table of Contents
CONSOLE
SIMPLE
DISPLAY CONSOLE OVERVIEW . . . . 22
DISPLAY DESCRIPTIONS . . . . . . . . . 24
USING THE CONSOLE . . . . . . . . . . . 26
THE PROGRAMS . . . . . . . . . . . . . . 27
ENGINEERING MODE . . . . . . . . . . . 28
ASSEMBLY & MOVING . . . . . . . . . . . 6
STABILIZING & SEAT POSITIONING . . 7
SEAT ADJUSTMENT . . . . . . . . . . . . . 8
PEDAL STRAP ADJUSTMENT . . . . . . 10
SERVICE & TROUBLESHOOTING . . . 11
ALL ELLIPTICAL TRAINER MODELS
ASSEMBLY & MOVING . . . . . . . . . . 15
PLACEMENT, STABILIZING,
& POWER SUPPLY . . . . . . . . . . . . . 16
FOLDING ELLIPTICAL TRAINER . . . . . 17
SERVICE & TROUBLESHOOTING . . . 20
CONSOLE
DELUXE
DISPLAY CONSOLE OVERVIEW . . . . 30
DISPLAY DESCRIPTIONS . . . . . . . . . 31
THE PROGRAMS . . . . . . . . . . . . . . 33
USING THE PROGRAMS . . . . . . . . . 36
ENGINEERING MODE . . . . . . . . . . . 38
CONSOLE
PREMIER
DISPLAY CONSOLE OVERVIEW . . . . 40
DISPLAY DESCRIPTIONS . . . . . . . . . 41
USING THE PROGRAMS . . . . . . . . . 44
THE PROGRAMS . . . . . . . . . . . . . . 46
USING CUSTOM PROGRAMS . . . . . . 49
USING HEART RATE TRAINING . . . . . 53
USING HEART RATE STRAP . . . . . . . 54
ENGINEERING MODE . . . . . . . . . . . 56
SAFETY INSTRUCTIONS . . . . . . . . . . 2
CONTACT HEART RATE . . . . . . . . . . . 4

2
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
To reduce the risk of burns, fire, electrical shock or injury
to persons:
• Use this exercise product for its intended use as described in this
Owner’s Guide. Only use attachments recommended by the manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the product sidecovers. Service should be performed only
by an authorized VISION FITNESS retailer.
• Never operate this product if it has a damaged cord or plug, if it is not
working properly, or if it has been damaged or immersed in water.
Please contact your authorized VISION FITNESS retailer for service.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• To disconnect, turn the switch to the OFF position, then remove plug
from outlet.
• Only use the power cord provided with your VISION FITNESS product.
• Never place the power cord under carpeting or place any object on
top of the power cord that may pinch and damage it.
• Unplug your product before moving it.
CHILDREN
• Keep children off your product at all times.
• When the product is in use, young children and pets should be
kept at least 10 feet away.
WARNING!

3
OTHER SAFETY TIPS FOR YOUR VISION FITNESS PRODUCT
CAUTION! If you experience chest pains, nausea, dizziness or shortness of
breath, stop exercising immediately and consult your physician before
continuing.
• Do not wear loose clothing that might catch on any part of the product.
• Read this Owner’s Guide before operating this product.
CLEANING
• Clean only with soap and a slightly damp cloth; never use solvents.

4
CONTACT HEART RATE
HAND PULSE HEART RATE SENSORS
The Contact Hand Pulse Sensors are included on each product to monitor
your heart rate. To use, grasp the sensors with a comfortable grip during
your workout. The console will display your heart rate. Although your
signal will be displayed immediately, it may take the system a few seconds
to zero in on your actual heart rate.

5

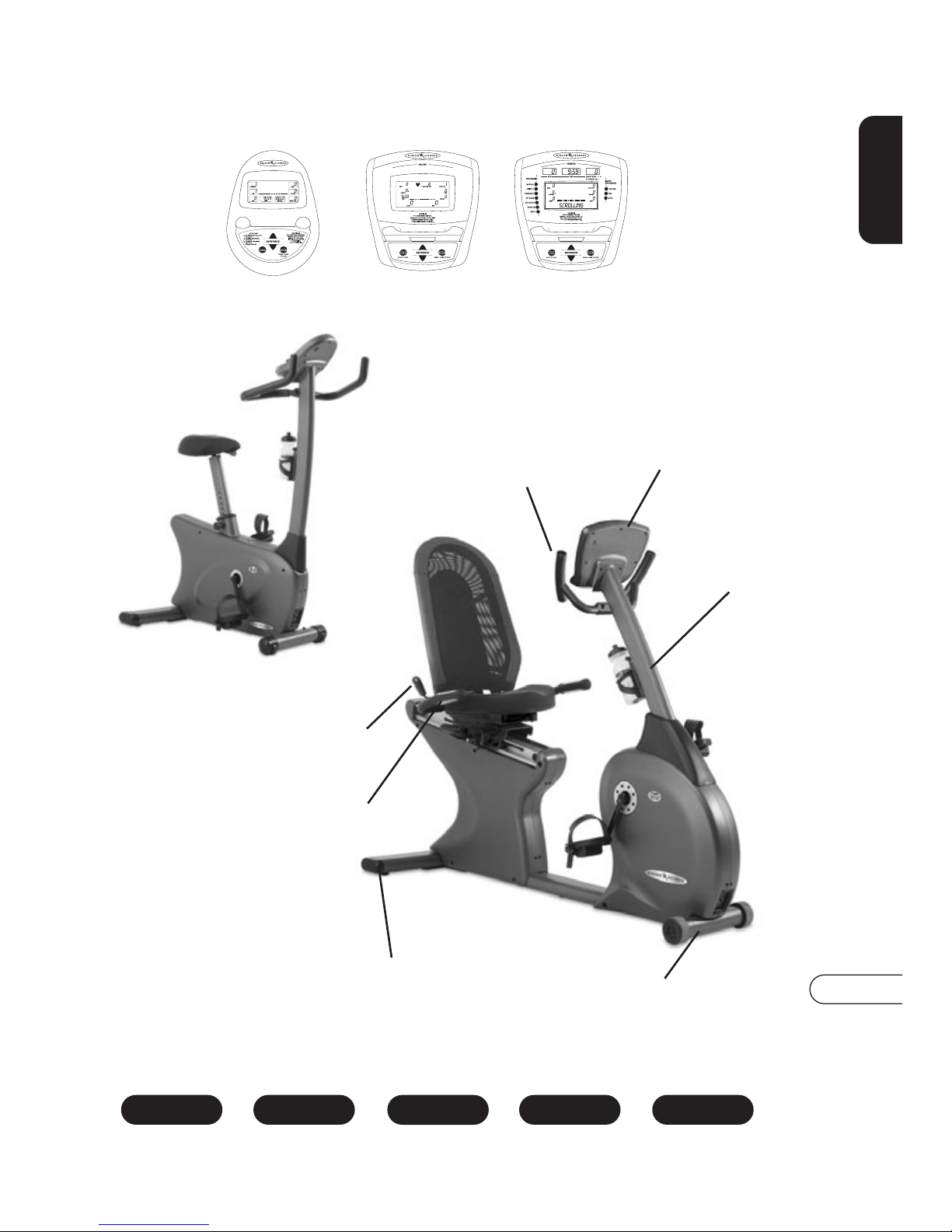

ALL BIKES
UPRIGHT & SEMI-RECUMBENT FITNESS BIKES
R2050
R1500
FRONT FOOT &
TRANSPORT WHEELS
SEAT
ADJUSTMENT
CONSOLE
REAR FOOT
SEAT
HANDLEBARS
CONSOLE MAST
HANDLEBARS
CONSOLE
MAST
AVAILABLE CONSOLE OPTIONS
DELUXESIMPLE PREMIER
R2250E1500 E3200

6
ALL BIKES
ASSEMBLY
It is recommended, when possible, that an authorized VISION FITNESS
retailer assemble your Bike. If you have elected to assemble this product
yourself, for your safety, please read and follow each of the steps in the
enclosed assembly instructions. If you have any questions regarding any
component or function of your Bike, contact your retailer.

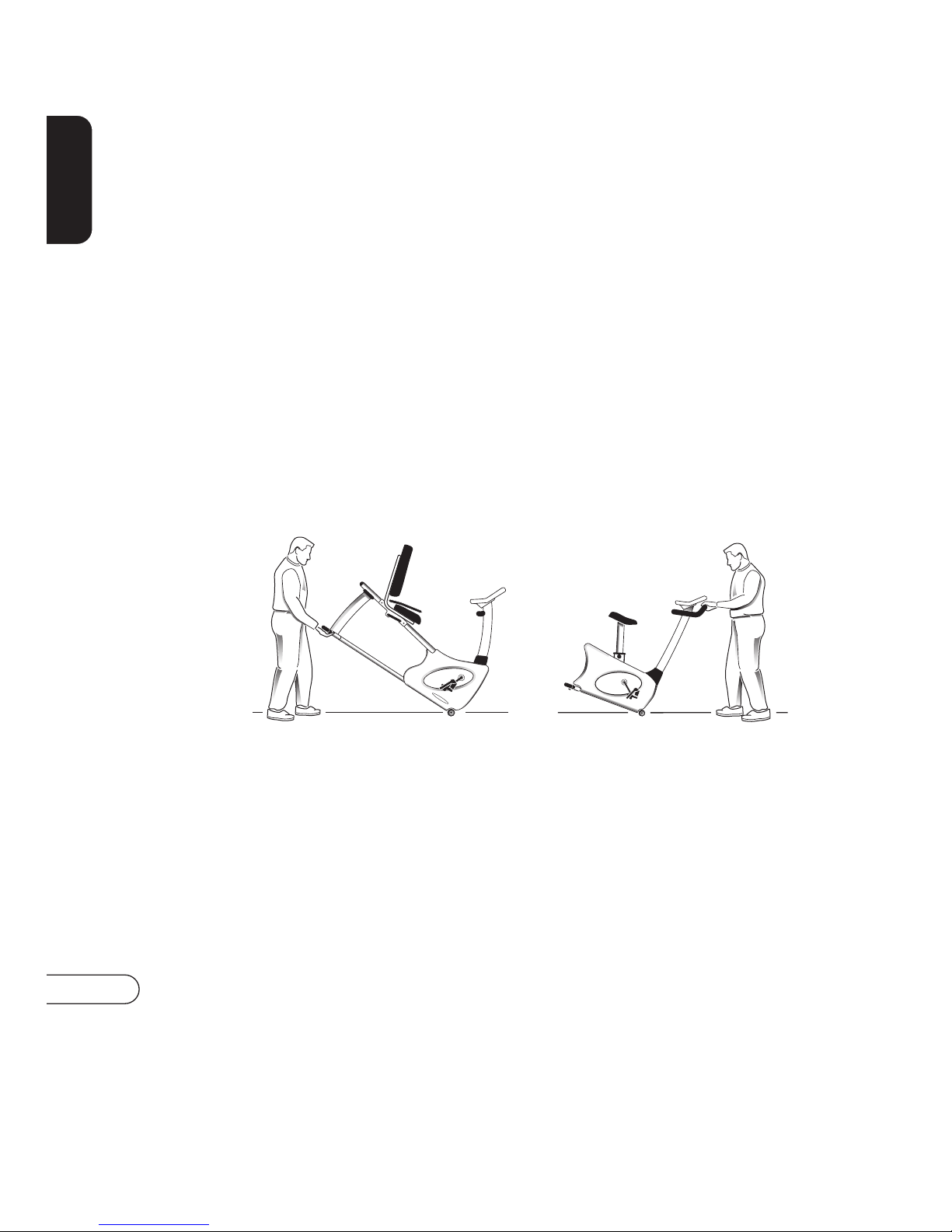

MOVING
Your VISION FITNESS Bike has transport wheels included for ease of
mobility. To move your semi-recumbent Bike, firmly grasp the rear of the
seat rail or the rear of the frame assembly. Carefully lift and roll on the
transport wheels. To move your upright Bike, firmly grasp the handlebars,
carefully tip toward you, and roll on the transport wheels.
CAUTION: Our Bikes are well-built and heavy, weighing up to 150 pounds!
Use care and additional help if necessary.
PLACEMENT IN YOUR HOME
Please follow the safety instructions to place your Bike in the location
where it will best be used. It is important that you place your Bike in a
comfortable and inviting room. Avoid putting your Bike in an unfinished
basement or undesirable setting. Exercise adherence will be achieved
only if you exercise in an attractive setting.

7
ALL BIKES

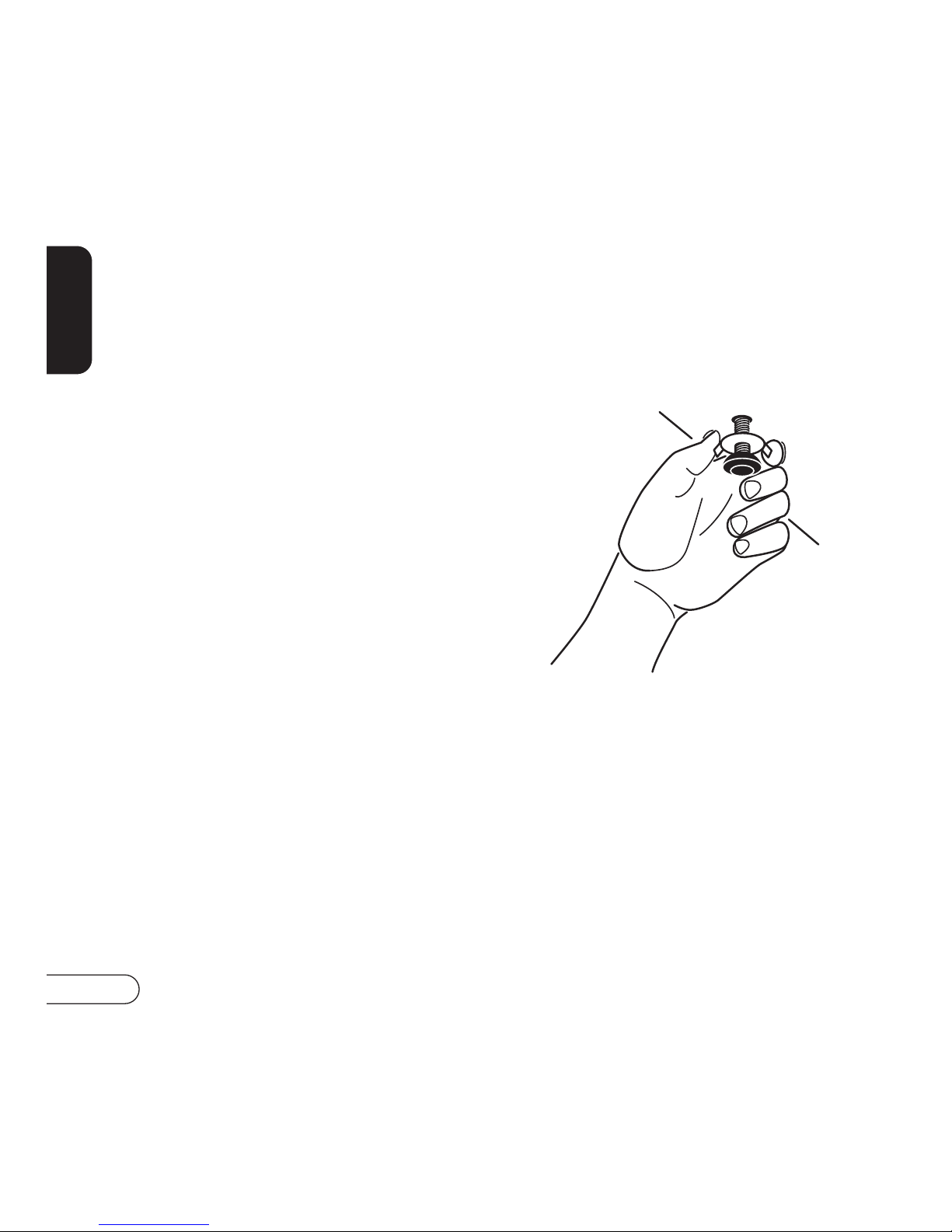

STABILIZING THE BIKE
After positioning your Bike in its
intended location, check its
stability by attempting to rock it
side to side. Rocking or wobbling
indicates that the Bike needs to be
leveled. Determine which leveler is
not resting completely on the floor.
Loosen the wing nut at the base of
the leveler to allow the leveler to
rotate. Now rotate the leveler to
the left or right until your Bike is
stable. Lock the adjustment by
tightening the wing nut against the
rear foot support.
SEAT POSITIONING
To determine proper seat position, sit on the seat and position the ball of
your foot on the center of the pedal. Your knee should bend slightly at the
furthest pedal position. You should be able to pedal without locking your
knees or shifting your weight from side to side.

8
ALL BIKES

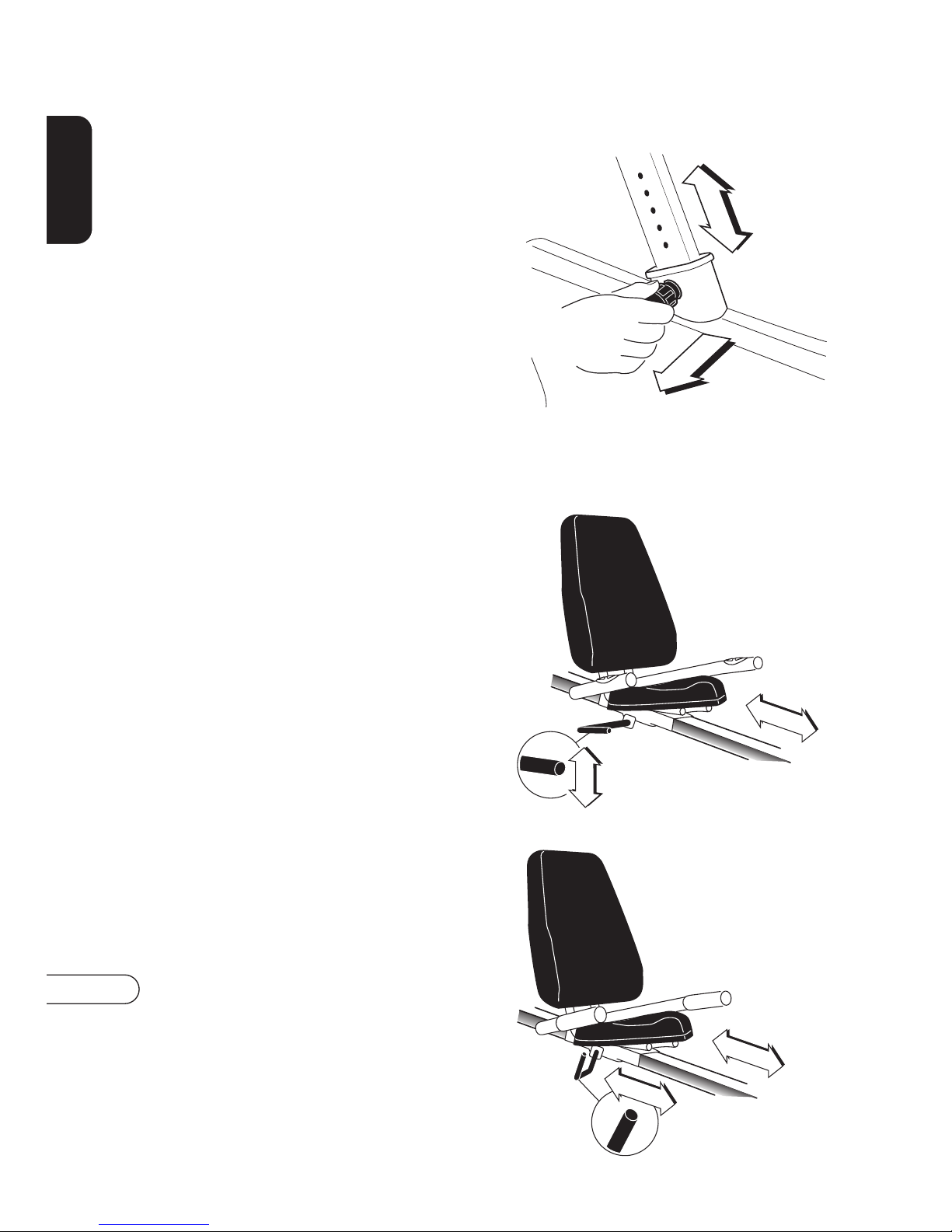

UPRIGHT SEAT ADJUSTMENT
The Upright Bikes feature a locking
seat adjustment pin to easily and
safely adjust the seat height. To
adjust, loosen the adjustment knob
by turning it two half turns counter-
clockwise. Pull out the knob to
unlock the post, and adjust the
post up or down to the desired
setting. Release the knob to lock in
place. Turn the knob clockwise
until tightened. Please check to be
sure seat post is locked in place
before each use.
R1500
SEMI-RECUMBENT SEAT ADJUSTMENT
While seated on the Bike, lift the
seat lever on the right side of the
seat to make adjustments. Slide
the seat forward or backward to
desired location. Push the seat
lever down to lock in place.
R2050
SEMI-RECUMBENT SEAT ADJUSTMENT
While seated on the Bike, push
the seat lever forward on the
right side of the seat to make
adjustments. Slide the seat
forward or backward to desired
location. Pull the seat lever back
to lock in place.

9
ALL BIKES
R2250
SEMI-RECUMBENT SEAT ADJUSTMENT
While seated on your Bike, lift the
spring-loaded seat lever on the
right side of the seat to make
adjustments. Slide the seat forward
or backward to desired location.
Release the spring-loaded seat
lever and gently attempt to rock
forward and backward to assure it
is locked in place.
R2250
TILTING MESH SEAT BACK
The R2250 comes equipped with a tilting mesh seat back. Tilt adjustments
are made with a rotating lever on the user’s right side, located slightly
behind the handlebar.
To adjust the tilt angle of the seat,
rotate the lever down (counter-clock
wise) and lean back on the mesh
seat until the desired position is
achieved. When the position is set,
rotate the lever upward (clock wise)
until it is snug. The seat comes
equipped with a spring return
system to return the seat back to its
original position when the friction
lever is released and the user is not
leaning against the backrest.

10
ALL BIKES
PEDAL STRAP ADJUSTMENT
The straps are designed to fit your
individual foot size and should be
adjusted tight enough to keep your
feet from slipping. The pedals
include spring-loaded clips for
easy adjustment. To tighten the
strap, pull down the open end of
the strap. To loosen the strap, push
down on the top of the clip and
pull the strap up. Release the clip
to lock in place.
POWER SUPPLY
Your Bike uses a wall mount external power supply. Use only the power supply
provided with your Bike. If you misplace this power supply, please contact
your authorized VISION FITNESS retailer for an original replacement. Use of
the wrong power supply may cause damage to your Bike.

11
ALL BIKES
SERVICE AND TROUBLESHOOTING
PREVENTATIVE MAINTENANCE TIPS
• Locate Bike in a cool, dry place.
• Clean the top surface of the pedals regularly.
• Make sure pedals are kept tight to crank arms.
• Keep the display console free from fingerprints and salt build-up
caused by sweat.
• Use a cotton cloth with water and a mild cleaning product to clean
the bike. Other fabrics, including paper towels, may scratch the
surface. Do not use ammonia or acid-based cleaners.
• Clean the housing thoroughly on a regular basis.
PREVENTATIVE MAINTENANCE SCHEDULE
Follow the schedule below to ensure proper operation of the product.
WEEKLY MONTHLY BI-ANNUALLY ANNUALLY
DISPLAY CONSOLE
CONSOLE MOUNTING BOLTS
FRAME
SEAT FRAME
HANDLEBARS
PLASTIC COVERS
PEDALS AND STRAPS
POWER CORD
ITEM
CLEAN
CLEAN
CLEAN
CLEAN
CLEAN
CLEAN
INSPECT
INSPECT
INSPECT
INSPECT
INSPECT
INSPECT
INSPECT
INSPECT

12
ALL BIKES
TROUBLESHOOTING
Our Bikes are designed to be reliable and easy to use. If, however, you
have a problem, these troubleshooting steps may reveal the cause.
PROBLEM: The console does not light up.
SOLUTION: Check to make sure the power switch located on the
backside of the console is turned on.
SOLUTION: Make sure the power adapter is plugged into the base of the Bike.
SOLUTION: Make sure the wire harness is plugged into the back of the
console.
PROBLEM: The Bike is making a
clicking noise.

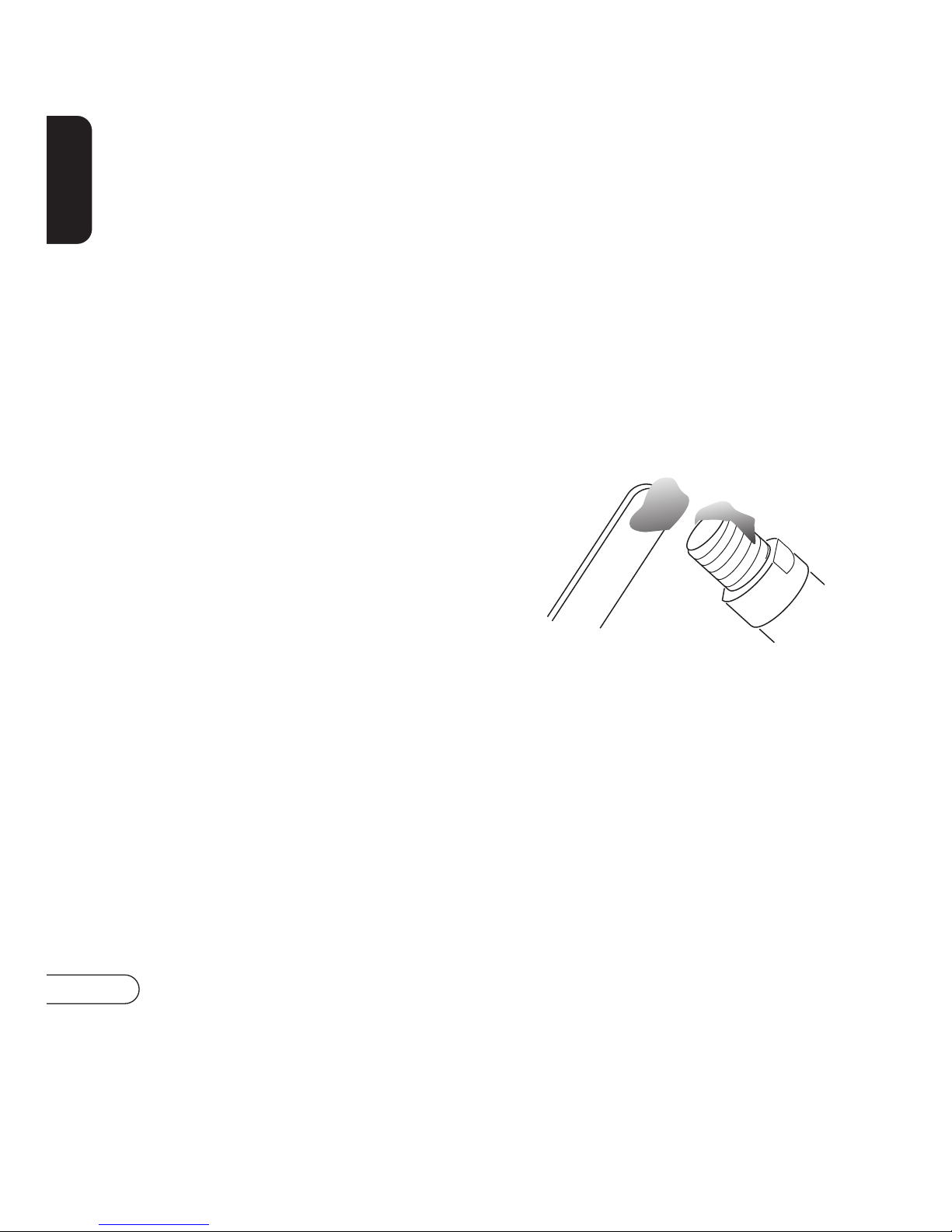

SOLUTION: Using the pedal
wrench supplied with your Bike,
remove both the left and right
pedals, apply grease to the
threaded portion and reassemble
the pedals onto the Bike. Make
sure the pedals are tight.
SOLUTION: Make sure the pedal straps or your shoe laces are not hitting
the side cover.
SOLUTION: Assure seat adjustment is tight (See page 8)
PROBLEM: The Bike makes a squeaking or creaking noise.
SOLUTION: Check and tighten all hardware.

13
ALL BIKES
R2250 ONLY

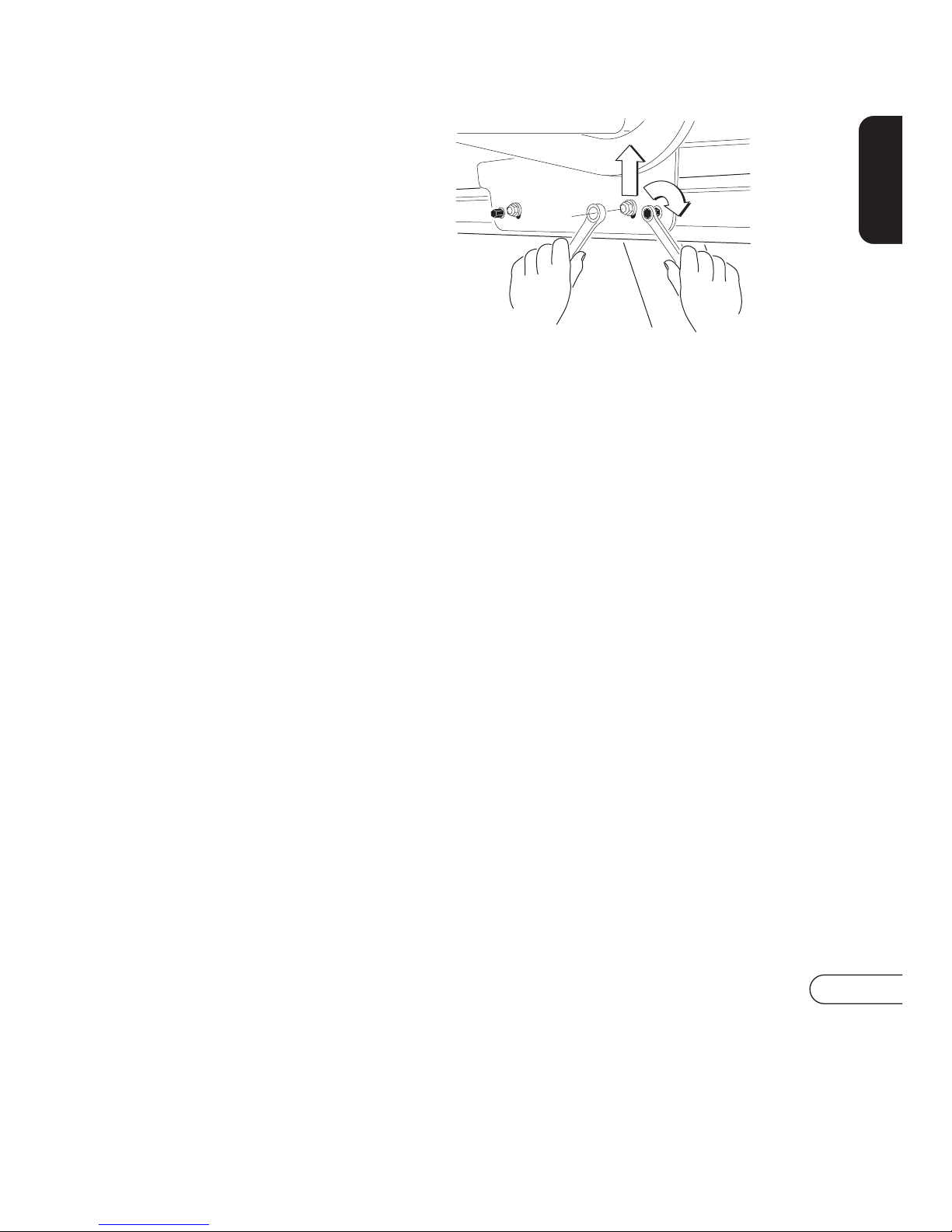

PROBLEM: The seat on your semi-
recumbent Bike rocks from side to side.
SOLUTION: With a 13mm wrench,
loosen the Fixing Nuts on the side
of the seat frame. With an 11mm
wrench, pivot the Adjusting Post so
the Fixing Nut is at the
top of the
slot. Tighten the Fixing Nut with the
13mm wrench.
NOTE: If the above steps fail to remedy the problem, discontinue use, turn
the power off and contact your retailer.

14
ALL ELLIPTICALS
ELLIPTICAL TRAINERS
X6000
X1500
FRONT FOOT &
TRANSPORT WHEELS
FOOT PAD
CONSOLE
GUIDE RAIL
DUAL-ACTION
HANDLEBARS
SIDE STABILIZER
PEDAL ARM
AVAILABLE CONSOLE OPTIONS
DELUXESIMPLE PREMIER
X6200

15
ALL ELLIPTICALS
ASSEMBLY
It is recommended, when possible, that an authorized VISION FITNESS
retailer assemble your Elliptical Trainer. If you have elected to assemble this
product yourself, for your safety, please read and follow each of the steps
in the enclosed assembly instructions. If you have any questions regarding
any component or function of your Elliptical Trainer, contact your retailer.
MOVING (X1500, X6000)
Your VISION FITNESS Elliptical Trainer has transport wheels included for
ease of mobility. To move, firmly grasp the guide rails at rear of the
machine. Slowly lift the machine and roll on the front transport wheels.
CAUTION : Our Elliptical Trainers are well built and heavy, weighing up to
200 pounds. Use care and additional help if necessary.
MOVING (X6200)
Your VISION FITNESS Elliptical
Trainer has transport wheels
included for ease of mobility. To
move, fold up your Elliptical
Trainer, firmly grasp the console
mast handlebars, tilt the machine
toward you, and roll on the front
transport wheels. When tilting,
you may need to use your foot
supported against the front support
tube to prevent the machine from
rolling forward.

16
ALL ELLIPTICALS
PLACEMENT IN YOUR HOME
Please follow the safety instructions to place the Elliptical Trainer in the
location where it will best be used. It is important that you place your
Elliptical Trainer in a comfortable and inviting room. Avoid putting your
Elliptical Trainer in an unfinished basement or undesirable setting. Exercise
adherence will be achieved only if you exercise in an attractive setting.
STABILIZING THE ELLIPTICAL TRAINER
After positioning the Elliptical Trainer
in its intended location, check its
stability by attempting to rock it side
to side. Excessive rocking or
wobbling indicates that your
Elliptical Trainer needs to be leveled.
Your Elliptical Trainer has levelers
located under the guide rails and
under the side stabilizers. Determine
which leveler is not resting
completely on the floor. Loosen the
wing nut to the base of the leveler to
allow the leveler to rotate. Now
rotate the leveler to the left or right
until the Elliptical Trainer is stable.
Lock the adjustment by tightening the
wing nut against the stabilizer or
guide rail.
POWER SUPPLY
Your Elliptical Trainer uses a wall mount external power supply. Use only
the power supply provided with your Elliptical Trainer. If you misplace this
power supply, please contact your authorized VISION FITNESS retailer for
an original replacement. Use of the wrong power supply may cause
damage to your Elliptical Trainer.
