VWR 2005 User manual

LOW TEMPERATURE
INCUBATOR
MODEL: 2005
INSTALLATION AND OPERATIONAL MANUAL
Revised 1/2015
4861388

2
TABLE OF CONTENTS
SECTION 1.0 RECEIVING AND INSPECTION
SECTION 2.0 INSTALLATION
SECTION 3.0 CONTROL OVERVIEW
SECTION 4.0 OPERATION
SECTION 5.0 MAINTENANCE
SECTION 6.0 TROUBLESHOOTING
SECTION 7.0 PARTS LIST
UNIT SPECIFICATIONS

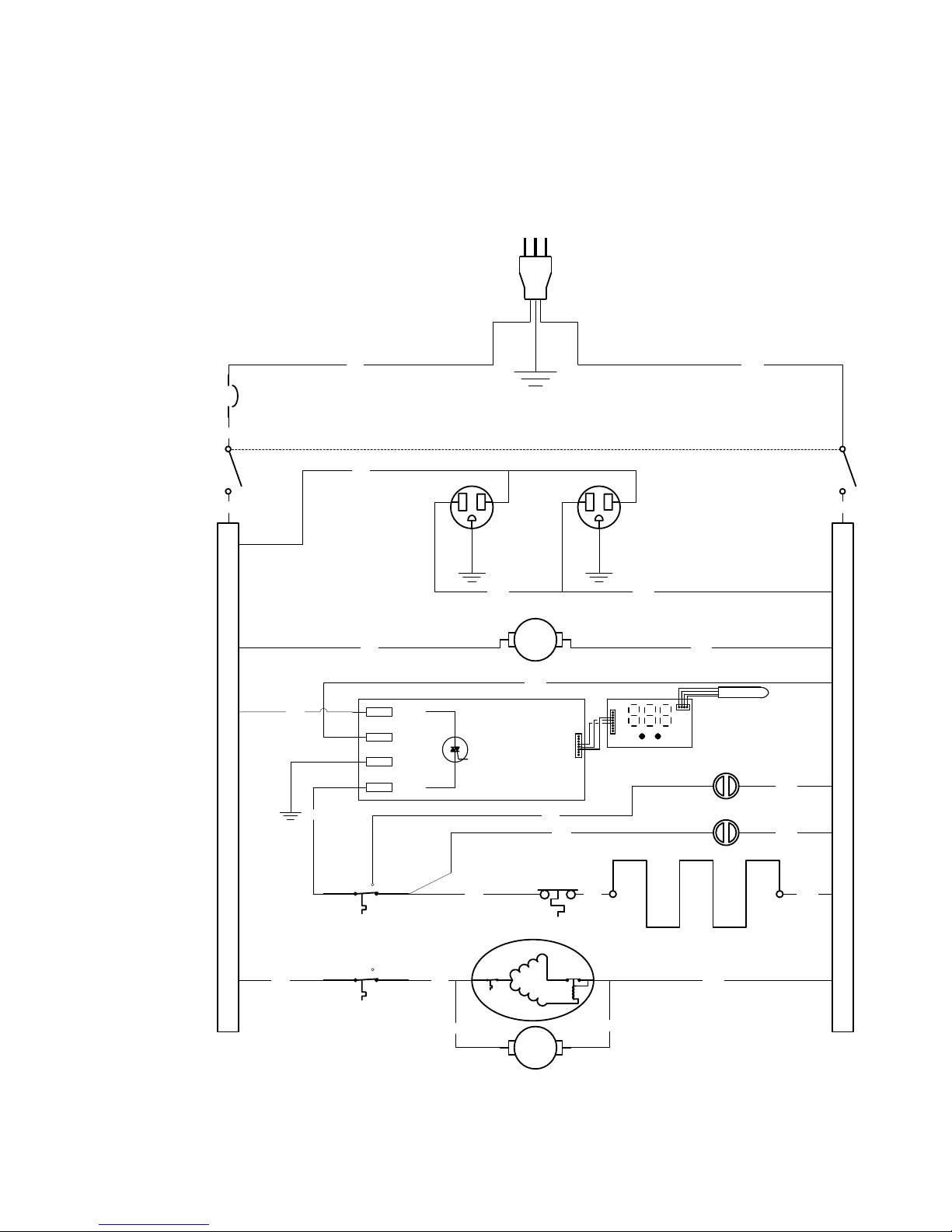

SCHEMATICS
This unit is a general purpose Biochemical Oxygen Demand (BOD) incubator for
professional, industrial or educational use where the preparation or testing of materials
is done at approximately atmospheric pressure and no flammable, volatile or
combustible materials are being heated. This unit is not intended for hazardous or
household locations or use.

3
RECEIVING AND INSPECTION
Your satisfaction and safety require a complete understanding of this unit. Read the
instructions thoroughly and be sure all operators are given adequate training before
attempting to put the unit in service. NOTE: This equipment must be used only for its
intended application; any alterations or modifications will void your warranty.
1.1 Inspection: The carrier, when accepting shipment, also accepts responsibility for safe
delivery and is liable for loss or damage. On delivery, inspect for visible exterior
damage, note and describe on the freight bill any damage found, and enter your claim
on the form supplied by the carrier.
1.2 Inspect for concealed loss or damage on the unit itself, both interior and exterior. If
necessary, the carrier will arrange for official inspection to substantiate your claim.
1.3 Return Shipment: Save the shipping crate until you are sure all is well. If for any
reason you must return the unit, first contact your customer representative for
authorization. Supply nameplate data, including model number and serial number.
Please see the manual cover for information on where to contact Customer service.
1.4 Accessories: Verify that all of the equipment indicated on the packing slip is included
with the unit. Carefully check all packaging before discarding. This unit is equipped with
2 shelves and a humidity pan/
WARNING: Never use this unit for the growth, cultivation, incubation or storage of fruit
flies (drosophila melanogaster). This unit is not designed for use with fruit flies.
Improper use of this unit (including use with fruit flies) voids the warranty. Other units
are specifically manufactured for fruit fly application, and you should consult your dealer
or the manufacturer in order to identify another model suitable for your application.
Section
1

4
INSTALLATION
Local city, county or other ordinances may govern the use of this equipment. If you have any questions
about local requirements, please contact the appropriate local agency. Installation may be performed by
the end user.
Under normal circumstances this unit is intended for use indoors, at room temperatures between 5and
40C, at no greater than 80% Relative Humidity (at 25C) and with a supply voltage that does not vary by
more than 10%. Customer service should be contacted for operating conditions outside of these limits.
This unit should remain upright for 24 hours prior to turning on. This will allow the oil settle to in
the refrigeration compressor.
2.1 Power Source: The electrical supply circuit to the incubator must conform to all national
and local electrical codes. Consult the incubator’s serial data plate for the voltage, cycle
wattage and ampere requirements before making connection. VOLTAGE SHOULD
NOT VARY MORE THAN 10% FROM THE SERIAL PLATE RATING. This unit is
intended for 50/60 Hz application. A separate circuit is recommended to prevent
possible loss of product due to overloading or failure of other equipment on the same
circuit.
2.2 Location: When selecting a site for the incubator, consider all conditions which may
affect performance, such as extreme heat from steam radiators, stoves, ovens
autoclaves, etc. Avoid direct sun, fast-moving air currents, heating/cooling ducts, and
high traffic areas. To ensure air circulation around the unit allow a minimum of 20cm
between incubator rear and sides and any walls, partitions or obstructions to free airflow.
2.3 Lifting / Handling: This unit is heavy and care should be taken to use appropriate lifting
devices that are sufficiently rated for these loads. Units should only be lifted from their
bottom surfaces. Doors, handles and knobs are not adequate for lifting or stabilization.
The unit should be completely restrained from tipping during lifting or transport. All
moving parts, such as shelves and trays should be removed and doors need to be
positively locked in the closed position during transfer to prevent shifting and damage.
2.4 Leveling: The unit must sit level and solidly. Turn the leveling feet counterclockwise to
raise level. If the unit must be moved, turn the leveling feet in all the way to prevent
bending and damage.
2.5 Cleaning: The incubator interior was cleaned at the factory, but not sterilized. Remove
all interior parts and clean with a disinfectant that is appropriate for your application. DO
NOT USE abrasives as this will damage the incubators interior. DO NOT USE spray
cleaners that might leak through opening and cracks and get on electrical parts or that
may contain solvents that will harm the coatings. A thorough periodic cleaning is strongly
recommended.
WARNING: Never clean the unit with alcohol or flammable cleaners with the unit
connected to the electrical supply. Always disconnect the unit from the electrical service
when cleaning and assure all volatile or flammable cleaners are evaporated and dry
before reattaching the unit to the power supply.
Section
2

5
CONTROL PANEL OVERVIEW
3.1 Power Switch: The main power I/O (on/off) switch controls all
power to the unit and must be in the I/ON position before any
systems are operational.
3.2 Main Temperature Control: This control is marked SET
TEMPERATURE and consists of the digital display and
UP/DOWN arrow pads for inputting set point temperatures and
calibration.
3.3 Heating Lamp: This pilot lamp is marked TEMPERATURE
ACTIVATED and is ON when the unit is heating up to set point
and is blinking when controlling temperature at set point.
3.4 Overtemperature Thermostat: This control is marked SET
OVERTEMPERATURE and is completely independent of the
Main controller. It acts as an override in the event that the Main
control fails in the ON position.
3.5 Overtemperature Light: This pilot lamp is marked
OVERTEMPERATURE ACTIVATED and is on when the
thermostat has been activated. Under normal operating
conditions, this pilot light should never be on.
3.6 Circuit Breaker: (Non-CE units) Adjacent to the power cord the
circuit breaker is an added measure of protection against power
source variations that if tripped, must be reset by pushing in the
button once the reason for interruption has been cleared.
3.7 Fuse: (CE units only) Located at the back of the unit within the
power inlet, the fuse is an added measure of protection against
power source variations that, if blown, must be replaced once the
reason for the interruption has been cleared. Note that the unit
will not power up unless the fuse is in place.
Section
3

6
OPERATION
4.1 Check power supply against unit serial plate. They must match.
4.2 Plug service cord into the grounded electrical outlet.
4.3 Push the power switch to the I/On position, and turn the Overtemperature Thermostat to
its maximum position, clockwise using a coin or flat edged tool.
4.4 Set Main Temperature Controller: Enter desired set point temperature. To enter set
point mode on the controller, press either the Up or Down arrow pad one time. The
digital display will start to blink, going from bright to dim. While blinking, the digital
display is showing the set point. To change the set point, use the Up and Down arrow
pads. If the arrow pads are not pressed for five (5) seconds, the display will stop
blinking and will read the temperature of the unit. Note that the Overtemperature
Thermostat should be turned to its maximum position, (clockwise) until the unit has
stabilized at desired set point temperature. Allow the incubator at least 24 hours to
stabilize.
4.5 Calibration: It is recommended that calibration is done once the unit is installed in its
working environment and has been stabile at set point for several hours. Place a
certified reference thermometer in the chamber. Be certain the thermometer is not
touching any shelving. Allow the temperature to stabilize again until the thermometer
reads a constant value for one hour. Compare the digital display with the reference
thermometer. If there is an unacceptable difference, put the display into calibration
mode by pressing both the Up and Down arrow pads at the same time until the two
outside decimal points begin to flash. While the decimal points are flashing the display
can be calibrated by pressing the Up or Down arrow pads until the display reads the
correct value. Allow the incubator temperature to stabilize again, and recalibrate if
necessary.
4.6 Set Overtemperature Thermostat: As mentioned previously, the Overtemperature
Thermostat should be initially set to its maximum position, (clockwise), to allow the unit
to stabilize. Once the incubator is stabile at the desired set point, turn the
Overtemperature Thermostat counterclockwise until the OVERTEMPERATURE
ACTIVATED light turns on. Next, turn the Thermostat clockwise just until the light turns
off. Then turn the Thermostat clockwise 1/16 of an inch past the point where the light
went out. This will set the Overtemperature Thermostat at approximately 1C above
main Temperature set point.
4.7 Accessory Outlet: This unit has been supplied with a 1 amp accessory outlet inside
the chamber to provide power for equipment such as magnetic stirrers, rockers, etc. Be
certain the apparatus draws 1 amp or less. The power switch on the front panel controls
power to the outlet. Note that the apparatus may provide additional heat that could
affect the temperature range of this incubator. It is recommended that testing be done
with the incubator and any accessory equipment to insure that the desired operating
conditions can be met.
Section
4

7
4.8 Load the chamber with sample bottles. See Figure 2 for bottle placement.
Figure 2

8
MAINTENANCE
Note: Prior to performing maintenance and/or service on this incubator, disconnect the unit from
the power supply.
5.1 Cleaning: Cleaning and decontamination are recommended on a regular basis. To
prepare the unit for cleaning, disconnect the power cord and remove all interior parts,
such as shelves, trays, etc.
First clean the chamber with soap and water, rinse and let dry. To decontaminate use a
solution that is appropriate for your application. DO NOT USE abrasives as this can
damage the chamber interior. DO NOT USE spray cleaners that might leak through
openings and cracks and get on electrical parts or that may contain solvents that will
harm the coatings. NEVER USE acids, chemical thinner, gasoline, benzene or like
chemicals for cleaning the unit. Boiling water and benzene can deform and damage
plastic parts.
WARNING: Never clean the unit with alcohol or flammable cleaners with the unit
connected to the electrical supply. Always disconnect the unit from the electrical service
when cleaning and assure all volatile or flammable cleaners are evaporates and dry
before reattaching the unit to the power supply.
5.2 Compressor Compartments: Located at the back and bottom of the unit, the
compressor compartment can collect dust that will inhibit proper air flow. This
compartment should be vacuumed out at least once every six (6) months to ensure
maximum efficiency.
5.3 Defrosting: Generally defrosting should not be necessary. If ice build-up occurs it is
usually attributed to open containers, loose closures or frequent door openings causing
excessive moisture to build up in the chamber. Try to eliminate these as possibilities.
To defrost, remove all items from the chamber and let the unit stand with the door open
and the POWER OFF. Once frost is gone, empty drip tray, wipe the chamber dry and
power up the unit.
5.4 Storage: If the incubator is to be shut down for storage or transport, remove all items,
drip tray and shelves and be certain the chamber is dry. Screw in the leveling feet.
Review section 2.3, Lifting / Handling for transport instructions.
5.5 There is no maintenance required on electrical components. If the unit fails to operate
as specified, please review section 6 Troubleshooting, prior to calling for technical
service.
Section
5

9
TROUBLESHOOTING
FOR PERSONAL SAFETY, ALWAYS DISCONNECT THE POWER BEFORE SERVICING.
In the event the incubator does not operate properly, check the following before calling for service. Always make
a visual inspection of the incubator and control console when troubleshooting to find loose or disconnected wires
which may be the source of trouble.
TEMPERATURE
Temperature too high
Controller set too high.
Display reads "HI"
Probe is unplugged, is broken or wire to sensor is broken.
Temperature too low
1/ Overtemperature thermostat set too low.
2/ Controller set too low.
3/ Unit not recovered from door opening –wait for display to stop
changing.
4/ Unit not recovered from power failure or being turned off –incubators
will need 24 hours to warm up and stabilize.
Display reads "LO"
Sensor is shorted.
Unit will not heat up at all
1/ Verify that controller is asking for heat by looking for controller light
2/ Do all controller functions work?
3/ Is the Overtemperature set high enough?
Indicated chamber temperature unstable
1/ ±0.1 may be normal
2/ Is fan working?
3/ Is ambient room temperature radically changing –either door opening
or room airflow from heaters or air conditioning ? –stabilize ambient
conditions
4/ Overtemperature set too low.
5/ Electrical noise –remove nearby sources of RFI including motors,
arcing relays or radio transmitters
Display and reference thermometer don’t
match
Calibration error.
Can't adjust set points or calibration
1/ Turn entire unit off and on to reset
2/ If repeatedly happens, call Customer Service
Calibrated at one temperature, but not at
another
This can be a normal condition when operating temperature varies widely.
For maximum accuracy, calibration should be done as close to the set
point temperature.
REFRIGERATION
Unit will not cool
If the compressor is running:
1/ See if condenser is cold but free of ice
Section
6

10
2/ Be sure that fans are circulating air: in the chamber, and over
the compressor
3/ Assure there is ample room around the unit as described in
Installation.
4/ Compare ambient specifications to Unit specifications.
If compressor isn’t running:
1/ Confirm that compressor cooling fan motor is operable
a- Dirty coil or poor circulation
b- Coil next to heat source
c- Ambient temperature too high
Ice build up in chamber
1/ Search for leak in door gasket.
2/ door being opened too often.
3/ open container/loose seal on bottles.
Making noise
1/ assure that fan is not miss-aligned.
2/ Steady internal clicking may be broken spring or valve –call
Customer Service.
MECHANICAL
Motor doesn't move
If shaft rubs or is frozen, relieve binding and retest
Motor makes noise
1/ Make sure that the fan or blower wheel is not contacting its
housing. Adjust the motor mounting bracket position to re-center
the fan or blower wheel, if necessary.
2/ Check the fan or blower wheel for damage or out of balance
condition. Replace the fan or blower wheel if it is damaged or out
of balance.
3/ Turn the motor shaft to make sure that it spins freely. If it binds
or the bearings make a rubbing or scrapping sound then replace
the motor.
Door not sealing
1/ Confirm that unit has not been damaged and body is square.
2/ Check to see that door gasket is in place and not damaged.
OTHER
Unit or wall fuse/circuit breaker is
blown
1/ Check wall power source
2/ Compare current draw to specs on data plate
3/ See what other loads are on the wall circuit
Unit will not turn on
1/ Check wall power source
2/ Check fuse/circuit breaker on unit or in wall
Contamination in chamber
1/ See cleaning procedure in operator’s manual
2/ Develop and follow Standard operating procedure for specific
application; include definition of cleaning technique and
maintenance schedule

11
PARTS LIST
Description
115V
220V
Circuit Breaker
1100505
1100505
Circulating Fan, chamber
4880545
4880545
Convenience Outlet
6100525
6100526
Cooling Fan, compressor
4880564
4880564
Factory Set Over-
Temperature Control
1750715
1750715
Heating Element
2350508
44.6 ohms
2350508
150.1 ohms
I/O (On/Off) Power Switch
7850570
7850570
Main Temperature Controller
1750967
1750968
OTP and Compressor High
Cut Thermostat
1750862
1750813
Pilot Light, Green
4650554
4650554
Pilot Light, Red
4650553
4650553
Power Cord, USA
1800529
1800537
Step Down Transformer
--
8350515
Section
7

12
UNIT SPECIFICATIONS
Weight
Shipping
Net
2005
130 lbs.
108 lbs.
Dimensions
Exterior WxDxH
(in.)
Interior WxDxH
(in.)
2005
20.75 x 21.25 x 38.75
15 x 11 x 25
Capacity
3 cubic feet
Temperature
Range
Uniformity
2005
0 to 45C
+0.5C @ 20C

13
WIRE DIAGRAM
110V
(9851370)
BLK WHT
BLK WHT
120VAC
BLK
WHTWHT
BLK
IF
BLU WHT
BLK
WHT
BLK
HT BLK
HT WHT
HT
WHT
WHTRED
BLK
YEL
CF
YEL WHT
WHT
YEL 21
4
21
4
4650553
G
R
4650554
4880564 COMPRESSOR
FAN
4880545 INTERNAL FAN
THE COMPRESSOR IS PART
OF THE BASE UNIT
1750862
PRESET TO 35°C
1750862 9570863 ELEMENT ASSY
1750715
155°F/68°C
2350508 ELEMENT COIL
45
SAFETY ACTIVATED
HEATING ACTIVATED
OUTLETS
6100525
POWER CORD AND PLUG
1100505
CIRCUIT BREAKER 15A
GREEN LIGHTED POWER SWITCH 7850570
HOT
NEUTRAL
GROUND
LOAD
SENSOR
TEMPERATURE
CONTROL
1750967
ORG

14
220V
(9851371)
BLK RED
IF
BLU RED
BLK
RED
ORN
BLK
HT BLK
HT
RED
HT
RED
REDRED
BLK
YEL
CF
YEL RED
RED
21
4
21
4
4650553
G
R
4650554
4880564 COMPRESSOR FAN
4880545 INTERNAL FAN
THE COMPRESSOR IS PART
OF THE BASE UNIT
1750862
PRESET TO 35°C
½ 1750813 9570864 ELEMENT ASSY
1750715
155°F/68°C
2350508 ELEMENT COIL

SAFETY ACTIVATED
HEATING ACTIVATED
2
4
1
½ 1750813
BLK BLK
BRN BRN
8350515 TRANSFORMER
240/120VAC 750VA
YEL
2800502
EMI FILTER
HOT
NEUTRAL
GROUND
LOAD
POWER CORD
1800537
BLK BLK
BLK
RED RED
RED
HT
FUSE FUSE
OUTLETS
6100526
GREEN LIGHTED POWER SWITCH 7850570
TEMPERATURE
CONTROL
1750968

F:\manuals\vwr back sheet.doc
ORDE R FR OM VW R
Call800-932-5000
from anywhere in the U.S. and Canada
Sales & Inventory Locations:
Pacific Northwest Area
ANCHO R A G E , A K
Salt Lake City, UT
San Francisco, CA
Seattle, WA
Tualatin, OR
Midwest Area
Chicago, IL
Detroit, MI
Indianapolis, IN
Minneapolis, MN
St. Louis, MO
Northeast Area
Boston, MA
Cincinnati, OH
Cleveland, OH
Pittsburgh, PA
Rochester, NY
Southeast Area
Atlanta, GA
Oak Ridge, TN
Southwest Area
Albuquerque, NM
Denver, CO
Phoenix, AZ
San Diego, CA
S A N D I M A S , C A
Gulf Area
Austin, TX
Dallas, TX
Houston, TX
Lake Charles, LA
Mid-Atlantic Area
Baltimore, MD
Branford, CT
Bridgeport, NJ
S. Plainfield, NJ
VWR Canlab Offices
Mississauga, Ontario
Ville Mont-Royal, Québec
Edmonton, Alberta
Or Call Direct for Specialized Service Locations:
VWR International
Switzerland
Ruchligstrasse # 20
P.O. Box 464
Dietikon, Switzerland
CH-8953
011-41-1-745-1155
fax: [phone]
VWR Direct
911 Commerce Ct.
Buffalo Grove, IL 60089
[phone]
VWR Furniture Division
P.O. Box 3405
Irving, TX 75015
[phone]
VWR National Accounts
1310 Goshen Pkwy
W. Chester, PA 19380
[phone]
3000 Hadley Rd
S. Plainfield, NJ 07080
[phone]
fax: [phone]
Puerto Rico
Carr. #869 Km. 1.5 M4
Royal Industrial Park
Catano, PR 00962
[phone]
fax: [phone]
Visit Our Web Site at
http://www.vwrsp.com
