This manual describes the Digital Input Module 751-3502
AS-Interface Module 4IN 24V A/B of the modular WAGO-I/O-SYSTEM
751.
Handling, assembly and start-up are described in the manual of the Fieldbus
Coupler. Therefore this documentation is valid only in the connection with the
appropriate manual.

8 •751-3502 [AS-Interface Module 4IN 24V A/B]
View
WAGO-I/O-SYSTEM 751
AS-Interface Components IP20
2 AS-Interface Components
2.1 AS-Interface Module IP20
2.1.1 751-3502 [AS-Interface Module 4IN 24V A/B]
Digital I/O-Module 4 IN 24 V A/B
2.1.1.1 View
751-3502
4IN 24V A/B
S 0.A.2
I4 I3 I2 I1ASIFLT
X8
X6
X1 X3
X2 X4
X7
X5
NTERFACE
Status
inputs
Status
AS-interface
Error
Sensor connectors
AS-interface connector
Programming device
connector

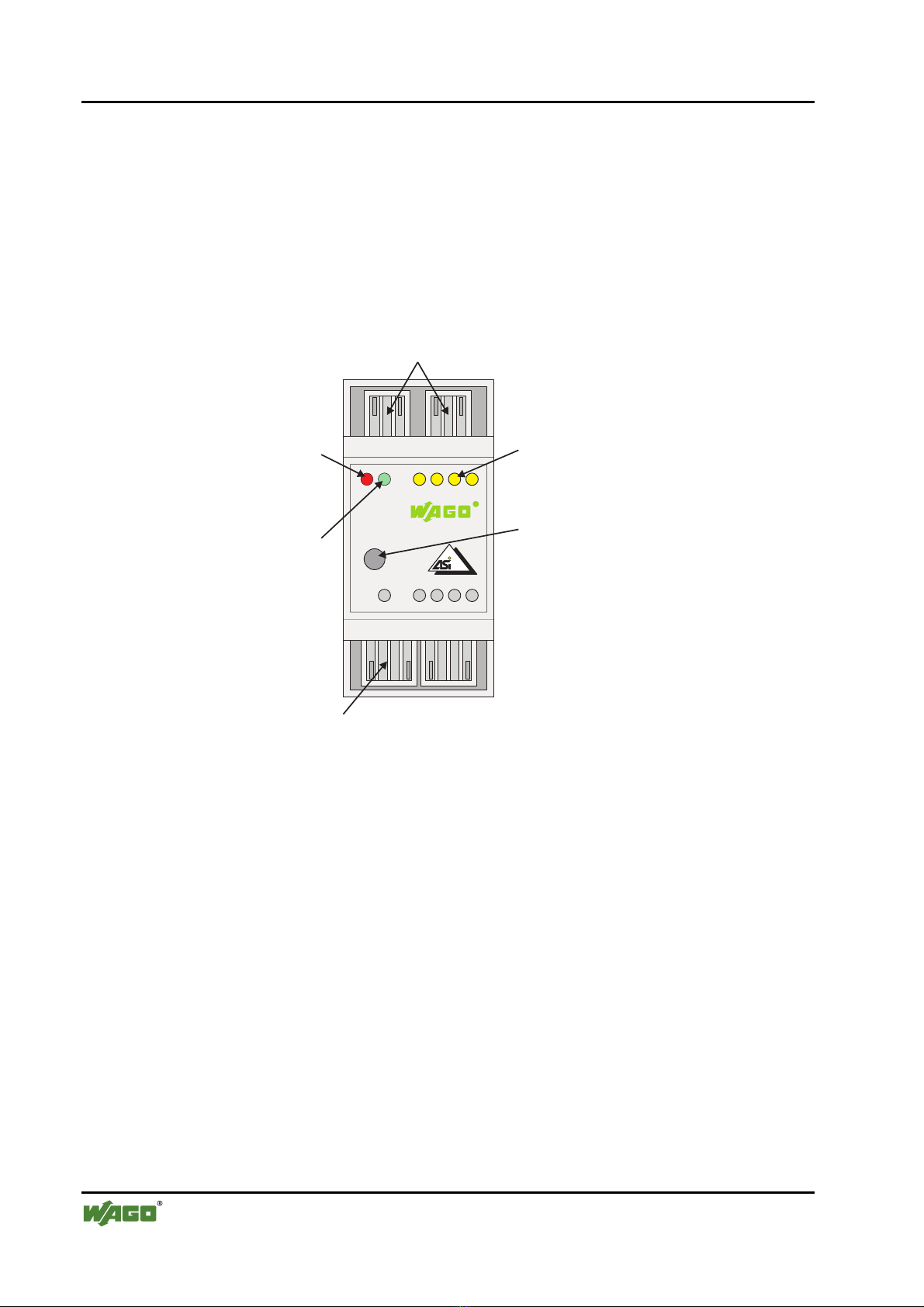

Fig. 2.1.1-1: View gq35020e
2.1.1.2 Description
The AS-Interface module 751-3502 is an economical solution for a fieldbus-
independent and flexible connection of actuators and sensors from the field
and the control cabinet. The module is in accordance with AS-Interface
specification V.3.0.
The module works in extended address area and can be set to one of 62
addresses ranging from 1A ... 31A resp. 1B … 31B.
The voltage for the sensors is supplied via the AS-Interface cable and is short
circuit protected.
The AS-Interface module 751-3502 provides 4 digital 24 V inputs.
Sensors, actuators, AS-Interface power supply and actuator supply are
connected using connectors from the WAGO Multi Connection System Mini.
LEDs indicate the status of inputs and outputs, the AS-Interface and actuator
supply as well as a short circuit or overload condition.

751-3502 [AS-Interface Module 4IN 24V A/B] •9
Connectors
WAGO-I/O-SYSTEM 751
AS-Interface Components IP20
2.1.1.3 Connectors
2.1.1.3.1 AS-Interface Cables
The connections for AS-Interface cable are 4-pole male connectors for use
with female connectors from the Multi Connection System Mini.
The following table shows the pin assignment of the sockets.

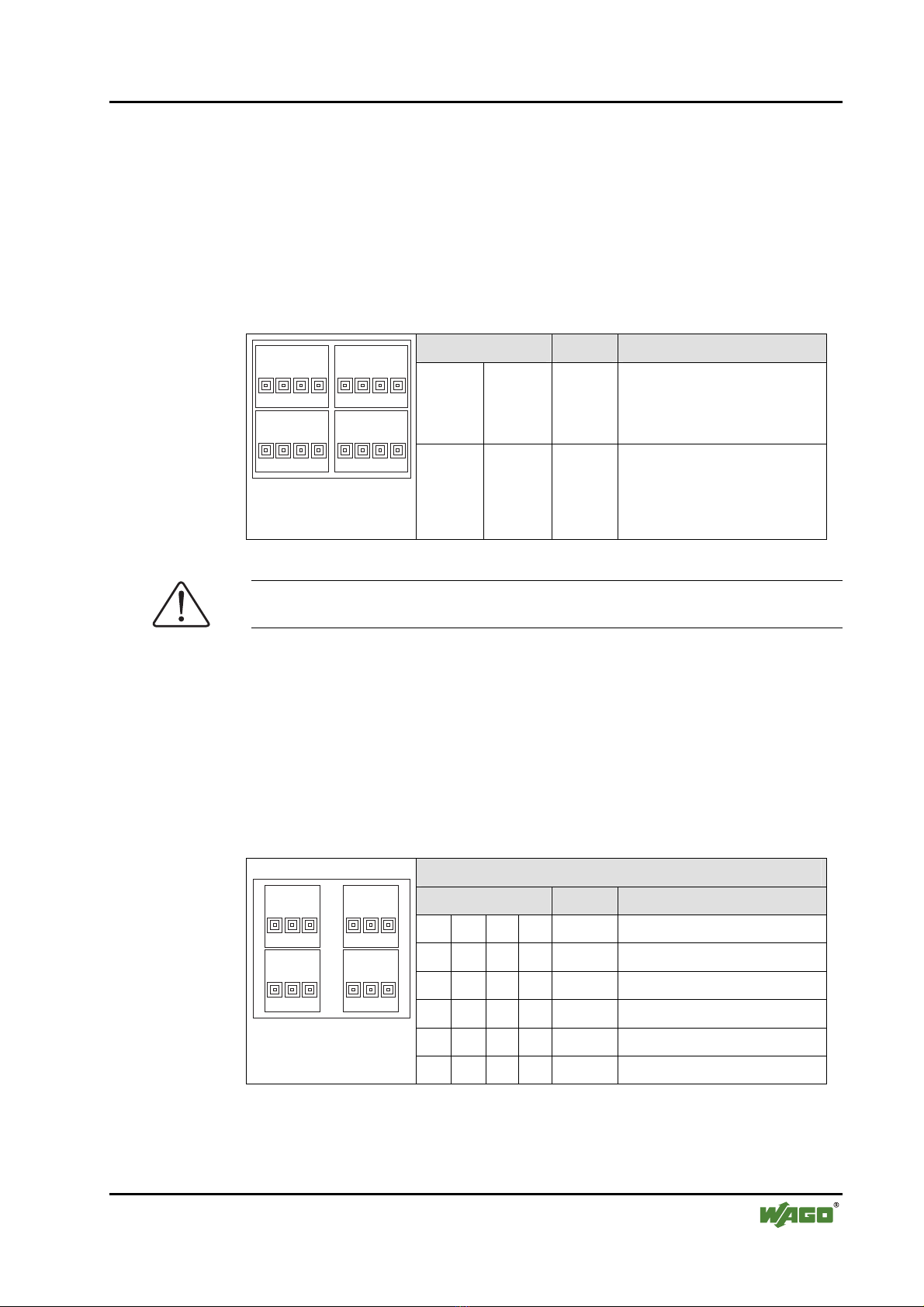

Tab. 2.1.1-1: AS-Interface Connectors
Connector Pin Function
X1 --- ASI+ AS-Interface power supply +
ASI+ ASI+
ASI-
ASI-
X1
X2 X4
X3
Fig. 2.1.1-2: AS-
Interface Connectors
gqxxxx5x
X1 --- ASI- AS-Interface power supply –
Warning
Connectors must only be mated or unmated in “No Load” condition!
2.1.1.3.2 Sensor Connectors
Sensor connections are 3-pole male connectors for use with female connectors
from the Multi Connection System Mini.
The following table shows the pin assignment of the sockets.
Tab. 2.1.1-2: Sensor Connectors
Sensor Connectors
Connector Pin Function
X5 X6 X7 X8 IN+ Sensor supply L +
X5 X6 X7 X8 IN- Sensor supply L -
X5 --- --- --- IN1 Sensor signal
--- X6 --- --- IN2 Sensor signal
--- --- X7 --- IN3 Sensor signal
X5
X6 X8
X7
IN+ IN+
IN+
IN-
IN+
IN-
IN-
IN-
IN1
IN3
IN2
IN4
Fig. 2.1.1-3: Sensor
Connectors gqxxxx4x --- --- --- X8 IN4 Sensor signal

10 •751-3502 [AS-Interface Module 4IN 24V A/B]
Display Elements
WAGO-I/O-SYSTEM 751
AS-Interface Components IP20
Warning
The inputs are DC coupled with the AS-Interface voltage. They shall not be
supplied with an external supply voltage!
Warning
Connectors must only be mated or unmated in “No Load” condition!
2.1.1.3.3 Programming Connector
On the left side of the front plate is the programming connector. It is a plug for
a DC socket which is compatible with all popular programming adapters, for
example Pepperl+ Fuchs VAZ-PK-1.5M-V1-G.
Please note manufacturer documentation for the operation of the programming
device.
2.1.1.4 Display Elements
Tab. 2.1.1-3: Display Elements
LED Designation Status Function
off Input 1, Signal voltage (0)
I1
yellow
Status
DI1 on Input 1, Signal voltage (1)
off Input 2, Signal voltage (0)
I2
yellow
Status
DI2 on Input 2, Signal voltage (1)
off Input 3, Signal voltage (0)
I3
yellow
Status
DI3 on Input 3, Signal voltage (1)
off Input 4, Signal voltage (0)
I4
yellow
Status
DI4 on Input 4, Signal voltage (1)
off OK
on Configuration error
FLT
red Error
blinking Short circuit / sensor supply
overload
off AS-Interface supply error
FLT ASI I3I4 I1I2
Fig. 2.1.1-4: Display
Elements gq35012x
ASI
green
AS-Interface
supply on AS-Interface supply OK
2.1.1.5 Operating Elements
The AS-Interface module 751-3502 has no operating elements.

751-3502 [AS-Interface Module 4IN 24V A/B] •11
Schematic Diagram
WAGO-I/O-SYSTEM 751
AS-Interface Components IP20
2.1.1.6 Schematic Diagram
Sensor +
Sensor
-
ASI
FLT
IN+
IN1
IN1
NTERFACE
IN+
IN3
IN3
IN+
IN2
IN2
IN+
IN4
IN4
IN - IN -
IN - IN -
AS-i -
AS-i +
IN2/4
IN1/3
X5 X7
X6 X8
X1
ASI+
ASI+
AS-i
ASI-
ASI-
751-3502
for 3-conductor sensors
Fig. 2.1.1-5: Schematic Diagram gq35021e

12 •751-3502 [AS-Interface Module 4IN 24V A/B]
Technical Data
WAGO-I/O-SYSTEM 751
AS-Interface Components IP20
2.1.1.7 Technical Data
Tab. 2.1.1-4: Technical Data
Inputs
Number of inputs 4
Sensor supply via AS-Interface control
voltage max.
150 mA, short-circuit-proof
Current limitation for all inputs tot. 150 mA
Rated voltage 18 V ... 31 V
PELV from AS-Interface
Input types IEC 61131 type 1,
+ active 7 mA current sink (type 2)
Signal voltage (0) ≤5 V
Signal voltage (1) ≥11 V
Connection system Multi Connection System Mini headers,
WAGO series 734, 3-pole
AS-Interface
Operating voltage (AS-I) 26,5 V ... 31,6 V
Current consumption type 35 mA
Current consumption max. 50 mA (start-up),
230 mA incl. sensor supply
AS-Interface version 3.0
AS-Interface profile S-0.A.2
extended address mode yes
adjustable addresses 62 (1A ... 31A, 1B ... 31B)
ID-code 0.A.7.2
Operation indicators (LED)
Input / Output function
Error
Function (ASI)
yellow
red
green
Assignment of data bits
D0
D1
D2
D3
bidirectional I-1
bidirectional I-2
bidirectional I-3
bidirectional I-4
Connection system Multi Connection System Mini headers,
WAGO series 734, 4-pole

751-3502 [AS-Interface Module 4IN 24V A/B] •13
Technical Data
WAGO-I/O-SYSTEM 751
AS-Interface Components IP20
Tab. 2.1.1-4: Technical Data
General Technical Data
Operating temperature -25 °C ... +70 °C
Storage temperature -25 °C ... +85 °C
Relative air humidity (operation / storage) 95 % (no condensation)
Degree of protection IP20
Dimensions (W x H* x L)
(* from upper edge of 35 DIN rail)
42,5 mm x 55 mm x 92 mm
Weight ca. 85 g
Standards and Regulations
Vibration resistance acc. to IEC 60068-2-6
Shock resistance acc. to IEC 60068-2-27
EMC-Immunity to interference (CE) acc. to EN 61000-6-2
EMC-Emission of interference (CE) acc. to EN 61000-6-3
Approvals
AS-Interface Association Specification V3.0
ZU-No.:72504
CULUS (UL508)
Conformity Marking
Accessories
Multi Connection System Mini female
connector, 3-pole
734-103
Multi Connection System Mini female
connector, 4-pole
734-104
Marker strips, self-adhesive
height of marker strips 3 mm,
printing 1 – 16, 40x
709-179
Marker strips, self-adhesive
height of marker strips 3 mm,
printing 17 – 32, 40x
709-180

14 •751-3502 [AS-Interface Module 4IN 24V A/B]
Technical Data
WAGO-I/O-SYSTEM 751
AS-Interface Components IP20
Tab. 2.1.1-4: Technical Data
Characteristic Input Curve
0510 15 20 V
-2
0
2
4
6
8
mA
25 30
Input VoltageInput Voltage
Input CurrentInput Current
Fig. 2.1.1-6: Characteristic Input Curve gqxxx15e
Dimensions
110
37
42.5
90
37
27
92
38
28
7
42
51
62
Fig. 2.1.1-7: Dimensions gqxxx11x

751-3502 [AS-Interface Module 4IN 24V A/B] •15
Assembly
WAGO-I/O-SYSTEM 751
AS-Interface Components IP20
2.1.1.8 Assembly
The IP20 AS-Interface Slaves are snapped onto DIN 35 carrier rails. Please
ensure that the space for the connection of the female connectors is big
enough. The IP20 AS-Interface Slaves must only be used in enclosures,
cabinets or electrical service rooms. Only authorised qualified personnel are
allowed to access via key or tool.
Depending on the type of slave, 3- or 4-pole WAGO female connectors of
Series 734 (CAGE CLAMP®connection) for the connection of AS-Interface,
AUX, sensors or actuators are included in the delivery. The female connectors
are appropriate for the connection of solid, stranded and fine-stranded
conductors from 0.08 ... 1.5 mm² (AWG 28 ... 14) with a stripped length of
7 mm.
2.1.1.9 Start-up and diagnosis
Attention
Operating an AS-Interface network with components that do not comply with
the AS-Interface specification may lead to malfunctions or restrictions.
Please note the AS interface master manual and the manual for the start-up
tool WAGO-I/O-CHECK 2 (759-302) for start-up and diagnosis of the AS
interface slaves with AS interface master 750-655 from the WAGO-I/O-
SYSTEM 750.
For start-up and diagnosis of AS interface slaves with an AS interface master
or an AS interface programming device of another manufacturer, please note
the corresponding operating manuals.

WAGO Kontakttechnik GmbH & Co. KG
Postfach 2880 • D-32385 Minden
Hansastraße 27 • D-32423 Minden
Phone: [phone] – 0
Fax: [phone] – 1 69
E-Mail: [email protected]
Internet: http://www.wago.com
