Well 3130IF User manual

3130IF -VoIP User Manual V2.0
IP Phone User Manual
This Manual provides basic information on how to install and connect
3130IF IP Phone to the network. It also includes features and functions of
3130IF IP phone components, and how to use them.
1

3130IF -VoIP User Manual V2.0
2
Contents
1 BEFORE GETTING STARTED .................................................................... 5
2 CHECK LIST................................................................................................ 5
3 FEATURES AND SPEC............................................................................... 5
4 INSTALLATION............................................................................................ 9
5 PRODUCT OVERVIEW................................................................................ 9
6 BASIC OPERATIONS.................................................................................10
6.1 MAKE PHONE CALLS...................................................................................10
6.2 OGM AND ICM..........................................................................................11
6.2.1 OGM Record and playback.................................................................11
6.2.2 ICM check.............................................................................................12
6.3 PHONE BOOK NUMBER STORE / EDIT / DELETE................................................13
6.4 SPEED DIAL NUMBER FROM PHONE BOOK......................................................13
6.5 CALL LIST CHECK / DELETE / DIAL OUT...........................................................13
6.6 HOLD .........................................................................................................14
6.7 VOLUME ADJUSTMENT IN CONVERSATION.......................................................14
6.8 BLOCK LIST SETTING / EDIT / DELETE.............................................................14
6.9 3-PARTY CONFERENCE.................................................................................14
6.10 CALL FORWARDING ....................................................................................14
7. UNIT CONFIGURATION ............................................................................15
7.1 CONFIGURATION WITH KEYPAD AND LCD DISPLAY ..........................................15
7.2 CONFIGURATION VIA WEB ...........................................................................20
7.2.1 Logon Web...........................................................................................20
7.2.2 Current state ........................................................................................21
7.2.3 Network configuration.........................................................................22

3130IF -VoIP User Manual V2.0
3
Wide area network（WAN）........................................................................22
Local area network (LAN) ............................................................................25
7.2.4 VOIP configuration ..............................................................................26
H.323 configuration ......................................................................................26
SIP configuration..........................................................................................30
7.2.5 Advance configuration........................................................................34
Net Service configuration ............................................................................34
Value added service configuration..............................................................39
DSP configuration ........................................................................................42
Configuration Explanation:..........................................................................43
Number binding configuration ....................................................................43
Configuration Explanation:..........................................................................44
7.2.6 Save and Clear configuration.............................................................49
7.2.7 Upgrade on-line ...................................................................................49
Upload WEB page.........................................................................................49
FTP download...............................................................................................50
Configuration Explanation:..........................................................................51
Configure file encryption .............................................................................52
Auto-upgrade................................................................................................52
Configuration files WEB download.............................................................54
7.2.8 System management...........................................................................54
Account management ..................................................................................54
Configuration Explanation:..........................................................................55
Phone book configuration...........................................................................57
VPN configuration ........................................................................................57
Time zone configure.....................................................................................58

3130IF -VoIP User Manual V2.0
4
7.3 CONFIGURATION VIA TELNET ........................................................................59
7.3.1 Basic Command...................................................................................60
7.3.2 Command structure.............................................................................60
7.3.3 STRUCTURE OF CONFIG TERMINAL .............................................................62

3130IF -VoIP User Manual V2.0
5
1 Before Getting Started
Before you can connect 3130IF to the network and use it, you must have a
high-speed Internet connection installed. A high-speed connection includes
such environments as DSL, cable modem, and a leased line. 3130IF IP phone
is a stand-alone device, which requires no PC to make Internet calls. 3130IF IP
is fully compatible with SIP and H.323 industry standard and can interoperate
with many other SIP or H.323 compliant devices and software in market.
2 Check List
1) One 3130IF IP phone
2) One Straight Ethernet cable
3) One universal power adapter, one CD
3 Features and SPEC
Network and Protocol
H323 V4
-DNS name of GK
-H323 Call forward
-H323 Fast start
-Early H245
-H245 tunneling
-H245 multiplex
-H245 DTMF/Q931 DTMF facility
-Q931 signaling port setting
-Dual GK support
-NAT transverse, CITRON
-NAT transverse, AVS

3130IF -VoIP User Manual V2.0
6
-Fast start with early media channel
-Peer to Peer H323 call
SIP RFC3261, RFC3262, RFC3666, RFC2543
-IP (RFC0791), TCP (RFC0793), UDP (RFC0768), ARP (RFC0826)
-ICMP, ARP, RARP, SNTP
-SDP TFTP HTTP DNS
-SIP server: 2 IP account with password protection
-Pubic Server/ Private server: can connect to ISP and Private SIP server at
same time
-Authentication: none, HTTP 1.1 basic/digest authentication for Web setup,
MD5 (RFC2069/ RFC 2617)
-NAT traversal: STUN, NAT ALG, NAPT, SIP Express router
-2 RJ-45 auto-sensing 10/100Mbps, with Router or Bridge Mode
-DHCP client (RFC2131) / TFTP client / PPPoE client
-Static IP / DHCP / PPPoE
-DNS client with 2 servers IP
Audio Codec
G.711 µ / A
G.723.1
G.726
G.729
QoS

3130IF -VoIP User Manual V2.0
7
-ToS Diffserv, 802.1p/q
-VAD, CNG, Packet Loss Compensation, adaptive Jitter Buffer; Echo
cancellation G.168
Dial Tone Signal Generation
DTMF (out of Band RFC 2833 / in band)
SIP Info interoperate with CISCO SIP device
Phone features
English language
2 x 16 Alphanumeric LCD display
Speakerphone
Flexible Dial Map: Fix length; End with #; Dial Map Table; Dial with time out
Redial / Hold / Delete
100 Phone book with Speed dial and Speed browse process
Message Waiting Indicator
Caller ID Display
Call Log (10 for each): Incoming, call out, missed call?
Do Not Disturb
Block call (by number)
Blind transfer
Forward (Off, Always, busy, No answer)
Call waiting
Call duration timer
Volume control (speaker, handset, headset & ringer)
Date & time display (idle state)

3130IF -VoIP User Manual V2.0
8
Headset (option)
Max. 4 minutes recoding for OGM, ICM (with Recording / Finish Gain control)
Hotline number
Configuration Support
-Keypad & LCD, Web, Telnet, TFTP
-Password protection for configuration
Firmware Upgrade
-TFTP; HTTP; FTP, Telnet,
-Boot Monitor / Upgrade firmware through boot monitor
-Security firmware upgrade, firmware digest check
Log
-Log level
-Telnet logs and CDR
-SysLog Logs and CDR
-FTP/TFTP CDR upload
Physical & Environmental
Desktop / Wall mounting
Power Input: 100 to 240 DCV / 50/60Hz 7.5 DCV
Dimensions: 190 x 155 x 78 mm
Weight: 600 g (main unit)
Operating Temperature: 0°to +40°C (32°to +104°F)
Storage Temperature:-20°to +70°C (-40°to +158°F)

3130IF -VoIP User Manual V2.0
Humidity: 5% -95% non-condensing
4 Installation
Remove the LAN cable for Internet connection from your PC and connect it to
‘WAN’ port of 3130IF Connect the power adapter in the box to ‘Power’
Find LAN cable in the box and connect between ‘Lan’ port and your PC (PC is
not required for set up or making a call.)
5 Product Overview
9

3130IF -VoIP User Manual V2.0
10
Key Button Key Button Definitions
0 - 9, *, # Digit, star and pound keys are also used for setting and call
process.
1 Digit / Space key
Local IP/OK Display local IP address on LCD / enter key
PH No/Edit Browse phone number of unit / Configuration Modify
Vol + Increase handset / speakerphone volume
Vol - Reduce handset / speakerphone volume
Up Moving in menu
Down Moving in menu
ESC/REG Exit / register
Hold/Del Hold the active call / Delete
Speed Dial Dial stored speed dial number
Call List Browse call logs
Redial Dial a new number or Redial the number last dialed.
H.F Enter hands-free mode
Rec/Finish Enter record menu
PH Book Enter phonebook operation
6BasicOperations
6.1 Make Phone Calls
There are some ways to make phone calls:
1. Pick up handset or press H.F button, and then enter the phone numbers
2. Press the Redial button directly to redial the number last called.
3. While browsing in LOG menu, browsing OUTGOING / INCOMING call,
press【#】button to dial out displayed number on LCD.

3130IF -VoIP User Manual V2.0
4. When the unit indicates Missed calls, press 【Call List】and 【Down】
button to enter Miss call menu, then press【Local IP/OK】button to review
number. Press【#】button to dial out this number.
5. In ideal mode, enter the desired number to make pre-dial, Press 【#】button
to dial out this number, and press 【Hold/Del】delete and modify the number.
6.2 OGM and ICM
Unit can store 3 voice records which with max 80 seconds, so it can be
configure as 1 OGM and 2 ICM, while 2 ICM is full, unit will only play OGM
while call incoming till old ICM cleared.
To play OGM and ICM recording, OGM shall be preset and “Enable Voice
Record and Incoming Record Playing” shall be set in menu. Then unit will play
OGM after 5 ringings.
6.2.1 OGM Record and playback
Press【Rec/Finish】key and LCD show:
---REC/FINISH record---
Received
Press【Down】or 【Up】key and LCD show”
---REC/FINISH record---
User-Defined
Press 【Local IP/OK】key and【Up】key and LCD show:
--- User-Defined ---
Rec
11

3130IF -VoIP User Manual V2.0
Press 【Local IP/OK】key and LCD show:
Press OK to Rec
Press 【Local IP/OK】key again to begin record and press 【Rec/Finish】to
quite recording.
And press【DOWN】or 【UP】key and LCD show:
--- User-Defined ---
Play
Press 【Local IP/OK】key to playback User-Defined recording.
6.2.2 ICM check
Press【Rec/Finish】key and LCD show:
12
---REC/FINISH record---
Received
Press【Local IP/OK】key and LCD show:
---Received---
New
Press 【Local IP/OK】key and LCD SHOW:
--- New record ---
Record1
Press 【Local IP/OK】key and LCD SHOW:

3130IF -VoIP User Manual V2.0
13
--- Record 1---
Play
Press【Local IP/OK】key and LCD SHOW:
Press OK To Play
Press【Local IP/OK】key again to playback.
6.3 Phone book number store / edit / delete
In standby, -press 【PH Book】button, LCD display “Phone Book Current”
-press【OK】to check first record, press【UP】or【DOWN】to review others,
or press “2” - “9” digit key to select first letter for Phone Book name as speed
browse.
-press 【UP】till LCD display ”ADD”, then press 【OK】, input name, number,
position as LCD prompt. Press【Hold/Del】to delete wrong digit.
- press 【UP】till LCD display ”DEL”, then press 【OK】, input position of
desired number and press 【OK】to delete.
6.4 Speed dial number from Phone Book
In standby, press 【Speed dial】, and input position number of phone book
memory, press【#】to dial out.
6.5 Call list check / delete / dial out
In standby press button 【Call list】, LCD display ”Call Record Dialed”,
-Press 【OK】to check last dialed out number and conversation time, press
【UP】and【DOWN】to review other and press 【#】to dial out; press
【Hold/Del】to delete.

3130IF -VoIP User Manual V2.0
14
- press 【UP】till LCD display ”Received”, then press 【OK】to check latest
received call, press 【UP】and 【DOWN】to review other and press 【#】
to dial out; press 【Hold/Del】to delete.
- press 【UP】till LCD display ” ”Call Record Dialed”, then press 【OK】to
check latest miss call, press 【UP】and【DOWN】to review other and press
【#】to dial out; press 【Hold/Del】to delete.
6.6 Hold
During conversation, press 【Hold/Del】to keep line and press again to
release.
6.7 Volume adjustment in conversation
During conversation, press 【Vol +/-】to adjust receiving volume.
6.8 Block list setting / edit / delete
Please refer to below setting menu and CALL SERVICE setting in web
configuration.
6.9 3-party conference
During conversation, press 【Hold/Del】, then dial another number plus 【# 】
button, while line connected, press 【Hold/Del】and 【*】to make conference
call.
6.10 call forwarding
During conversation, press 【SPEED DIAL】, then dial another number plus #
button to forward it.

3130IF -VoIP User Manual V2.0
15
7. Unit Configuration
7.1 Configuration with keypad and LCD display
In standby, press and hold 【#】button till LCD shows " Input Password: "
input correct password (default is 123), press【OK】key to enter the menu list.

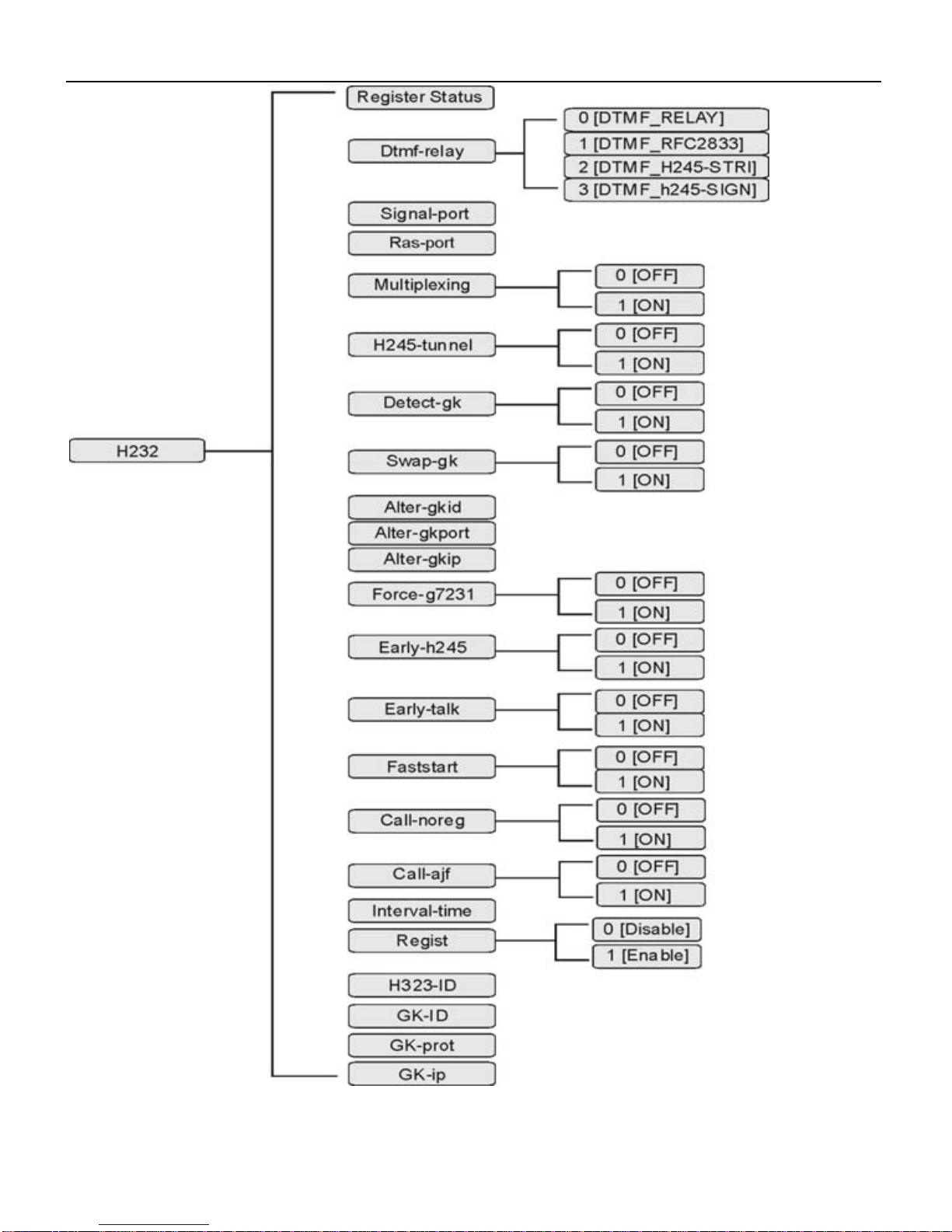

Then follow below menu list to set parameters accordingly.
During configuration, operations as follows
-For browse and edit Configuration, press【UP】, 【DOWN】;
-To change parameter, press 【PH No/Edit】firstly, then input desired digit,
confirm and save by press button 【Local/OK】.

3130IF -VoIP User Manual V2.0
16

3130IF -VoIP User Manual V2.0
17

3130IF -VoIP User Manual V2.0
18

3130IF -VoIP User Manual V2.0
19

3130IF -VoIP User Manual V2.0
20
7.2 Configuration via WEB
The IP Phone Web Configuration Menu can be accessed by the following URI:
http://Phone-IP-Address:9999. The default LAN IP address is “192.168.123.1”
and WAN IP address is “192.168.1.179”.
If the web login port of the phone is configured as non-80 standard port, then
user need to input http://xxx.xxx.xxx.xxx, otherwise the web will show that no
server has been found).
7.2.1 Logon Web
While input correct IP address as above, logon menu pop out as follows:
There are two level login as:
