Wells MOD-100TD User manual

Specifications
Temperature Settings: OFF/LO to HI
Weights: Lbs. KG
MOD-100TD series:
Installed 19 9
Shipping 21 10
MOD-200TDM series:
Installed 41 19
Shipping 51 23
MOD-300TDM series:
Installed 64 29
Shipping 78 35
MOD-400TDM series:
Installed 81 37
Shipping 98 44
MOD-500TDM series:
Installed 97 44
Shipping 118 54
MOD-100TD - MOD-500TDM WARMERS WITH AUTO WATER FILL
I T E M N O .
WE L L S M A N U F A C T U R I N G
Features
• All models have an automatic water fill
system that maintains the proper water level in
each pan through the use of a water sensor and
solenoid valve.
• Individual controls for each well give the
warmers maximum versatility.
• Thermostats are combined with higher wattage
elements to provide quicker heat-up and
faster recovery.
• Fully insulated for greater efficiency.
• A one-inch diameter drain manifold
(DM models) is provided to allow for a single
drain connection at the left or right front corner.
MOD-100TD has a one-half inch drain.
• Each well is one-piece, deep-drawn, stainless
steel for maximum strength and durability.
• Warmers are designed for wet operation only.
• Wellslok allows for quick and easy installation
in stainless steel countertops.
• The MOD Series Warmers are Underwriters
Laboratories, Inc. LISTED and meet NSF
International and Canadian standards.
• A one-year warranty against defects covers
parts and labor.
MOD-100TD, 200TDM, 300TDM, 400TDM, 500TDM
WARMERS WITH AUTO WATER FILL
Accessories / Options
Wellslok Extension Kit, designed for installation
in countertops up to 1-1/2” thick, refer to
installation instructions, 22593
Drain Valve Extension Kit, extension from
drain to counter front with remote handle,
for use with MOD-100TD only, 20385
Drain Screen, 21709
Optional 72” Wiring, thermostatically controlled
warmers, priced per well, contact factory

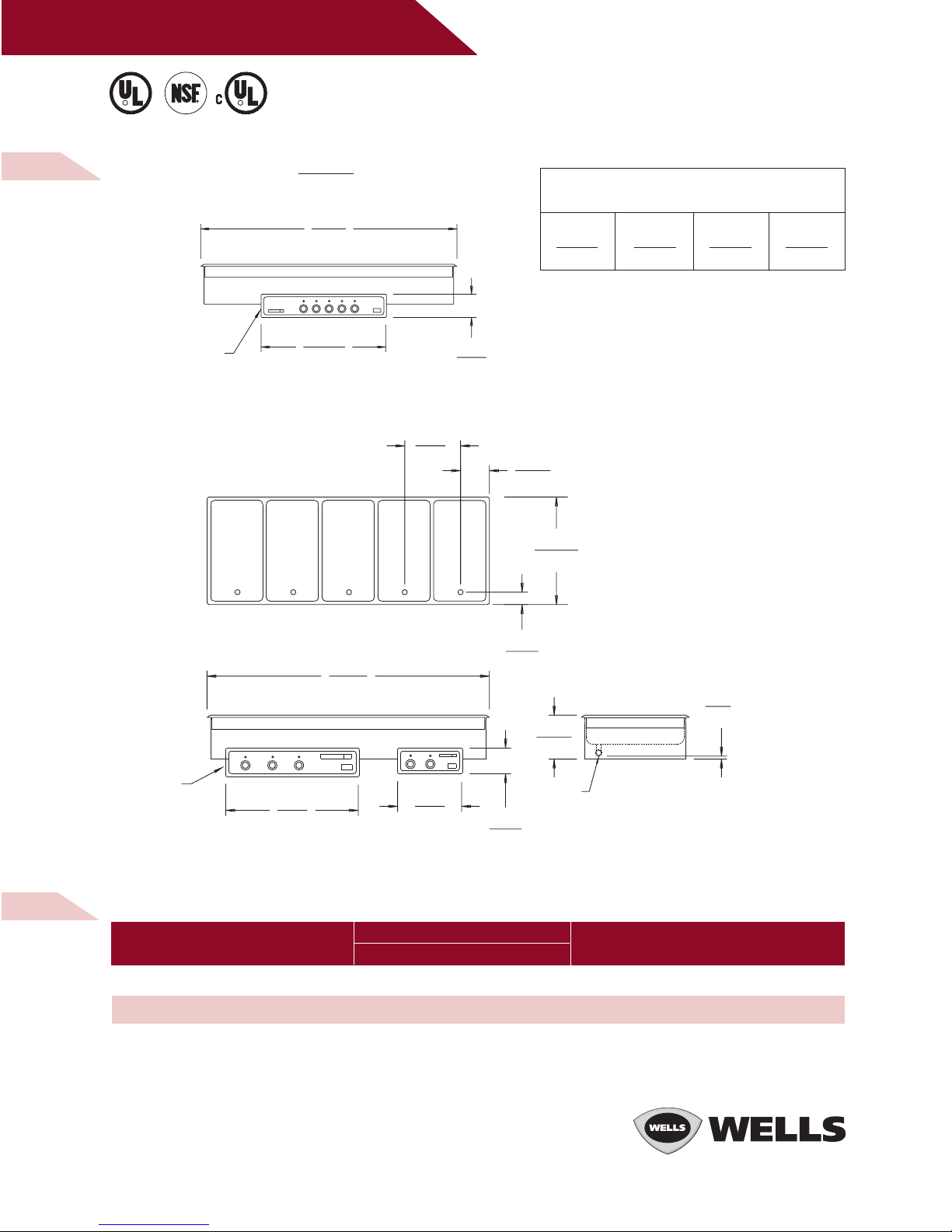

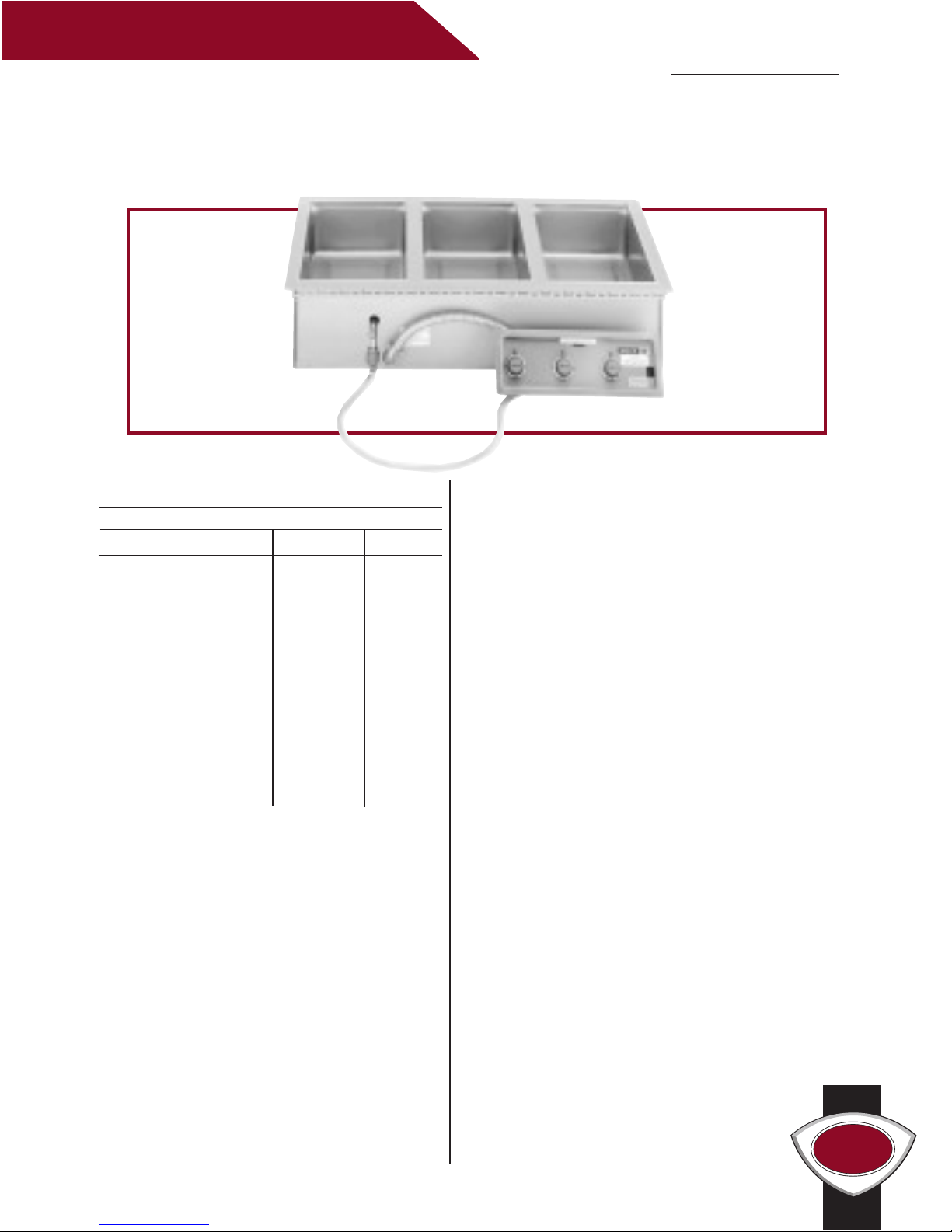

MOD-300TDM
Explanation of Built-In Warmer Suffixes:
TD ............. thermostatically controlled/with drain
TDM ......... thermostatically controlled/with drain/
connected to drain manifold
WELLS
MODEL
MOD-500TDM
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS: INCH
(MM)
WE L L S M A N U F A C T U R I N G
E6070STD.4
R
E6070
R
LISTED
R
WELLS MANUFACTURING COMPANY
2 ERIK CIRCLE, PO BOX 280, VERDI, NV 89439 U.S.A.
USA PHONE: [phone] • FAX: [phone]
FOR ORDERS ONLY: [phone] • FAX: [phone]
www.wells-mfg.com
© 2002 WELLS MANUFACTURING • PRINTED IN THE U.S.A.
02/02 • REV(-) • PART NO. 303438
M O D - 5 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-500TDM/AF 208 6200 19.5 14.6 14.6 29.8 NONE
MOD-500TDM/AF 240 8250 22.1 16.9 16.9 34.4 NONE
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 6
(25) (25) (171) (152)
(1816)
71 1/2
(890)
35 1/16
(159)
6 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
Single Control Panel
Double Control Panel
(44)
1 3/4
(356)
14
(197)
7 3/4
(889)
35
(248)
9 3/4
(159)
6 1/4
(356)
14
(1816)
71 1/2
(600)
23 5/8
(57)
2 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MANIFOLD EACH END
INTERNAL NPT
1 INCH
TYP
(44)
1 3/4
(356)
14
(197)
7 3/4
(57)
2 1/4
(600)
23 5/8
(1461)
57 1/2
(356)
14
(159)
6 1/4
(248)
9 3/4
(457)
18
TYP
MANIFOLD EACH END
INTERNAL NPT
1 INCH
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH

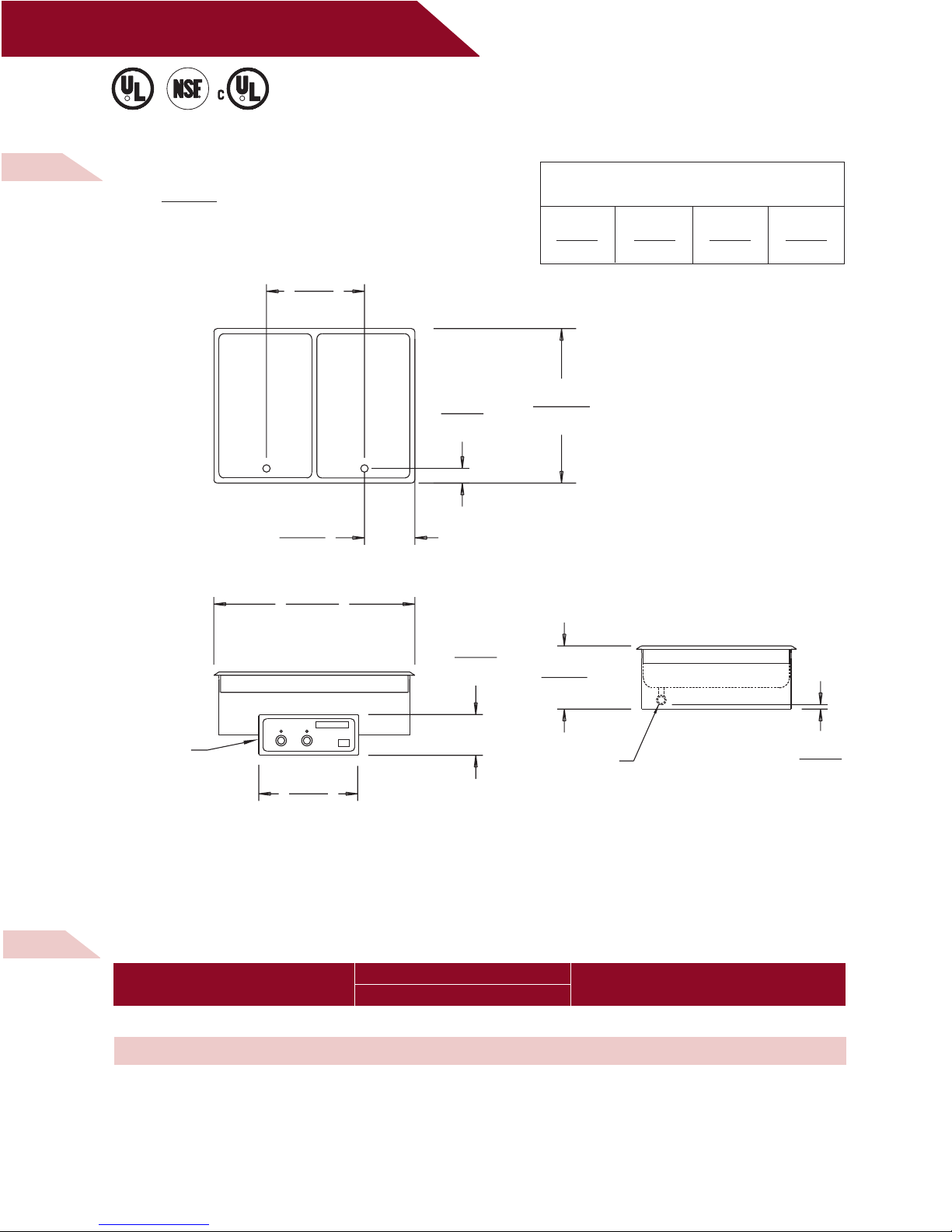

MODEL
MOD-400TDM
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS: INCH
(MM)
WE L L S M A N U F A C T U R I N G
E6070STD.4
R
E6070
R
LISTED
R
M O D - 4 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-400TDM/AF 208 4960 14.5 14.5 9.8 23.8 NONE
MOD-400TDM/AF 240 6600 17.8 17.8 11.3 27.5 NONE
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 6
(25) (25) (171) (152)
(1461)
57 1/2
(890)
35 1/16
(159)
6 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
Single Control Panel
Double Control Panel
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
02/02 • REV(-) • PART NO. 303438

M O D - 3 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-300TDM/AF 208 3720 10.3 10.3 10.3 17.9 NONE
MOD-300TDM/AF 240 4950 11.9 11.9 11.9 20.6 NONE
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
(44)
1 3/4
(356)
14
(197)
7 3/4
(248)
9 3/4
(159)
6 1/4
(889)
35
(1105)
43 1/2
(600)
23 5/8
(57)
2 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MANIFOLD EACH END
INTERNAL NPT
1 INCH
TYP
MODEL
MOD-300TDM
WA R M E R W I T H A U TO W AT E R F I L L
DIMENSIONS: INCH
(MM)
WE L L S M A N U F A C T U R I N G
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
E6070STD.4
R
E6070
R
LISTED
R
(44)
1 3/4
(356)
14
(197)
7 3/4
(248)
9 3/4
(159)
6 1/4
(457)
18
(749)
29 1/2
(600)
23 5/8
(57)
2 1/4
MANIFOLD EACH END
INTERNAL NPT
1 INCH
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH

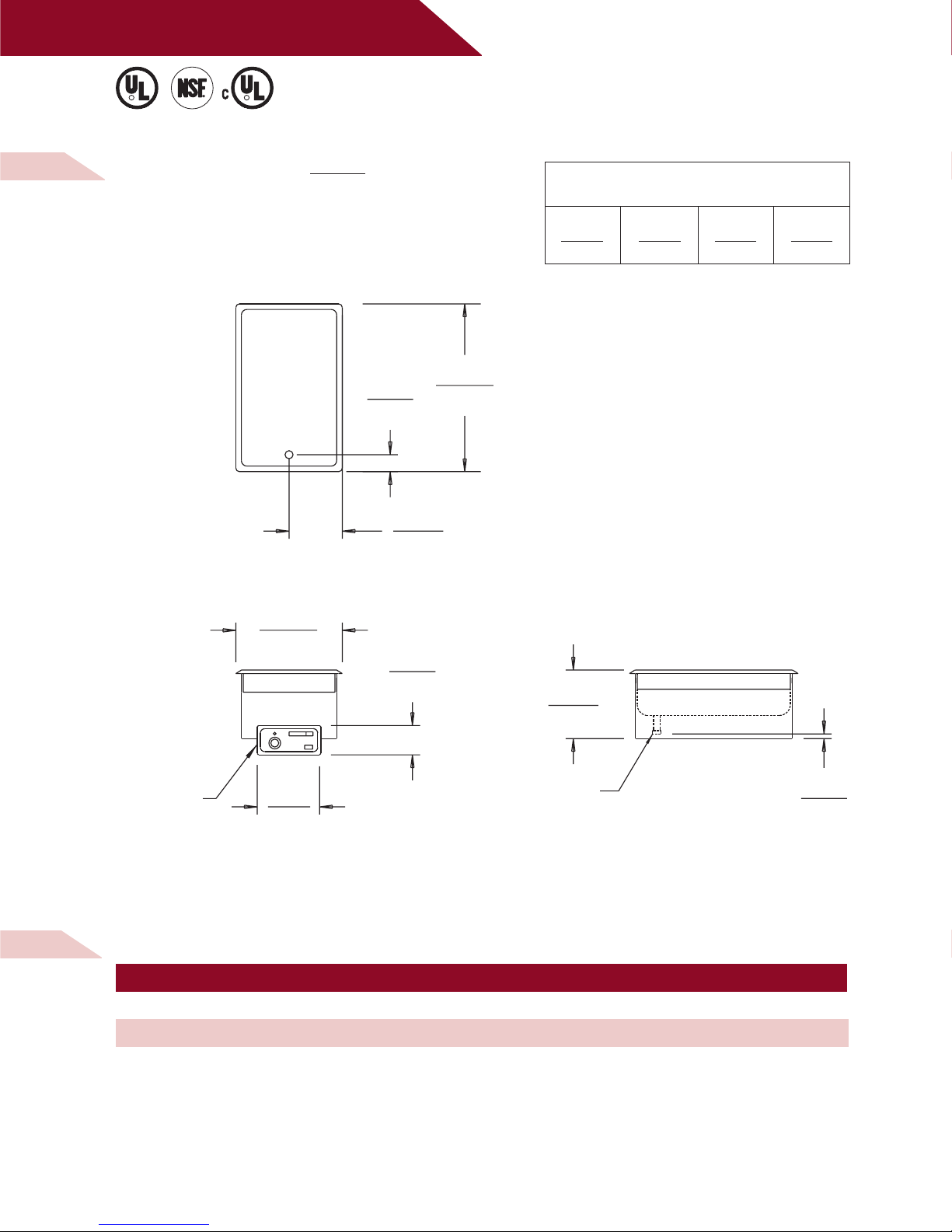

MODEL
MOD-200TDM
WA R M E R W I T H A U TO W AT E R F I L L
DIMENSIONS:
INCH
(MM)
WE L L S M A N U F A C T U R I N G
M O D - 2 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-200TDM/AF 208 2480 6.0 10.3 6.0 11.9 NONE
MOD-200TDM/AF 240 3300 6.9 11.9 6.9 13.8 NONE
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
E6070STD.4
R
E6070
R
LISTED
R
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
(187)
7 3/8
(44)
1 3/4
(248)
9 3/4
(159)
6 1/4
(356)
14
(375)
14 3/4
(597)
23 1/2
(57)
2 1/4
LINE CONNECTION
NPT WATER
EXTERNAL
1/4 INCH INTERNAL NPT
1/2 INCH
MODEL
MOD-100TD
WA R M E R W I T H A U TO W AT E R F I L L
DIMENSIONS:
INCH
(MM)
WE L L S M A N U F A C T U R I N G
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
M O D - 1 0 0 T D E L E C T R I C A L S P E C I F I C AT I O N S :
MOD-100TD/AF 208 1240 6.0 SINGLE NONE
MOD-100TD/AF 240 1650 6.9 SINGLE NONE
MODELS VOLTS WATTS AMPS PHASE POWER SUPPLY CORD
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
E6070STD.4
R
E6070
R
LISTED
R
02/02 • REV(-) • PART NO. 303438 02/02 • REV(-) • PART NO. 303438 02/02 • REV(-) • PART NO. 303438

M O D - 3 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-300TDM/AF 208 3720 10.3 10.3 10.3 17.9 NONE
MOD-300TDM/AF 240 4950 11.9 11.9 11.9 20.6 NONE
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
(44)
1 3/4
(356)
14
(197)
7 3/4
(248)
9 3/4
(159)
6 1/4
(889)
35
(1105)
43 1/2
(600)
23 5/8
(57)
2 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MANIFOLD EACH END
INTERNAL NPT
1 INCH
TYP
MODEL
MOD-300TDM
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS: INCH
(MM)
WE L L S M A N U F A C T U R I N G
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
E6070STD.4
R
E6070
R
LISTED
R
(44)
1 3/4
(356)
14
(197)
7 3/4
(248)
9 3/4
(159)
6 1/4
(457)
18
(749)
29 1/2
(600)
23 5/8
(57)
2 1/4
MANIFOLD EACH END
INTERNAL NPT
1 INCH
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MODEL
MOD-200TDM
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS:
INCH
(MM)
WE L L S M A N U F A C T U R I N G
M O D - 2 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-200TDM/AF 208 2480 6.0 10.3 6.0 11.9 NONE
MOD-200TDM/AF 240 3300 6.9 11.9 6.9 13.8 NONE
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
E6070STD.4
R
E6070
R
LISTED
R
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
(187)
7 3/8
(44)
1 3/4
(248)
9 3/4
(159)
6 1/4
(356)
14
(375)
14 3/4
(597)
23 1/2
(57)
2 1/4
LINE CONNECTION
NPT WATER
EXTERNAL
1/4 INCH INTERNAL NPT
1/2 INCH
MODEL
MOD-100TD
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS:
INCH
(MM)
WE L L S M A N U F A C T U R I N G
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
M O D - 1 0 0 T D E L E C T R I C A L S P E C I F I C AT I O N S :
MOD-100TD/AF 208 1240 6.0 SINGLE NONE
MOD-100TD/AF 240 1650 6.9 SINGLE NONE
MODELS VOLTS WATTS AMPS PHASE POWER SUPPLY CORD
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
E6070STD.4
R
E6070
R
LISTED
R
02/02 • REV(-) • PART NO. 303438 02/02 • REV(-) • PART NO. 303438 02/02 • REV(-) • PART NO. 303438

M O D - 3 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-300TDM/AF 208 3720 10.3 10.3 10.3 17.9 NONE
MOD-300TDM/AF 240 4950 11.9 11.9 11.9 20.6 NONE
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
(44)
1 3/4
(356)
14
(197)
7 3/4
(248)
9 3/4
(159)
6 1/4
(889)
35
(1105)
43 1/2
(600)
23 5/8
(57)
2 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MANIFOLD EACH END
INTERNAL NPT
1 INCH
TYP
MODEL
MOD-300TDM
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS: INCH
(MM)
WE L L S M A N U F A C T U R I N G
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
E6070STD.4
R
E6070
R
LISTED
R
(44)
1 3/4
(356)
14
(197)
7 3/4
(248)
9 3/4
(159)
6 1/4
(457)
18
(749)
29 1/2
(600)
23 5/8
(57)
2 1/4
MANIFOLD EACH END
INTERNAL NPT
1 INCH
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MODEL
MOD-200TDM
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS:
INCH
(MM)
WE L L S M A N U F A C T U R I N G
M O D - 2 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-200TDM/AF 208 2480 6.0 10.3 6.0 11.9 NONE
MOD-200TDM/AF 240 3300 6.9 11.9 6.9 13.8 NONE
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
E6070STD.4
R
E6070
R
LISTED
R
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
(187)
7 3/8
(44)
1 3/4
(248)
9 3/4
(159)
6 1/4
(356)
14
(375)
14 3/4
(597)
23 1/2
(57)
2 1/4
LINE CONNECTION
NPT WATER
EXTERNAL
1/4 INCH INTERNAL NPT
1/2 INCH
MODEL
MOD-100TD
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS:
INCH
(MM)
WE L L S M A N U F A C T U R I N G
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
M O D - 1 0 0 T D E L E C T R I C A L S P E C I F I C AT I O N S :
MOD-100TD/AF 208 1240 6.0 SINGLE NONE
MOD-100TD/AF 240 1650 6.9 SINGLE NONE
MODELS VOLTS WATTS AMPS PHASE POWER SUPPLY CORD
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
E6070STD.4
R
E6070
R
LISTED
R
02/02 • REV(-) • PART NO. 303438 02/02 • REV(-) • PART NO. 303438 02/02 • REV(-) • PART NO. 303438

Specifications
Temperature Settings: OFF/LO to HI
Weights: Lbs. KG
MOD-100TD series:
Installed 19 9
Shipping 21 10
MOD-200TDM series:
Installed 41 19
Shipping 51 23
MOD-300TDM series:
Installed 64 29
Shipping 78 35
MOD-400TDM series:
Installed 81 37
Shipping 98 44
MOD-500TDM series:
Installed 97 44
Shipping 118 54
MOD-100TD - MOD-500TDM WARMERS WITH AUTO WATER FILL
I T E M N O .
WE L L S M A N U F A C T U R I N G
Features
• All models have an automatic water fill
system that maintains the proper water level in
each pan through the use of a water sensor and
solenoid valve.
• Individual controls for each well give the
warmers maximum versatility.
• Thermostats are combined with higher wattage
elements to provide quicker heat-up and
faster recovery.
• Fully insulated for greater efficiency.
• A one-inch diameter drain manifold
(DM models) is provided to allow for a single
drain connection at the left or right front corner.
MOD-100TD has a one-half inch drain.
• Each well is one-piece, deep-drawn, stainless
steel for maximum strength and durability.
• Warmers are designed for wet operation only.
• Wellslok allows for quick and easy installation
in stainless steel countertops.
• The MOD Series Warmers are Underwriters
Laboratories, Inc. LISTED and meet NSF
International and Canadian standards.
• A one-year warranty against defects covers
parts and labor.
MOD-100TD, 200TDM, 300TDM, 400TDM, 500TDM
WARMERS WITH AUTO WATER FILL
Accessories / Options
Wellslok Extension Kit, designed for installation
in countertops up to 1-1/2” thick, refer to
installation instructions, 22593
Drain Valve Extension Kit, extension from
drain to counter front with remote handle,
for use with MOD-100TD only, 20385
Drain Screen, 21709
Optional 72” Wiring, thermostatically controlled
warmers, priced per well, contact factory
MOD-300TDM
Explanation of Built-In Warmer Suffixes:
TD ............. thermostatically controlled/with drain
TDM ......... thermostatically controlled/with drain/
connected to drain manifold
WELLS
MODEL
MOD-500TDM
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS: INCH
(MM)
WE L L S M A N U F A C T U R I N G
E6070STD.4
R
E6070
R
LISTED
R
WELLS MANUFACTURING COMPANY
2 ERIK CIRCLE, PO BOX 280, VERDI, NV 89439 U.S.A.
USA PHONE: [phone] • FAX: [phone]
FOR ORDERS ONLY: [phone] • FAX: [phone]
www.wells-mfg.com
© 2002 WELLS MANUFACTURING • PRINTED IN THE U.S.A.
02/02 • REV(-) • PART NO. 303438
M O D - 5 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-500TDM/AF 208 6200 19.5 14.6 14.6 29.8 NONE
MOD-500TDM/AF 240 8250 22.1 16.9 16.9 34.4 NONE
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 6
(25) (25) (171) (152)
(1816)
71 1/2
(890)
35 1/16
(159)
6 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
Single Control Panel
Double Control Panel
(44)
1 3/4
(356)
14
(197)
7 3/4
(889)
35
(248)
9 3/4
(159)
6 1/4
(356)
14
(1816)
71 1/2
(600)
23 5/8
(57)
2 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MANIFOLD EACH END
INTERNAL NPT
1 INCH
TYP
(44)
1 3/4
(356)
14
(197)
7 3/4
(57)
2 1/4
(600)
23 5/8
(1461)
57 1/2
(356)
14
(159)
6 1/4
(248)
9 3/4
(457)
18
TYP
MANIFOLD EACH END
INTERNAL NPT
1 INCH
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MODEL
MOD-400TDM
WA R M E R W I T H A U T O WAT E R F I L L
DIMENSIONS: INCH
(MM)
WE L L S M A N U F A C T U R I N G
E6070STD.4
R
E6070
R
LISTED
R
M O D - 4 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-400TDM/AF 208 4960 14.5 14.5 9.8 23.8 NONE
MOD-400TDM/AF 240 6600 17.8 17.8 11.3 27.5 NONE
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 6
(25) (25) (171) (152)
(1461)
57 1/2
(890)
35 1/16
(159)
6 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
Single Control Panel
Double Control Panel
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
02/02 • REV(-) • PART NO. 303438

Specifications
Temperature Settings: OFF/LO to HI
Weights: Lbs. KG
MOD-100TD series:
Installed 19 9
Shipping 21 10
MOD-200TDM series:
Installed 41 19
Shipping 51 23
MOD-300TDM series:
Installed 64 29
Shipping 78 35
MOD-400TDM series:
Installed 81 37
Shipping 98 44
MOD-500TDM series:
Installed 97 44
Shipping 118 54
MOD-100TD - MOD-500TDM WARMERS WITH AUTO WATER FILL
I T E M N O .
WE L L S M A N U F A C T U R I N G
Features
• All models have an automatic water fill
system that maintains the proper water level in
each pan through the use of a water sensor and
solenoid valve.
• Individual controls for each well give the
warmers maximum versatility.
• Thermostats are combined with higher wattage
elements to provide quicker heat-up and
faster recovery.
• Fully insulated for greater efficiency.
• A one-inch diameter drain manifold
(DM models) is provided to allow for a single
drain connection at the left or right front corner.
MOD-100TD has a one-half inch drain.
• Each well is one-piece, deep-drawn, stainless
steel for maximum strength and durability.
• Warmers are designed for wet operation only.
• Wellslok allows for quick and easy installation
in stainless steel countertops.
• The MOD Series Warmers are Underwriters
Laboratories, Inc. LISTED and meet NSF
International and Canadian standards.
• A one-year warranty against defects covers
parts and labor.
MOD-100TD, 200TDM, 300TDM, 400TDM, 500TDM
WARMERS WITH AUTO WATER FILL
Accessories / Options
Wellslok Extension Kit, designed for installation
in countertops up to 1-1/2” thick, refer to
installation instructions, 22593
Drain Valve Extension Kit, extension from
drain to counter front with remote handle,
for use with MOD-100TD only, 20385
Drain Screen, 21709
Optional 72” Wiring, thermostatically controlled
warmers, priced per well, contact factory
MOD-300TDM
Explanation of Built-In Warmer Suffixes:
TD ............. thermostatically controlled/with drain
TDM ......... thermostatically controlled/with drain/
connected to drain manifold
WELLS
MODEL
MOD-500TDM
WA R M E R W I T H A U TO W AT E R F I L L
DIMENSIONS: INCH
(MM)
WE L L S M A N U F A C T U R I N G
E6070STD.4
R
E6070
R
LISTED
R
WELLS MANUFACTURING COMPANY
2 ERIK CIRCLE, PO BOX 280, VERDI, NV 89439 U.S.A.
USA PHONE: [phone] • FAX: [phone]
FOR ORDERS ONLY: [phone] • FAX: [phone]
www.wells-mfg.com
© 2002 WELLS MANUFACTURING • PRINTED IN THE U.S.A.
02/02 • REV(-) • PART NO. 303438
M O D - 5 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-500TDM/AF 208 6200 19.5 14.6 14.6 29.8 NONE
MOD-500TDM/AF 240 8250 22.1 16.9 16.9 34.4 NONE
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 6
(25) (25) (171) (152)
(1816)
71 1/2
(890)
35 1/16
(159)
6 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
Single Control Panel
Double Control Panel
(44)
1 3/4
(356)
14
(197)
7 3/4
(889)
35
(248)
9 3/4
(159)
6 1/4
(356)
14
(1816)
71 1/2
(600)
23 5/8
(57)
2 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MANIFOLD EACH END
INTERNAL NPT
1 INCH
TYP
(44)
1 3/4
(356)
14
(197)
7 3/4
(57)
2 1/4
(600)
23 5/8
(1461)
57 1/2
(356)
14
(159)
6 1/4
(248)
9 3/4
(457)
18
TYP
MANIFOLD EACH END
INTERNAL NPT
1 INCH
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
MODEL
MOD-400TDM
WA R M E R W I T H A U TO W AT E R F I L L
DIMENSIONS: INCH
(MM)
WE L L S M A N U F A C T U R I N G
E6070STD.4
R
E6070
R
LISTED
R
M O D - 4 0 0 T D M E L E C T R I C A L S P E C I F I C AT I O N S :
MODELS VOLTS WATTS AMPS PER LINE 3 PHASE AMPS POWER
SINGLE PHASE SUPPLY CORD
L1 L2 L3
MOD-400TDM/AF 208 4960 14.5 14.5 9.8 23.8 NONE
MOD-400TDM/AF 240 6600 17.8 17.8 11.3 27.5 NONE
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 6
(25) (25) (171) (152)
(1461)
57 1/2
(890)
35 1/16
(159)
6 1/4
CONNECTION
WATER LINE
EXTERNAL NPT
1/4 INCH
Single Control Panel
Double Control Panel
NOTE: Specifications are subject to change without notice. See installation instructions prior to installing the unit.
This document is not for installation purposes.
02/02 • REV(-) • PART NO. 303438
