Whalen Devon EC-DE48D User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-11-23 Rev. 0001-A
Devon Desk
Model # EC-DE48D
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER: DATE PURCHASED: / /

2
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and
non-abrasive surface. You will need the parts identified on page 5 and 6 of this instruction manuals.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert the dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.

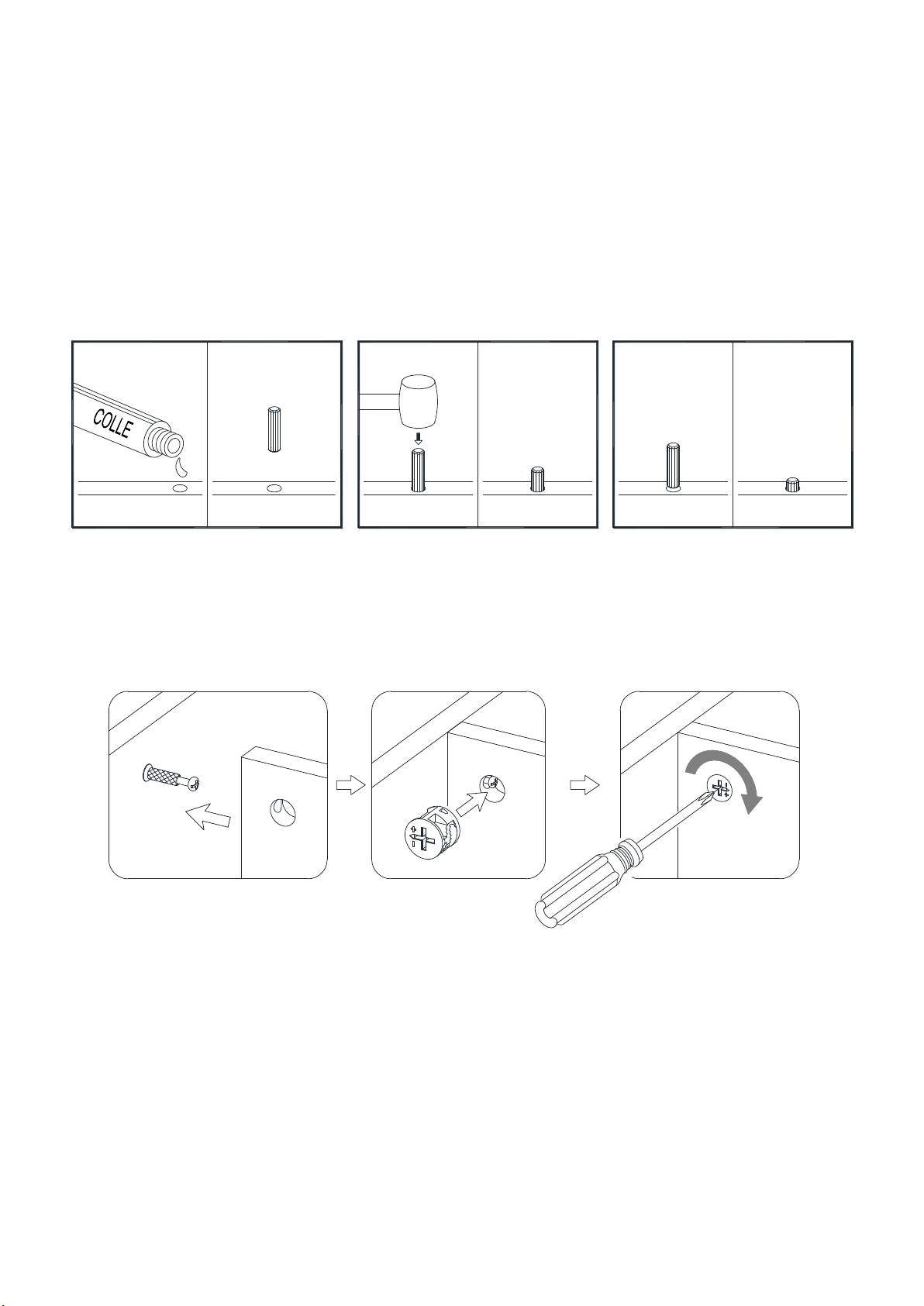

CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam
Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam
Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
You are now ready to assemble the KD unit.
123
GLUE
XX
FINAL
1 2 43

3
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Devon Desk
MODEL # EC-DE48D
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part list.
Please ensure all parts are included prior to assembly. Use of power tools to complete
assembly is not recommended.
M
A
X I
M U M R
E
C O M M E N D E D W E I G H T L O A D S
MAXIMUM LOAD 45.4 kg / 100 lb
MAXIMUM LOAD 4.5 kg / 10 lb
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.

4
FURNITURE TIPPING RESTRAINT
YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU MUST
USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL, TO
PREVENT ACCIDENTS AND/OR INJURIES.
THIS HARDWARE MUST BE PROPERLY INSTALLED (FOLLOW ALL
DIRECTIONS IN ORDER ON THIS INSTRUCTIONS), TO PROVIDE PROTECTION
AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE.
THIS PRODUCT IS ONLY A DETERRENT. IT IS NOT A SUBSTITUTE FOR PROPER
ADULT SUPERVISION. USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE,
BUT NOT ELIMINATE, THE RISK OF TIP-OVER.
Children have died from furniture tipover.
To reduce the risk of furniture tipover:
 ALWAYS install tipover restraint provided.
 NEVER put a TV on this product.
 NEVER allow children to stand, climb or hang
on drawers, doors, or shelves.
 NEVER open more than one drawer at a time.
 Place heaviest items in the lowest drawers.
Use of tip-over restraints may only reduce,
but not eliminate, the risk of tip-over.
WARNING

5

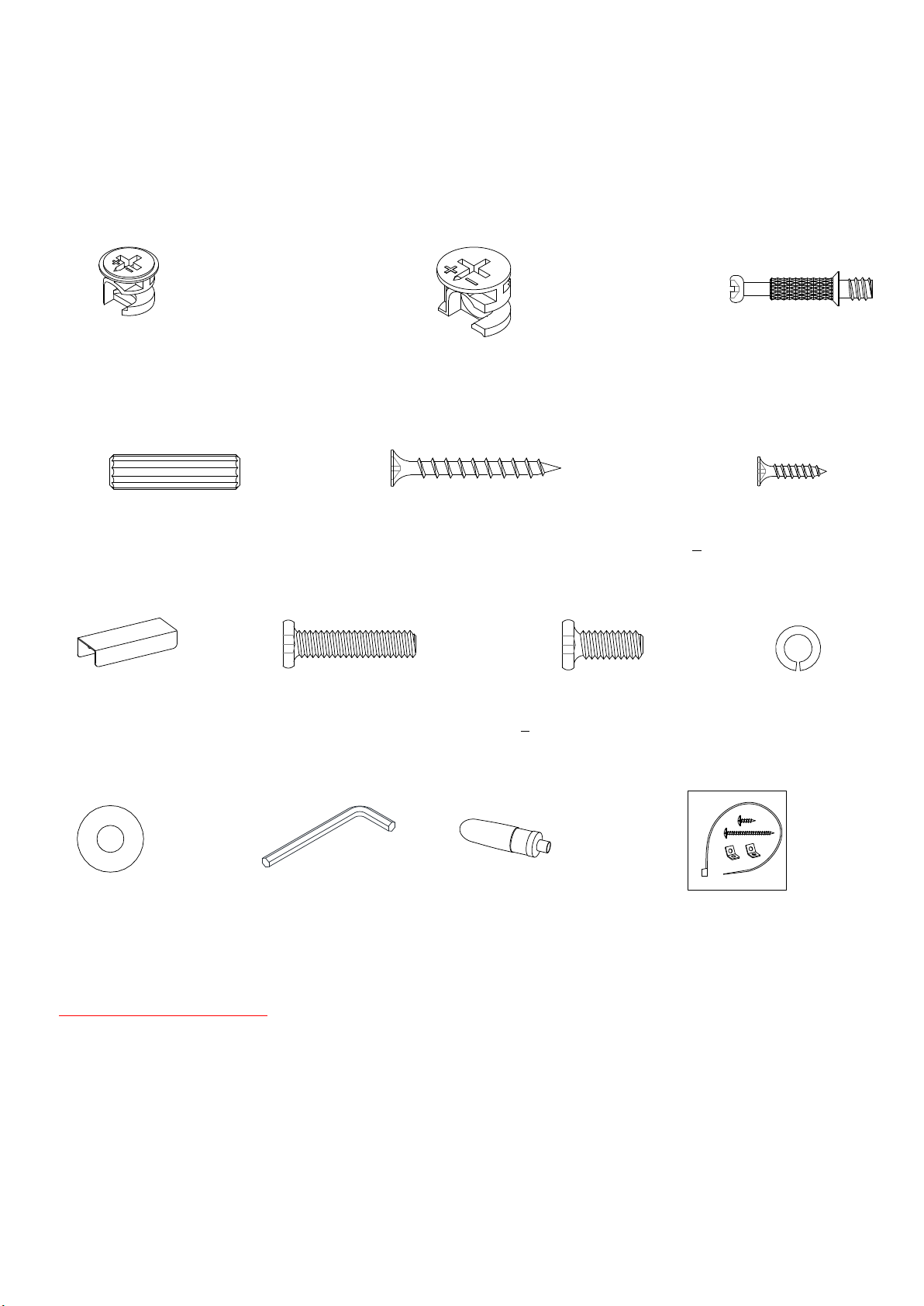

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

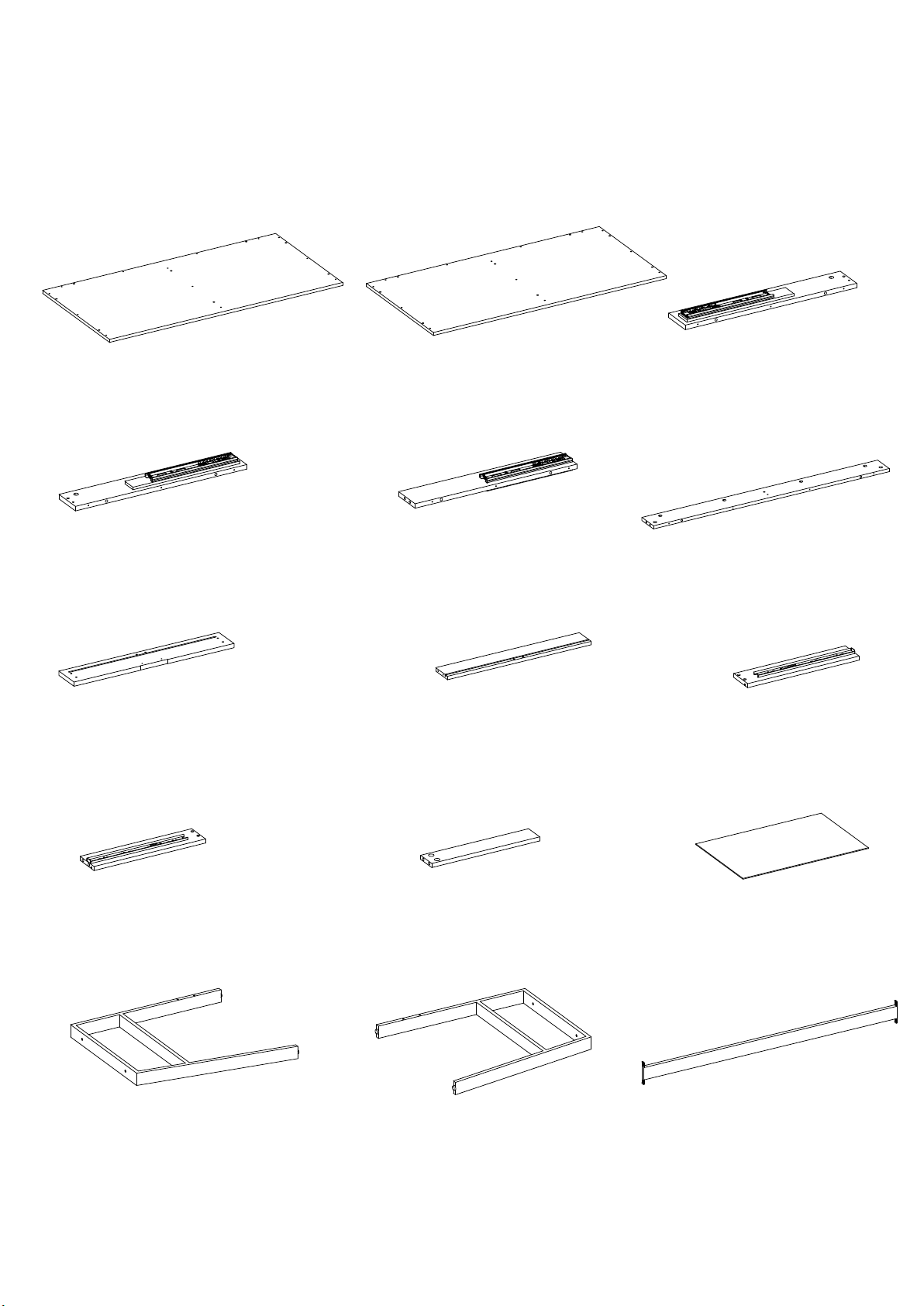

A- Top Panel B- Drawer Box Bottom Panel C- Drawer Box Left Side Panel
(Qty. 1) (Qty. 1) (Qty. 1)
D- Drawer Box Right Side Panel E- Drawer Box Partition Panel F- Drawer Box Back Panel
(Qty. 1) (Qty. 1) (Qty. 1)
G- Drawer Front Panel H- Drawer Back Panel I- Drawer Left Side
(Qty. 2) (Qty. 2) (Qty. 2)
J- Drawer Right Side K- Drawer Bottom Support L- Drawer Bottom Panel
(Qty. 2) (Qty. 2) (Qty. 2)
M- Left Side Frame N- Right Side Frame O- Bottom Stretcher
(Qty. 1) (Qty. 1) (Qty. 1)

6
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) Small Cam Lock (2) Large Cam Lock (3) Cam Bolt
(Qty. 12+1 extra) (Qty. 16+1 extra) (Qty. 28+1 extra)
(4) M8 x 30 mm Wood Dowel (5) M4 x 38 mm Screw (6) M3.5 x 12 mm Screw
(Qty. 19+1 extra) (Qty. 25+1 extra) (Qty. 4+1 extra)
(7) Drawer Handle (8) 1/4” x 28 mm Bolt (9) 1/4” x 15 mm Bolt (10) Lock Washer
(Qty. 2) (Qty. 4+1 extra) (Qty. 4+1 extra) (Qty. 8+1 extra)
(11) Flat Washer Hex Wrench Glue Tipping Restraint Hardware Kit (Qty. 1)
(Qty. 8+1 extra) (Qty. 1) (Qty. 1) (Included in plastic bag)
Tools required (not included): Phillips screwdriver, stud finder, pencil, tape measure, power drill and 1/8 in drill bit.

7
H
J
I
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go
back and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.

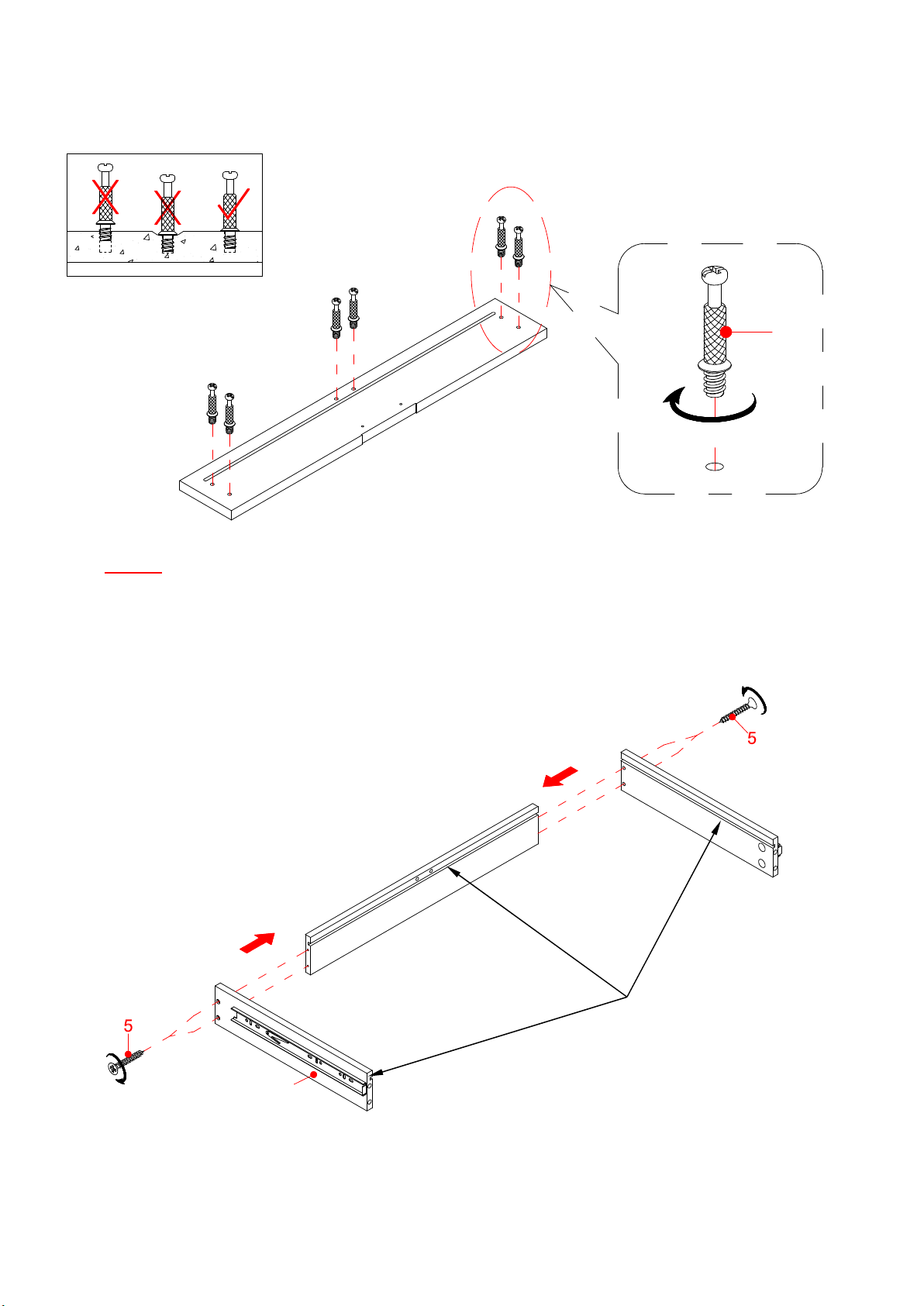

2. Securely screw the Cam Bolts (3) into the designated small holes on the Drawer Front Panels (G) using a
Phillips screwdriver. DO NOT over tighten the cam bolts.
3. Fasten the Drawer Back Panel (H) between the Drawer Sides (I and J) with four 38 mm Screws (5).
4. Complete the step once again for the other drawer.
Grooves line up with each
other and face inward
G
3
x 2
x 2

8
Assembly Instructions

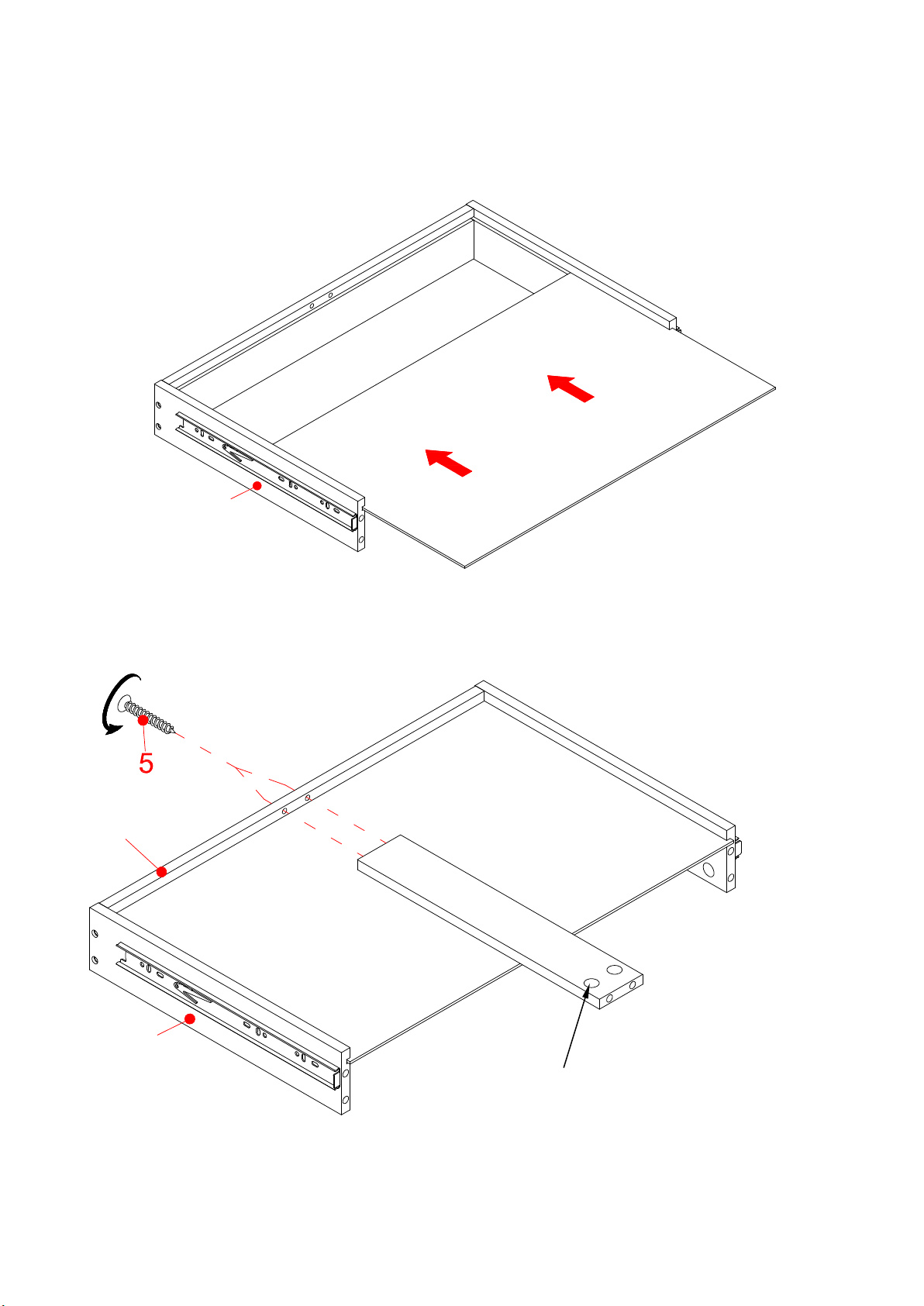

5. Slide the Drawer Bottom Panel (L) into the grooves on the Drawer Sides (I and J) until fully inserted into
the Drawer Back Panel (H).
6. Complete the step once again for the other drawer.
7. Fasten the Drawer Bottom Support (K) to the Drawer Back Panel (H) with two 38 mm Screws (5).
8. Complete the step once again for the other drawer.
L
J
I
H
H
L
K
J
x 2
x 2
Cam locks mounting
holes face outward

9
Assembly Instructions
9. Stand the previous assembly at its back panel.

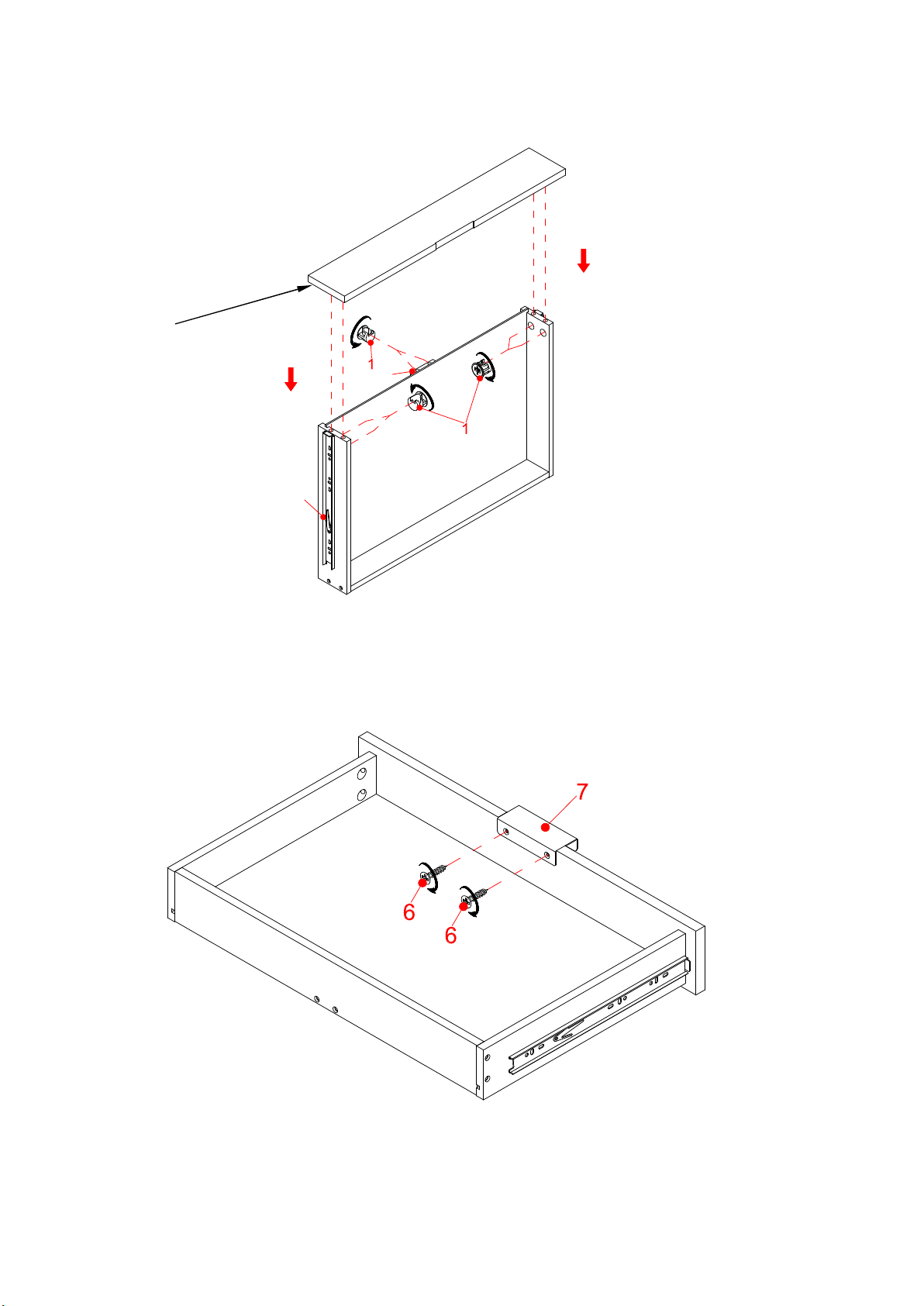

10. Align and attach the Drawer Front Panel (G) to both Drawer Sides (I and J) and Drawer Bottom Support
(K). fasten it in place by engaging six Small Cam Locks (1). (Refer to page 2 on Cam Lock system
operation supplement). Make sure that the Drawer Bottom Panel (L) fits securely into the groove of the
Drawer Front Panel (G).
11. Complete the step once again for the other drawer
12. Turn the assembled utility drawer upright and attach one Handle (7) to the front side of the Drawer Front
Panel (G) with two 12 mm Screws (6).
13. Complete the step once again for the other drawer.
G
I
J
L
K
The groove is
located at back
x 2
x 2
G

10
Assembly Instructions

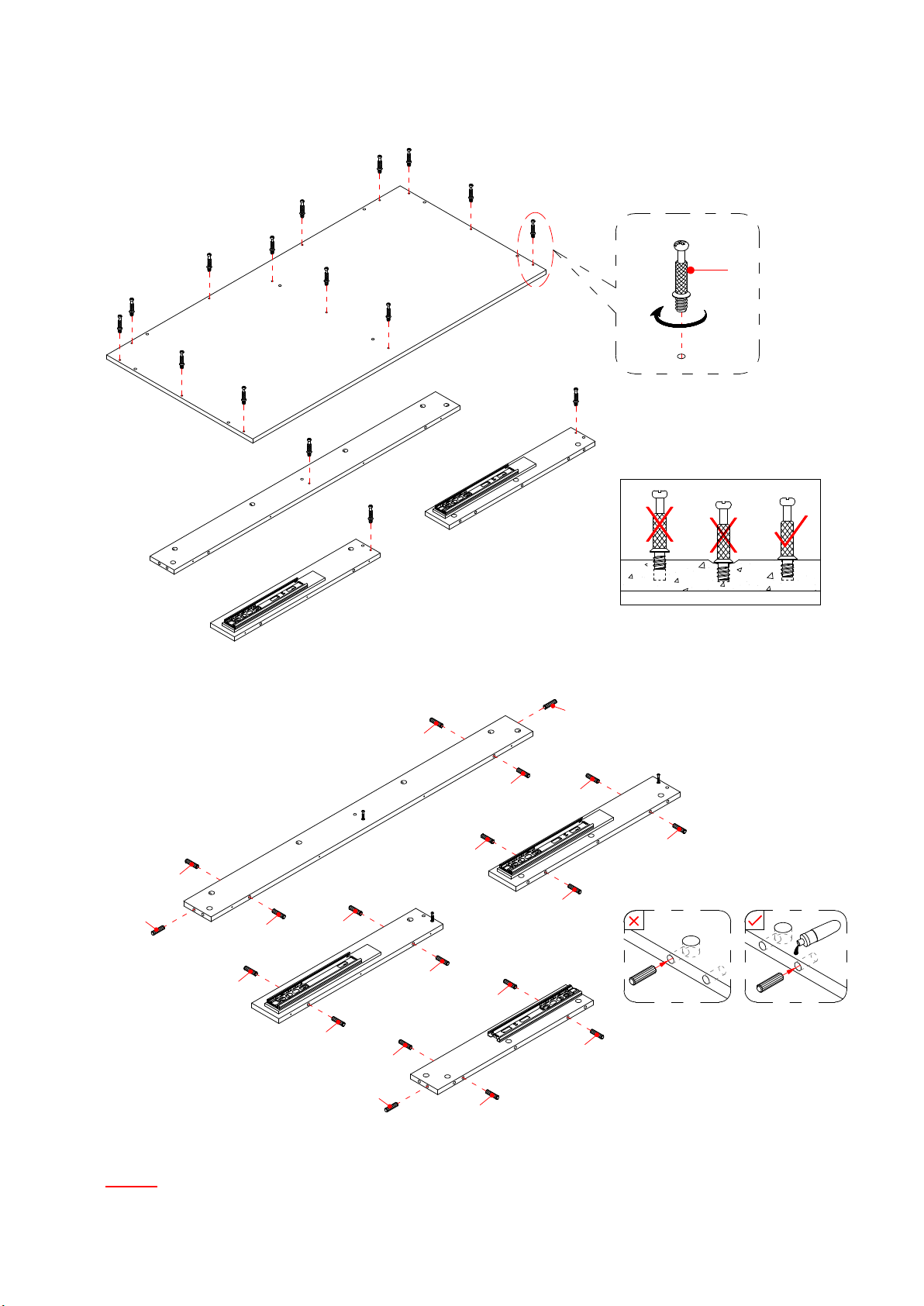

14. Securely screw the Cam Bolts (3) into the designated small holes on the Top Panel (A), Drawer Box Side
Panels (C and D) and Back Panel (F) using a Phillips screwdriver.
15. Glue the Wood Dowels (4) into the inner holes on the Drawer Box Side Panels (C and D), Partition Panel
(E), and Back Panel (F) as shown.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
A
F
C
D
3
FD
E
4
4
4
4
4
4
4
4
4
C
4
4
4
4
4
4
4
4
4
4

11
F
C
D
2
2
Assembly Instructions

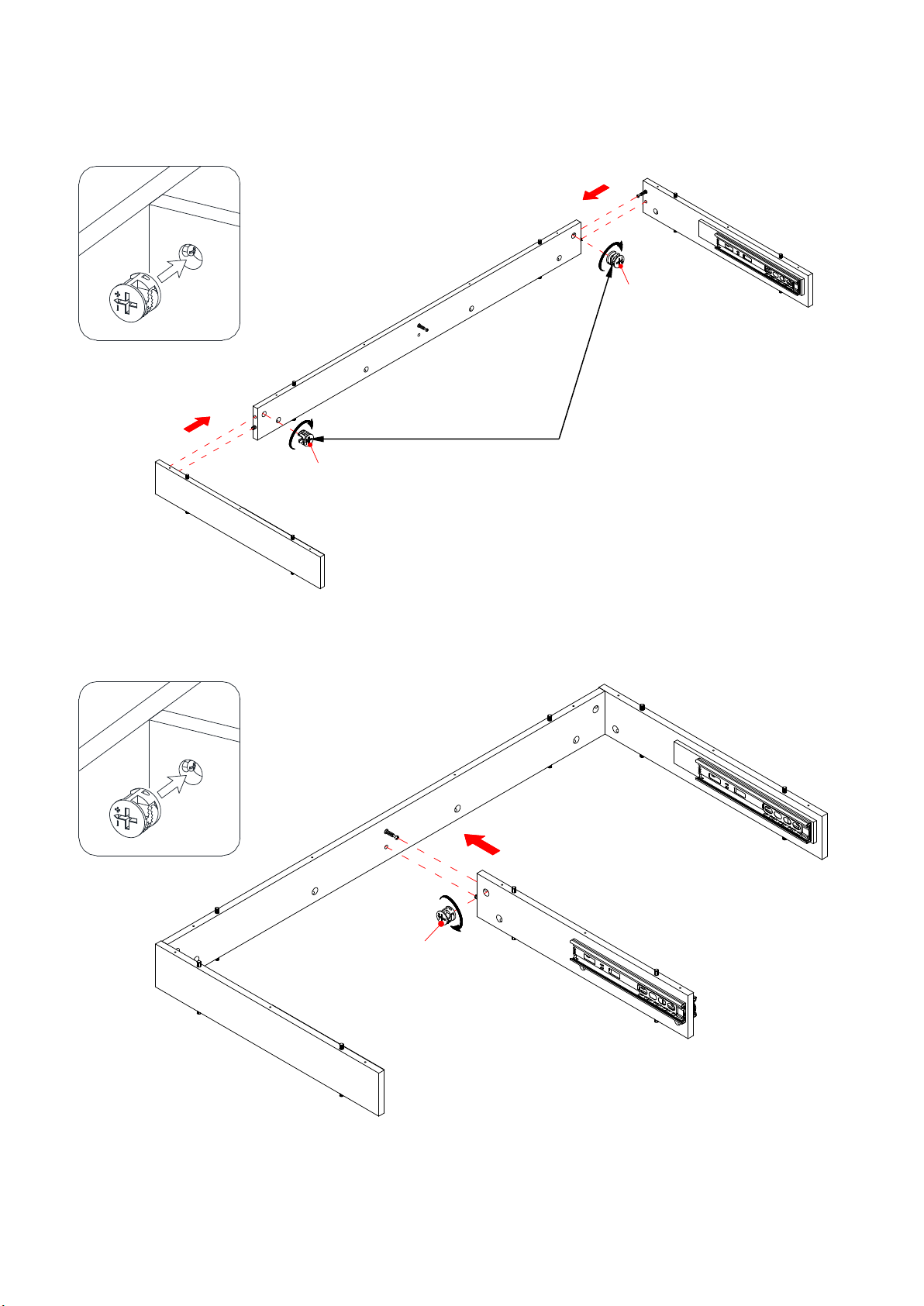

16. Attach the Drawer Box Back Panel (F) between the Drawer Box Side Panels (C and D) by engaging two
Large Cam Locks (2) as shown.
17. Attach the Drawer Box Partition Panel (E) to the Back Panel (F) by engaging one Large Cam Lock (2).
D
F
E
C
2
The cam locks face inward

12
Assembly Instructions
18. Align and attach the previous assembly to the Top Panel (A) and secure it into place with thirteen Large
Cam Locks (2).
19. Align the large holes on the Bottom Panel (B) with the inserted wood dowels on the vertical panels (C, D,
E and F) properly and press them together.
20. Insert thirteen 38 mm Screws (5) through the counter-sunk holes on the Bottom Panel (B) and securely
screw into place.
D
F
C
E
A
A
C/D
2
D
FE
C
B
5

13
Assembly Instructions

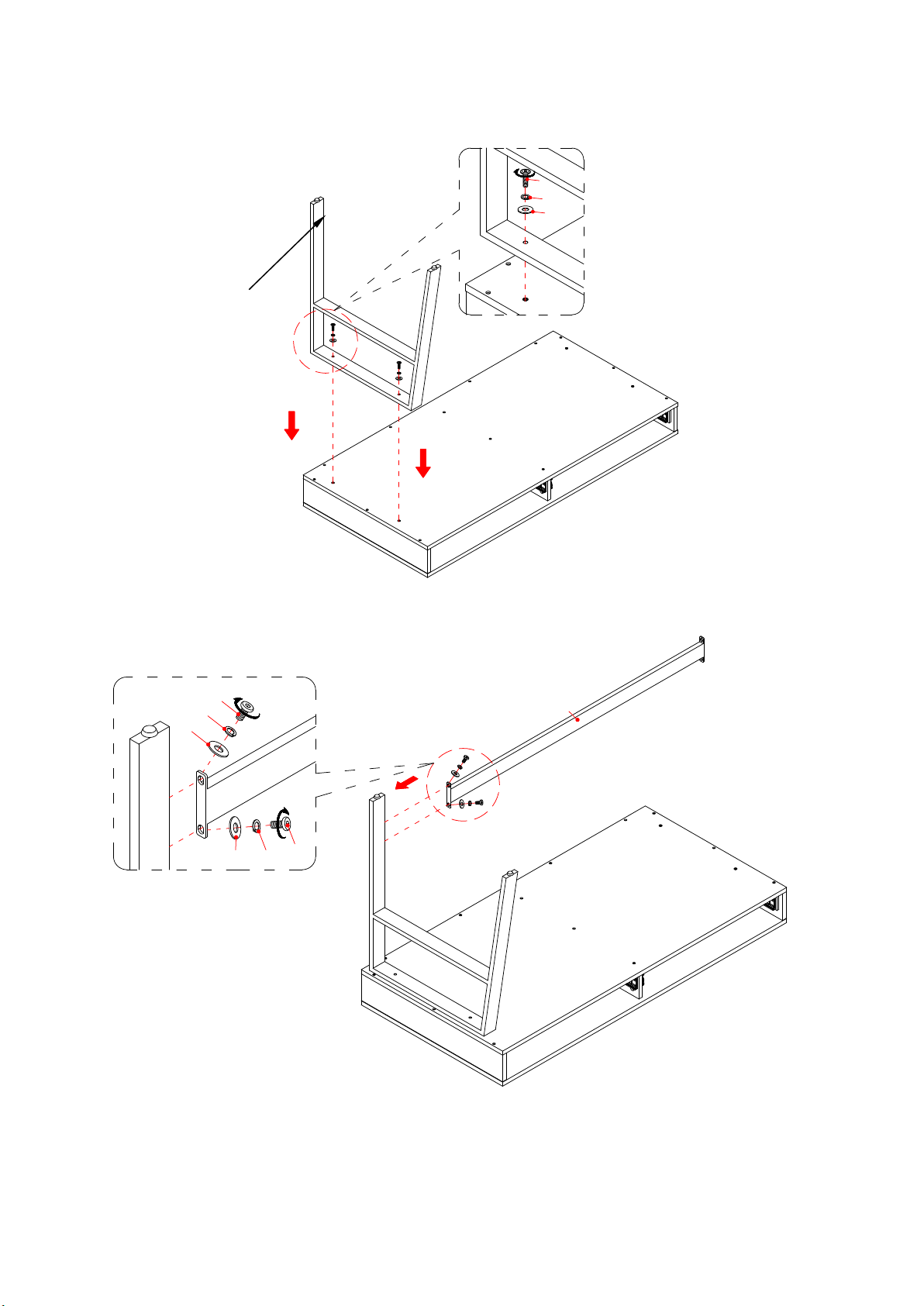

21. Orient and fasten the Right Side Frame (N) to the Drawer Box Bottom Panel (B) with two 28 mm Bolts
(8), two Lock Washers (10) and two Flat Washers (11).
22. Insert two 15 mm Bolts (9) with the Washers (10 and 11) through the metal tabs on the Bottom Stretcher
(O) and screw into the Right Side Frame (N).
D
B
N
B
N
8
10
11
B
N
O
O
N
9
10
11 9
10
11
The threaded sockets for
bottom stretcher are located
at back of the unit and face
inward.

14
Assembly Instructions
23. Repeat the same procedures to attach the Left Side Frame (M) at the opposite side.
24. Now, go back and securely tighten all the cam locks and screws. Make sure that all the parts are tight and
there are no gaps between the parts. This will help keep the unit square.
25. Ask for help to lift the assembled unit upright and position it near the final location.
26. To insert the assembled drawers to the frame, extend the Ball Bearing Slide Tracks on the unit all the
way forward (including ball bearing cart), then align the Slide Runners on the assembled drawers with
the Slide Tracks and push the drawers carefully inside until it stops.
NOTE: If the drawer does not go in smoothly, please take it out and repeat the step. If you need to
remove the drawer, please pull the drawer all the way out, then simultaneously pushes the plastic release
lever of the ball bearing slides up on one side and down on the other side, and then pull it completely out.
Drawer Installation
B
N
M
O
8
10
11 M
B
O
M
91011
910 11
A
G
G
Ball
bearing cart
FRONT
Ball
be
aring cart
FRONT

15
Assembly Instructions
Tools required (not included): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit.

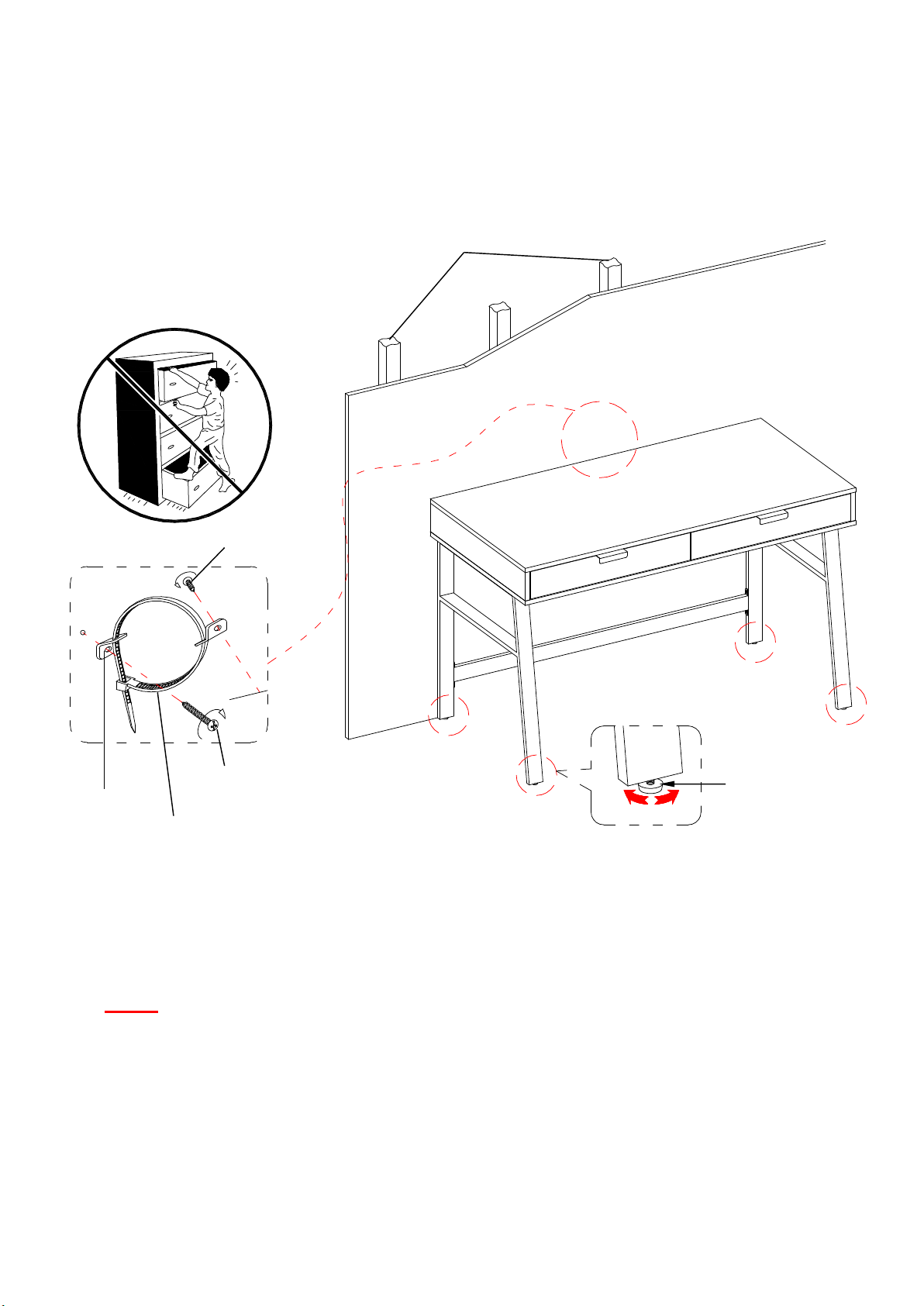

27. Position the assembled unit at the desired location against a wall. If necessary, adjust the pre-attached
floor levelers at the bottom of the side frames (M and N) to correct the tilting.
28. Now, follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to
attach the tip-over restraints to the unit and the wall.
NOTE: The tipping restraint hardware included is for wooden stud wall construction. It must be attached
to a wall stud. Depending upon your wall construction, different anchor hardware maybe required. Please
contact your local hardware store for assistance. Young children can be seriously injured by tipping
furniture. You must install the tipping restraint hardware with the unit to prevent the unit from tipping,
causing any accidents or damage. The tipping restraints are intended only as a deterrent, they are not a
substitute for proper adult supervision. The tipping restraints are not earthquake restraints. If you wish to
add the extra security of earthquake restraints, they must be purchased and installed separately.
Wooden Stud
Wall
Short screw
Wall
Long screw
Metal bracket
Nylon strap
Floor Leveler

16
Care and Maintenance
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
 Using solvents of any kind on your furniture may damage your furniture’s finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Always use coasters under beverage glasses and flowerpots.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
 Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
 In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
 Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity changes
can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from direct
sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
Quality Guarantee
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace
it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest
expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state or
province to province.
Whalen Furniture Manufacturing
1578 Air Wing Road, San Diego, CA 92154, USA
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com

CE LIVRET D’INSTRUCTIONS CONTIENT D’IMPORTANTES CONSIGNES DE SÉCURITÉ.
LIRE ET CONSERVER POUR RÉFÉRENCE FUTURE.
Date 2021-11-23 Rév. 0001-A
Bureau Devon
Modèle no EC-DE48D
ASSEMBLAGE PAR UN ADULTE REQUIS
Pour toute question sur le montage ou en cas de pièce manquante, NE PAS retourner cet article au point
de vente. Communiquer sans frais avec notre service à la clientèle en ayant en mains les instructions et
la liste des pièces pour indiquer le nom du modèle, le nom de la pièce ou le numéro d’usine :
1-866-942-5362
Heure normale du Pacifique, entre 8 h 30 et 16 h 30, du lundi au vendredi
Vous pouvez également visiter notre site Web 24 heures par jour, 7 jours sur 7 pour obtenir de l’aide sur
le produit www.whalenfurniture.com
ou transmettre une demande par courriel à par[email protected]om
NUMÉRO DE LOT: DATE D’ACHAT: / /

2
IMPORTANT
Avant de débuter: ouvrir, identifier et faire le décompte de toutes les pièces avant le montage. Étendre les
pièces sur une surface lisse et non abrasive. Les pièces identifiées en pages 5 et 6 du présent guide seront
requises.
REMARQUE: IL EST TRÈS IMPORTANT D’UTILISER DE LA COLLE AVEC LES GOUJONS.
L’EXCÈS DE COLLE PEUT ÊTRE ESSUYÉ AVEC UN LINGE HUMIDE.
Insérer les goujons au moins à la moitié en les frappant légèrement avec un maillet en caoutchouc, AU BESOIN.
FONCTIONNEMENT DU SYSTÈME À CAME DISSIMULÉE
FONCTIONNEMENT DU SYSTÈME À CAME
1. Visser un boulon à came dans les petits trous déjà percés sur le panneau. Connecter les deux panneaux en
s’assurant que le boulon à came s’insère dans le trou déjà percé à l’extrémité du panneau avec la came.
2. Insérer une came dans le grand trou déjà percé sur le panneau. S’assurer que la flèche sur la came soit
orientée vers le boulon à came.
3. Une fois le boulon à came connecté dans la came, serrer la came dans le sens des aiguilles d’une montre
avec un tournevis à pointe cruciforme.
L’unité est maintenant prête pour le montage.
123
GLUE
XX
FINAL
1 2 43

3
FABRICANT: Whalen Furniture Manufacturing
CATALOGUE: Bureau Devon
MODÈLE NO EC-DE48D
REMARQUE
Veuillez lire toutes les directives avant de procéder au montage. Examinez tout le matériel
d’emballage avant de jeter le carton. Retirez les agrafes de ce dernier avant de le jeter. Enlevez
toutes les pièces du carton et répartissez-les en groupes tel qu’indiqué sur la liste des pièces.
Assurez-vous que toutes les pièces ont été incluses avant de commencer le montage.
L’utilisation d’outils électriques n’est pas recommandée pour le montage.
C H A R G E S MA X I MA L E S R E CO
M M
A N DÉ E S
CHARGE MAXIMALE 45,4 kg / 100 lb
CHARGE MAXIMALE 4,5 kg / 10 lb
CETTE UNITÉ DOIT ÊTRE UTILISÉE EN RESPECTANT LES POIDS
MAXIMAUX INDIQUÉS. L’UTILISATION DE L’UNITÉ AVEC UNE CHARGE SUPÉRIEURE
AUX POIDS MAXIMAUX INDIQUÉS PEUT CAUSER L’INSTABILITÉ, VOIRE MÊME DES
BLESSURES
.

4
TROUSSE ANTIBASCULE
LES JEUNES ENFANTS PEUVENT ÊTRE BLESSÉS PAR UN MEUBLE QUI TOMBE
ET LA TROUSSE ANTIBASCULE DOIT ÊTRE UTILISÉE POUR FIXER L'UNITÉ AU
MUR AFIN DE PRÉVENIR LES ACCIDENTS ET LES BLESSURES.
CE DISPOSITIF DOIT ÊTRE INSTALLÉ CORRECTEMENT (SUIVRE TOUTES LES
DIRECTIVES DANS L'ORDRE) AFIN D'OFFRIR UNE PROTECTION CONTRE LA
CHUTE INATTENDUE DU MEUBLE SUITE À UNE UTILISATION INADÉQUATE.
CE PRODUIT SERT DE DISSUASIF SEULEMENT ET NE REMPLACE PAR UNE
SUPERVISION ADULTE ADÉQUATE. L'UTILISATION DE LA TROUSSE
ANTIBASCULE NE PEUT QUE RÉDUIRE LE RISQUE DE CHUTE MAIS SANS
L'ÉLIMINER.
Des enfants sont décédés à cause du basculement
du meuble. Pour réduire le risque de la chute du
meuble:
 TOUJOURS installer la quincaillerie antibasculement
fournie.
 NE JAMAIS mettre un téléviseur sur ce produit.
 NE JAMAIS laisser les enfants se tenir debout, grimper
ni s’accrocher sur les tiroirs, les portes ou les tablettes.
 NE JAMAIS ouvrir plus d’un tiroir à la fois.
 Placer les articles les plus lourds sur les tiroirs inférieurs.
L’utilisation des trousses antibascules peut
seulement réduire le risque de chute, sans
toutefois l’éliminer.
AVERTISSEMENT
