Whalen Huntingdon EC-HU48D User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-11-23 Rev. 0001-A
Huntingdon Desk
Model # EC-HU48D
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER: DATE PURCHASED: / /

2
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and
non-abrasive surface. You will need the parts identified on page 5 and 6 of this instruction manuals.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE
WIPED OFF WITH A DAMP CLOTH.
Insert dowel at least half way by tapping lightly with a rubber mallet (not included), IF NECESSARY.

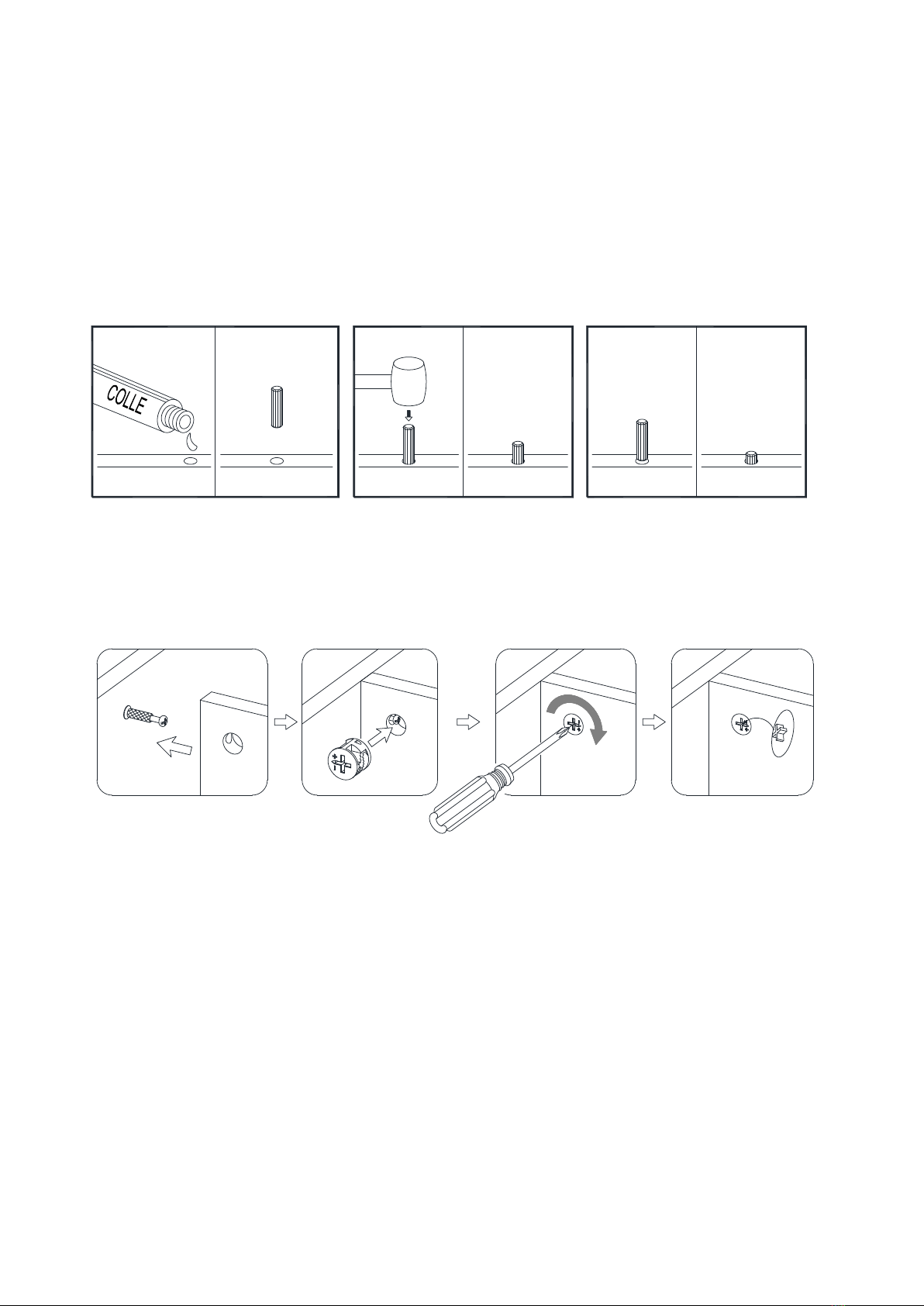

CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
4. Plug the Cam Lock Cover into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.
1234
GLUE
XX
FINAL
1 2 43

3
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Huntingdon Desk
MODEL: EC-HU48D
How to adjust the European adjustable hinges on doors
Shipping may cause doors to go out of alignment. If you find that the doors need to be adjusted slightly,
turn the appropriate screw as illustrated.
1. TO ADJUST DOOR FORWARD OR BACKWARD.
2. TO ADJUST DOOR TO RIGHT OR TO LEFT.
3. TO ADJUST DOOR UP OR DOWN.
M A X I M U M R E C O M M E N D E D W E I G H T L O A D S
MAXIMUM LOAD 45.4 kg / 100 lb
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.
MAXIMUM LOAD 22.7 kg / 50 lb
3

4
FURNITURE TIPPING RESTRAINT
YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU
MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL,
TO PREVENT ACCIDENTS AND/OR INJURIES.
THIS HARDWARE MUST BE PROPERLY INSTALLED (FOLLOW ALL
DIRECTIONS IN ORDER ON THIS INSTRUCTIONS), TO PROVIDE PROTECTION
AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE.
THIS PRODUCT IS ONLY A DETERRENT. IT IS NOT A SUBSTITUTE FOR
PROPER ADULT SUPERVISION. USE OF TIP-OVER RESTRAINTS MAY ONLY
REDUCE, BUT NOT ELIMINATE, THE RISK OF TIP-OVER.
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.
Children have died from furniture tipover.
To reduce the risk of furniture tipover:
 ALWAYS install tipover restraint provided.
 NEVER put a TV on this product.
 NEVER allow children to stand, climb or hang
on drawers, doors, or shelves.
 NEVER open more than one drawer at a time.
 Place heaviest items in the lowest drawers.
Use of tip-over restraints may only reduce,
but not eliminate, the risk of tip-over.
WARNING

5

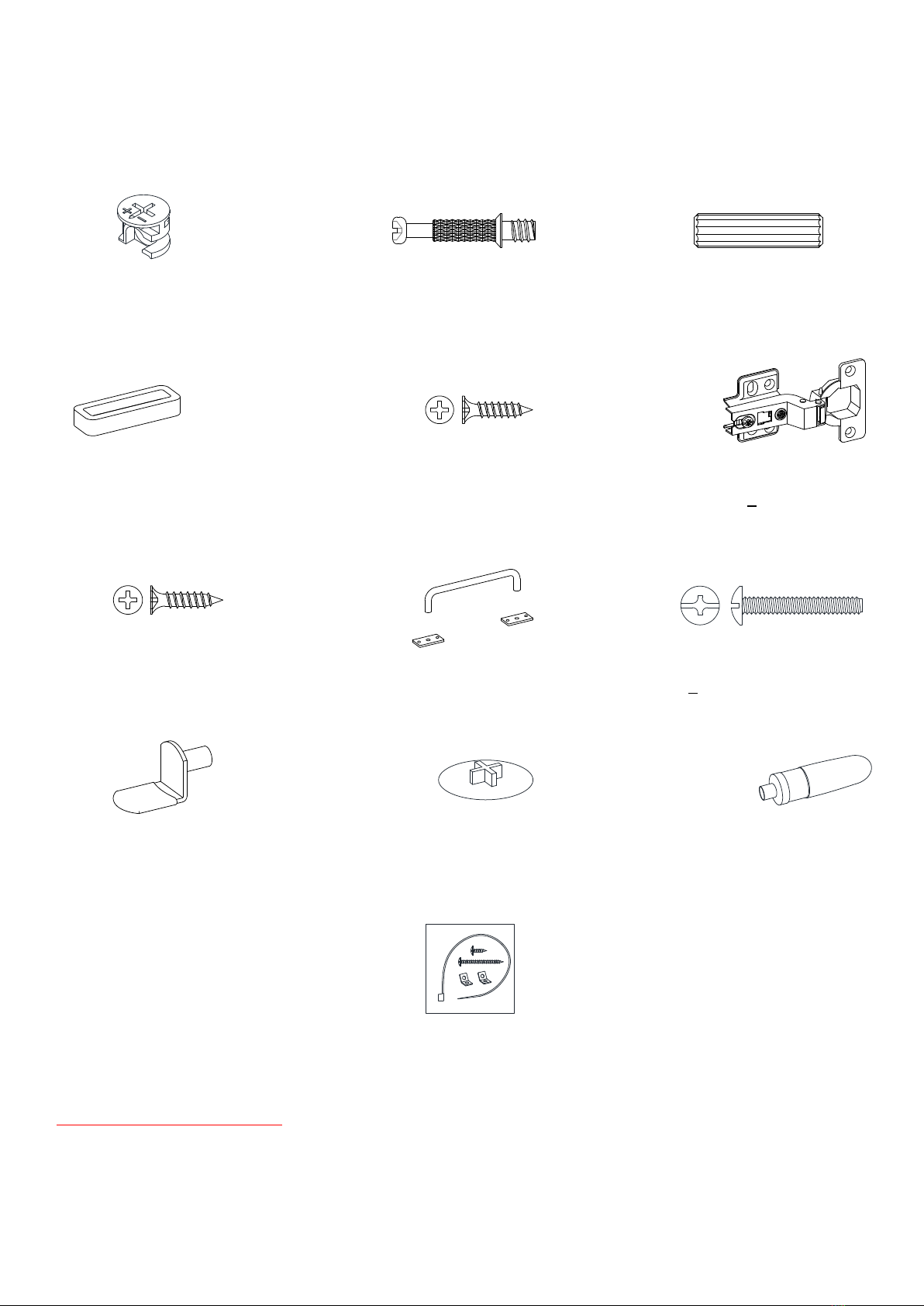

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (Qty. 1) B- Left Side Frame (Qty. 1)
C- Cabinet Left Side (Qty. 1) D- Cabinet Right Side (Qty. 1) E- Fixed Shelf (Qty. 1)
F- Bottom Panel (Qty. 1) G- Stretcher (Qty. 1) H- Modesty Panel (Qty. 1)
I- Cabinet Back Panel (Qty. 1) J- Adjustable Shelf (Qty. 1) K- Door (Qty. 1)

6
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel
(Qty. 34+1 extra) (Qty. 34+1 extra) (Qty. 36+1 extra)
(4) Door Stopper (5) M3 x 15 mm Screw (6) Door Hinge
(Qty. 1) (Qty. 2+1 extra) (Qty. 2)
(7) M3.5 x 15 mm Zinc Screw (8) Handle with Metal Plate (9) 5/32” x 28 mm Bolt
(Qty. 12+1 extra) (Qty. 1) (Qty. 2)
(10) Shelf Support (11) Cam Lock Cover Glue
(Qty. 4+1 extra) (Qty. 38+1 extra) (Qty. 1)
Tipping Restraint Hardware Kit (Qty. 1)
(Included in plastic bag)
Tools required (not included): Phillips screwdriver, stud finder, pencil, tape measure, power drill and 1/8” drill
bit.

7
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go
back and fully tighten all bolts. This will make the assembly easier.

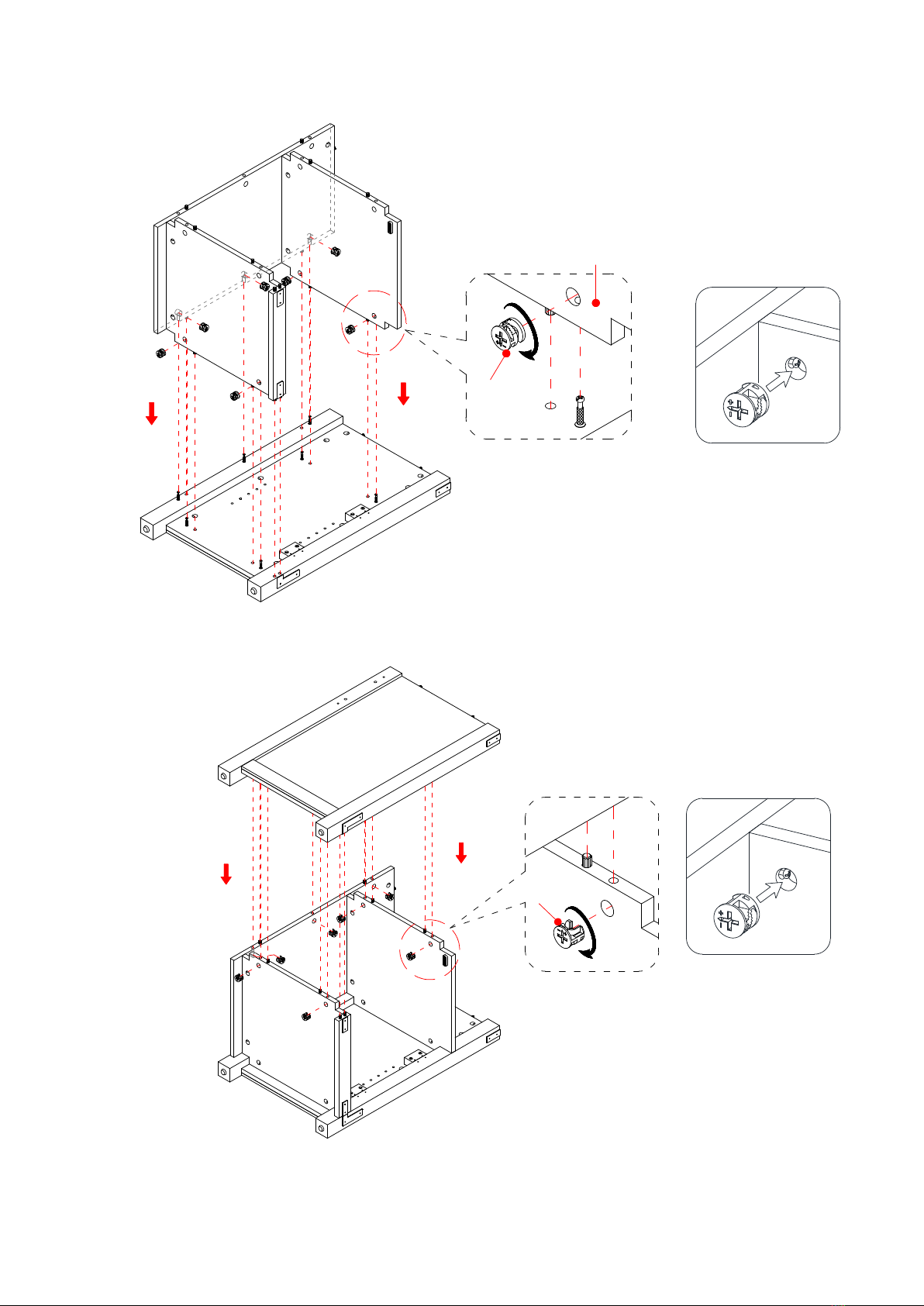

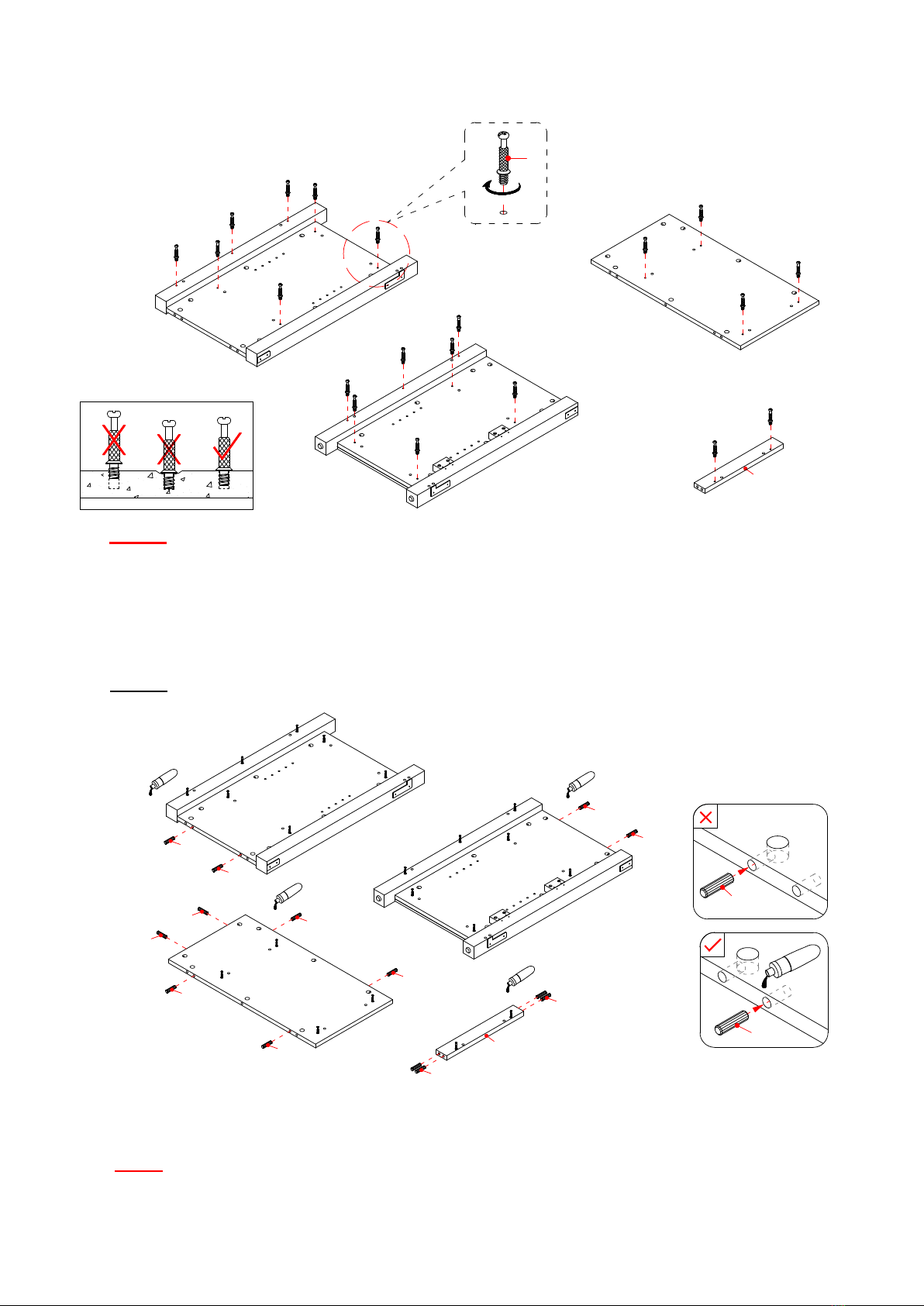

1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Securely screw the Cam Bolts (2) into the designated small holes on the Cabinet Left and Right Sides
(C and D), Right Back Panel (I) and Stretcher (G) with a Phillips screwdriver.
NOTE: Screw-in cam bolts must be screwed down flush.
3. Glue the Wood Dowels (3) into the drilled holes on the Cabinet Left and Right Sides (C and D),
Cabinet Back Panel (I) and Stretcher (G).
NOTE: It is very important to use a small amount of glue on both ends of dowels.
3
3
3
3
3
3
3
3
3
3
3
3
C
G
D
I
3
3
2
C
D
I
G

8
Assembly Instructions
4. Glue the Wood Dowels (3) into the drilled holes on the Left Side Frame (B), Modesty Panel (H), Fixed
Shelf (E) and Bottom Panel (F).
5. Using the pilot holes as a guide, fasten one Door Stopper (4) to the Fixed Shelf (E) using two 15 mm
Screws (5).
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
B
E
H
F
3
3
5
E
E
4

9
1
1
F
G
Assembly Instructions
6. Attach the Stretcher (G) to the Bottom Panel (F) by engaging two Cam Locks (1). (Refer to page 2 on
Cam Lock system operation supplement).
7. Align and attach the Fixed Shelf (E) and Bottom Panel (F) to the Cabinet Back Panel (I) by engaging
four cam locks (1).
The top edges are flush
with each other
1
F
E
I
E/F
I
The cam locks face the floor
when the unit is turned upright
Door stopper

10
Assembly Instructions

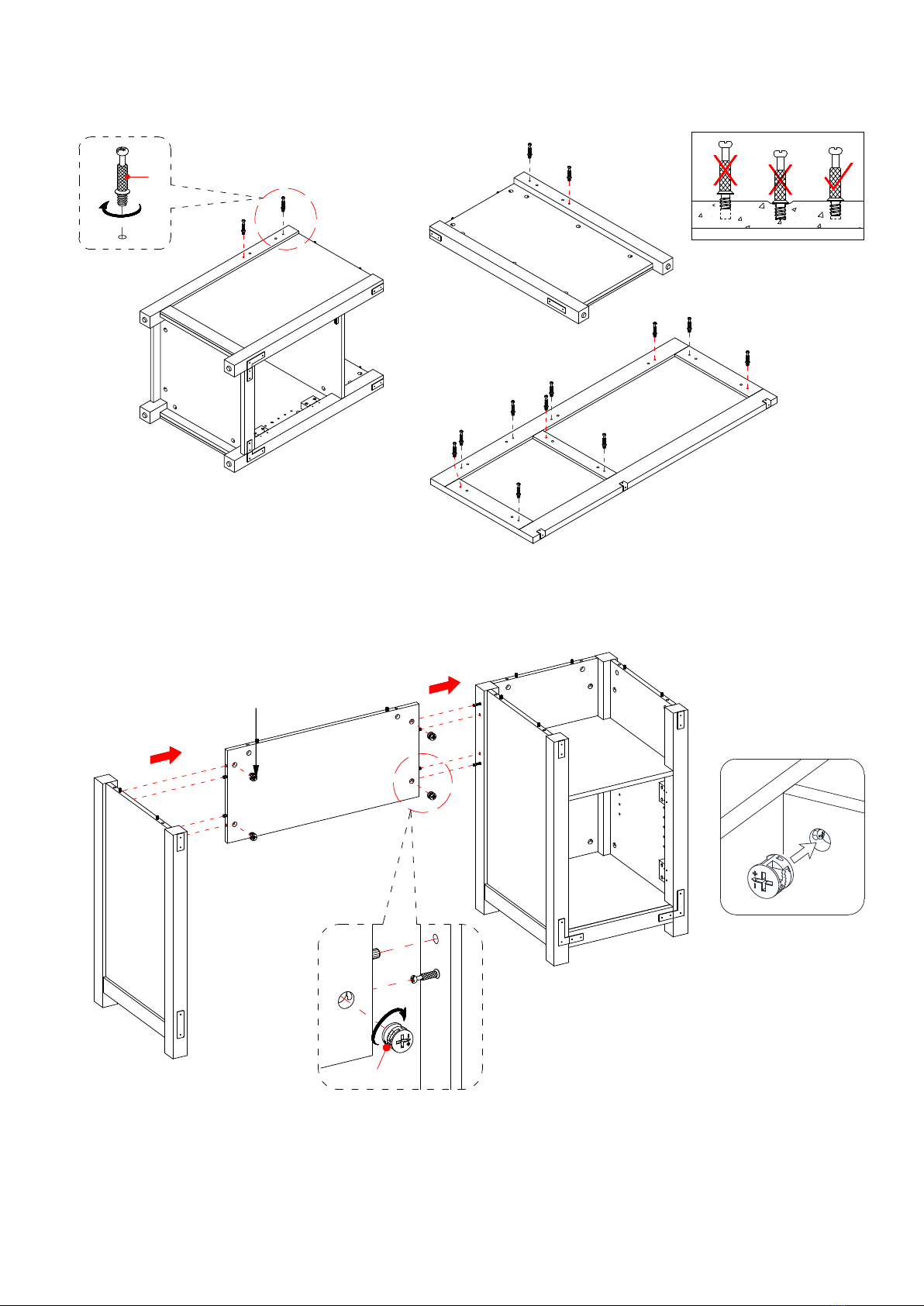

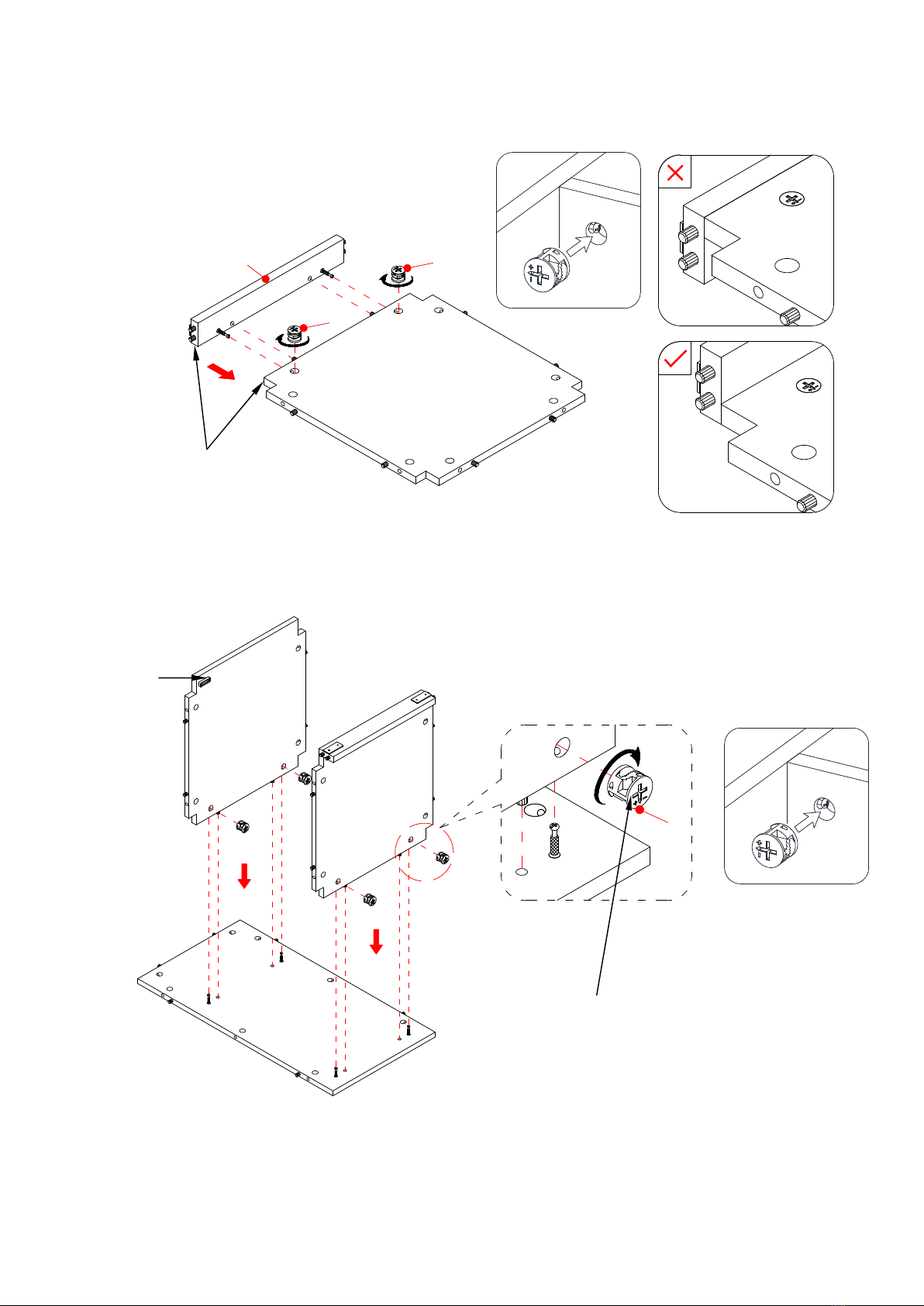

8. Pick up the previous assembly and align the inserted wood dowels with the drilled holes on the Cabinet
Right Side (D), then press them together.Tighten them into place by engaging seven Cam Locks (1).
9. Repeat the same process to attach the Cabinet Left Side (C) at the opposite end.
1
I
F
E
D
D
E/F/
I
1
E
F
I
C
C
E/F/
I

11
Assembly Instructions
10. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), Left Side Frame
(B) and Cabinet Left Side (C) with a Phillips screwdriver.
11. Lift the assembled unit upright and position it near the final location.
12. Attach the Modesty Panel (H) between the Left Side Frame (B) and Cabinet Left Side (C) by engaging
four Cam Locks (1) as shown.
2
C
A
B
H
B
C
B/C
H
1
The cam screw holes
are located at up and
face inward

12
1
H
B
C
D
A
IA
Assembly Instructions

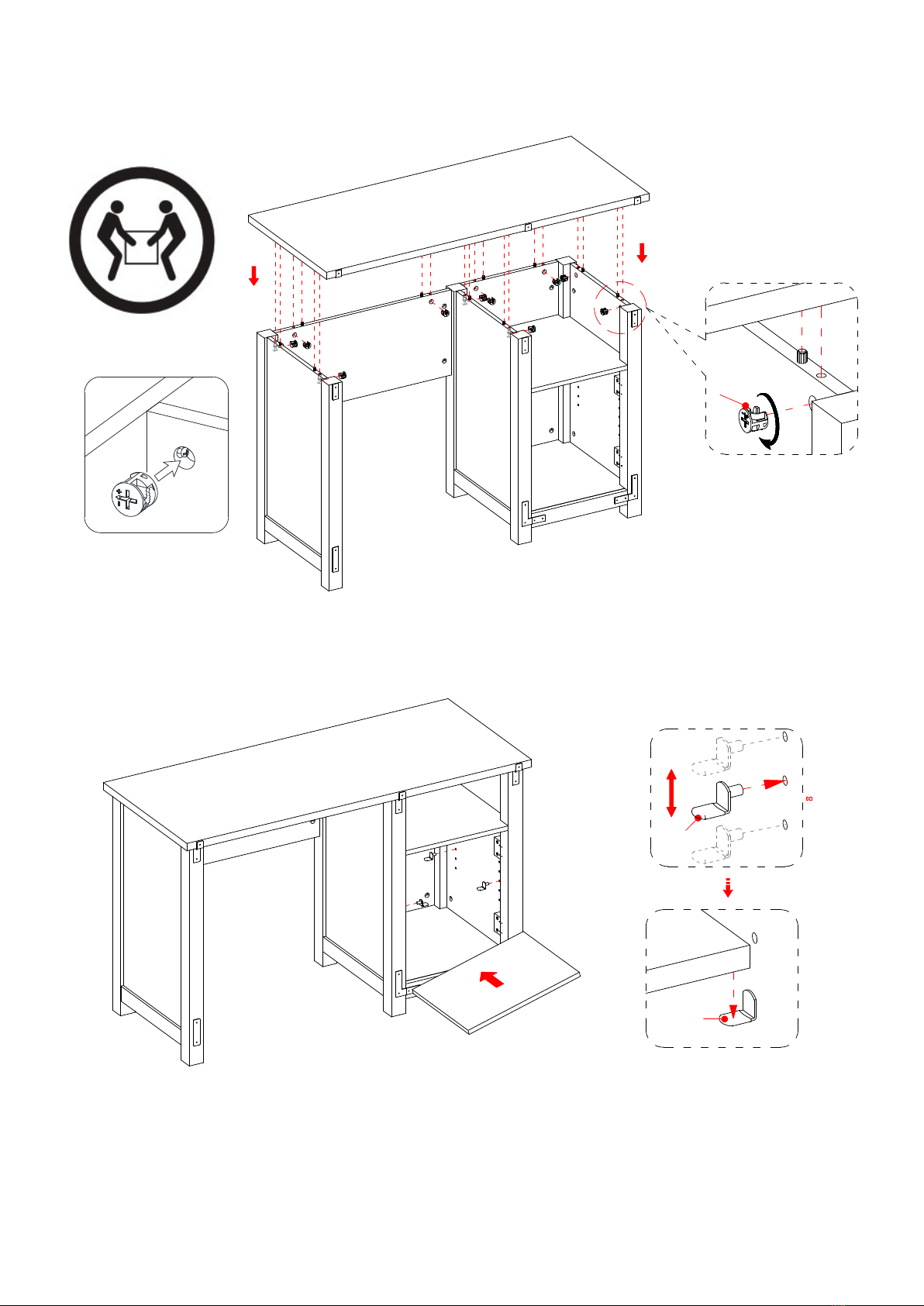

13. Ask for assistance to place the Top Panel (A) onto the vertical panels (B, C, D, H and I) properly.
14. Using the inserted wood dowels as a guide, fasten the Top Panel (A) into place by engaging ten Cam
Locks (1).
15. Insert four Shelf Supports (10) into the holes at the desired height inside the compartment. Make sure you
place four shelf supports at the same level. Tilt and rest the Adjustable Shelf (J) onto the Shelf Supports
(10) properly.
C
D
J
10
10
J

13
Assembly Instructions
16. Extend two Hinges (6) and rest the hinge cups onto the cutouts on the Door jamb (K). Secure the Hinges
(6) in place by using two 15 mm Zinc Screws (7) in each.
17. Pick up the Door (K) and fasten the Hinge Bases (6) onto the Cabinet Right Side (D) with four 15 mm
Zinc Screws (7) in each. DO NOT fully tighten the screws.
18. Open and close the door to make sure it is aligned and shut correctly. If necessary, adjust the screws for
a good fit. (Refer to the hinge sticker on the door for adjustment).
7
6
K
K
D
7
6
D

14
Assembly Instructions
19. Now, go back and securely tighten all the cam locks and screws. Make sure that all the parts are tight
and there are no gaps between the parts. This will help keep the unit square.
20. Fasten the Handle with Metal Plates (8) to the front side of the Door (K) with two 28 mm Bolts (9).
21. Plug the Cam Lock Covers (11) onto the visible cams locks to conceal the cams.
9
8
K
K
B
C
D
H
11

15
Assembly Instructions
Tools required (not provided): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit.

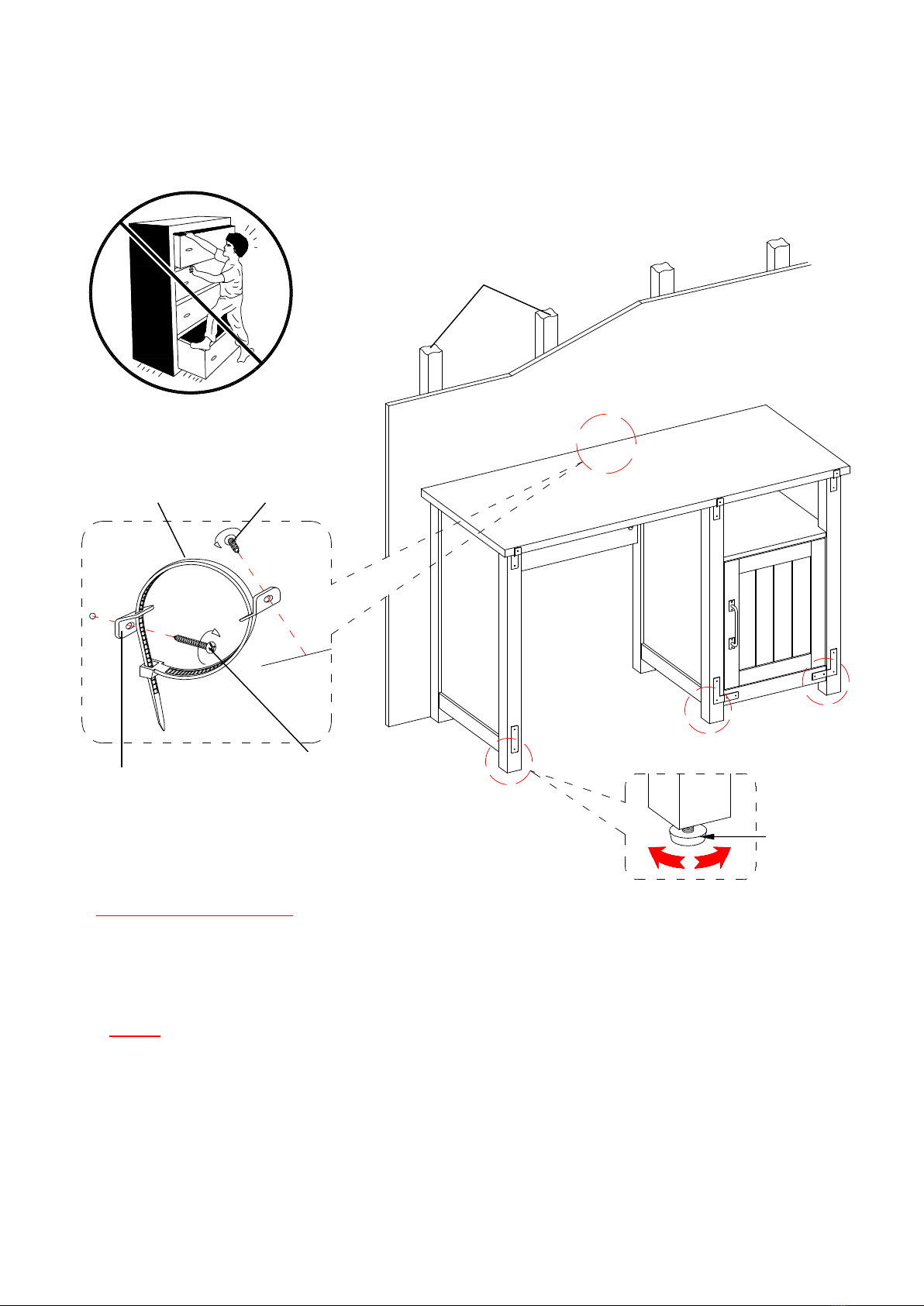

22. Ask for assistance to position the assembled desk at the desired location against a wall. If necessary,
adjust the pre-attached floor levelers at the bottom of the Posts (B, C and D) to correct the tilting.
23. Now, follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to
attach the tip-over restraints to the unit and the wall.
NOTE: The tipping restraint hardware included is for wooden stud wall construction. It must be
attached to a wall stud. Depending upon your wall construction, different anchor hardware maybe
required. Please contact your local hardware store for assistance. Young children can be seriously
injured by tipping furniture. You must install the tipping restraint hardware with the unit to prevent the
unit from tipping, causing any accidents or damage. The tipping restraints are intended only as a
deterrent, they are not a substitute for proper adult supervision. The tipping restraints are not
earthquake restraints. If you wish to add the extra security of earthquake restraints, they must be
purchased and installed separately.
Wall
Wooden stud
Short screw
Long screw
Metal bracket
Floor leveler
Nylon strap
Wall
B/C/D

16
Care and Maintenance
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.
 Using solvents of any kind on your furniture may damage the finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Always use coasters under beverage glasses and flowerpots.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
 Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
 In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
 Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state
or province to province.
Whalen Furniture Manufacturing
1578 Air Wing Road, San Diego, CA 92154, USA
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com

CE LIVRET D’INSTRUCTIONS CONTIENT D’IMPORTANTES CONSIGNES DE SÉCURITÉ.
LIRE ET CONSERVER POUR RÉFÉRENCE FUTURE.
Date 2021-11-23 Rév. 0001-A
Bureau Huntingdon
Modèle no EC-HU48D
ASSEMBLAGE PAR UN ADULTE REQUIS
Pour toute question sur le montage ou en cas de pièce manquante, NE PAS retourner cet article au
point de vente. Communiquer sans frais avec notre service à la clientèle en ayant en mains les
instructions et la liste des pièces pour indiquer le nom du modèle, le nom de la pièce ou le numéro
d’usine :
1-866-942-5362
Heure normale du Pacifique, entre 8 h 30 et 16 h 30, du lundi au vendredi
Vous pouvez également visiter notre site Web 24 heures par jour, 7 jours sur 7 pour obtenir de l’aide
sur le produit www.whalenfurniture.com
ou transmettre une demande par courriel à [e-mail]
NUMÉRO DE LOT: DATE D’ACHAT: / /

2
IMPORTANT
Avant de débuter: ouvrir, identifier et faire le décompte de toutes les pièces avant le montage. Étendre les
pièces sur une surface lisse et non abrasive. Les pièces identifiées en pages 5 et 6 du présent guide seront
requises.
REMARQUE: IL EST TRÈS IMPORTANT D’UTILISER DE LA COLLE AVEC LES GOUJONS.
L’EXCÈS DE COLLE PEUT ÊTRE ESSUYÉ AVEC UN LINGE HUMIDE.
Insérer les goujons au moins à la moitié en les frappant légèrement avec un maillet en caoutchouc, AU BESOIN.
FONCTIONNEMENT DU SYSTÈME À CAME DISSIMULÉE
FONCTIONNEMENT DU SYSTÈME À CAME
1. Visser un boulon à came dans les petits trous déjà percés sur le panneau. Connecter les deux panneaux en
s’assurant que le boulon à came s’insère dans le trou déjà percé à l’extrémité du panneau avec la came.
2. Insérer une came dans le grand trou déjà percé sur le panneau. S’assurer que la flèche sur la came soit
orientée vers le boulon à came.
3. Une fois le boulon à came connecté dans la came, serrer la came dans le sens des aiguilles d’une montre
avec un tournevis à pointe cruciforme.
4. Ajouter le capuchon à came dans l’ouverture en croix des cames pour les dissimule.
L’unité est maintenant prête pour le montage.
1234
GLUE
XX
FINAL
1 2 43

3
FABRICANT: Whalen Furniture Manufacturing
CATALOGUE: Bureau Huntingdon
MODÈLE NO EC-HU48D
Comment ajuster les charnières européennes ajustables sur les portes
Le transport peut entraîner un désalignement des portes. Si vous estimez que les portes doivent être
légèrement ajustées, tournez la vis appropriée, comme illustré.
1. POUR AJUSTER LA PORTE VERS L’AVANT OU
L’ARRIÈRE.
2. POUR AJUSTER LA PORTE VERS LA DROITE OU
LA GAUCHE.
3. POUR AJUSTER LA PORTE VERS LE HAUT OU LE
BAS.
CH A R G E S MA X I M A L E S R E CO M MA ND É E S
CHARGE MAXIMALE 45,4 kg / 100 lb
CHARGE MAXIMALE 22,7 kg / 50 lb
3
CETTE UNITÉ DOIT ÊTRE UTILISÉE EN RESPECTANT LES POIDS
MAXIMAUX INDIQUÉS. L’UTILISATION DE L’UNITÉ AVEC UNE CHARGE SUPÉRIEURE
AUX POIDS MAXIMAUX INDIQUÉS PEUT CAUSER L’INSTABILITÉ, VOIRE MÊME DES
BLESSURES
.

4
TROUSSE ANTIBASCULE
LES JEUNES ENFANTS PEUVENT ÊTRE BLESSÉS PAR UN MEUBLE QUI TOMBE
ET LA TROUSSE ANTIBASCULE DOIT ÊTRE UTILISÉE POUR FIXER L'UNITÉ
AU MUR AFIN DE PRÉVENIR LES ACCIDENTS ET LES BLESSURES.
CE DISPOSITIF DOIT ÊTRE INSTALLÉ CORRECTEMENT (SUIVRE TOUTES LES
DIRECTIVES DANS L'ORDRE) AFIN D'OFFRIR UNE PROTECTION CONTRE LA
CHUTE INATTENDUE DU MEUBLE SUITE À UNE UTILISATION INADÉQUATE.
CE PRODUIT SERT DE DISSUASIF SEULEMENT ET NE REMPLACE PAR UNE
SUPERVISION ADULTE ADÉQUATE. L'UTILISATION DE LA TROUSSE
ANTIBASCULE NE PEUT QUE RÉDUIRE LE RISQUE DE CHUTE MAIS SANS
L'ÉLIMINER.
REMARQUE
Veuillez lire toutes les directives avant de procéder au montage. Examinez tout le matériel
d’emballage avant de jeter le carton. Retirez les agrafes de ce dernier avant de le jeter. Enlevez
toutes les pièces du carton et répartissez-les en groupes tel qu’indiqué sur la liste des pièces.
Assurez-vous que toutes les pièces ont été incluses avant de commencer le montage.
L’utilisation d’outils électriques n’est pas recommandée pour le montage.
Des enfants sont décédés à cause du basculement
du meuble. Pour réduire le risque de la chute du
meuble:
 TOUJOURS installer la quincaillerie antibasculement
fournie.
 NE JAMAIS mettre un téléviseur sur ce produit.
 NE JAMAIS laisser les enfants se tenir debout, grimper
ni s’accrocher sur les tiroirs, les portes ou les tablettes.
 NE JAMAIS ouvrir plus d’un tiroir à la fois.
 Placer les articles les plus lourds sur les tiroirs inférieurs.
L’utilisation des trousses antibascules peut
seulement réduire le risque de chute, sans
toutefois l’éliminer.
AVERTISSEMENT
